face to face used for sale

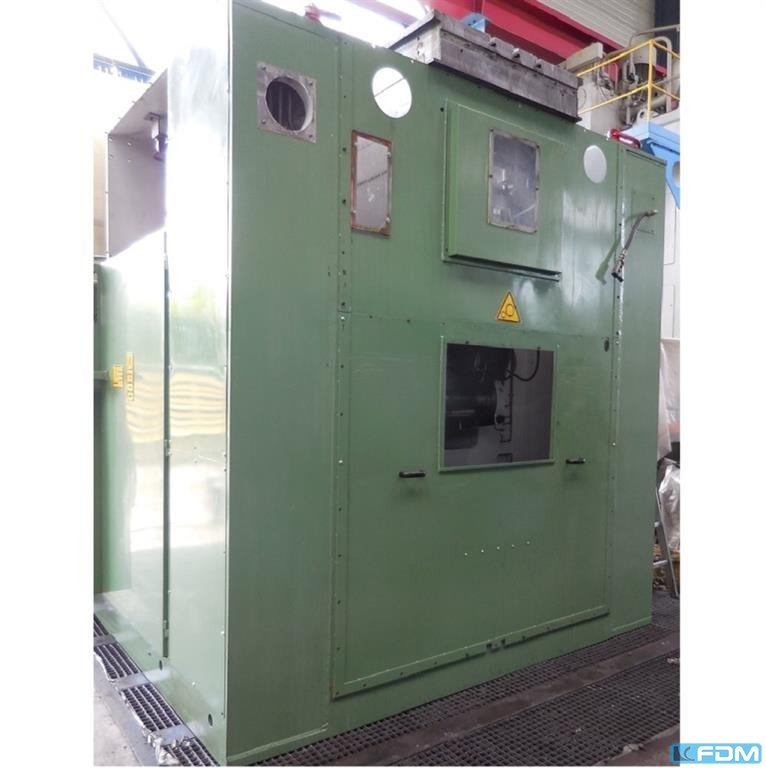

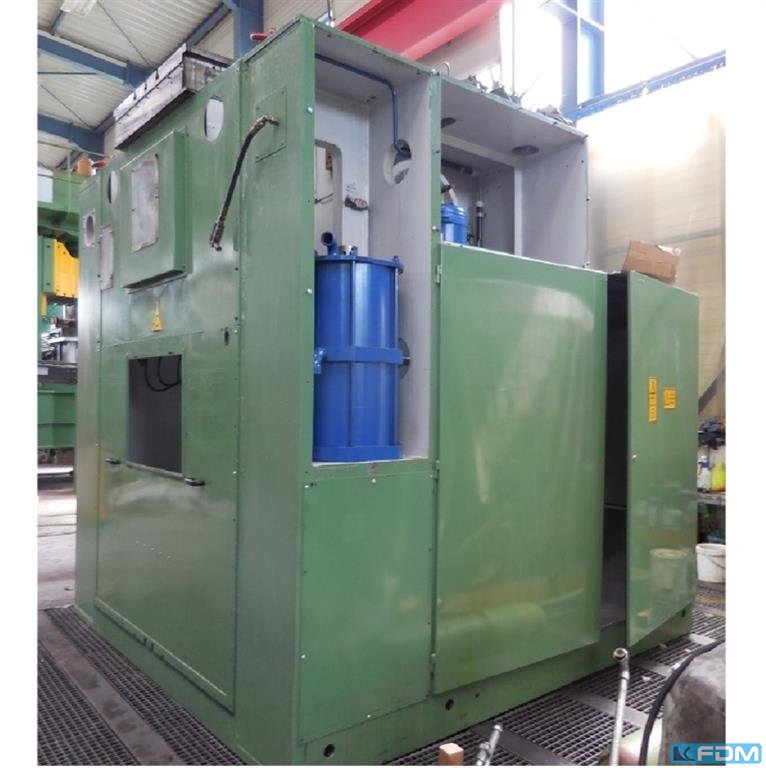

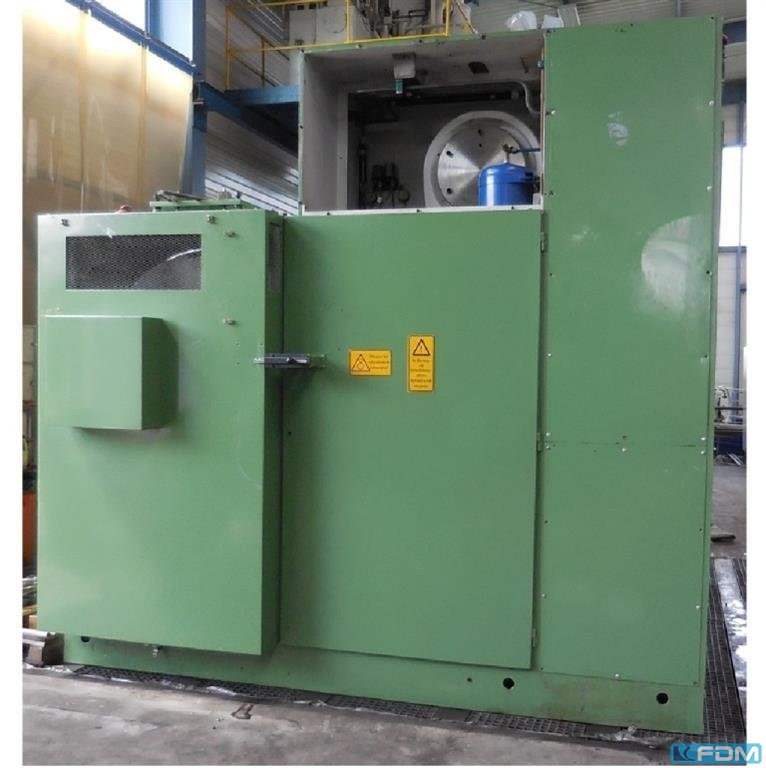

pressure:800 t distance between columns:1050 mm stroke:200 mm no. of strokes:8 - 25 /min distance table/ram, max. stroke up, adjustment up:1300 mm Side window:550 mm table surface area:1030 x 900 mm Capacity of ejector in table:15 t Stroke of ejector in table:85 mm ram surface:1040 x 800 mm ram adjustment:120 mm Capacity of ejector in ram:12 t ejector stroke in ram :80 mm power requirement:36,0 - 112,6 kW weight:65,0 t Dimensions (WxDxH):3,0 x 3,1 x 6,07 m ejector in table:hydraulic ejector in ram:hydraulic

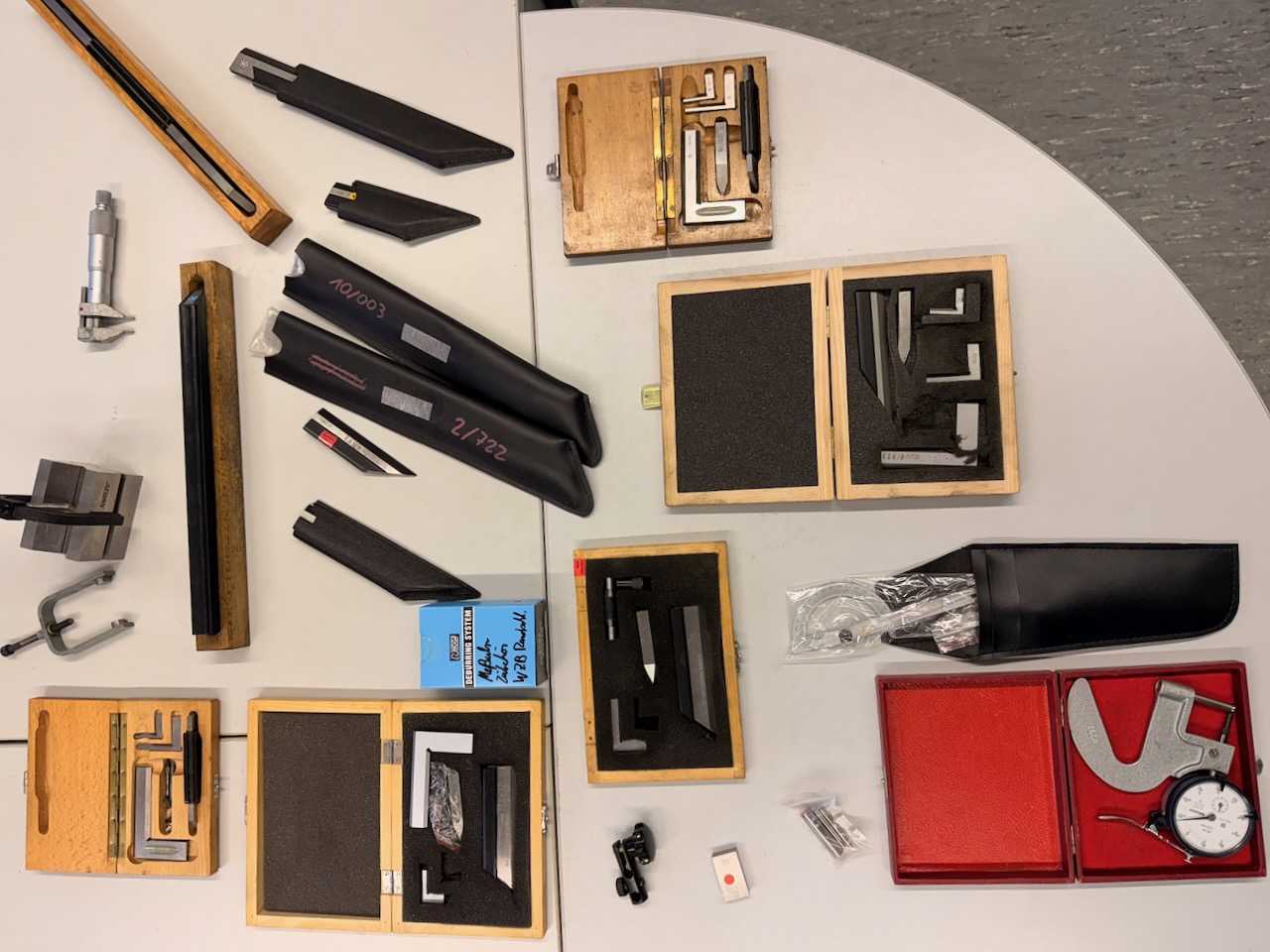

" Lot of precision and measuring tools – 22 pieces (workshop / metalworking) Lots of 22 high-quality precision, measuring and marking tools from workshop and industrial stock. The item includes various angles, gauges, measuring equipment and accessories, some of which are in original wooden or plastic boxes. • Various precision stop angles / hair angles in different sizes • Angle and scribing gauges, some in wooden boxes • Dial gauge with special bracket (0.01 mm reading, see pictures) • Micrometer / special measuring device • Various hair rulers • Tensioning and holding devices • Other precision small parts and accessories • Storage boxes (wood & plastic) "

CNC HORIZONTAL MACHINING CENTER Inv. No. 12.178MM Make TOYODA Model LINEAM III Control MELDAS M650 Year 2004 TABLE Pallet size 450 x 450 mm Max. load on pallet 400 kg Table indexing increment 0.001 degrees STROKE X-Axis stroke 630 mm Y-Axis stroke 630 mm Z-Axis stroke 700 mm Distance from spindle center to top of pallet 50 – 680 mm Distance spindle nose /center rotary index table 50 – 680 mm FEED RATE Rapid feed rate X,Y 120 m/min Rapid feed rate Z 60 m/min Rapid feed rate B 120 m/min Cutting feed rate X,Y,Z 0,1 – 60 m/min SPINDLE RPM spindle 300 – 20,000 min-1 Spindle taper HSK-A63 Coolant Through spindle ATC Tool holder Special HSK-A63 2 Face contact tool Tool magazine storage 40 pcs Tool change time 2.5 sec. DRIVE MOTOR Spindle drive motor Ac 45/30 kW MACHINE WEIGHT & POWER REQUIREMENTS Machine weight 15.000 kg Power requirement 96 kVA ACCESSORIES: Spindle linear mo ...

" System 3R EDM Tooling Set – Art. 3R-901-20E / 3R-90°-01 – Made in Sweden System 3R Clamping and Tool Holder Set for EDM Machines. The set is in mint condition and comes from stock. Scope of delivery (4 packs): • System 3R base plates / tension strips • Angle plate / clamping bracket • 3R clamping brackets / mounting elements • Set of 3R collets (in the magazine) • Screwdriver / assembly tool • Accessories and fasteners 1. System 3R base plate / tension strip Manufacturer: System 3R Type / Item no.: 3R-901-20E Condition: as good as new (stock) Description: System 3R clamping strip / base plate for the System-3R EDM clamping system. Precision component for holding and positioning electrode holders or workpiece holders on EDM machines. Origin: Made in Sweden Scope of delivery: Base plate according to the picture. 2. System 3R Angle Plate 90° Manufacturer: System 3R T ...

4x 1028991 SKF 8x 1204K/C3 SKF 6x 2205K SKF 24x 2300 SKF 6x 3311N SKF 2x ASNA612V SKF 4x CR70X95X10HMS4V SKF 1x FYKC35NTR/VE495 SKF 1x KRVE72PPA SKF 1x N313MB SKF 1x NU220ECMA/C3 SKF 2x OS43860 SKF 27x ZW12X17 SKF 5x 21311-E1-K-TVPB-C3 FAG 16x 546114A FAG 4x 803138.H83 FAG 1x DH506 FAG 1x NJ226E. M1. F1795124 FAG 8x RNAO50X62X20ASR1 FAG 2x 121 INA 11x F-23615 INA 28x F-45948 INA 1x GG. CJ03 INA 29x IR45X52X23-IS1 INA 1x RNA6903-H-XL INA 1x RNA6903 INA 2x N310 NTN 2x NU406C3 NTN 1x PF208 NTN 5x RNA-NA6908R NTN 5x T211D1 NTN 5x 7218H G1 U J74 SNR 1x 1318 NSK 2x L44649R/610RNES4C NSK 2x 21308K C3 RHP 1x 7019X3 TA UM EP7 RHP 36x ACS0506-2FY Koyo 1x RNA4822 Koyo 49x SBPFL201 Koyo 1x 22208KCJW33 Torrington 2x NJ2204ET Torrington 1x NK70/35ASR1 Torrington 5x NUTR45 Torrington 8x 306806C.2Z NKE 4x NKIS20 NKE and more

" CNC tool grinding machine SAACKE UWIA-CNC – Sinumerik 810 CNC universal tool grinding machine SAACKE type UWIA-CNC with Siemens Sinumerik 810 control including extensive accessory package, extraction system and cooling water treatment. The machine is suitable for grinding shape milling cutters, roller milling cutters, disc milling cutters, end mills, hobbing cutters, reamers, cutter heads, countersinks and taps up to Ø 200 mm . Age-appropriate optical condition. Functional. Viewing under power possible by appointment.>br Working area • Center height: 150 mm • Grinding length: 300 mm • Usable table area: 710 x 120 mm • Motorized table stroke: 300 mm • Table speed: 0.005 – 5 m/min axes • Transverse stroke Z-axis: 200 mm • Height stroke Y-axis: 200 mm • Swivel vertically: 360° • Swivel horizontally: 210° Grinding spindle • Ø 60 mm • 4 speeds: 2100 / 3000 ...

Serial number: 4432 Operating voltage: 380 V Frequency: 50 Hz Rated current: 13 A Speed: from 40 to 2000 rpm Tool holder: SK 40 Feed range infinitely adjustable: 5 - 500 mm/min Creep traverse: 4 mm/min Rapid traverse: 1200 mm/min Table Longitudinal movement: 300 mm Spindle block Transverse movement by hand: 160 mm Support Vertical movement motorized: 280 mm by hand: 290 mm without protective bar: 330/340 mm Vertical milling head on spindle block can be moved by hand: 100 mm Table dimensions: 600 x 210 mm with 4 grooves and an attached vice, jaw width: 160 mm

TOS chucks in various sizes, all technically functional and with usual signs of use. Ideal for cylindrical grinding machines, tool grinding machines, dividing heads or precise small lathes. Models: TOS IU 160 M1, Ø 160 mm, max. 3500 min⁻¹ TOS IU 100 M1, Ø 100 mm, max. 5300 min⁻¹ TOS 80/3-2-M1, Ø 80 mm, max. 6000 min⁻¹ Scope of delivery: 3× Chuck TOS Attachment Jaws / Interchangeable Jaws (several sets) 2× Tension wrench , fastening screws and T-nuts Condition: used, clean running, low wear     TOS IU 160 M1, Ø 160 mm, max. 3500 min⁻¹ TOS IU 100 M1, Ø 100 mm, max. 5300 min⁻¹ TOS 80/3-2-M1, Ø 80 mm, max. 6000 min⁻¹   Total weight: approx. 14.36 kg

Universal Tool Milling Machine Manufacturer: AVIA S.A., Poland Type / Model: FNE 40 P Year of Make: 2013 Serial Number: 90567 Accessories / Scope of Delivery • Machine Vise • Tool Holders SK40 • Various Milling Tools and Clamping Devices • Documentation / Documents   Dimensions (L × W × H): approx. 195 × 220 × 220 cm Weight: approx. 1,900 kg Table / clamping surface: • Clamping surface: approx. 800 × 400 mm • T-slot table • Max. table load: approx. 400 kg Travel paths / machining range: • X-axis: approx. 620 mm • Y-axis: approx. 420 mm • Z-axis: approx. 400 mm Spindle: • Spindle holder: SK 40 (DIN 69871) • Max. spindle speed: 4,000 rpm • Speed range: approx. 50 – 4,000 rpm, infinitely variable • Max. tool diameter: 125 mm • Max. tool weight: 6 kg Feeds: • Stepless feeds in X / Y / Z • Working feed up to approx. 2,000 mm/min • Rapi ...

1x 1308EKTN9/C3 SKF 5x 2720/QCL7C SKF 9x ASNA510V SKF 10x GLY. PG657030A SKF 9x LUCE16-2LS SKF 1x PCM202315M SKF 1x SY1.3/16TF SKF 1x TSN608C SKF 1x U207 SKF 3x 51316 FAG 1x F-50463 INA 1x G18X26X4 INA 1x NKI9/16TN INA 3x M-ASPF207 NTN 2x 1308K J30 SNR 6x MB0 SNR 1x SC232-532EC SNR 1x UCFE205 SNR 1x 1313KJ NSK 19x SAS20CLZ NSK 310x BAM2416OH IKO 103x BAM2816OH IKO 2x BR324120UU IKO 4x LWL15C2R440CST1H/LR IKO 48x ZE3260LWE25Q IKO 44x 90311-52006 Koyo 30x NI2091 Koyo 60x T01264 Koyo 4x JR12X16X13 Torrington 25x NU303E. TVP. C3 NKE and more
