face lathe used for sale

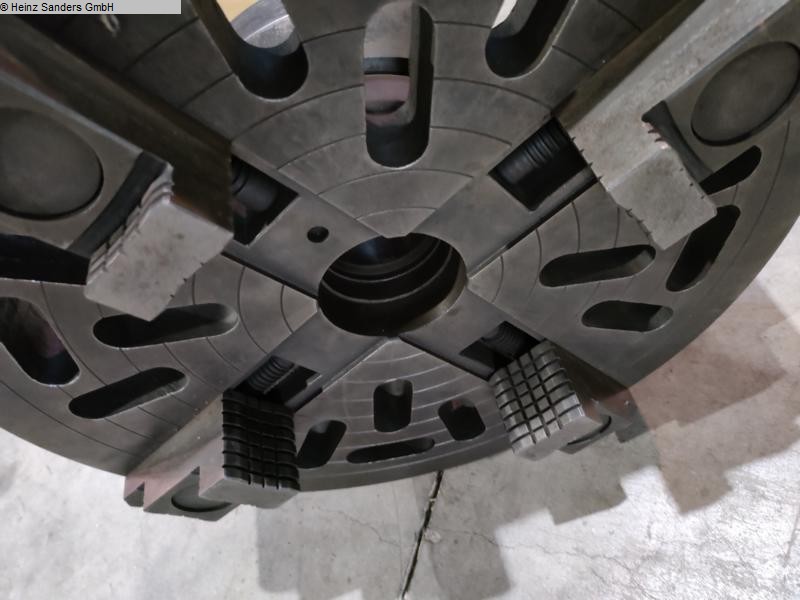

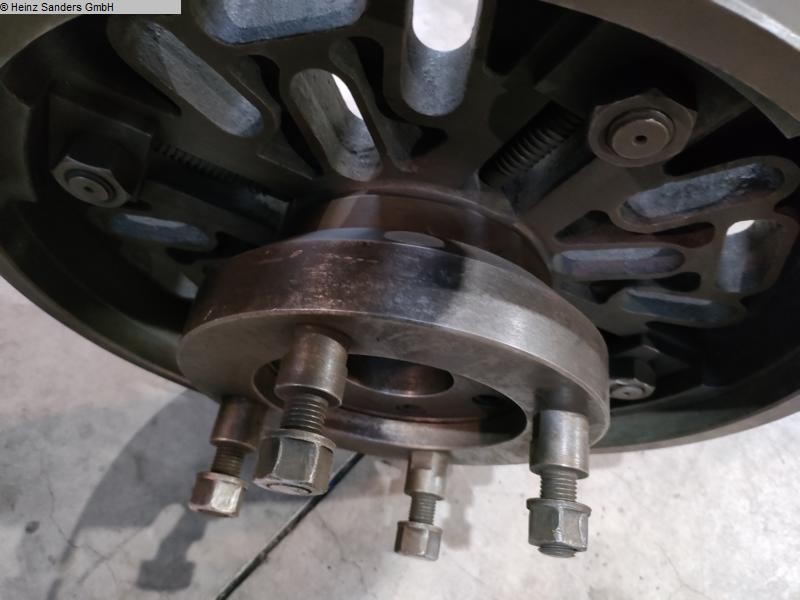

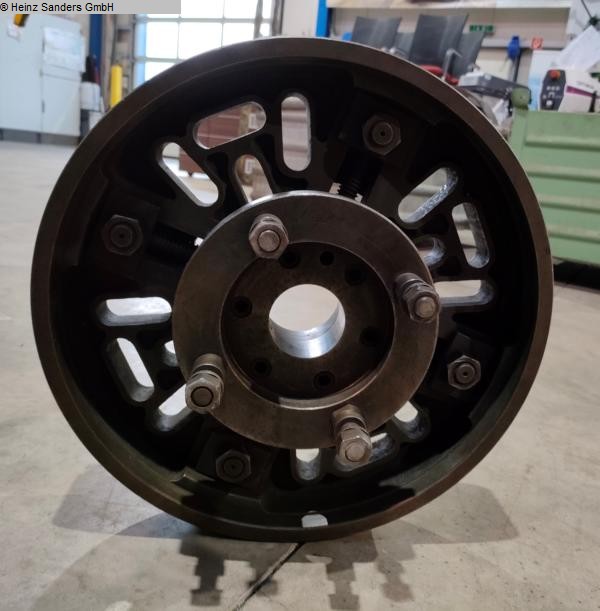

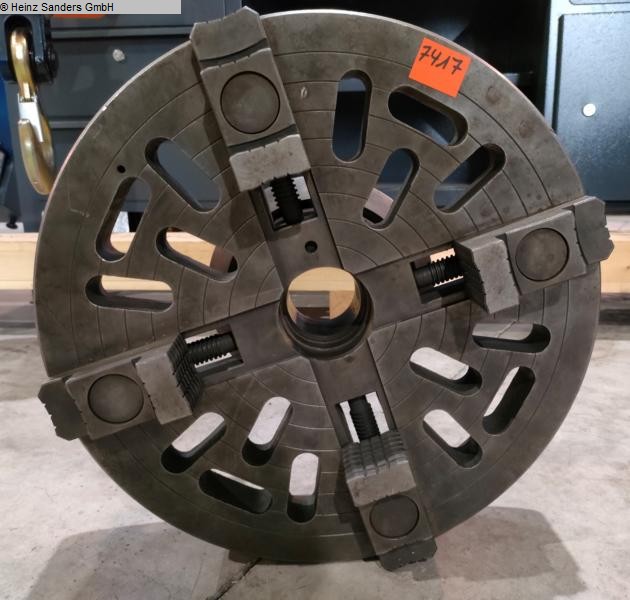

Face plate PAGUS outer Ø: 400 mm bolt circle Ø : 135 mm bore Ø: 100 mm jaw height: 100 mm used, tested ! Dimensions: 400 x 400 x 210 mm

Face Plate MEBIS P315 x 5 ( P315x5 ) Outer Ø: 315 mm Bore Ø: 80 mm Bolt Circle: Ø: 105 mm Height with Jaws: 120 mm 4 Jaws New ! max 710 rpm Dimensions: 315 x 315 x 120 mm

Face plate Pagus Outer Ø: 900 mm Bolt circle Ø : 235 mm Bore Ø: 150 mm Flange Ø: 300 mm used ! Dimensions: 900 x 900 x 300 mm

Face plate Pagus Outer Ø: 700 mm Bolt circle Ø : 150 mm Bore Ø: 95 mm flange Ø: 195 mm used ! Dimensions: 700 x 700 x 113 mm

Precision face and boring chuck WMW A 100 - 4 ( A100-4 ) TGL 32680 ( TGL32680 ) Dimensions: 210 x 100 x 85 mm

Face plate PAGUS Outer Ø: 305 mm Bolt circle Ø : 280 mm Bolt circle flange Ø : 135 mm Bore Ø: 35 mm Thickness: 50 mm Grooves: 14 / 24 mm Dimensions: 305 x 305 x 50 mm

Face plate PAGUS Outer Ø: 400 mm Bolt circle: 135 mm Bore Ø: 100 mm Height with jaws: 140 mm Flange: 175 mm Overall height: 190 mm Short cone used, tested ! Dimensions: 400 x 200 mm

Face Plate PAGUS Outer Ø: 265 mm Hole Center Ø: 20 mm Threaded 2 Hole Ø 12 mm all other holes with M 8 thread Thickness: 26 mm Groove: 110 / 4 mm Dimensions: 265 x 265 x 26 mm

Face plate PAGUS outer Ø: 360 mm bore center Ø: 20 mm threaded flange: Ø 250 mm bolt circle inside: Ø 135 mm bolt circle outside: Ø 225 mm bore M8 / M12 and 4 x Ø 12 mm Thickness with flange: 55 mm Dimensions: 360 x 360 x 55 mm

Face plate ROTO RECORD PLV 500x8 TGL 30-22313 Outer Ø: 500 mm Bolt circle Ø : 170 mm Bore Ø: 135 mm n max: 560 rpm Dimensions: 500 x 500 x 165 mm

Face plate PAGUS Outer Ø: 305 mm Bolt circle Ø : 280 mm Bolt circle flange Ø : 52 / 135 mm Bore Ø: 25 mm Thickness: 38 mm Grooves: 10 / 18 mm can be combined with WZ239 ! Dimensions: 305 x 305 x 38 mm

Face Plate STANKO 7103-0049 Outer Ø: 400 mm Bolt Circle Ø : 135 mm Bore Ø: 100 mm New ! preserved ! Dimensions: 400 x 400 x 165 mm

Face plate PAGUS Outer Ø: 630 mm Bolt circle Ø : 170 mm Bore Ø: 135 mm preserved ! Dimensions: 630 x 630 x 185 mm

Face Plate ROTO RECORD PL 315x6 TGL 30-22313 Outer Ø: 315 mm Bolt Circle Ø : 133.5 mm Bore Ø: 100 mm n max: 710 rpm New ! preserved ! Dimensions: 315 x 315 x 125 mm

Face Plate PAGUS Outer Ø: 295 mm Bolt Circle Ø : 104 mm Bore Ø: 60 mm n max: 600 rpm grooves. 14 / 24 mm Dimensions: 295 x 295 x 40 mm

Face plate ROTO RECORD outer Ø: 500 mm bolt circle Ø : 170 mm bore Ø: 135 mm with screws for groove ! Dimensions: 500 x 500 x 165 mm

Face and boring head NAREX Vhu 80 ( Vhu80 ) holder: SK50 in wooden case used, tested ! Dimensions: 420 x 410 x 155 mm

Key data: 400 mm

Face Plate Cast Steel Diameter 400 mm Outlet / inner diameter 100 mm 4 individually adjustable jaws Holder short cone DIN55022 size 6 Cone diameter 106 mm Bolt circle of the 4 fastening screws 133.4 mm Height approx. 100 mm Jaw height 58 mm Screw size M12 Weight approx. 69 kg

Clamping jaws, jaw boxes for face plate type 1516

Key data: 800 mm

Face Plate Used 800 mm

Manufacturer: Kennametal Diameter: 500 mm Number of teeth: 62 Available quantity: 2 pcs.

4 pieces of adjustable jaws INGERSOLL for face plateChuck jaws for lathe chuck, mechanical clamping device, clamping blockNo: 39.02.10000 / 501.397Jaw width 70 mmJaw length 180 mmJaw carrier height 150 mmBase plate 325 x 265 mm- Step jaws for turning as rotary and drilling jaws- Jaw adjustment via trapezoidal threaded spindle- Jaw support with 6 recesses 40 x 30 mm for fastening- Distance between recesses 280 x 133 and 220 x 90 mm (center)Dimensions L x W x H 325 x 265 x 215 mmWeight per jaw 36.5

faceplate diameter: 500 mm total power requirement: 0 kW weight of the machine ca.: t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

faceplate diameter: 400 mm Bore diameter: 125 mm weight: 70 kg Dimensions (LxWxH): 580 x 580 x 230 mm Unused 4-jaw faceplate with individually adjustable jaws. Size 8 / DIN 55029 (Camlock), max. speed 800 rpm. The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Key data: 500 mm

Lambertini Face Plate 500 mm

Universal face and boring head LENZ type LPA 1SSpindle tool, spindle head similar to WOHLHAUPTER UPA3Tool holder: SK 40 - M16Adjustment accuracy: 0.01 mm- Accessories as shown- Storage boxWeight: approx. 5 kggood condition; used

Key data: 700 mm

4-jaw face plate - Ø 700 mm - Material: Cast iron - Damage to a threaded head, function given - Diameter: 700 mm - Through-hole: 125 mm - Body width: 110 mm - Total width: 155 mm

Four-jaw chuck, four-jaw lathe chuck, 4 jaw chuck, faceplate, faceplate chuck, facing lathe chuck -Manufacturer: SAN OU, K72 series four-jaw faceplate chuck type D Ø 300 mm -Passage: Ø 95 mm -Bolt circle: Ø 135 mm -Mounting: Mounting: Short taper 6 / cone 103 - 106 mm short taper flange with Camlock fastening -Dimensions: Ø300 x 190 mm -Weight: 40 kg

Milling holder, boring head, spindle head, drilling head, grooving drilling head, grooving head, spindle drilling head, boring head, universal drilling head, boring tool, facing head, facing and boring heads -Manufacturer: ER MEX CH, milling holders face and boring head MK4 -Type: D-210 -Dimensions: Ø 96 x 385 mm -Weight: 8.3 kg

End-side driver, end-side driver, end-side driver, driver tip, end-side driver, end-side driver -Manufacturer: Lenze ABW, end face drive (2 pieces) -Type: RD4 / MS4 -Forehead dimension: Ø 40 mm / Ø 45 mm -Recording: MK4 -Price/Fee: complete -Transport dimensions: 173/112/H60 mm -Total weight: 2.4 kg

Diameter 400 mm to 800 mm

5 pallets of face protection/hygiene protection, 2400 pieces in total, per box: 400 pieces Auction-ID: A7-45677-160

L + Z lathe HOLZMANN type ED 914GNMasch. No. 20265 Year of construction 2006Center width 800 mmTurning diameter over bed 300 mmCenter height over bed 150 mmTurning diameter over support 190 mmCenter height over support 95 mmSpindle bore 38 mmSpindle speed 70 - 1400 rpm. 9 stepsFeed longitudinal and flatChuck flange Short taper DIN 55029 D1-4 Camlock 63 mmTailstock inner taper MK 3Drive power 1.5 kWNet connection 400 volts, 50 Hz- Spindle speed over 9 gear stages - 4-jaws

Technical data: Completely overhauled in 2001 Circulation diameter over bed: 1000 mm Diameter in recess: 1120 mm Circulation diameter over bed slide: 690 mm max. height above floor: 1110 mm max. height above bed: 460 mm Bed width: 800 mm Width of recess in front of the plan disc: 550 mm

Tip height: 330 mm centre distance: 1500 mm circular diameter: bed 690 mm spindle bore: 82 mm spindle retainer: short taper size 8 taper tailstock: 6 MK spindle speed: 7.1-1400 rpm feeds: longitudinal/plan 0.05 112/0.025 56 mm / U thread pitches: 0.25-560 mm electrical connection: 380 V, 15 kW space: 3350 x 1800 x 1400 mm weight: 4800 kg

Tip height: about quilt 300 mm centre distance: 1500 mm circular diameter: upper bed 640 mm spindle bore: 67 mm spindle retainer: Gr. 8 taper tailstock: 5 MK spindle speed: 18 - 900 rpm feeds: longitudinal/plan 0.063 0.032 2.1 mm / U thread pitches: 0.5-14 mm electrical connection: 380 V, approx. 7.5 kW space: 1550 x 3100 x 1250 mm weight: approx. 3500 kg hardly used and therefore well-preserved bed lathe

Made in Italy machine according to DIN 8606 Tip height: 260 mm Turning diameter over bed: 520 mm Swing over carriage: 300 mm Centre distance: 1500 mm Bed width: 400 mm Spindle bore: 82 mm Spindle nose: Camlock 8 " Spindle speeds: (24) 9-1600 rpm (option 11-2000 U/min) Engine output: 5.5 kW (option: 7.5 kW) feed Z-axis: (93) 0.028 6.43 mm / Rev Feed x axis: (93) 0.012 2.73 mm / Rev Thread, metric: (54) 0.5-224 mm Thread, Witworth: (55) 72 - 1/8 TPI Thread, module: (54) 0.5-112 mm Thread, Diametral Pitch: (54) 64 - 1/4 D.P.. Cross slide Lxw: 650 x 230 mm Transversal carriage stroke: 340 mm Upper carriage Lxw: 350 x 150 mm Upper carriage stroke: 150 mm Tailstock Quill diameter: 85 mm Tailstock Quill stroke: 200 mm Tailstock taper: MK 5 Weight: 3,100 kg Facilities: -Movement of the tailstock pneumatically supported -Acceptance Protocol according to DIN 8605, ...

Made in Italy machine according to DIN 8605: lathe with increased accuracy. Tip height: 215 mm Turning diameter over bed: 430 mm Swing over carriage: 240 mm Top width: 1,000 mm Bed width: 290 mm Spindle bore: 52 mm Spindle nose: Camlock 6 " Spindle speeds variable: 6 Spindle speeds: 60-2,000 rpm S6/S1 engine power: 4 kW (option: 5.5 kW) feed Z-axis: (38) 0.05 - 1.88 mm / Rev Feed x axis: (38) 0.02 1,084 mm / Rev Thread cutting, metric: (30) 0.45-20 mm Thread cutting, Witworth: (35) 80-1 3/4 TPI Thread cutting, module: (25) 0.25-10 mm Thread cutting, Diametral Pitch: (30) 160-3 1/2 D.P.. Cross slide Lxw: 370 x 190 mm Transversal carriage stroke: 240 mm Upper carriage Lxw: 275 x 115 mm Upper carriage stroke: 120 mm Tailstock Quill diameter: 60 mm Tailstock Quill stroke: 135 mm Tailstock taper: MK 4 Weight: approx. 2,000 kg Facilities: -Infinitely variable  ...

Made in Italy Peak: 300 mm Rotary diameter over bed: 600 mm Rotary diameter via sled: 380 mm Peak: 1,500 mm Bed width: 400 mm Spindle bore: 82 mm Spindle nose: Camlock 8 " Spindle speeds: (12) 16-1200 U/min Engine power: 9.2 kW (special equipment/standard: 7.5 kW) Reprimor Z-axis: (93) 0.028-6.43 mm/U Feed X-axis: (93) 0.012-2.73 mm/U Thread, metric: (54) 0.5-224 mm Threads, Witworth: (55) 72-1/4 x8 TPI Thread, module: (54) 0.5-112 mm Threads, Diametral Pitch: (54) 64 -1/4 D.P. Crossleigh hub: 340 mm Oberslitten hub: 150 mm Riding stock pinol diameter: 85 mm Riding stove pinol stroke: 200 mm Ridstock cone: MK 5 Weight: About 3,200 kg Facilities: -3-axis digital display -Step-by-step speed adjustment -Automatic lubrication of the management railways -LED lighting -Micrometer bed strike -9.2 kW engine instead of 7.5 kW -Quick change holder system mul ...

Tip width: 700 mm Tip height: 150 mm Circulation diameter over bed: 300 mm Bed width: 180 mm Spindle bore: 38 mm Mounting in the spindle bore: MK 5 Speed range, infinitely variable: 30 - 450 / 150 - 3000 rpm Range of longitudinal feeds: (14) 0.07 - 0.65 mm/U Area of plan feeds: (11) 0.03 - 0.12 mm/U Metric threads: (18) 0.2 - 3.5 mm Inch Thread: (21) 8 - 56 Gg/1" Pinole path: 85 mm Pinole holder: MK 3 Engine power S1 100%: 1.5 kW / 400 V Motor recording power S6 40%: 2.2 kW / 400 V Machine dimensions (W x D x H): 1380 x 640 x 500 mm Weight approx.: 235 kg without base Delivery: - Digital display - 3-jaw chuck PO3-160 mm steel version - Feed flange 160 mm - Solid grain tips - Interchangeable wheels - Quick-release steel holder size 20-2 with 2 straight inserts - Slip clutch - Micrometer longitudinal stop - Plan sled with top support - Frequency inverter ...

1 x L+Z lathe Colchester Mascot 1600/600 Built: c.1975 Very stable lathe. Ideal machine for locksmiths or agricultural machine mechanics. Technical data: Turning diameter over crimson: 710 mm Turning diameter over bed:432 mm Turning diameter via support:267 mm Turning length: 1,000 mm Spindle speeds:20 - 1600 rpm Spindle bore:76 mm Drive motor:5.6 kW Feeds: 0.6 - 10 mm/u Metric threads: 40 (0.4 - 14 mm incline) Machine weight approx.:2000 kg Room requirements approx.:l:2.65 x w:1.1 x h:1.6 m Accessories: 3 - Jaw lining UVA 310 mm 4 Set of change jaws Bfraed8ae0 Tripan quick-change system 4 x Interchangeable holder running counter tip in tailstock (MK 5) Countertip in spindle Alternating wheels Manual Mudguard complete documentation The machine can be inspected at our warehouse in Reichenbach under electricity.

Precision lathe with cycle automatic Make: Hamlet Model: E 70 x 2000 Year of construction: 1997 For food and feed shaft machining Technical data: Workspace Turning length: 2000 mm Swing over bed: 720 mm Swing over cross slide plan: 430 mm Displacement of the plan slide: 410 mm Bed width: 480 mm 3prpek3uq Spindle nose ACC. to DIN 55027: size 11 Spindle diameter in front bearing: 150 mm Spindle bore: 106 mm Inside taper of the main spindle: 112 metric Control: Siemens 805 Spindle gearbox newly stored according to the manufacturer ca. 2.500 EUR

Stepless guide and pull spindle lathe TC 250 V Peak height: 250 mm Circulation diameter via slide: 350 mm Orbital diameter in the croation: 695 mm Tip width: 1500 mm Spindle nose: DIN 55029, Camlock, size 6 Bed width: 305 mm Cross slide path: 272 mm Upper slide path: 155 mm Spindle bore: 80 mm Speed range, infinitely variable: (3) 30 - 2200 rpm Whitworth Thread: (45) 2 - 72 TPI Metric Thread: (39) 0.2 - 14 mm Diametral Thread: (21) 8 - 44 D.P.I Module Thread: (18) 0.3 - 3.5 module Longitudinal feeds: 0.04 - 1.00 mm/U Flat feeds: 0.02 - 0.50 mm/U Engine power: 5.5 kW Dimensions LxWxH, approx.: 2900 x 1175 x 2040 mm Weight, approx.: 2,200 kg characteristics: - Toolmaker accuracy - Stepless speed control (3 pre-level steps) - Finely-balanced main spindle - Stable machine bed with hardened and ground guides - One-piece cast base - Adjustable precision cone roll ...

Machine details Stock number 1105-03330 Machine type guide and pull spindle lathe Make ERNAULT-SOMUA Type Cholet 550 Year of construction 1990 Control type conventional Storage location FRANCE Country of origin France Delivery time immediately Freight base EX WORK price Technical details Turning diameter over bed 550 mm Turning diameter via support 500 mm Turning length 1100 mm Tip height 250 mm Spindle bore 52 mm Inner cone 136 Spindle speeds 32-1800 rpm Feeds - bed slide / lengthwise 0.05-07 mm/w Feeds flat slide 0.033-0.45 mm/min Total power requirement 13 kW Weight of the machine ca. 2,3 t Space requirement approx. 2870 x 940 x 1400 m Information accessories: PARAT steel holder 4 STUCK 3 bake lining dia 250mm 2 AXIS DIGITAL

Maximum diameter to turn on the bench 2,110 mm Maximum diameter to turn on trolley 1,600 mm Maximum distance between platforms 12,830 mm Spindle hole diameter 155 mm Cone on spindle no. 120 metric Cone on spindle (with reduction) no. 6 clamps Cone on the counterpoint (6-bit reduction) no. 120 metrics Maximum stroke of the counterpoint 400 mm DSeed from the tool support plane to the axis of the 80 mm centers Main engine power 100 HP Spindle speed from 0.9 to 90 rpm with continuous variation Longitudinal feed no. 36: 0.2 to 12.8 Transverse advances No. 36: 0.1 to 6.6 Metric fillets #26: 1 to 42 Whitwoth fillets #17: 0.5 to 11 Quick forwards Maximum permissible load on the tips 50-60 ton Refrigerant liquid system

Peak height 2,600 mm Point distance 10,000 mm Closed bench 2,000x6,000 mm To be completed with CNC

Height tips 220 mm Useful length 1,000 mm 42 mm bar pass

Equipped with no. 03 guides Overhauled with: guide grinding, CN conversion, new electrical and hydraulic system, hydraulic self-centering installation, shaving conveyor; CN Fagor 8055 Numerical Control – BT Maximum turnerable diameter 1800 mm 3-grife hydraulic self-centering with a diameter of 1450 mm with tightening force 30 Ton with 30 bar clamp L max turnerable 3000 mm Spindle engine power 110 Kw Maximum rotation speed 180 rpm Fast value axles 4000 mm/min M3/M4 Spindle Rotation Inversion Possibility 4 speed ranges Hydraulic counterpoint Maximum capacity of workpiece on counterpoint 12500 Kg It is currently possible to work details of up to 3000 mm length but the extension pallet is available to be able to work details up to 8 m in length. (un revised); Machine installed and working
