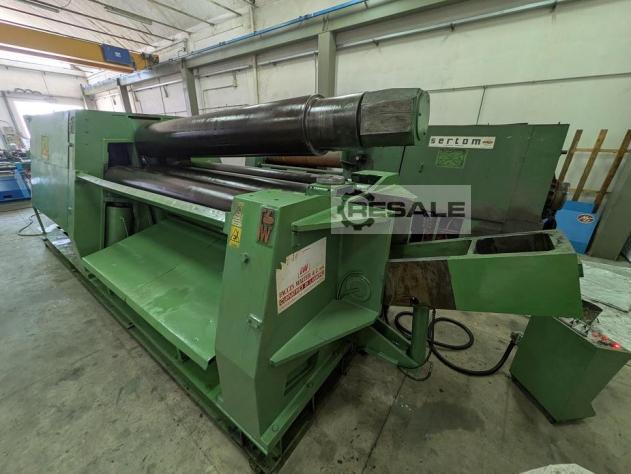

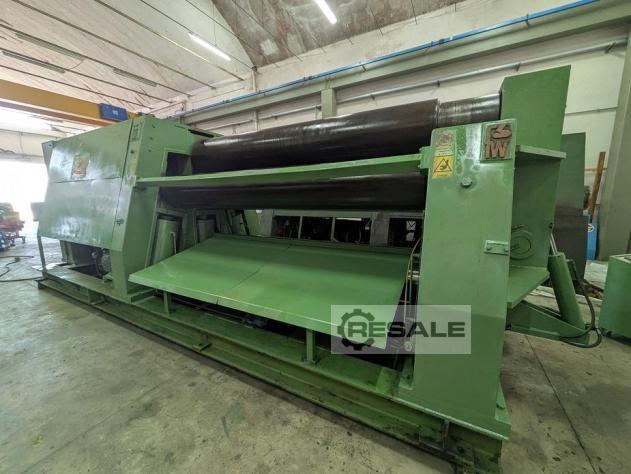

PLATE BENDING MACHINE FACCIN - 4 ROLL HYDRAULIC 3000 X 40 MM -
MODEL 4HCI3-35/30 YEAR 1990
PLATE BENDING ROLL LINEAR GUIDEWAYS DOUBLE INITIAL PINCH
Machine used in good working condition
Bending capacity
-Plate width : 3000 mm
-Rolling plate thickness 40 mm

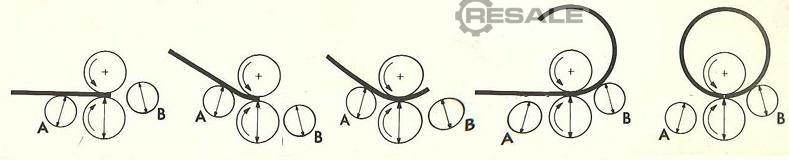

- Prebend thickness 35 mm
Rolls dimensions: -Useful length 3050 mm
-central rolls
upper/lower D 470 mm
-side rolls left/right D 420 mm
• Hardening of the 4 rolls high strength surface
• 3 rolls driven hydraulic powered on gear unit
• Conical bending attachment side rolls tiltable to form cones,
contrast pad roller type.
• Opening of top roll hydraulic drop-end to unload the plate fully
round closed.
• Variable speed working roll bending rotation hydraulic speed
fast/slow.

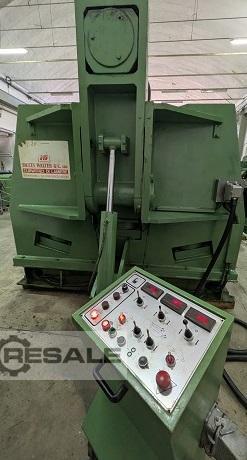

• Console electric on wheels with centralized commands joysticks
and digital readout 3 axis.
• Digital readouts of the rolls position for bending and pre-bending
works repeatability.
• Hydraulic tank capacity oil 350 liters – power electric 37 Kw
voltage 3-phase 380 /50
• Dimension 7700 x2410 x H 2470 mm - weight 43000kgs
Italy
