Belt grinding station, support table with T-slot, Sanding belt width 100 mm, Sanding disc D 300 mm, with support table 350 x 140 mm, Suction connection available. Motor power: 0.9/ 1.3 kW 400 V/ 50 Hz 1450/ 2900 rpm Connection cable with CEE plug 16 A Machine dimensions: H 1450 x D 410 x W 900 mm Weight approx. 200 kg Transport vertical, bolted to EURO pallet.
Long belt sanding machine, veneer sanding machine, Specifications: Table width 2800 mm Grinding width 2500 mm Table depth approx. 2000 mm Sanding belt length 9500 mm Pressure lamellar belt length 10 mm x 7750 mm Sanding belt dimensions 150 mm x 9500 mm Belt speed 25 + 12.5 m/s Suitable for intermediate paint sanding Workpiece height 6 - 220 mm Grinding engine power 24 kW Total power 27 kW Machine dimensions approx. L 5000 x W 2300 x H 2400 mm Space requirement of the machine in width is 3500 mm Machine weight 2600 kg TOP condition, technical documentation, sanding belt.
Technical data of the used Equiptop ESG-1228ASD Tangential Rectification: Magnetic plane: 712 x 330 mm Automatic working stroke: 760 mm (manual 830 mm) Grinding wheel diameter: 355 mm Grinding wheel thickness: 50 mm Engine: 7 1/2 hP Automatic diamond maker Increased working height CE certified; Year: 2000 Machine in excellent condition, CE certified.

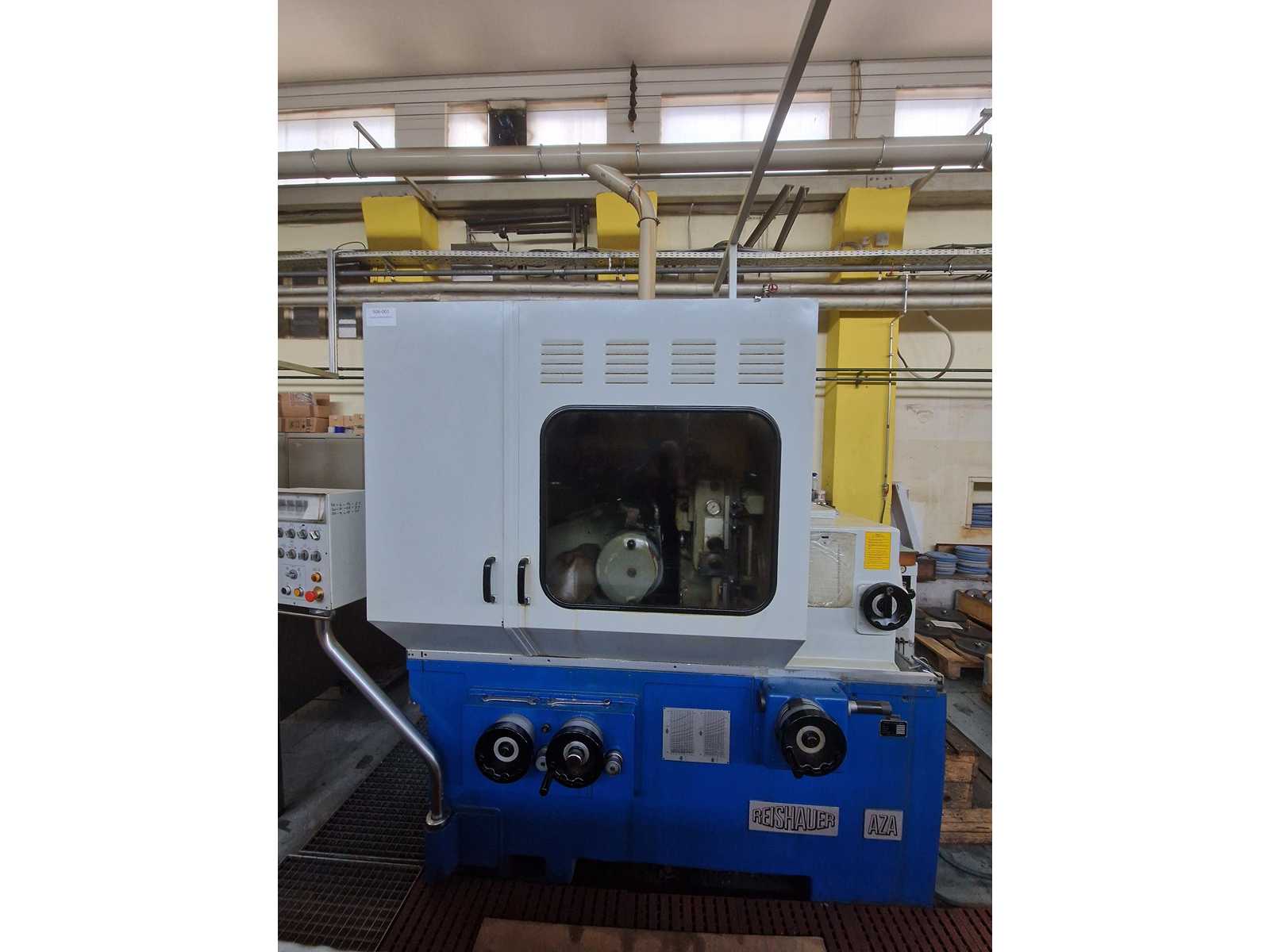

General Description Conventional precision gear grinding machine manufactured by Reishauer AG , model AZA . Designed for generating grinding of external spur and helical gears using a grinding worm. Suitable for precision gear production and finishing applications. Technical Details Manufacturer: Reishauer AG Model: AZA Machine type: Gear grinding machine Year: 1979 Serial number: 51300-6 Delivery date: 29.05.1979 Control: Conventional Maximum gear diameter: 330 mm Module range: 0.5–6 Number of teeth: 12–260 Maximum helix angle: 45° Maximum table load: 60 kg Feed range: 0.4–3.2 mm/WU Grinding worm widths: 62 / 84 / 104 mm Grinding wheel diameter: 270–350 mm Grinding wheel width: 180 mm Spindle speed: 1,900 rpm Clamping length: 145–420 mm Power supply: 380 V, 50 Hz Total power requirement: 30 kW Included Equipment Set of change gears Machine docume ...
Cross belt grinding machine Ashton AIS / XDIA Model AIS/3350 / XDIA S/N XP 20100082 (by Glasmek AB Sweden, renovated in 2005) Manufacture: Ashton Industrial Sales LTD / UK Year of manufacture approx. 2000 Professional high-performance glass grinding machine 2x diamond bracelet transverse straps High-speed abrasives and diamond abrasives 400 V , 50 Hz Ball roller tables for easy movement of the glass panes. Table dimensions: L x W x H = 3.85m x 1.20m x 0.9m Weight 600 kg CE marked
General Description Precision industrial gear grinding machine manufactured by NILES , model ZSTZ 315/630 C2 . Designed for precision grinding and finishing of spur and helical gears for industrial transmission, gearbox and mechanical engineering applications. Technical Details Manufacturer: NILES Model: ZSTZ 315/630 C2 Machine type: Gear grinding machine Year: 1981 Serial number: 35/23-20 Maximum gear diameter: 315 mm Module range: 1.5–10 Maximum gear width: 160 mm Maximum workpiece weight / table load: 200 kg Number of teeth: 12–140 Maximum helix angle: 45° Grinding wheel diameter: 270–350 mm Grinding wheel speed: 1,690 rpm Stroke length: 20–170 mm Stroke rate: 102–315 strokes/min, continuously variable Number of feed settings: 16 Feed speed: 80–800 Motor power: 8 kW Power supply: 380 V, 3-phase, 50 Hz Control voltage: 220 V Rated machine current: ...
SPECIFICATIONS: Max. machining width: 800mm Working height: 150mm Installed power Kw: 3.0 2 brushing units consisting of 4 counter-rotating brushes Ø250mm x 220 mm Transport carpet with speed control Controller
Grinding and polishing machine for the shoemaker's profession, cleaned and tested.
grinding length:400 mm workpiece weight:250 kg weight of the machine ca.:4,1 t swing diameter:250 mm grinding spindle speed:2387, 2938 U/min
grinding diameter:300 mm grinding length:540 mm centre height:175 mm total power requirement:20 kVA centre distance:1000 mm
grinding diameter:50 mm grinding length:100 mm centre height:100 mm centre distance:200 mm
Technical data of Used Universal cylindrical grinding machines Cometa HSP 2000: Wheel diameter: 762 mm Max diameter working: 800 mm Center height: 410 mm Working lenght: 2000 mm Wheel power: 15 hP Weight: 11 ton
Key data: 1300 mm, 5
Wide belt snding machine Manufacturer: Heesmann Model: LSM 8 Equipment: - Transverse sanding unit - Longitudinal sanding unit - Longitudinal sanding unit - Brush unit - Brush unit
dimensions of the machine ca.:3,5 x 2,0 x 2,5 m
SPECIFICATIONS: Workspace: Maximum width: 1600 mm Minimum length: 550 mm Working height: min. 10 mm - may. 120 mm PLC control COMPOSITION: I. Group: 02 Side brushes with automatic adjustment II. Group: 01 Transverse rotation brush (immersion brush) III. Group: 03 Interchangeable heads with disc brushes or brushes IV. Group: 02 edge strip heads V. Group: 03 Interchangeable heads with disc brushes or brushes VI. Group: 01 Transverse rotation brush (immersion brush) EQUIPMENT: 01 Motorized transport carpet: 2200 x 1600 mm 01 Self-cleaning motorized unloading belt (conveyor belt) 2500 x 1600 mm
NC – controlled precision rotary table surface grinding machine with horizontal grinding spindle and transverse slider - brand new Rotary table diameter 1,000 mm Largest grindable diameter 1,150 mm Rotary table speeds 0 to 50 rpm infinitely variable Maximum workpiece weight 800 kg Circumferential grinding wheel Ø 450/203 mm x W 80 mm Highest workpiece height with new grinding spindle 700 mm Smallest programmable infeed dimension of the grinding wheel 0.001 mm Grinding wheel drive power 14.7 kW Rotary table drive power 5 kW Torque 30 Nm Weight approx. 15,000 kg
max. grinding diameter: 238 - 620 mm grinding length: 190 mm workpiece length: 380 - 940 mm spindle turning speed - stepless: 2 - 10000 U/min current capacity: 380 kVA power capacity - grinding motor: 1,1 kW total power requirement: 2,2 kW weight of the machine ca.: 0,6 t Mechanic: very good: Optical condition: very good: The machine can be viewed under current.: Please notice: We would be happy to make you a free offer. However, please understand that we only process inquiries with complete address details. 1218 400 V, 50 Hz, with CEE plug and cable Colour: light grey RAL 7035 Stand traffic grey RAL 7042 (new paint) axial grinding spindle adjustment Accessories: Machine stand and carrier plate ground Complete electrical conversion included: > new three-phase drive > new brake motor > new frequency controller > new built-in electrics touch-proof > Fi circuit breaker > ...
Profile grinding machine / strip grinding machine Manufacturer: DIMA Model: LPS /9 Year of construction: 1994 9 grinding units / disc grinding units
max. wheel diameter:280 mm max. module:5 min. module:1 min. number of teeth:7 toolpiece turning speed range:4.000...10.000 U/min tool length:210 mm CBN
grinding diameter max.:400 mm max. width of grinding wheel:180 mm grinding range:2-100 mm total power requirement:24 kW weight of the machine ca.:3,2 t Out of valve production
1 center grinding machine Make: Technica Model: 5100-810 Year of construction: 1988 Workpiece diameter: 150 mm Grinding depth: 5.0 mm Workpiece length: 1,100 mm Grinding spindle speed: 45,000 rpm Operating voltage: 380 V Total power requirement: 0.5 kW Machine weight approx.: 490 kg Dimensions approx.: 1,00 x 0,85 x 1,85 m
Grinding wheel dimensions (od x id x width): Ø 508 x 304.8 x 250, Regulating wheel dimensions (od x id x width): Ø 255 x 155 x 250
max. wheel diameter:275 mm gear width:58 mm max. module:8 min. module:0,5 weight of the machine ca.:10 t max. number of teeth:200 min. number of teeth:5
max. grinding diameter: 238 - 620 mm grinding length: 190 mm workpiece length: 380 - 940 mm spindle turning speed - stepless: 2 - 12000 U/min current capacity: 380 kVA power capacity - grinding motor: 1,1 kW total power requirement: 2,2 kW weight of the machine ca.: 0,6 t Mechanic: very good: Optical condition: very good: The machine can be viewed under current.: operating key and instruction: 2189 400 V, 50 Hz, with CEE plug and cable Colour: body pastel turquoise RAL 6034 Stand blue-grey RAL 7031 Motorized height adjustment, axial grinding spindle adjustment Machine like new Accesories: Sk 40 dividing head with 24 R dividing disc Graduated disc 20 R Tightening screw M 16 69871 Spiral and relief grinding device with rack housing Counter bearing with 4 tailstock centres Center point with driver Dressing device Dressing diamond Radius grinding device SK 40 complete w ...
Ref. -No.: 10332 Manufacturer: GEORG MüLLER Year of construction: 1969 Type of control: Konventionell Control: N/A Storage location: Halberstadt Country of origin: Germany Machine length: 1200 mm Machine width: 800 mm Machine Height: 1800 mm Grinding height: 120 - 200 mm Max. Grinding length: 310 mm Grinding Width: 175 mm Total Power Requirement: 2,8 kW Weight Of The Machine Ca.: 0,4 t Grinding head adjustment (vertical): 165 mm Max. grinding head infeed: 12 mm magnet clamping surface: 250 x 150 mm Grinding wheel dimensions: 170 x 100 x 76 mm Grinding spindle - speed: 2850 RPM Grinding spindle drive: 2,2 kW Drive motor power: 380 V
max. wheel diameter:275 mm gear width:58 mm max. module:8 min. module:0,5 weight of the machine ca.:10 t max. number of teeth:200 min. number of teeth:5
grinding length:900 mm grinding width:400 mm workpiece height:450/530 mm table clamping surface LxW:1.320 x 300 mm magnetic plate size:880 mm x 280 mm mm Finimatic Creep speed Add-on for Diaform Rectifier system Coolant device Infinitely variable grinding clamping drive
centre height:500 mm centre distance:2000 mm control:CNC Grundig Numerik total power requirement:400 V, 50 Hz, 22,5 kW weight of the machine ca.:3300 kg dimensions of the machine ca.:2500 x 4000 x 2400 mm
total power requirement:16,5 kW weight of the machine ca.:3,8 t
Technical data (subject to change) Space requirement 4,200 x 2,600 mm Tape measure 7,800 x 150 mm Table size 2,900 x 1,400 mm usable working length between the uprights max. 2700 mm Table lift by means of handwheel 340 mm Offset right 1100 mm Weight approx. 1300 kg (Compressed air connection required)
Ref. -No.: 10316 Manufacturer: TOS Year of construction: 1996 Type of control: Konventionell Control: n/a Storage location: Halberstadt Country of origin: Slovakia Machine length: 3450 mm Machine width: 2236 mm Machine Height: 2000 mm Weight Of The Machine Ca.: 4,4 t Grinding wheel: 260 mm Table Dimensions (Lengthxwidth): 1500 x 400 mm Height of grinding with new grinding wheel (without magnetic plate): 500 mm Grinding wheel fx width x bore: 350 x 40 - 80 x 127 mm Width of the composite grinding wheel: 200 mm Max. load on the work table: 5000 N Table surface: 400x1000 / 1500 mm Max. distance of the spindle axis: 675 mm Max. length of grinding: 1000/1500 mm
grinding length:600 mm grinding width:200 mm total power requirement:5 kW weight of the machine ca.:1,4 t dimensions of the machine ca.:3 x 3 m
grinding diameter:4000 mm centre height:310 mm weight of the machine ca.:17 t dimensions of the machine ca.:10.5 x 3.6 x 1,9 m
Type 1300-2S Working width 1300 mm Min.working length 400 mm Working thickness 2-80mm Grinding roller speed - Frequency control Feeding speed 5-20 m/min Total motor power 6.27 kW Transport dimensions 1700x2100x1400mm Weight 1200 kg Price 6100 Eur (EXW Jonava, Lithuania) Specifications Type 1300-2S Working width 1300 mm Min. Working length 400 mm Working thickness 5-140mm Grinding shaft speed – adjustable by frequency converter Feed speed 5-20 m/min The total power of the motors is 6.27 kW Dimensions for transportation 1700x2100x1400mm Weight 1200 kg Price 6100 Eur (EXW Jonava, Lithuania)
