engel 1000 used for sale

Three-roll bending machine, three-roll sheet metal bending machine, bending machine, sheet metal bending machine, 3-roll bending machine, profile bending machine, three-roll sheet metal rolling machine, manual bending machine -Manufacturer: Carl Kneusel, 3-roll bending machine, hand-operated -Max. sheet width: 1020 mm -Max. sheet thickness: mm -Roller diameter: 55 mm -Dimensions: 1670/580/H1150 mm -Weight: 156 kg

CONTROLS   electronic controls BECKHOFF PRESS DESIGN   drive system: servomechanic   number of slide actions: 1 PRESS FORCES   total force (nominal): 100 to PRESS TABLE   table surface (left-right): 950 mm   table surface (front-back): 660 mm SLIDE   slide force: 100 to   table surface (left-right): 550 mm   table surface (front-back): 460 mm   spigot hole diameter: 50 mm   stroke rate (max.): 130 /min SLIDE (MECHAN. PRESS)   slide adjustment: 80 mm   stroke min.: 20 mm   stroke max.: 160 mm   stroke rate (min.): 70 /min   stroke rate (max.): 130 /min   main drive power: 25 kW TOOL ASSEMBLY DIMENSIONS   shut height (stroke down, adjustment up), BDC: 370 mm DECOILER   design: single reel   sheet width max.: 400 mm   coil weight max.: 1.25 to   max. diameter of coil: 1250 mm   mandrel expansion range from: 375 mm   mandrel expansion range u ...

: gebraucht : 2017 : 3901 : China : 8490 € : 1 : 6790 € : 32 mm : MK 4 : 300 - 1.000 mm : 32 - 2.500 (16) U/min : 1760 mm : 800 mm : 2080 mm : 1600 kg : 530 - 1.000 mm : 2.2 kW : 240 mm : 250 mm : 0,75 kW : 0,10 - 1,25 (8) mm/U box table 600 x 455 x 455 mm coolant equipment machine lamp mechanical clamping for height adjustment and spindle stock electr. clamping for arm rotation machine and equipment according to the CE-regulations operating manual in GERMAN and ENGLISH BUYING USED MACHINERY IS A MATTER OF TRUST - OUR TRANSPARENCY PROMISE We offer you maximum security and complete transparency. • HONEST INSIGHTS: Detailed photos and functional videos of the current condition • LIVE ON-SITE CHECK: Live testing is possible at our facility • DIGITAL DEMONSTRATION: Individual live demonstration via video call • RISK-FREE PURCHASE: 14-day return policy Details:https://www.hesse-ma ...

Parallel Lathe CAZENEUVE HB 500 Between points: 1000 mm Maxi Ø on bench: Ø 500 mm Maxi Ø over saddle: Ø 190 mm Spindle diameter: Ø 42 mm Spindle speed: from 20 to 1600 RPM Turret: MULTIFIX type B 3-jaws chuck Ø 215 mm Threadings: Metric + Whitworth Tailstock: CM5 Scale: 2 axes NEWALL Recent electrical panel Supplied with 1 tool holder + 1 set of jaws Lubricant pump Voltage: 380 V Dimensions (L x W x H): 2500 x 1400 x 1600 mm Weight: approx 2 T

Key data: 1000 kN, 35 mm

Stock No.: 503729 Manufacturer: ARBURG Type: Allrounder 470 E 1000-290 Control: Selogica Year of Make: 2012 Clamping force: 1000 kN Tie bar measurement h x v: 470 x 470 mm Plate size h x v: 637 x 637 mm Min. installation height: 250 mm Max. installation height: 500 mm Plate spacing max.: 850 mm Opening travel: 350 mm Screw diameter: 35 mm Displacement: 144 cc Spray pressure: 2000 bar Equipment Sprue removal device included Screen text German CEE socket 16A Core pull hydraulic 1x Levelling elements Tool heater 6x Machine Type : Linear Make: ARBURG Control: INTEGRAL PICKER Year of Make: 2012 Machine dimensions LxWxH: 4.4m x 1.9m x 2m Total Weight: 5280KG

Key data: 1000 kN, 35 mm

warehouse no.: 503728 manufacturer: ARBURG type: Allrounder 470 E 1000-290 controller: Selogica year of construction: 2013 operation hours: 71000 h technical data clamping unit clamping force: 1000 kN distance between tie-bars h x v: 470 x 470 mm size of mould plates h x v: 637 x 637 mm min. mould height: 250 mm max. mould height: 500 mm max. open daylight: 850 mm opening stroke: 350 mm ejector stroke: 175 mm ejector force: 40 kN centering diameter of moving platen: 125 mm centering diameter of fixed platen: 125 mm weight of mould: 760 kg technical data injection unit screw diameter: 35 mm swept volume: 144 ccm injection pressure: 2000 bar screw length: 20 l/d screw stroke: 150 mm screw torque: 380 N plasticising rate: 20 g/s PS injection rate into the open: 113 g/s PS number of heating zones: 4 nozzle stroke: 300 mm measures & weight measures of mac ...

Manufacturer: ZPS Model No.: S60/1000 CNC Year: 2001 Condition: Used Stock number: 9546 Control system: Heidenhain Pilot 3190 Maximum turning length: 1000 mm Max. turning diameter: 275 mm Maximum length of travel in the X-axis: 275 mm Maximum feed rate in the Z-axis: 1070 mm

Lathe Knuth SH180/1000 G

Key data: 2700 kN

Battenfeld HM 270/1330H/1000H / 2K machine in very good technical condition / Operating hours: approx. 10,000 h in automatic mode Year of Make: 2006 Injection unit: Screw diameter: 55 mm Injection weight: 594 g Spray pressure: 2041 bar Dosing volume: 653 ccm Clamping unit: Clamping force: 270 t Handlebar spacing: 710x710 mm Size of the clamping plates: 1030x1000 mm Ejector: hydraulic Clamping unit: hydraulic Control: UNILOG B4 Additional equipment: Machine in very good technical condition 2K machine with parallel horizontal injection units Central injection Operating hours: approx. 10,000 in automatic mode Total number of operating hours: 11,876 h Control with air valve Hydraulic core pull x 3 Reinforced Injection Units – Bimetal Proportional valves on injection units - precise spraying Parallel movements Injection unit 1000H Screw diameter: 50 mm ...

Key data: 1000 kN

Arburg 470H 1000-400 e² / Hybrid machine / Production line with the Arburg Multilift Select robot Year of manufacture: 09.2010 Injection unit: Screw diameter: 40 mm Injection weight: 184 g Spray pressure: 2000 bar Dosing volume: 201 cc Clamping unit: Clamping force: 100 t Spar spacing: 470x470 mm Size of the clamping plates: 637x637 mm Ejector: electric Clamping unit: toggle lever Control: SELOGICA - Touchscreen Additional equipment: Hybrid machine: energy-saving and very quiet Euromap 67 Robot interface Air Valve x 4 Hydraulic core pull x 1 Control with hot runners x 12 Hardened injection unit - Bimetal Main motor of the machine - Servo motor driven by inverter - Energy saving The injection unit is driven by the servo motor, which is controlled by an inverter Machine with cylinder / battery with compressed nitrogen (extra charge for fast working) Cen ...

Key data: 1000 kN

Arburg 420C 1000-350/150 / Production line with the Arburg Multilift H side robot / 2K machine Year of manufacture: 10.2009 Injection unit: Screw diameter: 45 mm Injection weight: 210 g Spray pressure: 1670 bar Dosing volume: 230 ccm Clamping unit: Clamping force: 100 t Spar spacing: 420x420 mm Size of the clamping plates: 570x570 mm Ejector: hydraulic Clamping unit: hydraulic Control: SELOGICA Additional equipment: Production line with the Arburg Multilift H side robot 2K machine with the turntable Control with air valve Hydraulic core pull x 2 Control with hot runners Reinforced Injection Units – Bimetal Proportional valves on sprinkler units - precise spraying The vertical injection unit - screw diameter: ⌀30 mm - 71 g/hp Rotary table for an extra charge Arburg Multilift H side robot Year of Make: 2009 5-axis robot: Z-axis servo-motor-driven  ...

Key data: 1000 kN

Arburg 1200T 1000-290 / Vertical machine with a turntable Year of manufacture: 05.2012 Injection unit: Screw diameter: 30 mm Injection weight: 97 g Spray pressure: 2500 bar Dosing volume: 106 ccm Clamping unit: Clamping force: 100 t Spar spacing: 0x0 mm Size of the clamping plates: 1200 mm Ejector: hydraulic Clamping unit: hydraulic Control: SELOGICA - Touchscreen Additional equipment: Vertical machine with a turntable Euromap 67 Robot interface Air Valve x 6 Hydraulic core pull x 2 Control with hot runners x 18 Hardened injection unit - Bimetal Servo motor on the injection unit – fast priming and fast injection Proportional valve on the injection unit – precise injection Self-closing nozzle Primus-Sensor - Tool Pressure Control Rotary table diameter: 1200 mm Dimensions: Weight: 7200 kg Length/Width/Height: 4.36x1.71x3.66 m All offered ma ...

Key data: 1000 kN

Arburg 420C 1000-290 e² / Hybrid machine / Production line with the Arburg Multilift robot Year of manufacture: 10.2015 Injection unit: Screw diameter: 35 mm Injection weight: 132 g Spray pressure: 2000 bar Dosing volume: 144 ccm Clamping unit: Clamping force: 100 t Spar spacing: 420x420 mm Size of the clamping plates: 570x570 mm Ejector: hydraulic Clamping unit: hydraulic Control: SELOGICA - Touchscreen Additional equipment: Machine in very good technical condition Operating hours: 6666 h in automatic mode Hybrid machine: energy-saving and very quiet Euromap 67 Robot interface Air Valve x 2 Hydraulic core pull x 2 Control with hot runners x 8 Hardened injection unit - Bimetal Main motor of the machine - Servo motor driven by inverter - Energy saving Proportional valve on the injection unit – precise injection Outputs for: Closing of the pneumatic  ...

Arburg 420C 1000-290 e² / Hybrid machine / Production line with the Arburg Multilift Select robot Year of manufacture: 03.2017 Injection unit: Screw diameter: 30 mm Injection weight: 97 g Spray pressure: 2500 bar Dosing volume: 106 ccm Clamping unit: Clamping force: 100 t Spar spacing: 420x420 mm Size of the clamping plates: 570x570 mm Ejector: hydraulic Clamping unit: hydraulic Control: SELOGICA - Touchscreen Additional equipment: Machine in very good technical condition Operating hours: 20,669 h in automatic mode Hybrid machine: energy-saving and very quiet Euromap 67 Robot interface Air Valve x 2 Hydraulic core pull x 2 Control with hot runners x 8 Hardened injection unit - Bimetal Main motor of the machine - Servo motor driven by inverter - Energy saving Proportional valve on the injection unit – precise injection Outputs for: Closing of the pn ...

Key data: 1600 kN, 184 g/PS, 40 mm

Arburg 520A-1000-400 (246) Hybrid injection moulding machine with sorting flap and gas reinforcement Number: 246 Availability: in stock Year of production: 2007 Producer: Arburg Condition of Injection Molding Machine: Used Screw diameter [mm]: 40 Injection weight [g]: 184 Injection pressure [bar]: 2000 Clamping force [kN]: 1600 Gap spacing [mm]: 520 x 520 Plate size [mm]: 790 x 795 Control Type: Selogica Tongue: German Installed power [kW]: 21.2 Working time [h]: 88631 Weight [kg]: 9000 Dimensions [mm]: 5100 x 2000 Feed hopper: NO Robot connection: Yes Air Valve: 3x

Riggs 1000 Series Depositer A fantastic opportunity to purchase a high-quality Riggs 1000 Series Depositer in excellent working order. Ideal for food and beverage manufacturers looking for a robust, accurate and dependable depositing/filling machine. Specification Riggs 1000 Series Depositer Manufactured in 2010 40-litre stainless steel hopper included Heat-resistant reinforced product feed hose included Fill range: 25ml to 400ml Excellent operating condition Very well maintained Ready to go straight into production

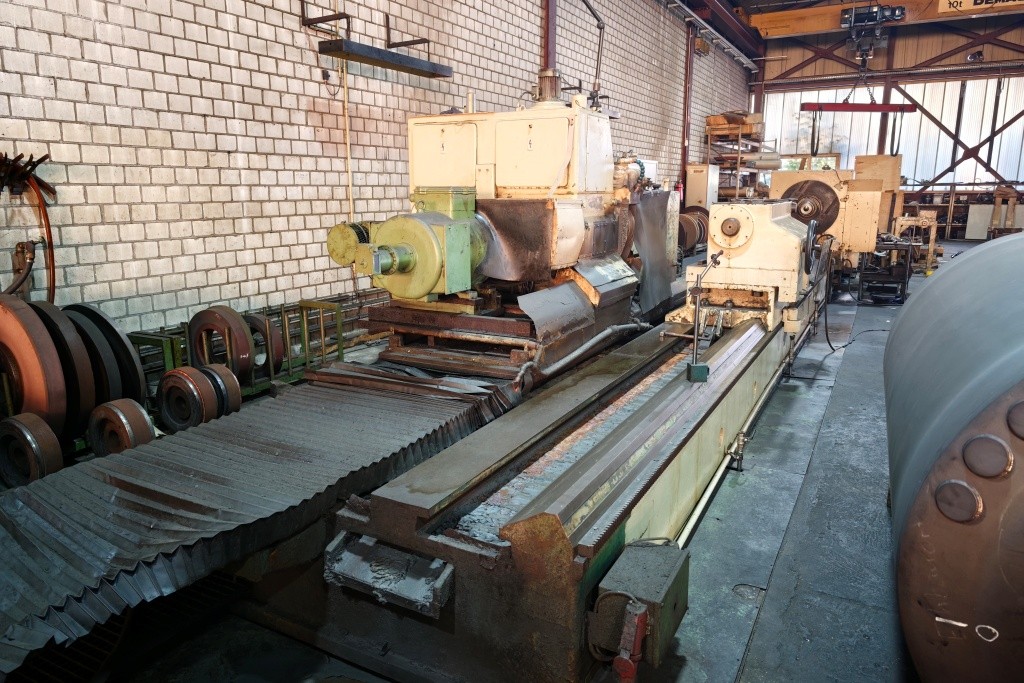

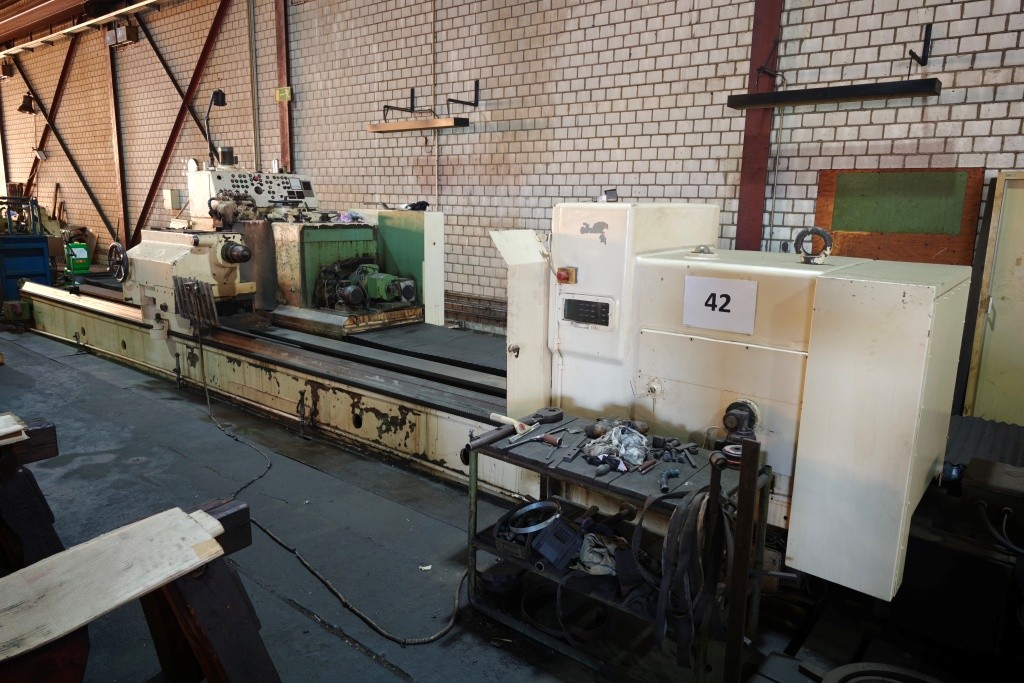

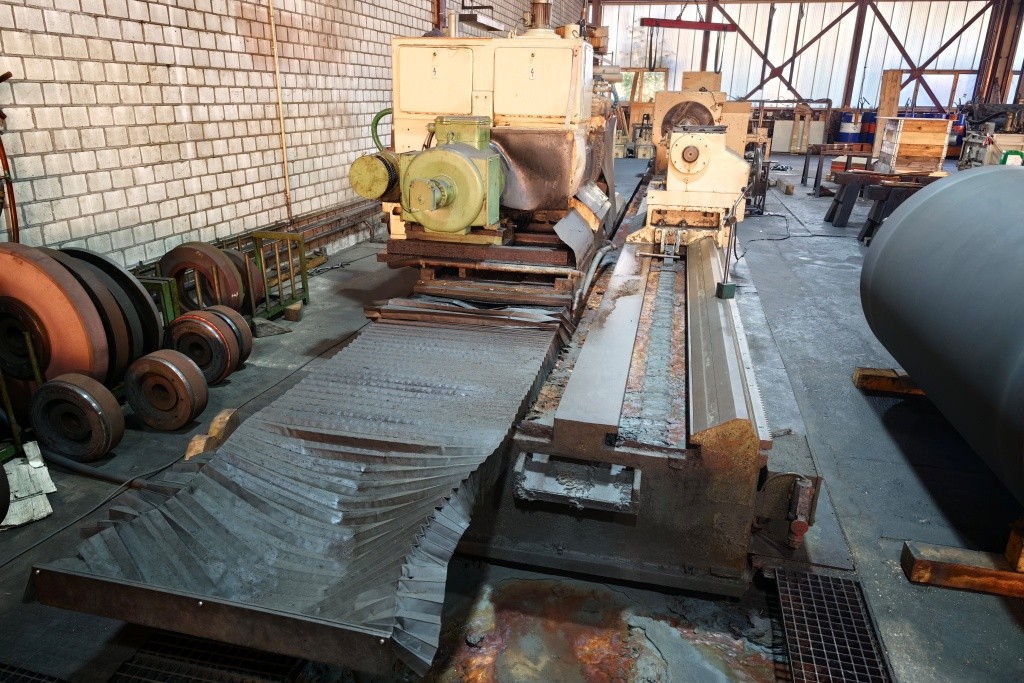

turning diameter over bed: 2000 mm turning diameter over slide rest: 1600 mm turning length: 10000 mm control: FANUC 0i TF workpiece weight: 17 t steady: 4 feed: 1 - 3000 mm/min main drive: 60 kW main spindle speeds:: 1,5 - 160 U/min bed width: 1150 mm faceplate: 1600 mm tail stock: tailstock quill diameter: 260 mm total power requirement: - kW weight of the machine ca.: - t the machine is currently being overhauled and equipped with - new electrics (Siemens, Schneider, cabinet) - CNC control FANUC 0i TF - new Fanuc motors - new hydraulic parts - complete mechanical overhaul - Ball screw (B-axis) - bed overhaul - three-track bed - Face plate with 4 jaws - 3 steady rests (2 of the steadies take 500 mm piece, and one of 700 mm) - a set of rolls, for the bigger pieces - incl 1 year warranty from overhauler on electrical and hydraulic components and 2 years on FANUC CNC The data for this  ...

Machine Type: CNC Turning-Milling Center Model No.: NT4200S/1000 Control: FANUC F-31-IA5 MSX711 Year of Make: 2006 Location: Germany Technical features and accessories: - y-axis - Fully indexable b-axis - Chip conveyor, right ejection - Coolant system standard - Interface for high-pressure coolant system 70 bar - Tool spindle with flow cooling - Coolant spray gun - Blowing air through the sub-spindle - Manual tool presetting in the main spindle - Signal light 3-colour - Double footswitch - Simultaneous 5-axis machining - Automatic power shutdown - Tool offset for 5-axis machining - Programmable data input - Dynamic exchange of diameter/radius - Lifting test before movement Turning length: 1,000 mm Bar passage: max. 65 mm Main spindle: Max. speed: 5,000 rpm Drive power: 22/ 15 kW Spindle passage: Ø 73 mm Sub-spindle: Max. speed: 5,000 rpm Drive power ...

Key data: 340 mm, 1000 mm, 3500 1/min

Stock No.: 4021 CNC LATHE Manufacturer: Okuma, Type: LB300MY-1SC 1000 Serial No.: 164, Year of manufacture: 1999 Specifications: Max. circumferential diameter 340 mm dia. Max. turn. About bed 530 mm Dia. Turning length 1000 mm Main spindle speed range 3500 rpm Spindle bore 70 mm dia. C axis - main spindle movement 0.001 X axis movement 260 mm Y axis +70 / -50 Tool turret with 12 stations Driven tools 4000 rpm Control OSP 7000L Operating hours spindle 5898 Accessories:                             Hydraulic Main Center Chuck Kitagawa HoH 12" / 304mm Tool setter                         Chip conveyance.                      Cooling water system.                    Hydraulic tailstock.               Dimensions: Length: - mm, Height: - mm, Width: - mm, Weight ...

Homogenizing Mixer Manufacturer: Becomix Type RW 1000 CD Usable volume 1000 liters Homogenizing mixer with agitator and wall scraping Coolable and heated, pressure- and vacuum-resistant, with homogenizer Included: - 1000 liter pre-phase tank MV with dissolver agitator - 3 energy and supply frames including vacuum pump - Valve manifold including flow meter - Control cabinet with PLC 7 control (was converted to PLC 7 in 2008) - Control cabinet with FU - 3-part working platform with stairs The process vessel and the pre-phase vessel are placed on weighing cells.

Homogenizing Mixer Manufacturer: Becomix Type RW 1000 CD Usable volume 1000 liters Homogenizing mixer with agitator and wall scraping Coolable and heated, pressure- and vacuum-resistant, with homogenizer Included: - 1000 liter pre-phase tank MV with dissolver agitator - 3 energy and supply frames including vacuum pump - Valve manifold including flow meter - Control cabinet with PLC 7 control (was converted to PLC 7 in 2008) - Control cabinet with FU - 3-part working platform with stairs The process vessel and the pre-phase vessel are placed on weighing cells.

The machine is in good technical condition; it can be tested by prior arrangement.

The machine is ready for demonstration at the warehouse in Blomberg. The machine is ready for painting and is already equipped with 1 Bings Marple 8/25 high -pressure pump (up to 175 bar) and 4 Sames -Kremlin AVX Airmix spray guns. Machine equipped with a changeover valve for quick paint changes lever switchable to up to 3 paint circuits and 1 flushing agent pump (options) The machine is in an Ex -rated version. - Manufacturer: Ka -Ma - Model: KR BM 1000 B - Year of manufacture: 2023 - Working width 1,200 mm (1,300 mm) - Single -gun drive - Dry extraction - Belt conveyor system - Feed speed continuously adjustable 2–8 m/min - With paint recovery - Gun control PLC, LS - Number of installed paint circuits: 3 - Number of spray guns installed: 4 - Spray guns: Sames/Kremlin AVX, Airmix - Airmix spray system - Height -adjustable spray guns: 150 mm - Pump manufacturer: Binks M ...

cylindrical grinding machine, year 2002, CNC 21i-T. Used machine. More info & price on IndustrialBuyer.

Standard configuration Machine ⦁ Universal Robots UR10e ⦁ Demmeler welding table ⦁ Telescopic separating wall ⦁ Linear axis ⦁ Exhausting system ⦁ Safety enclosure ⦁ gas connectioni ⦁ compressed air connection Welding source ⦁ Fronius MAG/MIG high-performance welding source ⦁ Robotic welding torch ⦁ MIG/MAG robotic hose package ⦁ Fronius wire feed system ⦁ Holders for wire spools ⦁ Preparation for connection of a wire drum Control ⦁ Robot control with easy programming ⦁ Central control unit Operation ⦁ Control unit with foot switch ⦁ Control unit for easy programming Data transfer ⦁ USB interface Safety ⦁ Safety device ⦁ CE marking

Standard configuration Machine ⦁ Stable C-frame for easy access ⦁ Coordinate guide for high-precision machining ⦁ Linear magazine with 15 tool stations, 2 clamps ⦁ Drives with maintenance free 3-phase servo motors ⦁ Repositioning unit with programmable stripper ⦁ Ball tables ⦁ Parts chute 180 x 150 mm ⦁ Swarf bucket Punching head ⦁ Hydraulic punching head ⦁ Rotatable single tool adapter ⦁ 360° rotation of all tools ⦁ Programmable presser foot ⦁ Tool length compensation ⦁ Spray lubrication for punches ⦁ Vacuum slug removal ⦁ Forming Control ⦁ Controller based on Bosch PNC-P ⦁ Control panel with 15 TFT color touch screen ⦁ Easy to use ⦁ Online-help ⦁ Diagnostic functions Data transmission ⦁ Integrated USB interface ⦁ RJ 45 network connection Safety ⦁ CE marking ⦁ Light barriers ⦁ Rapid hydraulic shutdown Additional equipment Punc ...

grinding diameter: 1300 mm grinding length: 6100 mm grinding wheel diameter: 1300 mm voltage: 400 V drive capacity - workpiece: 23 kW centre distance: 6500 mm max. dia. of grinding wheel: 750 mm total power requirement: 50 kW weight of the machine ca.: 35 t dimensions of the machine ca.: m 2 x Heavy Duty Steadies Coolant System The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale, Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team  ...

Press force max.:: 10.000 kN heating plates:: 1200 x 1200 mm electrically heated:: °C piston stroke:: ca. 700 mm no. of stages:: 1 Condition: Second-hand, reconditioned Specification: Vulcanising press 1200 x 1200 mm, steel plate construction, second-hand, reconditioned - Clamping force approx.: 1,000 t - Clamping action: bottom-up - Heating plates: 2 electric plates - Heating plate power approx.: 2 x 25 kW - Heating plate dimensions: 1,200 x 1,200 mm - Distance between the heating plates, variant 1: approx. 1,100 mm - Distance between the heating plates, variant 2: approx. 1,500 mm - Piston stroke approx.: 700 mm - Hydraulic power unit with new solenoid valves - AC motor for pump approx.: 30 kW to be checked during overhaul - New control cabinet with 7 Siemens touch panel - Siemens S7-1200 PLC system - Frequency converter for ...

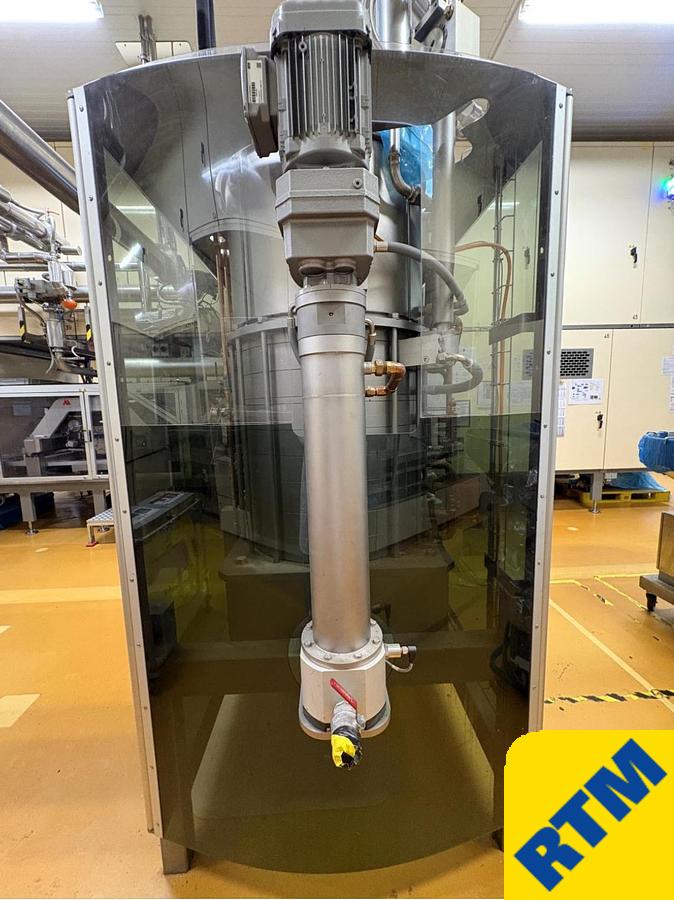

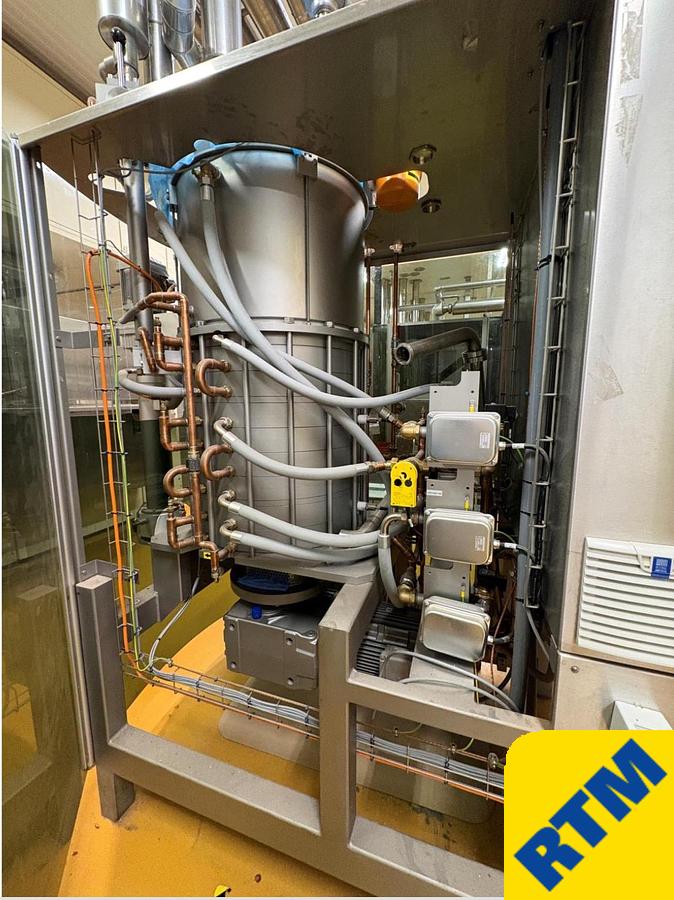

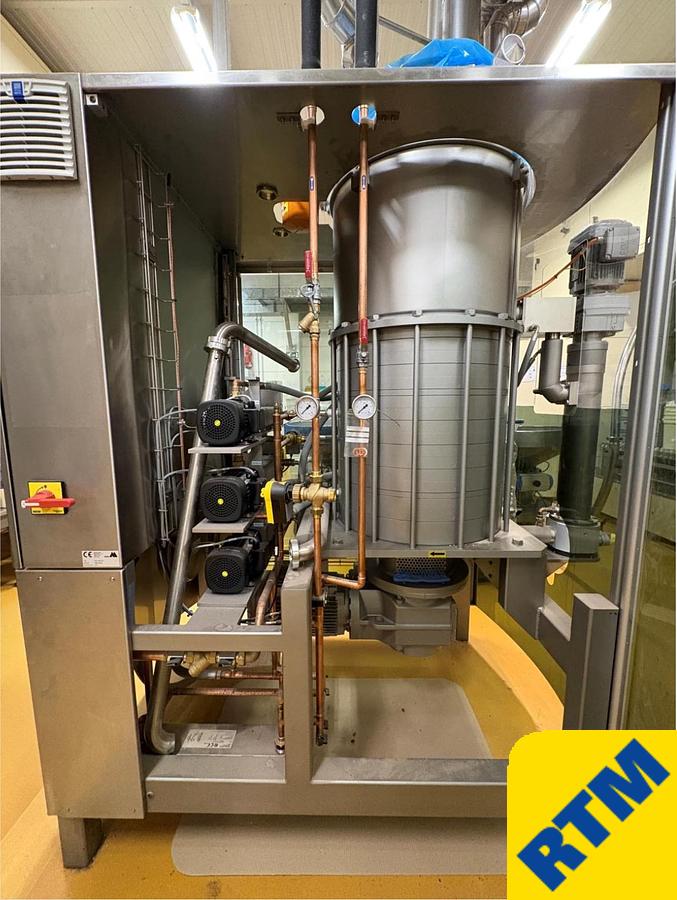

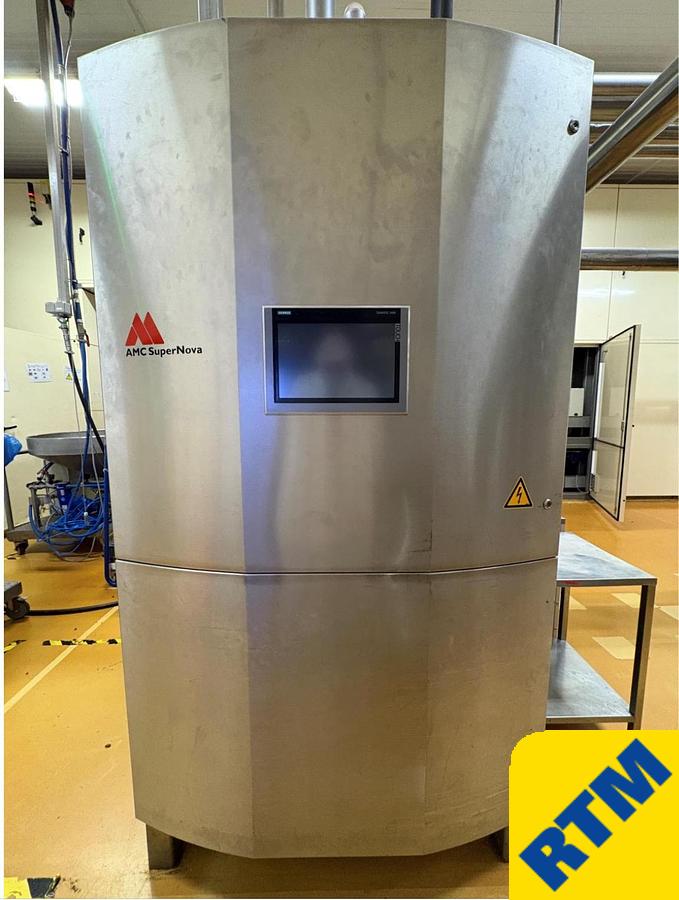

Description Item # 9397 - CHOCOLATE TEMPERING MACHINE Manufactured by AASTED Model AMC SuperNova AMC-1000-CTS Year 2021 Capacity up to 1000Kgs per hour

CNC lathe, year 2013, CNC MAZATROL SMART. Used machine. More info & price on IndustrialBuyer.

grinding diameter: 350 mm grinding length: 1000 mm centre height: 175 mm total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m Überholte Maschine mit Messprotokoll nach Neumaschinentoleranz NEUE Steuerung Eckelmann ENC mit BEMA Schleifsoftware Antriebe,Motoren,Maßstäbe aus Originalmaschine. Werkstückspindelstock nur umlaufend mit 320Nm numerisch gesteuerte B-Achse Innnschleifeinrichtung Dia 120mm HF-Spindel Schleifscheibe links Durchmesser 400mm Schleifscheibe rechts Durchmesser 400mm Innenschleifeinrichtung für HF Spindeln Reitstock mit Mikroverstellung KEL SET Messsystem Aktiv-Längspositionierung Kel-Pos Anschnitt-Sensor Marposs The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Key data: 1000 mm, 1 t

used Profiline mobile coil wagon Machine is repaired, checked, cleaned by a professional and is then fully functional. Test run is carried out Belt width 1000 mm Coil weight load capacity 1000 kg Color: Blue Weight 110 kg Dimensions 1300 x 750 x 1000 mm Load capacity in kg 1000 kg Clamping range 280 - 510 mm

Key data: 370 mm, 665 mm

cpl. Workstation with NTX 1000 turning-milling center, UNO Microset tool presetter, Solidworks/ Solidcam programming station (with 4-axis post-processor) and tools NTX 1000 Bj 2011 (CTX alpha 450 TC) new controller 2016/17, total switch-on hours since 2011 = 7600 hrs, total spindle hours 3600 hrs CNC control: Siemens 840D with control extension by 2nd control channel Turning length mm: 665 Max. turning diameter mm: ø Ø370 Turning-milling spindle: Travel X-axis mm: 380 Y-axis travel mm: ±105 Travel of Z-axis mm: 450 direct travel system B-axis degree: ±120 (0,001º) Spindle speed: 20,000 Drive power kW: 7.5 Tool magazine Magazine slots: 38 Tool holder: Capto C5 Tool length max. mm: 250 Tool diameter max. mm: 70/130 Tool weight max kg: 5 Turret: X-axis travel mm: 160 Travel of the Z-axis mm: 730 Number of tool slots pcs.: 2 x 12 Main spindle: Spindle speed: 6,0 ...

x-travel:1000 mm y-travel:1150 mm z-travel:700 mm table-size:900 mm table load:1500 kg spindle speeds:10.000 1/min spindle drive:Motorspindel von Cytec CS34-180-A 34&42KW/160&200 Nm spindle taper:A100 HSK T-slots:18mm/7/100 mm milling feed range:20.000 mm/min rapid traverse feeds:X/Y/Z: 24 m/min diameter of tools max.:150 mm workpiece length:300 mm weight of tools max.:20 kg weight of the machine ca.:15 t dimensions of the machine ca.:s. Katalog m CNC controller:Heidenhain iTNC-640 HSCI-Steuerung cnc rotary table:von Cytec; mit Ø900mm; 800 1/min Drehmomenttisch (AS3347) + HSK-T63/100 Spindel & ATC + TNC-640 Fräsdrehzahlregelung B-axis:Fräskopf, 0-180° c-axis:0,001° automatic tool changer:HSK-A/T100; 60 fach Scales:in X/Y/Z von Heidenhain mit Druckluft inner coolant:20

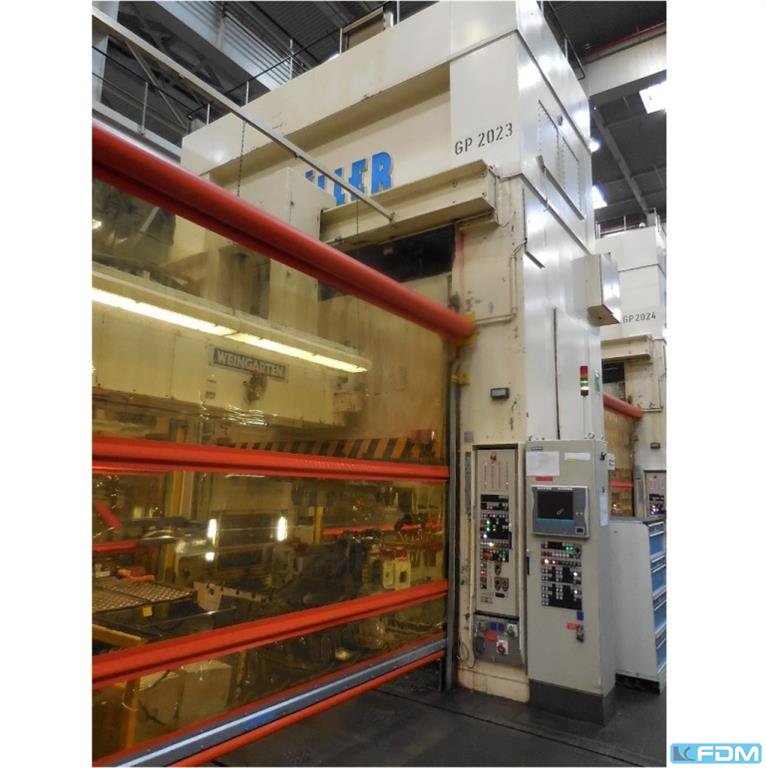

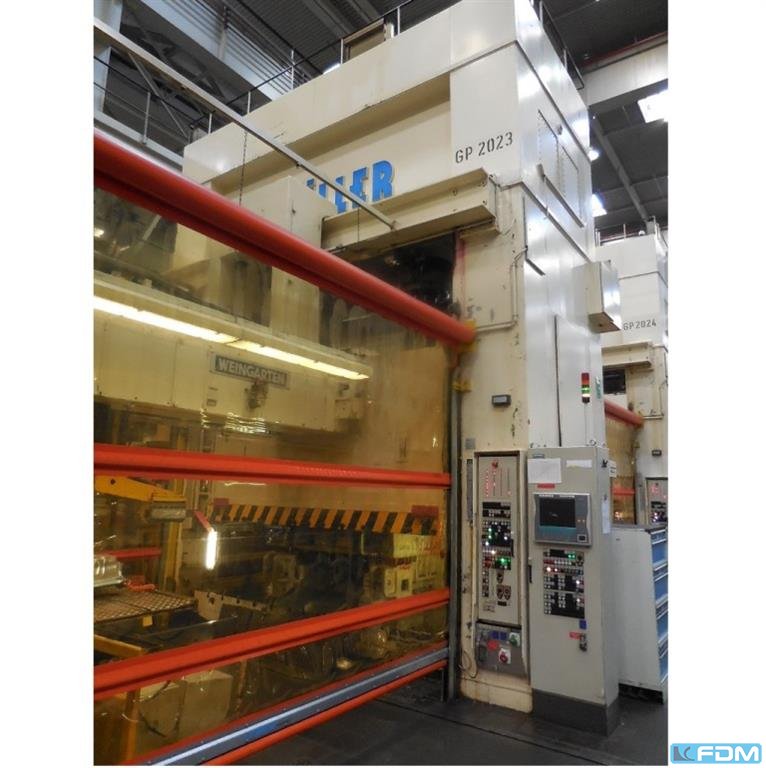

pressure:1000 t table length:4000 mm table width:1600 mm Controls:SIEMENS S7-1500F PRESS DESIGN:. - frame design : Transfer press :. - Drive type : mechnical :. - openings in uprights : yes :. - opening in table : yes :. - moving bolster : yes :. - number of tables:2 PRESS FORCES:. - total force (nominal):1000 to PRESS TABLE:. - clamping surface (left-right):4000 mm - clamping surface (front-back):1600 mm - height above floor level:600 mm - autom. tool clamping device : yes :. RAM:. - stroke:400 mm RAM (MECHAN. PRESS):. - ram adjustment:300 mm - ram adjustment:100 mm - number of strokes min:8 /min - number of strokes max:50 /min - hydraulic overload protection : yes :. TOOL ASSEMBLY DIMENSIONS:. - shut height (stroke down, adjustment up):900 mm - shut height (stroke down, adjustment up):766 mm - distance between columns (H-frame):4250 mm - Free passage between side c ...

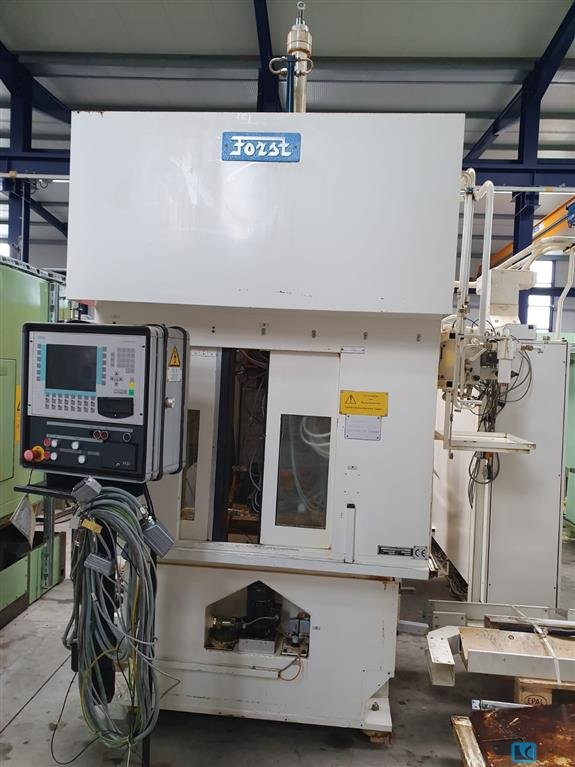

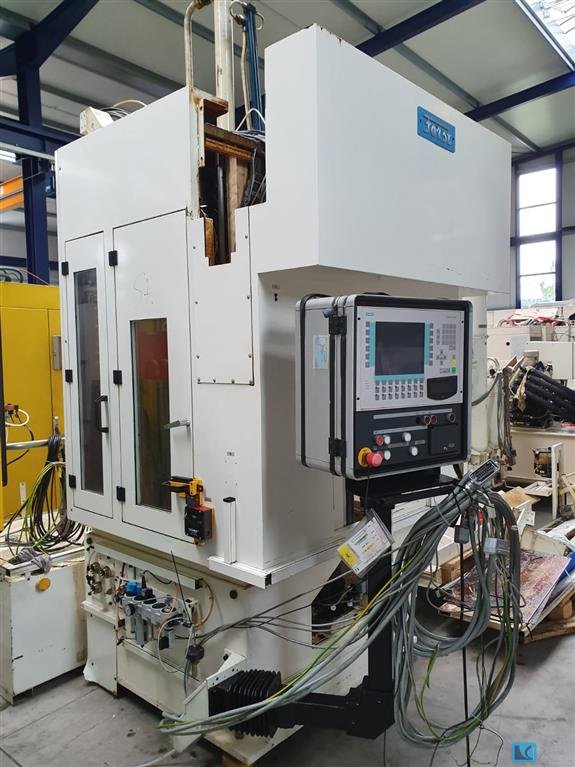

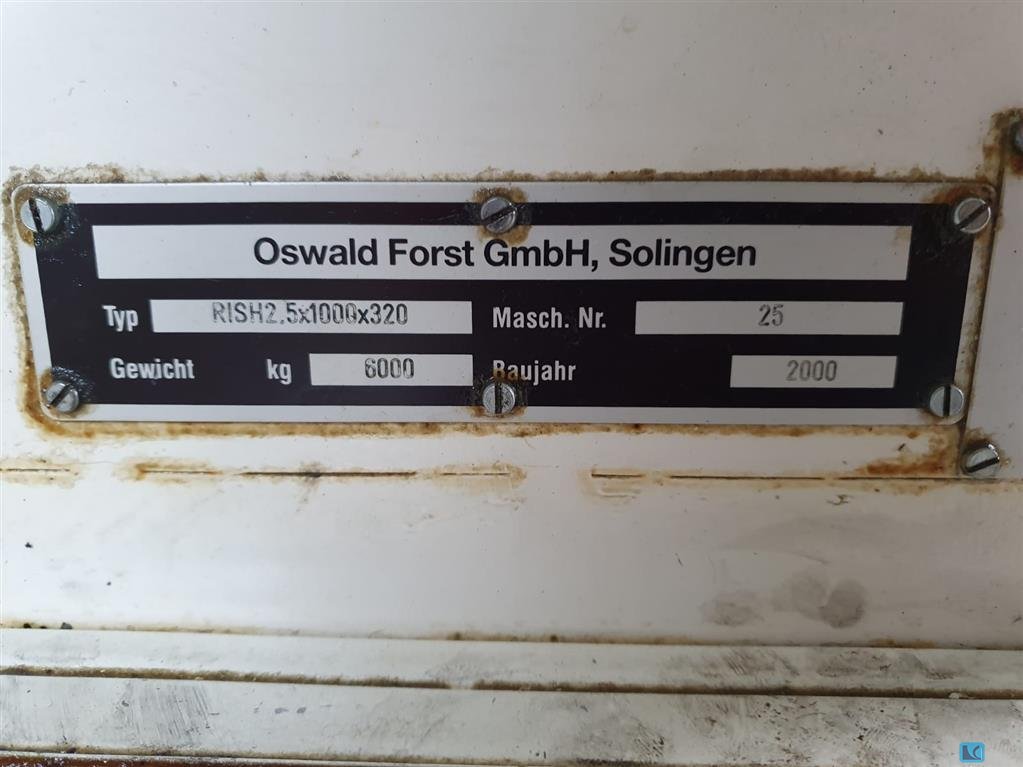

pulling force - max.:2,5 t max. ram stroke:1000 mm max. workpiece diameter:40 mm Broaching speed:60 m/min. return speed:20 m/min. total power requirement:24 kW weight of the machine ca.:6 t dimensions of the machine ca.:1,7 x 2,4 x 4,77 m clamping plate:320 mm It is a hydraulic machine.

turning diameter over bed:1000 mm turning diameter over slide rest:750 mm turning length:3000 mm weight of the machine ca.:12 t dimensions of the machine ca.:6x2,5x1,8 m spindle bore:110 mm turning speed range:900 U/min Year:1986 Equipment: - Coolant device - 1 static steady rest - 1 rotating steady rest - Faceplate 1.000 mm - Digital display - Rapid traverse

x-travel:800 mm y-travel:250 mm z-travel:350 mm table-size:1130 x 250 mm no. of flutes:4 groove width:14/25 mm taper MK:4 spindle turning speed range:56 - 2800 U/min total power requirement:9,5 kW weight of the machine ca.:2009 kg dimensions of the machine ca.:1400 x 1700 x 2800 mm Documents:vorhanden

turning diameter over bed:1000 mm turning diameter over slide rest:745 mm turning length:3000 mm turning speed range:4,5 - 900 U/min spindle bore:110 mm max. workpiece weight between centres:12500 kg total power requirement:30 kW weight of the machine ca.:9 t dimensions of the machine ca.:5,2 x 2,3 x 2 m 3-axes digital readout rapid feed, feed at upper support 350 mm 1 fixed steady face plate diameter 1000 mm coolant attachment

grinding diameter:380 mm grinding length:1000 mm centre height:180 mm grinding wheel diameter:400 mm max. workpiece weight between centres:250 kg total power requirement:10 kW weight of the machine ca.:4,1 t dimensions of the machine ca.:3 x 2 x 1,6 m with internal grinding attachment with fixed and swivelling headstock with coolant tank

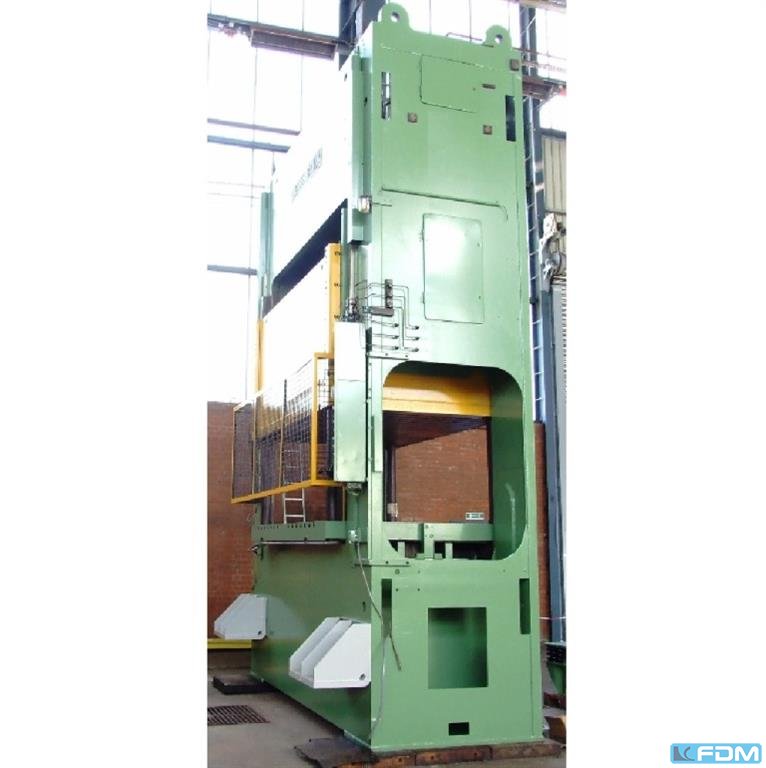

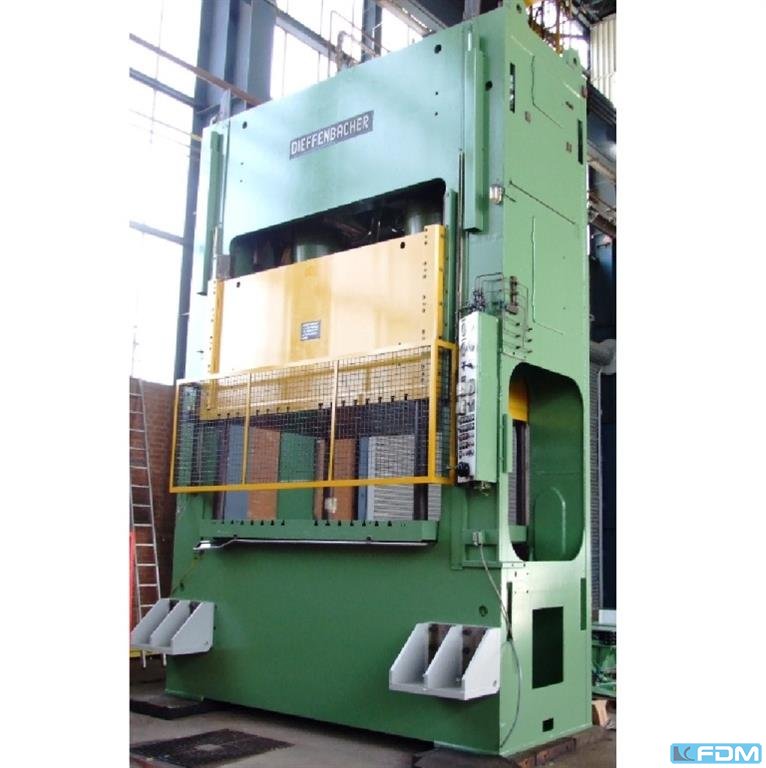

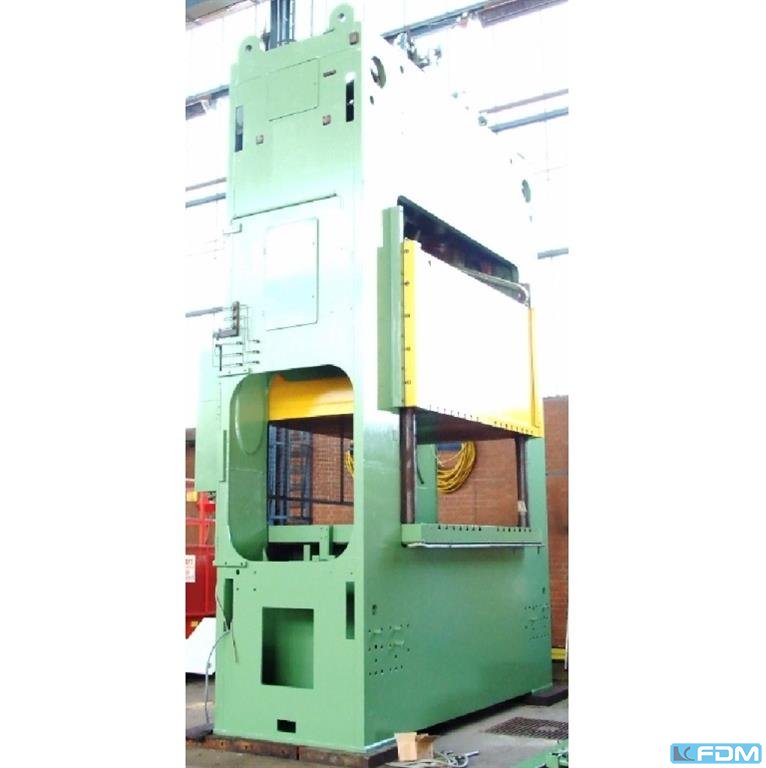

pressure:1000 t distance between columns:3030 mm stroke:350 mm Distance table/ram, max. stroke up, adjustment up:1400 mm table surface area:3000 x 2000 mm table height over floor:430 mm side window:1450 x 1400 mm ram surface:3000 x 2000 mm speed down:300 mm/s speed up:340 mm/s working speed:18 - 44 mm/s return capacity:120 t oil volume:4400 l width with platform:4950 mm power capacity:2 x 90,0 + 10,0 kW weight:87,0 t Dimensions (WxDxH):4,35 x 3,65 x 7,55 m height over floor:6,05 m height beneath floor:1,5 m German Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2

material width:800 mm coil weight:12,0 t coil internal diameter:470 - 520 mm coil external diameter:1500 mm material thickness:0,4 - 2,5 mm no. of straightening rolls:8 straightening roll diameter:53 mm number of draw-in rolls:2 inlet roll diameter:160 mm speed:35 m/min material thickness at 150 mm material width:2,5 mm material thickness at 650 mm material width:1,5 mm material thickness at 800 mm material width:1,0 mm straightening machine:RM 8-53/160-800 decoiler:HE 200-1000

Pressure:1000 t distance between columns:4100 mm stroke:1200 mm Distance table/ram, stroke up:2100 mm Table surface area:4000 x 2200 mm pressure of drawing cushion in table:360 t Die cushion stroke in table:300 mm Die cushion area in table:3500 x 1600 mm Die cushion pressure in ram:100 t Die cushion stroke in ram:160 mm Die cushion area in ram:3250 x 1600 mm Ram surface:4000 x 2200 mm Side window:1300 mm Oil volume:8000 l Power capacity:300,0 kW Dimensions (WxDxH):5,75 x 4,3 x 9,55 m Height above floor:7,7 m die cushion in table:hydraulic, controllable die cushion in ram:hydraulic, controllable cutting impact cushioning:hydraulic

pressure:400 t distance between columns:1060 mm stroke:450 mm no. of strokes:15 - 30 /min distance table/ram, max. stroke up, adjustment up:1160 mm table surface area:1000 x 700 mm capacity of ejector in table:2 x 16 t ejector stroke of ejector in table:125 mm Die cushion pressure in table:120 t Die cushion stroke in table:2 mm capacity of ejector in ram:2 x 4 t stroke of ejector in ram:100 mm ram surface:1000 x 700 mm column travel -side:630 mm power capacity:55,0 kW weight:50,0 t die cushion in table:2. station

MOOG valve for injection moulding machines ENGEL

Control CC 100 for ENGEL injection moulding machines

Inverter for ENGEL robots Acopos Multi PO 220 Acopos Multi CO160

The KEBA keypad HT511-221/ENGEL/50200/19 - 2-stage enabling button - comes from an ENGEL ERC 34-1-E Handling from 2007. The serial number is 50200-01062. The device is ready for connection with a coupling plug.

The KEBA keypad HT501-221/ENGEL/24244/18 - 2-stage enabling button - comes from an ENGEL ERC 24 Handling. The serial number is P21305-02216. The device is ready for connection with coupling plug incl. soft case.

The KEBA keypad HT501-221/ENGEL/24244/18 - 2-stage approval button - comes from an ENGEL ERC 24 Handling. The serial number is P21305-02213. The device is ready for connection with coupling plug incl. soft case.
