EMCO Concept Mill CM 450 - 3-axis CNC milling machine

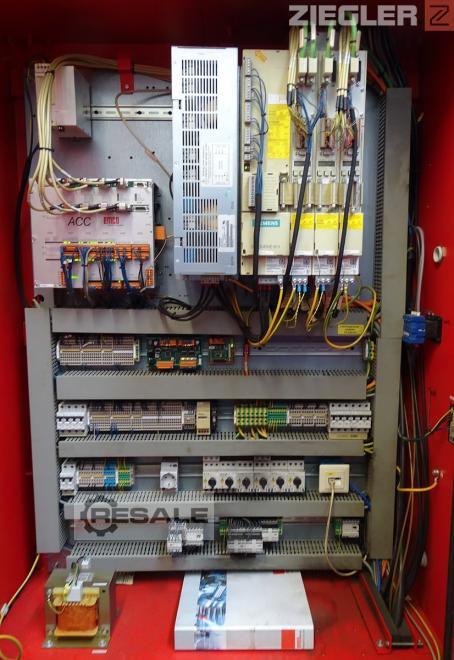

- Interchangeable WinNC control: Sinumerik 810/840 D / Heidenhain TNC
426/30
- Automatic tool change
- 20-fold tool magazine with directional logic
- Tool taper blowing device
- Coolant device

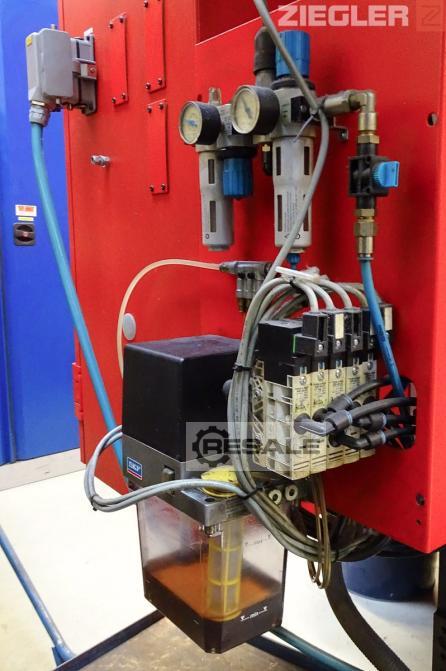

- Central lubrication
- Machine light
- Instruction manual
- Switch-on time approx. 24660 h
- Year of construction 2011
Technical data
- Machine Type: 3-Axis CNC Milling Machine
- X-travel: 600 mm
- Y-travel: 500 mm
- Z-travel: 500 mm
- Spindle nose to table distance: 100–600 mm

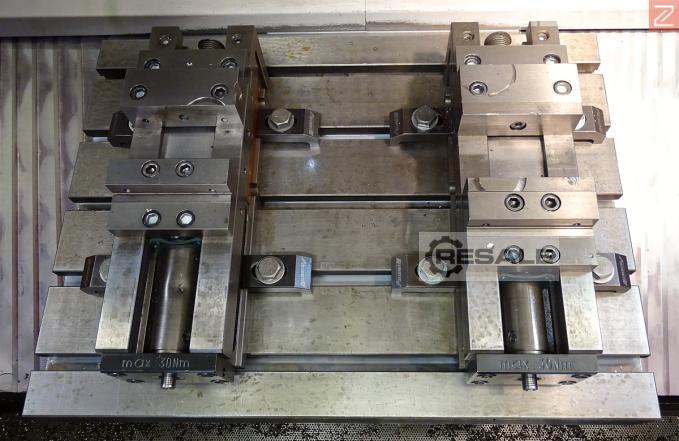

- Table size: 700 × 520 mm
- T-slots: 5 × 18 mm, spacing 100 mm
- Max. table load: 500 kg

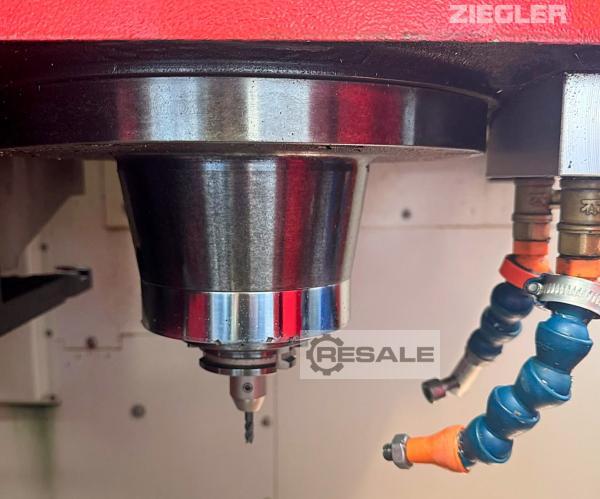

- Main spindle: 11 kW (S6–40%)
- Speed range: 50 – 12000 rpm
- Max. torque: 83 Nm (S6–40 %)
- Tool holder: SK40 / DIN 69871
- Tool magazine: 20 tools
- Max. tool Ø: 80 mm with neighboring tool / 125 mm without
- Max. tool length: 250 mm
- Max. tool weight: 8 kg
- Rapid traverse X/Y/Z: 24 m/min
- Coolant pump: 2 bar / 40 l/min
- Coolant tank: 160 l
- Compressed air: min. 6 bar / approx. 150 l/min
- Connected load: 16 kVA
- Power supply: 3 × 400 V / 35 A
- Installation area WxHxD: approx. 2040 × 2920 x 2445 mm
- Weight: approx. 4000 kg
Austria
