Packing: ca. 2 1,25 2,3 m Shipping weight: ca. 500 kg floor space for switchgear cabinat: ca. 2,2 x 2,5 m switchgear cabinet: 2 teilig/Rücken an Rücken Content div. SIEMENS + INDRAMAT assemblies see PHOTOS The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

CONTROLS   CNC controls FANUC BASIC FUNCTIONS   number of spindles: 1   number of turrets: 1 WORKING RANGE TURNING   turning diameter (max): 220 mm   worpiece length max.: 175 mm MAIN SPINDLE   spindle revolutions (max): 6000 /min X/Z SLIDE   Z-axis travel: 300 mm   X-axis travel: 660 mm ELECTRICAL SPECIFICATIONS   total power consumption: 36 kW   mains voltage: 400 V   mains frequency: 50 Hz DIMENSIONS / WEIGHTS   space requirements -left/right-: 3820 mm   space requirements -front/back-: 2040 mm   total height: 2400 mm   total weight approx.: 6500 kg

EMAG VL 4 ist eine Bearbeitungszelle / Vertikaldrehmaschine für hochpräzise Fertigung, hohe Genauigkeit und zuverlässigen Dauerbetrieb. Kapazitäten: 2 Maschinen, 2 Achsen; Max. Werkstückdimension 200 mm; Z-Achse 400 mm; X-Achse 750 mm; Revolver 12 Positionen, 12 angetriebene Werkzeuge. Technische Daten: Spindeldrehzahlen bis 6000 t/min, stufenlos bis 4500 t/min; Spindelleistung 25/18 kW; Drehmoment 280/202 Nm; Anschluss 3x400V 50Hz; Gesamtbedarf 36 kW; Abmessungen L5300×B2300×H3650 mm. Zubehör: Späneförderer, automatische Be-/Entladeeinrichtung, Satz Werkzeughalter, Zustandsleuchte, Ersatzteile. Erreicht enge Toleranzen; typisch für Automobil, Luftfahrt, Werkzeugmaschinen und Medizintechnik. Technische Daten ohne Gewähr

grinding diameter: 715 mm grinding length: 2000 mm centre height: 360 mm control: Siemens 840 D centre distance: 2000 mm max. workpiece weight between centers: 650 kg Grinding spindle:: Spindlespeed: 450 min/-1 driving power - grinding spindle: 7,5 kW taper: 1:5 tool taper: mm feed speeds: 0,01 - 15.000 mm/min travel -x axis: 500 mm travel -z axis: 2700 mm : 280 ° grinding speed: 15 m/min total power requirement: 75 kW weight of the machine ca.: 14,5 t dimensions of the machine ca.: 5 x 2,4 m External cylindrical grinding machine modernised in 2022 -- Siemens 840D / electrical system -- Ball screws on the X and Z axes replaced -- B axis repaired and encoder replaced. -- Hydrostatic system replaced. Equipped with: - Siemens 840D PowerLine CNC control (X, Z, C, B axes) - Marposs measuring system - BalaDyne system - Tailstock - Band filter system The data for this ad was created with Mo ...

Manufacturer: EMAG Model: VSC 250 Year: 2003 Condition: Used Stock number: 9420 Control system: SIEMENS Max. workpiece diameter: 250 mm Max. length of the workpiece: 175 mm Lathe chuck diameter: 315 mm Weight: 6500 kg

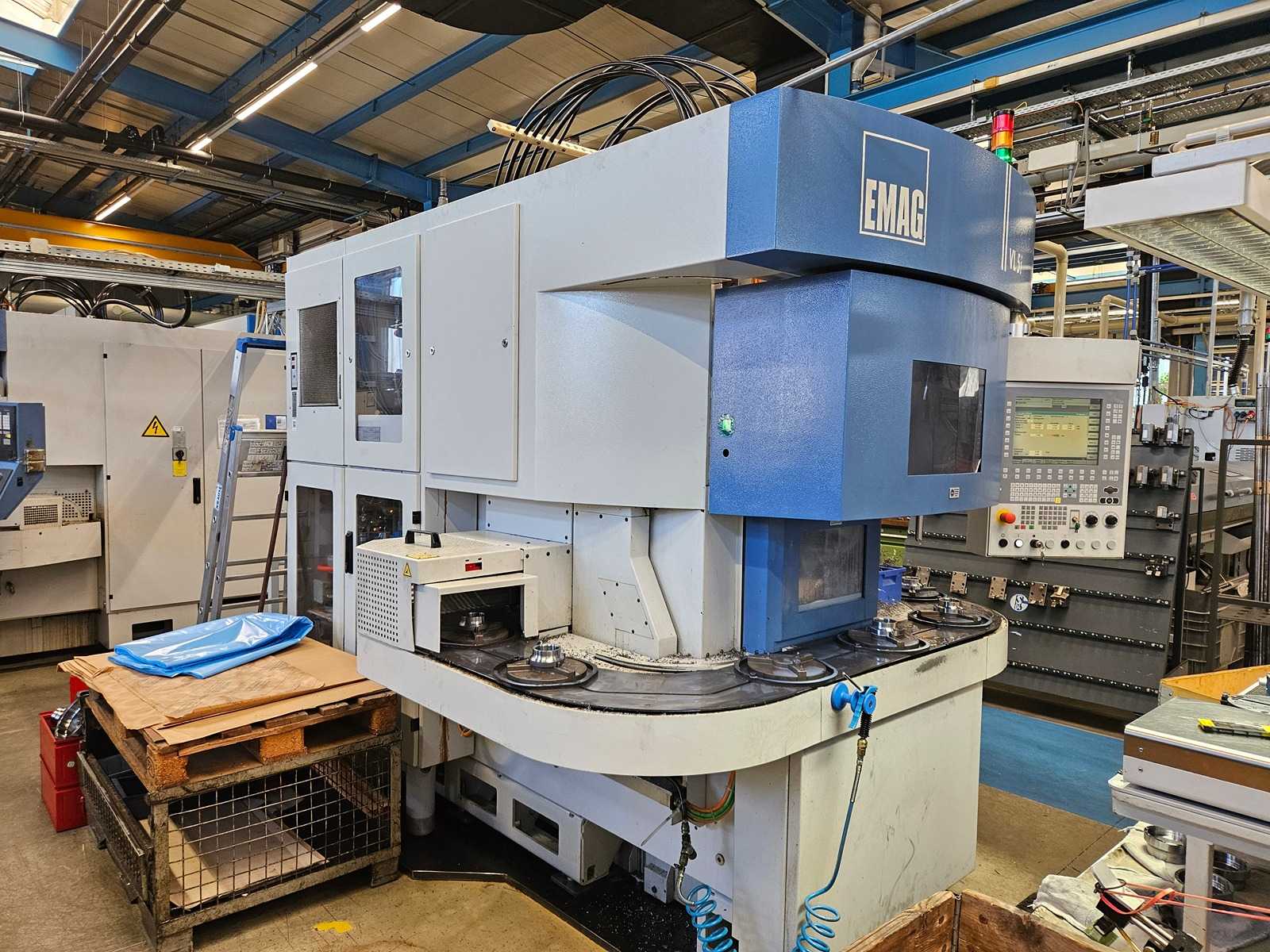

CONTROLS   CNC controls SIEMENS BASIC FUNCTIONS   number of spindles: 2   number of turrets: 1   number of c-axes: 2 WORKING RANGE TURNING   turning diameter (max): 100 mm   worpiece length max.: 150 mm MAIN SPINDLE   spindle revolutions (max): 6000 /min TOOL MAGAZINE   number of positions: 12 ELECTRICAL SPECIFICATIONS   total power consumption: 36 kW   mains voltage: 400 V   mains frequency: 50 Hz DIMENSIONS / WEIGHTS   total weight approx.: 7000 kg ATTACHMENTS (TURNING)   hydraulic system: yes   European CE standards: yes Machines in good condition: - Integrated pick-up automation - Two EMAG machines configured in a line are for sale. - A robot destacking unit with 100% parts inspection can also be purchased.

Technical data on request !

swing diameter: 210 mm x-travel: 400 mm z-travel: 200 mm control: FANUC Series 18i TB weight of the machine ca.: ~ 5.500 kg Vertical Turning Machine | EMAG - VL 3 mLT with driven tools The machine is in a well-maintained condition. Please note that the technical details were added from comparable machines. We ask for your understanding ! - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - #Tags: VL3 | VL3mLT | VL-3 The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

swing diameter: 210 mm x-travel: 400 mm z-travel: 200 mm control: FANUC Series 32i Model A weight of the machine ca.: ~ 5.500 kg Vertical Turning Machine | EMAG - VL 3 + VL 3 The machine is in a well-maintained condition. Please note that the technical details were added from comparable machines. We ask for your understanding ! - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - #Tags: VL3 | VL-3 The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

swing diameter: 210 mm x-travel: 400 mm z-travel: 200 mm control: SIEMENS SINUMERIK 840D sl weight of the machine ca.: ~ 5.500 kg Vertical Turning Machine | EMAG - VL 3 + VL 3 Y The machine is in a well-maintained condition. Please note that the technical details were added from comparable machines. We ask for your understanding ! - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - #Tags: VL3 | VL-3 The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

weight of the machine ca.:8 t dimensions of the machine ca.:2,95 x 1,6 x 2,36 m chucking diameter:250 mm swing diameter:265 mm x-travel:170 mm z-travel:200 mm spindle turning speed range:1.500 U/min spindle bearing diameter:100 mm Pick-up machine

grinding length:1500 mm centre height:325 mm weight of the machine ca.:12 t Karstens EMAG H310 Universal Grinding Machine Year of manufacture: 2004 Center distance: 1500 mm Center height: 325 mm Reinforced workpiece spindle, load capacity up to 250 kg Driven C-axis for polygon, thread, and eccentric grinding. 3 individually mounted grinding spindles. Siemens 840D control system

Article: Vertical turning and grinding centre Manufacturer: EMAG Type: VSC 250 DS Yob: 2008 Control: SIEMENS 840D Grinding spindle speed: 30,000 rpm Rotation spindle speed: 3,000 rpm Tool places turret: 12 Cooler for spindle and machine bed cooling Cooling lubricant - lifting station (no independent cooling lubricant supply) Chip conveyor Parts handling Air through the spindle Two clamping circuits through the spindle (air and oil) Unfortunately, the grinding spindle is defective. However, this can be overhauled in a spindle factory. Otherwise the machine is in a very good condition and fully functional. Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

Auction-ID: A7-48398-15

Machine number: 18,307 Operating voltage: 400 V Frequency: 50 Hz Nominal current: 245 A Cooling water pressure: min. 3 bar/max. 8 bar Cooling water volume: 70 l/min incl. gripping system and powder coating from the manufacturer RAPP Control: SIEMENS Auction-ID: A7-49089-242
