turning diameter:120 mm turning length:650 mm weight of the machine ca.:11 t dimensions of the machine ca.:5,032 x 3,048 x 2,445 m Gildemeister MF Twin 65-II lathe with loading automation. This machine is suitable as a counter spindle machine for 4-axis machining on the main and counter spindles, complete machining (turning, drilling, milling, Y-axis, B-axis) of bar and shaft parts.

turning diameter:120 mm turning length:650 mm weight of the machine ca.:11 t dimensions of the machine ca.:5,032 x 3,048 x 2,445 m max. swing diameter:250 mm Gildemeister MF Twin 65-II lathe with loading automation. This machine is suitable as a counter spindle machine for 4-axis machining on the main and counter spindles, complete machining (turning, drilling, milling, Y-axis, B-axis) of bar and shaft parts.

turning diameter:200 mm turning length:600 mm capacity X-axis:190 mm capacity Z-axis:555 mm double spindle units: spindle distance:800 mm spindle drive:Links (40/100%ED): 18/14 kW spindle turning speed range:31-6300 U/min spindle drive:Rechts (40/100%ED): 18/14 kW spindle turning speed range:31-6300 U/min speeds of tool:2x12 Werkzeuge: 7/5 KW, 40-4200 U/min dimensions of the machine ca.:5,032 x 3,048 x 2,445 m weight of the machine ca.:6500 Kg Gildemeister MF Twin 65-II lathe with loading automation. This machine is suitable as a counter spindle machine for 4-axis machining on the main and counter spindles, complete machining (turning, drilling, milling, Y-axis, B-axis) of bar and shaft parts.

turning diameter:33 mm turning length:330 mm control: 840 total power requirement:20 kW weight of the machine ca.:6 t dimensions of the machine ca.:3850,2000,2100 m 17 axes 3 revolvers with the powered tools 1 gantry with the driven tools Main and counter spindle with C axes Barfeeder Machine On-time 58,133 hours

turning diameter:145 mm turning length:210 mm total power requirement:40 kW swing diameter:145 mm Spindle bore sp. 1:56 mm Spindle bore sp. 2:56 mm swing diameter over face slide:145 mm greates pass round over bed:145 mm RPM Main Spindle:7.000 1/min number of workpiece supports:12 Shank diameter:25 mm C-axis RPM:2.000 1/min Chuck diameter spindle 1:140 mm Chuck diameter Spindle 2:140 mm Number of tools:12 fach St. Tool bore:VDI 25 Shank diameter:25 mm weight of the machine ca.:5.300 kg dimensions of the machine ca.:5.000 x 4.100 x 2.050 mm Slide path flat: X1, X2, X3: 220mm, 120mm ( 145mm ) Longitudinal slide travel: Z1, Z2, Z3: 320mm, 345mm, 380mm Vertical slide travel Y1: +/- 30mm Longitudinal spindle travel Z3: 380mm Clamping tube inner draw tube 46mm diameter Speed range main drive 1+2 up to 7,000 rpm Speed of driven tools up to 6,000 rpm Main and counter spindle collet chuck 1 axial ...

turning diameter:220 mm turning length:- mm control:- distance between milling spindels:800 mm spindle speed max.:12.000 U/min daylight:66 mm machine weight ab.:11 t total power requirement:90 kVA Fanuc control Two turrets Two spindles Spindle bore 66 mm on both spindles Two Y-axes Parts gripper Hainbuch chuck on both spindles Tailstock function Chip conveyor Tool eye Short bar loader Tool holder package

travel -x axis:800/1825 mm travel -y axis:800/460 mm travel -z axis:600 mm Feeding X,Y,Z up to:0 - 40/40/40 mm/min. swival range +/-:+10 bis -90 x 360 Grad Rotary-table:800 x 630 mm number of T-slots:5 T-slot - distance:125 mm T-Slots:18 mm center hole:30H7X15 mm swival range +/-:90 Grad turning speed:20 m/min. Number of axles:3-7 St. Spindle RPM:12.000 1/min max. tool weight:10 kg max. tool length:330 mm diameter of tools max.:80 mm tool changing time:4 sec CNC control with 15.1" color flat-screen 19" machine control panel PCU 50 with Intel Pentium II Windows XP 10.0 GB hard drive

turning diameter:356 mm turning length:700 mm y-axis:±60 mm spindle drive:18 kW counterspindle motor:15 kW Direct drive for driven tools:5,5 kW Motor starting torque:640 Nm Main spindle mount:A2-8 counter spindle mount:A2-6 Rod passage:80 mm main spindle speeds::4.000 U/min Drehzahl angetriebene Werkzeuge :6.000 U/min rapid traverse speed:30 m/min auf X- und Z-Achse machine weight ab.:5.800 kg 12-station turret, all positions driven C-axis on both spindles Belt-driven and infinitely variable drive on all motors Prismatic guideways on all axes Oil cooler for both spindles, manufacturer Daikin Automatic, dialog-guided programming system MAPPS Automatic monitoring of tool load and tool wear Two Renishaw measuring arms for automatic tool measurement Interfaces: USB, PCMCIA card, and RS-232 port Interface for bar feeder Automatic parts catcher Dual foot pedal for independent opening and clos ...

turning diameter:570 mm turning length:635 mm travel -x axis:220 mm travel -z axis:635 mm Torque:240 Nm feed::X: 20m/min; T: 24m/min disc turret:12 fach with live tooling:6 fach main spindle speeds::25-25.000 dimensions of the machine ca.:3210 x 1750 x 1750 mm weight of the machine ca.:5.300 t swing diameter max. over bed cover:570 mm spindle bore:79 mm chuck diameter:200/250 mm rapid power traverse in X-and Z direction:20/24 m/min numbers of tools:12 C-axis

turning diameter:1070 mm turning length:8500 mm total power requirement:62 kW turning diameter over slide rest:800 mm spindle bore:128 mm max. workpiece weight between centers:8000 kg max. workpiece weight:12000 kg bore spindle turning speed range:1,120-01120 U/min tailstock quill diameter:200 mm dimensions of the machine ca.:12 x 2,8 x 2,4 m Machine equiped with Alan Bradley 9 series CNC control - SAUTER 6-postiion revolving head - 360 mm seld centering steady rest - 385 mm rotary work rest (used for gun barrels) - faceplate 800 mm - chip conveyor

turning diameter:480 mm turning length:1250 mm control:H 645 weight of the machine ca.:8 t dimensions of the machine ca.:5 x 2 x 2 m centre distance:1580 mm swing over bed:495 mm swing diameter:üb.Querschlitten ca.350 mm working area:1600 mm control:H645 connected load:50 kW

turning diameter:275 mm turning length:900 mm spindle passage:65 mm power capacity at 100 % load:25/20 kW spindle turning speed range:1 - 5000 U/min spindle diameter in front bearing:110 mm c-axis:1 - 500 U/min. number of workpiece supports:4 tool turret:1 x-axis:290 mm y-axis:165 mm z-axis:360 mm b-axis:360 ° rapid speed:18/30 m/min number of tools:2x2 + 2x2 number of driven tools:2x2 + 2x2 mm toolpiece turning speed range:8000 / 2000 U/min power capacity:25% ED 5,8 kW tool taper:TRAUB 60 tool turret:2/3/4 x-axis:170 mm z-axis:600/950 mm y-axis:+/- 60 mm rapid speed:18/15/30 m/min number of driven tools:10 mm toolpiece turning speed range:1 - 6000 U/min power capacity:25% ED 5,8 kW tool taper:DIN 69880 40 x 63 total power requirement:95 kW weight of the machine ca.:16 t dimensions of the machine ca.:10,0 x 3,5 x 3,0 m with CNC TRAUB TX 8i, Barloader TRAUB Stamag DNH61 / 3000, Main and  ...

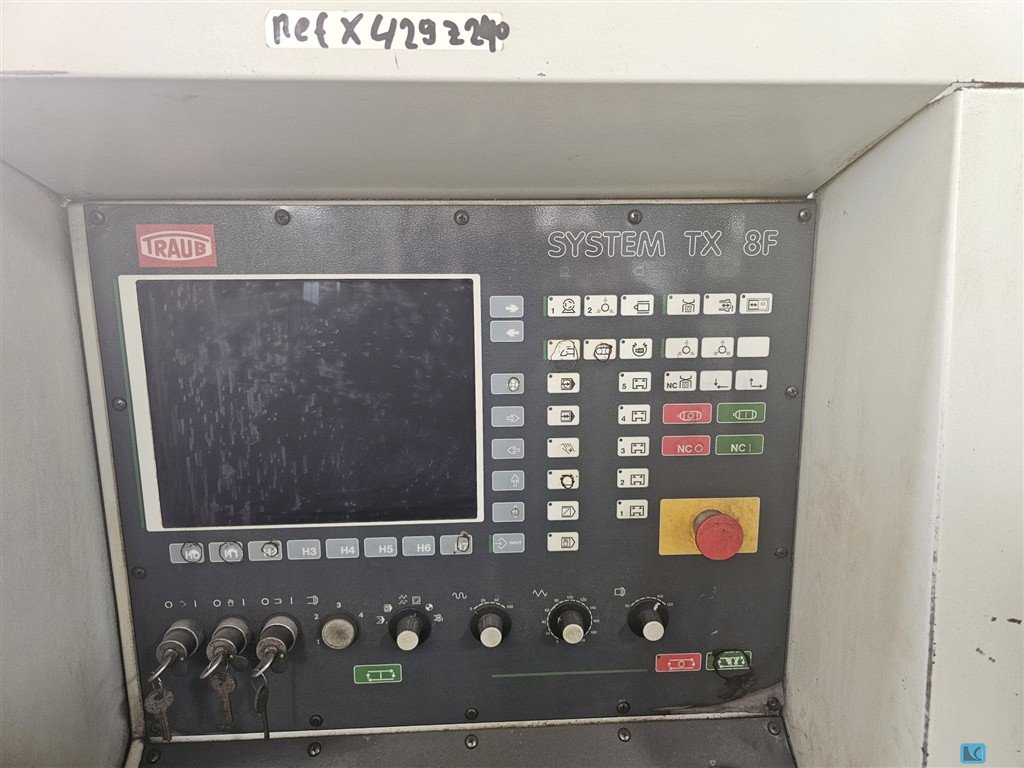

turning diameter:480 mm turning length:800 mm total power requirement:30 kW turning diameter over bed slide:240 spindle bore:65 mm disc turret:12 fach rapid travel range:20 / 10 m/min weight of the machine ca.:4,5 t dimensions of the machine ca.:4 x 2,2 x 2,1 m with CNC TRAUB TX 8 H C-axis driven tooling, 6 positions 3,5 kW / 4000 rpm power chuck coolant attachment, chip conveyor diverse toolholders

turning diameter:1600 mm turning length:6200 mm turning diameter over bed slide:1250 Turning rate:5 - 710 U/min. total power requirement:37/52 kW weight of the machine ca.:16 t dimensions of the machine ca.:12 x 4 x 2 m CNC SIEMENS Sinumerik 3-jaw chuck SCHUNK Rota Plus Dia. 630 mm 3 x fixed steadies ( 1200 / 570 / 400 mm ) coolant attachment and chip conveyor diverse accessories

turning diameter:626 mm turning length:3000 mm Turning diameter:600 mm spindle bore:100 mm spindle turning speed range:2800 U/min weight of the machine ca.:18 t Machine overhold and retrofit in 2003 with SIEMENS 840 D control - NC steady rest - 12-fold revolving head - splash doors - tailstock - coolant device

turning diameter:38 mm Article: CNC Long-turn automatic lathe Manufacturer: Hanwha Type: STL38H Year of construction: 2013 Control: Siemens 840SL for 8 axes Main spindle: max. turning diameter: 38mm; spindle bore max. 42mm, n max. 6,500 rpm Power max. 23 kW; C-axis with 0.001 degree; stroke Z1 320mm; synchronised guide bush unit; guide bush type JBS or SL38; type collet 173E / F48 Counter spindle: max. pick-up diameter: 38mm, n max. 6,500 rpm Power max. 23 kW; C-axis with 0.001 degree; stroke Z2 320mm; type collet 171E / F42 Tool turret: n max. 6,000 rpm Power max. 2.6 kW; Servo axes: X2, Y2, Z2; Stroke [mm]: X2 = 115, Y2 = 100, Z2 = 120 Bar feeder FMB Turbo 5-55 High-pressure station SFB-301 eco 150bar Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

turning diameter:26 mm Article: High-precision CNC lathe with linear cross slide Manufacturer: Benzinger Type: GOFuture B1 Yob: 2016 Machine was only used for reworking, i.e. only light machining work was carried out! Control: Siemens Sinumerik 840Dsl Main spindle: maintenance-free motor spindle Bar capacity: D26mm Loading and unloading device type IB Additional gripper system for placing the workpieces in the correct position on the unloading belt Coaxial valve for coolant to the linear tools (3 pieces) Internal clamping device C-axis main spindle for digital control incl. transmit function Adjusting microscope 16x magnification Coolant supply through the spindle clamping cylinder, Sealing air, Speed increase of the motor spindle to 8. 0000 rpm Nordmann tool monitoring Profibus master interface Hinged belt conveyor Knoll Compact coolant device Knoll MBE interface Small fire extinguishin ...

turning diameter:336 mm turning length:216 mm weight of the machine ca.:8,3 t Article: CNC multi-axis lathe Manufacturer: Hurco Model: TMX 8MYSi Year of manufacture: 2022 CNC multi-axis lathe Excerpt from manufacturer?s specifications: Working area: Max. turning diameter: 336 mm Max. swing diameter: 560 mm Main spindle specifications: Max. speed: 4,500 rpm Chuck diameter: 210 mm Tie-bar diameter: 64.5 mm Counter-spindle specifications: Max. speed: 6,000 rpm Tool turret with driven tools Bar-Loading Magazine: SAMSYS M3000 (2022 model) HYDAC Cooler The machine can be visited under power. The tool configuration included in the scope of delivery may differ from the images Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

: neu : ca. 12 Wochen ab Auftrags : Türkei : 62500 € : 1181.25 € : 40 to : 1250 mm : Y1 / Y2 / X und R Achse : 200 mm : 1050 mm : 250 mm : 440 mm : servomotorischer Spindela : 115 mm/s : 10 mm/s : 115 mm/s : 650 mm : 250 mm : 1000 mm : 7.2 kW : 1950 mm : 1450 mm : 2650 mm : 3600 kg servomotorized spindle drive 4 axes (Y1, Y2, X and R) CNC control SKY 22 - intuitive touch-screen control (simple drawing of the bending outline with your finger) 21,5 in full HD - with 2D and 3D working screen - direct programming of the bending angle - user friendly programming in dialogue form optionally in 2D or 3D mode - 2D and 3D simulation of the bending sequence - automatic tool selection in 3D mode - automatic calculation of the blank sheet size - bending order calculation - graphic product and tool memory - correction possibility - USB and Ethernet interfaces for import, backup and programm tran ...

: neu : ca. 12 - 14 Wochen ab Auf : Türkei : 65200 € : 1232.28 € : 40 to : 2050 mm : Y1 / Y2 / X und R Achse : 200 mm : 1700 mm : 350 mm : 440 mm : servomotorischer Spindela : 180 mm/s : 10 mm/s : 115 mm/s : 650 mm : 250 mm : 1000 mm : 7.2 kW : 2600 mm : 1450 mm : 2650 mm : 4400 kg servomotorized spindle drive 4 axes (Y1, Y2, X and R) CNC control SKY 22 - intuitive touch-screen control (simple drawing of the bending outline with your finger) 21,5 in full HD - with 2D and 3D working screen - direct programming of the bending angle - user friendly programming in dialogue form optionally in 2D or 3D mode - 2D and 3D simulation of the bending sequence - automatic tool selection in 3D mode - automatic calculation of the blank sheet size - bending order calculation - graphic product and tool memory - correction possibility - USB and Ethernet interfaces for import, backup and programm tran ...

: neu : ca. 12 Wochen ab Auftrags : Türkei : 154500 € : 2920.05 € : 3 kW : - : 12 mm : 6 mm : 6 mm : 3 mm : 6 mm : 26,5 kW : 250 mm : 16 mm : 160 x 160 mm : 200 x 150 mm : 6000 mm : 58 kg/m : +/- 0,2 mm : +/- 0,05 mm : rund, quadratisch, rechte : 40 m/min : 94 m/min : 30 m/min : 510 °/s The machine consists of the following components: - Encapsulated cutting room with protective glazing - CNC graphic control with touchscreen - Laser source Brilase 3 kW Premium incl. chiller - Cutting head with automatic focus adjustment - manual loading -manual unloading table 3 m - Positioning laser - Central lubrication - slug car - CAD/CAM software with autonesting - Work area lighting PRICE FCA TÜRKIYE OPTIONS: Suction unit with filters Semi-automatic loading system Manual unloading table 6 m with conveyer Durma cloud license Lasersources with 4 or 6 kW on request The data for this ad was cr ...

: neu : ca. 12 - 14 Wochen ab Auf : Türkei : 219400 € : 6 kW : Wechseltisch : 25 mm : 15 mm : 20 mm : 10 mm : 12 mm : 4100 x 2070 mm : 4100 mm : 2070 mm : 125 mm : 4064 x 2032 mm : 240 (für 3 - 12 kW) / 400 kg/m² : 3900 (für 3 - 12 kW) / 64 kg : 100 m/min : 100 m/min : 141 m/min : 14 m/s² : +/- 0,05 mm : +/- 0,05 mm : 32 s The HD-FN has two tables which are automatically switched alternately to enable simultaneous cutting and loading/unloading. The shuttle table is positioned longitudinally, which results in the best possible accessibility for optional loading and unloading systems. Control, laser source and cooling are integrated into the machine. The cutting head has automatic focus adjustment. The system consists of the following components: Shuttle table (positioned longitudinally for best possible accessibility for optional loading and unloading systems) Encapsulated cutting  ...

: neu : ca. 12 - 14 Wochen ab Auf : Türkei : 185300 € : 3502.17 € : 6 kW : Wechseltisch : 25 mm : 15 mm : 20 mm : 10 mm : 12 mm : 3100 x 1525 mm : 3100 mm : 1525 mm : 125 mm : 3084 x 1524 mm : 240 (für 3 - 12 kW) / 400 kg/m² : 2200 (für 3 - 12kW) / 360 kg : 100 m/min : 100 m/min : 141 m/min : 14 m/s² : +/- 0,05 mm : +/- 0,05 mm : 25 s The HD-FN has two tables which are automatically switched alternately to enable simultaneous cutting and loading/unloading. The shuttle table is positioned longitudinally, which results in the best possible accessibility for optional loading and unloading systems. Control, laser source and cooling are integrated into the machine. The cutting head has automatic focus adjustment. The system consists of the following components: Shuttle table (positioned longitudinally for best possible accessibility for optional loading and unloading systems) Encapsu ...

: neu : ca. 12 - 14 Wochen ab Auf : Türkei : 253800 € : 6 kW : Wechseltisch : 25 mm : 15 mm : 20 mm : 10 mm : 12 mm : 6100 x 2070 mm : 6100 mm : 2070 mm : 125 mm : 6096 x 2032 mm : 240 (für 3 - 12kW) / 400 kg/m² : 5800 (für 3 - 12kW) / 960 kg : 100 m/min : 100 m/min : 141 m/min : 14 m/s² : +/- 0,05 mm : +/- 0,05 mm : 42 s The HD-FN has two tables which are automatically switched alternately to enable simultaneous cutting and loading/unloading. The shuttle table is positioned longitudinally, which results in the best possible accessibility for optional loading and unloading systems. Control, laser source and cooling are integrated into the machine. The cutting head has automatic focus adjustment. The system consists of the following components: Shuttle table (positioned longitudinally for best possible accessibility for optional loading and unloading systems) Encapsulated cutting r ...
