FEEDSTOCK TUBE   external diameter max.: 90 mm   lenght max.: 14000 mm CHARACTERISTICS DRAWING MACHINE   force: 250 kN   number of parallel trains / strands max.: 3 For Sale: High-Performance Triple Drawing Bench GKZ 250 / 3-19R – Precision, Power & Reliability Offered for sale is a Triple Drawing Bench, type GKZ 250 / 3-19R, manufactured by Bültmann Maschinenbau GmbH & Co. KG, a renowned German company known for high-quality tube drawing technology. This system stands out for its robust design, impressive pulling force, and flexible adaptability for a wide range of tube dimensions and materials. Technical Data Year of Manufacture: 1987 Manufacturer: Bültmann Maschinenbau GmbH & Co. KG Location: Hall 7 / 8 Floor Space: 6 x 35.5 m = 213 m² Installed Power: 355 kW Operating Personnel: 1 person Performance Specifications Number of Tubes per Draw: 1, 2 or 3 Input Tube Outer Di ...

Ulma TFS 200 S This packaging machine uses two rolls of film to produce skin packaging automatically. Workflow: • Heating of the bottom film (inside the forming station) • Shapes of the pack • Placing the product in the package • Heating the skin top film (for skin application) • Performing skin vacuum and package sealing • Cutting the package crosswise and longitudinally • Package application • Residual film winding Technical Specifications Model: TFS 200 S Condition: Exhibition machine (fully functional) Year of Make: 2025 Capacity: Up to 18 packs/minute Packaging Type: Skin Packaging Machine equipment Free insertion distance 760 mm Features ✅ Format 420 x 230mm 3.1 ✅ Maximum product height 55mm (25mm overhang) ✅ Adapter for foil mandrels to 6" ❌ Label dispenser ❌ Printers ✅ Busch vacuum pump 160 m3/h integrated ❌ Do ...

table size: L700 x W700 mm, equipped with oil pump generator Auction-ID: A1-49001-4

Blister Machine  Manufacturer: Uhlmann Type: UPS4 ETX Year of Make: 2008 Highly flexible blister machine in modular balcony design. The machine has the following standard and optional equipment: Forming foil holder with 2 pneumatic expansion shafts, core diameter 76mm, max. roll diameter 800mm Cutting and gluing table for forming film 3 zones contact heating with 6 individually adjustable heating circuits Heating plates open automatically when machine stops Forming station with 4 columns, lift table guide and pneumatic pre-stretching Filling section 1,360mm long, incl. safety flap Additional safety flap with simultaneous use of a second product feeder Cover foil rinsing with pneumatic expansion shaft, core diameter 76mm, max. roll diameter 300mm Plate sealing station with 4 columns lift table guide, incl. overload protection Automatic lifting of the upper se ...

Arm length approx. 135cm. Auction-ID: A1-49846-290

Arm length approx. 135cm. Auction-ID: A1-49846-233

Description in German The Uhlmann UPS 300 is a fully automatic blister machine with intermittent feed, suitable for packaging tablets, capsules and dragees in blisters. The machine is configured with two film programs: Program 1 for PP/PVC and Program 2 for ALU/ALU. Control is carried out via a panelware control panel with LCD display and keypad. Manufacturer: Uhlmann Pac-Systeme, Laupheim Type: UPS 300 Year of Make: 1997 Power supply: 3/N/PE AC 400 V, 50 Hz Rated current: 19 A, Fuse: 25 A Connected load: 8.0 kW (peak), approx. 5.0 kW (average) Output: up to 50 strokes/min at 10.0 mm drawing depth; up to 35 strokes/min at 18.5 mm drawing depth Film programs: PP/PVC (Prog. 1), ALU/ALU (Prog. 2) Control: Panel fabric with LCD display and keyboard The machine has been removed from a functioning system and is in good optical condition. • The item may have scratches, abra ...

Blister Machine Manufacturer: Uhlmann Type: B1240 Year of Make: 2006 Equipped for ALU/ALU operation, ALU/PVC prepared Format range blister (W x L) min 50 x 22 mm / max. 156 x 115 mm Drawing depth max. 18 mm Output 15 - 50 form cycles/min Transport length 42-115 mm Film width 100-168 mm Moulded foil Ø max. 450 mm, core Ø 76 mm (PVC) / 150 mm (ALU), mech. Tension Cover foil Ø max. 240 mm, core Ø 76 mm, mech. Tension Detection of adhesive joints Foil feed by moulds and by seals Printing Mark Control Film stretching of the cover film Crack and pore control of forming film and cover film Visiotec VisioScan MT-160/200 without heating plate station for PVC moulded film (can be supplied on request at an additional cost) Forming station with compressed air for PVC moulding film, prepared for pre-stretching punches Mechanical forming station for ALU forming film PLC ...

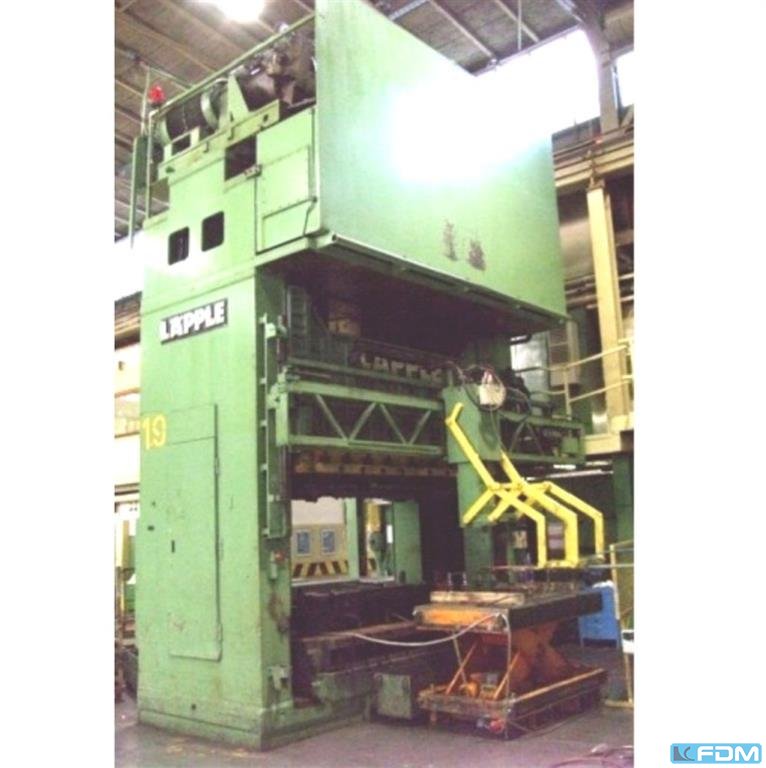

pressure:800 t distance between columns:2900 mm stroke:350 mm Controls:SIEMENS PRESS DESIGN:. - frame design : H-frame :. - Drive type : mechnical :. - openings in uprights : yes :. - number of cushions:0 - opening in table : yes :. - moving bolster : yes :. PRESS FORCES:. - total force (nominal):800 to PRESS TABLE:. - clamping surface (left-right):2800 mm - clamping surface (front-back):2800 mm - rectangular breakthrough (width):2000 mm - rectangular breakthrough (front-back):1800 mm - height above floor level:850 mm RAM:. - clamping surface (left-right):2800 mm - clamping surface (front-back):2800 mm - stroke:350 mm - number of strokes max:55 /min RAM (MECHAN. PRESS):. - ram adjustment:350 mm TOOL ASSEMBLY DIMENSIONS:. - shut height (stroke down, adjustment up):1100 mm - distance between columns (H-frame):2900 mm - Free passage between side columns (width):2560 mm ...

pressure:200 t distance between columns:2100 mm stroke:550 mm Distance table/ram, stroke up:1800 mm table surface area:2000 x 2800 mm table height over floor:760 mm ram surface:2000 x 2000 mm Side window:2000 mm feed down:400 mm/s power requirement:51,0 kW weight:33,0 t dimensions (WxDxH):3,25 x 3,5 x 5,4 m Height above floor:5,4 m foundation pit:not necessary

pressure:200 t distance between columns:2100 mm stroke:550 mm Distance table/ram, stroke up:1800 mm table surface area:2000 x 2800 mm table height over floor:760 mm ram surface:2000 x 2000 mm Side window:2000 mm feed down:400 mm/s power requirement:52,0 kW weight:33,0 t Dimensions (WxDxH):3,25 x 3,5 x 5,4 m Height above floor:5,4 m foundation pit:not necessary

pressure:400 t distance between columns:3250 mm distance table/ram, max. stroke up, adjustment up:1000 mm stroke:800 mm table surface area:3250 x 1400 mm table height over floor:1250 mm die cushion capacity:170 t die cushion stroke:200 mm die cushion area:1800 x 1000 mm distance between cutting impact cushioning:2610 mm side window:800 mm ram surface:3250 x 1400 mm return capacity:51 t speed down:300 mm/s speed up:300 mm/s working speed:16 - 33 mm/s quantity of oil:2900 l power requirement:100,0 kW weight:70,0 t Dimensions (WxDxH):4,9 x 3,1 x 7,6 m German Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2 cutting impact absorption:hydraulic

pressure:250 t distance between columns:930 mm stroke:200 mm Distance table/ram, stroke up:600 mm table surface area:900 x 860 mm die cushion capacity:100 t die cushion stroke:50 mm die cushion area:350 x 400 mm table height over floor:950 mm side window:380 x 380 mm ram surface:850 x 700 mm feed down:400 mm/s feed up:400 mm/s working feed:30 mm/s oil volume:350 l power capacity:45,0 kW weight:11,5 t Dimensions (WxDxH):2,0 x 1,2 x 3,4 m German Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2 drawing cushion in table:hydraulic depth stop:mechanical foundation pit:not necessary

pressure:1000 t distance between columns:3030 mm stroke:350 mm Distance table/ram, max. stroke up, adjustment up:1400 mm table surface area:3000 x 2000 mm table height over floor:430 mm side window:1450 x 1400 mm ram surface:3000 x 2000 mm speed down:300 mm/s speed up:340 mm/s working speed:18 - 44 mm/s return capacity:120 t oil volume:4400 l width with platform:4950 mm power capacity:2 x 90,0 + 10,0 kW weight:87,0 t Dimensions (WxDxH):4,35 x 3,65 x 7,55 m height over floor:6,05 m height beneath floor:1,5 m German Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2

pressure:200 t distance between columns:1650 mm stroke:600 mm distance table/ram, max. stroke up, adjustment up:1200 mm table surface area:1600 x 1250 mm die cushion capacity:80 t die cushion stroke:300 mm die cushion area:1300 x 900 mm table height over floor:800 mm ram surface:1600 x 1250 mm oil volume:ca. 2000 l power capacity:43,0 kW weight:25,0 t Dimensions (WxDxH):2,9 x 2,3 x 5,8 m height beneath floor:0,85 m German Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2 § 20

pressure:350 t distance between columns:1350 mm stroke:900 mm distance table/ram, max. stroke up, adjustment up:1300 mm table surface area:1300 x 1000 mm pressure of drawing cushion in table:100 t stroke of drawing cushion in table:380 mm die cushion area:350 x 285 mm capacity of ejector in ram:25 t ejector stroke in ram:200 mm table height over floor:750 mm ram surface:1300 x 1000 mm speed down:500 mm/s speed up:160 - 470 mm/s working speed:16 - 44 mm/s drawing speed:57 - 160 mm/s return capacity:32 t oil volume:1700 l power requirement:91,0 kW Dimensions (WxDxH):3,75 x 2,8 x 7,2 m height over floor:5,28 m German Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2 light guard:Sick drawing cushion in table:hydraulic ejector in ram:hydraulic ram interlocking:in TDC foundation pit:necessary

Pressure:500 t distance between columns:1550 mm stroke:600 mm distance table/ram, max. stroke up, adjustment up:900 mm table surface area:1200 x 1300 mm pressure of drawing cushion in table:250 t stroke of drawing cushion in table:150 mm die cushion area:950 x 950 mm table height over floor:1245 mm side window:1250 mm ram surface:1200 x 1300 mm speed down:750 mm/s speed up:780 mm/s working speed:105 mm/s oil volume:4000 l power requirement:263,0 kW weight:45,0 t Dimensions (WxDxH):3,3 x 3,3 x 6,1 m height over floor:6,1 m German Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2 drawing cushion in table:hydraulic cutting impact cushioning:motoric adjustable

Pressure:315 t distance between columns:1350 mm stroke:600 mm distance table/ram, max. stroke up, adjustment up:1000 mm table surface area:1200 x 1300 mm table height over floor:1245 mm side window:1250 mm ram surface:1200 x 1300 mm speed down:750 mm/s speed up:680 mm/s working speed:180 mm/s oil volume:2000 l power requirement:150,0 kW weight:35,0 t Dimensions (WxDxH):3,3 x 3,3 x 5,5 m height over floor:5,5 m German Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2 cutting impact cushioning:motorisch verstellbar ram interlocking:hydraulisch

pressure:200 t throat:360 mm stroke:560 mm distance table/ram, max. stroke up, adjustment up:780 mm table surface area:740 x 720 mm pressure of drawing cushion in table:80 t stroke of drawing cushion in table:200 mm die cushion area:530 x 530 mm table height over floor:920 mm ram surface:560 x 560 mm slide drill hole x depth:70 mm power requirement:35,0 kW weight:10,0 t dimensions:1,3 x 2,0 x 3,4 m

pressure:160 t distance between columns:1340 mm stroke:300 mm Distance table/ram, max. stroke up, adjustment up:620 mm table surface area:1300 x 900 mm table height over floor:930 mm side window:600 mm ram surface:1300 x 900 mm speed down:367 mm/s speed up:390 mm/s working speed:58 mm/s power requirement:30,0 kW weight:15,0 t Dimensions (WxDxH):2,5 x 2,2 x 4,0 m German Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2 foundation pit:not necessary

pressure:100 t throat:380 mm stroke:650 mm distance table/ram, max. stroke up, adjustment up:950 mm table surface area:800 x 700 mm hole in the table:200 mm table height over floor:920 mm ram surface:630 x 600 mm speed down:65 mm/s speed up:375 mm/s working speed:17 mm/s oil volume:350 l power requirement:18,5 kW weight:9,0 t Dimensions (WxDxH):1,5 x 2,5 x 4,0 m German Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2 §20

pressure:250 t distance between columns:1125 mm stroke:250 mm distance table/ram, max. stroke up, adjustment up:800 mm table surface area:1100 x 900 mm pressure of drawing cushion in table:63 t stroke of drawing cushion in table:100 mm die cushion area:700 x 400 mm table height over floor:960 mm side window:700 mm ram surface:1080 x 900 mm oil volume:1000 l power requirement:35,0 kW weight:23,0 t Dimensions (WxDxH):2,5 x 2,3 x 4,5 m German Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2 light guard:Sick foundation pit:not necessary

pressure:160 t distance between columns:880 mm stroke:150 mm distance table/ram, max. stroke up, adjustment up:400 mm table surface area:830 x 1000 mm hole in the table:265 x 365 mm table height over floor:850 mm side window:610 mm ram surface:860 x 1000 mm power requirement:55,0 kW weight:14,7 t Dimensions (WxDxH):2,2 x 2,0 x 4,3 m German Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2 § 20 depth stop:motoric adjustable table:motoric foundation pit:not necessary

pressure:300 t distance between columns:2500 mm stroke:350 mm distance table/ram, max. stroke up, adjustment up:1280 mm table surface area:2500 x 1500 mm table height over floor:850 mm side window:900 mm ram surface:2500 x 1500 mm speed down:300 mm/s speed up:240 - 450 mm/s working speed:23 - 44 mm/s oil volume:3000 l power requirement:132,0 kW weight:54,0 t Dimensions (WxDxH):3,25 x 3,2 x 4,8 m German Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2 ram interlocking:SITEMA

pressure:200 t distance between columns:1800 mm stroke:710 mm Distance table/ram, max. stroke up, adjustment up:1100 mm table surface area:1600 x 1300 mm pressure of drawing cushion in table:80 t stroke of drawing cushion in table:250 mm die cushion area:1400 x 1080 mm table height over floor:800 mm side window:1300 mm ram surface:1660 x 1300 mm speed down:400 mm/s speed up:410 mm/s working speed:14,3 - 49,7 mm/s power requirement:46,0 kW weight:25,0 t Dimensions (WxDxH):3,65 x 3,3 x 5,4 m height over floor:5,05 m height beneath floor:0,4 m German Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2 light guard at front and back:Sick drawing cushion in table:hydraulic ejector in ram:hydraulic depth stop:mechanical

pressure:50 t distance between columns:1750 mm stroke:500 mm Distance table/ram, max. stroke up, adjustment up:800 mm table surface area:1700 x 750 mm table height over floor:800 mm side window:650 x 750 mm ram surface:1700 x 750 mm power requirement:11,0 kW weight:11,0 t Dimensions (WxDxH):2,1 x 1,15 x 3,4 m German Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2 foundation pit:not necessary

pressure:500 t distance between columns:2240 mm stroke:1180 mm distance table/ram, max. stroke up, adjustment up:1800 mm table surface area:2050 x 1800 mm pressure of drawing cushion in table:250 t stroke of drawing cushion in table:380 mm drawing cushion surface in table:1800 x 1200 mm pressure of drawing cushion in ram:122 t stroke of drawing cushion in ram:200 mm drawing cushion area in ram:1800 x 1200 mm ram surface:2215 x 1800 mm table height over floor:500 mm speed down:400 mm/s speed up:10 - 400 mm/s working speed:10 - 100 mm/s depth of the foundation:3,0 m power requirement:122 + 75 + 64,5 kW weight:110,0 t Dimensions (WxDxH):3,6 x 2,2 x 8,5 m height over floor:6,8 m German Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2 drawing cushion in table and ram:hydraulic

pressure:500 t distance between columns:3200 mm stroke:1250 mm distance table/ram, max. stroke up, adjustment up:1810 mm table surface area:3000 x 1900 mm pressure of drawing cushion in ram:150 t stroke of drawing cushion in ram:200 mm drawing cushion area in ram:2400 x 1200 mm ram surface:3160 x 1900 mm speed down:400 mm/s speed up:250 mm/s working speed:18 - 58 mm/s height over floor:6,5 m power requirement:90,0 + 36,5 kW weight:110 t German Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2 drawing cushion in ram:hydraulic

pressure:800 t distance between columns:3010 mm stroke:300 mm distance table/ram, max. stroke up, adjustment up:1350 mm table surface area:3000 x 1800 mm table height over floor:500 mm side window:1500 x 1400 mm ram surface:3000 x 1800 mm speed down:300 mm/s oil volume:900 l height over floor:5,4 m height beneath floor:2,1 m power requirement:200,0 kW weight:80,0 t Dimensions (WxDxH):5,2 x 2,6 x 7,5 m ram interlocking:in TDC depth stop:mechanical

pressure:100 t distance between columns:1060 mm stroke:700 mm distance table/ram, max. stroke up, adjustment up:1250 mm table surface area:1000 x 700 mm pressure of drawing cushion in table:40 t stroke of drawing cushion in table:200 mm die cushion area:Ø 250 mm table height over floor:950 mm side window:580 x 750 mm ram surface:1000 x 700 mm oil volume:700 l power requirement:47,0 kW weight:13,0 t Dimensions (WxDxH):2,2 x 1,8 x 5,0 m German Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2 depth stop:mechanical; motoric adjustable ram interlocking:SITEMA

pressure:6,3 t throat:300 mm stroke:300 mm distance table/ram, max. stroke up, adjustment up:800 mm table surface area:450 x 400 mm hole in the table:80 mm table height over floor:700 mm ram surface:50 mm oil volume:90 l power requirement:5,5 kW weight:1,35 t dimensions (WxDxH):1,8 x 2,0 x 2,7 m German Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2 depth stop:mechanical

pressure:160 t throat:370 mm stroke:150 mm distance table/ram, max. stroke up, adjustment up:500 mm table surface area:1000 x 700 mm hole in the table:100 mm table height over floor:820 mm ram surface:600 x 520 mm speed down:350 mm/s speed up:350 mm/s working speed:12 - 36 mm/s oil volume:1100 l power requirement:27,0 kW weight:16,5 t dimensions (WxDxH):1,8 x 2,7 x 3,95 m German Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2 depth stop:motoric adjustable

pressure:100 t throat:450 mm stroke:170 mm distance table/ram, max. stroke up, adjustment up:450 mm table surface area:3220 x 800 mm table height over floor:850 mm ram surface:3220 x 800 mm speed down:50 mm/s speed up:150 mm/s working speed:7 mm/s oil volume:600 l power requirement:20,0 kW weight:16,0 t dimensions (WxDxH):3,7 x 2,5 x 2,6 m

pressure:315 t distance between columns:1620 mm stroke:600 mm distance table/ram, max. stroke up, adjustment up:1000 mm table surface area:1600 x 1100 mm pressure of drawing cushion in ram:20 t stroke of drawing cushion in ram:100 mm drawing cushion area in ram:300 x 300 mm side window:600 x 1100 mm table height over floor:750 mm ram surface:1600 x 1100 mm oil volume:1500 l power requirement:110,0 kW weight:35,0 t dimensions (WxDxH):4,65 x 2,61 x 5,5 m height over floor:5,05 m height beneath floor:0,45 m German Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2 drawing cushion in ram:hydraulic ram interlocking:pneumatic cutting impact cushioning:hydraulic

pressure:60 t distance between columns:650 mm stroke:220 mm distance table/ram, max. stroke up, adjustment up:410 mm table surface area:600 x 525 mm pressure of drawing cushion in table:5 t stroke of drawing cushion in table:80 mm table height over floor:900 mm side window:200 mm ram surface:560 x 490 mm dimensions (WxDxH):1,9 x 1,3 x 2,7 m German Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2 light guard:Sick FGS 600 drawing cushion in table:hydraulic foundation pit:not necessary

pressure:160 t throat:360 mm stroke:200 mm distance table/ram, max. stroke up, adjustment up:500 mm table surface area:920 x 700 mm Hole in the table:150 mm table height over floor:960 mm passage to the back:590 mm ram surface:620 x 560 mm speed down:390 mm/s speed up:390 mm/s working speed:58 mm/s power requirement:30,0 kW weight:16,0 t dimensions (WxDxH):1,6 x 2,5 x 3,6 m German Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2 depth stop:mechanisch

pressure:2000 t distance between columns:975 mm stroke:400 mm distance table/ram, max. stroke up, adjustment up:1000 mm table surface area:1015 x 1050 mm table height over floor:800 mm capacity of ejector in table:6,3 t ejector stroke in table:100 mm capacity of ejector in ram:65 t ejector stroke in ram:100 mm ram surface:975 x 1050 mm return capacity:150 t speed down:235 mm/s speed up:250 mm/s working speed:5 - 20 mm/s oil volume:4000 l height over floor:3,65 m height beneath floor:3,75 m power requirement:194,0 kW weight:105,0 t dimensions (WxDxH):5,0 x 6,5 x 7,4 m

pressure:100 t distance between columns:1000 mm stroke:300 mm distance table/ram, max. stroke up, adjustment up:650 mm table surface area:980 x 700 mm pressure of drawing cushion in table:4 x 10 / 1 x 20 t stroke of drawing cushion in table:180 mm table height over floor:800 mm side window:400 mm ram surface:1000 x 700 mm speed down:500 mm/s speed up:450 mm/s working speed:60 mm/s power requirement:40,0 kW dimensions (WxDxH):1,5 x 1,4 x 4,5 m German Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2 drawing cushion in table:4 x 10 t + 1 x 20 t, getrennt einschaltbar foundation pit:nicht erforderlich

pressure:200 t distance between columns:970 mm stroke:360 mm Distance table/ram, max. stroke up, adjustment up:630 mm table surface area:1000 x 800 mm capacity of ejector:10 t ejector stroke in table:160 mm table height over floor:850 mm side window:400 mm ram surface:1000 x 800 mm speed down:420 mm/s speed up:410 mm/s working speed:50 mm/s oil volume:1240 l return capacity:24 t power requirement:45,0 + 15,0 kW weight:16,0 t dimensions (WxDxH):2,7 x 2,5 x 4,3 m German Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2 ram interlocking:mechanisch foundation pit:nicht erforderlich

pressure:100 t throat:540 mm stroke:560 mm distance table/ram, max. stroke up, adjustment up:800 mm table surface area:1000 x 1000 mm pressure of drawing cushion in table:50 t stroke of drawing cushion in table:200 mm die cushion area:710 x 650 mm table height over floor:910 mm ram surface:1000 x 1000 mm capacity of ejector in ram:2 t ejector stroke in ram:200 mm return capacity:19,5 t speed down:400 mm/s speed up:300 mm/s working speed:57,7 mm/s oil volume:650 l power requirement:37,5 kW weight:15,0 t dimensions (WxDxH):1,5 x 2,5 x 4,45 m German Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2 drawing cushion / ejector in table:hydraulisch ejector in ram:hydraulisch depth stop:mechanisch

pressure:40 t throat:360 mm stroke:500 mm distance table/ram, max. stroke up, adjustment up:660 / 1000 mm table surface area:630 x 500 mm hole in the table:200 mm table height over floor:1060 / 720 mm ram surface:450 x 360 mm speed down:60 mm/s speed up:300 mm/s power requirement:7,5 kW weight:2,75 t dimensions (WxDxH):1,0 x 1,8 x 3,05 m additional plate in table:height approx. 340 mm

pressure:150 t distance between columns:300 mm stroke:180 mm distance table/ram, max. stroke up, adjustment up:300 mm table surface area:570x180 / 300x410 mm table height over floor:875 mm side window:180 mm ram surface:180 mm speed down:250 mm/s speed up:160 mm/s working speed:6 - 12 mm/s oil volume:250 l power requirement:11,0 kW weight:2,4 t dimensions (WxDxH):1,3 x 1,3 x 2,4 m German Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2 § 20 foundation pit:nicht erforderlich

pressure:40 t throat:360 mm stroke:400 mm distance table/ram, max. stroke up, adjustment up:600 mm table surface area:620 x 500 mm pressure of drawing cushion in table:16 t stroke of drawing cushion in table:150 mm table height over floor:850 mm ram surface:300 x 250 mm speed down:200 mm/s speed up:200 mm/s working speed:40 mm/s power requirement:11,0 kW weight:2,8 t dimensions (WxDxH):1,1 x 1,7 x 3,0 m drawing cushion in table:hydraulisch

pressure:63 t throat:320 mm stroke:200 mm distance table/ram, max. stroke up, adjustment up:450 mm table surface area:750 x 600 mm pressure of drawing cushion in table:6,5 t stroke of drawing cushion in table:80 mm die cushion area:240 mm table height over floor:800 mm ram surface:500 x 450 mm capacity of ejector in ram:0,5 t ejector stroke in ram:70 mm speed down:300 mm/s speed up:300 mm/s working speed:50 mm/s oil volume:380 l power requirement:12,0 kW weight:6,5 t dimensions (WxDxH):1,3 x 2,0 x 2,75 m drawing cushion in table:hydraulic ejector in ram:hydraulic depth stop:mechanical cutting impact cushioning:hydraulic

pressure:200 t distance between columns:1050 mm stroke:150 mm distance table/ram, max. stroke up, adjustment up:450 mm table surface area:1000 x 1200 mm table height over floor:850 mm side window:500 mm ram surface:1050 x 870 mm speed down:300 mm/s speed up:300 mm/s working speed:18 - 36 mm/s power requirement:37,0 kW weight:16,0 t dimensions (WxDxH):4,0 x 3,6 x 3,4 m German Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2 drawing cushion in table:hydraulisch cutting impact cushioning:hydraulisch foundation pit:nicht erforderlich

pressure:160 t distance between columns:1380 mm stroke:300 mm distance table/ram, max. stroke up, adjustment up:500 mm table surface area:1250 x 850 mm pressure of drawing cushion in table:80 t stroke of drawing cushion in table:150 mm die cushion area:450 x 450 mm table height over floor:900 mm side window:250 x 400 mm ram surface:1350 x 850 mm speed down:400 mm/s speed up:350 mm/s working speed:50 mm/s oil volume:1850 l power requirement:58,0 + 11,0 kW weight:24,1 t dimensions (WxDxH):2,85 x 2,15 x 4,6 m German Safety: permitted for manual loading:CE-sign die cushion / ejector in table:hydraulic depth stop:motoric adjustable

pressure:40 t distance between columns:495 mm stroke:150 mm distance table/ram, max. stroke up, adjustment up:300 mm table surface area:490 x 400 mm hole in the table:50 mm table height over floor:950 mm side window:155 mm ram surface:150 mm speed down:480 mm/s speed up:480 mm/s working speed:20 mm/s oil volume:115 l power requirement:7,5 kW weight:2,2 t dimensions (WxDxH):1,35 x 1,1 x 2,2 m depth stop:mechanisch foundation pit:nicht erforderlich

Pressure:200 t distance between columns:1910 mm stroke:600 mm distance table/ram, max. stroke up, adjustment up:800 mm table surface area:1900 x 1150 mm pressure of drawing cushion in table:80 t stroke of drawing cushion in table:300 mm die cushion area:1500 x 950 mm table height over floor:800 mm side window:1000 mm ram surface:1900 x 1100 mm return capacity:36 t speed down:400 mm/s speed up:170 mm/s working speed:30,5 mm/s oil volume:1500 l height over floor:4,85 m height beneath floor:2,6 m power requirement:45,0 kW weight:38,0 t dimensions (WxDxH):3,05 x 2,8 x 5,55 m German Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2 drawing cushion in table:hydraulic

pressure:300 t distance between columns:1220 mm stroke:1000 mm distance table/ram, max. stroke up, adjustment up:1200 mm table surface area:1200 x 1000 mm pressure of drawing cushion in table:115 t stroke of drawing cushion in table:400 mm die cushion area:1100 x 860 mm table height over floor:900 mm side window:550 x 1000 mm ram surface:1200 x 1030 mm speed down:400 mm/s speed up:350 mm/s working speed:12 - 31 mm/s oil volume:1080 l power requirement:36,0 + 19,0 kW weight:22,0 t dimensions (WxDxH):2,5 x 2,5 x 6,3 m height over floor:5,4 m height beneath floor:0,9 m German Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2 light guard:Sick hydraulic safety block and pump:Fabrikat Rexroth

pressure:25 t throat:400 mm stroke:1000 mm distance table/ram, max. stroke up, adjustment up:1100 mm table surface area:620 x 620 mm Hole in the table:80 mm table height over floor:650 mm ram surface:110 mm speed down:300 mm/s speed up:500 mm/s working speed:14 - 85 mm/s oil volume:400 l power requirement:6,0 kW weight:3,8 t dimensions (WxDxH):1,5 x 2,1 x 3,9 m German Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2
