double column machining used for sale

Key data: 6200 mm, 1300 mm, 300 mm

SPECIFICATIONS: Workspace: X: 6200 mm Y: 1300 mm Z: 300 mm 08 Clamping Plates with Suction Cups 01 Side tool magazine Turret tool magazine with 18 compartments Side stops (3 right + 3 left) 01 Vacuum pump: 250 m³ Siemens control system 18 spindles for vertical drilling 02 Double-sided spindles for horizontal drilling - X-axis 01 Double-sided spindle for horizontal drilling - Y-axis 01 Electrospindle 12 kW HSK water-cooled coupling 4-axis cutting/milling unit

Key data: 3060 mm, 1260 mm, 150 mm

SPECIFICATIONS: Workspace: X: 3060 mm Y: 1260 mm Z: 150 mm 03 Axles Automatic lubrication system 06 ATS tables (length: 1200 mm) 018 Track rollers 06 rear stops 06 stops at height 970 mm Side stops (2 right + 2 left) 04 Bar lifter Turret tool magazine with 10 places 01 Drill head BH 21 L (7x+7y vertical - 4x+2y horizontal - x-axis knife) 01 Air Cooled 12kw Electrospindle HSK F63 Coupling 01 Becker vacuum pump: 100 m³ SYSTEM: Biesse Works XP600 Controller EQUIPMENT: Carpets and barriers Various tools

Control: Siemens Sinumerik 840 D Travel: X-axis: 800 mm Y-axis: 1,050 mm Z-axis: 850 mm Mount: HSK 100 Tool magazine: 60-fold Gear spindle: 8,000 rpm Workpiece diameter max.: 900 mm Max. workpiece height: 1,450 mm Conveyor Coolant device with low-bed filter Coolant supply through the spindle 2-fold pallet changer 3-D Probe (Renishaw) Blum Laser Aspirator

Key data: 3000 mm, 920 mm, 50 mm

CNC Drilling Center C-Express Classic Drilling/sawing/milling from below Easy operation via graphical user interface 1 Machine Software License 19" LCD color display, mouse keyboard Machine weight 850kg Machine dimension: 2,100x1,500x1,950mm Milling spindle 3.3kW (S1), 24,000rpm Collet ER32 manual Drill Head DH 15 6H1S 9 vertical drilling spindles 6 hotizontal drilling spindles 1 grooving saw X direction More information on request! Safety FELDER KG KR-Felder-Straße 1 6060 HALL IN TIROL Phone: +43 (0)5223 58500 Infofelder-Group

Control Heidenhain ... TNC 530 Clamping table surface ... 600x1000mm Axis X ... 630mm Axis Y ... 560mm Axis Z ... 560mm Spindle speed ... 0-12000 rpm controlled axes ... 5 cooling HSK 63 Table diameter ... 600mm Magazine spaces ... 24 Main engine power ... 15/10kW Max. workpiece weight ... 500kg The machine is in good condition, possible to test under power.

CNC Machining Center Hedelius BC 100 P-3500 Magnum Control: Siemens Sinumerik 840D Travel: X-axis 3,500 mm Y-axis 1,000 mm Z-axis 770 mm Clamping area 4,150 x 1,000 mm T-slots 5 pieces Distance T-slots 200 mm Table height above floor: 730 mm Table load: approx. 4,000 kg Mount: DIN 69871 SK 50 Tool magazine: 50 – compartment Spindle speed: 20 - 4,500 rpm Accessories - Door automation - Handheld operator - Machine hood -Conveyor

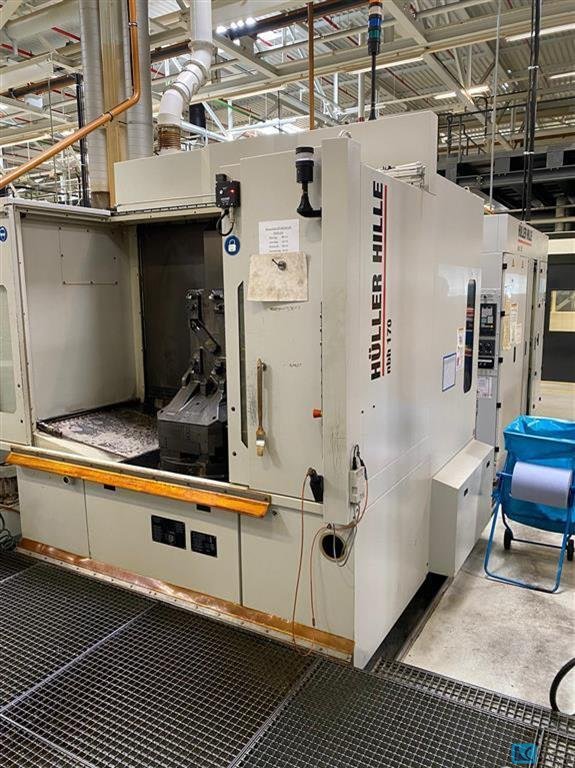

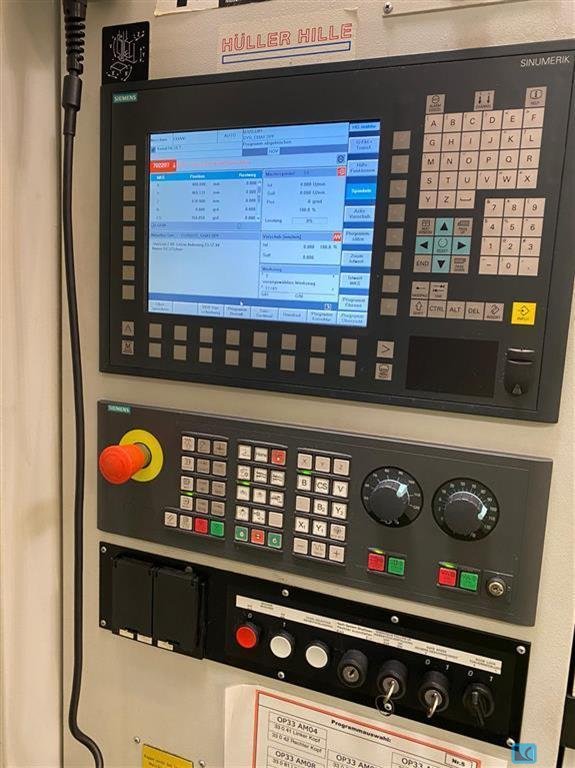

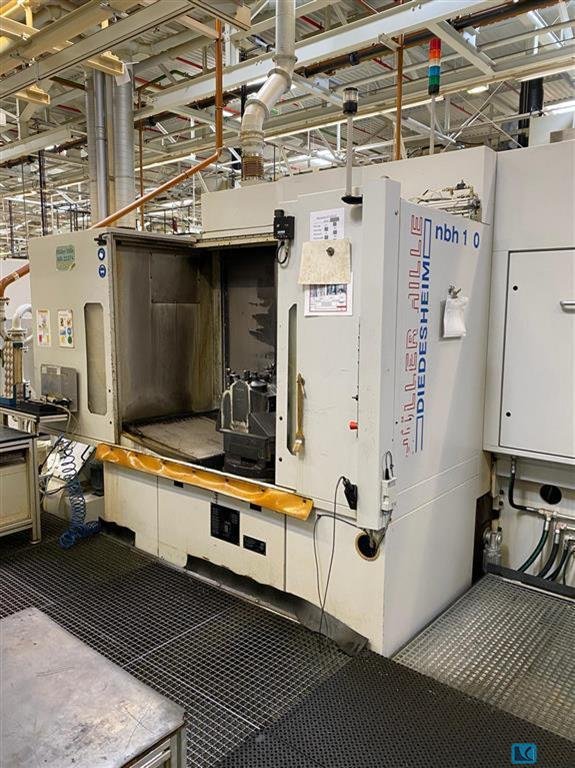

Manufacturer: Hüller Hille Model: NBH 170 Year of Manufacture: 2000 Type of Machine : 4-Axis Horizontal Machining Center Technical Details: - Travel Path: 1000 x 800 x 800 mm - Spindle: HSK-A100, 8,000 rpm - Automation: Rotary pallet storage system with 7 pallets - CNC Control: Siemens 840D - Tool Capacity: 200 tools - Condition: Fully overhauled in 2022 Find more here - / Contact us at -

CNC controller: HEIDENHAIN iTNC 530 Axes X-axis travel mm: 700 Y-axis travel mm: 700 Z-axis travel mm: 700 Distance spindle nose - table surface mm: 100 - 800 Rapid traverse m/min: 60 Acceleration in the axes m/s2: 6 / 6 / 5 Worktable Number of pallets: 2 + 5 Table dimensions mm: 500 x 500 Maximum workpiece size (D x H) mm: 800 x 1.000 Max. workpiece weight kg: 600 T-Slot version: DIN 55201-A2 APC time s: 9,5 División estandar Grados: 360º (1º) Spindle Spindle speed rpm: 18.000 Spindle drive power kW: 34 / 28 Spindle torque Nm: 110 Tool system Tool holder: HSK-A63 Tool magazine slots: 120 Max. Tool Diameter: 80 Max. Tool Length mm: 550 Max tool weight kg: 12 Chip-to-chip time s: 2,9 Equipment Electronic Handwheel Chip conveyor Rotating inspection windows Rinsing gun Signal lamp Tool breakage probe 3D quickSET Workare ...

Control HEIDENHAIN TNC 430 Spindle speed 20 - 9,000 1/min Travel X= 500, Y= 400, Z= 400 mm Tool holder SK 40 Tool changer with 16 stations Rotary table with B and C axis Clamping surface Ø 700 x 500 mm max. table load 200 kg Infrared Probe Workpiece Measurement

axis stroke (X,Y,Z): unbegrenzt, 1000, 60 mm Number of spindle head vertical: 10 St. Number of spindles head horizontal: 6 St. milling motor: 4,5 kW CNC machining center at a Special PRICE! MASTERWOOD TF 100 2.0 Partnership Edition Furnishing: ----------------------------------------------------- - Drilling head with 16 drills for 5-sided machining - Grooving saw unit - Milling unit with 6-fold tool changer - incl. grooving saw blade, 2 diamond cutters, 1 WPL finishing cutter - Preparation for CLAMEX and door package - 2 foldable roller conveyors - program-controlled central lubrication ----------------------------------------------------- SPECIAL PRICE 44,990.00 euros (plus VAT) ex works ----------------------------------------------------- Freight, installation, instruction within Germany including 8-hour training individually and on site SPECIAL PRICE 3,000.00 euros (plus VAT) Partne ...

overhauled: 2024 Control Heidenhain ... TNC 620 Clamping table surface ... 1300 x 600mm Axis X ... 1016mm Axis Y ... 610mm Axis Z ... 660mm Spindle speed ... 0-10000 rpm controlled axes ... 3 cooling... 20bar ISO 40 L x W x H ... 2700x3000x2940mm Machine weight... 5500kg Magazine spaces ... 20 The machine has undergone a complete overhaul. More info on request.

HEDELIUS BC 40 MACHINING CENTER - X 1600 mm - Y400 mm - Z 400 mm SK40 HEIDENHAIN control system

Key data: 1600 mm, 1600 mm, 1200 mm

Brand : OKK Type: VP1200 CNC Brand: Fanuc CNC Model: 160is-MB Year of Make: 2004 Table length: 1,600 mm Table width: 1,300 mm X: 1,600 mm Y: 1,300 mm Z: 550 mm Projection: 560 mm Tool Changers: 40 Minimum speed: 100 RPM Maximum speed: 12,000 RPM Max. workpiece diameter: 82 mm ø Maximum table load: 2,000 kg Further information can be found in the pdf file Machine size: 5,800 x 3,200 x 2,800 mm Machine weight: 16,000 kg

Key data: 500 mm, 450 mm, 400 mm

Brand DMG Mori Seiki Machine No: F652 Type DMU 50 Ecoline Control Siemens 840D Year of construction 2012 Table width 500 mm Table diameter 630 mm ø Table adjustable in degrees X 500 mm Y 450 mm Z 400 mm Spindle Taper SK40 Minimum speed 20 RPM Maximum speed 10,000 RPM Maximum table load 200 kg Chip transport Machine size 3,400 x 2,500 x 2,200 mm Machine weight 4,700 kg Magazine slots: 30 B-axis: +110/-5° C-axis: 360° Engine power: 13/9 Kw

Key data: 635 mm, 510 mm, 460 mm

Brand DMG Mori Seiki Machine No: F666 Type DMC 635 V Ecoline Control Siemens 840D Year of construction 2012 Table length 790 mm Table width 560 mm X 635 mm Y 510 mm Z 460 mm Spindle Taper SK40 Maximum speed 12,000 RPM Chip transport Machine size 3,400 x 2,400 x 2,800 mm Machine weight 3,950 kg Magazine slots: 30

CNC Machining Center Kunzmann WF 650 Control: Heidenhain iTNC 640 Year of Make: 2017 Travel: X-axis 650 mm Y-axis 500 mm Z-axis 450 mm Manual swivel of the milling head: -5° / + 95° Round table top: Ø 400 mm Centering hole: Ø102 H7 A-axis (swingarm): +/- 30 s C-axis rotary table: +/- 10 s Swivel range A-axis: -120/-95° C-axis rotation range: 360° rotation Mount: SK 40 DIN69871 Tool magazine: 60-fold Spindle speed: 1 – 12,000 rpm Accessories - Coolant system - IKZ with high-pressure pump - Electronic handwheel -Conveyor - 3D probes

x-travel: 635 mm y-travel: 510 mm z-travel: 460 mm Control: DMG total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Table dimensions X/Y: 1370mm/660mm, travel X/Y/Z: 1250mm/660mm/635mm, speed: 8000rpm, spindle mount: BT40, tool positions: 32, spindle-table distance: 790mm, control: Siemens 810 T. Documentation available. On-site inspection is possible.

A DMG CNC universal machining center is available. Travel X/Y/Z: 780mm/560mm/560mm, spindle speed: 12000/min, tool places: 60, tool holder: SK40, table: rotary table, milling head: swiveling, pallet capacity: 5, pallet dimensions X/Y: 630mm/500mm, control: Heidenhain MillPlus IT, operating hours: 42603h, spindle hours: 20137h. Including rotary pallet changer, BLUM laser, TS 641 3D measuring probe, chip conveyor, 40bar IKZ, 900l coolant tank and Rotoclear. Documentation available. On-site inspection is possible.

Travel X/Y/Z: 1050mm/800mm/560mm, C-axis: 360°, spindle head swivel range: -10°/110°, speed: 18000rpm, spindle power: 25kW/35kW, table diameter: 950mm, table load capacity: 800kg, max. workpiece height: 500mm. Tool positions: 30, tool holder: HSK A 63, max. tool diameter: 80mm/130mm, max. tool length: 250mm, rapid traverse: 90m/min, feed: 20m/min. Control: Heidenhain iTNC 530, operating hours: 117490h, spindle hours: 18086h. Including chip conveyor, IKZ, distance measuring system, Blum laser and measuring probe. Documentation available. On-site inspection is possible.

Travel X/Y/Z: 1050mm/800mm/560mm, C-axis: 360°, spindle head swivel range: -10°/110°, speed: 18000rpm, spindle power: 25kW/35kW, table diameter: 950mm, table load capacity: 800kg, max. workpiece height: 500mm. Tool positions: 30, tool holder: HSK A 63, max. tool diameter: 80mm/130mm, max. tool length: 250mm, rapid traverse: 90m/min, feed: 20m/min. Control: Heidenhain iTNC 530, operating hours: 113894h, spindle hours: 13349h. Including chip conveyor, IKZ, distance measuring system, Blum laser and measuring probe. Documentation available. On-site inspection is possible.

Verfahrweg X/Y/Z: 3200mm/1100mm/900mm, max. Werkstückgewicht: 5000kg, Tischdimensionen X/Y/Z: 3250mm/1220mm/1030mm. Spindelleistung: 45kW, Drehzahl: 6000U/min, Werkzeugaufnahme: SK50, Werkzeugdurchmesser: 125mm, Werkzeuglänge: 300mm, max. Werkzeuggewicht: 15kg, NC-Rundtischdimensionen X/Y: 800mm/800mm. Maschinendimensionen X/Y: ca. 7800mm/4700mm, Gewicht: ca. 25000kg, Steuerung: Siemens Sinumerik 810D Shopmill, Betriebsstunden: ca. 32000h, Spindelstunden: ca. 18000h. Inklusive Späneförderer und IKZ. Dokumentation vorhanden. Eine Besichtigung vor Ort ist möglich.

Travel X/Y/Z: 900mm/800mm/1020mm, rapid traverse: 50m/min, speed: 10000rpm, plate dimensions X/Y: 630mm/630mm, max. tool diameter: 300mm, max. swivel diameter: 1000mm, max. table load: 1200kg, tool positions: 300, tool holder: HSK 100, motor power: 35kW, machine weight: approx. 16000kg. Including chip conveyor, compressed air preparation panel, hydraulic-pneumatic system, cooler and various spare parts. Documentation available. On-site inspection is possible.

Travel X/Y/Z: 1270mm/660mm/610mm, speed: 10000rpm, max. table load: 3000kg, spindle mount: CAT40, tool positions: 40, machine dimensions X/Y/Z: approx. 3300mm/2800mm/3000mm, weight: approx. 9000kg, control: Ultimax. Documentation available. On-site inspection is possible.

X-axis: 300mm, y-axis: 620mm, z-axis: 400mm, positioning accuracy: ±0.005 inch, repetition accuracy: 0.005 inch, rapid traverse: 25m/min, feed rate: 10m/min, air pressure: 6kg/cm², air consumption: 400l, pump motor: 30W, delivery rate: 2.2cm³/s, pump pressure: 8kg/cm², tank capacity: 2l, pump electrics: 220V/ 3PH/ 1.2A, max. delivery rate: 130l/min, control: Heidenhain TNC 620, connected load: 15kVA, length: 3000mm, width: 2050mm, height: 3020mm, weight: 3020kg. max. flow rate: 130l/min, control: Heidenhain TNC 620, connected load: 15kVA, length: 2984mm, width: 2050mm, height: 2420mm, weight: 3020kg. Operating hours control: 22,261h, machine: 22,414h, programme: 10,507h, spindle: 7695h. Fully functional, spindle was recently replaced, the built-in oil skimmer in the cooling water tank is not functional. With documentation. On-site inspection is possible.

Travel X/Y/Z: 700mm/500mm/600mm, speed: 6300rpm, power: approx. 10kW, feed X/Y/Z: 4m/min, rapid traverse X/Y/Z: 10m/8m/10m/min, machine dimensions X/Y/Z: approx. 4500mm/2300mm/2500mm, weight: approx. 6000kg, operating hours: 65425h. On-site inspection is possible.

Travel X/Y/Z: 700mm/400mm/300mm, table dimensions X/Y: 650mm/400mm, max. table load: 350kg, spindle mount: BT30, speed: 12000rpm, power: 5.5kW, torque: 82.7Nm. Rapid traverse: 50m/min, feed: 50m/min, tool positions: 21, tool diameter: 75mm, tool length: 210mm, tool weight: 3kg. Machine dimensions X/Y/Z: approx. 2550mm/1450mm/2900mm, control: Fanuc 0iMF. Documentation available. On-site inspection is possible.

A CNC vertical machining center Akira Seiki is available. Travel X/Y/Z: 2060mm/850mm/815mm, spindle-table distance: 120mm-935mm, table dimensions X/Y: 2150mm/800mm, max. table load: 3240kg. Spindle power: 42kW, speed: 8000rpm, tool holder: BT50, rapid traverse X/Y/Z: 36m/36m/30m/min, positioning accuracy: 0.015mm, repetition accuracy: +/-0.005mm. Tool positions: 28, max. tool diameter: 100mm/200mm, max. tool length: 350mm, max. tool weight: 15kg. Machine dimensions X/Y: approx. 5000mm/3550mm, weight: approx. 14500kg, control: Mitsubishi 70, documentation available. On-site inspection is possible.

Travel X/Y/Z: 1016mm/508mm/635mm, speed: 10000rpm, table dimensions X/Y: 1219mm/457mm, max. table load: 1550kg, tool positions: 20, rapid traverse X/Y/Z: 25m/min/25m/min/25m/min. Machine dimensions X/Y/Z: approx. 4000mm/2800mm/2600mm, weight: approx. 5400kg. Documentation available. On-site inspection is possible.

A CNC vertical machining center Akira Performa with a counter bearing on the A-axis is available. Travel X/Y/Z: 2060mm/850mm/815mm, spindle-table distance: 120mm-935mm, table dimensions X/Y: 2150mm/800mm, max. table load: 3240kg. Spindle power: 42kW, speed: 8000rpm, tool holder: BT50, rapid traverse X/Y/Z: 36m/36m/30m/min, positioning accuracy: 0.015mm, repetition accuracy: +/-0.005mm. Tool positions: 28, max. tool diameter: 100mm/200mm, max. tool length: 350mm, max. tool weight: 15kg. Machine dimensions X/Y: approx. 5000mm/3550mm, weight: approx. 14500kg, control: Siemens 828, documentation available. On-site inspection is possible.

Travel X/Y/Z: 835mm/510mm/510mm, speed: 12000rpm, spindle power: 14kW, table dimensions X/Y: 1000mm/560mm, table load capacity: 800kg, max. workpiece height: 720mm. Tool positions: 20, tool holder: SK40, max. tool diameter: 80mm/130mm, max. tool length: 250mm, rapid traverse: 30m/min, feed: 20m/min. Machine dimensions X/Y/Z: approx. 3500mm/3500mm/2700mm, weight: approx. 4500kg, control: Heidenhain iTNC 530, operating hours: 112962h, spindle hours: 30702h. Including chip conveyor, IKZ, distance measuring system. Documentation available. On-site inspection is possible.

A DMG CNC universal machining center is available. Travel X/Y/Z: 780mm/560mm/560mm, spindle speed: 12000/min, tool places: 60, tool holder: SK40, table: rotary table, milling head: swiveling, pallet capacity: 5, pallet dimensions X/Y: 630mm/500mm, control: Heidenhain iTNC 530, operating hours: 62659h, spindle hours: 38299h. Including rotary pallet changer, BLUM laser, TS 641 3D measuring probe, chip conveyor, 40bar IKZ, 900l coolant tank and Rotoclear. Documentation available. On-site inspection is possible.

Travel X/Y/Z: 1050mm/800mm/880mm, B-axis: 360°, table dimensions X/Y: 630mm/630mm, number of pallets: 2, max. workpiece weight: 1500kg, speed: 7000rpm, tool holder: SK50, power: 30kW, tool positions: 80, max. tool diameter: 135mm/260mm, max. tool weight: 30kg, rapid traverse: 40m/min. Machine dimensions X/Y/Z: approx. 6400mm/2600mm/3200mm, weight: approx. 19700kg, control: Mazatrol 640M PC-Fusion-CNC. Including 2-fold pallet changer for 630mm/630mm pallets. Documentation available. On-site inspection is possible.

Travel X/Y/Z: 500mm/350mm/300mm, table dimensions X/Y: 320mm/320mm, max. table load: 450kg, speed: 13000rpm, spindle power: 5.5kW, spindle mount: HSK40, tool positions: 24, max. tool diameter: 75mm, max. tool length: 200mm, max. tool weight: 3kg, rapid traverse: 60m/min. Machine dimensions X/Y/Z: approx. 4200mm/1250mm/2450mm, weight: 4400kg, control: Fanuc Series 21i-MB. Documentation available. On-site inspection is possible.

Travel X/Y/Z: 2500mm/900mm/800mm, speed: 18000rpm, spindle power: 35kW, max. table load: 3000kg, tool places: 30, machine dimensions X/Y/Z: approx. 6500mm/3000mm/3000mm, weight: approx. 20000kg, control: Siemens Sinumerik 840D, operating hours: 55730h, spindle hours: 18696h. Z-axis brake defective, roller shutter in machine room defective, screen cable defective. Including cooling lubrication system Knoll VRF 250/1250, documentation available. On-site inspection is possible.

Travel X/Y/Z: 460mm/510mm/560mm, table dimensions X/Y: 305mm/305mm, speed: 15000rpm, power: 22kW, tool positions: 50, tool diameter: 95mm, tool weight: 10kg, max. workpiece diameter: 500mm, max. workpiece height: 745mm. Rapid traverse: 60m/min, B-axis speed: 150rpm, positioning accuracy: +/-0.001mm, power consumption: 45kVA, control: Arumatik. Documentation available. On-site inspection is possible.

Travel X/Y/Z: 600mm/500mm/400mm, table dimensions X/Y: 900mm/600mm, spindle mount: SK40, speed: 6000rpm, tool positions: 24, feed: 6m/min, rapid traverse: 15m/min, machine dimensions X/Y/Z: approx. 4000mm/4000mm/2700mm, weight: approx. 5000kg. On-site inspection is possible.

Travel X/Y/Z: 800mm/800mm/800mm, feed force X/Y/Z: 15000N/15000N/17500N, feed speed X/Y/Z: 50m/min, max. rotary table speed: 25rpm, spindle diameter: 100mm, tool holder: HSK 100, spindle power S1-100%: 40kW, spindle speed: 6000rpm. Magazine capacity for a maximum tool diameter of 280mm: 23. Max. pallet dimensions X/Y: 630mm/630mm, max. pallets in the system: 6, coolant tank volume: 1500l, 50bar high-pressure pump delivery rate: 22l/min. Machine dimensions X/Y/Z: approx. 6300mm/4900mm/4000mm, weight: approx. 19,300kg, control: Siemens 840D powerline, operating hours: 74,637h. Includes integrated tool monitoring IPM, remote diagnostics via modem, Renishaw MP10 touch probe, RSP 4-position round storage, chip removal, coolant system with Knoll VRF 250 vacuum rotary filter, pallet changing device, 6 pallets, 4 of which are clamping towers with universal clamping bars, approx. 100 HSK 100 tool ...

Travel X/Y/Z: 400mm/300mm/495mm, spindle center table distance: 25mm-325mm, spindle nose table distance: 125mm-620mm, rapid traverse: 24m/min, feed rate: 5m/min, spindle type: ball screw, spindle diameter: 36mm, speed: 6000rpm, spindle power: 5.5kW, spindle mount: BT40. Tool slots: 30, tool change time: 2.5s, clamping time: 7s, max. tool diameter/length: 110mm/250mm, max. tool weight: 8kg. Table dimensions X/Y: 315mm/315mm, table angle: 7.5°, table clamping force: 3400kg, max. workpiece weight: 150kg. Dimensions X/Y: approx. 1900mm/2300mm, weight: approx. 4500kg, control: Fanuc 0-M, operating hours: 732h, piece counter: 172776. Including cooling lubricant system and tool magazine with 30 places. Documentation available. On-site inspection is possible.

A CNC universal milling and drilling center SHW is available. Travel X/Y/Z: 6000mm/2100mm/1500mm, milling head swivel: 180°, rapid traverse X/Y/Z: 8m/min, speed: 4500rpm, spindle power: 31.5kW, machine dimensions X/Y/Z: approx. 11000mm/9000mm/6000mm, weight: approx. 44000kg. Documentation available. On-site inspection is possible.

Travel X/Y/Z: 600mm/410mm/520mm, table dimensions X/Y: 840mm/420mm, spindle speed: 6000rpm, spindle power: 8.5kW, tool holder: SK40, tool positions: 22, rapid traverse X/Y/Z: 36m/36m/20m/min. Machine dimensions X/Y/Z: approx. 2200mm/2300mm/2300mm, weight: approx. 2500kg, control: Heidenhain TNC 426. An on-site inspection is possible.

Four Chiron CNC machining centers are available. Travel X/Y/Z: 1250mm/840mm/550mm, rapid traverse X/Y/Z: 60m/min, speed: 12000rpm, power: 22.5kW, torque: 140NM, tool positions: 24, tool holder: HSK-63, max. tool length: 320mm, machine weight: approx. 10000kg, control: Siemens 840D. Including IKZ, chip conveyor and Fibro swivel axis. Documentation available. On-site inspection is possible. Individual sale possible.

A sheet metal folding machine including a roller conveyor with digital length cutting is available. An on-site inspection is possible.

Travel X/Y/Z: 3200mm/300mm/250mm, speed: 18000rpm, motor power: 7.4kW, tool holder: SK30, tool positions: 8, tool changer: turret, materials processed: aluminum/steel (max. 5mm thick)/PVC (steel-reinforced and unreinforced), wood and plastics. Documentation available. On-site inspection is possible.

A Maka CNC 4-axis milling and drilling machine for plastic, wood and aluminum is available. Travel X/Y/Z: 2000mm/6000mm/250mm, C-axis: 360°, rapid traverse X/Y/Z: 45m/min/45m/min/24m/min, spindle mount: HSK63, spindle power: 12kW, spindle speed: 24000rpm. Tool places: 12, angle head places: 3, machine dimensions X/Y/Z: 12000mm/5700mm/3200mm, control: BWO 920, documentation available. On-site inspection is possible.

x-travel: 650 mm y-travel: 410 mm z-travel: 450 mm : travel: x vor 1000 mm control: mc4va total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 800 mm y-travel: 630 mm z-travel: 560 mm total power requirement: 60 kW weight of the machine ca.: 12.5 t dimensions of the machine ca.: m H E L L E R (Germany) 5 Axis - CNC Controlled Horizontal Machining Centre Model FST- MC 160 / 800 / E Year 1998 Only approx. 500 hours in operation _______________________________________________________ Working range: Longitudinal stroke X axis 800 mm Vertical stroke Y axis 630 mm Cross stroke Z axis 560 mm NC rotary table Tilting A axis 180 ° Turning B axis 360 ° Size of pallet, approx. 250 x 620 mm Tool holder HSK 63A Spindle speeds, infinitely variable 63 - 20,000 rpm Feeds / quick feeds XYZ 1 - 70,000 mm/min Spindle drive 24 kW Total electrical load, approx. 60 kW - 400 V - 50 Hz Weight, approx. 12,500 kg Accessories / Special Features 5-Axis SIEMENS CNC Path Control, Mode ...

Two identical Emag CNC machining centers including a chip conveyor, coolant tank, various holders, jaws and a new AGW are available. Chuck diameter: 200mm, max. circulation diameter: 290mm, max. workpiece length: 140mm, speed: 6000rpm, power: 34kW, torque: 480Nm. Travel X/Z: 550mm/200mm, rapid traverse X/Y: 30m/20m/min, feed force X/Z: 11kN. Tool positions: 12, drive tool power: 7.8kW. Machine dimensions X/Y/Z: approx. 2700mm/1150mm/2800mm, weight: approx. 6500kg. Documentation available. On-site inspection is possible.

x-travel: 1200 mm y-travel: 600 mm z-travel: 600 mm total power requirement: 25 kW weight of the machine ca.: 11,5 t M A H O (Germany) CNC Controlled Bed Type Universal Machining Centre Model MH 1200 S (120012) Year 1991 Partially reconditioned in Year 2007 by MMD Company _____________________________________________________________ Table travel: X axis, longitudinal 1,200 mm Y axis, vertical 600 mm Spindle head Z axis, cross 600 mm Rotary Table size 1,000 x 800 mm Distance between spindle and column, max. 900 mm Spindle taper SK 40 Spindle speeds (infinitely variable in 2 steps) 20 – 6,300 rpm Max. weight of workpiece 1,000 kg Feeds / quick feeds, X, Y and Z Axes 1 – 4,000 / 12,000 mm/min Feeds / quick feeds, B Axi ...

x-travel: 800 mm y-travel: 500 mm z-travel: 510 mm total power requirement: 60 kW weight of the machine ca.: 10 t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
