dmg machining center used for sale

Used machine Machine type: CNC turning and milling center Model No.: CTXgamma1250TC4a Manufacturer: DMGMORI Control: Celos with Siemens 840D si First commissioning: 2020 #001348 Location: Germany Technical data - Main spindle as integrated spindle motor, ISM102 - Sub-spindle as integrated spindle motor, ISM 76 - tailstock function for the sub-spindle - C-axis and spindle brake (hydr.) - Chuck rinsing device of the main spindle, external - Absolute, direct displacement measuring systems X-'Y-'Z1-axis - Differential stress main spindle - 36-cavity tool disc magazine - Hinge belt chip conveyor - Coolant system 8/20/80 bar - Coolant supply through the sub-spindle - Coolant spray gun - Mechanical oil mist separator - Automatic work area door - Workpiece probes - Tool turret at the bottom This offer is subject to change and non-binding. Changes, errors and prior  ...

Used machine DMU40eVo with EROWA Magazine Machine type: CNC machining center 5-axis vertical Model: DMU40eVo with EROWA Manufacturer: DMGMORI Control: CELOS Heidenhain TNC640 Year of Make: 2019 Location: Germany #001371 Options: -Motor spindle speedMASTER® HSK-A63 -Spindle speed 20-20,000 min-1 -NC swivel rotary table -Tool magazine 210 places -Scraper chip conveyor -Internal coolant supply (IKZ) paper belt filter 20-80bar -Advanced chip flushing -Blowing air through the center of the spindle -Rotating lens -Oil and emulsion mist separator mechanical - Infrared touch probe -Tool breakage detection TRS2 -Preparation 3D quickSET -Signal light, four-color -DMG MORI automation interface -Pneumatic control of the PowerChuck 210 zero-point clamping system -EROWA Robot Compact (ERC80) -Magazine:15x rack level PC210 with 3 pos. each = total 45 pos. Changes, Thi ...

Used machine DMGMORI NHX6300 Machine type: CNC machining center horizontal Model No.: NHX6300 Manufacturer: DMGMORI Control: CELOS MAPPS Year of Make: 2021 Location: Germany #001396 TECHNICAL DATA: Travels: X-axis: [mm] 1050 Y-axis: [mm] 900 Z-axis: [mm] 1030 B-axis 0.001° Rapid traverse: (X/Y/Z) [m/min.] 60 Speed range: [1/min.] 12,000 Drive power: [kW] 55/30 Tool holder: HSK100 Tool Changer Tool Positions: 120 Pallet system Number of pallets: 2 Pallet size: [mm] 630 x 630 Machine weight: [kg] 18,700 Facilities Control F31iB with CELOS spindle cone HSK-A100 preparation for coolant system by the spindle rotary table with full-fledged 4th axis 120-fold tool magazine (HSK-A100)- Coolant Washer Nozzles for Mist Separator INTERLIT TMF300/980 Setup Station Connection Compact filter system 70 bar-INTERLIT coolant cooler 15 kW in-machine measuring system (spindle ...

Used machine CNC machining center horizontal Manufacturer:DMGMORI Type:NH4000DCG Year of construction:2021 Control Type:FANUC F31iB Origin: Japan Location:Germany Delivery Time Technical data Traversing range X-axis approx. 560mm Y-axis approx. 560mm Z-axis approx. 630mm Table 360° 1° Workpiece diameter approx. 630mm Workpiece weight max. approx. 400kg Speed max. approx. 14,000 rpm Spindle motor approx. 18.5/11KW Number of tool positions approx. 40 Rapid traverse approx. 50m/min Mounting Taper BT40 Compressed air bar,L/min approx. 5, 300 bar,L/min Power consumption approx. 34kVA Footprint L x W x H approx. 2,360×3,914x2,711m Machine weight approx. 9,600 kg Automatic Rotary APC Tool Holder: BT40-Max. Spindle speed 14,000 min-1,-18.5/11 kW (10min/100% ED)-Number of Tools: 40 (Chain Type)-Table Indexing 1° Scraper Belt Conveyor with drum filter preparati ...

Used machine Universal Machining Center Machine type: DMG DMF 360 / 11 linear Control: Heidenhain TNC 640 Celos Year of Make: 2017 TECHNICAL DATA: Travels: X-axis: [mm] 2,600 Y-axis: [mm] 1,100 Z-axis: [mm] 900 B-axis C-axis Number of controlled axes: 5 Dynamic Pack for DMF 360 linear (Y1100) Rapid traverse: (X/Y/Z) [m/min.] 80 / 60 / 60 Speed range: [1/min.] 20 - 15,000 Drive power: [kW] 46 / 30 Tool holder: SK 40 Tool Changer Tool positions: 60 NC rotary table Table size: [mm] 3,200 x 1,100 Max. table load: [kg] 1,200 Features: Internal cooling (IKZ): [bar] 40 Coolant tank: [l] 600 Chip conveyor Chip rinsing gun Oil mist extraction Air through spindle center Probe Spindle Preparation for use 3D quickSet Automatic doors Electronic handwheel This offer is subject to change and non-binding. Changes, errors and prior sale expressly reserved.

Used machine Machine type: CNC turning and milling center Model: CTXalpha 500 V6 Manufacturer: DMGMORI Control: Celos with Siemens 840D si First commissioning: 2022 #001272 Technical data Turning diameter max. approx. 240mm Turning diameter standard approx. 200mm Chuck size approx. 210mm Turning length approx. 480mm Rod diameter max. approx. 52/option65mm Turret Stations 12 X-axis approx. 210mm Z-axis approx. 525mm Spindle speed 1/2 approx. 5000/6000 rpm Speed AGW max. approx. 5000U/ Rapid traverse X/Z/Y 30/30/22.5 • Main spindle 5000 Ulmin • Hydraulic 3-jaw chuck 210 mm • Sub-spindle 6000 Ulmin • Hydraulic 3-jaw chuck 170mm • 12 station turret VDI 30 Trifix • Tool drive for all stations • C-axis • Y-axis • Alternating speed • Coolant supply through the sub-spindle • Swivelling tool presetter • Coolant spray gun, 5bar • CTXalpha  ...

Used machine Machine Type: CNC Machining Center Vertical Model: NVX5100 2nd with Matris robot cell Manufacturer: DMGMORI Control:DMG MORI Celos Year of construction / Ib: 2019 / 2022 #001312 Technical data Travel range X-axis approx. 1050 mm Y-axis approx. 530 mm Z-axis approx. 510 mm Table size approx. 1,350x600 mm Workpiece weight max. approx. 1,200 kg Speed max. approx. 12,000 rpm Spindle motor approx. 37/22 KW Number of tool positions approx. 30 Rapid traverse approx. 30 m/min Mounting cone approx. BT40 Compressed air bar,L/min approx. 5, 300 bar,L/min Power consumption approx. 45 kVA Footprint L x W x H approx. 3.1 x 2.85 x 2.6 m (without chip conveyor, without robot) Machine weight approx. 7,300 kg Main Drive with Higher Torque - Tool Holder Cone for BT-40 Tool Holder - Tool magazine with 30 places (#40) - Door for tool magazine - Hinged belt conveyor  ...

Used machine Machine Type: CNC Machining Center Vertical Model No.: CMX1100V Manufacturer: DMGMORI Control:DMG MORI SLIMline® Multi-Touch Heidenhain Year of Make: 2022 #001358 Options: - Main spindle 12,000 rpm 13/9kW SK40 - Tool holder BT 40 for tightening bolts DIN 69872 - Direct position measuring system X-Y-Z - Magazine with 30 tool positions - Coolant supply through spindle (IS) bar 20 - Double switching filter - Coolant-blown air switching externally via M-function - Chip conveyor (scraper belt, left side) - Tank capacity left side chip conveyor 250 - Coolant spray gun for chip removal - Automatic cab roof - Signal light - Electronic handwheel - Button kit spindle and table Traversing range X-axis 1100 mm Y-axis 560 mm Z-axis 510 mm Table size approx. 1400 x 560mm Workpiece weight max. approx. 1000kg Rapid traverse X / Y / Z 30 m/min Footprint L x ...

Used machine Machine Type: CNC Turning Center Model No.: CLX450V4 Manufacturer: DMGMORI Control: SLIMline® Multi-Touch Contr./Fanuc Year of manufacture: 2023 #001354 TECHNICAL DATA: Turning diameter max. approx. 400 mm Turning diameter standard approx. 310 mm Chuck size approx. 260 mm Turning length approx. 755 mm Rod diameter max. spindle/chuck approx. 80/78 mm Turret stations approx. 12 X-axis approx. 276 mm Z-axis approx. 830 mm Y-axis approx. 120(+-60) mm Tailstock approx. 800 mm Spindle speed approx. 4000 rpm Speed AGW max. approx. 4000 rpm Rapid traverse X/Z approx. 30/30 m/min Rapid traverse Y approx. 22.5 m/min Footprint L x W x H approx. 4.30x2.45x2.30 m (with chip conveyor) Machine weight approx. 6,250 kg Main spindle A2-8" 17 / 25.5 kW (100/40% ED), 4,000 rpm - 3-jaw chuck - Differential Compressive Stress for the Main spindle - Foot control ped ...

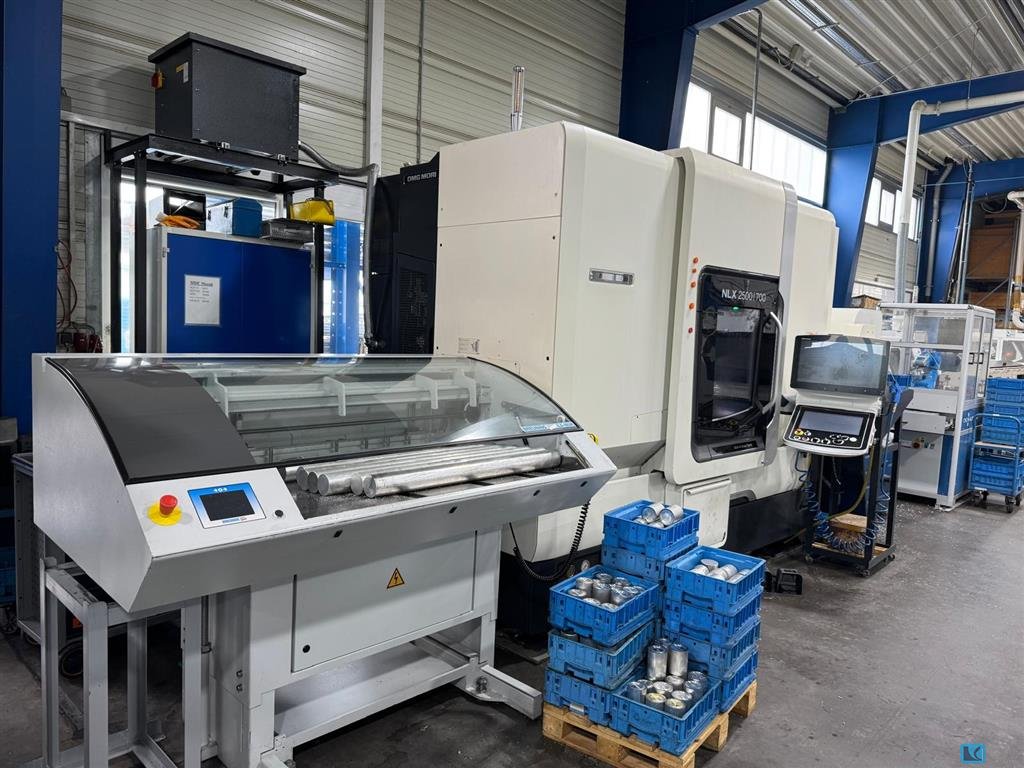

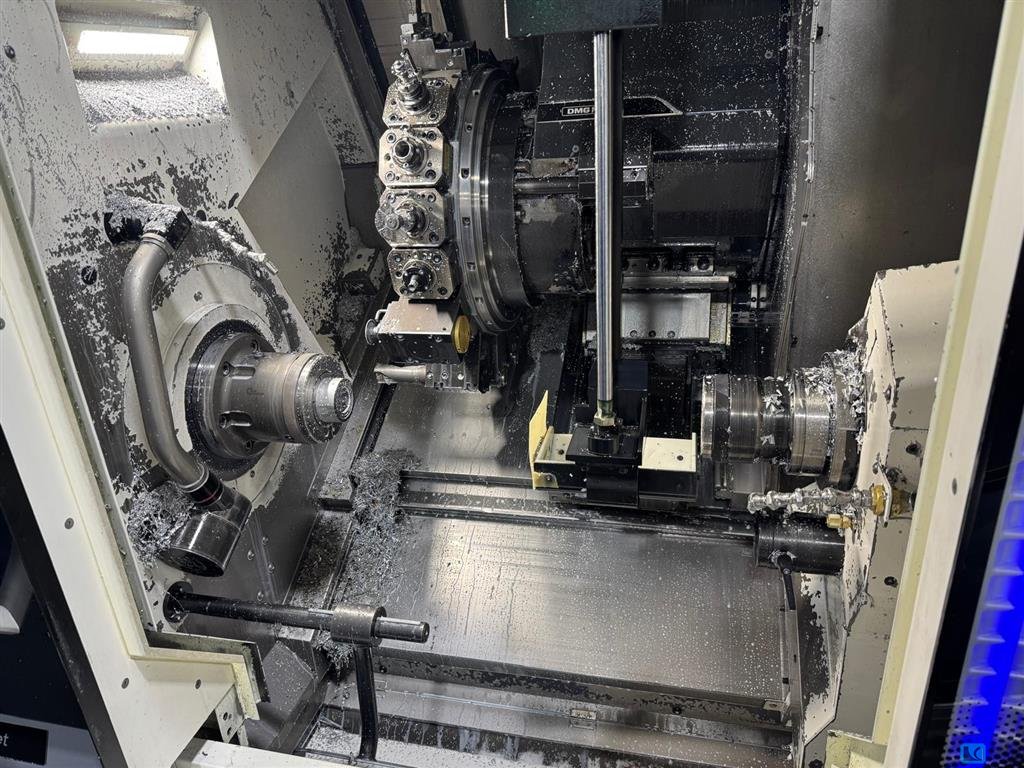

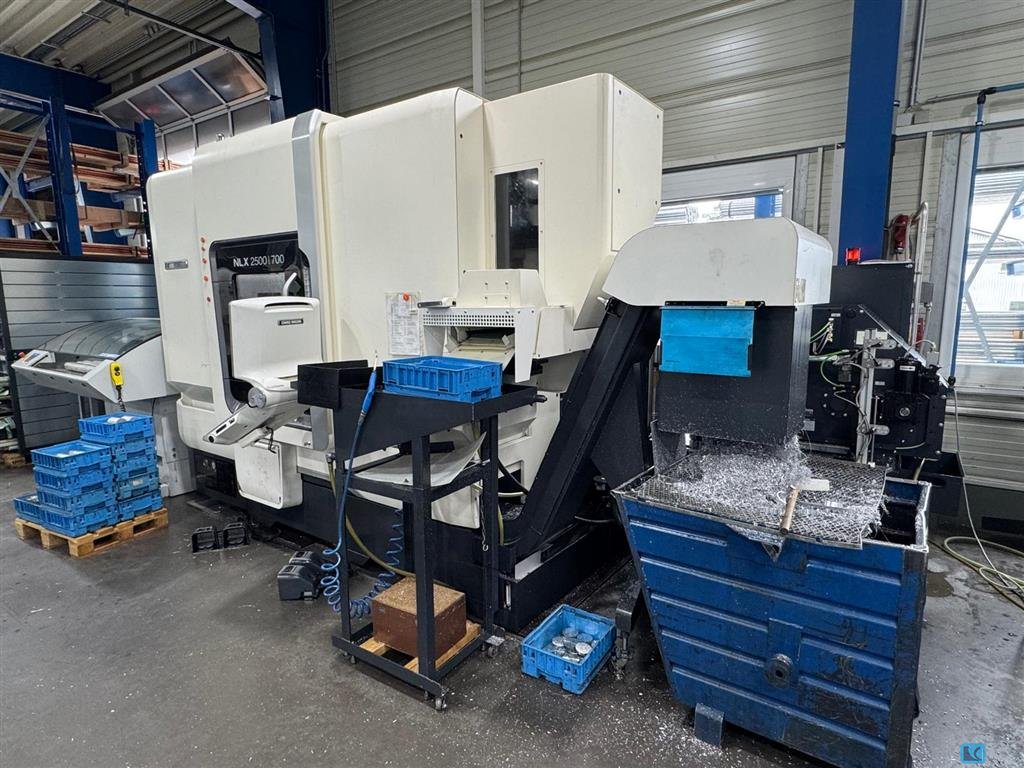

Used machine CNC Turning and Milling Center Machine Type: CNC Lathe Model No.: NLX2500Y/700 Manufacturer: DMG MORI Control: CELOS Year of Make: 2016 #001252 - Main spindle 4,000 rpm - Clamping cylinder main spindle - 3 cheek chuck - Foot switch (double) for main spindle - Y-axis - 12-speed BMT60-star turret for powered tools - Cantilever length X-axis driven tools 100mm - Scraper belt chip conveyor, rear discharge - High-pressure cooling system (800/1,100 W) 5bar - Line filter for coolant - Mechanical interface for oil mist separator 150mm - Without in-machine tool presetter This offer is subject to change and non-binding. Changes, errors and prior sale expressly reserved.

Used machine Universal Machining Center Machine type: DMG MORI CMX70U 3+2 Control: Heidenhain TNC 620 Year of Make: 2021 #001350 TECHNICAL DATA: 5. Axis 3 + 2 axes non-simultaneous X-axis: [mm] 750 Y-axis: [mm] 600 Z-axis: [mm] 520 Rapid traverse: (X/Y/Z) [m/min.] 30 Max. speed: [1/min.] 12,000 Drive power: [kW] 13 Torque: [Nm] 82 Tool holder: HSK63 Tool positions: 60 NC swivel rotary table B-axis -10° / +95° C-axis 360° Table size: [mm] 800 x 620 Max. table load: [kg] 350 Space requirement (LxWxH): [m] 5.35 x 4.14 x 3 Machine weight: [kg] 4,700 Features: Chip conveyor Internal cooling (IKZ):40 [bar] Tool breakage detection Heidenhain TS 27 R Probe Heidenhain Blum Lasers for Tools Direct Path Measurement System Electronic handwheel Machine preparation for DMG MORI PH 150 - Automatic lifting door on the right - Robot interface (DMG MORI standard) - ...

Used machine CNC lathe Machine type: DMG Gildemeister NEF 600 Control: Heidenhain IT Turn Plus Year of Make: 2006 TECHNICAL DATA: Max. turning length: [mm] 1,250 Max. Rotary Ø over bed: [mm] 600 Max. rotary Ø over slide: [mm] 410 Spindle bore: [mm] 90 Number of controlled axes: 2 Speed range: [1/min.] 3,000 Drive power: [kW] 36.5 / 27.5 Torque: [Nm] 785 Tailstock MK 5 Quill 80mm Number of turrets: 1 Travel X-axis ob. Rev. / unt. Rev.: VDI 40/8 Tool positions: 8 Machine weight: [kg] 5,500 Space requirement (LxWxH): [m] 5.0 x 2.0 x 2.2 m Features: Chip conveyor 3-jaw chuck [mm] 315 This offer is subject to change and non-binding. Changes, errors and prior sale expressly reserved.

CNC Vertical Machining Center DECKEL MAHO DMF 260 linear NEW DMG Design With rail control Siemens 840 D with Shop Mill Year of Make: 2011 Travel: X 2600 Y 700 Z 700 Speed range: 20 – 14000 rpm infinitely variable ( SK 40 ) With the following accessories: Rigid angle table 2920 mm x 750 mm clamping surface Controlled swivel milling head ( B axis ) NC Dividing head Hofmann with tailstock tip height: 200 mm Vertical tool changer with 40 magazine positions ( SK 40 ) Electronic handwheel Full protection cabin with sliding doors and interior lighting IKZ 40 bar Chip conveyor Operating mode 3 + 4 2 x Rotoclear (rotating lens) Partition wall Coolant Setup Control cabinet cooling unit RITTAL 4 Height Adjustable Machine Shoes Operating instructions

Inv. Num. : 8929 Type: DMC 635 V Producer: DMG Created: 2007 Parameters: Control system: Heidenhain iTNC 530 Work table length: 790 mm Work table width: 560 mm Maximum table load (uniform): 600 kg Maximum vertical spindle speed: 10000 1/min X-axis travel: 635 mm Y-axis travel: 510 mm Travel travel Z-axis: 460 mm Machine weight: 4500 kg

Inv. Num. : 8930 Type: DMC 635 V eco Producer: DMG Created: 2008 Parameters: Control system: Siemens 810D Work table length: 790 mm Work table width: 560 mm Maximum table load (uniform): 600 kg Maximum vertical spindle speed: 8000 1/min X-axis travel: 635 mm Y-axis travel: 510 mm Travel travel Z-axis: 460 mm Machine weight: 4500 kg

Horizontal BAZ DMG MORI NHX 4000 with 2-fold pallet changer Year of Make: 2017 Control: Celos with Sinumerik 840Dsl Operate Program running hours: 21,000h Technical data: Spindle speed: 10 - 20,000 min-1 (motor spindle speedMASTER)® Drive power: 35/25 KW Torque: 130/85 Nm Tool holder: HSK 63 Number of magazine slots: 60 - Ring magazine Travels: X-axis: 560mm Y-axis: 560mm Z-axis: 660mm C-axis: 0.001° Pallet size: 400x400mm Accessories: 2-fold pallet changer Coolant system for IKZ 70bar Chip conveyor Renishaw 3D - Pushbutton

CNC milling and turning center Machine type: DMG Mori CLX 450 TC with Robo2go Control: Siemens 840 D sl Operate Slimline Year of manufacture: 2023 TECHNICAL DATA: Max. turning length: [mm] 1,100 Turning diameter: [mm] 400 Main spindle ISM 65 Speed range: [1/min.] 5,000 Drive power: [kW] 14 / 17 Torque: [Nm] 275 / 345 Spindle Nose: A2-8 Bar Passage: [mm] 67 C-axis CNC spindle swivel for milling and milling Filming Max. speed: [1/min.] 12,000 Drive power: [kW] 8.8 / 10.5 Torque: [Nm] 73 / 90 Tool holder: HSK 63 Tool positions: 30 Sub-spindle ISM 65 Spindle Nose: A2-8 Max. speed: [1/min.] 5,000 Drive power: [kW] 14 / 17 Torque: [Nm] 275 / 345 C-axis X-axis: [mm] 750 EUR 395,000 Y-axis: [+/- mm] 100 Z-axis: [mm] 1,100 B-axis +/- 120 mm Features: Chip conveyor Direct Path Measurement System Chip rinsing gun 3-jaw chuck [mm] SMW-Autoblok BBD 250/78 3-ja ...

turning diameter:356 mm turning length:705 mm control: CELOS M730 UM MAPPS swing dia.:742 mm standard turning diameter:275 mm travel -x axis:260 mm travel -y axis:100 ( ±50) mm travel -z axis:795 mm rapid travel - longitudinal/face:30 / 30 m/min Rapid travel B-axis (parts transfer subspindle):734 m/min Spindle 1 RPM:4000 1/min Spindle 1 Power:15/18,5/18,5 kW Spindle 1 Torque:409/505 /599 Nm Spindle 1 max. bar diameter:80 mm Spindle 2 RPM:4500 1/min Spindle 2 power:7,5/11 kW turret stations / rotary tool stations:20 / 20 BMT40 speed of driven tools:10000 1/min :3.7/5,5/5,5 kW torque rotary tools:14 / 24 Nm total power requirement:38 kVA weight of the machine ca.:6,3 t dimensions of the machine ca.:4 (9) x 2,1 x 2,2 m Parts catcher:Sp. 1 und Sp. 2 Spindle 1 Chuck:Kitagawa B 210 (250 mm) Spindle 2 Chuck:Kitagawa B 206 (160 mm) Tool presetter:Spindle 1 & 2 High precision Turning and Millin ...

turning diameter:670 mm turning length:1540 mm control:F31iB5 Celos Fanuc 35iB5 swing diameter max. over bed cover:700 mm Travel turret No.1 (milling spindle) x/y/z:495 / ± 150 / 1562(+164) mm Rotation B-axis:-30° / +210° Rapid traverse feeds turret 1 (milling head) x/y/z:40/40/40 m/min RPM milling spindle:12000 1/min power capacity - milling spindle:20,2/18,8 kW Torque of milling spindle:120 / 44 Nm tool taper milling spindle:Coromant Capto C6 Tool magazine for milling spindle (turret 1):76 Tool change time tool/tool, milling spindle:1,25 s Spindle 1 RPM:3000 1/min Spindle 1 Power:36 / 30 / 25 kW C-axis spindle 1:0,001 ° Bar capacity spindle 1:102 mm Spindle 2 RPM:4000 1/min Spindle 2 power:26 / 22 / 15 kW C-axis spindle 2:0,001 ° Bar capacity spindle 2:80 mm dimensions of the machine ca.:7,8 x 3,6 x 2,9 m Linear scales on axis:X, Y programmable steady:KLU-A530 & SLU-X3.2 Spindle 1 ...

Horizontal BAZ DECKEL MAHO DMC 60 H Linear with 2-fold pallet changer and 180 magazine locations Year of Make: 2009 Control: Sinumerik 840D Technical data: Spindle speed: 0-18,000 min-1 Drive power: 35KW Torque: Spindle mount: HSK 63 Number of magazine slots: 180 pieces Number of pallets: 2 Pallet size: 500x500mm Travels: X-axis: 630mm Y-axis: 800mm Z-axis: 650mm C-axis: 0.001° All axes have linear actuators Accessories: -Coolant system -Chip conveyor Machine was regularly serviced Video available on request.

Key data: 620 mm, 800 mm, 650 mm

Horizontal BAZ LID MAHO DMC 60H Linear with 2-fold pallet changer and 180 magazine locations Year of Make: 2009 Control: Sinumerik 840D Technical data: Spindle speed: 0-18,000 min-1 Drive power: 35KW Torque: Spindle mount: HSK 63 Number of magazine slots: 180 pieces Number of pallets: 2 Pallet size: 500x500mm Travels: X-axis: 630mm Y-axis: 800mm Z-axis: 650mm C-axis: 0.001° All axes have linear actuators Accessories: -Coolant system -Chip conveyor Machine was regularly serviced Video available on request.

Key data: 254 mm, 700 mm

Turning milling center Manufacturer: DMG Mori Type NLX 2500/700 Control M730UM Mitsubishi with Celos Turning length 700mm 12 tool stations, all 12 of which are driven Y-axis Bar passage 91mm Program runtime Head1 4036h Cumulative cutting time Head 1 2058h Machine running time 8605h Bar loading magazine TOP Automazioni 3m Incl. tool package NP 64.000 euro Machine is in TOP condition

Used machine Machine Type: CNC Swiss Automatic Lathe Model: Sprint32/8 Manufacturer: DMGMORI Control: Fanuc 32i First commissioning: 2019 #001328 Location: Germany T-main and sub-spindle - Y-axis on carriage 1 - Y-axis on carriage 2 - C-axis on main spindle - C-axis on sub-spindle - Tank for chips included Coolant Pump - Workpiece unloading belt - Flushing for counter-spindle pliers - Hinge belt chip conveyor - Signal lamp 4-colour - IEMCA Boss 338/32HD bar feeder This offer is subject to change and non-binding. Changes, errors and prior sale expressly reserved.

CATEGORY — 5 Axis MANUFACTURER — DMG MORI MODEL — DMU 85 MONOBLOCK STOCK NUMBER — ONY100000587 MODEL YEAR — 2013 CONTROL PANEL — SIEMENS 840 D SOLUTIONLINE AXIS STROKE — X 935 MM / Y 850 MM / Z 650 MM ROTARY AXIS MOVEMENTS — A +/- 120 ° / C 360 ° SPINDLE SPEED — 18.000 MIN/-1 POWER CAPACITY-MAIN SPINDLE — 35 kW (40% ED) MAX. TORQUE — 135 Nm (40% ED) TOOL HOLDERS — SK 40 NUMBER OF TOOLPOSITIONS — 30 TABLE SURFACE AREA — 1.000 X 750 MM ( d 850 X 750 MM) MAX. TABLE LOAD — 1.000 KG TOTAL POWER REQUIREMENT — 46 KVA WEIGHT OF THE MACHINE — 13.500 KG DIMENSIONS OF THE MACHINE — 3.15 X 3.92 X 3.21 M

Key data: 600 mm, 1250 mm, 3000 1/min

Machine Details Stock-No. 1105-03939 Type of machine CNC Lathe - Inclined Bed Type Make GILDEMEISTER DMG Type NEF 600 Year of manufacture 2006 Type of control CNC Storage location HAGUENAU FRANCE Country of origin Germany Delivery time immediately Freight basis EX WORK Price Technical details turning diameter 600 mm turning length 1250 mm control SIEMENS 840 D greates pass round over bed 600 mm centre height 350 mm Spindle Bore 92 mm turning speed range 3500 rpm Rapid Travel - Longitudinal/Face 20 m/min face stroke 400 mm tailstock quill diameter 100 mm Tailstock Quill Stroke 1150 mm tailstock taper MT 5 Turret (X-Stations) 12 turning diameter over slide 410 mm Additional information Acc. 3-Jaw Chuck 315 mm, tailstok turret 8 P ,chip conveyor, coolant CNC Siemens 840 D

For DMG HSC 75

Key data: 600 mm, 1250 mm, 3500 1/min

Machine Details Stock-No. 1105-03997 Type of machine CNC Lathe - Inclined Bed Type Make GILDEMEISTER DMG Type NEF 600 Year of manufacture 2007 Type of control CNC Storage location HAGUENAU Country of origin Germany Delivery time immediately Freight basis EX WORK Price Technical details turning diameter 600 mm turning length 1250 mm greates pass round over bed 600 mm centre height 350 mm Spindle Bore 92 mm turning speed range 3500 rpm Rapid Travel - Longitudinal/Face 20 m/min face stroke 400 mm tailstock quill diameter 100 mm Tailstock Quill Stroke 1150 mm tailstock taper MT 5 Turret (X-Stations) 12 turning diameter over slide 410 mm Additional information acc.: hydr. 3-Jaw Chuck 400 mm, Chip Conveyor, Coolant CNC FANUC 210 IS

Key data: 290 , 400

Machine-Details Stock-No. 1105-04007 Type of machine CNC Lathe - Inclined Bed Type Make GILDEMEISTER Type CTX 210 Year of manufacture 2005 Type of control CNC Storage location FRANKREICH Country of origin Germany Delivery time IMMIDIATELY Freight basis EX WORKS Technical details Turning diameter 290 mm turning length 365 mm control SIEMENS 840 D SIEMENS 840 D Greates Pass round over bed 380 mm X-Travel 160 mm Z-Travel 365 mm spindle head 120 H 5 mm Boron spindle 56 mm bar material dia. 42 mm Spindle diameter in front bearing 90 mm turning speed range 20 - 6000 U/min spindle drive 10 kW No. of tools in turret 1 12 x VDI 30 total power requirement 22 kW Weight of the machine ca. 4,2 t Dimensions of the machine ca. 2.8 x 1.7 x 1.8 m Additional information NICE MACHINE CNC SIEMENS 840 D SOMME TOOLS VDI 30 TOOL MESURING Arm TAILSTOCK CHIP CONVEYER

Milling machine 4-axis (15995740874) DMG Milltap 700 (2015) Spindle 24,000 1/min NC parts apparatus Lehmann EA-510. L Tool magazine 25 places Renishaw Measurement Kit Rinsing gun Milling machine 5-axis (15995747284) DMG Milltap 700 (2015) Spindle 24,000 1/min Swivel rotary tables 5-axis simultaneous operation Clamping pneumatics 1-circuit Tool magazine 25 places 40 bar IKZ Conveyor Rinsing gun Renishaw Measurement Kit Milling machine 5-axis (15995765944) DMG Milltap 700 (2018) Spindle 10,000 1/min Swivel rotary tables 5-axis simultaneous operation Clamping pneumatics 1-circuit Tool magazine 25 places 40 bar IKZ Conveyor Renishaw Measurement Kit Automatic front door Automation interface including automation door on the right Milling machine 5-axis (15995734744) + WH3 (770200062R) DMG Milltap 700 (2014) Spindle 10,000 1/min Swivel rotary  ...

Key data: 350 mm, 700 mm, 4000 1/min

Machine Details Stock number 1105-04023 Machine Type: CNC Lathe - Inclined Bed Machine Make GILDEMEISTER Type NEF400 / 840D Shopturn Year of construction 2006 Condition Control type: CNC Control Siemens 840D Shopturn Storage location FRANCE Country of origin Germany Delivery time immediately Freight base from Dreieich warehouse Price Technical details Turning diameter 350/270 mm Turning length 700 mm Control Siemens 840D Shopturn Circumferential diameter max. over bed cover 400 mm Travel - z 700 mm Spindle bore 65 mm Spindle speeds max. 4000 rpm Tool holder VDI 30 Turret head 12 pos. Three-jaw chuck diameter 200 mm Spindle holder A6 DIN55026 Pick-up cone in the tailstock quill MK 3 Drive power 15/12 kW Operating voltage 400 V Machine weight approx. 3.0 t Information - Control: Siemens 840D Shopturn - Tool holder VDI 30 APPROX. 12 PIECES - Coolant de ...

Deckel Maho DMG DMU 70eVolution 5Axis simultaneous Machining center CNC Hersteller [manufacturer]: DMG Deckel Maho Type [ type]: 70eVolution Control unit: Heidenhain iTNC 530 Incl. handwheel Baujahr[construction year]: 12/2006 - Renewed/renewed spindle - IKZ integrated cooling system for water 40bar and air (both possible) Travel X/Y/Z 750/600/520 mm B-axis 0 to 180° degrees C-axis n x +-360° degrees Table load up to 350kg Spindle speed range 20 to 18,000 1/min. Tool holder SK 40 DIN 69871 Weight [weight]: 10.000kg Full documentation is available. Inspection under power can be done at short notice. We will be happy to answer any further questions you may have. Tel. 017621834834Price, from stock here plus VAT Condition: good - ready for demonstration Delivery: from stock - as seen Payment: purely net - upon receipt of invoice Prior sale, errors excepted.  ...

GeneralUniversal Machining Centre in monoBLOCK construction; Control: CELOS with Siemens 840D sl Operate Technical DataFeed rate longitudinal/transverse/vertical40000/40000/40000 mm/minRapid traverse longitudinal/transverse/vertical40/40/40 m/minWorking area 1Cross650 mmLongitudinal735 mmVertical560 mmTool changerTool changer planevertical Type of gripperDouble gripper Number of tools90 Max. tool length315 mmMax. tool diameter with occupied adjacent pockets80 mmMax. tool dia. with free neighbouring pockets160 mmFloor space/WeightWeight approx.12400 KgNC swivel rotary table integrated in rigid tableType of Measuring system Direct measuring systemTable surface 800 x 650 (Ø 650) mmCentre bore 50 mmMaximum load (table centre) 600 KgSlot width 14 mmNumber of Slots 9Rotation Speed 5. Axis 20 rpm5. Axes (swivelling range) +120/-120 x 0,001 degree4. Axes (swivelling range) 360 x 0,001 degreeRot ...

GeneralUniversal Machining Centre in monoBLOCK construction - MPC Machine Protection Control; Control: CELOS with Siemens 840D sl Operate Working area 1Longitudinal750 mmCross650 mmVertical560 mmTechnical DataDrive power (100% DC)25 kWDrive power (40% DC)35 kWTorque (100% DC)86 NmTorque (40% DC)130 NmSpeed range- 20000 rpmSpindle taperHSK-A 63 Feed rate longitudinal/transverse/vertical40000/40000/40000 mm/minRapid traverse longitudinal/transverse/vertical40/40/40 m/minTool changerTool changer planevertical Type of gripperDouble gripper Number of tools60 Max. tool length315 mmMax. tool diameter with occupied adjacent pockets80 mmMax. tool dia. with free neighbouring pockets160 mmMiscellaneousClamping SystemHSK-A 63 Floor space/WeightWeight approx.12300 KgNC swivel rotary tableTable surface 800 x 650 (Ø 650) mmCentre bore 50h6 mmMaximum load (table centre) 600 KgDirect measuring systemDir ...

GeneralUniversal machining centre; Control: Siemens 840D-Powerline ShopMill Classic Technical DataFeed rate longitudinal/transverse/vertical60000/60000/60000 mm/minRapid traverse longitudinal/transverse/vertical60/60/60 m/minWorking area 1Cross1000 mmLongitudinal1250 mmVertical1000 mmMiscellaneousClamping SystemHSK-A 100 Tool changerApplicationUniversal Type of magazineChain Tool changer planehorizontal Type of gripperDouble gripper Automatic swivel milling headUniversal head: automatic changeover from vertical to horizontal machiningProd. package 40 bar/23 l/minCoolant through spindle centre form AD 40 bar/23 l/min / 580 psi/6 gallon/min (theoretical pump performance) clear-view rotating window Multi-jet unit at universal head, switchable from coolant to air (max. 6 bar / 90 psi) (6 water jets, 4 air jets) pumpNC rotary table with pallet changerType of Measuring system Direct measuring  ...

GeneralUniversal machining centre New DMG MORI Design; Control: CELOS with Siemens 840D sl Operate Technical DataFeed rate longitudinal/transverse/vertical50000/50000/50000 mm/minRapid traverse longitudinal/transverse/vertical50/50/50 m/minWorking area 1Longitudinal400 mmCross400 mmVertical375 mmTool changerType of magazineChain Type of gripperDouble gripper Number of tools60 Max. tool weight6 KgMax. tool length300 mmMax. tool diameter with occupied adjacent pockets80 mmMax. tool dia. with free neighbouring pockets130 mmFloor space/WeightDimensions (L x W x H)6,21 x 6,58 x 2,69 (6,21 x 7,38 x 2,69) mWeight approx.7200 KgDie and Mold Package linearDie and Mold Package linear Dynamic package V-type Eagle timing belt for Z axisPackage Mill / TurnPackage Mill / Turn (only available for Siemens 840D solutionline) NC-Mill-turn table 450x450 mm / 17.7x17.7 in rounded down to d460 mm / 18.1 in C ...

GeneralHorizontal universal machining center; Control: CELOS with Siemens 840D sl Operate Technical DataFeed rate longitudinal/transverse/vertical60000/60000/60000 mm/minRapid traverse longitudinal/transverse/vertical60/60/60 m/minWorking area 1Longitudinal650 mmCross700 mmVertical950 mmCabineFull protection cabinMotor spindle 20,000 rpmMotor spindle speedMASTER® HSK-A 63 Spindle speed 20 - 20,000 min-1 Output 35 kW / 25 kW (47 hp / 33 hp) Torque 130 Nm / 86 Nm (96 ft lbs / 63 ft lbs) (40 / 100 % duty cycle)Taper cleaning brushesTaper cleaning unit with rotating brushes for spindle taper HSKNC swivel rotary table DirectDriveNC swivel rotary table direct drive Table plate: d 650 mm / 25.6 in 1 x T-slot 14 H7 / 0.55 H7 (alignment groove, table centre) 8 x T-slot 14 H12 / 0.55 H7 (clamping grooves) Permissible load: 600 kg / 1,323 lbs Rotary-axis: 80 min-1 direct drive Swivel-aKinematics a ...

GeneralHorizontal machining center; Control: Control M730BM CharacteristicsSpeed max.15000 rpmDimensions (L x W x H)2,72 x 4,22 x 2,52 mSpindle taperBT 40 Tool Magazine with40 PositionsRapid feed X / Y / Z60/6060 m/minMovement X / Y / Z560/560/660 mmPalett changer with2 PalletMaximum load (table centre)400 KgSwivelling range360 x 0,001 degreeTable size400x400 mmDrive power (100% DC)18,5 kWWeight approx.7600 Kg(For Europe) European Edition(For Europe) European Edition (NHC4000) Full 4th axis rotary table Interface for Through-spindle coolant system (7.0 MPa, Variable Pressure Steps) (KNOLL) Coolant gun for setup station side In-machine measuring system (spindle) optical signalInterface for Through-spindle Coolant System (7.0 MPa, Variable Pressure Steps) (KNOLL/ Interlit)Interface for Through-spindle Coolant System (7.0 MPa, Variable Pressure Steps) (KNOLL/ Interlit) Interface for mountin ...

GeneralHorizontal machining center; Control: Control M730BM CharacteristicsSpeed max.15000 rpmWeight approx.11100 KgSpindle taperBT 40 Tool Magazine with40 PositionsRapid feed X / Y / Z60/6060 m/minMovement X / Y / Z730/730/880 mmPalett changer with2 PalletMaximum load (table centre)500 KgSwivelling range360 x 0,001 degreeTable size500x500 mmDrive power (100% DC)18,5 kWDimensions (L x W x H)3,1 x 4,86 x 2,84 m(For Europe) European(For Europe) European Edition (NHC5000) Full 4th axis rotary table Interface for Through-spindle coolant system (7.0 MPa, Variable Pressure Steps) (KNOLL) Coolant gun for setup station side In-machine measuring system (spindle) optical signal transmissioInterface for Through-spindle Coolant System (7.0 MPa, Variable Pressure Steps) (KNOLL/ Interlit)Interface for Through-spindle Coolant System (7.0 MPa, Variable Pressure Steps) (KNOLL/ Interlit) Interface for mou ...

Machine details Stock number 1105-03328 Machine type tool milling machine - Universal Make MAHO Type MH 800 E Year of construction 2000 Control type CNC Storage location FRANCE Country of origin Germany Delivery time immediately Freight base from stock price Technical details x-path 700 mm y-way 550 mm z-path 500 mm Speed 20 - 5000 rpm Tool holder SK 40 Quibola stroke vertical 80 mm Feed 1 - 5000 mm/min Rapid speed 6000 mm/min Table size 900 x 550 mm Total power requirement 16 KVA Weight of the machine ca. 7 t Space requirement approx. 2.4 x 2.85 x 2.1 m Information - with web control CNC 532 - with FIXED ANGLE TABLE WITH TOOL CHANGER - Enclosure Machine under power Ready for demonstration.

Technical DataFeed rate longitudinal/transverse/vertical60000/60000/60000 mm/minRapid traverse longitudinal/transverse/vertical60/60/60 m/minGeneralHorizontal 5-axis universal machining centre; Control: CELOS with Siemens 840D sl Operate Working area 1Longitudinal850 mmCross900 mmVertical1150 mmCabineFull protection cabinMotor spindle 20,000 rpmMotor spindle speedMASTER® HSK-A 63 Spindle speed 20 - 20,000 min-1 Output 35 kW / 25 kW (47 hp / 33 hp) Torque 130 Nm / 86 Nm (96 ft lbs / 63 ft lbs) (40 / 100 % duty cycle)Taper cleaning brushesTaper cleaning unit with rotating brushes for spindle taper HSKNC swivel rotary table DirectDrive CNC swivel rotary table direct drive C-axis with pallet carrier Permissible load: 800 kg / 1,760 lbs C-axis: 80 min-1 direct drive A-axis: 15 min-1 single drive Rotation C axis: endlessly turning Swivel range A axis: +120°/-120° (replacement of base machKi ...

x-travel: 600 mm y-travel: 525 mm z-travel: 500 mm weight of the machine ca.: 6,5 t CNC Steuerung Heidenhain TNC 426 Kühlmitteleinrichtung Spänewanne CNC control Heidenhain TNC 426 coolant device chip tank Technische Daten / technical details: X-Weg / X-travel 600 mm Y-Weg / Y-travel 525 mm Z-Weg / Z-travel 500 mm Spindeldrehzahlen / spindle speed 6300 UpM /rpm Werkzeugaufnahme / spindle taper SK40 Vorschubbereich X/Y/Z / feed range 10000 mm/min. Universaltisch / clamping area of universal table 750x530 mm Gewicht der Maschine ca. / weight 6500 kg The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

GeneralCNC Turning Centre; Control: CELOS with Siemens 840D sl Operate Working areaSwing diameter over guide ways620 mmTransverse stroke260 mmLongitudinal stroke795 mmClamping chuck diameter max.315 mmWork spindle (left)Spindle bore91 mmSpindle diametre on front bearing140 mmMain drive 1Drive power (100% DC)22 kWSpeed range- 4000 rpmMax. torque (40% DC)525 NmTorque (100% DC)410 NmAccuracy at point stopping0,001 degreeTool holder 1Number of tool stations12 Shank diametre according to DIN 6988040 mmNumber of driven tools12 Speed max.-6000 rpmPower max. (100% DC)10 kWFloor space/WeightDimensions (L x W x H)3,99 x 2,03 x 2,2 mWeight approx.6500 KgTechnologie cycle alternating speedTechnology cycle for the application of an alternating speed for vibration sensitive set-ups (Only in conjunction with Siemens control)Y-Axis PartingTechnology cycle to parting off the workpiece by the Y-axis to ac ...

GeneralMilling Specification; Control: Control M730UM with CELOS CharacteristicsMax machining diameter278 mmDimensions (L x W x H)2,82 x 2,09 x 2,15 mDrive power tool spindle5,5/5,5/3,7 kWDrive power main spindle11/15/15 kWRapid feed X / Z30/30 m/minInput precision of C-axis on Mainspindle0,001 degreeRotary tool spindle speed10000 rpmMovements X / Z260/590 mmNumber of tool stations12 Speed max.6000 rpmBar diameter max.52 mmSwing- Ø, max.755 mmMax. Turning Length192 mmWeight approx.4900 KgCELOS - ERGOline TouchCELOS - ERGOline Touch to facilitate machine operation incl. 21.5 ERGOline Touch ® control with multi touch screens Uniform management, documentation and visualization of order, process - and machine data Networkable with CAD / CAM User friendly and pHigh-output spindle (Left Spindle) 15/ 11 kW, 6,000 min-1(Left Spindle) High-Output Spindle 15/11 kW (20/15 HP), 6,000 min-1 The NLX ...

GeneralCNC Turning Centre with C axis and tool drive; Control: CELOS with Siemens 840D sl Operate Working areaSwing diameter over guide ways700 mmTurning diameter410 mmLongitudinal stroke850 mmTransverse stroke300 mmMax. Turning Length800 mmClamping chuck diameter max.315 mmBar diameter max.65 mmWork spindle (left)Spindle noseFlat flange Diametre of spindle nose170h5 mmSpindle diametre on front bearing130 mmSpindle bore87 mmMain drive 1Drive power (100% DC)33 kWSpeed range20 - 4000 rpmTorque (100% DC)580 NmC-Axis Speed-200 rpmTorque of C-Axis (holding torque)225 NmAccuracy at point stopping0,01 degreeTool holder 1Number of tool stations12 Shank diametre according to DIN 6988040 mmNumber of driven tools12 Speed max.-4000 rpmPower max. (40% DC)11,3 kWFloor space/WeightDimensions (L x W x H)3,99 x 2,69 x 1,99 mWeight approx.6500 KgTechnologie cycle alternating speedTechnology cycle for the  ...

GeneralCNC Turning Centre with C axis and tool drive; Control: CELOS with Siemens 840D sl Operate Working areaSwing diameter over guide ways700 mmTurning diameter410 mmTransverse stroke300 mmLongitudinal stroke850 mmMax. Turning Length800 mmClamping chuck diameter max.315 mmBar diameter max.65 mmWork spindle (left)Spindle noseFlat flange Diametre of spindle nose170h5 mmSpindle bore87 mmSpindle diametre on front bearing130 mmMain drive 1Drive power (100% DC)25 kWSpeed range25 - 5000 rpmTorque (100% DC)280 NmC-Axis Speed-200 rpmTorque of C-Axis (holding torque)225 NmAccuracy at point stopping0,01 degreeTool holder 1Number of tool stations12 Shank diametre according to DIN 6988040 mmNumber of driven tools12 Speed max.-4000 rpmPower max. (40% DC)11,3 kWFloor space/WeightDimensions (L x W x H)4,46 x 1,88 x 2,30 mWeight approx.6500 KgTechnologie cycle alternating speedTechnology cycle for the  ...

GeneralTwo spindle turning/milling centre with - Main and counter spindle; Control: CELOS with Siemens 840D sl Operate Tool holder 2Number of tool stations12 Shank diametre according to DIN 6988040 mmNumber of driven tools12 Speed max.4000 rpmPower max. (40% DC)10 kWTool magazineNumber of tools24 Max. tool length230 mmMax. tool diameter80 mmMax. tool weight7 KgTurning-milling spindleSpindle taperHSK-A 63 Spindle speed-12000 rpmDrive power (100% DC)19 kWDrive power (40% DC)22,5 kWTorque (100% DC)85 NmTorque (40% DC)120 Nmlocking moment1000 NmSwivelling range+/-110 degreeSlide 3Longitudinal stroke1200 mmSlide 2Longitudinal stroke1200 mmTransverse stroke195 mmSlide 1Transverse stroke490 mmLongitudinal stroke1200 mmY axis, vertical+/- 100 mmHeadstock, rightClamping chuck Ø315 mmSpindle nose diameter170h5 mmSpindle bore87 mmSpindle diametre on front bearing130 mmDrive power (100% DC)25 kWDri ...

General- Compound slides with turning/milling spindle as integrated spindle motor, with hydr. locking at turning acceptance HSK-63A DIN 69893 - Y-axis ± 125 mm - B-axis ±120° with pneumatic locking - Tools magazin disc with 1x24 positions - Absolute direct gauging system in the X, Y, Z linear axes - Coolant pump 12 bar; 23l/min - Cooling system for spindle motor, turning/milling spindle, B-axis torque motor; Control: CELOS with Siemens 840D sl Operate Working areaSwing diameter over guide ways500 mmMax. Turning Length1200 mmTurning diameter500 mmBar diameter max.65 mmWork spindle (left)Spindle noseFlat flange Diametre of spindle nose170h5 mmSpindle bore87 mmSpindle diametre on front bearing130 mmMain drive 1Drive power (100% DC)25 kWDrive power (40% DC)32 kWSpeed range- 5000 rpmTorque (100% DC)280 NmMax. torque (40% DC)360 NmTurning-milling spindleSpindle taperHSK-A 63 DIN 69893 ...

Working areaSwing diameter over guide ways500 mmTurning diameter500 mmMax. Turning Length1200 mmBar diameter max.65 mmGeneral- Compound slides with turning/milling spindle as integrated spindle motor, with hydr. locking at turning acceptance HSK-63A DIN 69893 - Y-axis ± 125 mm - B-axis ±120° with pneumatic locking - Tools magazin disc with 1x24 positions - Absolute direct gauging system in the X, Y, Z linear axes - Coolant pump 12 bar; 23l/min - Cooling system for spindle motor, turning/milling spindle, B-axis torque motor; Control: CELOS with Siemens 840D sl Operate Work spindle (left)Spindle noseFlat flange Diametre of spindle nose170h5 mmSpindle bore87 mmSpindle diametre on front bearing130 mmMain drive 1Drive power (100% DC)25 kWDrive power (40% DC)32 kWSpeed range- 5000 rpmTorque (100% DC)280 NmMax. torque (40% DC)360 NmTurning-milling spindleSpindle taperHSK-A 63 DIN 69893 ...

GeneralIntegrated Mill Turn Center; Control: Control F31iB5 with CELOS CharacteristicsSwing- Ø, max.700 mmMilling spindle upper side1 Bar diametre80 mmSpeed max.4000 rpmMax. Turning Length1530 mmMax machining diameter670 mmDrive power tool spindle5,5/3,7 kWDrive power milling spindle28/23 kWDrive power main spindle18,5/15 kWMovements X / Z200/1542 mmLower Turret10 PositionsNumber of Toolmagazine positions38 Speed max.12000 rpmSlewability of B-Axis±120 degreeMovements X / Z / Y675/1562/300 (±150) mmWeight approx.18500 KgCELOS - ERGOline TouchCELOS - ERGOline Touch to facilitate machine operation incl. 21.5 ERGOline Touch ® control with multi touch screens Uniform management, documentation and visualization of order, process - and machine data Networkable with CAD / CAM User friendly and p(Left Spindle) through-spindle hole dia. 91 mm, 4,000min-1 (STD)(Left Spindle) Through-spindle Hol ...

GeneralCNC Turning Centre; Control: Control M730UM with CELOS CharacteristicsMax machining diameter406 mmDimensions (L x W x H)3,35 x 2,11 x 2,2 (3,99 x 2,11 x 2,2) mDrive power main spindle22/18,5 kWRapid feed X / Z30/30 m/minMovements X / Z260/795 mmRotary tool spindle speed10000 rpmNumber of tool stations12 Speed max.2500 rpmBar diameter max.102 mmSpindle bore111 mmMax. Turning Length705 mmWeight approx.6400 KgCELOS - ERGOline TouchCELOS - ERGOline Touch to facilitate machine operation incl. 21.5 ERGOline Touch ® control with multi touch screens Uniform management, documentation and visualization of order, process - and machine data Networkable with CAD / CAM User friendly and pLeft Spindle through-spindle hole dia. 111 mm (spindle speed 2,500 min-1, 22/ 18.5 kW)(Left Spindle) Through-Spindle Hole Dia. 111 mm (4.37-inch) (Spindle Speed 2,500 min-1, 22/18.5 kW) The NLX 2500 adopts a h ...
