GeneralUniversal machining centre; Control: Siemens 840D-Powerline ShopMill Classic Technical DataFeed rate longitudinal/transverse/vertical60000/60000/60000 mm/minRapid traverse longitudinal/transverse/vertical60/60/60 m/minWorking area 1Cross1000 mmLongitudinal1250 mmVertical1000 mmMiscellaneousClamping SystemHSK-A 100 Tool changerApplicationUniversal Type of magazineChain Tool changer planehorizontal Type of gripperDouble gripper Automatic swivel milling headUniversal head: automatic changeover from vertical to horizontal machiningProd. package 40 bar/23 l/minCoolant through spindle centre form AD 40 bar/23 l/min / 580 psi/6 gallon/min (theoretical pump performance) clear-view rotating window Multi-jet unit at universal head, switchable from coolant to air (max. 6 bar / 90 psi) (6 water jets, 4 air jets) pumpNC rotary table with pallet changerType of Measuring system Direct measuring ...
used
Technical DataFeed rate longitudinal/transverse/vertical40000/40000/40000 mm/minRapid traverse longitudinal/transverse/vertical40/40/40 m/minWorking area 1Longitudinal735 mmCross650 mmVertical560 mmGeneralUniversal Machining Centre in monoBLOCK construction; Control: CELOS X with HEIDENHAIN TNC7 Tool changerTool changer planevertical Type of gripperDouble gripper Number of tools60 Max. tool length315 mmMax. tool diameter with occupied adjacent pockets80 mmMax. tool dia. with free neighbouring pockets160 mmFloor space/WeightWeight approx.14500 KgNC swivel rotary tableTable surface Ø650 mmCentre bore 32 mmMaximum load (table centre) 600 KgRotation Speed 5. Axis 20 rpm5. Axes (swivelling range) +/- 120 degree4. Axes (swivelling range) 360 x 0,001 degreeRotation speed max.4. Axis 40 rpmDistance between T-Slots 63 mmNumber of Slots 9Slot width 14 mmIntegrated motor spindle speedMASTER®Drive ...
used
GeneralUniversal milling and turning machining centre with duoBLOCK construction; Control: CELOS X with Siemens SINUMERIK ONE Technical DataFeed rate longitudinal/transverse/vertical60000/60000/60000 mm/minRapid traverse longitudinal/transverse/vertical60/60/60 m/minWorking area 1Longitudinal800 mmCross1050 mmVertical850 mmTool changerApplicationUniversal Type of magazineWheel Tool changer planehorizontal Type of gripperDouble gripper Number of tools123 Uni milling head with controlled B axis HSK-A 63Universal milling head with controlled B axis HSK-A 63 Continuously positioning universal milling head (B axis) with integrated motor spindle for 5 axes positioning and simultaneous machiningNC mill-turn table with palletNC mill-turn table with pallet number of T-slots: - 1x cross slot 14 H7 / 0.55 H7 - 12x star slots 14 H11 / 0.55 H11 / 22.5° max. table speed milling operation: 30 rpm turn ...
GeneralUniversal machining centre; Control: Siemens 840D-Powerline ShopMill Classic Technical DataFeed rate longitudinal/transverse/vertical60000/60000/60000 mm/minRapid traverse longitudinal/transverse/vertical60/60/60 m/minWorking area 1Longitudinal1250 mmCross1000 mmVertical1000 mmMiscellaneousClamping SystemHSK-A 63 Tool changerApplicationUniversal Type of magazineChain Tool changer planehorizontal Type of gripperDouble gripper Automatic swivel milling headUniversal head: automatic changeover from vertical to horizontal machiningProd. package 40 bar/23 l/minCoolant through spindle centre form AD 40 bar/23 l/min / 580 psi/6 gallon/min (theoretical pump performance) clear-view rotating window Multi-jet unit at universal head, switchable from coolant to air (max. 6 bar / 90 psi) (6 water jets, 4 air jets) pumpNC rotary table with pallet changerType of Measuring system Direct measuring s ...
GeneralUniversal machining centre; Control: Siemens 840D-Powerline ShopMill Classic Technical DataRapid traverse longitudinal/transverse/vertical60/60/60 m/minFeed rate longitudinal/transverse/vertical60000/60000/60000 mm/minWorking area 1Longitudinal1250 mmCross1000 mmVertical1000 mmMiscellaneousClamping SystemHSK-A 63 Tool changerType of magazineChain ApplicationUniversal Tool changer planehorizontal Type of gripperDouble gripper Automatic swivel milling headUniversal head: automatic changeover from vertical to horizontal machiningProd. package 40 bar/23 l/minProduction package 40 bar/23 l/min / 580 psi/6 gallon/min (theoretical pump performance) tank 900 l, rotating clear-view window, scraper flight conveyor coolant through spindle centre form ADNC rotary table with pallet changerType of Measuring system Direct measuring systemTable surface 1000 x 800 mmTool magazine,chain, 60 pockets ...
GeneralUniversal machining centre; Control: 3D Control Siemens 840D powerline Technical DataFeed rate longitudinal/transverse/vertical60000/60000/60000 mm/minRapid traverse longitudinal/transverse/vertical60/60/60 m/minWorking area 1Longitudinal1250 mmCross1000 mmVertical1000 mmMiscellaneousClamping SystemHSK-A 100 Tool changerApplicationUniversal Type of magazineChain Tool changer planehorizontal Type of gripperDouble gripper Automatic swivel milling headUniversal head: automatic changeover from vertical to horizontal machiningProd. package 40 bar/23 l/minCoolant through spindle centre form AD 40 bar/23 l/min / 580 psi/6 gallon/min (theoretical pump performance) clear-view rotating window Multi-jet unit at universal head, switchable from coolant to air (max. 6 bar / 90 psi) (6 water jets, 4 air jets) pumpNC rotary table with pallet changerType of Measuring system Direct measuring system ...
GeneralHorizontal Machining Centre; Control: 3D Control Siemens 840D solutionline Technical DataFeed rate longitudinal/transverse/vertical60000/60000/60000 mm/minRapid traverse longitudinal/transverse/vertical60/60/60 m/minWorking area 1Longitudinal700 mmCross700 mmVertical700 mmMiscellaneousClamping SystemHSK-A 63 CabineFull protection cabinMain driveDrive power (100% DC) 20 kWDrive power (40% DC) 20 kWSpeed range - 12000 rpmSpindle taper HSK-A 63NC rotary table with pallet changerType of Measuring system Direct measuring systemTable surface 500 x 500 mmCentre bore 50 mmMaximum load (table centre) 600 KgSlot width 14 mmNumber of Slots 5Spindle taper HSK-A 63Spindle taper for HSK-A 63 to DIN 69893 (incl. adaptation working spindle, tool changer and tool magazine)4. Axes (swivelling range) 360 x 0,001 degreeRotation speed max.4. Axis 40 rpmDistance between T-Slots 100 mmTool magazine, cha ...
GeneralHorizontal Machining Centre; Control: 3D Control Siemens 840D solutionline Technical DataFeed rate longitudinal/transverse/vertical60000/60000/60000 mm/minRapid traverse longitudinal/transverse/vertical60/60/60 m/minWorking area 1Longitudinal700 mmCross700 mmVertical700 mmMiscellaneousClamping SystemHSK-A 63 CabineFull protection cabinMain driveDrive power (100% DC) 20 kWDrive power (40% DC) 20 kWSpeed range - 12000 rpmSpindle taper HSK-A 63NC rotary table with pallet changerType of Measuring system Direct measuring systemTable surface 500 x 500 mmCentre bore 50 mmMaximum load (table centre) 600 KgSlot width 14 mmNumber of Slots 5Spindle taper HSK-A 63Spindle taper for HSK-A 63 to DIN 69893 (incl. adaptation working spindle, tool changer and tool magazine)4. Axes (swivelling range) 360 x 0,001 degreeRotation speed max.4. Axis 40 rpmDistance between T-Slots 100 mmTool magazine, cha ...
GeneralHorizontal Machining Centre; Control: 3D Control Siemens 840D solutionline Working area 1Longitudinal560 mmVertical600 mmCross600 mmTechnical DataFeed rate longitudinal/transverse/vertical60000/60000/60000 mm/minRapid traverse longitudinal/transverse/vertical60/60/60 m/minMiscellaneousClamping SystemDIN ISO 7388 CabineFull protection cabinNC rotary table with pallet carrierNC rotary table with pallet carrier permissible load 500 kg / 1,100 lbs (no indexing table 360 x 1° in basic machine)Table surface 400 x 400 mmMaximum load (table centre) 500 Kg4. Axes (swivelling range) 360 x 0,001 degreeTool magazine, chain Vert., 60 pocketsTool magazine Vertical chain magazine with 60 tool pockets SK 40 or optional chosen spindle tapersMotor spindle SK 40 18,000 rpmMain drive: Integrated motor spindle SK 40 Spindle speed max. 18,000 rpmDrive power (100% DC) 28 kWDrive power (40% DC) 34 kWSpi ...
GeneralVertical-Machining centre Stealth Design; Control: CELOS with Heidenhain TNC 640 Technical DataRapid traverse longitudinal/transverse/vertical42/42/42 m/minFeed rate longitudinal/transverse/vertical1-42000/1-42000/1-42000 mm/minWorking area 1Cross700 mmLongitudinal1450 mmVertical550 mmIntegrated motor spindle speedMASTER®Integrated motor spindle speedMASTER® At speeds > 18.000 min-1, the use of tools with dual contact system (BIG-PLUS®) is stipulated.Drive power (100% DC) 25 kWDrive power (40% DC) 35 kWTorque (100% DC) 86 NmTableTable surface 1760 x 750 mmClamping System DIN ISO 7388-3-ADSpindle taper SK40 Tool holder DIN ISO 7388-1-ASpeed range - 20000 rpmTorque (40% DC) 130 NmSlot width 14 mmMaximum load (table centre) 1500 KgNumber of Slots 7Distance between T-Slots 100 mmCabin roofCabin roof In sheet steel design Open and close via front doorSpecial equipmentClamping pneuma ...
GeneralVertical Machining centre; Control: CELOS X with HEIDENHAIN TNC7 CharacteristicsTable surface1400 x 600 mmTool Magazine with30 PositionsMovement X / Y / Z1100/600/510 mmRapid feed X / Y / Z42/42/42 m/minMotor spindle speedMASTER® 20.000 rpmMotor spindle speedMASTER® 20.000 rpm AC main drive: 35/25 kW (40/100% ED) Tool taper SK40 DIN 69871 Tool clamping according to DIN69872Air Coolant Internal (through spindle centre) switchable via M-FunctionAir Coolant Internal (through spindle centre) switchable via M-Function
Technical DataFeed rate longitudinal/transverse/vertical60000/30000/40000 mm/minRapid traverse longitudinal/transverse/vertical60/30/40 m/minGeneralUniversal Milling Machining Centre - Linear pallet changer with 2 pallets - Coolant tank 2,500 lt / 660 gallon - Internal coolant supply 40 bar / 580 psi through spindle centre (AD) - Chip conveyor - Rotating clear-view window - Electronic handwheel; Control: CELOS with Siemens 840D sl Operate Working area 1Longitudinal3400 mmCross3400 mmVertical1600 mmTool changerApplicationUniversal Type of magazineshelf Tool changer planevertical Type of gripperDouble gripper Clamping surface: 2,000 mm x 2,500 mm / 78.7 in x 98.4 in (DIN 55201 - A2) centre bore: d 100 mm H6 / d 4 in H6 level bush: d 25 mm H6 / d 0.9 in H6 Number of T-slots: 1x 22 H7 (alignment groove, table centre) 8x 22 H12 (clamping grooves) Distance betweeUniversal head with controlled ...
GeneralHorizontal machining centre - Horizontal milling head - Chip trough with integrated Coolant tank 300 l / 130 gallo; Control: 3D Control Siemens 840D solutionline operate Technical DataFeed rate longitudinal/transverse/vertical80000/80000/80000 mm/minRapid traverse longitudinal/transverse/vertical80/80/80 m/minWorking area 1Cross1050 mmLongitudinal800 mmVertical1000 mmCabineFull protection cabinDirect measuring systemDirect path measuring systemNC swivel rotary tableNC swivel rotary table with pallet carrier max. table load: 600 kg / 1,323 lbs rotation B axis: 360° swivel range A axis: 25° / -200° range X / Y / Z-axis: 800 x 1,095 x 1,050 mm / 31.5 x 43.1 x 41.3 in axis kinematics A / BAdditional T-slot pallet 630 mm x 630 mmAdditional T-slot pallet 630 mm x 630 mm / 24.8 in x 24.8 in T-slots 14 mm / 0,55 in, clamping surface following DIN 55201-A2Clamping hydraulics 2/4 channe ...
used
GeneralUniversal milling machine in monoBLOCK construction; Control: 3D Control Heidenhain iTNC 530 HSCI Technical DataFeed rate longitudinal/transverse/vertical30000/30000/30000 mm/minRapid traverse longitudinal/transverse/vertical30/30/30 m/minWorking area 1Longitudinal1150 mmCross710 mmVertical710 mmTool changerApplicationVertical Tool changer planevertical Type of gripperPick up Number of tools32 MiscellaneousClamping SystemHSK-A 63 Floor space/WeightDimensions (L x W x H)6,0 x 5,0 x 2,7 (7,0 x 5,5 x 3,5) mWeight approx.10700 KgDirect measuring systemDirect path measuring systemCabineFull protection cabinNC rotary table integrated in rigid tableType of Measuring system Direct measuring systemMotor spindle 10,000 rpmMotor spindle SK 40 10,000 rpm4. Axes (swivelling range) +/- 360/000,1 degreeRotation speed max.4. Axis 30 rpmDistance between T-Slots 63 mmNumber of Slots 11Slot width 14 ...
DMG MORI SEIKI DMC 635 V Ecoline CNC machining center was built in 2013. The machine, designed for precision machining of workpieces, is distinguished by its extremely stable construction made of high-quality cast iron, which perfectly dampens any vibrations and oscillations. To achieve the highest precision and accuracy, reliable components in the form of cutting tools and a high-speed spindle are used in the machining process. Tools are changed in a very short time, so that the overall milling time is significantly reduced. The DMG DMC 635 V ECO CNC vertical machining center is offered with a modern touchscreen control panel and integrated chip conveyor. To this date, the machine has only worked for 9069 hours. The DMC 635 V ECOLINE milling center weighs 3900 kg. Technical specifications of the CNC milling machine DMC 635 V ECO - number of axes: 3 (X,Y,Z) - feed in the X/Y/Z ax ...
used
GeneralHigh dynamic Vertical Drill-Tap centre with best milling performance; Control: 3D-control Siemens 840D sl Operate Working area 1Cross420 mmLongitudinal700 mmVertical380 mmTechnical DataFeed rate longitudinal/transverse/vertical60000/60000/60000 mm/minRapid traverse longitudinal/transverse/vertical60/60/60 m/minMain driveDrive power (100% DC) 6 kWClamping System ISO 7388-3 - JD30Spindle taper BT 30Speed range 20 - 15000 rpmTorque (40% DC) 48 NmTorque (100% DC) 41 NmDrive power (40% DC) 8,5 kWToolchangertoolchangerType of magazine WheelNumber of tools 25Integrated swivel rotary table simultaneousIntegated swivel rotary table 5-Axis simultaneous mode! Torque drives incl. direct measuring in A- and C-Axis Swivel range A-Axis -120 / + 100 degrees Max. load C-axis 100kg Table diameter C-Axis d290mm Rotary joint, 4-channels Inclusive Software packageProduction package band filter ICS 40b ...
GeneralUniversal machining centre New DMG MORI Design; Control: CELOS with Siemens 840D sl Operate Technical DataFeed rate longitudinal/transverse/vertical50000/50000/50000 mm/minRapid traverse longitudinal/transverse/vertical50/50/50 m/minWorking area 1Longitudinal400 mmCross400 mmVertical375 mmTool changerType of magazineChain Type of gripperDouble gripper Number of tools60 Max. tool weight6 KgMax. tool length300 mmMax. tool diameter with occupied adjacent pockets80 mmMax. tool dia. with free neighbouring pockets130 mmFloor space/WeightDimensions (L x W x H)6,21 x 6,58 x 2,69 (6,21 x 7,38 x 2,69) mWeight approx.7200 KgDie and Mold Package linearDie and Mold Package linear Dynamic package V-type Eagle timing belt for Z axisPackage Mill / TurnPackage Mill / Turn (only available for Siemens 840D solutionline) NC-Mill-turn table 450x450 mm / 17.7x17.7 in rounded down to d460 mm / 18.1 in C ...
GeneralVertical Machining centre; Control: DMG MORI ERGOline IV HEIDENHAIN TNC 7 CharacteristicsTable surface900 x 600 mmTool Magazine with60 PositionsMovement X / Y / Z600/600/510 mmRapid feed X / Y / Z30/30/30 m/minAC main driveSpindle speed range 20 to 15.000 rpm AC main drive:20/14,5 kW (40/100% DC) Tool taper SK40 DIN 69871 Tool clamping according to DIN69872Direct measuring system X,Y,ZDirect Measuring System X, Y, Z inclusive Air Purge for Measuring SystemProduction Package 20 bar with chip conveyorProduction Package 20 bar with chip conveyor Option includes: - Internal coolant supply 20 bar - Chip conveyor (scraper type) with tank capacity: 200 l(left) - Bed flushing via M-Function - Coolant spray gun for swarf removal - External electronic handwheAir coolant internal (through spindle centre)Air Coolant Internal (through spindle centre) switchable via M-Function maintained air wi ...
GeneralUniversal Machining Centre Vertical headstock Tool change system double gripper NC-Swivel rotary table with pallet carrier 3 pallets 500 mm x 500 mm / 19.7 in x 19.7 in T-slots according to DIN 55201-A2 linear pallet changer coolant tank 500 l / 132 gallon chip conveyor with netting band filter integrated, coolant ring jet; Control: CELOS with Siemens 840D sl Operate Technical DataFeed rate longitudinal/transverse/vertical40000/40000/40000 mm/minRapid traverse longitudinal/transverse/vertical40/40/40 m/minWorking area 1Longitudinal735 mmCross650 mmVertical560 mmFloor space/WeightWeight approx.18300 KgDirect measuring systemDirect path measuring systemCabineFull protection cabinNC swivel rotary table with pallet carrierTable surface 500 x 500 mmCentre bore 50 mmMaximum load (table centre) 500 KgMotor spindle 20,000 rpmMotor spindle speedMASTER® HSK-A 63 Spindle speed 20 - 20,000 ...

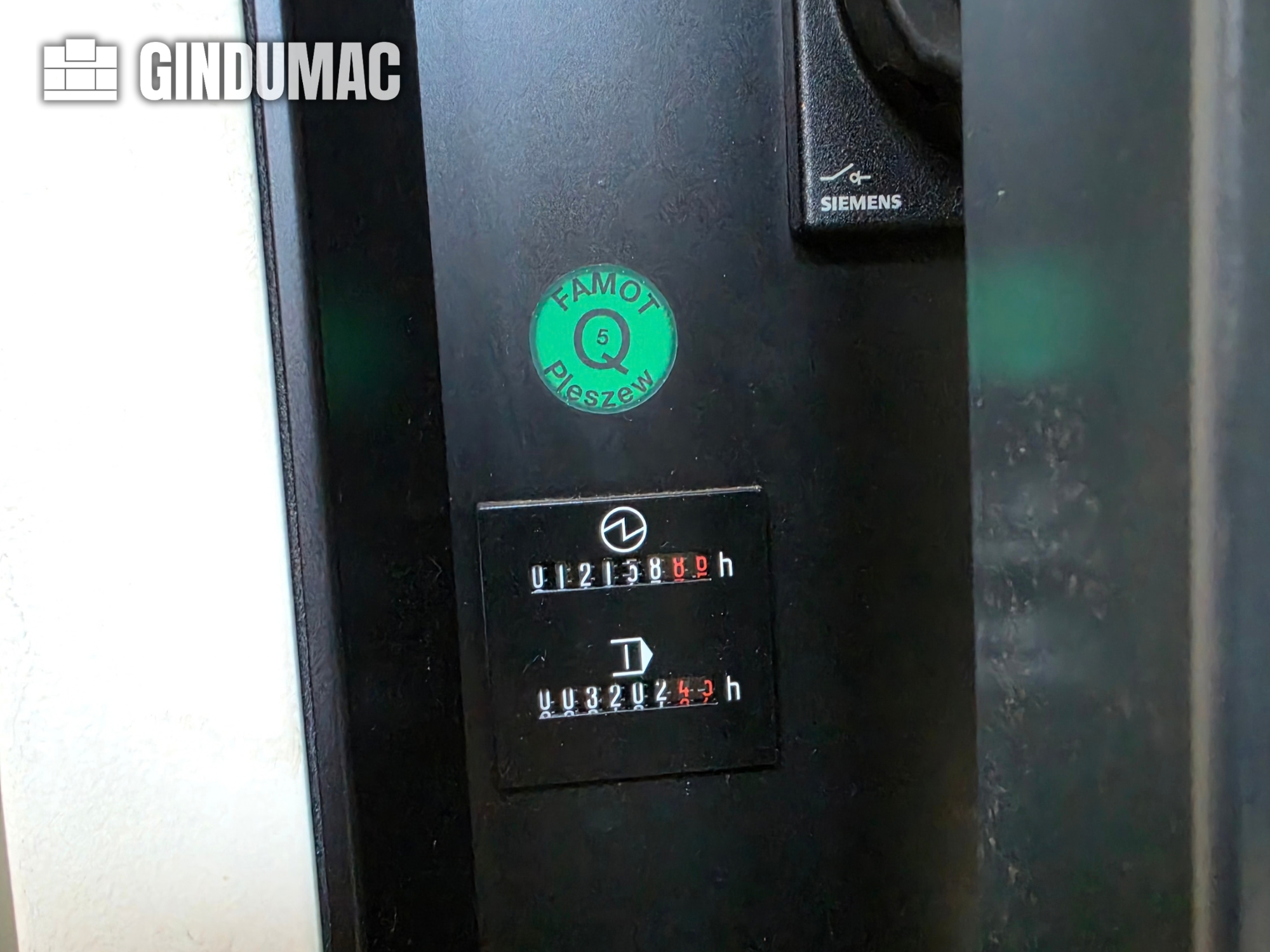

DMG MORI DMC 635 V Ecoline CNC machining center was built in 2014 in Poland by FAMOT Pleszew Sp. z o.o. The machine, designed for precision machining of workpieces, is the perfect solution for both unit and series production. The machining process is performed fully automatically by means of a reliable electro-spindle and tools taken from a 20-position magazine. Process stability, in turn, is ensured by an extremely rigid bed, which continuously eliminates any vibration and oscillation. All this is complemented by an easy-to-use HEIDENHAIN CNC control with many useful functions. The DMG MORI DMC 635V Ecoline CNC vertical machining center weighs 3900 kg. Technical specifications of the DMG MORI DMC 635 V Ecoline CNC milling machine - HEIDENHAIN TNC 620 CNC control with workpiece and machining 3D simulation - feed in the X/Y/Z axis: 635/510/460 mm - rapid traverse in the X,Y,Z axis: ...
GeneralUniversal Machining Centre in monoBLOCK construction; Control: CELOS X with HEIDENHAIN TNC7 Technical DataFeed rate longitudinal/transverse/vertical40000/40000/40000 mm/minRapid traverse longitudinal/transverse/vertical40/40/40 m/minTool changerTool changer planevertical Type of gripperDouble gripper Number of tools30 Max. tool length315 mmMax. tool diameter with occupied adjacent pockets80 mmMax. tool dia. with free neighbouring pockets160 mmWorking area 1Longitudinal735 mmCross650 mmVertical560 mmFloor space/WeightWeight approx.14500 KgNC swivel rotary tableTable surface Ø650 mmCentre bore 32 mmMaximum load (table centre) 600 KgSlot width 14 mmNumber of Slots 9Distance between T-Slots 63 mmRotation speed max.4. Axis 40 rpm4. Axes (swivelling range) 360 x 0,001 degreeRotation Speed 5. Axis 20 rpm5. Axes (swivelling range) +/- 120 degreeDirect measuring systemDirect path measurin ...
Technical DataFeed rate longitudinal/transverse/vertical60000/60000/60000 mm/minRapid traverse longitudinal/transverse/vertical60/60/60 m/minWorking area 1Longitudinal650 mmCross700 mmVertical950 mmGeneralHorizontal universal machining center; Control: CELOS with Siemens 840D sl Operate CabineFull protection cabinMotor spindle 20,000 rpmMotor spindle speedMASTER® HSK-A 63 Spindle speed 20 - 20,000 min-1 Output 35 kW / 25 kW (47 hp / 33 hp) Torque 130 Nm / 86 Nm (96 ft lbs / 63 ft lbs) (40 / 100 % duty cycle)Taper cleaning brushesTaper cleaning unit with rotating brushes for spindle taper HSKNC swivel rotary table DirectDriveNC swivel rotary table direct drive Table plate: d 650 mm / 25.6 in 1 x T-slot 14 H7 / 0.55 H7 (alignment groove, table centre) 8 x T-slot 14 H12 / 0.55 H7 (clamping grooves) Permissible load: 600 kg / 1,323 lbs Rotary-axis: 80 min-1 direct drive Swivel-aKinematics a ...
Machine details 1105-02953 Machine type Machining Center - Vertical Make DECKEL-MAHO (DMG) Type DMC 64V Built 2002 Control type Cnc Location Haguenau Origin Germany Delivery Right away Freight base from stock Price On request Technical details x-Way 640 mm y-way 600 mm z-way 500 mm Control HEIDENHAIN TNC 530 Machine weight approx. 8 t Information 1 gebr. CNC vertical BAZ Fabr. DECKEL-MAHO Type DMC 64V linear, Y.O.M. 2002 1 used CNC Vertical Milling Center DECKEL-MAHO type DMC 64V linear, built 2002 WITH 2 AXIS PART APPARAT INCLU CNC Control HEIDENHAIN TNC 530 30-fah tool changer Conveyor 30-fold ATC chip conveyor Technical data / technical details: X-Way / X-travel 640 mm Y-way / Y-travel 600 mm Z-way / Z-travel 500 mm Spindle holder / spindle taper SK40 Speed range / spindle speed 0-12000 rpm Feed range X , Y , Z / feed range X , ...
GeneralUniversal Machining Centre in monoBLOCK construction; Control: CELOS with Siemens 840D sl Operate Technical DataFeed rate longitudinal/transverse/vertical40000/40000/40000 mm/minRapid traverse longitudinal/transverse/vertical40/40/40 m/minWorking area 1Cross650 mmLongitudinal735 mmVertical560 mmTool changerTool changer planevertical Type of gripperDouble gripper Number of tools90 Max. tool length315 mmMax. tool diameter with occupied adjacent pockets80 mmMax. tool dia. with free neighbouring pockets160 mmFloor space/WeightWeight approx.12400 KgNC swivel rotary table integrated in rigid tableType of Measuring system Direct measuring systemTable surface 800 x 650 (Ø 650) mmCentre bore 50 mmMaximum load (table centre) 600 KgSlot width 14 mmNumber of Slots 9Rotation Speed 5. Axis 20 rpm5. Axes (swivelling range) +120/-120 x 0,001 degree4. Axes (swivelling range) 360 x 0,001 degreeRot ...
Technical DataFeed rate longitudinal/transverse/vertical60000/60000/60000 mm/minRapid traverse longitudinal/transverse/vertical60/60/60 m/minGeneralHorizontal 5-axis universal machining centre; Control: CELOS with Siemens 840D sl Operate Working area 1Longitudinal850 mmCross900 mmVertical1150 mmCabineFull protection cabinMotor spindle 20,000 rpmMotor spindle speedMASTER® HSK-A 63 Spindle speed 20 - 20,000 min-1 Output 35 kW / 25 kW (47 hp / 33 hp) Torque 130 Nm / 86 Nm (96 ft lbs / 63 ft lbs) (40 / 100 % duty cycle)Taper cleaning brushesTaper cleaning unit with rotating brushes for spindle taper HSKNC swivel rotary table DirectDrive CNC swivel rotary table direct drive C-axis with pallet carrier Permissible load: 800 kg / 1,760 lbs C-axis: 80 min-1 direct drive A-axis: 15 min-1 single drive Rotation C axis: endlessly turning Swivel range A axis: +120°/-120° (replacement of base machKi ...
Key data: 630 mm, 560 mm, 560 mm
Machine Details Stock-No. 1105-04038 Type of machine Universal Milling Machine Make DECKEL-MAHO Type DMU 60 MONOBLOCK Year of manufacture 2008 Type of control CNC Storage location HAGUENAU Country of origin Germany Delivery time immediately Freight basis EX WORK Technical details X-Travel 630 mm Y-Travel 560 mm Additional information CNC Univ. Tool Milling Machine DECKEL MAHO Model DMU 60 MONOBLOCK YEAR OF MANUFACTURE 2008 5 AXIS SIMULTAN CNC Universal Tool Room Milling Machine DECKEL MAHO type DMU 60 MONOBLOCK BUILT IN 2008 With CNC control Heidenhain TNC 530, 32-fold tool changer, ROUND TABLE 360000 ° , Cabin With CNC control Heidenhain TNC 530 , 33-fold automatic tool changer, , cabinl Technische Daten / technical details: Longitudinal travel X / X-travel longitudinal 730 mm Cross travel Y / Y-travel cross 560 mm Vertical travel Z / Z-travel vertica ...
Control: SIEMENS - 840 D - - -: - - - - - - - - -: - - - - - - Milling Machine - Horizontal | DMG - DMC 60H linear The machine is in a well-maintained condition. The machine video from the production plant will be shared on request. Technical data of the machine will follow soon. - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - #Tags: DMC60Hlinear | DMC 60-H | DMG - DMC 60 H The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
GeneralVertical-Machining centre Stealth Design; Control: CELOS with Siemens 840D sl Operate Technical DataFeed rate longitudinal/transverse/vertical1-42000/1-42000/1-42000 mm/minRapid traverse longitudinal/transverse/vertical42/42/42 m/minWorking area 1Longitudinal1450 mmCross700 mmVertical550 mmTableTable surface 1760 x 750 mmMaximum load (table centre) 2000 KgSlot width 14 mmNumber of Slots 7Distance between T-Slots 100 mmSpindle speed 15,000 rpm, 200NmMotor spindle speedMASTER® HSK-A63 Spindle speed 20 - 15,000 min-1 Output 46 kW / 30 kW (62 hp / 40 hp) Torque 200 Nm / 130 Nm (148 ft lbs / 96 ft lbs) (40 / 100 % duty cycle)Tool magazine 60 pockets HSK-A63Tool magazine 60 pockets HSK-A63 Chain magazine with pockets and with double gripper, incl. manually direct tool loading into the tool magazineInternal coolant supply package 80 bar / 980 lInternal coolant supply package 80 bar / 98 ...
GeneralVertical machining center in C-frame-design New DMG MORI Design Direct Measuring system X,Y,Z; Control: CELOS with Siemens 840D sl Operate Technical DataFeed rate longitudinal/transverse/vertical1-42000/1-42000/1-42000 mm/minRapid traverse longitudinal/transverse/vertical42/42/42 m/minWorking area 1Cross520 mmLongitudinal650 mmVertical475 mmTool changerType of magazineChain Type of gripperDouble gripper Number of tools60 TableTable surface 960 x 570 mmMaximum load (table centre) 800 KgSlot width 14 mmNumber of Slots 5Distance between T-Slots 100 mmSpindle speed 20.000 rpmMotor spindle speedMASTER® HSK-A63 Spindle speed 20 - 20,000 min-1 Output 35 kW / 25 kW (47 hp / 33 hp) Torque 130 Nm / 86 Nm (96 ft lbs / 63 ft lbs) (40 / 100 % duty cycle)Tool magazine 60 pockets HSK-A63Tool magazine 60 pockets HSK-A63 Chain magazine with pockets and with double gripper, incl. manually direct t ...
GeneralVertical Machining centre; Control: Control SIEMENS ERGOline IV CharacteristicsTable surface1400 x 600 mmTool Magazine with60 PositionsMovement X / Y / Z1100/600/510 mmRapid feed X / Y / Z30/30/30 m/minAC main driveSpindle speed range 20 to 15.000 rpm AC main drive:20/14,5 kW (40/100% DC) Tool taper SK40 DIN 69871 Tool clamping according to DIN69872Direct measuring system X,Y,ZDirect Measuring System X, Y, Z inclusive Air Purge for Measuring SystemProduction Package 20 bar with chip conveyorProduction Package 20 bar with chip conveyor Option includes: - Internal coolant supply 20 bar - Chip conveyor (scraper type) with tank capacity: 220 l (left) - Bed flushing via M-Function - Coolant spray gun for swarf removal - External electronic handwhAir coolant internal (through spindle centre)Air Coolant Internal (through spindle centre) switchable via M-Function maintained air with low o ...
This 5-axis DMG DECKEL MAHO DMU 70 EVO Linear was manufactured in 2009. It features a working area with X-axis travel of 750 mm, Y-axis travel of 600 mm, and Z-axis travel of 520 mm. The machine is equipped with a high-speed spindle capable of reaching 24,000 rpm and a tool magazine with a capacity of 120 positions. It includes a DMG PH 150 L8 automation. If you are looking to get high-quality machining capabilities, consider the DMG DECKEL MAHO DMU 70 EVO Linear machine we have for sale. Contact us for further details.
travel -x axis: 3.000 mm travel -y axis: 560 mm travel -z axis: 720 mm control: Siemens - 840D number of spindle speeds: 18.000 U/min numbers of positions in the tool changer: 100 tool taper: HSK 63 Milling machining centers - vertical | DMG - DMF 300 Linear The machine has exclusively processed aluminum is in a well-maintained condition and can be inspected at any time under power. - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - #Tags: DMF300Linear | DMF300 | DMF-300 Linear | DMF-300Linear The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
travel -x axis: 3.000 mm travel -y axis: 560 mm travel -z axis: 720 mm control: Siemens - 840D number of spindle speeds: 18.000 U/min numbers of positions in the tool changer: 100 tool taper: HSK 63 Milling machining centers - vertical | DMG - DMF 300 Linear The machine has exclusively processed aluminum is in a well-maintained condition and can be inspected at any time under power. - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - #Tags: DMF300Linear | DMF300 | DMF-300 Linear | DMF-300Linear The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
GeneralTraveling column machine DMG MORI Design; Control: CELOS with Heidenhain TNC 640 Technical DataFeed rate longitudinal/transverse/vertical40000/40000/40000 mm/minRapid traverse longitudinal/transverse/vertical40/40/40 m/minWorking area 1Longitudinal1800 mmCross700 mmVertical700 mmTool changerType of magazineChain Number of tools30 Max. tool weight6 KgMax. tool length300 mmMax. tool diameter with occupied adjacent pockets80 mmMax. tool dia. with free neighbouring pockets130 mmFloor space/WeightDimensions (L x W x H)6,75 x 3,45 x 2,75 mWeight approx.14320 KgMiscellaneousClamping SystemDIN 69872 NC-swivel head (B-axis)Controlled NC-swivel milling head (B-axis) with clamping in position. Continuously positioning NC swivel milling head with integrated motor spindle for 4/5 axes positioning and simultaneous machining. Swivel range: +/- 90° Swivel speed: 40 rpmFixed tableFixed TableTable ...
GeneralHigh dynamic Vertical Drill-Tap centre with best milling performance; Control: 3D-control Siemens 840D sl Operate Working area 1Longitudinal350 mmCross420 mmVertical380 mmTechnical DataFeed rate longitudinal/transverse/vertical60000/60000/60000 mm/minRapid traverse longitudinal/transverse/vertical60/60/60 m/minMain driveDrive power (100% DC) 6 kWDrive power (40% DC) 8,5 kWTorque (100% DC) 41 NmTorque (40% DC) 48 NmSpeed range 20 - 15000 rpmSpindle taper BT 30Clamping System ISO 7388-3 - JD30ToolchangertoolchangerTableTable surface 740 x 420 mmNumber of tools 15Type of magazine WheelMaximum load (table centre) 400 KgPreparation NC-Devider EA510 indirectPreparation 4.th axis Lehmann EA 510.L indirect measuring System Attention: Customer specific optimisations and adjustments are not part of delivery!Chip removal package with chip conveyorChip removal package with chip conveyor conte ...
Machine details Bearing number 1105-03199 Machine type Milling machine - Universal Make DECKEL MAHO DMG Type DMU 70eVolution Built in 2001 Control type CNC Warehouse FRANCE Country of origin Germany Delivery time by arrangement Freight base from location Price Technical details x-path 750 mm y-path 600 mm z-way 520 mm Control HEIDENHAIN iTNC 530 Information Milling machine - Universal DECKEL MAHO DMG DMU 70eVolution NC Swivel Round Table (700X500) Spindle -------------------- Spindle speed: 18,000rpm Tool holder: SK40 Tool changer -------------------- Magazine places: 32 Pick up Facilities -------------------- Measuring probe Conveyor 2. Processor card electronic handwheel HR410 Blowing air M25 Rinsing gun
Deckel Maho DMG DMU 70eVolution 5Axis simultaneous Machining center CNC Hersteller [manufacturer]: DMG Deckel Maho Type [ type]: 70eVolution Control unit: Heidenhain iTNC 530 Incl. handwheel Baujahr[construction year]: 12/2006 - Renewed/renewed spindle - IKZ integrated cooling system for water 40bar and air (both possible) Travel X/Y/Z 750/600/520 mm B-axis 0 to 180° degrees C-axis n x +-360° degrees Table load up to 350kg Spindle speed range 20 to 18,000 1/min. Tool holder SK 40 DIN 69871 Weight [weight]: 10.000kg Full documentation is available. Inspection under power can be done at short notice. We will be happy to answer any further questions you may have. Tel. 017621834834Price, from stock here plus VAT Condition: good - ready for demonstration Delivery: from stock - as seen Payment: purely net - upon receipt of invoice Prior sale, errors excepted. ...
GeneralUniversal Milling Machining Centre - Linear pallet changer with 2 pallets - Coolant tank 2,500 lt / 660 gallon - Chip conveyor - Rotating clear-view window - Electronic handwheel; Control: CELOS with Heidenhain TNC 640 Technical DataFeed rate longitudinal/transverse/vertical60000/30000/40000 mm/minRapid traverse longitudinal/transverse/vertical60/30/40 m/minWorking area 1Longitudinal3400 mmCross3400 mmVertical2000 mmTool changerType of magazineWheel Tool changer planevertical Type of gripperDouble gripper Clamping surface: 2,000 mm x 2,500 mm / 78.7 in x 98.4 in (DIN 55201 - A2) centre bore: d 100 mm H6 / d 4 in H6 level bush: d 25 mm H6 / d 0.9 in H6 Number of T-slots: 1x 22 H7 (alignment groove, table centre) 8x 22 H12 (clamping grooves) Distance betweeUniversal head with controlled B-axisContinuously positioning universal milling head (B axis) with integrated motor spindle for ...
GeneralUniversal Milling Machining Centre - Linear pallet changer with 2 pallets - Coolant tank 2,500 lt / 660 gallon - Internal coolant supply 40 bar / 580 psi through spindle centre (AD) - Chip conveyor - Rotating clear-view window - Electronic handwheel; Control: CELOS with Heidenhain TNC 640 Technical DataFeed rate longitudinal/transverse/vertical60000/30000/40000 mm/minRapid traverse longitudinal/transverse/vertical60/30/40 m/minWorking area 1Longitudinal3400 mmCross3400 mmVertical2000 mmTool changerType of magazineChain Tool changer planevertical Type of gripperDouble gripper Clamping surface: 2,000 mm x 2,500 mm / 78.7 in x 98.4 in (DIN 55201 - A2) centre bore: d 100 mm H6 / d 4 in H6 level bush: d 25 mm H6 / d 0.9 in H6 Number of T-slots: 1x 22 H7 (alignment groove, table centre) 8x 22 H12 (clamping grooves) Distance betweeCabineFull protection cabinExtension Z travel range to 2 ...
Key data: 800 mm, 650 mm, 550 mm
Machine Details Stock-No. 1105-04022 Type of machine Machining Center - Universal Make DMG LID MAHO Type DMU 80 eVolution LINEAR Year of manufacture 2012 Type of control CNC Storage location HAGUENAU FRANCE Country of origin Germany Delivery time to be agreed Freight basis ex site Price Technical details X-Travel 800 mm Y-Travel 650 mm Z-Travel 550 mm control iTNC 530 Heidenhain distance spindle nose and table 150 - 700 mm Turning Speed Range - Main Spindle max. 18,000 min/-1 Power capacity - main spindle 35 / 25 kW max. torque 130 Nm tool taper HSK table surface area 800 x 700 mm max. table load 600 kg rotatable C: 360° Swivel range B: -5 / -110 ° number of toolpositions 120 pos. tool taper HSK 63 max. tool diameter 80 mm max. tool-dia with free toolbox 160 mm max. tool length 315 mm max. tool weight 8.0 kg Change-time chip-to-chip approx. 5.9 sec F ...
GeneralUniversal Machining Centre Vertical headstock Tool change system double gripper NC-Swivel rotary table with pallet carrier 3 pallets 500 mm x 500 mm / 19.7 in x 19.7 in T-slots according to DIN 55201-A2 linear pallet changer coolant tank 500 l / 132 gallon chip conveyor with netting band filter integrated, coolant ring jet; Control: CELOS with Siemens 840D sl Operate Technical DataFeed rate longitudinal/transverse/vertical40000/40000/40000 mm/minRapid traverse longitudinal/transverse/vertical40/40/40 m/minWorking area 1Longitudinal735 mmCross650 mmVertical560 mmFloor space/WeightWeight approx.17800 KgDirect measuring systemDirect path measuring systemCabineFull protection cabinPackage Mill / Turn HSK-A 63Package Milling / Turning: Upgrade NC-swivel rotary table to Milling - Turning / direct drive Pallet C-axis d 630 mm / 24.9 in Speed C-axis 1.000 rpm Integrated balancing sensor ...
GeneralUniversal Milling / Turning Machining Centre with duoBLOCK construction; Control: CELOS with Siemens 840D sl Operate Technical DataFeed rate longitudinal/transverse/vertical60000/60000/60000 mm/minRapid traverse longitudinal/transverse/vertical60/60/60 m/minWorking area 1Longitudinal800 mmCross1050 mmVertical850 mmTool changerApplicationUniversal Type of magazineWheel Tool changer planehorizontal Type of gripperDouble gripper Number of tools63 Floor space/WeightWeight approx.18500 KgUniv. milling head w. controlled B-axis HSK-A 100Universal milling head with controlled B-axis HSK-A 100 (only with motor spindle HSK-A 100)NC milling/turning tableNC mill-turn table 1 x T-slot as cross slot 12 x T-slots as starslots / 22,5 ° with integrated balancing sensorCoolant supply ICSCoolant through spindle centre form AD, 40 bar/23 l/min Multi-jet unit at milling head, switchable from coolant ...
Key data: 1800 mm, 700 mm, 700 mm
Machine Details Stock-No. 1105-04035 Type of machine Machining Center - Vertical Make DMG LID MAHO Type DMF 180 linear Year of manufacture 2015 Type of control CNC Storage location FRANCE Country of origin Germany Delivery time 1 month after order Freight basis ex Works Technical details X-Travel 1800 mm Y-Travel 700 mm Z-Travel 700 mm Control HEIDENHAIN TNC 530 INTC 530 table surface area 2600 x 600 mm table load 2 t turning speeds 18000 rpm taper ISO SK 40 Tool Change Unit 30-Fold Rapid Traverse 50 m/min Number of working hours 20000 h Spindle Hours approx. 6000 h total power requirement 36 kVA weight of the machine approx. 11 t dimensions of the machine approx. 4.40 x 2.45 x 2.65 m Additional information DECKEL MAHO DMG DMF 180 Linaer equipment 3 AXIS MACHINE Direct Weighing System IKZ 600 liters 40 bar Chip conveyor Operating mode 4 Ethernet card ...
Key data: 750 mm, 600 mm, 520 mm
Machine Details Stock-No. 1105-04037 Type of machine Universal Milling Machine Make LID MAHO DMG Type DMU 70eVolution Year of manufacture 2002 Type of control CNC Storage location HAGUENAU FRANCE Country of origin Germany Delivery time according to the arrangement Freight basis ex Works Price 45000 EUROS Technical details X-Travel 750 mm Y-Travel 600 mm Z-Travel 520 mm Control HEIDENHAIN iTNC 530 Additional information Milling Machine - Universal DECKEL MAHO DMG DMU 70eVolution NC swiveling rotary table (700x500) Spindle -------------------- Spindle speed: 18,000rpm Tool holder: SK40 Tool Changer -------------------- Magazine places: 32 Pick up domestic equipments -------------------- sample Chip Conveyor 2nd processor card electronic handwheel HR410 INTERFACE FOR EROWA WITH EROWA ROBOTS RENISHAW SAMPLE Flushing gun
GeneralUniversal machining centre New DMG MORI Design; Control: CELOS with Siemens 840D sl Operate Technical DataFeed rate longitudinal/transverse/vertical50000/50000/50000 mm/minRapid traverse longitudinal/transverse/vertical50/50/50 m/minWorking area 1Longitudinal400 mmCross400 mmVertical375 mmTool changerType of magazineChain Type of gripperDouble gripper Number of tools60 Max. tool weight6 KgMax. tool length300 mmMax. tool diameter with occupied adjacent pockets80 mmMax. tool dia. with free neighbouring pockets130 mmFloor space/WeightDimensions (L x W x H)6,21 x 6,58 x 2,69 (6,21 x 7,38 x 2,69) mWeight approx.7200 KgPackage Mill / TurnPackage Mill / Turn NC-Mill-turn table 450x450 mm / 17.7x17.7 in rounded down to d460 mm / 18.1 in C-axis direct drive, speed max.1,200 rpm Integrated balancing system Motorspindle 20-20,000 rpm power 35/25 kW (40/100% ED) tool taper HSK-A63 according D ...
used
GeneralUniversal milling and turning machining centre with duoBLOCK construction; Control: CELOS with Heidenhain TNC 640 Technical DataFeed rate longitudinal/transverse/vertical60000/60000/60000 mm/minRapid traverse longitudinal/transverse/vertical60/60/60 m/minWorking area 1Longitudinal800 mmCross1050 mmVertical850 mmTool changerApplicationUniversal Type of magazineWheel Tool changer planehorizontal Type of gripperDouble gripper Number of tools123 Uni milling head with controlled B axis HSK-A 63Universal milling head with controlled B axis HSK-A 63 Continuously positioning universal milling head (B axis) with integrated motor spindle for 5 axes positioning and simultaneous machiningNC mill-turn table with palletNC mill-turn table with pallet number of T-slots: - 1x cross slot 14 H7 / 0.55 H7 - 12x star slots 14 H11 / 0.55 H11 / 22.5° max. table speed milling operation: 30 rpm turning o ...
GeneralHorizontal machining centre - Horizontal milling head; Control: CELOS with Siemens 840D sl Operate Technical DataRapid traverse longitudinal/transverse/vertical60/60/70 m/minFeed rate longitudinal/transverse/vertical60000/60000/70000 mm/minWorking area 1Longitudinal800 mmCross1050 mmVertical900 mmCabineFull protection cabinDirect measuring systemDirect path measuring systemNC rotary table with pallet changerType of Measuring system Direct measuring systemTable surface 630 x 630 mmRotation speed max.4. Axis 40 rpmDistance between T-Slots 100 mmNumber of Slots 5Slot width 14 mmMaximum load (table centre) 900 KgCentre bore 50 mm4. Axes (swivelling range) 360 x 0,001 degreePackage recirculation ballscrew spindlePackage recirculating ballscrew spindle X-,Z-axis:max. feed speed: 60.000 mm/min Y-axis: max. feed speed: 70.000 mm/min (basic machine without linear drive X-, Y-, Z-axis)Motor ...
GeneralVertical-Machining centre Stealth Design; Control: CELOS X with Siemens 840D SL Operate CharacteristicsTable surface1460 x 750 mmMaximum load (table centre)1500 KgTool Magazine with40 PositionsMovement X / Y / Z1150/700/550 mmRapid feed X / Y / Z42/42/42 m/minWeight approx.12900 KgSpindle speed 20 - 12,000 rpm SK50, 288NmSpindle speed 20 - 12.000 rpm SK50 for tool taper according to DIN ISO 7388-1-A50 with power 44/32 kW // 59.0/42.9 hp with torque 288/187 Nm (40/100% DC) (differently from standard)Tool magazine 40 pocketsTool magazine 40 pockets SK50 chain magazine with pockets and double gripper, incl. manually direct loading into the tool magazineCoolant-air blast change-overCoolant - Air-blast changeover external switchable via M-FunctionAir blast through spindle centreAir blast through spindle centre activated by M function, maintained air with low oil rateInternal coolant su ...
GeneralVertical machining center in C-frame-design New DMG MORI Design Direct Measuring system X,Y,Z; Control: CELOS with Heidenhain TNC 640 Technical DataFeed rate longitudinal/transverse/vertical1-42000/1-42000/1-42000 mm/minRapid traverse longitudinal/transverse/vertical42/42/42 m/minWorking area 1Longitudinal650 mmCross520 mmVertical475 mmTool changerType of magazineChain Type of gripperDouble gripper Number of tools30 TableTable surface 960 x 570 mmMaximum load (table centre) 800 KgSlot width 14 mmNumber of Slots 5Distance between T-Slots 100 mmSpindle speed 15,000 rpm, 200 NmMotor spindle speedMASTER® SK 40 Spindle speed 20 - 15,000 min-1 Output 46 kW / 30 kW (62 hp / 40 hp) Torque 200 Nm / 130 Nm (148 ft lbs / 96 ft lbs) (40 / 100 % duty cycle) BIG-PLUS® tools possibleTool magazine 30 pockets SK40Tool magazine 30 pockets SK40 Chain magazine with pockets and with double gripper, ...
GeneralVertical Machining centre; Control: DMG MORI ERGOline X Multi-Touch control CharacteristicsTable surface900 x 600 mmTool Magazine with60 PositionsMovement X / Y / Z600/600/510 mmRapid feed X / Y / Z42/42/42 m/minSpindle speed range 20 to 12.000 rpmSpindle speed range 20 to 12.000 rpm AC main drive:13/9 kW (40/100% DC) Tool taper SK40 DIN 69871 Tool clamping according to DIN69872Direct measuring system X,Y,ZDirect Measuring System X, Y, Z inclusive Air Purge for Measuring SystemProduction Package 20 bar with chip conveyorProduction Package 20 bar with chip conveyor Option includes: - Internal coolant supply 20 bar - Chip conveyor (scraper type) with tank capacity: 200 l(left) - Bed flushing via M-Function - Coolant spray gun for swarf removal - External electronic handwheAir coolant internal (through spindle centre)Air Coolant Internal (through spindle centre) switchable via M-Func ...
