used Disc dividing saws for sale

Key data: 1 kW, 5000 kg, 11 kW

Working Dimensions 4200 x 4200 mm Cuttin Depth 75mm - Projection 90mm (18mm4PCS) 11kW I 14.75 HP Main Saw Motor 1.5kW I 2 HP Scoring Saw Motor Pneumatic Controlled Saw Carriage Up/Down Movement 80m/min Saw Carriage Cutting Speed Max. Cutting Blade Diameter 380mm Max. Scoring Blade Diameter 200mm 8 Pcs Holder Quantity Air Floating Table (4 Pcs) - 1 Fixed, 3 Movable

Anthon panel sizing saw, year of construction 2000/01 Type Porta composed of: Roller conveyor, Longitudinal saw, Chipper left/right, Angle transfer, Parcel pusher, Drawer arms, Pusher tracks, Transfer table, Cross saws, Chipper left, Angle transfer, Roller conveyor Grenzebach Plattenstapeanlage Year of construction 1990/91 composed of: Roller conveyor, scissor lift, storage device, stacking device, chain conveyor on lifting platform, scissor lift, pallet insertion device, tongs transfer swivel device, chain conveyor, weighing device Waste disposal plant Holtec Vibrating Conveyor DS 500 - 11m Gössling Flat Belt Conveyors with Carriers Diemer ASC 50-25 LP-S, belt conveyor DB-A, secondary shredder DNZ 100-100

Description: Panel saw with mobile table for cutting wood panels Serial no. 422.12.044.05 Technical specifications spindle diameter: 30mm rotation speed: 4.800 Rpm saw blade diameter (min/max): 250 / 315 mm. maximum height cutting: 102 mm. saw angle adjustment 0 - 45° total installed power 5,5 KW, 10,1 A, 400 V, 3PH/ 50Hz serial number: 422.12.044.05, Approx. Onsite Dimension. (l x w x h): 3,400 x 1,900 x 1,100 mm, weight approx.: 700 kg

SPECIFICATIONS: Cutting length: max. 4500 mm Cutting width: max. 4300 mm Saw blade: Ø 400 mm (protrusion 115 mm) Scoring: Ø 200 mm Electronically adjustable clamps and sliders 7+4 Flexcut device (left) for optimized cutting 04 Front tables with compressed air curtain system (2500 x 600 mm) including fan (0.75 Kw)

Cutting length max mm: 6000 Saw blade overstand mm: 115 Diameter saw blade mm: 430 Vorritzer: Yes Machine Control: Microprocessor - G Drive 2 D Total connection kW: 18 Weight Kg: 19,000 Loading and unloading system "Essedue" - Manipulators

SPECIFICATIONS: Equipment: Motorized loading roller conveyor Motorized roller stroke Slide arm with 7 pneumatic grippers Panel saw with a cutting width of 4500 mm Door pad on felt-covered platforms Sliding arm with 8 pneumatic grippers, connected by a continuous rod Lateral alignment device Panel saw width 2500 mm Vibrating chute for picking up and removing waste Shredder WEIMA model WLH300, built in 2007, motor 18.5 kW Unloading gantry 3ERRE AUTOMAZIONI model 1131, built in 2007 - length approx. 13000 mm Pneumatically operated mechanical gripping unit Motorized roller conveyor width 1700 mm length 4000 mm Side stop with idle rollers, side aligner, retractable front stop Motorized roller conveyor, width 1600 mm, length 5000 mm, concealed front stop 2 motorized floor roller conveyors, width 1600 mm, length 5000 mm 4 floor roller conveyors, width 900 mm, length 5000 mm ...

Description: • Horizontal panel saw • Serial number 461.2.SP • Total installed power approx. 14 KW • Cutting width approx. 4400 mm • Saw blade projection 65 mm • 6 Grippers • Main saw blade: max. diameter 320 mm and motor 5.50 KW • Scoring saw blade: max. diameter 200 mm and motor 1.10 KW • Saw carriage feed speed: 5 - 40 m/min • Saw carriage return speed: 45 m/min • Pushers feed speed: 0.80 - 14 m/min • Pushers return speed: 15 m/min • 4 front air tables with dimensions 1250 x 500 mm • G57 PC controlApprox. Onsite Dimension. (l x w x h): 6,600 x 6,800 x 1,700 mm, weight approx.: 3,300 kg

Description: Vertical panel saw Brand: Harwi Type: Orca 1850 Year of construction: 2008 Machine number: 5913 AY Max. Cutting height: 1,850 mm Max. Cutting length: 4,300 mm Max. Cutting depth: 60 mm Saw blade diameter: 250 mm Saw blades: 30 mm Motor: 3.0 kW, 400 V, 4.3 Amp Saw speed: 2,800 rpm Support: Standard blocks Cutting wall: Closed wall Strip overlay: Yes Back wall: Closed, sagging at horizontal cuts Measuring system: vertical and horizontal analog Turning saw head: manual Saw movement: manual Machine frame: independent A-frame Extraction: direct hood extraction Saw carriage attachment: manual Extraction connections: diameter 100 mm Approx. Onsite Dimension. (l x w x h): 5,300 x 1,400 x 2,700 mm, weight approx.: 600 kg

Description: HOLZ-HER CUT 85  , Technical Specifications Model: HOLZ-HER CUT 85 Year of Manufacture: 2005 Voltage: 3400 V Serial Number: 25105515 Capacity: 4500x4500x85 mm Saw Unit Maximum Cutting Height: 85 mm Maximum Saw Blade Overhang: 97 mm Motor Power: 11 kW Saw Blade Diameter: 85 mm Rotation: 4100 min-1 Scoring Unit Motor Power: 2.2 kW Saw Blade Diameter: 180 mm Rotation: 6500 min-1 Saw Carriage Feed Speed: 0-100 m/min Return Speed: 100 m/min Width Stop Feed Speed: 80 m/min Feed Speed in EU: 25 m/min Return Speed: 80 m/min Clamping Units Cutting Length 3250 mm: 6 pcs Cutting Length 4250 mm: 7 pcs Cutting Length 5250 mm: 8 pcs Compressed Air Connection Power: 6 bar Air Consumption NL/Cutting Cycle: 32 serial number: 25,105,515, Approx. Onsite Dimension. (l x w x h): 7,650 x 5,250 x 1,980 mm, weight approx.: 4,700 kg

Description: Sheet thickness: max. 80 mmmain motor: 3 kW, cutting length: 5,300 mm, cutting height: 2,200 mm, main saw blade: 200 mm, saw carriage speed forward: 12 / 24 m/min, total power approx: 4 kW, Approx. Onsite Dimension. (l x w x h): 6,000 x 1,000 x 2,900 mm, weight approx.: 1,500 kg

saw blade protection: bei sägeblattdurchmesser 450 mm bis zu 125 mm, Approx. Onsite Dimension. (l x w x h): 1,400 x 800 x 700 mm, weight approx.: 150 kg

Description: Technical data Saw blade projection for saw blade diameter 450 mm to 125 mm Collet opening 130 mm Main saw motors 18 kW each Scoring saw motors 2.2 kW each W.02 number : 9105 QUICK CLAMPING DEVICE 'POWER-LOC' FOR HS Patented quick clamping system with high axial clamping force. Simple operation, working without without compressed air. W.04 Number : 9115 QUICK CLAMPING DEVICE 'POWER-LOC' FOR VS Patented quick clamping system with high axial clamping force. Simple operation, working without compressed air. Translated with www.DeepL.com/Translator (free version)cutting height: max 125 mm, main saw blade: 450 mm, main motor: 18 kW, scoring saw: 2,2 kW, Approx. Onsite Dimension. (l x w x h): 1,400 x 800 x 700 mm, weight approx.: 150 kg

Description: serial number: 0-240-05-1126 Technical details: total installed power: 24.50 kW cutting width: 4300 mm saw blade projection: 125 mm (with saw blade diameter 450mm) cutting height approx. 110 mm maximumum grippers opening: 130 mm main saw blade: max. diameter 450 mm and motor 13.5 kW scoring saw blade: motor 2.2 kW variable feed speed of the saw carriage: 5 - 100 m/min return speed of the saw carriage: 130 m/min maximumum pusher speed: 80 m/min front air tables: 4 pieces max. dimensions of the panels on the platform approx. 4300 x 2200 mm max. height of the panel stack on the platform approx. 680 mm max. load capacity of the lift table 7000 kg CADMATIC V3.0 control system CE marks main motor: 13.5 kW, serial number: 0-240-05-1126, cutting depth: 4,300 mm, cutting height: 110 mm, saw blade protection: 125 mm, main saw blade: 450 mm, control: CADMATIC V3.0, total power approx ...

Description: Very well maintained and powerful panel saw with:  , label printer integrated in pressure beam motorical stroke of scoring saw machine table completely equipped with air cushion dynamic package saw saw carriage and pressure beam option for thin panels with combi-profile rails , option for grooving panel thickness min/ max. 0,8/60 mm 4 pneumatical trimming fences at ,75 / 475 / 1075 / 2625 mm lifting element for full packages postfroming aggregate label printer Pica II data transfer to storage systems with CE certificate. For further technical details please see pdf -filesRead off operating hours: 2,698 h, main motor: 11 kW, serial number: 0-240-82-5052, cutting length: 4,300 mm, saw blade protection: 80 mm, collets: 6 pieces, main saw blade: 350x4.4x60 mm, scoring saw blade: 180x4.4-5.4x45 mm, saw carriage speed forward: 1-130 m/min, saw carriage speed reverse: ...

Description: Controller: CAD Matic V6.0 with 17' color display CAD Link interface for interfacing with external optimization programs Saw length: 3100 mm, with automatic pressure gauge for sheet alignment Main saw: ø350x4.4x75 mm, 7.5 kW, Powerlock system Saw height: 55 mm Sawing speed:5 to 60 m/min Front-zip saw: ø200x4.4x75 mm, 1.1 kW, Powerlock system Program slide: 5-60 m/min (CE limited to 25 m/min) Frames: 5 pieces Air cushion tables: 4 tables Ball jars floating on air- dimension: 650 x 2160 mm CE standard main motor: 7.5 kW, cutting length: 3,100 mm, cutting height: 55 mm, saw carriage speed forward: 5 - 60 m/min, air table: 4x, scoring saw: 1.1 kW, software: CAD Matic V6.0, Approx. Onsite Dimension. (l x w x h): 7,700 x 1,200 x 1,600 mm, weight approx.: 3,500 kg

Description: HOLZMA HPP81/42-CAD Optimat Panel Saw M-No.: 0-240-06-3081 , ,  , , ,  , , ,  , , ,  , , ,  , Year of manufacture: 1999 , ,  , , ,  , , ,  , , ,  , , ,  , Control with Cadmatic Holzma CAD Matic 3 - Ethernet connection , ,  , , ,  , , ,  , , ,  , , ,  , Windows embedded , ,  , ,19' TFT screen , ,  , , ,  , , ,  , , ,  , , ,  , Total connected load: 20 KW, 38A , ,  , , ,  , , ,  , , ,  , , ,  , Cutting length 4.250 mm , ,  , , ,  , , ,  , , ,  , , ,  , Cutting width/depth: 4.300 mm , ,  , ,& ...

main motor: 13.5 kW, serial number: 0-240-06-3129, cutting length: 4,200 mm, cutting depth: 4,200 mm, cutting height: 75 mm, collets: 7 pieces, main saw blade: 380 mm, scoring saw blade: 200 mm, air table: 3, scoring saw: 2,20 kW, control: CADMATIC, total power approx: 17,50 kW, Approx. Onsite Dimension. (l x w x h): 7,000 x 8,500 x 2,000 mm, weight approx.: 6,000 kg

Description: Dimensions and weight: 7.6 x 1.4 x 2.3 m 5800 kg 9.2 x 1.0 x 1.4 m 4000 kg 2.8 x 0.8 x 1.6 m 500 kg 2.1 x 0.9 x 2.4 m 300 kg . = 12 loading meters, truck can be fully covered and with continuous loading space !  , 2. truck: Dimensions and weight: 6.6 x 2.85 x 2.2 m 3500 kg = 7 loading meters, over width 2.85 m, truck can be fully unloaded and full length Load space !serial number: 0-240-10-1280, cutting length: 4,300 mm, cutting depth: 2,200 mm, saw blade protection: 125 mm, program fence speed reverse: 80 m/min, software: CADmatic 4.0, Approx. Onsite Dimension. (l x w x h): 20,500 x 2,850 x 2,300 mm, weight approx.: 14.100 kg

Approx. Onsite Dimension. (l x w x h): 1,200 x 800 x 800 mm, weight approx.: 70 kg

Description: Homag Power Touch Control system large full HD multi-touch monitor in widescreen format, which is used to control machine functions by direct touch contact. Frequency-controlled main saw motor 13.5 kW Package for cutting thin boards  ,  ,  ,This option includes  ,  ,  ,Combi profile rails instead of top hat profile rails  ,  ,  ,4 additional roller rails  ,  ,  ,glide bars on the combi profile rails  ,  , Special run-off for laminate cuts Labeling package  , Labelling software  , Labelling with telegraphic  , Labelling printer Pica II 108 (Thermo-/Thermotransfer pressure) Increased blower output for the air cushion tables due to integrated frequency control Premium Package: Pressure beam height control Regulates the pressure beam´s opening according to the material´s thickness. Conduces minimisatio ...

Description: • Horizontal panel saw • Serial number 0-341-03-0163 • Total installed power 14 KW • Cutting width 3200 mm • Cutting depth approx. 3200 mm • Cutting height approx. 50 mm • 5 Grippers • Main saw blade: max. diameter 300 mm and motor 5.50 KW, rotation speed 4550 rpm • Scoring saw blade: max. diameter 150 mm and motor 0.55 KW, rotation speed 5100 rpm • Saw carriage feed speed: 6 - 32 m/min • Saw carriage return speed: 32 m/min • Pushers feed speed: 18 m/min • Front air tables: one fixed of dimensions 1800 x 600 mm and 2 movable of dimensions 1800 x 600 mm • Control CNI VIC 800Approx. Onsite Dimension. (l x w x h): 5,250 x 6,200 x 2,070 mm, weight approx.: 4,000 kg

Specifications Cutting length 3200 mm Cutting width (program slide travel) 2200 mm 3 air cushion tables 1835 x 645 mm Saw blade protrusion 62 mm Saw carriage feed: forward 6-32 m/min backwards constant 32 m/min Program slider speed: forward 12 m/min backwards 12 m/min Angle rearing device on one side (semi-automatic) min. pressure width 100 mm pressure width 1300 mm Main saw motor 5.5 kW Vorritzsägemotor 0,55 kW Stops swivel 5 pieces Coated front tables 1750 x 400 mm 1 piece (manual measuring stop/extendable) Coated front tables 1000 x 400 mm 2 pieces (fixed) Working height 900 mm Main saw blade 300 x 4.4 x 75 mm Scribbling saw blade 150 x 4.4 - 5.6 x 45 mm Compressed air 6 bar Operating voltage 380 V / 50 Hz Minimum suction speed at the suction nozzle approx. 25 m/sec Suction connection chip channel 1 piece 180 mm Suction connection pressure beam 1 piece 120  ...

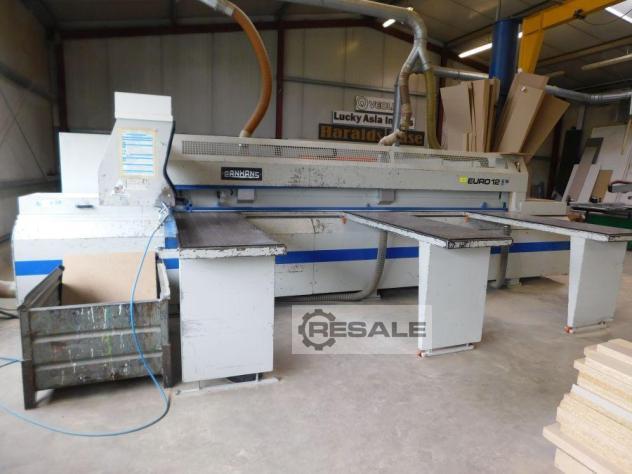

PANHANS ECOPAN Working area 3200x3200 Saw with undercutter, 3 tables with air cushion Full technical documentation Cutting optimization program Opal First owner, machine in continuous operation very little used,

Key data: 1 kW, 3000 kg, 5 kW

- Cutting length 3200 mm - Cutting width 2850 mm - Cutting height max. 60 mm - Scoring unit - Angle ruler up to 1600 mm - Collets 5 pieces rigid - Stop jaws 2 pieces rigid - Trimming stops 3 pieces The machine is very well maintained and is sold from a company liquidation! Dismantling € 350,00 net! Available from January 2024!

SCHEER saw fully functional, the entire control cabinet is invested, practically new, reliable, can be cut 5 panels at a time

Description: Serial Number 211.004 Retrofited  ,on 2014 Working ,dimensions: 4300x4200 mm Max. cutting hight:  ,150 mm Max. saw  ,Diameter: 450 mm , Main saw power: 20 kw approx Floating table: ,4200x2200 mm Inlet rotable table 90º longitudinal and cross-sectional Total power:  ,31kw , The saws on pictures are included , serial number: 211.004, cutting length: 4,300 mm, air table: yes, Approx. Onsite Dimension. (l x w x h): 13,000 x 2,500 x 2,230 mm, weight approx.: 17,700 kg

Specifications: -cutting length 4500 mm -cutting depth 4300 mm -saw height above the table 105 mm -Max. trolley speed 30 m/min -pusher with 6 pneumatic clamps -3 x 1500 x 600 front shelves coated with bakelite -main saw fi 380 mm -saw motor 7.5 kW – weight 4400 kg -scoring motor 1.5 kW -current consumption 55 A -suction 2 x 120.1 x 150 mm -dimensions 7000 x 8200 x 1700 mm

Description: Max. panel width 4500 mm Max. panel length 3200 mm Main saw blade projection 90 mm No of Grippers 8 Max. saw blade projection 90 mm Front support tables yes no. tables 4 Grippers on pusher fence yes No. grippers 8 Max. forward feed speed 12 m/min Saw Carriage 1 SAW CARRIAGE 1 Saw Unit : yes motor power : 7.5 KW Scoring unit : yes motor power : 1.5 KW Max. forward feed speed : 27 m/min Safety standard CE mark yes Total installed power 22 KWApprox. Onsite Dimension. (l x w x h): 1 x 1 x 1 mm, weight approx.: 1 kg

Horizontal panel saw SCM model SIGMA 90 General characteristics: -useful cutting length 4500mm -useful cutting depth 4300mm -blade protrusion 90mm -fluted pressor -pusher with 9 pneumatic grippers -side approach -front planes in bakelite and air veil: 1 fixed 2500x600mm 2 x 1500x600mm cabinets Blade group: -Independent blade group and engraver -main blade D=350mm -engraver D=160mm Programming: -control MASTER 124/S Machine according to CE regulations

Power main motor: 7 kW Cutting length: 3,300 mm Cutting depth: 3,200 mm Cutting height: 60 mm Saw blade protrusion: 67 mm Collets: 5 pieces Main saw blade: 320 mm Scoring saw blade: 160 mm Saw carriage feed flow: 0-80 m/min Saw carriage feed return: 0-80 m/min Program slide feed flow: 0-25 m/min Program slide feed return: 0-50 m/min Air cushion tables: 3 Scoring: 1.3 kW Control: PC/PLC with M258 unit Software: Wincut 12 Lift table dimensions: 3,300 x 1,850 mm Lifting table with motorized loading rollers for double-sided loading Cutting optimization program "Cutty" Quick clamping system of the saw blades with a pneumatic blocking device Laser straightening light at kerf Power supply: 400 V, 3 Ph, PE Weight approx. 4,700 kg

Description: Saw blade diameter: 30 mm Motor: 4,4 / 5,5 kW Speed: 4750 r/min Roller support: yes Strip overlay: yes Measuring system: analogue Saw head adjustment: manual Sawing movement: manual Machine frame: free-standing with uprights a/d/back main motor: 5.5 kW, cutting length: 5,300 mm, cutting depth: 80 mm, cutting height: 2,100 mm, main saw blade: 300 mm, Approx. Onsite Dimension. (l x w x h): 6,500 x 2,500 x 1,300 mm, weight approx.: 750 kg

It functions, it works properly, it keeps the dimension.
