deep hole boring used for sale

Code: 0253 Brand: LARI E LARI - ITALY Model: FR 20 - TA - CE Standard Working center for milling and boring on wood or plastic and composite materials, wooden doors, window frames - CE Standard Technical data: X-axis working stroke 3250 mm Y-axis working stroke with 90° cutter 130 mm Z-axis working stroke with 0° cutter 290 mm Z-axis working stroke with 90° cutter 175 mm X-axis working speed mt/min 40 Y-axis working speed mt/min 30 Z-axis working speed mt/min 30 Hinge boring inserting unit: Male/Female Speed control inverter Probe Tool holder collet ER 25 Power of anuba head drilling electric spindle 2,2 Kw Anuba head inclination -10 +90° Electric spindle for milling: 2,7 Hp at 18,000 rpm Collet chuck ER 32 Variable speed via inverter Inclination from 0 to 90° for both vertical and horizontal machining Machine computer: numerical control - Win ...

spindle diameter: 160 mm x-travel: 15000 mm y-travel: 4000 mm total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m Stocknumber 1210060 Type of machine Floortype Boring machine Make SKODA Type W160HC Build in 1990 Spindle diameter 160 mm X-stroke (mm) 15.000 Y-stroke (mm) 4.000 Z-stroke (mm) 1.600 W-stroke 1.250 Tool Taper Iso 50 Additional information With 3 floorplates 1880x5615 mm en 3x 1880x6400 mm 3 millingheads and 1 support 1 rotarytable Skoda S-35 C, 35 ton 2800 x 3150 mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

High precision drilling and milling machine Aciera 22 VA Good condition from school operations Year of construction approx. 1990 Table 600 x 320 mm Speed 40 - 3600 rpm Speed setting rpm 4 automatic feeds 40-280 80-560 275-1800 550-3600 Spindle diameter 65 mm Drilling spindle stroke 120 mm Spindle holder: Aciera quick-change system Automatic thread cutting Drilling capacity in solid material 25mm Max drilling capacity up to 30mm Height adjustment via hand crank Motor: 1.1 KW Lamp Some quick-change shots Dimension WxDxH 90 x 130 x 185 cm Weight approx. 800 kg Technical information subject to reservation

I sell a Top Dubel drill multi-spindle drill Detel M-13, built in 2007. 3-spindle See good condition. Available the same.

Multi-stand drill Prior sale reserved - errors possible Internal Reference Number: D-1143-1

Quill for jig boring mill, fine boring mill, plate boring mill, table boring mill, boring mill, milling machine, -Stroke: 60 mm -in: a wooden box -Dimensions: 390/340/H170 mm -Weight: 15.8 kg

I sell a drill with cutting units COMEC FM0V8 2000, built in 1997. Working width max. 2000mm Configuration: 0 motors from below 1+1 motors from sides / angular adjustable 2 motors from behind / head angular adjustable 3 motors from above / head angular adjustable 4 pieces of material prints from above 2 cut saws from above / head angular adjustable Atypical 5-spindle drill heads Including 3 x 15mm / 2 x 25mm. Dubel heads in the price. Very good addition. Available the same.

X=3500mm Y=2000mm Z=1250mm W=800mm H=360° spindle 130 mm, ISO 50, max. 1600 rpm table 1600 x 1800 mm with a load of 12000 kg with Siemens electric and CNC Heidenhain TNC 415B Oil cooled: Schimpke. Dismantled. The machine has been used very little = in very good technical condition.

Spindle for plate boring mill, table boring mill, boring mill, milling machine, quill, boring head, Replacement spindle -SK50 holder for: screwing onto the faceplate -Adjustment: SK50 -Dimensions: 220/220/H160 mm -Weight: 20 kg

Boring head, spindle head, drill head, plunge drill head, plunge head, spindle drill head, boring head, spindle tool -spindle tool -Recording: SK50 -suitable for tool changers -spindle dimension -Dimensions: 290/120/H320 mm -Weight: 12 kg

bore capacity in steel (diameter): 32 mm x-travel: 510 mm y-travel: 240 mm table surface area: 750 x 200 mm cutter diameter max.: 30 mm inserted tooth milling cutter dia.: 100 mm spindle taper: MK 3 quill stroke: 130 mm spindle turning speed range: 75 - 3200 U/min no. of turning speeds: 12 x links, 12 x rechts throat: 278 mm max. distance between table and spindle-nose: 600 mm voltage: 400 V / 50 Hz total power requirement: 1,1 kW weight of the machine ca.: 360 Kg dimensions of the machine ca.: 0,9 x 0,75 x 2,0 m • unused machine for demonstration purposes, • Machine is equipped with an adjustable depth stop, • Vertical adjustment of the milling head via dovetail guide, • Boring head adjustable to left and right til 360°, • with sturdy bottom-table. The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

bore diameter: 50 mm throat: 3000 mm workpiece height: max. 200 mm total power requirement: 75 kW weight of the machine ca.: 27 t dimensions of the machine ca.: m Brand: CMA Type: GRD50 CNZ 13030 Year of make: 2010 Capacity: 50 mm X: 3.000 mm Y: 13.000 mm Z: 400 mm Spindle taper: N: 3.000 Power : 75 kW Speed: 3.000 RPM Machine weight: 27.000 kg Tap capacity: M30 Drilling depth: 150-200 mm Bed: 13,000 x 3,000 mm Max. workpiece weight: 1,500 kg /m2 Tool changer: 12 pieces External spindle cooling Chip conveyor Can be seen working at a external location The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Boring head, spindle head, drill head, plunge drill head, plunge head, spindle drill head, boring head, spindle tool -spindle tool -Recording: SK50 -suitable for tool changers -spindle dimension -Dimensions: 240/120/H320 mm -Weight: 10 kg

M. No.: 85039 // Model: 371 Equipment / Additional information: Ø max. 15 mm Distance between drills: 60-120 mm

1 set of boring bars for main bearing boring mill, carriage via cone, sleeve. Dimensions: DxL 20x940 mm 27x1100 mm 31.5x1400 mm 39.7x1700 mm Sale preferably as a set Price on request

spindle diameter: 135 mm x-travel: 1000 mm distance between columns: 1000 mm Control: total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Boring mill turntable, used Boring table, used Typ/ type: TI 2 Manufacturer/ make : UNION Year of construction: 1984 Table size: 1800 x 2000 mm ; > 360° Fahrweg/ way : 1250 mm Feed speed: 0.5 to 1600 mm/min Tischbelastung/ table load: 15000 kp Gesamtlänge/ total length: 3500 mm Gesamtbreite/ total width: 2250 mm Weight/ weight: 7 t Feed motor: 6 kW

Manafacture: Skoda Type: E25OB23941 Year: 1989 Part weight: up to 25t Dimensions: 2,000 x 2,000 mm electr. adjustable Weight: 10t

Boring head, spindle head, drilling head, grooving drilling head, grooving head, spindle drilling head, boring head, spindle tool, facing and boring head -Boring head: MK5 mount -Spindle size: Ø 120-140 mm -Dimensions: Ø 124 x 253 mm -Weight: 8.4 kg

Boring head, spindle head, drilling head, grooving drilling head, grooving head, spindle drilling head, boring head, spindle tool, facing and boring head -Boring head: MK4 mount -Spindle size: Ø -93 mm -Dimensions: 93/64/H200 mm -Weight: 2.2 kg

horizontal slotting machine / high-speed planer Manafacture: Klopp Model: 550 Year of construction: 1982 Planer length: 550mm Weight: approx. 1250 kg

Boring head, spindle head, drilling head, grooving drilling head, grooving head, spindle drilling head, boring head, spindle tool, facing and boring head -Boring head: SK40 holder -Tool holder: 16 x 16 mm see photos -Dimensions total: Ø 63 x 250 mm -Weight: 2.8 kg

Boring head, spindle head, drilling head, grooving drilling head, grooving head, spindle drilling head, boring head, spindle tool, cutter, circle cutter -Manufacturer: Marchner, die cutter, boring head, circle cutter -Recording: MK3 -Diameter range: 33 - 85 mm -Transport dimensions: 340/165/H100 mm -Weight: 5.3 kg

Jig Boring Machine WMW BKoE 450 x 800 Travel X: 560 mm Travel Y: 400 mm Travel Z: 470 mm Spindle: Ø 90 mm Cone: CM4 Spindle exit: 150 mm Spindle speed: from 50 to 1600 RPM Table size: 450 x 800 mm Maxi loading capacity on table: 400 kg Scale3 axes HEIDENHAIN Automatic descent Voltage: 380 V Width with ends table: 2900 mm / without ends table: 1500 mm Depth:2500 mm Total height: 2600 mm Weight: 4,5 T

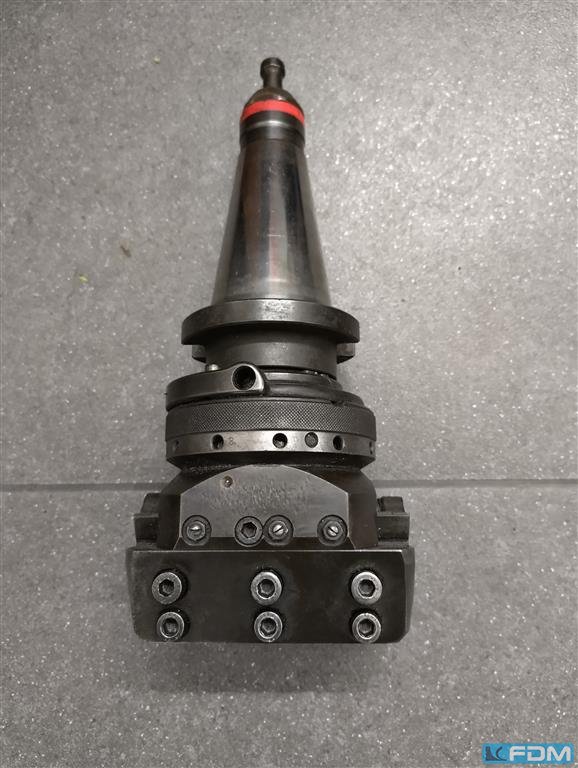

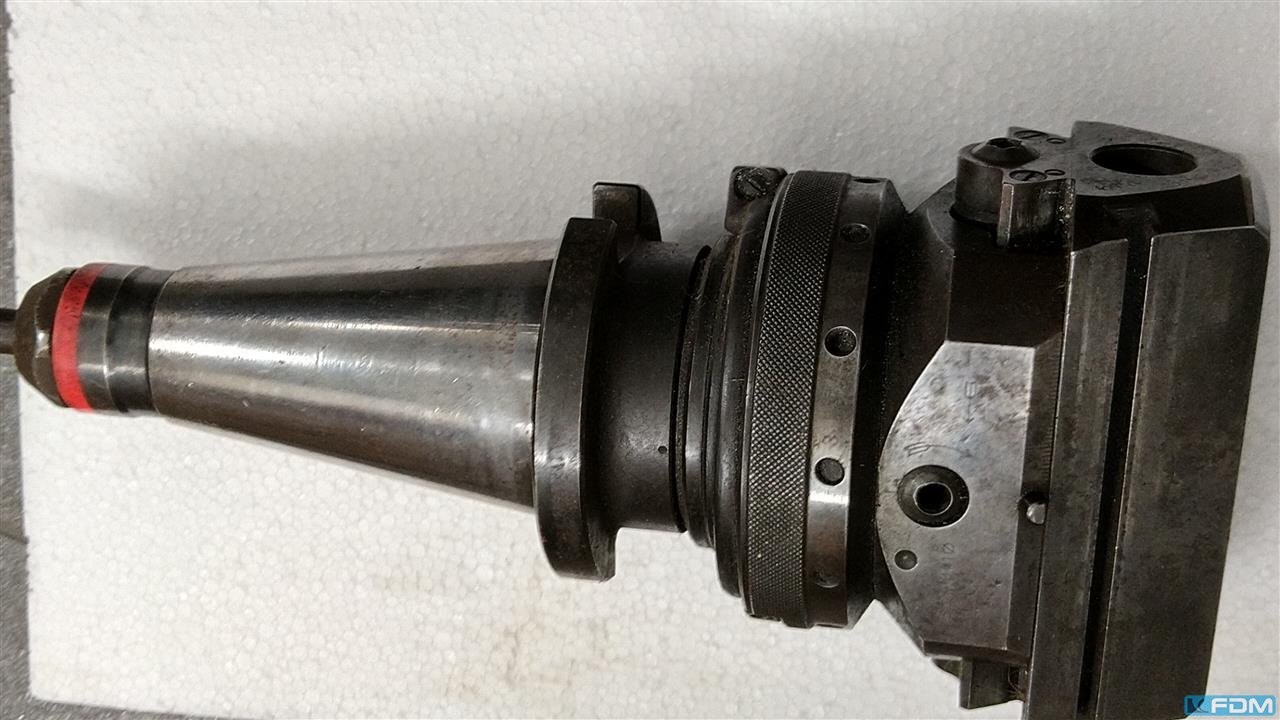

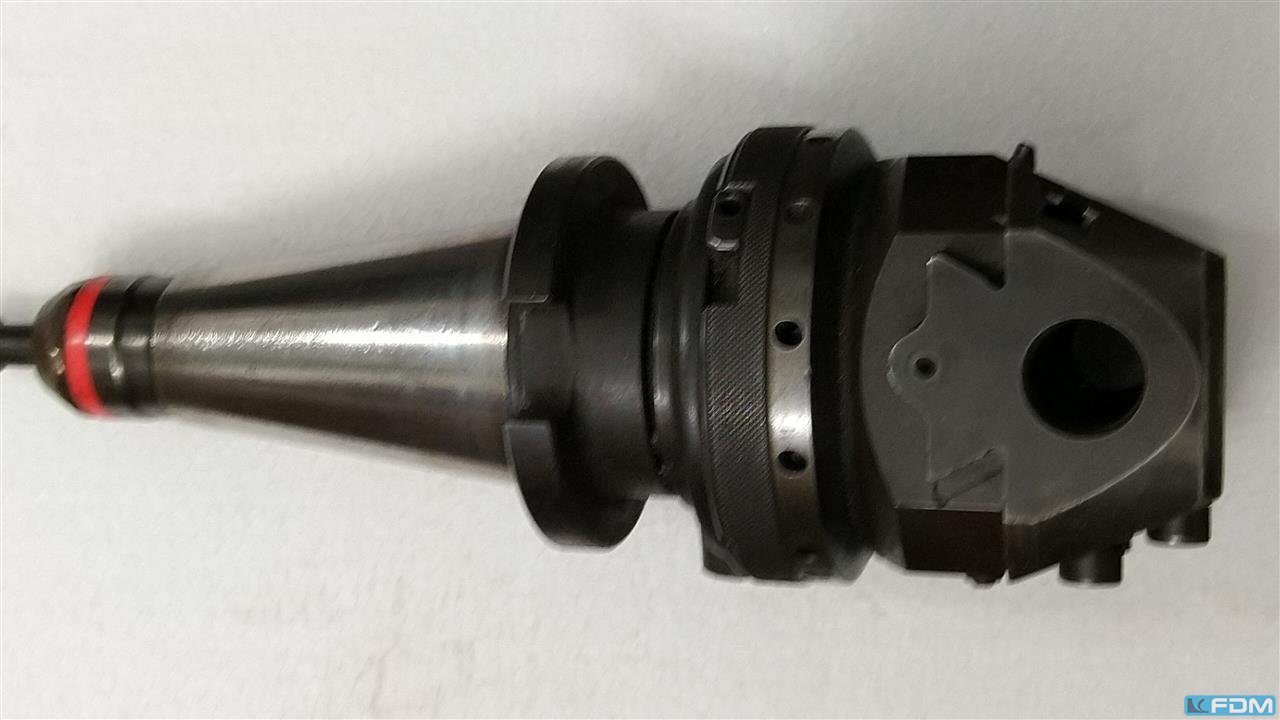

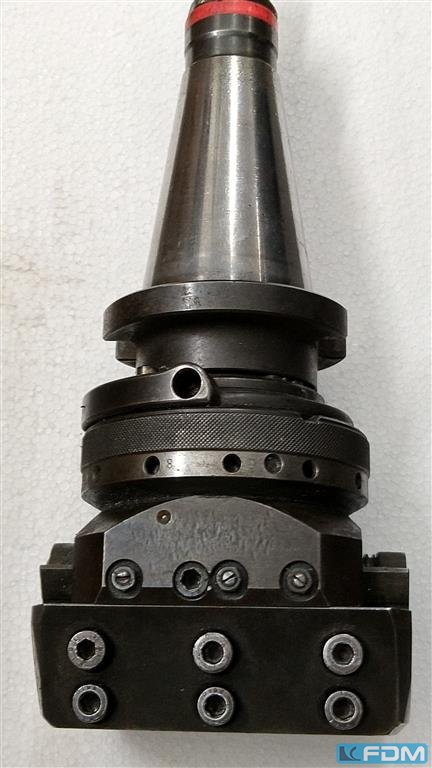

Boring head, spindle head, drill head, plunge drill head, plunge head, spindle drill head, boring head, spindle tool -Recording: SK50 -Adjustment range: 20 mm -Tool shaft: Ø 30 mm -Weight: 10 kg

Specifications: X-axis 2,750 mm Y-axis 2,500 mm Z-axis 2,320 mm W-axis 700 mm Spindle power 50 kW Spindle diameter 130 mm Spindle speed 1.6 – 1,600 rpm. Tool holder SK 50 Control: CNC HEIDENHAIN TNC426 Table dimensions 2,000 x 1,800 mm max. table load 8 tons B-axis 360 A° Weight approx. 37,000 kg

Sr. No.: 70218 Equipment / Additional information: Various tools

Boring head, spindle head, drill head, plunge drill head, plunge head, spindle drill head, boring head, spindle tool -Quantity: 2x spindle tools -Recording: SK50 -Spindle dimensions: 145-230/225-310 mm Price: complete -Weight: 14 kg/piece

DEFUM WHB 150 horizontal boring machine was built in 1984 in Poland by the Dąbrowska Fabryka Obrabiarek DEFUM. The machine is designed for precision machining of heavy workpieces of complex geometry, which are used in a wide range of industries. Thanks to its design and wide machining capabilities, it is ideal for, among others, the machinery, automotive, shipbuilding industries and wherever high accuracy is required. The DEFUM WHB 150 enables a number of complex machining operations to be performed, such as boring, hole drilling and milling. Machining is performed by a spindle with a diameter of 150 mm that ensures maximum accuracy even under heavy loads. The workhead moves in four axes with feeds of 7000 mm (X axis), 3000 mm (Y axis), 1200 (Z axis) and 500 mm (W axis). The installed SONY digital readout, distinguished by its high measurement accuracy, continuously monitors the posi ...

Technical data of used Schiess Froriep Boring Machine: CNC: Siemens 840 D Maximum transversal travel X axis: 13.770 mm Maximum vertical travel Y axis: 5.000 mm Z axis: 1.780 mm W axis: 950 mm V axis rotating support plane: 2.000 mm Rotating table dimensions: 5.000 x 3.500 mm Fixed table dimensions: 7.500 x 4.300 mm Maximum permissible load on the table: 120 ton Spindle power: 100 kW Spindle revolutions per minute: 710 rpm

Jig boring mill, fine boring mill, plate boring mill, table boring mill, boring mill, milling machine, -Table dimensions: 700 x 405 mm -Travel paths: Z 330 mm/Y 410 mm/X 630 mm -Quick stroke: 155 mm -Recording: MK4 -Speeds: 31 - 1500 rpm -Dimensions: 1570/1800/H2600 mm -Weight: 2600 kg

Ref. -No.: 10022 Manufacturer: UNION Year of construction: 2001 Type of control: CNC Control: Heidenhain-Steuerung TNC 310 Storage location: Halberstadt Country of origin: Deutschland X-Travel: 2000 mm Y-Travel: 1600 mm Z-Travel: 2000 mm Machine length: 6950 mm Machine width: 4685 mm Machine Height: 3885 mm Table Height: 1050 mm Spindle Diameter: 110 mm Spindle Taper: ISO 50 Table Dimensions (Lengthxwidth): 1400 x 1600 mm Faceplate speed: 5,6 - 224 RPM Spindle Speed: 5,6 - 1120 RPM Metric thread feeds: 1,25 - 56 mm Drive Capacity - Spindle Motor: 40 kW Weight Of The Machine Ca.: 25 t Bore Depth: W 800 mm Further information: with facing slide 13 inch thread feeds 1 1/8 - 28 Gg / 1 “ YOM: 1990/ Retrofit: 2001

This 4-axis WOTAN Rapid 1 boring machine was manufactured in 1995 and retrofitted in 2017. It features an impressive X-axis travel of 1,500 mm, Y-axis travel of 1,000 mm, and Z-axis travel of 1,000 mm. The 360° rotary table allows for multi-sided machining, enhancing efficiency. If you are looking to get high-quality boring capabilities, consider the WOTAN Rapid 1 machine we have for sale. Contact us for further details.

Boring head, spindle head, drill head, plunge drill head, plunge head, spindle drill head, boring head, spindle tool -Spindle tools: 3 boring heads -Size: Ø 50/57/70 mm -Dimensions/Type: see photos -Submission/Price: complete -Transport dimensions: 180/60/H155 mm -Weight: 3.3 kg

Longitudinal direction ''X''. 4500 mm Transverse direction ''Y''. 3000 mm Spindle stroke ''Z'' 500 mm Astand Spindle Table 160 – 660 mm Table load 2000 kg/m²

Condition: Very good condition

p> Juaristi MDR 90 Table Type Horizontal Boring Machine Type: Table type horizontal boring and milling machine Manufacturer: Juaristi Model: MDR 90 Spindle diameter: 90 mm Spindle speed range: 16 - 1000 rpm Spindle drive power: 15 kW Spindle stroke / boring depth: 720 mm Spindle taper: Morse taper / to be confirmed Table and Travels Table size: approx. 1420 x 1050 mm Longitudinal table travel: approx. 1700 mm Cross travel: approx. 1700 mm Vertical head travel: approx. 1250 mm Rotary table: 360° Feeds and Rapid Traverse Feed range: 0.03 - 12 mm/rev Rapid traverse: approx. 1.8 m/min Electrical Data Voltage: 380 V Main motor: 15 kW Description The Juaristi MDR 90 is a heavy-duty table type horizontal boring and milling machine designed for boring, drilling, milling and machining of large mechanical components. The machine is equipped wit ...

Auction-ID: A1-48648-284

Key data: 130 mm, 4000 mm, 2500 mm

TOSHIBA BP-130R22 Year 2007 SPINDLE DIAMETER 5.12" (130mm) TAPER IN SPINDLE #50 VERTICAL TRAVEL, Y-AXIS 100" (2500mm) CROSS TRAVEL, X-AXIS 160" (4000mm) SPINDLE TRAVEL, Z-AXIS 28" COLUMN TRAVEL, W-AXIS 60" TABLE SIZE (BUILT IN B-AXIS) 86.6" X 70.8" TABLE LOAD CAPACITY 44,000 LBS TABLE INDEXING B-AXIS 0.001 DEGREE SPINDLE SPEEDS (3-RANGES) 5-2500 RPM EQUIPPED WITH: TOSNUC 888 CNC CONTROL 60-STATION AUTOMATIC TOOL CHANGER THROUGH SPINDLE COOLANT CHIP & SPLASH ENCLOSURE CHIP CONVEYOR 40/30 HP SPINDLE MOTOR NOTES: INSPECT IN PLANT UNDER POWER

Ref. -No.: 10354 Manufacturer: UNION Year of construction: 1998 Retrofit: 2000 Type of control: Digitale Steuerung 2D Control: HAIDENHAIN TNC 135 Storage location: Halberstadt Country of origin: Deutschland X-Travel: 1600 mm Y-Travel: 1250 mm Z-Travel: 1475 mm Spindle stroke: 710 mm Table Dimensions (Lengthxwidth): 1250x1400 mm Spindle Speed: 1600 RPM Drive Capacity - Spindle Motor: 30 kW Total Power Requirement: 35 kW

Auction-ID: A1-49190-13

Auction-ID: A1-49922-13

Ref. -No.: 10353 Manufacturer: UNION Year of construction: 1986 Type of control: Konventionell Storage location: Halberstadt Country of origin: Deutschland X-Travel: 1600 mm Y-Travel: 1000 mm Z-Travel: 1200 mm W-Axis: 710 mm Spindle Taper: SK 40 Table Load: 2500 kg Max. Size Of Workpiece Lxwxh: Höhe 1400 mm Spindle Speed: 1600 RPM Rapid Traverse: 3,15 m / min Total Power Requirement: 23 kW Weight Of The Machine Ca.: 10,3 t

A - T-slot size: approx. 21.5mm, B-35, thread M20 16 T-slot nuts 20 pcs threaded rods M20, L-120 – 400mm 3 x 2 pcs clamping claws 4 nuts long, 6 nuts, washers 2 blocks for adjustment with adjustment screw 4 blocks 80 x 60 x40mm ( underlay ) Price : Euro 400,- ex works ! B - T-slot size : approx. 17, thread M16 20 T-slot nuts approx. 17, B-28-32mm 6 clamping claws 4 pcs. Threaded rods M16 – L110 AMF 12 winding rods L to 260mm 16 Pcs Nuts, Weight approx. 24Kg Price: Euro 150,- C - Clamping Set Clamping Clamps, Groove Width approx. 21.5mm W-36mm, M16 2 pcs. 0 – 25 – 70 , M16 with clamping claws 2 pcs. 100 – 220 , M16 with clamping p. 2 pcs. 200 – 320, M16 WITH clamping pr. 2 threaded rods M20 L-310 2 threaded rods M20 L 150 1 adjustment block, 4 nuts, 6 nuts Weight: approx. 30kg , Price : 360,- ex works ! D- groove width : approx. 28mm , W-4 ...

diameter:500 mm tool adaptor:50 Weight:12 kg face movement each head:82 mm feeds:0,06 mm/U

Boring power:10 mm weight:590 kg connected load:2 kW dimensions::1500 x 1300 x 2300 mm

Key data: 8 mm, 1

Koch Drilling and Dowel Inserting Machine Sprint PTP 3/1800 Working field: 1800mm / 2x 900mm Equipment: 1x horizontal drilling station 0.9 kW, drill speed 7200 rpm Drilling depth 30 mm Drill bit holder 10 mm, total drill length 85 mm 2x glue dispensing and dowel insertion station 2x dowels 10x40mm, dowel protrusion 15-20mm Dowel spacing 96mm 2x vibrating conveyor dowel 10×40 mm 1x Glue pump 18:1 2x electronic glue monitoring ELC Workpiece support table 1700 mm 8x workpiece clamping cylinders Center fence for 4 working areas Central lubrication with hand pump for grease lubrication NC positioning of the height adjustment of the drilling and dowel station (z-axis) Axle with position control, travel speed 12m/min Koch Numeric positioning control with 1 NC axis (X) – with PC, operating system Windows XP Professional: English, 10.4" touch panel – VGA graphics + touchs ...

Heidenhain TNC 124 Year of construction 1996 Spindle holder ISO 40 Travel 310 x 170 x 340 mm 16 spindle speeds from 40 - 2500 rpm Infinitely variable feeds Weight approx. 700 kg

TOS W 75

BFT 90/3 SPINDEL 102 , ISO
