deep drilling used for sale

Already dosed Auction-ID: A1-50076-8

Complete and in working order Auction-ID: A3-46129-16483

Auction-ID: A1-50076-1010

Connection: 230V Year of Make: 2020 Serial Number: 1100010 Auction-ID: A1-50632-420

Auction-ID: A1-50076-1011

drove domented Auction-ID: A1-50076-9

Connection: 230V Year of Make: 2020 Serial Number: 1600106 Auction-ID: A1-50632-402

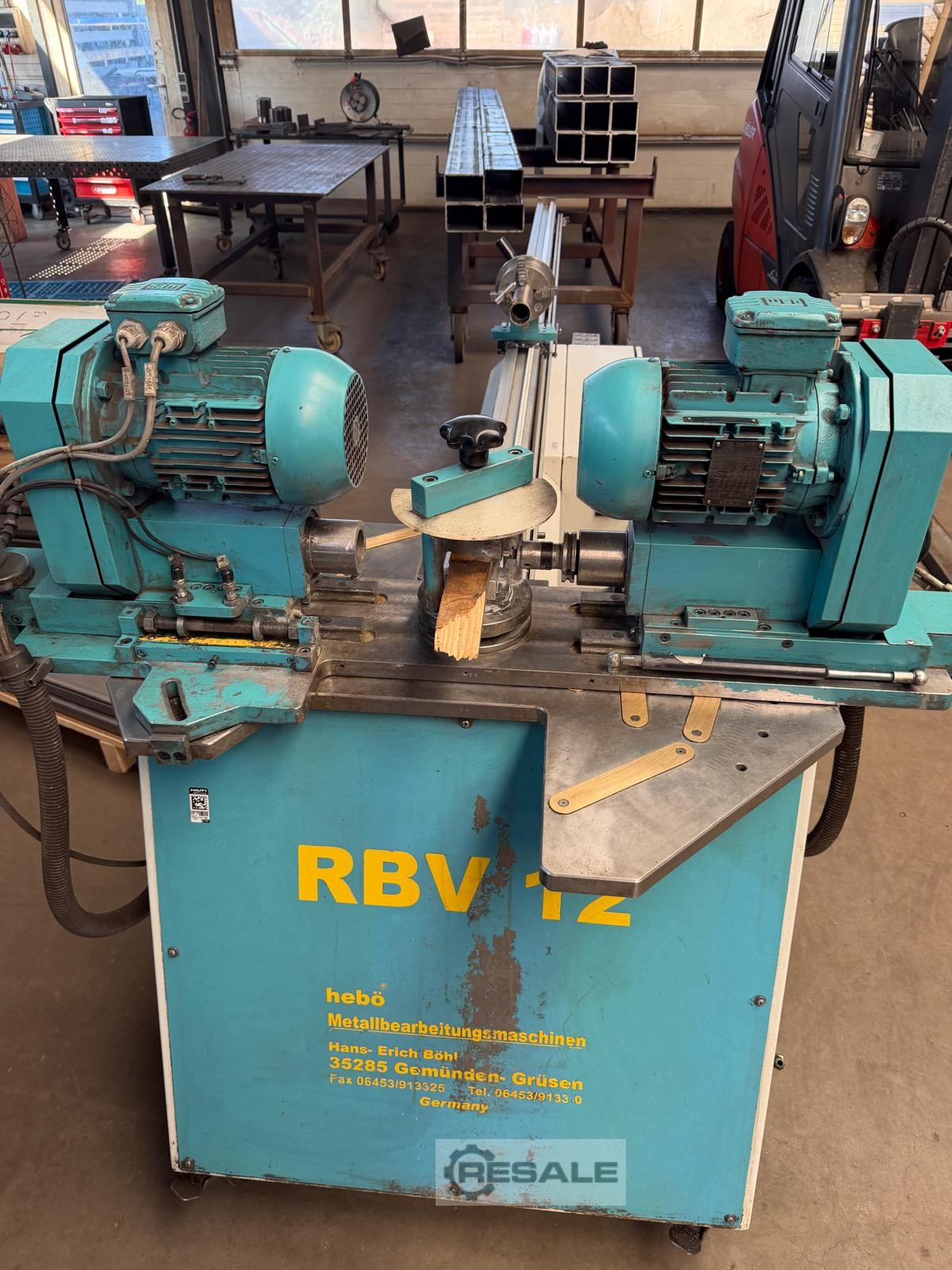

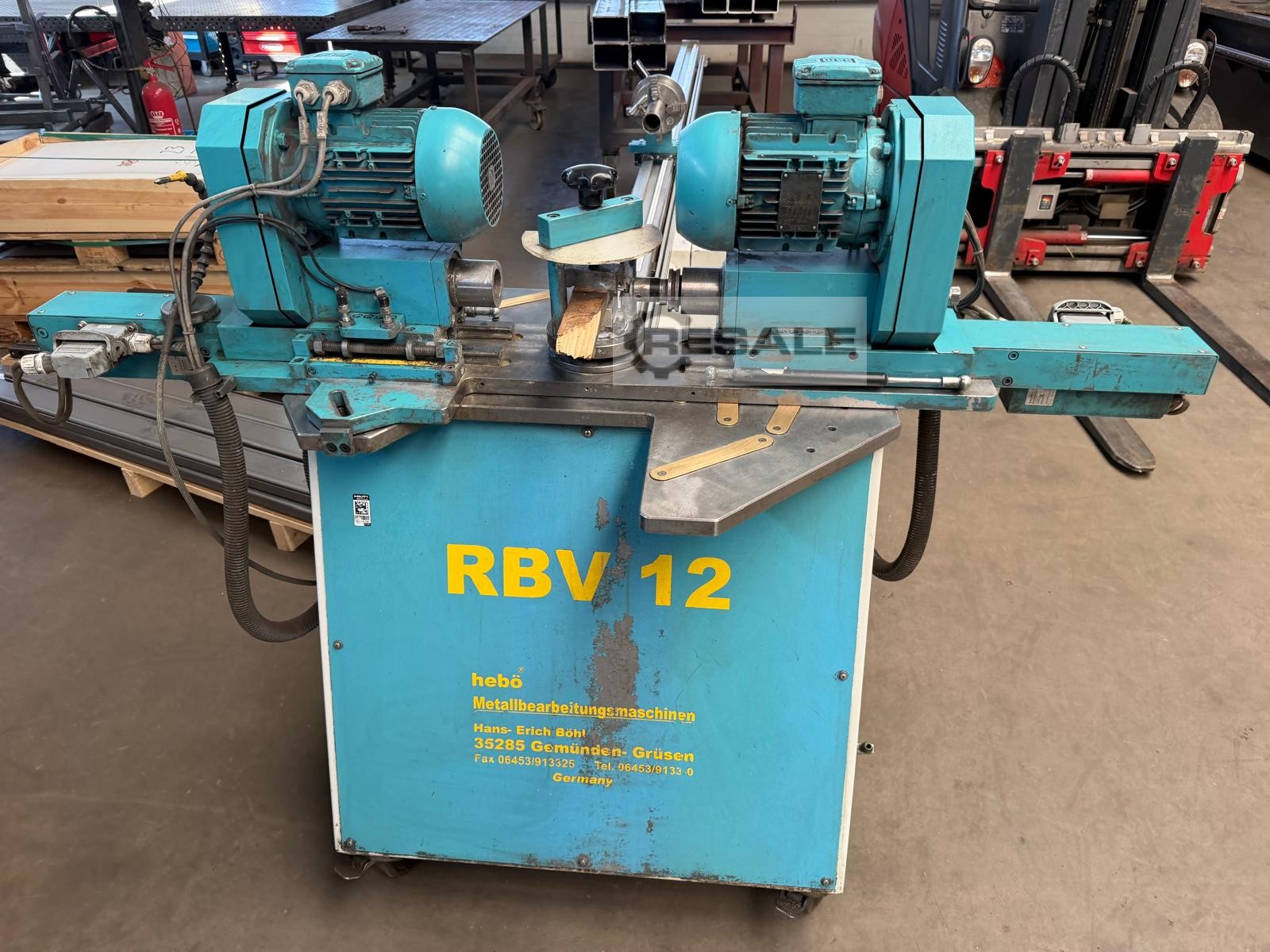

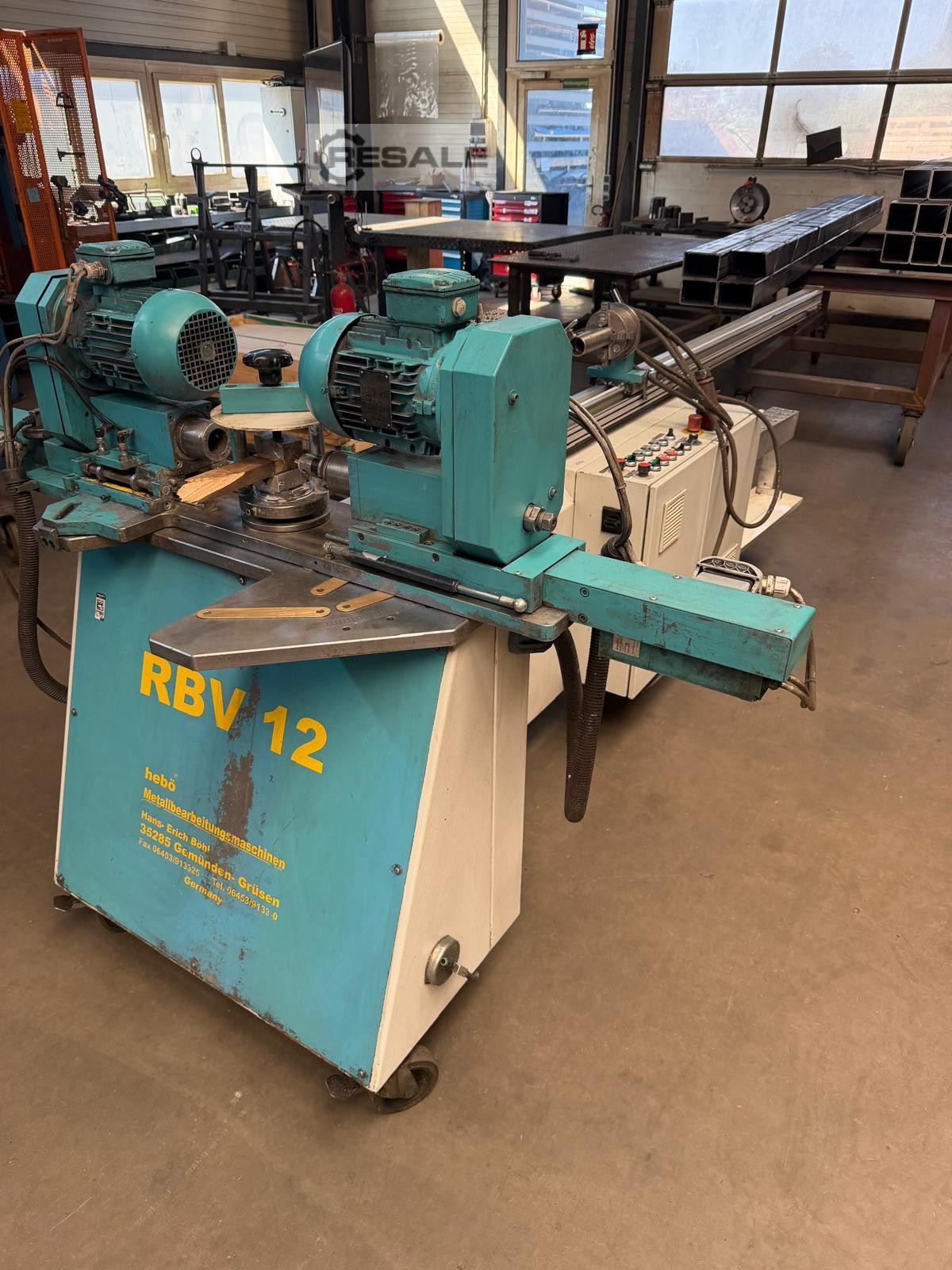

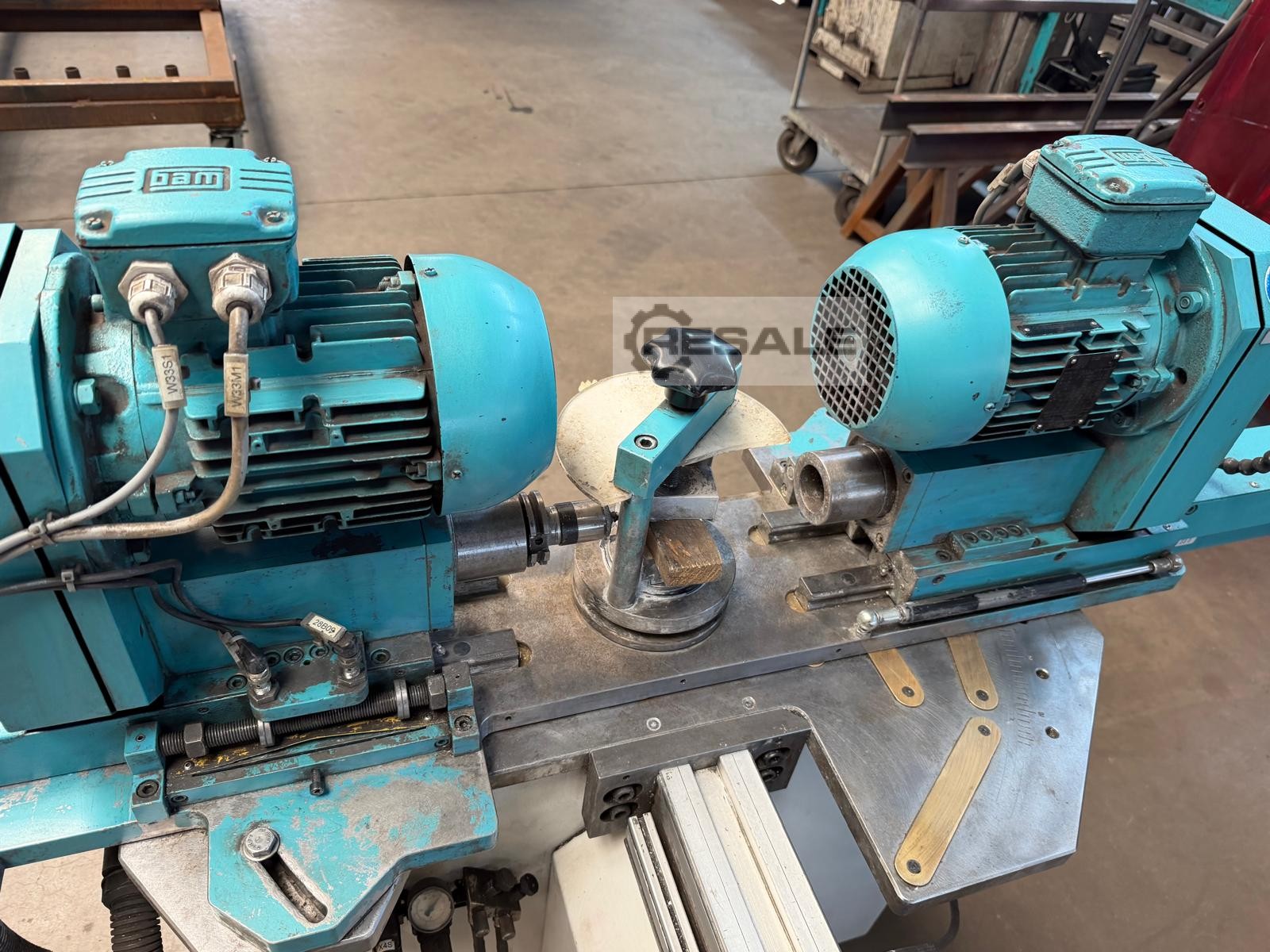

Used Hebö RBV 12 with two opposing drill heads for processing pipes and profiles on one and both sides. Manufacturer: Hebö Metallbearbeitungsmaschinen Model: RBV 12 Machine Type: Pipe Drilling Machine / Pipe Processing Machine Number of drill heads: 2 Speed: 0–2,250 rpm Drilling feed speed: 0–300 mm/min Total rated motor power: 5.8 kW Max. round tube: 76.2 mm (3") Max. square tube: 80 × 80 mm Max. T-profile: 80 × 80 × 8 mm Max. double posts: 80 × 10 mm Max. flat material: 80 × 10 mm Max. drilling diameter: 43 mm Thread forming / flow drilling: up to M10 Oblique drilling: up to 60° Tool holder: SK40 Machining: Single or double-sided Pipe feed: Manual with stop system Weight: approx. 395 kg Dimensions: approx. 4,100 × 1,670 × 1,450 mm Condition: Used The seller can help with loading.

Drilling unit 7500 kg. Saw 3000 kg. Supply and Discharge Conveyor 2000 kg. per part 6-fold tool changer PEHAKA saw machine with angle rotation -60 to +45 degrees Infeed conveyor with pusher 20 meters Discharge track 10 meters suitable for UNP, IPE, HEA Minimum throughput length 1 meter Maximum throughput length 20 meters Auction-ID: A1-47362-80

Please note; v belt broken, does not cool, Adjustable undercarriage, support legs, frame tilt, approximately 50 drill rods 2000mm, Auction-ID: A1-47392-131

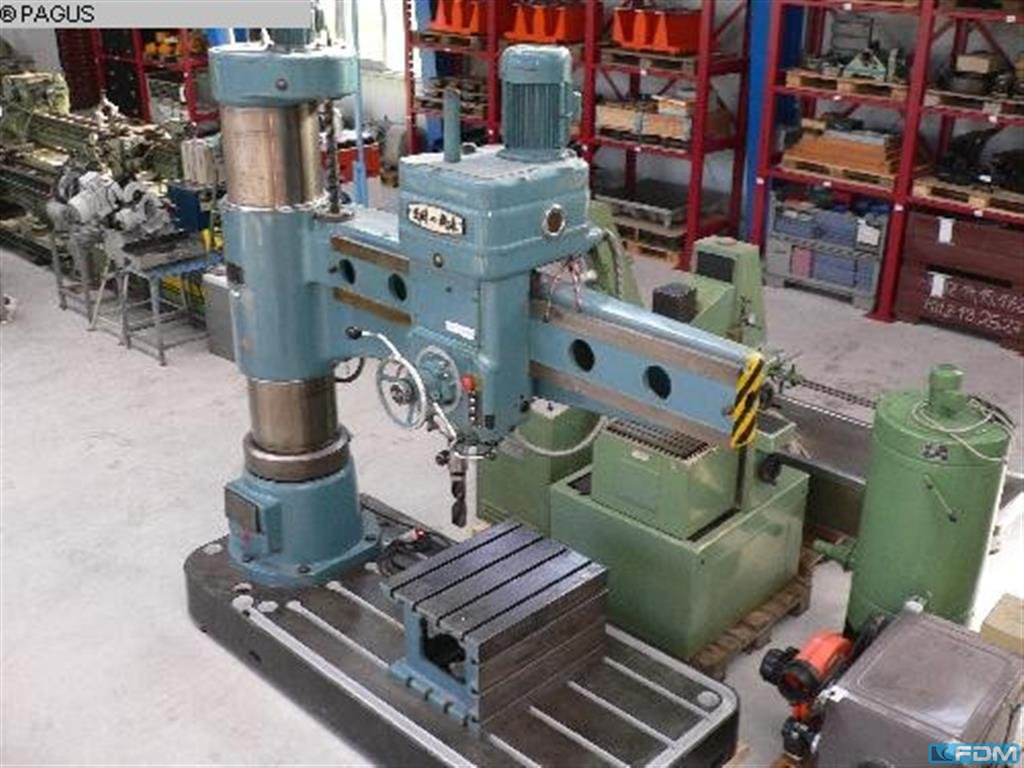

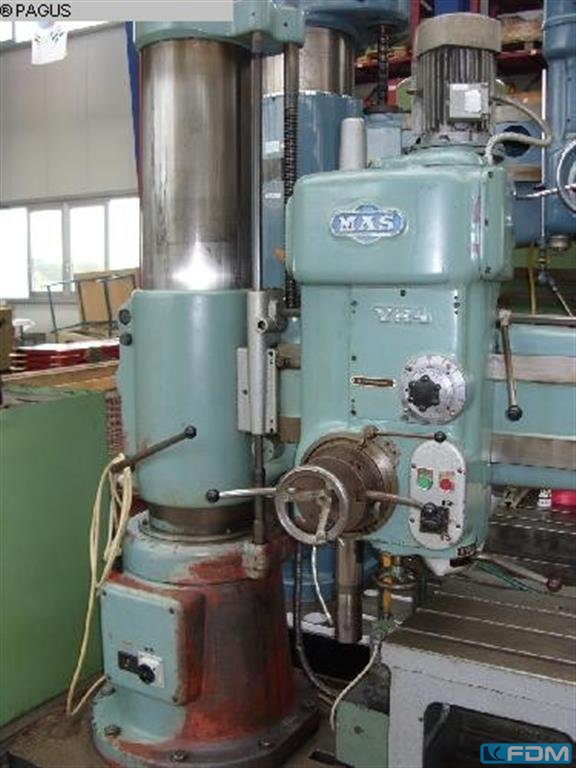

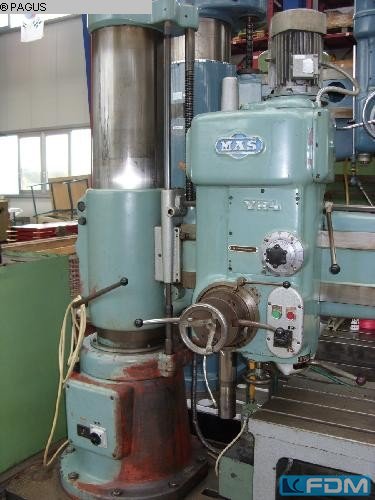

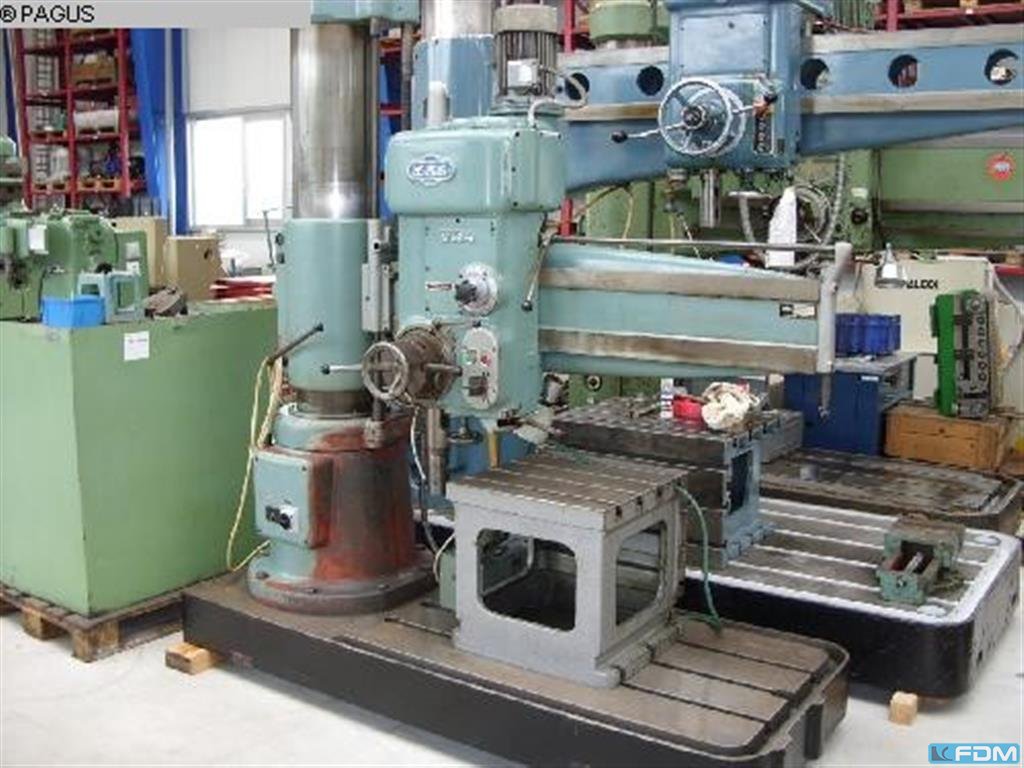

bore capacity in steel (diameter):40 mm arm length:1250 mm workpiece height max.:1390 mm Dist. spindle nose & working surface base:350 - 1260 Spindle travel:315 max. boring diameter:40 mm Distance between spindle axis and column:350 - 1260 spindle taper:4 MK Range of spindle speeds:22,4 - 2800 Number of spindle speeds:16 Number of spindle feeds:16 Table:500 x 630 Travel of spindle head:900 mm total power requirement:3,5 kW dimensions of the machine ca.:2150x1070x2840 m feed:0,09 - 1,5 m/min weight of the machine ca.:3 t

bore capacity in steel (diameter):45 mm WORKING RANGE -BORING-:. - drilling capacity full bore (steel):45 mm - drilling capacity full bore (cast iron):55 mm - horizontal travel:1050 mm - vertical travel:450 mm - sleeve stroke:200 mm WORKING SPINDLE / HEAD:. - spindle revolutions (min):15 /min - spindle revolutions (max):2800 /min - number of gears:2 - taper fixture : MK 4 :. - spindle power (continuous):5.5 kW - torque (max.):250 Nm - max. distance spindle ... clamping surface:710 mm - thread cutting attachment : yes :. TABLE:. - clamping surface (left-right):1200 mm - clamping surface (front-back):750 mm ELECTRICAL SPECIFICATIONS:. - total power consumption:7 kW - mains power supply:9.3 kVA - mains voltage:400 V - mains frequency:50 Hz DIMENSIONS / WEIGHTS:. - space requirements length:3000 mm - space requirements width:3000 mm - total height:3000 mm - total weigh ...

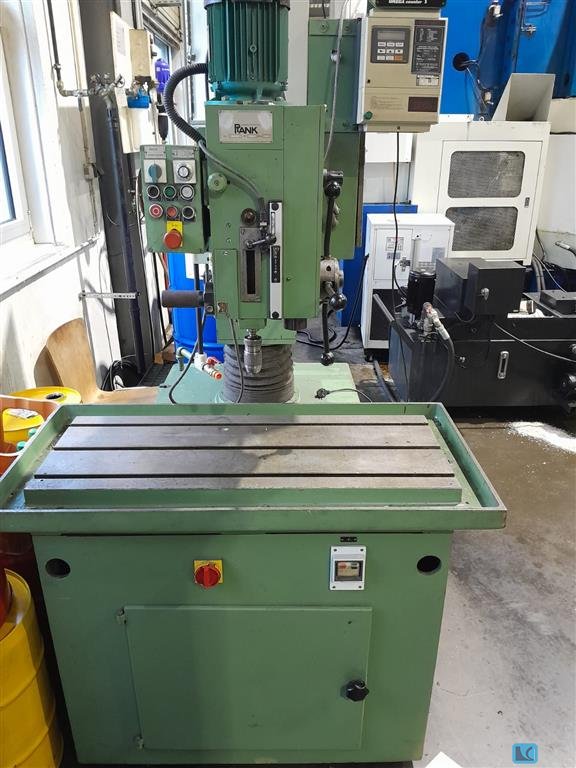

bore capacity in steel (diameter):1-13 mm arm length:100 mm workpiece height max.:400 mm total power requirement:3 kW dimensions of the machine ca.:2.0 x 1,2 x 2,2 m bore spindle turning speed range:0-3000 U/min boring spindle drive:2,2 kW max. Y-axis travel:550 mm max. Z-axis travel:300 mm The machine has a 2.2 kW spindle motor with a 2-stage gearbox for drilling and tapping. Table size is 100 x 50 cm Stroke length approx. 200 mm

bore capacity in steel (diameter):12 mm throat:300 mm bore stroke:80 mm total power requirement:1,5 kW weight of the machine ca.:1,2 t dimensions of the machine ca.:0,6 x 0,7 x 2,1 m Appr. 100 year old column boring machine, complete overhould and ready to operate - swivel table, base table - taper tool chuck - base motor with drive belt to overhead spindle

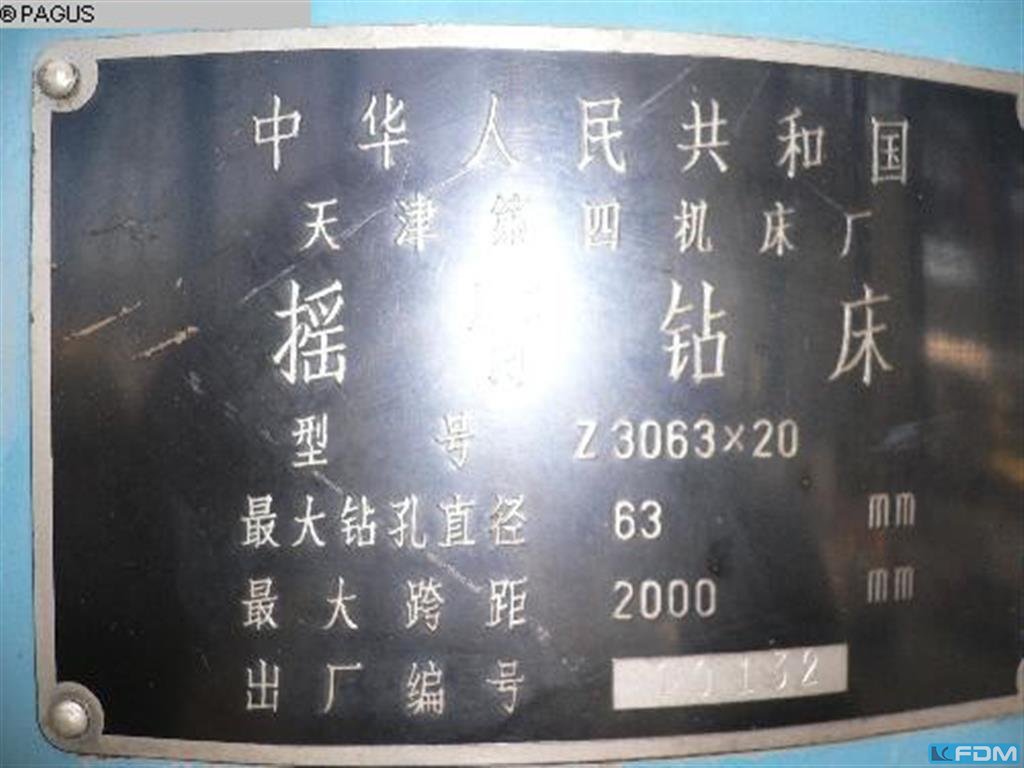

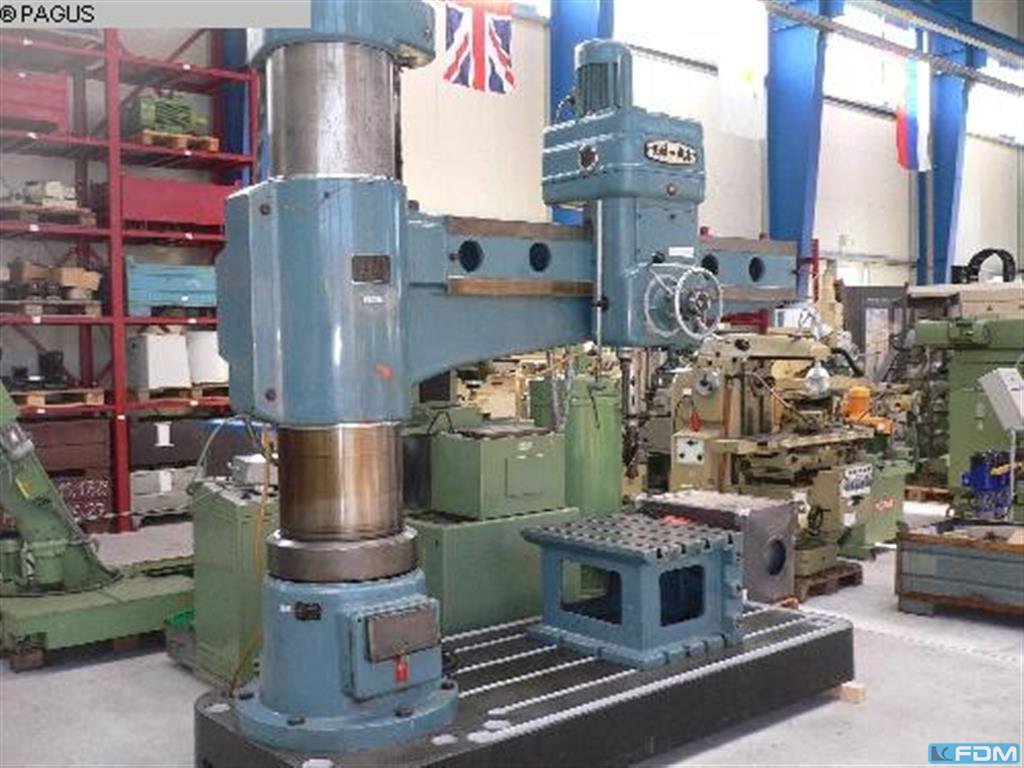

bore capacity in steel (diameter):63 mm arm length:2000 mm workpiece height max.:135 mm spindle stroke:400 mm reus:16 Stufen table-size:630 x 800 mm tool taper:MK 5 speeds:20 - 1600 U/min spindle feeds::0,04- 32 mm/U work table::800 x 630 x 550 mm total power requirement:5,5 kW weight of the machine ca.:6200 kg dimensions of the machine ca.:3100 x 1250 x 2500 mm Year:ca. 1990

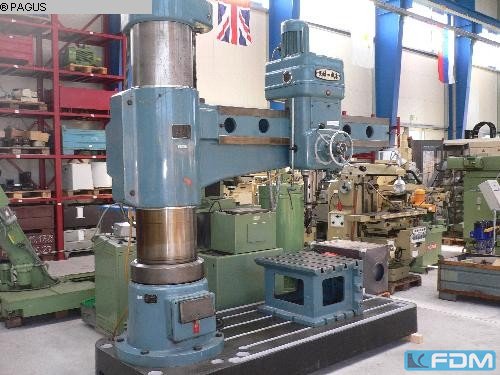

bore capacity in steel (diameter):63 mm arm length:2000 mm workpiece height max.:135 mm spindle stroke:400 mm reus:16 Stufen table-size:630 x 800 mm tool taper:MK 5 speeds:20 - 1600 U/min spindle feeds::0,04- 32 mm/U work table::800 x 630 x 550 mm total power requirement:5,5 kW weight of the machine ca.:6200 kg dimensions of the machine ca.:3100 x 1250 x 2500 mm Year:ca. 1990

bore capacity in steel (diameter):40 mm arm length:1200 mm workpiece height max.:1227 mm surface area:1475 x 900 mm no. of flutes:3 groove width:25/ 50 mm spindle cone:MORSE 4 number of spindle speeds:45- 2800 U/min spindle headstock:Bew.Arm : 945 mm with vertical adjustment:Arm 710 mm spindle diameter:35 mm bore depth:300 mm total power requirement:3,0 kW weight of the machine ca.:2800 kg dimensions of the machine ca.:2290 x 910 x 2860 mm

bore capacity in steel (diameter):40 mm arm length:1200 mm workpiece height max.:1227 mm surface area:1475 x 900 mm no. of flutes:3 groove width:25/ 50 mm spindle cone:MORSE 4 number of spindle speeds:45- 2800 U/min spindle headstock:Bew.Arm : 945 mm with vertical adjustment:Arm 710 mm spindle diameter:35 mm bore depth:300 mm total power requirement:3,0 kW weight of the machine ca.:2800 kg dimensions of the machine ca.:2290 x 910 x 2860 mm

workpiece thickness max.:80 mm workpiece thickness min.:5 mm plate size without being adjusted:2000x1000 mm size of plate min.:100x100 mm control:CNC Mubea Matic100 hole diameter:min/max:10/40 mm workpiece weight:750 kg deburring device max.:d=40 mm traversing speed:80 m/min work height max.:1050 mm positioning accuracy:+/- 0,5 mm opening of gripping pliers min/max.:Typ I: 5/45 mm opening of gripping pliers min/max.:Typ II: 45/85 mm feed length:max. 150 mm rapid traverse::8 m/min spindle turning speed range:112-180-224-280-355-560 U/min work table::L:2500;B:950 mm arm gripping device:4 Stück tool taper:Kegel DIN 6327 longitudinal travel:x=2800 mm cross travel:y=1000 mm bore spindle stroke:max. 150 mm total power requirement:25,0 kW weight of the machine ca.:5,5 t space requirements approx. LxWxH:5,0x5,5x2,7 m plate size with beeing adjusted also 1000x4000 mm possible with roller conveyo ...

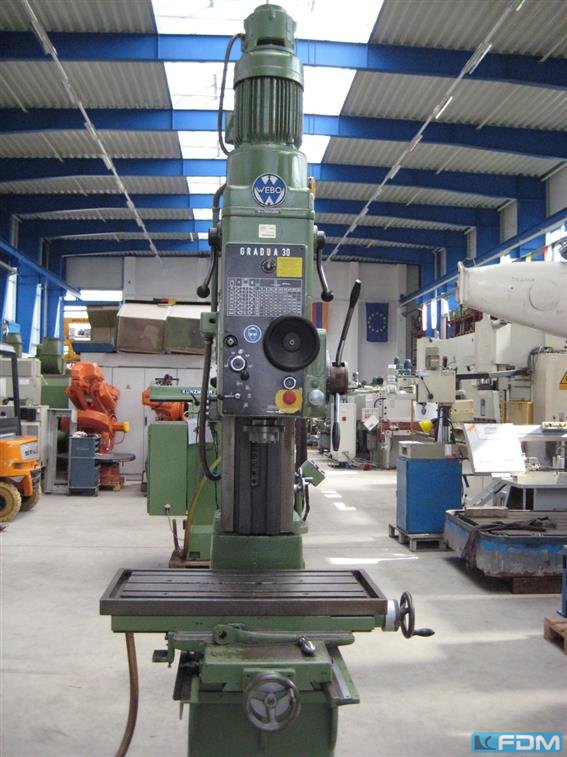

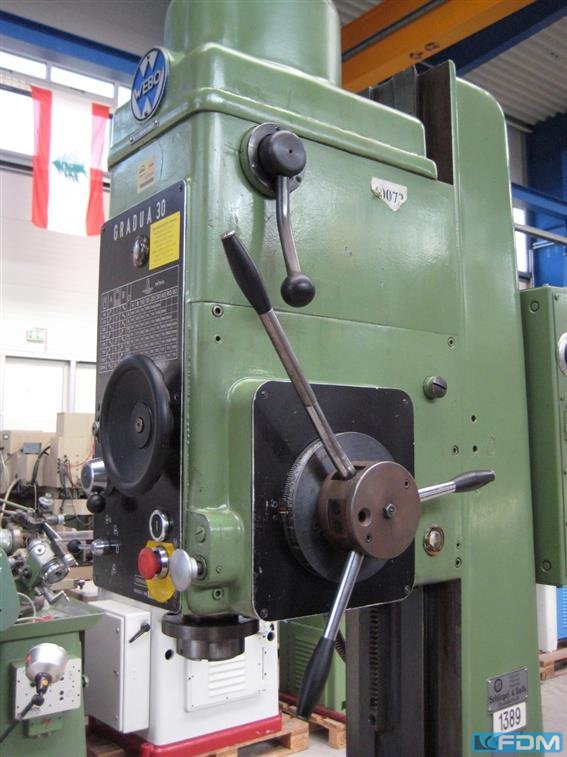

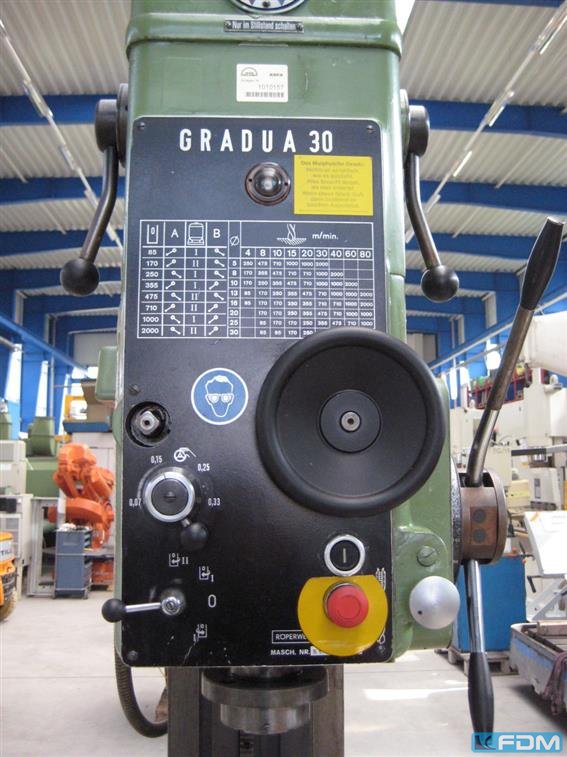

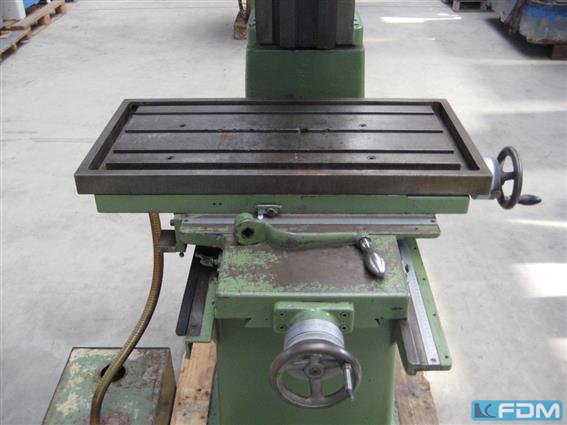

bore capacity in steel (diameter):5 - 30 mm x-travel:450 mm y-travel:380 mm total power requirement:1,4 / 2,2 kW weight of the machine ca.:1.100 kg dimensions of the machine ca.:1.000 x 1.400 x 2.900 mm gear box:85 - 2.000 U/min spindle diameter:72 mm bore depth:700 mm throat:300 mm spindle taper MT:3 T-slots:3 x 16/25 mm table-size:700 x 300 mm spindle turning speed range:85/170/250/355/475/710/1000/2000 U/min motor speeds::705/1425 Year:ca. 1975

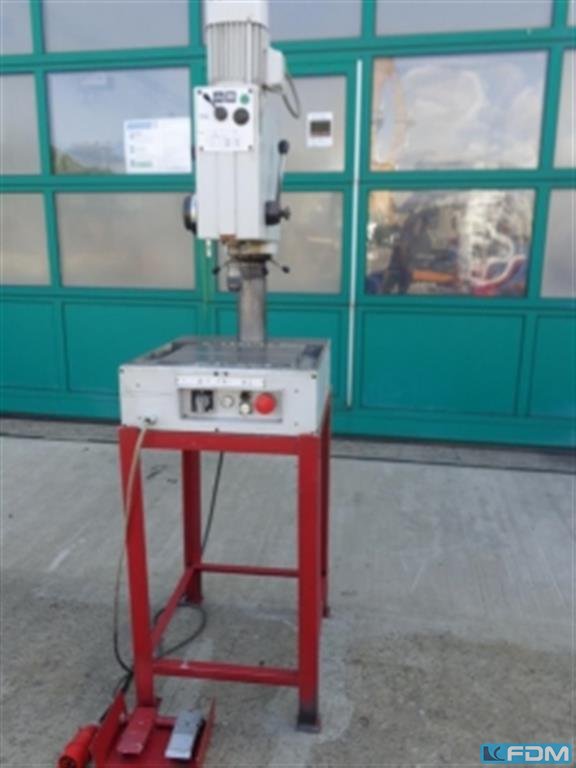

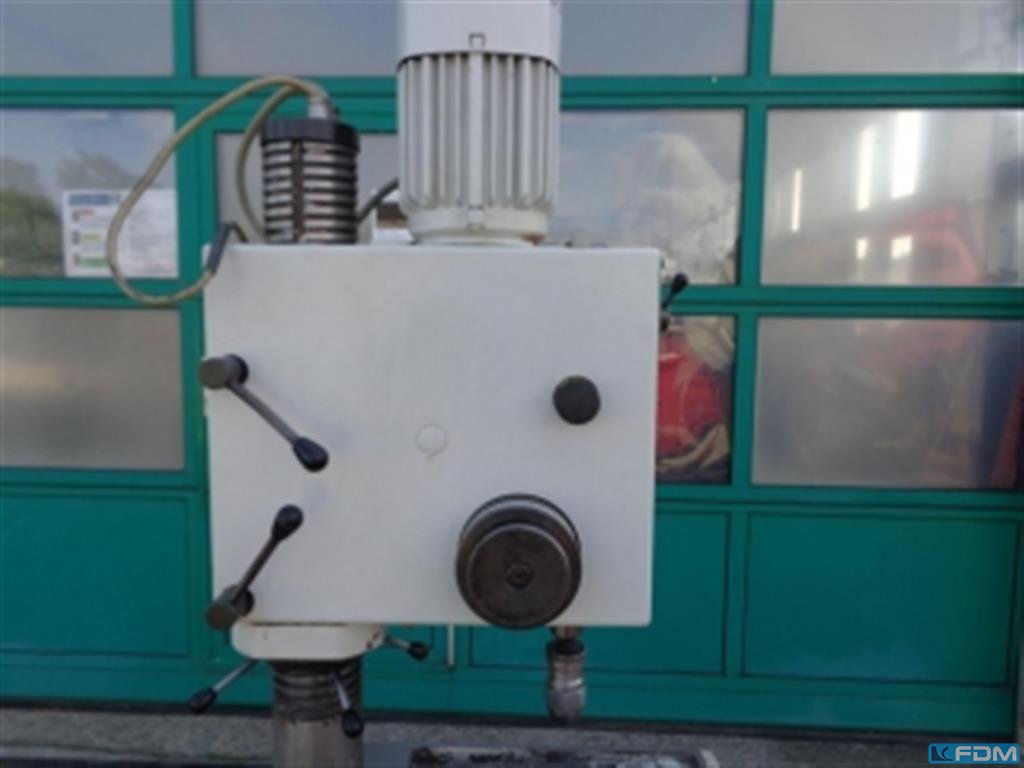

bore capacity in steel (diameter):10 mm throat:210 mm bore stroke:80 mm total power requirement:1,1 kW weight of the machine ca.:195 kg dimensions of the machine ca.:530 x 650 x 1850 mm spindle speeds::355, 710, 1400, 2800 U/min Table dimensions:340 x 280 mm

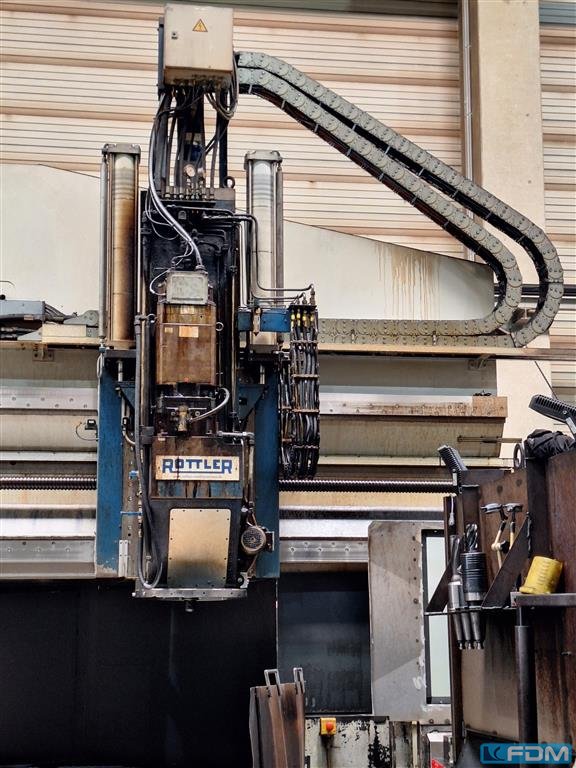

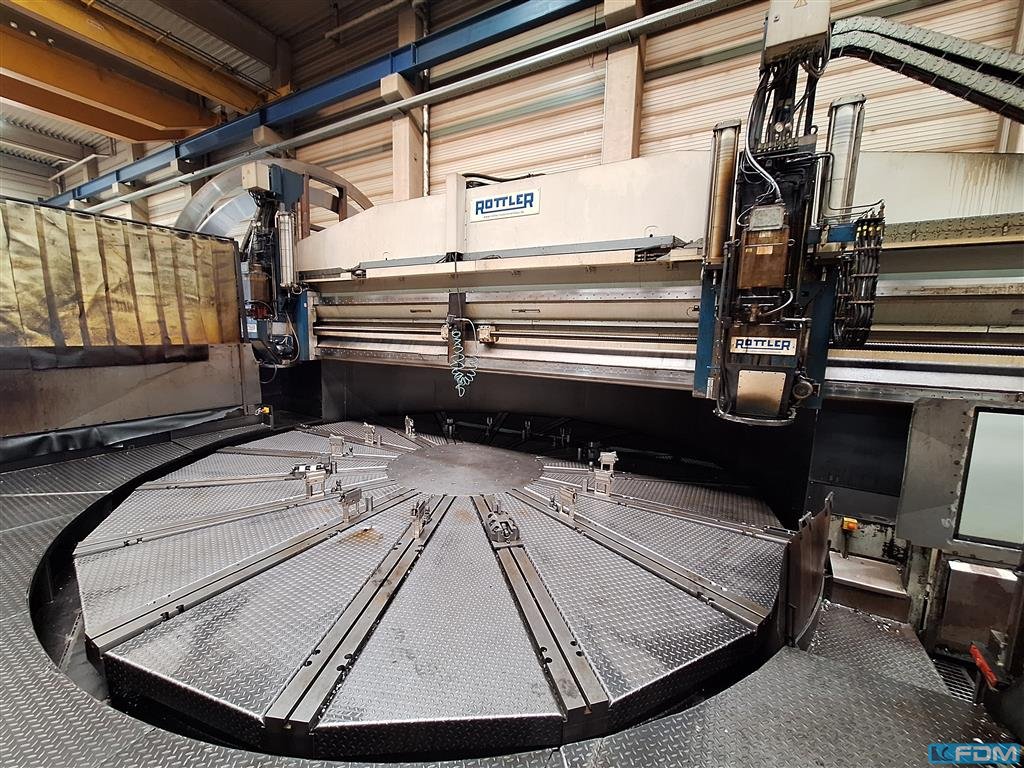

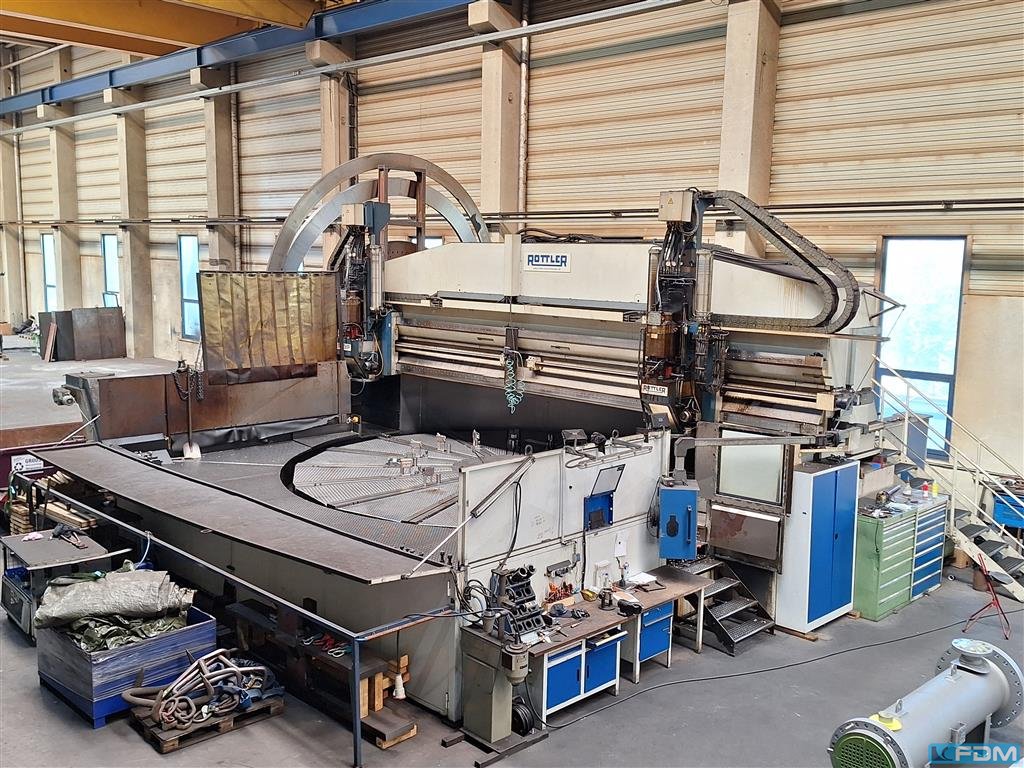

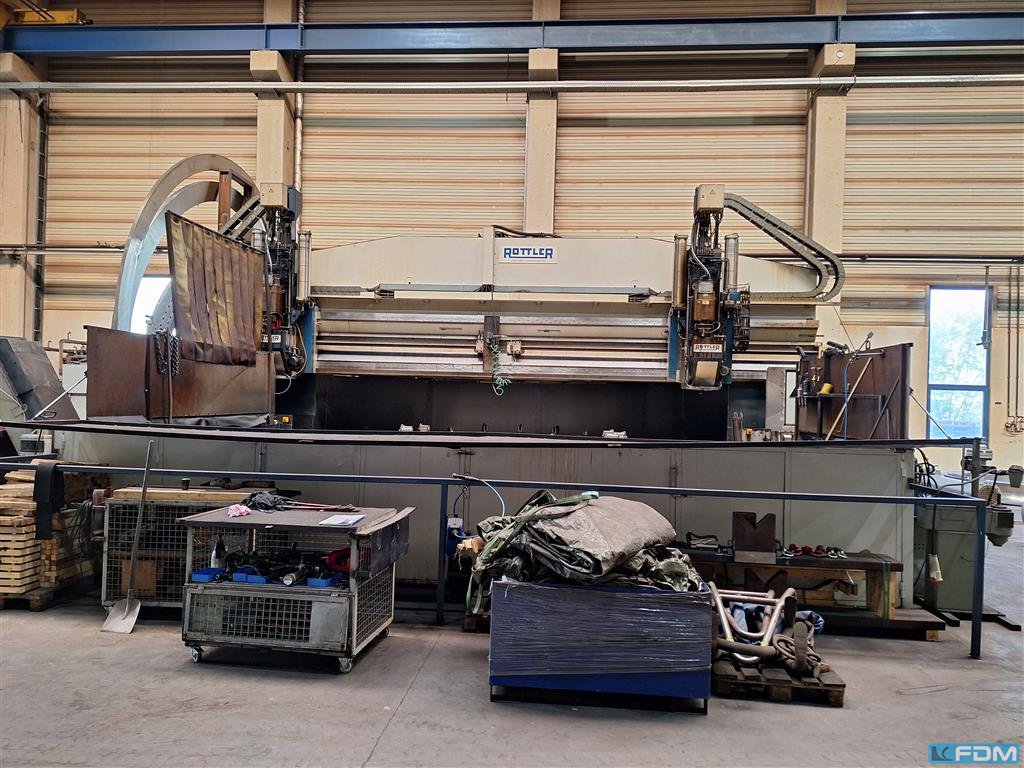

bore capacity in steel (diameter):100 mm max. pitch circle:7000 mm number of spindles:2 bore spindle turning speed range:1 - 3000 U/min high speed spindle taper ISO:50 bore slide stroke:900 mm feed speeds:1 - 6000 mm/min max. workpiece weight:18000 kg total power requirement:125 kW dimensions of the machine ca.:13 x 11 x 5,1 m with CNC SIEMENS 840 D Workpiece clamping up to dia. 7000 mm The machine is equipped with 2 drilling spindle supports and through spindle coolant (50 bar)both supports can drill simultaneously. Spindle taper SK 50, 2 stages 1 -600 rpm 1650 Nm and 1 - 3000 rpm. 300 Nm Chip conveyor and coolant device
