deckel maho gildemeister used for sale

x-travel: 800 mm y-travel: 1.050 mm z-travel: 800 mm control: 840D solutionline Siemens Main spindle:: Speed Mainspindle: max. 10.000 min/-1 power capacity - main spindel: 44 kW max. Torque: 288 Nm tool taper: HSK-A 100 DIN 69893 Swivel range: -10° / +180 ° NC-Rotary table:: table surface area: dia. 900 x 700 mm max. table load: 1.500 kg distance spindlenose - table horizontal: 50 - 850 mm distance spindlenose - table vertical: 150 - 950 mm table speed: 35 min/-1 rotatable: C: 360 ° Tool-Presetter:: number of toolpositions: 120 pos. tool taper: HSK-A 100 max. tool diameter: 110 mm max. tool-dia with free toolbox: 230 mm max. tool length: 550 mm max. tool weight: 30 kg tool changing time: 5,4 sec feeds:: rapid traverse ( X / Y / Z ): 60 m/min Rapid B-Axis: 23 min/-1 Accelaration: 7 / 6,5 / 6,5 m/s² Feed force ( X / Y / Z ): 13 / 13 / 9 kN weight of the machine ca.: 13,0 t dimensio ...

Control Heidenhain iTNC 530 Travel X/Y/Z: 2200 x 560 x 720 mm Spindle speed 18,000 min-1 Clamping area 2600 x 600 mm Max. table load 2200 kg Swivel head IKZ 25 bar Tool magazine for 30 Wkz, SK 40 Choice of C- or A-axis Measuring Probe Heidenhain TS 640 Chip conveyor Paper Belt Filter

This 4-axis DECKEL MAHO DMU-60T was manufactured in 2005. It features a robust vertical machining centre with X, Y, Z travels of 630 mm, 560 mm, and 560 mm respectively. Equipped with a high-speed spindle up to 18,000 rpm and a HSK-63A taper, it ensures precision and efficiency. The machine includes a Heidenhain MillPlus CNC control and a 20-tool magazine. Consider the opportunity to buy this DECKEL MAHO DMU-60T vertical machining centre. Contact us for further details regarding this machine.

Manufacturer: DMG Model: DMU 80T Year of manufacture: 2000 Condition: used Spindle speed (max.): 12,000 rpm Functionality: fully functional Operating hours: 32,590 h on the grid / Working hours: 14,150 h Sensor cable and motor tool changer new Find more here - / Contact us at -

x-travel: 1000 mm y-travel: 800 mm z-travel: 500 mm control: Siemens 611 The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Key data: 500 mm, 400 mm, 400 mm

x-travel 500 mm y-travel 400 mm z-travel 400 mm Control TNC Heidenhain Spindle hours: 13100 Duty Hours: 38000 Speed range - main spindle 20 - 9,000 rpm/-1 Drive power - main spindle 9 / 13 kW Table diameter 700 x 500 mm swivel B: 105° (-10°/+95°) man. rotatable 360° man. max. table load 200 kg Number of T-slots 7 Centering bore 30H7 mm Number of tool locations 16 pos. Tool holder ISO 40 DIN 69871 max. tool length 290 mm max. tool weight 6.0 kg max. total weight 50 kg Feed speed max. 10,000 mm/min Total power requirement 17 kW Machine weight approx. 3.2 t Space requirements approx. 4.0 x 4.0 x 2.5 m

x-travel: 800 mm y-travel: 700 mm z-travel: 600 mm control: Heidenhain 430 total power requirement: kW weight of the machine ca.: 10 t dimensions of the machine ca.: 4400 x 2900 x 2880 mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

- Chip conveyor - 3D measuring probe - Paper filtration - IKZ 15 Bar - Under power

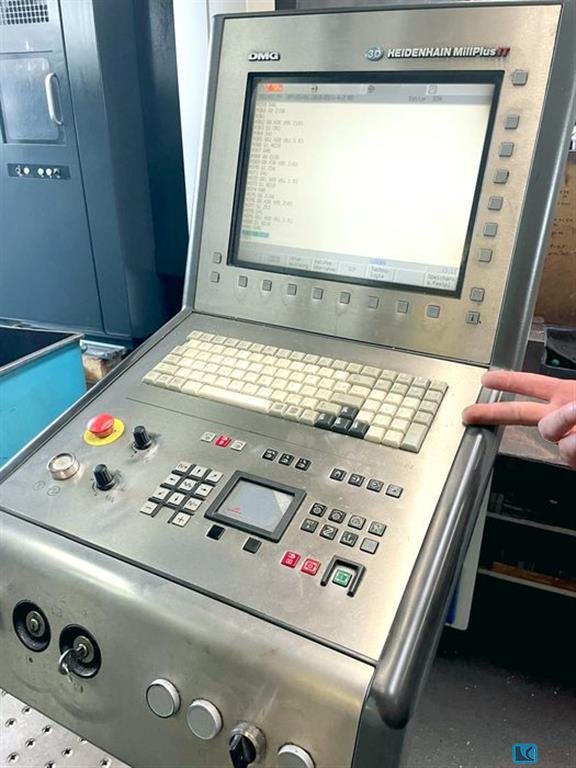

Control system: Heidenhain TNC 430 MillPlus, length: 4073mm, width: 3323mm, height: 2375mm, weight: approx. 9.5t, an on-site inspection is possible.

x-travel: 1.250 mm y-travel: 880 mm z-travel: 800 mm control: TNC 426 Heidenhain Main spindle:: turning speed range - main spindle: max. 12.000 min/-1 power capacity - main spindel: 15 / 10 kW max. Torque: 500 Nm tool taper: SK 40 work table:: table surface area: 1.500 x 1.050 mm max. table load: 2.500 kg number of T-slots: 10 T-slot - width: 18 H7 mm T-slot - distance: 100 mm Tool-Presetter:: number of toolpositions: 30 pos. max. tool diameter: 80 mm max. tool-dia with free toolbox: 160 mm max. tool length: 315 mm max. tool weight: 8 kg max. total weight: 100 kg feeds:: rapid traverse ( X / Y / Z ): 15 m/min feed speeds: 10.000 mm/min total power requirement: 29 kW weight of the machine ca.: 16,0 t dimensions of the machine ca.: 7,0 x 5,0 x 3,3 m Documents: Chip conveyor: Coolantsystem: high pressure coolant: through spindle coolant: Automatic Tool Changer: test probe: Heidenh ...

x-travel: 1350 mm y-travel: 560 mm z-travel: 510 mm Control: Heidenhain iTNC 530 total power requirement: 13 kW weight of the machine ca.: 5 t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Key data: 500 mm, 450 mm, 400 mm

CNC Vertical Machining Center DECKEL MAHO DMU 50 eVo linear With track control Heidenhain iTNC 530 Year of Make: 2008 Travel: X 500 Y 450 Z 400 Speed range: 0 – 18000 rpm infinitely variable ( HSK 63 ) With the following accessories: 2-axis NC swivel rotary table 500mm x 380mm clamping surface Vertical tool changer with 30 magazine positions ( HSK 63 ) Full protection cabin with sliding doors and interior lighting Electronic handwheel 3 D Probe Renishaw OMP 60 Tool measurement in the work area ( BLUM Laser ) IKZ 40 bar with paper belt filter Operating mode 3 + 4 Chip conveyor Signal light 4 colour Rotoclear Sealing air for linear measuring systems Coolant Setup Rinsing gun for chip rinsing 4 Height Adjustable Machine Shoes Operating Instructions

This 5-axis DMG DECKEL MAHO DMU 100T was manufactured in 2003. It features impressive travels of 1,080 mm in the X-axis, 635 mm in the Y-axis, and 710 mm in the Z-axis. The machine includes a fully refurbished Nikken CNC rotary tilting table and an Erowa Robot Easy automation system with 12 pallet stations. If you are looking to get high-quality machining capabilities, consider the DMG DECKEL MAHO DMU 100T universal machining centre we have for sale. Contact us for further details.

x-travel: 630 mm y-travel: 560 mm z-travel: 560 mm control: iTNC 530 Heidenhain NC-Swivle milling head:: turning speed range - main spindle: max. 24.000 min/-1 power capacity - main spindel: 19 / 26,7 kW max. Torque: 85,6 / 60,9 Nm tool taper: HSK-A 63 swivellable: NC: +30 / -120 ° NC-Rotary table:: table surface area: 1.000 x 600 mm table diameter: Ø 600 mm T-slots: 1x 14 x H7, 8x 14 H12 max. table load: 500 kg rotatable: C: 360 ° tool magazin:: number of toolpositions: 2x12 (24) pos. tool taper: HSK-A 63 max. tool diameter: 80 mm max. tool-dia with free toolbox: 130 mm max. tool weight: 8,0 kg max. tool length: 315 mm total power requirement: 49,7 kVA weight of the machine ca.: 6,8 t dimensions of the machine ca.: 4,5 x 4,5 x 2,5 m Documents: Chip conveyor: Coolantsystem: high pressure coolant: 20 bar, 40 l/min through spindle coolant: turning milling head: elektr. hand whee ...

x-travel:630 mm y-travel:560 mm z-travel:560 mm weight of the machine ca.:6,5 t Number of axles:5 St. spindle turning speed range:18.000 U/min numbers of tools in magazin:24 tool taper:SK 40 Round Table B-Axis

x-travel:780 mm y-travel:560 mm z-travel:560 mm weight of the machine ca.:10 t Number of axles:5 St. spindle turning speed range:20-12.000 U/min numbers of tools in magazin:30 tool taper:SK 40 surface area:500 x 630 mm Round Table B-Axis Texte, Bilder, Grafiken, Layout, Strukturen und Algorithmen etc. unterliegen weltweitem Urheberrecht. Unerlaubte Verwendung der Daten, werden sowohl strafrechtlich als auch zivilrechtlich verfolgt. Das ausschließliche Urheber- / Nutzungsrecht dieser Daten wurde nachfolgender Person eingeräumt. Copyright © 2005-2026, Josef Weber. All rights reserved.

x-travel:635 mm y-travel:510 mm z-travel:460 mm turning speed range:20 - 10.000 U/min tool taper:SK 40 table clamping surface LxW:790 x 560 mm Machine with glass scales Full safety cabin with sliding doors + interior lighting Height-adjustable machine shoes 3 pcs.

x-travel:630 mm y-travel:560 mm z-travel:560 mm total power requirement:10 /15 kW weight of the machine ca.:6500 kg dimensions of the machine ca.: 4,4 x 5,4 x 2,9 m Table dimensions:1000 x 610 mm Loading:400 kg rapid traverse::X 26, Y 26, Z 20 m/min speeds::20 - 12.000 min -1 tool taper:SK 40 Number of tools:20 ( 2 x 10 ) St. control:CNC MillPlus/TNC430 Documents:vorhanden

amplification -fold: 30 spindle taper ISO: 40 spindle taper:: M16 / DIN 2080 voltage: 6 V Packing: 0,430,25010 m Shipping weight: 4 kg The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Operating voltage: 380/400 volts with digital positioning display x,y, without feed in y direction, with angular table, work surface with 4 T-slots Mistakes reserved!

; very good

Pallet Pool PS8

2 pallets, 108 wkzg., BJ 1988, interior cooling, with PS8, various clamping means - see pictures

DECKEL GK21 Engraving frause machine More: DECKEL G1L Engraving fraese

CNC toolmill cover FP 3 NC Dialog 11 Used machine (very good) Control type Cnc Built 1990 Hours K.a. Dimensions 1800x1700x2000 Weight 2000 kg Location Haiger Description Universal tool milling machine of the brand lid suitable for tooling, fixture construction, training as well as mold making • Travel distances: 400x400x400mm • Control: Dialog 11 Technical data • Control CNC Dialog 11 • Table 600x400mm • Longitudinal path (X,Y,Z axis) 400x400x400mm • Tool changer no • Tool holder: ISO 40 • Vertical spindle speeds: 31.5-3150rpm • Feeds 2-3600mm/min • Connection 50 Hz 3x 380V • Spindle motor 3.4KW

Lid FP 4 MA Used machine (Very good) Control type CNC Built in 1990 Operating hours n/a Price 8,000 net plus VAT Dimensions 2500x2000x2500 Weight 1800 kg Location Haiger Description Universal tool ingescent machine of the brand lid suitable for tooling, fixture construction, training as well as mold making Travel: 465x385x380mm Control: Contour 2 Technical data Technical data: Lid FP4 MA (527) Built in 1992 Control CNC Hand / Contour 2 Table 800x465mm Laengsweg (X,Y,Z axis) 465x385x380mm Tool changer no Tool holder: ISO 40 Vertical spindle speeds: 31.5-3150rpm Vorschuebe 2-4000mm/min Connection 50 Hz 3x 380V Spindle motor 4KW Machine weight approx. 1900kg Dimensions 2800x2000x2500mm

Table size: 460 x 800 mm stroke x: 485 mm traverse path y: 385 mm traverse path z: 380 mm Quill stroke: by hand approximately 70 mm spindle speeds: 50-3150 rpm stufenl feeds. adjustable: 2-1000 mm / min rapid traverse rate: 2 m / min. Port: 3.7/4,4 kW space: 2100 x 1650 x 1730 mm weight: 1850 kg

1 x Universall tool-feeding machine Lid FP 4 Built: c.1970 Very robust and rare conventional machine in good condition. Technical data: Travel: X: 700 Y: 400 Z: 450 mm Spindle speeds: 31.5 - 1,600 rpm (18 levels) Tool holder: ISO 40 Pinole stroke: 115 mm Feed in X/Y/Z Feed range: X/Y/Z 5 - 500 mm/min (infinitely adjustable) Rapid response: X/Y: 10 - 500 mm/min Z: 5 -250 mm/min (18 levels) swivel handling table Clamping area: 860 x 500 mm Accessories: 1 x horizontal counter bearing 5 x horizontal frond spine Bftj7cazem 10 x vertical fraes aufnahme 36 x tension tension ingesheis from 0.5 - 18 mm 0.5 mm rising 5 x Direct clamping pliers D: 12/14/16/18/20 mm 1 x machine vice Manual various distance rings and accessories for milling machines complete documentation The machine can be inspected at our warehouse under electricity. A 3-axis digital ...

Description x-path: 300 mm y-way: 150 mm z-way: 340 mm Clamping area: 600 x 210 mm T-slots: 5 T - slot width: 12 mm Speed range - vertical: 250 - 2000 rpm Speed range - horizontal: 40 - 315 rpm Speed levels working spindle: 8 Feed range: 10 - 500 mm/min Feed levels: 8 Pinolene stroke: 60 mm Spindle holder: SK 40 Total power requirement: 1.7 kW Machine weight approx.: 0.8 t Space requirement approx.: 0.90 x 1.10 x 1.55 m Universal tool milling machine in very good condition, vertical head rotatable +/- 90° incl. drill pin with stroke 60 mm, horizontal spindle, automatic feed in X and Z direction, universal swivel table, turning and tilting range+/- 30°, swivel range+/- 90°, separate control cabinet + main switch incl. digital display (new)

Three T-slot plates of a copy-fraes machine from Lid are offered. The T-slot plates can be mounted as a cross table. Scope of delivery only according to photos, without spindles. If you are interested, please request more photos. Further spare parts of lide e.g. towing table of a KF3 pre-wheels. Please ask. Special price Lid cabinet tool cabinet

Lid FP 1 in very nice condition x-path: 300 mm y-way: 150 mm z-way: 340 mm Clamping area: 600 x 210 mm T-slots: 5 T - slot width: 12 mm Speed range - vertical: 250 - 2000 rpm Speed range - horizontal: 40 - 315 rpm Speed levels working spindle: 8 Feed range: 10 - 500 mm/min Feed levels: 8 Pinolene stroke: 60 mm Spindle holder: SK 40 Digital display Z-502 Total power requirement: 1.7 kW Machine weight approx.: 0.8 t Space requirement approx.: 0.90 x 1.10 x 1.55 m Universal tool milling machine in good condition, vertical head rotatable +/- 90° incl. drill pin with stroke 60 mm, horizontal spindle, automatic feed in X and Z direction, universal swivel table, turning and tilting range+/- 30°, swivel range+/- 90°, separate control cabinet + main switch

Milling machine from a training workshop in very good condition Manufacturer lid Type FP1 Active

- travel range: X= 485, Y= 385, Z= 380 mm - table size: 800 x 460 mm - tool holder: SK 40 - dimensions LxWxH: 2440 x 1800 x 2100 mm - weight: ca. 2.000 kg

Universal tool milling machine DECKEL FP 1 with 3 axis active digital display Heidenhain TNC 113 Year of construction: 1987 Travel: X 300 Y 160 Z 340 Speed range: 40 – 2000 rpm With the following accessories: Universal table 600 mm x 250 mm clamping surface Movable vertical milling head Extendable drill quill Infinitely variable feed via potentiometer 1 machine vice 1 counter holder with counter bearing 1 pc. milling mandrel long 0 22 mm Various tool holders S 22 x 2 Bellows Z Axis Machine light Automatic central lubrication pump Chip collection plate Coolant system Operating instructions THE MACHINE IS IN VERY GOOD CONDITION

Lid FP 4 A Used machine (very good) Control mode Conventional Built in 1992 Operating hours approx. 500h Price 12,000 € net plus VAT Dimensions 2500x2500x1900 Weight 2000 kg Location Haiger Description Universal tool milling machine of the brand lid suitable for tooling, fixture construction, training as well as mold making Travel: 560/500/450mm Control : Dialog 11 Technical data Control CNC Dialog 11 Table 900x530mm Longitudinal path (X,Y,Z axis) 560/500/450mm Tool changer no Tool holder: ISO 40 Vertical spindle speeds: 31.5-5000rpm

Description Universal tooling machine from Lid suitable for tooling, fixture construction, training as well as mold making Technical data Year of construction / YOM 1991 Speeds / Spindle 63 - 6300 rpm Steuerung Control CNC Grundig Dialog 11 Vorschübe / Feeds 2 - 3000mm/min Tisch / Table 910 x 530mm Recording / Taper ISO 40 Way / Travel (X,Y,Z) 600x500x500mm Weight /Weight ca 1830kg Changer / Tool changer No Dimensions / Dimension 2500x2000x2000mm Travel: 600x500x500mm Speed: 31.5 - 6300 rpm The machine comes from a tool making and has been regularly serviced.

Milling machine lid FP 4 NC Built c. 1992 with controlled C-axis 2 pieces of screw sticks Various tool holders Machine is in top condition and was last serviced on 20.08.2020 for approx. 3.000,- € (net). documents available. The machine is sold only because of space requirements. Location of the machine: 76661 Philippsburg

Angular table for lid milling machine Clamping flat 900x530mm 8 St T-hooks Never used

Cover FP2 FP 2A SK40 / with dialog 11 path control Control: CNC Dialog 11 - 3D Web Control Speed: 40 - 4000 rpm Feed rate: 2 - 3600 mm/min infinitely variable Rapid speed: 4 m/min Drive power: 1.6 / 2.0 kW 1400/2800 rpm Quill: Extendable quill vertical 80 mm SK40 with Clamping system DIN 2080 Travel: X/Y/Z: 300/300/400 mm Rotary table: 3 axis Universal table 600 x 330 mm max load 250 kg Equipment: Hydromechanical clamping system SK40 with suit bolt DIN 2080. Vertical & Horizontal spindle , Milling head manually swivel+/- 90 ° Machine light Programming: Dialog-guided programming with cycles. E-handwheel.

Code 0733 DESCRIPTION CNC Universal toolroom milling machine Make DECKEL Model FP 4 MA S/N 2204-1372 Year 1987 Control Grundig - Contour 2 Table 800 x 460 mm Longitude ( X – axis ) table 485 mm Vertical ( Y – axis ) table 380 mm Cross ( Z – axis ) spindle 385 mm Spindle quill 80 mm Spindle taper 40 ISO Speeds 63 - 3150 rpm Feeds X-Y-Z 2 - 3000 mm/min Rapides 3 m/min Spindle motor 3,7 / 4,4 kW – 380 Volts Accessories Table 800 x 460 mm Coolant Condition Machine is in good condition

Code 1815 DESCRIPTION CNC Universal toolroom milling machine Make DECKEL Model FP 3 A S/N 2206-0593 Year 1980 Control Grundig 2102 ( position ) Table 800 x 460 mm Longitude ( X – axis ) table 500 mm Vertical ( Y – axis ) table 400 mm Cross ( Z – axis ) spindle 300 mm Spindle quill 80 mm Spindle taper 40 ISO Speeds 25 - 2500 rpm Feeds X-Y-Z 1 – 500 mm/min Rapides 1,5 m/min Spindle motor 2,0 / 4,0 kW – 380 Volts Accessories Table 800 x 460 mm Coolant Condition Machine is in good condition

Code 8520 DESCRIPTION CNC bed milling machine Make DECKEL Model FP 42 A S/N 2388 – 0155 Year 1981 Control Grundig 2301 Table 1380 x550 mm Longitude ( X – axis ) table 1170 mm Vertical ( Y – axis ) table 370 mm Cross ( Z – axis ) spindle 370 mm Spindle taper 40 ISO 21 Speeds 10 - 2000 rpm 21 Feeds X-Y-Z 1 - 2500 mm/min Spindle motor 3,7 / 4,4 kW – 380 Volts Weight 3000 kgs Accessories Coolant Condition Machine is in good condition

x-travel: 600 mm y-travel: 525 mm z-travel: 500 mm weight of the machine ca.: 6,5 t CNC Steuerung Heidenhain TNC 426 Kühlmitteleinrichtung Spänewanne CNC control Heidenhain TNC 426 coolant device chip tank Technische Daten / technical details: X-Weg / X-travel 600 mm Y-Weg / Y-travel 525 mm Z-Weg / Z-travel 500 mm Spindeldrehzahlen / spindle speed 6300 UpM /rpm Werkzeugaufnahme / spindle taper SK40 Vorschubbereich X/Y/Z / feed range 10000 mm/min. Universaltisch / clamping area of universal table 750x530 mm Gewicht der Maschine ca. / weight 6500 kg The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 150 mm y-travel: 300 mm z-travel: 350 mm table surface area: 350 x 200 mm spindle turning speed range: 475 - 20000 U/min total power requirement: 0,4 kW weight of the machine ca.: 0,46 t dimensions of the machine ca.: 1,2 x 1 x 1,4 m • without templates The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 560 mm y-travel: 500 mm z-travel: 450 mm table surface area: 900x520 mm turning speeds: 4000 U/min tool taper: SK 40 Control: Heidenhain type: TNC 355 : elec. coolant: total power requirement: kW weight of the machine ca.: 2,7 t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Friedrich Deckel FP 2 LB tool milling machine This universal milling machine FP 2 LB from the well-known German manufacturer Friedrich Deckel in Munich has as a special feature an extremely stable basic body and is designed as a travel column machine i.e. the machine does not lose accuracy should heavy parts (up to 1000 kg) be clamped. Another special feature is the so-called inclined bed of 45 degrees. Thus, after dismantling the universal table, it is possible, especially V-engine blocks with 90-degree cylinder angle (e.B. amerik. V8) directly clamp and process. The long travel distance of 800mm is also an advantage in this case. Lid FP 2 LB universal swivel/tilt table (± 45° / ± 15°) Lid Universal Divider Vice 160 mm Working range: X= 800 mm / Y= 300 mm / Z= 400 mm From 01.07.21 the machines are ready for collection. Dismantling and transport by the buyer.  ...

fully functioning used 3 axis milling machine, brand lid, type FP2, with vice, and many accessories.

Year of construction 2001 Siemens 810D Operating hours 1988 Travel distances 350 x 240 x 340 Spindle speed 20 - 6300 Drive power 6.3/10 KW Total connection power 15 kW Tool holder SK40 Accessories: el. Handwheel Spühlpistole Universal swivel rotary table 400 x 280 mm, Rotation range 360 °, swivel range +105/-15 ° with electronic angle display Coolant device

Control: Dialog 11 with new MCP card Travel range: x-800 y-600 z-550 mm Spindle speeds: 18 – 6300 rpm Pinole by hand: 80 mm Recording: SK 40 Feed: 2 to 10000 mm/min Rapid response: 10000 mm/min Weight: approx. 4050 kg With full cab, chip conveyor, electr. Handwheel Installation dimensions: L: With controller and chip conveyor approx. 4200 mm (without conveyor approx. 3200 mm) B: approx. 3800 mm (With space to open door E-cabinet approx. 4600 mm) H: approx. 2400 mm Can be visited under electricity.
