deckel maho gildemeister used for sale

Machine is equipped with: - chip conveyor - part conveyor - tooling as showed in pictures - live tooling - pallet with parts - oil mist filter Auction-ID: A1-49370-20

GILDEMEISTER - CTX 310 V3 Offer details Stock number 1039-9126 Machine type: CNC turning and milling center Manufacturer: GILDEMEISTER Type CTX 310 V3 Year of construction 2003 Control 840 D Siemens Country of origin Italy Additional information CNC turning and milling center GILDEMEISTER - CTX 310 V3 - Incl. 2x reducing tubes Technical details Turning diameter 210 mm Turning length 580 mm Control 840 D Siemens Center height 190 mm Turning diameter over bed 330 mm Turning diameter above the face slide 260 mm Main spindle: Speed range - main spindle max. 4,000 rpm/-1 Drive power - main spindle 10 / 7.5 kW Max. torque 115 / 86 Nm Spindle bore 68.5 mm Usable rod diameter 51 mm C - Axis 0.001 ° Travels: Travel - x 185 mm Travel - z 455 mm Tool turret: Number of tool positions 12 pos. Tool holder VDI 30 Driven tool stations: 6 pos. Tailstock: Tailsto ...

Technical data Manufacturer: GUILD MASTER Model: CTX 400 Machine Type: CNC Lathe Control: Gildemeister CNC / ElektroPilot Operating hours: approx. 18,462 h Max. turning diameter: 400 mm (Source: online) Max. turning length: 640 mm (Source: online) Circumferential diameter over bed: 500 mm (Source: online) Spindle bore: 72 mm (Source: online) Speed range: 25 - 5,000 rpm (Source: online) X-travel: 212 mm (Source: online) Z-travel: 640 mm (Source: online) Tool turret: 12-speed (Source: online) Tool holder: VDI 30 (Source: online) Machine weight: approx. 5.1 - 5.5 t (Source: online) Configuration 3-jaw chuck Berg KH200 12-speed tool turret Powered tools available Tool turret prepared for powered tool holders Chip conveyor available Coolant equipment available Closed work area cladding CNC controller with screen Note No original techni ...

GILDEMEISTER - Sprint 20-8 linear Technical details: Turning diameter max. 20 mm Turning length max. 80 mm Control Fanuc 310is Main spindle: max. usable rod diameter 20 (25) mm Inner drawbar diameter 28.5 mm Max. speed main spindle 10,000 min/-1 Drive power - main spindle 3.7 kW Max. torque 9.4 Nm C-axis C1: 360° Sub-spindle: Inner drawbar diameter 28.5 mm Max. speed main spindle 10,000 min/-1 Drive power - main spindle 3.7 kW Max. torque 9.4 Nm C-axis C2: 360° Travels: x-axis 1: 50 / 2: 240 mm y-axis 1: 350 / 2: 120 mm z-axis 1: 80 / 2: 300 mm Tool carrier slide 1: Number of tool positions 17 pos. Collet Diameter ESX / ER 16 Speed driven tools 3x 3,450 / 2x 6,000 min/-1 Drive power - operated Tool stations 5x 0.98 kW Max. torque 3x 4 / 2x 2.3 Nm Tool carrier slide 2: Number of tool positions 13 pos. Interior Machining 4 Exterior machining 4  ...

Machine number: 313154 Operating voltage: 400 V Frequency: 50 Hz Rated current: 64 A Connection: 44 kVA Control: GRUNDIG ELTROPILOT Circulation diameter over bed track cover: 570 mm Circulation diameter over plan guide cover: 420 mm Plane travel: 220 mm Longitudinal travel: 635 mm Main spindle Spindle head diameter: 170 mm Spindle diameter in front bearing: 120 mm Spindle bore: 79 mm Chuck diameter: 200/250 mm Speed range: 25 to 5000 rpm C-axis Speed: 100/min Holding torque: 200 Nm Pitch accuracy: 0.04° Rapid traverse speed X-axis: 20 m/min Rapid traverse speed Z-axis: 24 m/min incl. 12-fold tool turret, 6 of which are driven Tailstock diameter in the front area: 80 mm Tailstock Travel: 515 mm Tailstock mount: MK 4 The machine is equipped with a tailstock as well as the tool holders located in the tool turret and a three-jaw chuck, diameter: 200 mm Reference: Hanon - Lot 25 Auction-ID:  ...

GILDEMEISTER - CTX 320 linear V5 - Main and counter spindle - Tool drive - C-axis - ShopTurn Technical details: Turning diameter max. 246 mm Turning length 600 mm Circumferential diameter over bed 400 mm Circumferential diameter over face slide 300 mm Center width 600 mm Main spindle: Speed range - main spindle max. 6,000 rpm/-1 Drive power - main spindle 16 kW Max. torque 155 Nm Spindle diameter in the front. Bearing 100 mm Spindle bore 68.5 mm Spindle nose 140H5 Sub-spindle: Speed range - sub-spindle max. 4,000 rpm/-1 Drive power - sub-spindle 7.5 kW Max. torque 48 Nm Spindle diameter in the front. Bearing 75 mm Spindle bore 37 mm Spindle nose 140H5 Tool turret: Number of driven tool stations 12 pos. Speed range - applied Tools max. 5,000 min -1 Drive power - operated. Tools 3.7 kW Max. torque 24 Nm Tool holder VDI 30 Tool shank 20 x 20 mm  ...

new controler from 2021, turning length - 1100mm, turning diameter over the bed - 400mm turning diameter over slide - 225mm, lift of the claws over the bed guide - 260mm, bed width - 320mm, support length - 520mm Offer not include other machines and parts which are visible on the photos but not belong to the machine. Auction-ID: A7-49398-17

Sub spindle Driven tools Y-axis Technical Details Drehdurchmesser max. 246 mm Drehlänge max. 445 mm Supporting Fanuc 32 iS Distance between Spitzen 665 mm Spitzenhöhe 365 mm Length diameters over bed 500 mm Length diameters over shelf sections 375 mm Standard diameter 170 - 210 mm Main spindle: Max. Drehzahl Main Spindle 6,000 min/-1 Antriebsleistung - Main spindle 12 kW Max. torque 115 Nm Spindle bearing diameter: 100 mm Spindle drilling 73 mm max. Useless rod diameters 50 mm C-Achse 0.001 ° Spindle head FL 140 h5 max. Futterdurchmesser 170 - 210 mm Futterdurchmesser ( - ) mm Gegenspindle: Max. Drehzahl Gegenspindle 6.000 min/-1 Antriebsleistung - Gegenspindle 7.5 kW Max. torque 48 Nm Spindle bearing diameter: 90 mm Spindle drilling 44.5 mm max. Useless rod diameters 37 mm C-Achse 0.001 ° Spindle head FL 140 h5 max. Futterdurchmesser 170 mm Futterdurchmesser ( - ) mm Transport: ...

Machine number: 01190000341 Operating voltage: 400 V Frequency: 50 Hz Connection: 58 kVA Rated current: 100 A Hours read: 57,730 Control: HEIDENHAIN CNC PILOT Turning length: 1000 mm Rotation diameter over bed track cover: 680 mm Rotation diameter over plane guide cover: 455 mm Plane travel: 320 mm Longitudinal travel: 1097 mm Main spindle spindle diameter: 220 mm Spindle head diameter in front bearing: 140 mm Spindle bore: 107 mm Chuck diameter: 400/500 mm Speed range: 4 - 2800 rpm C-axis Speed: up to 100 rpm Feed force in X-axis: 8 kN Feed force in Z-axis: 15 kN Rapid traverse in X: 24 m/min Rapid traverse in Z: 30 m/min incl. 12-cavity tool turret incl. the tool holders located in the tool turret incl. a three-jaw chuck from the manufacturer FORKARDT, diameter: 300 mm also a workbench with documentation, as well as a chip conveyor and an extraction system Auction-ID: A7-49089-331

Serial number: 07400003691 operating hours read: 88,040 Spindle hours read: 43,558 Spindle speed range: 3200/5000 rpm Rotation diameter: 270 mm Turning diameter: 120 mm Spindle distance: 900 mm Travel X1: 290 mm Travel Z1: 650 mm Travel X2: 180 mm Travel Z2: 650 mm Travel Y1: +- 40 mm Travel Z3: 670 mm Travel X3: 175 mm Max. rod diameter: 100/104 mm Spindle bore diameter: 118 mm Rapid traverse speed X- and Z-axis: 30 m/min Rapid traverse speed Y-axis: 15 m/min Number of driven tools per tool carrier: 12 Control: SIEMENS SINUMERIK 840 D POWERLINE incl. chip conveyor with 2 tool turrets - each with 12 tool positions main and counter spindles, as well as foot switches Attention, the machine has the following defects: -the B-axis is defective (sits on turret 1) -the guides and drives are worn according to their age-X2 axle (guide rails) runs a bit crooked in the range of 0.03 mm (would have  ...

Machine number: 01180000711 Operating voltage: 400 V Frequency: 50 Hz Rated current: 100 A Connection: 58 kVA Control: HEIDENHAIN CNC PILOT Turning length: 1000 mm Rotation diameter over bed track cover: 680 mm Circulation diameter over plan guide cover: 455 mm Plane travel: 320 mm Longitudinal travel: 1097 mm Main spindle Spindle head diameter: 220 mm Spindle head diameter in front bearing: 140 mm Spindle bore: 107 mm Chuck diameter: 315/400 mm X-axis feed force: 8 kN Z-axis feed force: 15 kN Rapid traverse X-axis: 24 m/min Rapid traverse Z-axis: 30 m/min incl. 12-fold tool turret incl. tailstock Quill diameter in the front area: 120 mm Quill stroke: 120 mm Quill holder: MK 5 Attention: the loading system of the manufacturer PROMAT shown in the photos is not included in the scope of delivery! Only the CNC lathe is sold. incl. accessories such as a rotating steady rest from the manufactu ...

; NEW

Control panel for MAHO Fraea machine 500W with Heidenhain control TNC 232; New

Keyboard for Maho machines Philips 432/9. Please note: Board and pot are not included in the offer; New

Replacement TFT monitor for MAHO machines with control of Philips CNC 432. Suitable for MAHO CNC 432/10 Philips control machines. Front panel aluminum black powder coated High quality anti-reflective glass Dimensions 400 x 308 mm front panel Technical data: TFT-LCD monitor 12.1 inch Display/Aufloessung 800 x 600 pixel brightness 400 cd/m2 Contrast ratio 500:1 Response time 8 ms Frequency 60 hz Display area 246 x 185 mm External power supply 12V Operating temperature-10 ° c + 60 ° c Power consumption of 30 W Max D-Sub 9pin connector. 2 row OSD control brightness, contrast ratio, auto adjustment Install phase position, clock, language, reset Included accessories: power adapter, Achschlusskabel 15-pol. D-Sub 24 months warranty!

Operating voltage: 380 V Frequency: 50 Hz Control voltage: 220 V Rated current: 50 A Control: PHILIPS Tool holder: SK 40 Table dimensions: 550 x 280 m with 4 grooves and a vise attached, jaw width: 125 mm Travel X-axis: approx. 800 mm Travel Y-axis: approx. 400 mm Travel Z-axis: approx. 300 mm incl. documentation Reference: Süßen - Lot 12 Auction-ID: A7-49056-260

Cabinet dimensions: H: 2000 W: 600 L: 1000 Auction-ID: A7-49302-3003

Die-sinking EDM machine Control: Heidenhain / Erocom Table 780 x 500 mm Table length 780 mm Table width 500 mm Ampere 60 / 120 A Control Heidenhain Total power requirement 14.0 KVA Machine weight approx. 4.0 t Space requirement approx. 3.0 x 2.0 x 2.1 m Auction-ID: A7-49782-429

Milling machine with - Toolmaker's table - Heidenhain digital display - Rapid traverse - Coolant system - Central lubrication - Machine feet - Incl. drawer cabinet with contents x-travel 600 mm y-travel 400 mm z-travel 400 mm Table clamping area 720 x 410 mm Spindle speeds 40 - 2000 rpm Tool holder SK 40 Total power requirement 3.0 kW Machine weight approx. 1.4 t Dimensions L x W x H 1.8 x 1.6 x 1.9 m Auction-ID: A7-49782-411

Technical data Manufacturer: LID Model: FP3NC Type: FP3NC Serial Number: 2803-2395 Control: DECKEL Dialog 3 Machine type: CNC Universal Tool Milling Machine X-travel: approx. 400 mm (Source: online) Y-travel: approx. 400 mm (Source: online) Z-travel: approx. 400 mm (Source: online) Table size: approx. 700 x 460 mm (Source: online) Tool holder: SK40 (Source: online) Quill stroke: approx. 80 mm (Source: online) Spindle speed: approx. 31.5 - 6300 rpm (Source: online) Drive power: approx. 14.5 kW (Source: online) Machine weight: approx. 1,800 - 2,000 kg (Source: online) Configuration DECKEL Dialog 3 Control Vertical milling head Horizontal spindle Machine vise Coolant Setup Tool holder SK40 WITHOUT! ATTACHED MACHINE VICE Note: No original documentation available. The technical data was researched and adopted on the basis of several matchin ...

Technical data Manufacturer: LID Model: FP3-50 Machine Type: CNC Universal Milling Machine Control: DECKEL DIALOG 12 (Grundig Elektronik) Serial Number: 2680-0141 Travel X: approx. 500 mm (Source: online) Travel Y: approx. 400 mm (Source: online) Travel Z: approx. 400 mm (Source: online) Spindle holder: SK40 / ISO40 (Source: online) Speed range: approx. 31.5 – 5,000 rpm (Source: online) Feed range: approx. 2 – 6,000 mm/min (Source: online) Rapid traverse: approx. 6 m/min (Source: online) Drive power: approx. 7.5 / 10 kW (Source: online) Table size: approx. 800 x 480 mm (Source: online) Machine weight: approx. 2,800 kg (Source: online) Configuration DECKEL DIALOG 12 CNC control Electronic handwheel Closed protective cabin Coolant Setup Vertical milling spindle Integrated control cabinet CRT Monitor WITHOUT! Machine vise Note N ...

DECKEL FP1 Universal Tool Milling Machine - Overhauled in 1999 by HARICH Equipped with work table, machine vice and separate control cabinet Tool cabinet with various tools, milling cutters, clamping devices, tool holders, drills and other machine accessories Instruction manual and technical documentation are also available Auction-ID: A1-49712-12

Technical data Manufacturer: Friedrich Deckel Aktiengesellschaft Type: FP1 Control Type: FP1-2101 Year of Make: 1981 Operating voltage: 380 V, 3-phase Frequency: 50 Hz Rated current: 13 A Fuse: 35 A slow blow Configuration HEIDENHAIN 3-axis digital display for X/Y/Z T-slot work table Vertical milling head Work light Separate control/electrical cabinet Remarks The machine comes from a well-maintained company liquidation and was actively used in ongoing production until the end. Auction-ID: A7-49302-192

Serial number: 815 Operating voltage: 380 V Frequency: 50–60 Hz Rated current: 14 A Table dimensions: 500 x 200 mm Universal part-head tip height: 170 mm Tailstock tip height: 120 mm (with intermediate support: 170 mm) Max. workpiece length between tips: 336 mm Workpiece diameter with cantilevered fastening: approx. 600 mm Max. tip length: 950 mm Inner cone Partial spindle: Morse 4 / Unified 40 T-slots: 12 mm (machine stand), 8 mm (other elements) Sharpening stroke: 190 mm Transverse movement Tool holder: 100 mm Vertical movement Grinding head: 325 mm Tool holder: 230 mm Divider on tool slide: 330 mm Grinding head bracket / tool holder / grinding head / universal apparatus: 360° Three-phase motor: 0.7 / 0.85 kW DC motor: 1.3 kW Spindle speed: 4000 / 8000 rpm (double priority) Infinitely variable DC: 2000 – 10000 rpm Incl. two-axis digital display Extensive accessories to match the  ...

Machine number: 2036 Operating voltage: 400 V Frequency: 50–60 Hz Rated current: 10 A Connection: 2 kW Grinding media diameter: max. 125 mm Speed: 2000–10000 rpm Table dimensions: 500 x 200 mm Part head tip height: 170 mm Tailstock tip height: 120 mm (with intermediate support: 170 mm) Workpiece diameter between tips: 338 mm Workpiece diameter cantilevered: 600 mm Length between tips: 950 mm Inner taper Partial spindle: Morse 4 / Unified 40 T-slots Machine stand: 12 mm T-slots Other elements: 8 mm Sharpening stroke: 190 mm Transverse movement Tool holder: 100 mm Vertical adjustment Grinding head: 325 mm Axial grinding spindle adjustment: 5 mm Tool holder: 230 mm Grinding head bracket: 800 mm Dividing head on tool slide: 330 mm Grinding head bracket: 360° Grinding heads: 360 °Tool holder: 360° Universal apparatus (horizontal/vertical): 360° Spiral sharpening/chipping Pitches: 0.80 ...

Technical data Manufacturer: Friedrich Deckel Aktiengesellschaft Type: FP4M Machine No.: 2203-8891 Control: HEIDENHAIN TNC 123 Operating voltage: 400 V, 3-phase Travel X/Y/Z: up to 500 / 400 / 400 mm (Source: Online research) Spindle speed: 18 steps, 50–2,500 min⁻¹ (Source: Online research) Tool holder: SK 40, M16 (Source: online research) Quill stroke: 90 mm (Source: online research) Feed rate: 8–630 mm/min (Source: Online research) Rapid traverse: 1,300 mm/min (Source: Online research) Clamping table: 800 x 460 mm, 7 T-slots (source: online research) Max. table load: approx. 400 kg (source: online research) Machine weight: approx. 1,450 kg (Source: Online research) Configuration Universal tool milling machine with HEIDENHAIN TNC 123, active/positioning function in X, Y, and Z, T-slot clamping table, coolant device, mobile control panel, and DECKEL supports.  ...

Technical data Manufacturer: Friedrich Deckel AG Type: FP 3 ACTIVE Machine Number: 2201-4777 Machine Type: Tool Milling Machine Control: DECKEL type FP3-2201 Control Serial Number: 3628 Year of control: 1980 Operating voltage: 380 V / 3-phase Frequency: 50 Hz Rated current: 21 A Speed selection: detectable up to 2,500 rpm Configuration Equipped with HEIDENHAIN position indicator for X/Y/Z, vertical milling head, T-slot work table and separate control unit. Remarks The machine comes from a well-maintained company liquidation and was actively used in ongoing production until the end. Auction-ID: A7-49302-189

Serial number: 4038 Operating voltage: 380 V Frequency: 50 Hz Rated current: 13 A Speed range: 40 – 2000 rpm Tool holder: SK 40 Feed range: infinitely adjustable, all axes: 5 – 500 mm/min Creep traverse: 4 mm/min Rapid traverse: 1200 mm/min Range of movement: X: 290 mm / Y: 150 mm / Z: 330 mm Vertical milling head can be moved on spindle block: 100 mm Movement spindle: Rotation of the dial for longitudinal movement: 4 mm Transverse and vertical movement: 2.5 mm Graduation of the scale disc: 0.02 mm Table dimensions: 600 x 210 mm with 4 grooves Reference: Showroom Auction-ID: A7-49056-30

Technical data Manufacturer: Friedrich Deckel Aktiengesellschaft Type: FP1 Active (Source: Online Research) Year of adaptation control: 1989 Serial Number Adjustment Control: 25955 Operating voltage: 3~380V, 50/60Hz Rated current: 11 A Control voltage: 24 V DC Control/display: HEIDENHAIN TNC 113, 3 axes X/Y/Z (Source: Online research) Spindle speed: 40–2,000 min⁻¹ (Source: online research) Tool holder: SK40 (Source: online research) Configuration Active digital display with positioning function (Source: Online research) Swivelling vertical milling head T-slot work table Separate adjustment control / control cabinet Machine Light Note No technical documentation available. information researched to the best of my knowledge and belief. No guarantee is given for completeness and correctness. The article comes from a company liquidation and was actively used i ...

Technical data Manufacturer: Friedrich Deckel, Munich Type: FP1 Design: conventional universal tool milling machine Travel X / Y / Z: 300 / 150 / 340 mm (Source: Online research) Spindle speed range: 40–2,000 rpm, 16 steps (source: online research) Feed range: 10–500 mm/min, 16 steps (source: online research) Tool holder: standard taper 40 for normal version; Special version Morse taper 4 possible (Source: Online research) Clamping surface: 195 × 600 mm for normal version (source: online research) Drive power: 1 / 1.4 kW in the researched version (source: online research) Net weight: approx. 660 kg including control cabinet (source: online research) Configuration With vertical milling head, T-slot work table, manual handwheels, mechanical speed and feed selection as well as CEE connection plug as shown. Remarks The machine comes from a plant closure, w ...

Machine Type Tool and Cutter Grinder Manufacturer Feinmechanik Michael Deckel Model SO Country of Origin Germany Serial Number 81-21019 (as visible) Machine Category Precision tool grinding machine Max Tool Diameter approx. 20 – 30 mm Max Tool Length approx. 200 mm Grinding Length approx. 100 mm Collet Type Deckel collet system Collet Range approx. Ø3 – Ø20 mm Grinding Wheel Diameter approx. 100 – 125 mm Spindle Speed approx. 5,000 – 6,000 rpm Motor Power approx. 0.25 – 0.5 kW Axis Travel Longitudinal (X) approx. 150 mm Cross (Y) approx. 100 mm Vertical (Z) approx. 100 mm Workhead Rotation 360° Workhead Tilt ±15° to ±30° Table & Workholding Item Specification Table Type Precision slide table Tool Holding Collet chuck Indexing Manual indexing head Adjustments Fine micrometric adjustments Electrical Data Item Specification Power Supply 220 / 380 V (depending on versi ...

Machine Brand: Friedrich Deckel, Munich Type: FP1 Serial Number: 35968 Features: universal milling machine with vertical and horizontal spindle head, adjustable height, cross table with handwheels on X/Y, protective cover/splash guard above the spindle Speeds and feeds (type plate cutting data) Horizontal spindle speeds (positions I/II): 60-1200 rpm in multiple steps (60, 95, 120, 150, 190, 235, 300, 375, 475, 600, 750, 1200) Vertical spindle speeds: 95-1900 rpm in steps (95, 120, 150, 190, 235, 300, 375, 475, 600, 750, 950, 1200, 1900) Feed (mm/min): from 0 to 475 mm/min in several steps, adjustable both horizontally and vertically via lever positions Cutting speed diagram (m/min) present on nameplate for cutter diameters 4 to 130 mm Associated fate Cabinet with attachments/parts is offered with this machine Auction-ID: A3-46152-11324

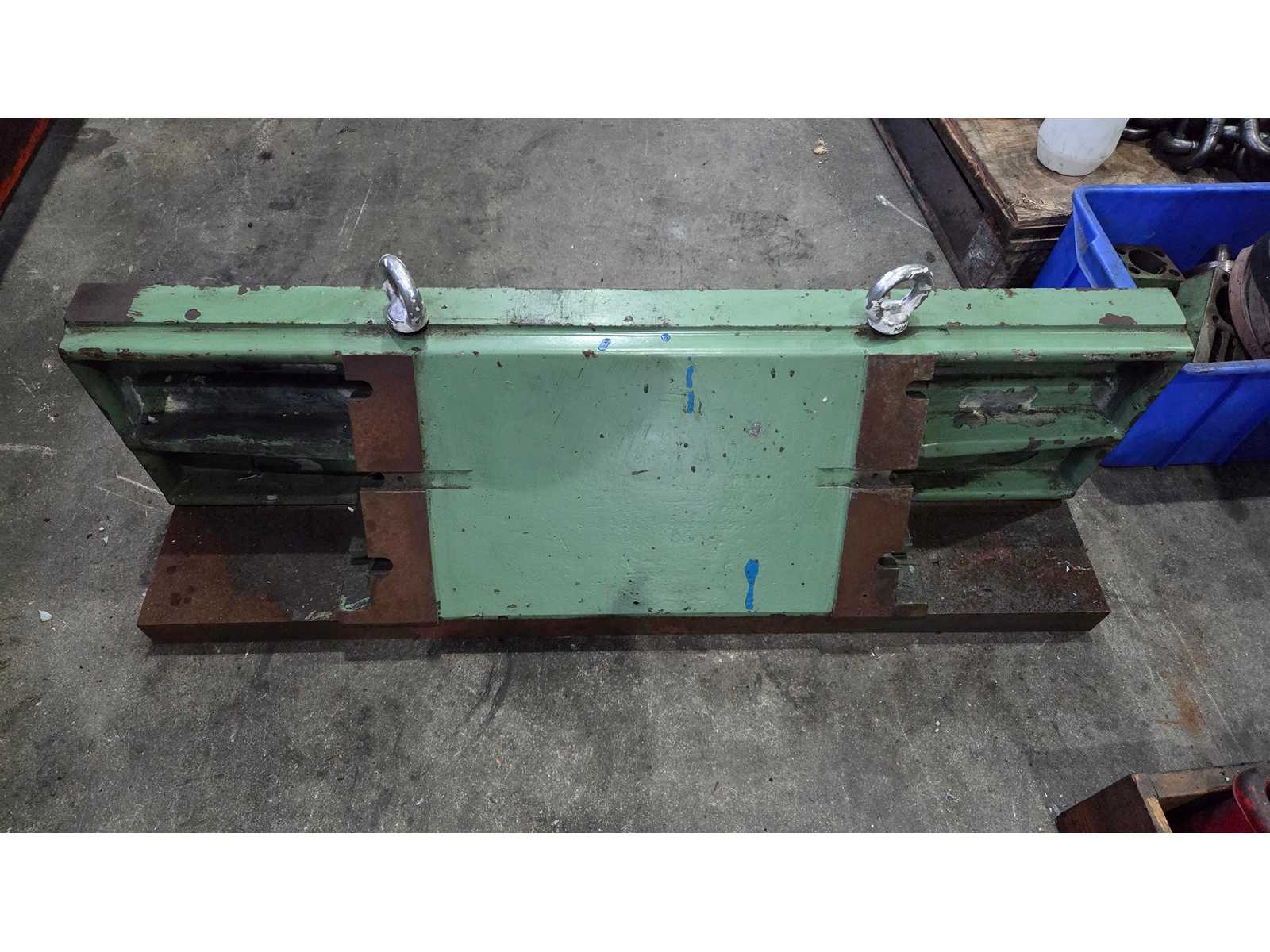

Deckel FP2 Milling Machine Component Type: Milling machine component Manufacturer: Deckel Model: FP2 Length: approx. 100 cm Height: approx. 31 cm Functionality not tested This item is delivered loaded on truck. Dismantling and loading costs are specified as additional costs. Auction-ID: A1-49922-59
