turning diameter: 680 mm turning length: 600-635 mm control: Siemens total power requirement: kW weight of the machine ca.: 6500 kg dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
Key data: 1600 mm, 1250 mm, 1000 mm
Vertical machining center Manufacturer: DMG Type: DMU 160 P duoBLOCK Year of Make: 2007 Control: Heidenhain ITNC 530 Axes: 5-axis simultaneous Travels X: 1600 mm Y: 1250 mm Z: 1000 mm Tool changer: 60 tool positions Speed: 18,000 rpm - HSK 63 - Probes - Tool measurement Blum Laser - Coolant tank 980 litres - IKZ 40 Bar - Chip conveyors - Electronic handwheel - Operating mode 4 - Preparation of 3-D Quickset (software) - Universal milling head with controlled A-axis Machine from Space Institute. Excellent condition. Errors and prior sale excepted.
Horizontal turning machine manufactured in 2006. This DMG GILDEMEISTER CTX 310 features a maximum spindle speed of 6000 rpm and a tool turret with 12 stations. With a power capacity of 24 kVA, this machine is designed for efficient performance. If you are looking to get high-quality turning capabilities, consider the DMG GILDEMEISTER CTX 310 machine we have for sale. Contact us for further details.
turning diameter: 390 mm turning length: 2250 mm control: Sinumerik 840D swing diameter: 610 mm cross movement. (x-axis): 605 mm longitudinal traverse (z-axis): 1.870 mm y-axis: 210 mm b-axis: 240 ° Axial travel (X2) / Longitudinal travel (Z2): 267/1.840 mm Longitudinal travel (Z3): 1.840 mm main spindle: - clamping chuck diameter: 250-315-400 mm bar material dia.: max 82 mm spindle head: Ø 220H5 spindle bore: Ø 118 mm Clamping tube inner diameter: 82 mm Diameter in front bearing: 180 mm Counter spindle: - clamping chuck diameter: 250-315-400 mm bar material dia.: 92 mm spindle head: Ø 220H5 spindle bore: Ø 118 mm Clamping tube inner diameter: 104 mm Diameter in front bearing: 180 mm Main spindle drives left and right: - power requirement: 45/47 kW speed area: 20 - 3.200 1/min Buckling speed: 650 1/min torque: 650/ 1.080 Nm C-axis speed: 3.200 1/min Torque C-axis: 660 1/min Partial ...
CNC lathe Gildemeister Twin 65Y RG2 Year of Make: 2003 Control Siemens 840D CNC Twin Spindle Turning Center Design Main/Sub-Spindle Yes Turret 2 × 12 stations Tool holder VDI 30 Powered Tools Yes Y-axis Yes (upper turret) C-axis main and counter spindle Workspace Feature Value Max. turning diameter 250 mm Max. turning length 650 mm Max. turning Ø over bed approx. 340 mm Bar passage 65 mm Main spindle Feature Value Speed 20–5,000 min⁻¹ Power 35 kW Gjbr U Uozl Dy Nek Rhsud Torque 370 Nm C-axis 0.001° Sub-spindle Feature Value Speed 20–5,000 min⁻¹ Power 35 kW Torque up to 370 Nm Bar passage 65 mm C-axis 0.001° Travels Axis Value X1 300 mm Z1 650 mm Y 80 mm (±40 mm) X2 180 mm Z2 650 mm Tool turret Number of stations 12 + 12 Tool holder VDI 30 Driven tools 4,000 min⁻¹ Power tool drive 11 kW Torque tool drive 28 Nm Chip conveyor Hig ...
Key data: 210 mm, 305 mm, 5000 1/min
12-station turret (non-driven) Tool holder MK 3 Chip conveyor Rod Feed Pipe IRCO DS 34.8 (YOC 2013) Dimensions LxWxH: - Machine 4000 x 1700 x 1700 mm - Feed pipe 5500 x 1300 x 1500 mm Total weight: approx. 4,000 kg
- Forkardt chuck main spindel 250 mm - Forkardt chuck sub spindel 250 mm - Chip conveyor - Filtration with IKZ and Paper filtration - New Main spindel beaering for 12k in 2022 - Excellent maintained machine under power - Full set books manuls / books
turning diameter: . mm turning length: . mm control: 2x 840 D : Kühlmittelsystem chip conveyor: ja kW generator - rated current: 95,00 A connected load: 65,00 kW total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
turning diameter: 325 mm turning length: 600 mm control: Siemens type: 840D Turret 12-fold, 12 stations: live tooling: turning speeds: 5000 U/min power capacity: 25 kW y-axis: mm c-axis: total power requirement: 35 kW weight of the machine ca.: 6,5 t dimensions of the machine ca.: 3,5x2,5x2,1 m Tool speed: 4500 rpm X-axis rapid traverse: 60 m/min Z-axis rapid traverse: 45 m/min Machine with Siemens 840 D powerline with Shopturn - C and Y axes, driven tools - IRCO ILS-RBK bar loader - Coolant system with internal coolant supply - Paper belt filter - Partial hollow clamping device - Oil mist separator - Counter spindle - Parts catcher The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale, Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space ...
turning diameter: 710 mm turning length: 2000 mm control: Heidenhain type: Manuel Plus turning diameter over slide: 410 mm x-travel: 385 mm turning speeds: 9-1800 U/min transmission ratio: 2 drive capacity - workpiece: 22 kW Torque: 2500 Nm spindle diameter: 160 mm spindle passage: 92 mm total power requirement: 49 KVA weight of the machine ca.: 5,6 t dimensions of the machine ca.: 5x2x2,2 m Spindle nose DIN 55027/11 Toolholder: Type MultiFix C Tool holder Capto C4 Tailstock: Tailstock mount MK 6 Quill diameter 110 mm Quill stroke 210 mm Feed rates: Rapid traverse (X/Z) 8/10 m/min Maximum feed rate 5,000 mm/min Maximum feed force 2,000 daN The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale, Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage s ...
turning diameter: 400 mm turning length: 600 mm control: swing diameter: 600 mm spindle bore: 73 mm chip conveyor: total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale, Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
turning diameter: 290 mm turning length: 450 mm control: CNC spindle passage: 65 mm turning diameter over slide: 185 mm turning speeds: 3000 U/min Tool changer: 12 work piece power: VDI 40 live tooling: chip conveyor: kW coolant: swing diameter: 600 mm total power requirement: 45 kW weight of the machine ca.: 4,7 t dimensions of the machine ca.: 4,5x2,5x2,3 m The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale, Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to you ...
turning diameter: 320 mm turning length: 750 mm control: Siemens type: 810DL CCUO turning diameter over slide rest: 150 mm cross movement: 185 mm spindle passage: 52 mm turning speeds: 14-3550 U/min transmission ratio: 2 quill stroke: 120 mm rapid traverse: 6 m/min main drive motor: 7 kW 3-jaw-chuck diameter: 200 mm total power requirement: 10 kW weight of the machine ca.: 2 t dimensions of the machine ca.: 2,6x1,44x1,44 m 8950 turning hours The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale, Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further ...
turning diameter: 320 mm turning length: . mm control: Siemens type: . CCUO turning diameter over slide rest: . mm cross movement: . mm spindle passage: . mm turning speeds: . U/min transmission ratio: . quill stroke: . mm rapid traverse: . m/min main drive motor: . kW 3-jaw-chuck diameter: . mm total power requirement: . kW weight of the machine ca.: . t dimensions of the machine ca.: . m The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale, Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appoin ...
turning diameter: . mm turning length: . mm control: . type: . CCUO turning diameter over slide rest: . mm cross movement: . mm spindle passage: . mm turning speeds: . U/min transmission ratio: . quill stroke: . mm rapid traverse: . m/min main drive motor: . kW 3-jaw-chuck diameter: . mm total power requirement: . kW weight of the machine ca.: . t dimensions of the machine ca.: . m The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale, Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. ...
Guild Master CTX 510 Control: Siemens 840 D with Shop - Turn Year of Make: 2004 Travel X / Z: 300 / 1050 mm Revolver: 12-speed Tool holder: VDI 40 Bsbmezmxz Roknrzodf Spindle speed up to: 3,500 rpm Bar passage: 90 mm Quill travel: 150 mm Tailstock Cooling 20 bar Chuck size 315 mm Spindle hours approx: 14,000 Batch sizes from 0 - 5 were produced on the machine Programming was done on the machine
X-axis: 635mm, y-axis: 510mm, z-axis: 460mm, clamping surface dimensions: 790x560mm, max. spindle speed: 8000rpm, control: Heidenhain TNC 620, connected load: 17kVA, spindle motor drive power: 8.4kW at 100% duty cycle, length: 3290mm, width: 2920mm, height: 2650mm, weight: 3.8t, operating hours: 27,125h, spindle hours: 8668h. Equipment: SK 40 DIN69871 tool holder, 20-position tool changer, coolant system 3.7bar, DMG TS 649 electronic touch probe, Heidenhain TT140 tool measurement system, Lehmann FA-510L-485 A-axis indexing unit s/n A756, four-jaw chuck, Vischer & Bolli zero-point clamping system, chip conveyor, chip cart, workbench with hand tools, milling and drilling tools, platform trolley for the indexing unit, tools and accessories, various tool holders approx. 36 pieces, various accessories, spare parts and documentation. An on-site inspection is possible.
X-axis travel: 220 mm, Z-axis travel: 635 mm, swing diameter over the bed cover: 570 mm, swing diameter over the cross-slide cover: 420 mm, speed range: 25-5,000 rpm, spindle bore diameter: 65 mm, chuck diameter: 250 mm, tailstock travel: 550 mm, main spindle drive power at 100% duty cycle: 21 kW, maximum torque: 240 Nm, C-axis holding torque: 200 Nm, control system: Heidenhain EP 4290 TP, connected load: 44 kVA, length: 3,250 mm, width: 1,750 mm, height: 2,300 mm, weight without chip conveyor: 5.3 t, operating hours: 16,930 h. Equipment: Hydraulically adjustable three-jaw chuck with various interchangeable jaws, MK4 tailstock quill, 12-station VDI 30 disc turret with 6 driven tool stations, tool measuring arm, workpiece pick-up device, coolant system, chip conveyor, coolant mist extraction system, various tool holders, Drehwerk turning and milling tools including driven tools, two tool ...
Turning diameter: 500 mm, swing diameter over the cross slide: 290 mm, turning length: 1500 mm, spindle speed: 8 to 2800 rpm with three gear ranges, spindle bore diameter: 70 mm, three-jaw chuck diameter: 250 mm, tailstock quill taper: MT4, quill travel: 180 mm, connected load: 24 kVA, control system: Heidenhain Manual Plus, length: 3200 mm, width: 1700 mm, height: 1800 mm, weight: 3.2 t, operating hours: 42,733 h. The machine is equipped with a manual tailstock, chuck guard, coolant system, Multifix tool holder, various tool holders, various drill chucks, various turning and drilling tools, interchangeable jaws for the three-jaw chuck, a depth stop for the main spindle, a tool cabinet and documentation. The machine was completely overhauled by the manufacturer in 2010. An on-site inspection is possible.
turning diameter: max. 560 mm turning length: 600 mm control: 840D powerline Siemens greates pass round over bed: 680 mm Swing dia. over traverse guideway: 565 mm centre distance: 620 mm Main spindle:: turning speed range - main spindle: 20 - 5.000 min/-1 power capacity - main spindel: 25 / 37 kW max. Torque: 390 Nm spindle nose: 170H5 spindle bearing diameter: 120 mm usable bar diameter: 65 mm max. chucking diameter: 250 mm C-Axis: 0,025° / 360 ° Subspindel:: Spindle speed range subspindle: 20 - 7.000 min/-1 power capacity - Sub spindle: 25 / 33 kW max. Torque: 213 Nm spindle bearing diameter: 90 mm spindle bore: 57 mm spindle nose: 140H5 C-Axis: 0,025° / 360 ° turret:: number of toolpositions: 12 pos. Number of driven toolspositions: 12 pos. Spindle speed - driven tools: max. 4.500 min -1 power capacity - driven tools: 12,2 kW tool taper: VDI 40 DIN 69880 Tool dimensions with sq ...
turning diameter: 200 mm turning length: 635 mm control: SIEMENS 840D Powerline greates pass round over bed: 250 mm spindle turning speed range: 20-7000 U/min turret head: 2x 12 weight of the machine ca.: 10 t Y- & B- axes Misc. accessories more details on www.marcels-maschinen.ch The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
turning diameter: 400 mm turning length: 600 mm control: Turn Plus CNC Pilot 3190 total power requirement: 44 kVA weight of the machine ca.: 5 t dimensions of the machine ca.: 6 2,5 2 m Machine has been in use until now ( 2-axis turning ) Known defects: - Driven tools without function - Tailstock leaking - out of service - Sporadic problems hydraulics / leaking The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
GILDEMEISTER CTX 200 ist eine CNC Drehmaschine mit hoher Präzision, ausgelegt für große Genauigkeit und Zuverlässigkeit. Arbeitsbereiche: Spitzenhöhe 298 mm, Umlaufdurchmesser 440 mm, Drehdurchmesser über Planschlitten 210 mm, Spindelbohrung 56 mm, maximale Drehlänge 305 mm, Verfahrwege Z 350 mm, X 160 mm; Revolver 12 Positionen, 12 angetriebene Werkzeuge. Technische Hauptdaten: Drehzahlen 25–5000 t/min (stufenlos), Spindelleistung 7,5/11 kW, Leistung drehende Werkzeuge 3 kW, Drehmoment 58/84 Nm (Spindel), 5,7 Nm (Werkzeuge), Eilgang X 12 m/min Z 16 m/min, Anschluss 3x380 V 50 Hz, Gewicht ~3200 kg, Abmessungen 2600×1700×1700 mm, Geräuschpegel 77 dB(A), Gesamtleistung 34 kVA. Zubehör: 3-Backenfutter Ø140 mm, Satz weiche Backen, Spannzangenaufnahme und Satz Spannzangen, hydraulischer Reitstock, Zentralschmierung, Drehspitze, RS232-Schnittstelle, Bohrfutter, Fußpedal, Satz We ...
GILDEMEISTER CTX 400 is a CNC Drehmaschine, konzipiert für Präzision, hohe Genauigkeit und Zuverlässigkeit. Leistungsdaten: Drehdurchmesser über dem Bett 500 mm, Drehdurchmesser 290 mm, Drehlänge max. 640 mm; Längsweg Z 640 mm, Planweg X 212 mm; Revolver 12 feste Werkzeuge; Spindelbohrung 66 mm, Werkzeugaufnahme Ø30 mm (DIN 69880). Technische Daten: 25–5000 U/min (stufenlos), Spindelleistung 22 kW, Drehmoment 420 Nm; Pinolenhub 100 mm (Ø80), Druck 8 kN; Vorschübe bis 8000 mm/min (Z), 4000 mm/min (X); Eilgang X 10 m/min, Z 15 m/min; Anschluss 3x400 V 50 Hz, Gesamtleistungsbedarf 50 kVA; Gewicht ~5100 kg; Abmessungen 3400×1940×1700 mm. Zubehör: Beleuchtung, Kühlmitteleinrichtung, LNS Quick Load Servo 2 Lademagazin, Späneförderer, Satz Werkzeughalter. Erreicht enge Toleranzen; geeignet für Automotive, Luft- und Raumfahrt, Medizintechnik, Uhrmacherei und Maschinenbau. Techn ...
GILDEMEISTER CT 20 ist ein Zubehör, ausgelegt für Präzision, hohe Genauigkeit und Zuverlässigkeit. Angaben zu Arbeitsbereichen (Durchmesser, Module, Verfahrwege, Werkstückmaße) oder technischen Daten (Spindeldrehzahl, Vorschub, Stromversorgung, Abmessungen, Gewicht) liegen nicht vor. Es unterstützt das Erreichen enger Toleranzen und eignet sich für Branchen wie Automobil, Uhren, Werkzeugmaschinenbau, Luftfahrt und Medizintechnik. Technische Daten ohne Gewähr
CNC Lathe Manufacturer: Gildemeister Type: CTX 310 Engine No.: 8042942713C Year of Make: 2008 Control: Heidenhain IT Circumferential diameter: 500 mm Spindle Passage: 65 Drive power: 40/ 100% ED: 16/12 KW Speed range from – to: 25-6000 rpm Weight approx.: 3500 Kg - 12-speed revolver - VDI 30 - Chip conveyors - C-axis - Powered tools 12 stations - Package bar machining - LNS QuickLoad Servo 3 short loader - Tailstock - Hainbuch ToplusMini Axzug 65 Errors excepted

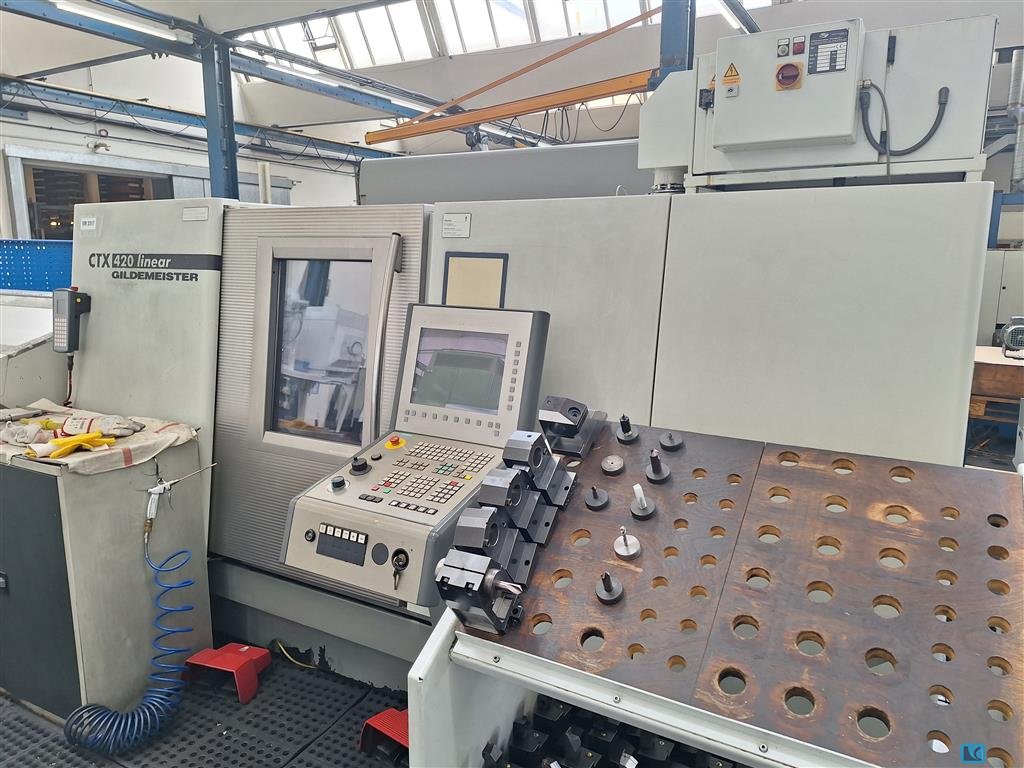

CNC Lathe Manufacturer: Gildemeister Type: CTX 420 Linear V4 Machine No.: 02260005181 Year of Make: 2005 Control: Siemens 840D ShopTurn Circumferential diameter: 680 Chuck diameter: 250 Drive power: 40/ 100% ED: 37/25 KW Speed range from – to: 20-5000 rpm Weight approx.: 6500 Kg - 12-speed revolver - VDI 40 - C-axis - Y-axis - Powered tools 12 stations - Chip conveyors - Tailstock - SMW Autoblok 250 BH Errors excepted
- Control: SIEMENS SINUMERIK 840-C - Max. rod Ø: 65 mm - C-axis - Turntable main spindle: 31 - 6,300 rpm - Turret 1: 8 stations, 4 of which are powered - Revolver 2: 8 stations, 4 of which are powered - Speed applied Operating time: 4,000 1/min - Both turrets with internal cooling - High-pressure system - Chip conveyors - Bar feeder IRCO SiMag 65 - Max. rod length: 3200 mm Dimensions LxWxH: - Machine 3400 x 1700 x 1800 mm - Bar feeder 4000 x 1000 x 1400 mm - Chip conveyor 3000 x 1100 x 1600 mm Total weight: approx. 6,000 kg
CNC bar-fed lathe, year 2001, CNC 18i-T. Used machine in good condition. More info & price on IndustrialBuyer.
CNC bar-fed lathe, year 2008, CNC 840D powerline. Used machine in good condition. More info & price on IndustrialBuyer.
turning diameter:640 / 400 mm turning length:1500 mm control:Siemens 840 D Powerline Travel turret No.1 (milling spindle) x/y/z:550 / 180 (±90) / 1585 mm Swivle angle milling spindle (B-axis):±120° interpol. ° Rapid traverse feeds turret 1 (milling head) x/y/z:40/24/60 m/min RPM milling spindle:12000 1/min power capacity - milling spindle:12 / 23 kW Torque of milling spindle:100 Nm Tool magazine for milling spindle (turret 1):120 HSK-A 63 Tool change time tool/tool, milling spindle:1,6 s Spindle 1 RPM:4000 1/min Spindle 1 power:36/ 45 kW Spindle 1 Torque:730 Nm Spindle 1 max. bar diameter:90 Spindle 2 RPM:4000 1/min Spindle 2 power:36 / 45 kW Spindle 2 torque:730 Nm Spindle 2 max. bar diameter:90 c-axis:0,001 ° Travel turret 2 x:225 mm Travel Turret 2 z:1595 mm RPM of rotary tools turret 2:4000 1/min no. of tools in turret 2:12 VDI 40 high-pressure pump:20 bar total power requiremen ...
turning diameter:160 mm turning length:300 mm control:Siemens 840D Spindle 1 Power:22 kW Spindle 1 RPM:5000 1/min Spindle 1 max. bar diameter:65 Spindle 1 Torque:150 Nm Spindle 2 power:16,8 kW Spindle 2 RPM:5000 1/min Spindle 2 torque:100 Nm Travel for pick up of 2nd Spindle:W2=690 mm dimensions of the machine ca.:´4,5x2,0x2,3 m weight of the machine ca.:9 t CNC turning center with 3 turrets with rotary tool drives and 2 spindles. There is an internal coolant system for the turrets with individual pumps
turning diameter:120 mm turning length:650 mm weight of the machine ca.:11 t dimensions of the machine ca.:5,032 x 3,048 x 2,445 m Gildemeister MF Twin 65-II lathe with loading automation. This machine is suitable as a counter spindle machine for 4-axis machining on the main and counter spindles, complete machining (turning, drilling, milling, Y-axis, B-axis) of bar and shaft parts.
turning diameter:120 mm turning length:650 mm weight of the machine ca.:11 t dimensions of the machine ca.:5,032 x 3,048 x 2,445 m max. swing diameter:250 mm Gildemeister MF Twin 65-II lathe with loading automation. This machine is suitable as a counter spindle machine for 4-axis machining on the main and counter spindles, complete machining (turning, drilling, milling, Y-axis, B-axis) of bar and shaft parts.
turning diameter:145 mm turning length:210 mm total power requirement:40 kW swing diameter:145 mm Spindle bore sp. 1:56 mm Spindle bore sp. 2:56 mm swing diameter over face slide:145 mm greates pass round over bed:145 mm RPM Main Spindle:7.000 1/min number of workpiece supports:12 Shank diameter:25 mm C-axis RPM:2.000 1/min Chuck diameter spindle 1:140 mm Chuck diameter Spindle 2:140 mm Number of tools:12 fach St. Tool bore:VDI 25 Shank diameter:25 mm weight of the machine ca.:5.300 kg dimensions of the machine ca.:5.000 x 4.100 x 2.050 mm Slide path flat: X1, X2, X3: 220mm, 120mm ( 145mm ) Longitudinal slide travel: Z1, Z2, Z3: 320mm, 345mm, 380mm Vertical slide travel Y1: +/- 30mm Longitudinal spindle travel Z3: 380mm Clamping tube inner draw tube 46mm diameter Speed range main drive 1+2 up to 7,000 rpm Speed of driven tools up to 6,000 rpm Main and counter spindle collet chuck 1 axial ...
turning diameter:570 mm turning length:635 mm travel -x axis:220 mm travel -z axis:635 mm Torque:240 Nm feed::X: 20m/min; T: 24m/min disc turret:12 fach with live tooling:6 fach main spindle speeds::25-25.000 dimensions of the machine ca.:3210 x 1750 x 1750 mm weight of the machine ca.:5.300 t C-axis
turning diameter:500 mm turning length:1000 mm control:MANUAL PLUS Grundig total power requirement:24 kVA weight of the machine ca.:2650 kg dimensions of the machine ca.:2500 x 1750 x 1850 mm swing diameter over face slide:290 mm chuck:Ø max. 260 mm cross movement:260 mm spindle head:DIN 55027 Größe 8 spindle bore diameter:70 mm rapid travel - longitudinal/face:8 /6 m/min spindle speeds::8 - 2800 tailstock travel:180 mm tailstock quill taper MT:5 Documents:vorhanden
turning diameter:500 mm turning length:1000 mm control:MANUAL PLUS Grundig total power requirement:24 kVA weight of the machine ca.:2650 kg dimensions of the machine ca.:2500 x 1750 x 1850 mm swing diameter over face slide:290 mm chuck:Ø max. 260 mm cross movement:260 mm spindle head:DIN 55027 Größe 8 spindle bore diameter:70 mm rapid travel - longitudinal/face:8 /6 m/min spindle speeds::8 - 2800 tailstock travel:180 mm tailstock quill taper MT:5
turning diameter:325 mm turning length:600 mm total power requirement:35 kW spindle drive:25 kW spindle turning speed range:5000 U/min speeds of tool:4500 U/min rapid traverse X-axis:60 m/min diverse toolholders:VDI 40 rapid traverse Z-axis:45 m/min weight of the machine ca.:6,5 t dimensions of the machine ca.:3,5 x 2,5 x 2,1 m Machine with SIEMENS 840 D control power line with shopturn - C and Y-axis, driven tools - bar loader IRCO ILS-RBK - coolant device with coolant throough revolving head - Revolver - counter spindle - chip conveyor - collet clamping - part catcher
Operating voltage: 400 v Ma.Nr.: 41636 HEIDENHAIN positioning and control TNC 131 / 135 Complete Dokunnetation (operating instructions, technical plans) exists. Errors excepted!
Table clamping surface: 600 x 1100 mm traverse path x: 800 mm traverse path y: 450 mm traverse path z: 500 mm Quill stroke: by hand approximately 50 mm of spindle speeds: 63-3150 rpm stufenl feeds. adjustable: 0,1-1500 mm / min rapid traverse: x/y/z 4.5/2,6/3 m / min. Supply: 380 V, 5.5 kW space: 3000 x 2500 x 2030 mm weight: 4000 kg
Table clamping surface: 630 ø mm traverse path x: 600 mm traverse path y: 450 mm traverse path z: 500 mm Quill stroke: hand 80 mm spindle retainer: ISO 40 spindle speeds: 20-3150 rpm stufenl feeds. adjustable: 1-3000 mm / min rapid traverse rate: 4 m / min. Connection: 380V kW space: 2000 + 850 x 2000 x 2000 mm weight: 3300 kg
Stroke x: 600 mm traverse path y: 400 mm traverse path z: 400 mm spindle retainer: ISO 40 spindle speeds: 80-4000 rpm stufenl feeds. adjustable: 0,1-1500 mm / min rapid traverse: x & y/z 4/2.5 m / min. Supply: 380 V, 16 kVA kW space: 2450 x 2200 x 1900 mm weight: 2250 kg
Table clamping area: 560 x 240 mm x-way: 300 mm y-way: 275 mm z-way: 200 mm Spindle holder: ISO 40 Spindle speeds: 40 - 2000 rpm Operating voltage: 380 V Total power requirement: 1.5 kW Space requirement: 1200 x 1100 x 1700 mm Weight: approx. 750 kg
MAHO MH-700 with numeric control X, Y Table size: 800x300 Working area: X-450,Y-250,Z-300 Spindle taper: MK3 Feed range: 7-250mm/min Vertical head swiveling 90 degreess Power: 3KW Dimensions: 1300x1200x1700
Universal - Swivel - Tilting table for MAHO MH 1000 Clamping area: 1050 mm x 630 mm The Universal - Swivel - Tilting Table is in good condition
DATA ON THE MACHINE Machine type: Handwheel Manufacturer: MAHO Model: CNC Condition: ready for use (used) Price 400 â?¬ FP net plus VAT Location Warstein , Germany Reference M-MAH-1119-6 Description We offer you a used handwheel from the manufacturer MAHO Nterv suitable for e.g. MAHO MH700 Worked flawlessly up to the removal Our offer is aimed at persons who are covered within the meaning of the Trade Code in accordance with Section 14 GewO. The offer is subject to change, intermediate sale reserved. Please provide your full contact details in order to receive an offer with our Terms and Conditions of Payment. Mistakes in the descriptions and offers are reserved!
