deckel maho gildemeister used for sale

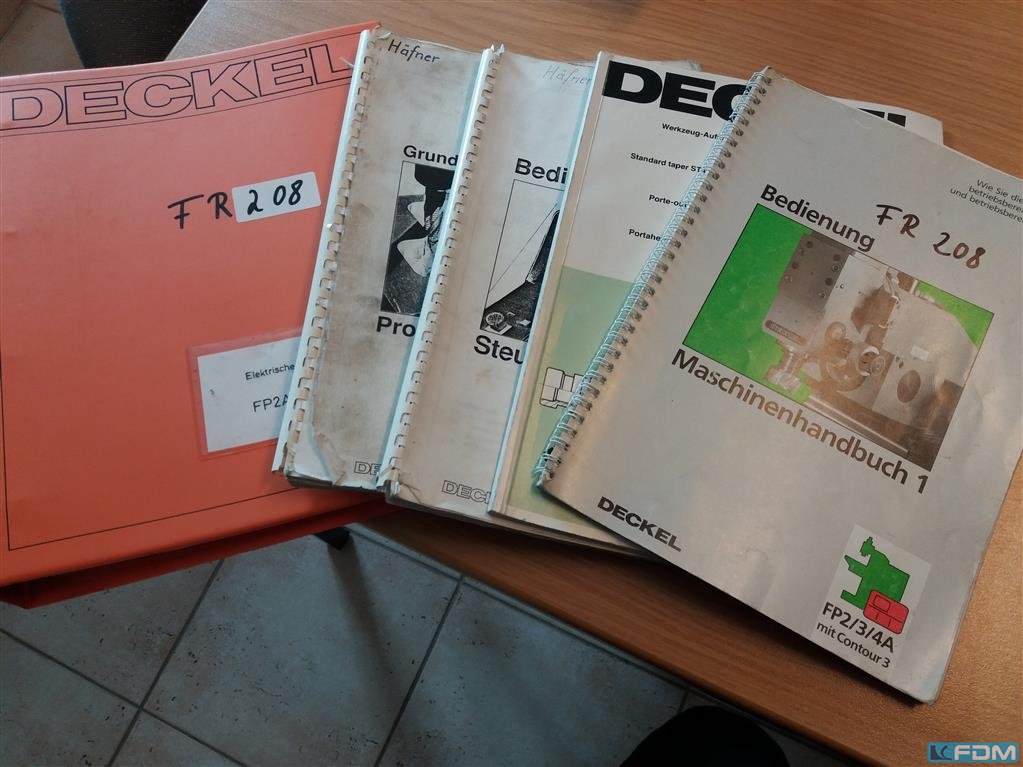

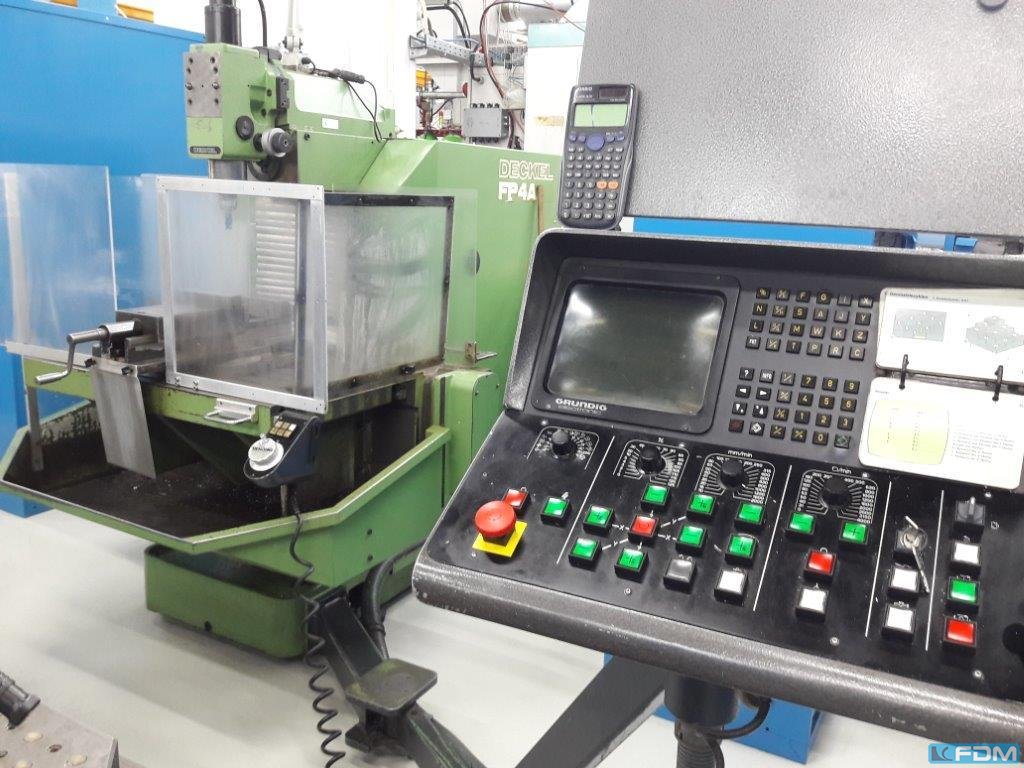

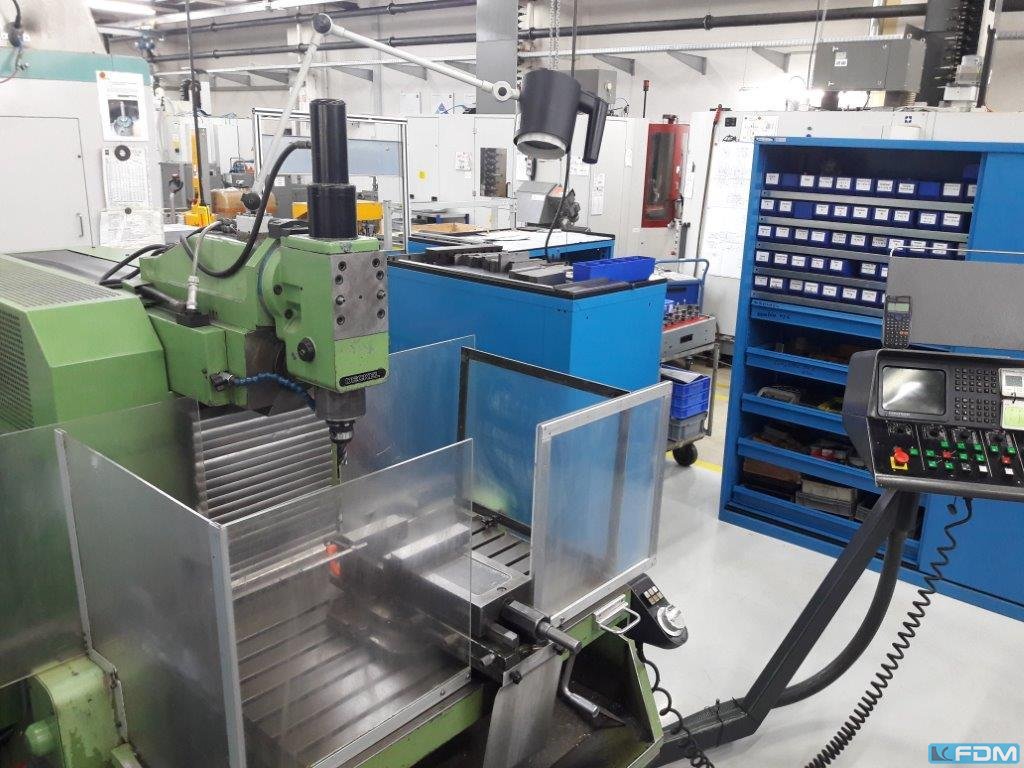

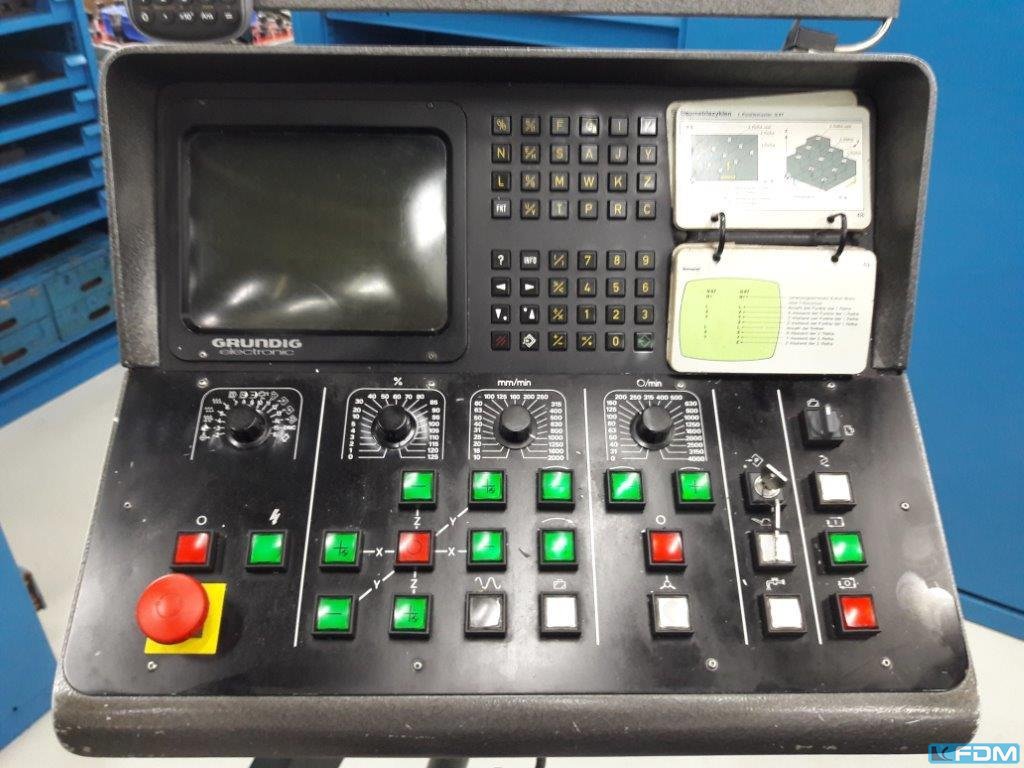

Number of T-slots: 8, rated current: 23A, controls: CONTOUR 3, with tool magazine. An on-site inspection is possible.

Travels: X-axis 500 mm, Y-axis 200 mm, Z-axis 400 mm Tool holder SK 40, spindle speed 40-2000 rpm, Table clamping area 830 x 240 mm, weight of the machine 1,100 kg Equipment and accessories: • Vertical milling head with quill • Feeds and rapid traverse in all 3-axes • Various tool holders, collets • Hydraulic vise • Coolant device • Documentation • Bellows damaged

x-travel: 300 mm y-travel: 160 mm z-travel: 290 mm table surface area: 210 x 600 mm tool taper: SK 40 spindle turning speed range: (16) 40 - 2000 U/min feeds -stepless-: 5 - 500 mm/min rapid traverse: 1,2 m/min spindle motor: 1,5 / 1,9 kW total power requirement: 9,5 kVA weight of the machine ca.: 730 kg dimensions of the machine ca.: 2000 x 2200 x 1655 mm The machine comes from a vocational training center. Equipment: 3-axis active digital readout made by Heidenhain Fixed angle table Coolant equipment The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

A Deckel engraving and copy milling machine is available. Table dimensions X/Y: 350mm/200mm, travel X/Y: 300mm/150mm, machine dimensions X/Y/Z: approx. 1100mm/1300mm/1500mm, weight: approx. 500kg. An on-site inspection is possible.

Travel X/Y/Z: 380mm/280mm/300mm, working dimensions X/Y/Z: 580mm/450mm/340mm, max. electrode weight: 50kg. Machine dimensions X/Y/Z: approx. 2100mm/1650mm/1750mm, weight: approx. 3500kg. An on-site inspection is possible.

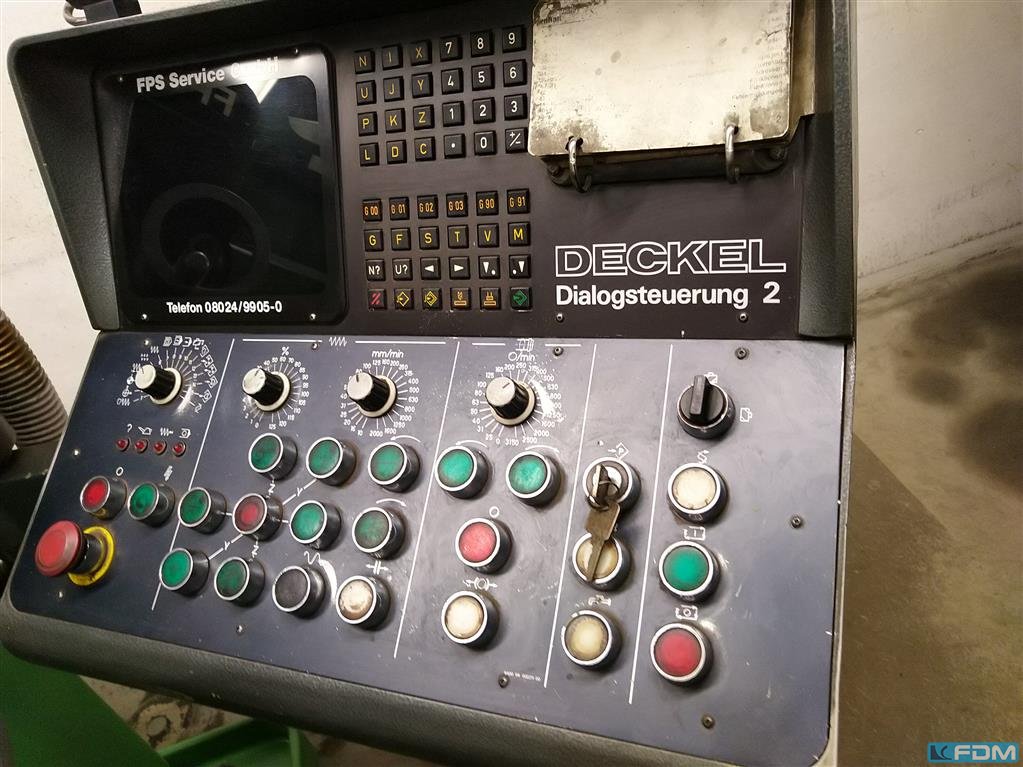

spindle taper ISO: . x-travel: . mm y-travel: . mm z-travel: . mm Control: Dialog type: System 2 mm table surface area: mm turning speeds: U/min quill stroke: mm Feed: mm/min rapid traverse: m/min total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale, Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team The data for this ad was created with Modu ...

x-travel: 500 mm y-travel: 300 mm z-travel: 380 mm total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m Machine number: 2120 Technical data: Longitudinal travel: 500 mm Cross travel: 300 mm Vertical travel: 380 mm Angle table with a clamping surface of 800 x 420 mm Spindle speed range: 40 – 2000 rpm Equipment: 3-axis digital readout (Heidenhain) Vertical milling spindle with quill adjustment Additional horizontal spindle REPAR 2 safety device (www.repar2.com) Machine light Anti-vibration mounts No operating manual included The machine is sold without a vise or tooling. Transport dimensions: The machine is loaded onto a heavy-duty pallet, Dimensions: 1800 x 1100 x 2100 mm (length x width x height) The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Tool milling machine DECKEL FP1 with 3 axis active digital display TNC 113 from educational institution -Travel X/Y/Z 300x160x340mm -Speed range 40-2000 rpm -Feed infinitely variable in three axes Hobkn Asv Abp Tju S Tjl -Rapid traverse in all three axes -Vertical milling head - 100mm movable -Vertical - Horizontal milling device -Drive power 1.5/1.9KW -Rigid angle table -3 axis digital display Heidenhain TNC113 -Coolant device -Work light -Documentation Dimensions: LxWxH 1.3x1.2x1.6 meters / Weight 850Kg

Tool milling machine DECKEL FP 2 LB 3 axis digital display maintained original condition - 3-axis digital display (ACU-RITE) - Travel X/Y/Z: 795 × 300 × 400 mm - Automatic feeds and rapid traverses in all 3 axes (18 stages) - Spindle speeds: 40–2000 rpm (18 steps) - Horizontal and vertical milling equipment - ISO 40 tool holders - Table clamping surface: 1000 × 440 mm - Swivelling vertical head with drilling quill - Coolant device - Various tool holders - Documentation available L×W×H 2.5×2.4×1.8 meters / Weight 2200Kg

Tool milling machine Deckel FP 2 / 3-axis digital display"NEW"/ORIGINAL CONDITION -Travel X/Y/Z 400x200x400mm -Table clamping surface 700x350mm -Speed range 40-2000 rpm -Feeds & rapid traverses in all three axes -Tool holder ISO 40 -Vertical / horizontal milling device -Coolant device -3-axis digital display "NEW" -Spindle nut X-axis "NEW" -Machine feet -Documentation Dimensions: LxWxH 1.5x1.7x1.8 meters / Weight 1600Kg

Tool milling machine Deckel FP 2 / 3-axis digital display Heidenhain ND 780 -Travel paths X/Y/Z: 450 x 200 x 400 mm -Table clamping surface 700 x 350/tilt-swivel rotary table -Speed range: 40–2000 rpm -Feeds & rapid traverses in all three axes -Tool holder: ISO 40 -Vertical/horizontal milling device with vertical sliding head -Coolant device -3-axis digital display: Heidenhain ND 780 -Documentation -Chip tray -Various tool holders -Collets Dimensions: LxW xH 1.5x1.7x1.8 meters / Weight 1600Kg

Tool Milling Machine Deckel FP2E -Extremely smooth running + fully functional -Automatic feeds + rapid traverse in X + Z axis -Machine with sliding head means larger Y-travel -Travel X/Y/Z 400x200x400mm -Speed range 40-2000 rpm -Tool holder ISO 40 -Vertical horizontal milling device -Vertical head swivel with drilling quill -Angle table -Various tool holders -Documentation Dimensions: LxWxH 1.5x1.7x1.8 meters / Weight 1500Kg

Tool milling machine DECKEL FP 2 LB from university in well-maintained original condition -3 - Axis digital display "ACURITE" -Travel X/Y/Z 795x300x400mm -Automatic feeds / rapid traverses in all 3 axes (18 pieces) -Spindle speeds 40-2000 rpm (18 pieces) -Horizontal + vertical milling device - ISO 40 - Tool holders -Table clamping surface 1000x440mm -Table clamping surface with additional table 1000x700mm -Vertical head swivel with drilling quill -Coolant device -Various tool holders -Machine light -Documentation Dimensions: LxWxH 2.5x2.4x1.8 meters / Weight 2200Kg

Universal / Tool Milling Machine DECKEL FP 1 & 3-Axis Heidenhain Digital Display -Very neat original condition -Travel X/Y/Z 300x150x340mm -Speed range 40-2000 rpm - Automatic / feeds / inputs in two axes -Vertical / horizontal milling device -Tool holder ISO 40 -Rigid angle table -3 - Axle digital display Heidenhain -Coolant device -Chip tray -Documentation Dimensions: LxWxH 1.1x0.8x1.7 meters / Weight 700Kg

Tool Milling Machine DECKEL FP 3 Heidenhain Digital Display -Well-maintained original condition -Travel X/Y/Z 500x300x400mm -Feeds / rapid traverses in all 3 - axes -Tool holder ISO 40 -Speed range 40 - 2000 rpm -Vertical / horizontal milling device -Angle table -Coolant device -Central lubrication -Chip tray -Documentation Dimensions: LxWxH 1.7x1.2x1.8 meters / Weight 1350 kg

x-travel: 300 mm y-travel: 160 mm z-travel: 340 mm tool taper: SK40 Speed: 40-2000 U/min. control: Aktiv HEIDENHAIN table-size: 600 x 210 mm total power requirement: 2 kW weight of the machine ca.: 0,73 t dimensions of the machine ca.: TBH 1,20x1,10x1,60 m Comes from a vocational school - Powered feed in X, Y, and Z axes - Coolant system - Machine vice - Work light The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Machine Type: Milling Machine Manufacturer: Lid Type: 2102 / FP1 Year of manufacture: coming soon Condition: used / good Offer will only be sent if a complete imprint is provided! Price VB Location Warstein , Germany Reference number M-DEC-0626 DESCRIPTION We offer you a used milling machine from the manufacturer Deckel. Control: TNC 113 Central lubrication Weight approx. 750kg Availability: CW27 / 2026 Our offer is aimed at tradespeople who are registered in the sense of the Trade Regulation Act according to §14 GewO. The offer is subject to change, subject to prior sale. Please provide your full contact details to receive a quote with our terms and conditions of payment. Errors in the descriptions and offers are reserved

Table dimensions: 1000-550 mm Control: Grundig x-travel: 1000 mm : ja milling-head swivable +/-: ja control: Grundig serial number: 0209 The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Suitable for regrinding and reworking of wood and metalworking tools of all kinds, Accessories:, Total enclosure, 6-axis robot Stäubli TX 60,, 6-slot wheel changer,, automatic fire extinguishing system,, automatic central lubrication, grinding wheel dressing unit,, 6 loader pallets, Inserts rotary station., X-axis grinding stroke: 400 mm, Y-axis grinding stroke: 310 mm, Z-axis grinding stroke: 305 mm, C-axis swivel range: 224°, A-axis speed: 850 U/min, Workpiece holder: ISO 50, Workpiece diameter: max. approx. 250 mm, workpiece length: max. about 900 mm, Workpiece length in face grinding: max. approx. 400 mm, Drive power of grinding spindle peak performance: 18 kW, Grinding spindle speed infinitely variable: from 300 – 8,000 U/min, Connected load approx.: 400 V / 50 Hz / 25 kVA, Dimensions W x D x H approx.: 3150 x 2200 x 2200 mm, Weight approx.: 4700 kg, colour: Gray / Metallic

For sale is a classic universal tool milling machine Deckel FP4A with Dialog 11 control. The machine comes from a company closure and was reliably in use until the end. The machine was stored and was not energized for a long time. Due to the downtime, the buffer batteries of the control system will probably have to be replaced and the machine parameters reset. Manufacturer: Lid Model: FP4A Control: Dialog 11 Tool holder: SK40 Working range approx.: X: 400mm / Y: 300mm / Z: 400mm The machine is at ground level and dry. The transport must be taken care of by the buyer himself. An indoor crane, pallet truck, forklift, etc. are available on site for loading. The machine can be viewed by appointment. To make an appointment, call 0171 216 414 3 from Mon. - Fri. 9:00 a.m. to 5:00 p.m.

- 3 Axis digital read out - Active digital read out - Fixed table 800 x  - Central lubrication - Coolant system with pump

Radius grinding device for DECKEL S11 grinding machine – ISOG ref: 2601X00

A Deckel CNC universal milling machine is offered. Travel X/Y/Z: 700mm/600mm/550mm, quill stroke: 80mm, milling head swivel range: +/-90°, spindle power: 12kW, max. spindle speed: 6300rpm, feed torque X/Y/Z: 13Nm/13Nm/21Nm, feed rate X/Y/Z: 6m/min, rapid traverse X/Y/Z: 6m/min, tool holder: SK40, measuring resolution: 0.001mm, 4th axis resolution: 0.001°, max. slide load: 1000kg, number of T-slots: 1, T-slot width: 14H7mm, mounting holes for table accessories: M12, control: Deckel Dialog 11. Machine weight: approx. 3900kg, electrical cabinet weight: approx. 475kg, 5110mm/4654mm/2335mm, floor space X/Y: approx. 6200mm/5700mm, floor load: 3500kg/m². Documentation available. Inspection by appointment possible.

x-travel: 290/300 mm y-travel: 330/340 mm z-travel: 150/160 mm total power requirement: kW weight of the machine ca.: 675 kg dimensions of the machine ca.: 2700 x 2500 mm The machine was overhauled by the company Harich in 2017. Machine number: 57330/08 Technical data: Table longitudinal movement (motorized/manual): 290/300 mm Spindle head transverse movement (motorized/manual): 150/160 mm Support vertical movement (motorized/manual): 330/340 mm Angle table clamping surface: 600 x 210 mm Spindle speeds: 40 – 2000 rpm Tool holder: Standard taper 40 Motor power: 1.5/1.9 kW Feed rate range (infinitely variable): 5 – 500 mm/min Rapid traverse: 1200 mm Equipment: 3-axis digital readout (Heidenhain) Vertical milling spindle with quill adjustment Additional horizontal spindle REPAR 2 safety device (www.repar2.com) Operating manual The machine will be loaded onto a Euro-pallet, total height: ...

x-travel:600 mm y-travel:450 mm z-travel:400 mm Table area:700 x 480 mm spindle turning speed range:10 - 3150 U/min spindle taper ISO:40 quill stroke:80 mm dimensions of the machine ca.:1,8 x 2,1 x 1,9 m total power requirement:8 kW weight of the machine ca.:3,5 t Machine with universal turn, sviwel and tilting table - CNC control DIALOG II - splash guards - misc. parts

x-travel:1000 mm y-travel:600 mm z-travel:550 mm fixed clamping table:1200 x 600 mm spindle drive motor:9 kW spindle taper ISO:40 spindle turning speed range:10 - 5000 U/min feed range:2 - 6000 mm/min total power requirement:15 kW weight of the machine ca.:6 t

x-travel:560 mm y-travel:500 mm z-travel:450 mm total power requirement:16,5 kVA weight of the machine ca.:2700 kg dimensions of the machine ca.:2,30 x 3,0 x 1,90 m control:Grundig quill stroke:80 mm tool taper:SK 40 spindle speeds::40..4000 1/min feed:2 .3600 mm/min rapid traverse:4000 mm/min Documents:vorhanden

CNC slot machine Gildemeister GLD 25 with counter spindle Technical data: Manufacturer: Gildemeister Type: GLD 25 Built: 1999 Control: FANUC Series O-T Main spindle: - max. turning diameter: 25 mm - max. speed: 8,000 rpm - maximum stroke (Z-axis): 160 mm Counter spindle: - max. turning diameter: 25 mm - max. speed: 8,000 rpm - maximum stroke (C-axis): 265 mm - Rapid speed C-axis 15 m/min Sled: - Slide: X= 30 mm, Y= 220 mm - Rapid x-axis 10 m/min - Rapid y-axis 15 m/min - Number of WZ on the sled: 5 + 3 (driven) - Speed WZ (driven) : 6,000 rpm Accessories: - Chip conveyor -Bar loader: IEMCA MINI BOSS 325/32 Dimensions LxWxH: - Machine with chip conveyor 3150 x 1100 x 1700 mm - Bar loader 3900 x 800 x 1400 mm Weight: - Machine: approx.2000 Kg - Bar loader: approx. 1000 kg. - Total weight: approx. 3,000 kg

Gildemeister 6-spindle rotary machine, curve controlled max. rod passage: 32.0 mm for rods up to 3.30 m - incl. rod guide, - Steel processing, run with cutting oel - easily equipped with tools Cmvlgfoyc - 1 set of clamping and feed pliers - Alternating wheels (on machine) - 1 set of curves for cross slides - 1 set of curves for main slide

Gildemeister 6 Spindle Lathe AS 32-6 - Spindle stop set-up - Pneum pick-up device. - Zubehoer at an extra cost - Cross hole drilling - Thread cutting gears - Thread cutting device - wahlw. Fraeseinrichtung Querschl. - Spaenefoerderer

Tailstock for Gildemeister CTX 600

Note: We have 6 pieces of this machine in stock! Manufacturer: Gildemeister Type: GS 36 – 6 A/C Machine no.: 7.0176 Year of construction: 1987 Weight: 11t General / technical data: Portal-6spindle automatic lathe with measuring device and automatic feeding Spindle dividing circuit: 300mm Number of longitudinal slides: 6 Number of cross slides: 2 gr. cross slide stroke: 60mm gr. longitudinal slide stroke: 125mm Spindle speeds: Infinitely variable 562 – 3373 rpm Main time range: Stepless 1.95 – 78 sec. Low time range: 0.79 – 2.13 sec. Drive power: DC motor spindles 20kW; Feed rates 8kW Installation area: approx. 1720 x 4700mm Remark: The machine cannot be converted for bar work. Equipment: – 1 creep gear drive for set-up operation – 1 automatic central lubrication device – 1 coolant device with lines and pu ...

Gildemeister 6-spindle rotary machine, curve controlled max. rod passage: 32.0 mm for rods up to 3.30 m - incl. rod guide, - Steel processing, run with cutting oel - easily equipped with tools Sowiabeb - 1 set of clamping and feed pliers - Alternating wheels (on machine) - 1 set of curves for cross slides - 1 set of curves for main slide

Gildemeister Multispindle Slot machine 6- Spindler Type: AS 25-6 Pick-up device back-valued processing pneumatic stop Balluff cam switch IEMCA PRA Bar loader Oil mist separator (electrostat.) Conveyor Machine has been retrofitted in the past

Key data: 600 mm, 1250 mm, 3000 1/min

Machine Details Stock-No. 1105-03939 Type of machine CNC Lathe - Inclined Bed Type Make GILDEMEISTER DMG Type NEF 600 Year of manufacture 2006 Type of control CNC Storage location HAGUENAU FRANCE Country of origin Germany Delivery time immediately Freight basis EX WORK Price Technical details turning diameter 600 mm turning length 1250 mm control SIEMENS 840 D greates pass round over bed 600 mm centre height 350 mm Spindle Bore 92 mm turning speed range 3500 rpm Rapid Travel - Longitudinal/Face 20 m/min face stroke 400 mm tailstock quill diameter 100 mm Tailstock Quill Stroke 1150 mm tailstock taper MT 5 Turret (X-Stations) 12 turning diameter over slide 410 mm Additional information Acc. 3-Jaw Chuck 315 mm, tailstok turret 8 P ,chip conveyor, coolant CNC Siemens 840 D

Machine details Bearing number 1105-03132 Machine type CNC lathe - slantbed machine Made GILDEMEISTER Type CTX 400 Built in 2000 Control type CNC Warehouse FRANCE Country of origin Germany Delivery time SOFORT Freight base from location, free loading truck Technical details Turning diameter 570 mm Turning length 635 mm Control Heidenhain CNC Pilot 4290 Turning diameter over bed slide 420 mm Spindle speeds - infinitely 25-5000 rpm Number of driven tools 6 mm Drive 5 kW Information CNC Heidenhain Pilot 4290 C-axis with 5 FESTE vdi holders 1 3 BAKE FOOD 1 X SPAENEFOERDERER WITH REITSTOCK + LNS STANGEN VORCHUB

CNC lathe GILDEMEISTER CTX ALPHA 300 with bar feeder and parts pick-up device Built in 2010 in good condition. Duty Cycle: 22930 Hours: 7326 Control Heidenhain CNC-Pilot 640 Circulation over bed: 380 mm Circulation via face slide: 290 mm Spindle bore: 73 mm Flat travel ( X ) : 190 mm Longitudinal travel ( Z ) : 335 mm Speed max. 6000 rpm C-axis 360° Number of driven tool stations 12 pos. Tool holder VDI 30 Accessories: 3 jaw chuck hydraulic 170 mm Conveyor Coolant system Hydraulic hollow clamping device Tool drive C-axis Parts pick-up device Bar Feeder Irco RBK10012 Tailstock

Key data: 600 mm, 1250 mm, 3500 1/min

Machine Details Stock-No. 1105-03997 Type of machine CNC Lathe - Inclined Bed Type Make GILDEMEISTER DMG Type NEF 600 Year of manufacture 2007 Type of control CNC Storage location HAGUENAU Country of origin Germany Delivery time immediately Freight basis EX WORK Price Technical details turning diameter 600 mm turning length 1250 mm greates pass round over bed 600 mm centre height 350 mm Spindle Bore 92 mm turning speed range 3500 rpm Rapid Travel - Longitudinal/Face 20 m/min face stroke 400 mm tailstock quill diameter 100 mm Tailstock Quill Stroke 1150 mm tailstock taper MT 5 Turret (X-Stations) 12 turning diameter over slide 410 mm Additional information acc.: hydr. 3-Jaw Chuck 400 mm, Chip Conveyor, Coolant CNC FANUC 210 IS

Key data: 290 , 400

Machine-Details Stock-No. 1105-04007 Type of machine CNC Lathe - Inclined Bed Type Make GILDEMEISTER Type CTX 210 Year of manufacture 2005 Type of control CNC Storage location FRANKREICH Country of origin Germany Delivery time IMMIDIATELY Freight basis EX WORKS Technical details Turning diameter 290 mm turning length 365 mm control SIEMENS 840 D SIEMENS 840 D Greates Pass round over bed 380 mm X-Travel 160 mm Z-Travel 365 mm spindle head 120 H 5 mm Boron spindle 56 mm bar material dia. 42 mm Spindle diameter in front bearing 90 mm turning speed range 20 - 6000 U/min spindle drive 10 kW No. of tools in turret 1 12 x VDI 30 total power requirement 22 kW Weight of the machine ca. 4,2 t Dimensions of the machine ca. 2.8 x 1.7 x 1.8 m Additional information NICE MACHINE CNC SIEMENS 840 D SOMME TOOLS VDI 30 TOOL MESURING Arm TAILSTOCK CHIP CONVEYER

turning diameter: 400 mm turning length: 600 mm control: swing diameter: 600 mm spindle bore: 73 mm chip conveyor: total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

GILDEMEISTER NEF Plus 500 CNC lathe was manufactured in 1997. The machine, designed for precision machining of workpieces with a maximum diameter of 500 mm, has two spindles (main spindle and sub-spindle) of high speed and power, which will improve even the most intensive machining. The installed GRUNDING CNC controller with colour screen and control panel also allows for cycles to control. The total weight of the machine is approximately 3000 kg. Technical specifications of the GILDEMEISTER NEF Plus 500 lathe - CNC control: GRUNDIG - maximum turning diameter (over bed): 500 mm - maximum turning diameter (over saddle): 290 mm - maximum turning length: 1500 mm - main spindle rotational speed range: 80-2800 rpm - main spindle passage: 70 mm - main spindle drive power: 11 kW - maximum sub-spindle rotational speed: 5000 rpm - sub-spindle drive power: 7.5 kW - total power require ...

Key data: 500 mm, 450 mm, 6000 1/min

1 used CNC lathe Make Gildemeister Model CTX 320 V5 Linear Year of manufacture 2004 Control Siemens 840 D ( ShopTurn ) Workspace: Max. circulation diameter over bed 500 mm Circumferential diameter via X-carriage 300 mm Turning length 450 mm Bar passage 60 mm Chuck diameter 170 mm Chuck diameter sub-spindle 165 mm Plane stroke 160 mm Rapid traverse X/Z axis 60/45 m/min Power main drive (100% ED) 16 kW Speed range 6000 rpm Power sub-spindle (100% ED) 7.5 kW Speed range 6000 rpm Number of tool stations 12 Cylindrical shank diameter 30 mm Number of driven tools 12 Drive power (40% ED) 10 kW RPM, max. 5000 min-1 C-axis speed range 0 - 200 min-1 C-axis positioning 0.001 degrees Connected load, total approx. 32 kVA Net weight with chip conveyor approx. 4300 kg Machine with chip conveyor L x W x H 3890 x 1555 x 1890 mm Accessories: Conveyor Pa ...

Key data: 350 mm, 700 mm, 4000 1/min

Machine Details Stock number 1105-04023 Machine Type: CNC Lathe - Inclined Bed Machine Make GILDEMEISTER Type NEF400 / 840D Shopturn Year of construction 2006 Condition Control type: CNC Control Siemens 840D Shopturn Storage location FRANCE Country of origin Germany Delivery time immediately Freight base from Dreieich warehouse Price Technical details Turning diameter 350/270 mm Turning length 700 mm Control Siemens 840D Shopturn Circumferential diameter max. over bed cover 400 mm Travel - z 700 mm Spindle bore 65 mm Spindle speeds max. 4000 rpm Tool holder VDI 30 Turret head 12 pos. Three-jaw chuck diameter 200 mm Spindle holder A6 DIN55026 Pick-up cone in the tailstock quill MK 3 Drive power 15/12 kW Operating voltage 400 V Machine weight approx. 3.0 t Information - Control: Siemens 840D Shopturn - Tool holder VDI 30 APPROX. 12 PIECES - Coolant de ...

Machine Type: CNC Lathe Manufacturer: GILDEMEISTER Type CTX 500 S2 Year of construction 1998 Control CNC Pilot Heidenhain Country of origin Germany Delivery time by arrangement Freight base from location Technical details Turning diameter max. 445 mm Turning length 1,000 mm Control CNC Pilot Heidenhain Circumferential diameter 680 mm Main spindle: Speed range – main spindle 18 - 3,600 rpm/-1 Drive power – main spindle 23 kW Max. torque 650 Nm Spindle nose 220h5 Chuck diameter 315 / 400 Spindle bearing diameter 140 mm Spindle bore 107 mm Tool turret: Number of tool positions 12 pos. Tool holder 40 DIN69880 Travel: x-travel 320 mm z-travel 1,097 mm Tailstock: Quill stroke 120 mm Tailstock mount MK 5 Quill pressure 14 kN Feeds: Rapid traverse X : 24 / Z : 30 m/min Feed force X: 8 / Z: 15 kN Total power requirement 58 kVA Machine weight approx ...

Control: Siemens 840D Solution line, Auto bar loader: Top Automazioni XF 375

GILDEMEISTER TWIN 65 CNC automatic lathe was built in 2005 in Germany by GILDEMEISTER Drehmaschinen GmbH. The machine is used for precise, multi-axis machining of workpieces with complex geometries. To increase overall production efficiency, a combination of two spindles and two 12-position turrets with excellent technical specifications are used inside the large working area. Both spindles feature a C-axis with a high indexing accuracy of ± 0.002 mm, which facilitates complex machining operations that require precise positioning of the workpiece. All this is complemented by an intelligent SIEMENS CNC control with an intuitive interface. The GILDEMEISTER CNC turning center weighs 10000 kg. Technical specifications of the GILDEMEISTER TWIN 65 CNC lathe General data - number of axes: 8 (X1, X2, X3, Y1, B, Z1, Z2, Z3) - feed in the X1/X2/X3 axis: 300/180/175 mm - feed in the Y1/B ax ...

CNC controller: SIEMENS SINUMERIK 840D-ERGOLINE Capacity X-axis travel mm: 725 Y-axis travel mm: ± 50 Z-axis travel mm: 300 Turning length mm: 160 Max. turning diameter mm: ø: 250 Swing over bed mm: ø: 320 Tool magazine Magazine places: 16 Tool holder: VDI-30 Tool length max. mm: 390 Tool diameter max. mm: 140 Lower turret Number of tool slots St .: 12 Speed driven tools RPM: 4.000 Drive power driven tools kW: 11,7 Milling function: Yes Main spindle Speed spindle rpm: 5.000 Drive power spindle kW: 11,7 (40% ED) Maximun torque Nm: 280 / 360 (100% / 40% ED) Coolant system Tank capacity liter: 980 L High-pressure bar: 8 / 20 Equipment Chip conveyor CE conformity Coolant gun Air blast / coolant switch-over Internal coolant supply Paper band filter Automatic workpiece magazine loader - 16 positions x ø 220 Working time hours ...

4x compound slide - Pos.1; Pos.2; Pos.4; Pos.5 4x indipenden feed - Pos.1; Pos.2; Pos.4; Pos.5 threading device 1x threading spindle pick-up spindle broaching device set of cams set of collets bar-loader Cucchi Giovanni (YOM 2004)

Tool holder, milling holder, milling tool -Intake: SK50 5 pieces -Sizes: see pictures -Price: complete -Dimensions box: 400/300/H270 mm -Weight: 42.1 kg
