deckel maho dmu used for sale

Key data: 1250 mm, 710 mm, 710 mm

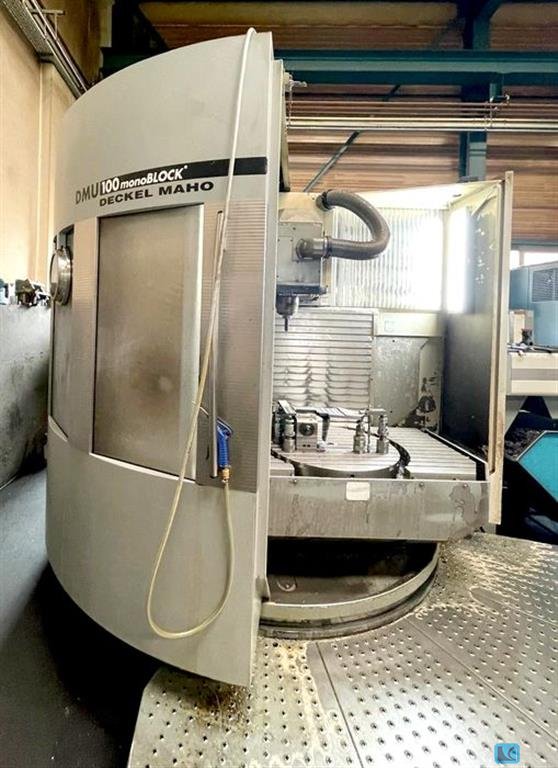

5-Axis CNC Machining Center Lid Maho DMU 100 monoBLOCK Year of construction: 2009 Control: Heidenhain iTNC 530 x-travel: 1250 mm Y-travel: 710 mm z-travel: 710 mm Speed: 18,000 rpm Drive power main spindle: 15 / 10 kW Max. torque: 130 / 87 Nm Tool changer: SK 40 Swivel man.: +12° / -91° Table clamping surface: 1500 x 800 mm Max. table load: 1100 kg Number of tool slots: 32 pos. Chip-to-chip changeover time: 11.0 sec. Rapid traverse (X/Y/Z): 30 m/min Feed speed max.: 30,000 mm/min Total power requirement: 40 kW Dimensions: 6000 x 5000 x 2700 mm Weight: Approx. 10,000 kg

Key data: 1250 mm, 710 mm, 710 mm

5-Axis CNC Machining Center Lid Maho DMU 100 monoBLOCK Year of construction: 2007 Control: Heidenhain iTNC 530 x-travel: 1250 mm Y-travel: 710 mm z-travel: 710 mm Speed: 18,000 rpm Drive power main spindle: 15 / 10 kW Max. torque: 130 / 87 Nm Tool changer: SK 40 Swivel man.: +12° / -91° Table clamping surface: 1500 x 800 mm Max. table load: 1100 kg Number of tool slots: 32 pos. Chip-to-chip changeover time: 11.0 sec. Rapid traverse (X/Y/Z): 30 m/min Feed speed max.: 30,000 mm/min Total power requirement: 40 kW Dimensions: 6000 x 5000 x 2700 mm Weight: Approx. 10,000 kg

Key data: 1080 mm, 710 mm, 710 mm

With MILL PLUS iT path control Year of construction: 2005 Travels: X 1080 Y 710 Z 710 Speed range: 0 – 12,000 rpm Infinitely variable (SK 40) With the following accessories: Rigid angle table 1500mm x 800 mm clamping surface NC – Rotary table integrated in rigid table 0 800 mm Controlled swivel milling head (B axis) 3 D touch probe Vertical tool changer with 32 magazine positions (SK 40) IKZ 40 bar Rotoclear Mode 3 + 4 Full protection cabin with sliding doors and interior lighting Electronic handwheel Coolant device, Chip sweeping gun Conveyor Oil mist extraction Integrated screw conveyor , step grate , transport device 3 Height-Adjustable Machine Shoes Operating instructions

Key data: 1800 mm, 2000 mm, 1100 mm

Inv. Num. : 7305 Type: DMU 200 P Producer: DECKEL MAHO Created: 2002 Parameters: Control system: HEIDENHAIN Duty cycle: 76912 h Hours: 8991 h Work table length: 1700 mm Work table width: 1400 mm Maximum table load (uniform): 5000 kg X-axis travel: 1800 mm Y-axis travel: 2000 mm Z-axis travel: 1100 mm

x-travel: 750 mm y-travel: 600 mm z-travel: 520 mm total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m Heidenhain iTNC 530 CNC control NC- swivel-rotary table (4. and 5. axis) 32-fold tool changer chip conveyor coolant device operating mode 4 Technische Daten / technical details: X-Weg längs / X-travel longitudinal 750 mm Y-Weg quer / Y-travel cross 600 mm Z-Weg senkrecht / Z-travel vertical 520 mm C-Achse / C-axis 360 ° B-Achse / B-axis 0- -180 ° Spindelaufnahme / spindle taper SK40 Drehzahlbereich / spindle speed 18000 UpM /rpm Vorschubbereich / feed range 20000 mm/min Eilgang / rapid feed 50 m/min Anzahl der Werkzeugplätze / no. of tool places ATC 32 NC-Schwenkrundtischabmessungen / NC-swivel-rotary table dimensions 700x500 mm Gewicht der Maschine ca. / weight 10000 Kg Technische Daten, Zubehör und Beschreibung der  ...

Deckel Maho 5 axis machining center Mod. DMU 80 Machine in good general condition, viewable Specifications Manufacturer DMG Model DMU 80 Year 1997 Condition Used Axis x (strokes) 800 Y axis (strokes) 700 Z axis (strokes) 600 Spindle connection (spindle) BT40 Number of tools (atc magazine) 30 Length of the table (table) 800 Width of the table (table) 800 Chip conveyor YES Spindle speed (main spindle) 12,000 rpm

The machine is in good technical condition. x-1250 mm y- 880 mm from - 800 mm Table area 1500 x 1050 mm Speed ​​range - spindle max. 12,000 min / -1 Drive power - spindle 15/10 kW Number of tools position: 30 pieces By prior arrangement, the possibility of a tour in progress.

x-travel 600 mm y-way 525 mm z-way 500 mm Table surface area 1000 x 543 mm Spindle mount SK 40 Spindle mount DIN 69871 Spindle speeds - continuously 20 - 12,000 rpm Feeds X / Y / Z axis 20 - 10,000 mm / min Rapid traverse X / Y / Z axis 18/18/15 m / min Table load max. 350 kg Control HEIDENHAIN MillPlus Head can be swiveled +/- 90 ° Total power requirement 26 kVA Machine weight approx. 4.2 t Dimensions of the machine L x W x H 2.95 x 2.1 x 2.26 m equipment div. tool holders, coolant device

Category Machining Center - Universal Make DECKEL-MAHO Type DMU 80 T Year of construction 2002 CNC control x-way 880 mm y-way 630 mm z-way 630 mm Table clamping surface 1250 x 700 mm NC rotary table integrated, 700 mmø Spindle mount SK 40 Spindle mount DIN 69871 Spindle speeds - stepless 20 - 12,000 rpm Control HEIDENHAIN Control TNC 430 Feed rates x / y / z - stepless 20 - 15,000 mm / min Rapid traverse 30 m / min Tool changer 32 (2 x 16) Pos Tool diameter 80/130 mm Tool length max. 315 mm Tool weight max. 8 kg NC rotary table - speed - max. 15 rpm Table load 600/500 kg internal coolant supply yes / yes Total power requirement 60 kW Machine weight approx. 9.6 t = 5-axis machining center, table clamping surface 1250 x 700 mm with  integrated NC rotary table (= 4th axis), programmable milling head  (= 5th axis) Accessories electron. Manual control panel, ch ...

x-travel: 800 mm y-travel: 800 mm z-travel: 800 mm control: 840 D powerline spindle turning speed range: 20-12000 U/min spindle capacity: 28/19 kW tool taper: SK 40 NC rotary table: 900 x 700 mm max. table load: 1400 kg feed speeds x/y/z: 20-10000 mm/min rapid travel x/y/z: 60 mm/min weight of the machine ca.: 14800 kg total power requirement: 60 kW dimensions of the machine ca.: 6,9 x 6,8 x 3,0 m Equipment/ accessories: - 5 - axes simultaneous/ Programming software ShopMill 840 D - Universal milling head with controlled B-axis - Tool changer 60-fold - Infrared measuring probe Heidenhaun TS 641 - Coolant unit 600 l IKZ 40 bar Air blast through the spindle center via M - function - Electronic handwheel - Chip conveyor - Documentation The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 350 mm y-travel: 240 mm z-travel: 340 mm Control: Siemens Type 810 D total power requirement: 15 kW weight of the machine ca.: 1,6 t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

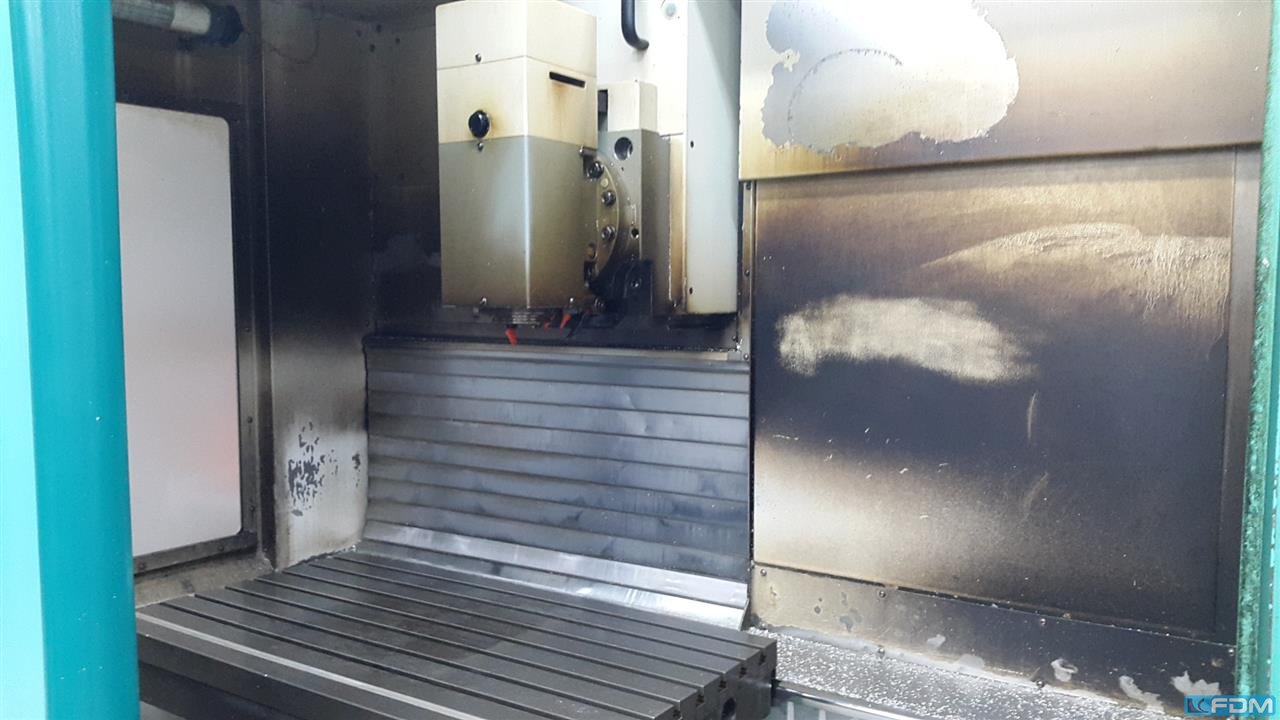

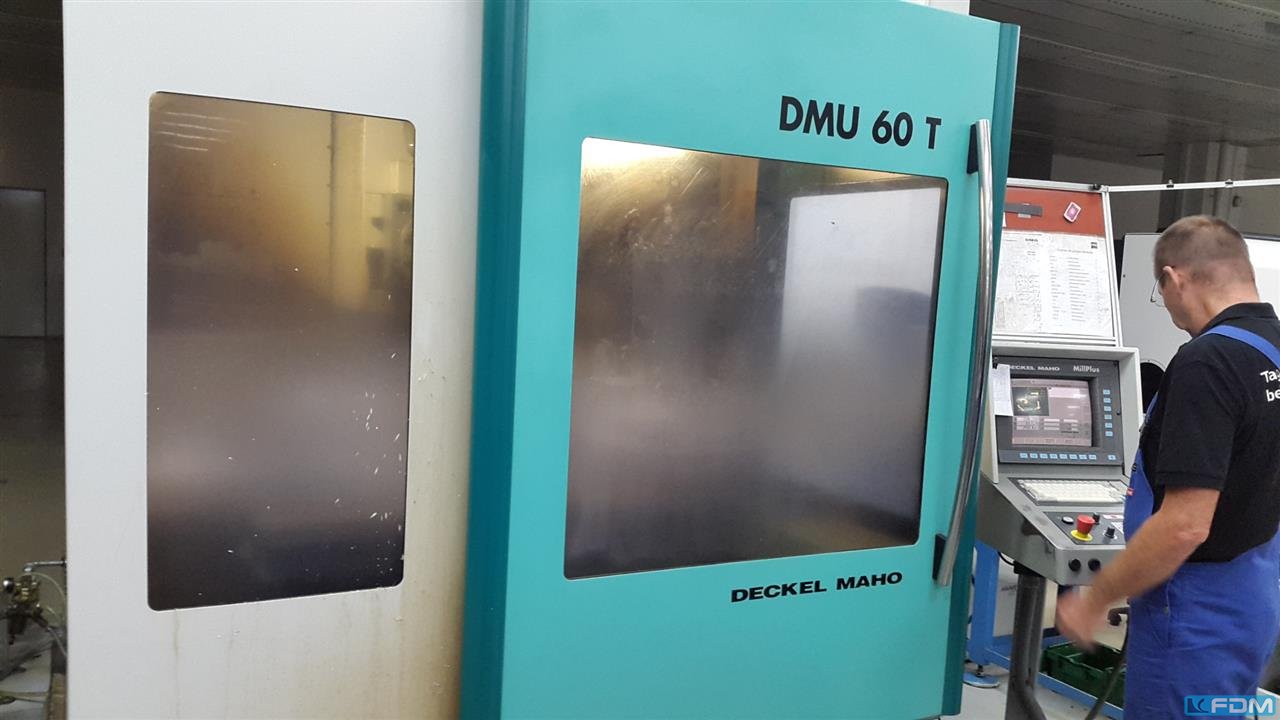

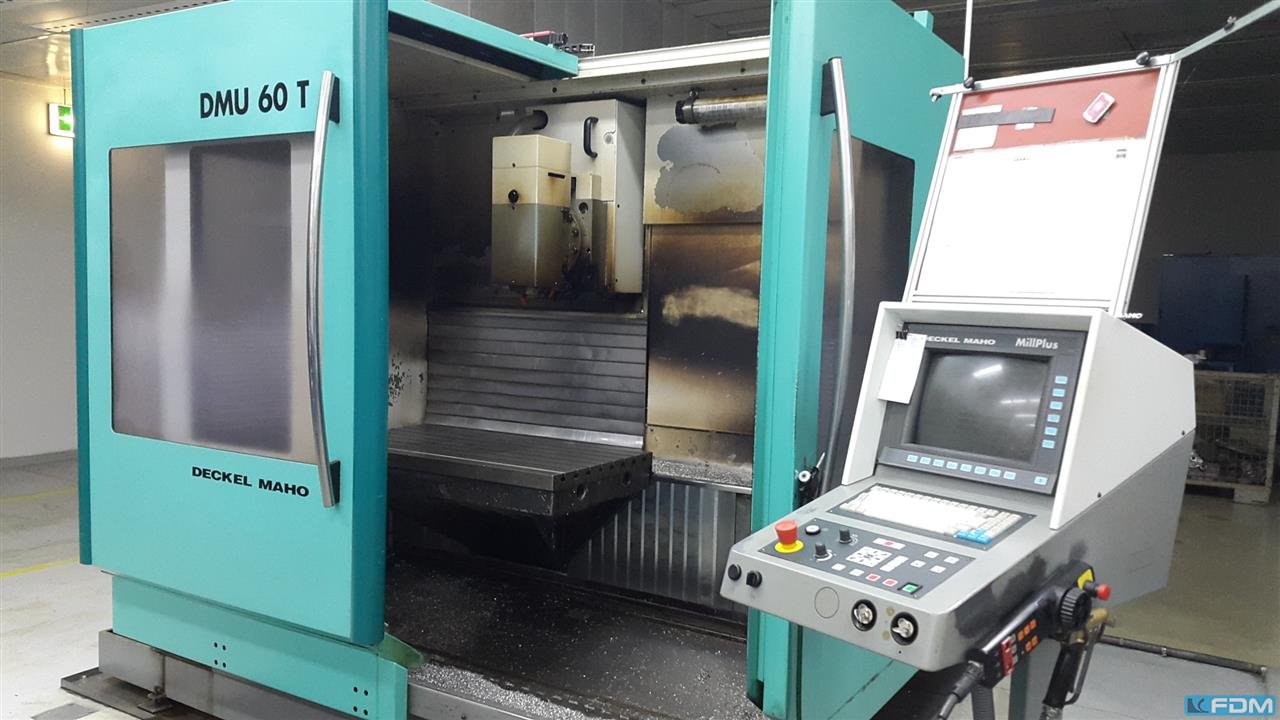

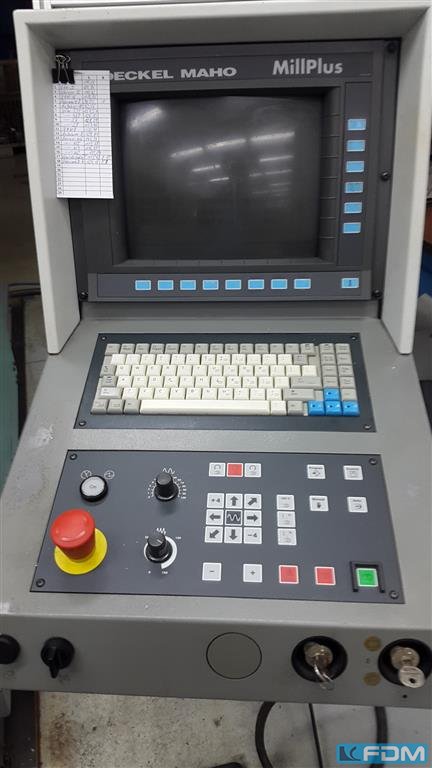

Description: SPECIFICATIONS Character: Deckel Maho Type: DMU 60T Control: Heidenhain MillPlus Year of construction: 2001 Table dimensions: 1,000 x 600 mm Displacement: X= 630 mm, Y= 560 mm, Z= 560 mm Top name spindle: HSK 63 Maximum speed: 12,000 rpm Maximum table load: 400 kg Clamping conveyor Machine dimensions: 3,000 x 2,000 x 2,150 mm Machine weight: 7,000 kg Positions in tool magazine: 24 weight approx.: 7,000 kg, Approx. Onsite Dimension. (l x w x h): 3,000 x 2,000 x 2,150 mm

Description: SPECIFICATIONS Character: Deckel Maho Type: DMU 60 P hi-dyn Control: Heidenhain TNC 430 Year of construction: 2000 Panel diameter: ø630 mm X: 600 mm Y: 700 mm Z: 600 mm Top name spindle: SK 40 Maximum speed: 18,000 rpm Maximum table load: 600 kg Chip transport: Yes Transport dimensions: 3,500 x 2,800 x 2,700 mm Machine weight: 8,560 kg Number of controlled axes: 5 Positions in tool magazine: 60 Including Heidenhain TS 642 measuring probe: Yes Approx. Onsite Dimension. (l x w x h): 3,500 x 2,800 x 2,700 mm, weight approx.: 8,560 kg

Key data: 880 mm, 630 mm, 630 mm

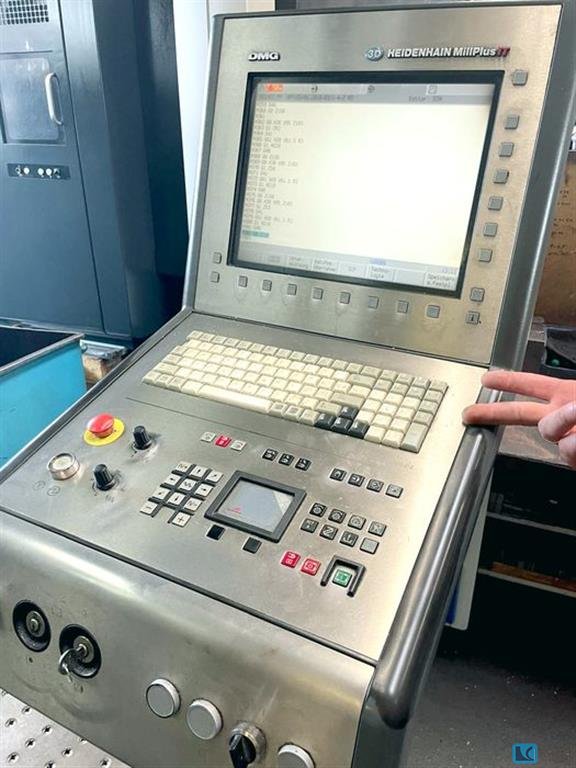

Control: Heidenhain Mill Plus Year of construction 2011 Cutting time : 7200 h Availability : March 2024 Location : Production Sweden Technical details: x-travel: 880 mm Y-travel: 630 mm z-travel: 630 mm Table clamping surface: Ø 700 / 1,250 x 700 mm Rotary table : 700 mm integrated max. table load: 650 kg C-axis : 360° , NC axis max. workpiece diameter: 850 mm max. workpiece height: 550 mm Milling spindle Speed range - main spindle: max. 12,000 rpm / -1 Drive power - main spindle: 15/ 10 kW Max. torque: 130 / 87 Nm Tool holder: BT 40 B-axis (NC-axis) swivel : +30° / -120° Number of tool positions: 32 positions Tool holder: BT 40 max. tool diameter: 80 mm max. toolthrough. with free adjacent box.: 160 mm max. tool weight: 8.0 kg Changeover time span - span: 10 sec Feed speed: max. 30,000 mm/min Rapid traverse: 30 m/min Acceleration: 5 m/s² Tota ...

Key data: 630 mm, 560 mm, 560 mm

Tech.Data-Tech. Data X/Y/Z axis - X/Y/Z-axis mm 630x560x560 4th/5th axis-4th/5th. Axis Rundtisch – Round Table Clamping table - Table size mm 100x600 Milling head SK 40, 0-12000 rpm CNC Control-CNC Control Heidenhain iTNC 520 WZ Wechsler-Tool changer 24 If you are interested in this machine, please contact us, we will be happy to send you a detailed offer If you are interested in this machine, please contact us and we will be happy to send you a detailed offer

This DMG Mori DMU 50 Universal Machining center was manufactured in the year 2005 in Germany and has only 2,870 spindle hours (15,380h control on). It is equipped with a SIEMENS SINUMERIK 840D control unit and has 4 axis (X/Y/Z + servo rotary table). Next to a 16 tools magazine it will be delivered with: Measuring system X-Y-Z axis, air cooling, handwheel and second cabin door.

Description: B-axis 0 to 61° C-axis N x 360° z-motion: 400 mm, x-motion: 500 mm, y-motion: 450 mm, control: HEIDENHAIN MILLPLUS ITV 521, taper: SK40, toolchanger positions: 30, weight approx.: 7,500 kg, Approx. Onsite Dimension. (l x w x h): 3,600 x 2,500 x 2,600 mm

z-motion: 630 mm, x-motion: 980 mm, y-motion: 630 mm, control: HEIDENHAIN MILLPLUS IT, weight approx.: 9,300 kg, Approx. Onsite Dimension. (l x w x h): 3,800 x 2,700 x 2,800 mm

z-motion: 560 mm, x-motion: 650 mm, y-motion: 650 mm, control: HEIDENHAIN ITNC 530, table surface area l x w : 800x650 mm, taper: HSK 63, toolchanger positions: 60, turning speed range: 18,000 rpm, weight approx.: 10,000 kg, Approx. Onsite Dimension. (l x w x h): 5,000 x 2,800 x 2,900 mm

Key data: 1800 mm, 2000 mm, 1300 mm

with CNC control, Fabr. HEIDENHAIN, type: TNC 530i, travel: X-axis: 1800 mm, Y-axis: 2000 mm, Z-axis: 1300 mm, power consumption: 38 kW, table clamping surface: 1700x1400 mm, max. table load: 8000 kg, with autom. Tool changer: 60-fold, tool holder: SK50 and HSK32, IKZ coolant supply and chip conveyor, NOTE: The machine was acquired in 2020 in a technically overhauled condition, in 2022 further renewal measures were carried out by Drechsel Werkzeugmaschinen GmbH with an order value of approx. 140,000.00 euros

Control Heidenhain MillPlus Travel X/Y/Z: 630/560/560 mm Spindle speed 12,000 min-1 Magazine for 20 tools SK 40

Description: Serial number 11180001663, power 51 KVA, read operating hours 50,521, read spindle hours 16.826, maximum tool diameter with all pockets occupied 100 mm, maximum tool diameter with free adjacent pockets 160 mm, maximum tool length from spindle nose without tool breakage monitoring 450 mm, maximum tool length from spindle nose with tool breakage monitoring 390 mm, maximum tool weight with automatic tool change 10 kg, maximum total tool weight in the magazine 100 kg, including the tool holders located on the tool changer as well as tools, a coolant system and a chip conveyor, Attention: two trucks are required for transportation, one with an extended transport width of 3000 mm z-motion: 800 mm, max. workpiece weight between centers: 2,000 kg, x-motion: 1,250 mm, y-motion: 880 mm, control: Heidenhain TNC 430, table surface area l x w : 1250x1000 mm, taper: SK 40, toolchanger pos ...

Description: IMPORTANT NOTE - To be collected by Friday 17 May 2024 at the very latest. Motorspindle: 20-18,000 RPM Internal coolant: 40 Bar MPG: Heidenhain HR410 Tool changer: 32 pockets, chain type Renishaw OMP 60 Touch probe New guides and screws fitted in 2019 on X and Y See Video on https://www.youtube.com/shorts/qIozU-nCvkw z-motion: 520 mm, max. workpiece weight between centers: 350 kg, x-motion: 750 mm, y-motion: 520 mm, control: Heidenhain TNC 430, pallet table size: 700 x 500 mm, taper: BT40, toolchanger positions: 32, feed range: 20,000 mm/min, rapid motion: 50 m/min, total power requirement: 25 kW, weight approx.: 9,500 kg, Approx. Onsite Dimension. (l x w x h): 6,600 x 5,100 x 3,500 mm

Key data: 500 mm, 420 mm, 380 mm

Technische Daten Technical Data X/Y/Z axis - X/Y/Z axis mm 500/420/380 4th/5th axis - 4th/5th. Axis B+C axis Clamping table - Table Size mm NC Table 500x380 Milling Head SK 40 , 8000 rpm CNC-Steuerung - CNC Control Heidenhain Millplus WZ changer – Tool changer 24 If you are interested in this machine, please contact us, we will be happy to send you a detailed offer If you are interested in this machine, please contact us and we will be pleased to send you a detailed offer

Description: Control: MillPlus IT Switch-on hours: 43000 Spindle hours: 9600 Travels : X-axis: 880 Y-axis: 630 Z-axis: 630  , Universal milling head manual H/V tool changer: 32 times spindle speed up to 18.000 rpm tool holder: SK 40 elctr. handwheel Laser tool measurement IKZ system 40 bar table size 1250 x 700 mm max. table load 1.000 Kg rapid traverse 30 m/min feeds up to 15 m/min Filter unit IFS Approx. Onsite Dimension. (l x w x h): 4,000 x 4,000 x 2,800 mm, weight approx.: 8,000 kg

x-travel:710 mm y-travel:520 mm z-travel:520 mm weight of the machine ca.:ca. 12 t milling head speed:20-12000 U/min tool taper:SK 40 milling spindle drive:36 kW CNC 5-axis simultaneous machining center universal - 2 pcs. NC rotary tables with swivel axis - Clamping surface of rotary axis (rotary axis): Ø 700 mm x 500 mm - max. load (central): 350 kg

x-travel:630 mm y-travel:560 mm z-travel:560 mm total power requirement:10 /15 kW weight of the machine ca.:6500 kg dimensions of the machine ca.: 4,4 x 5,4 x 2,9 m Table dimensions:1000 x 610 mm Loading:400 kg rapid traverse::X 26, Y 26, Z 20 m/min speeds::20 - 12.000 min -1 tool taper:SK 40 Number of tools:20 ( 2 x 10 ) St. control:CNC MillPlus/TNC430 Documents:vorhanden

x-travel:600 mm y-travel:700 mm z-travel:600 mm control:TNC 426 HEIDENHAIN toolpiece magazine: chain magazine:30 Pos. milling spindle - taper:SK 40 turning speeds:12000 1/min rapid traverse:24 m/min weight of the machine ca.:9,5 t 5-axis universal machining center, NC-rotary-table, B-axis (milling head) Swarf conveyor,

x-travel:750 mm y-travel:600 mm z-travel:520 mm table surface area:D 700 x 500 mm turning speeds:30.000 1/min tool taper:HSK 50 control:HEIDENHAIN iTNC 530 spindle:20 /15 kW tool change unit:60 pos. rapid traverse:50 m/min table load capacity - central/maximum:350 kg total power requirement:50 kVA weight of the machine ca.:9 t dimensions of the machine ca.:3,2 x 2,65 x 2,8 m 5-axis simultaneously HSC-machining center, NC-round-swivelling table B-axis 180°, C-axis 360°, chip conveyor, el. handwheel, mode 4, oilmist suction, internal coolant supply, approx. 152.000 hours "machine on", approx. 60.400 hours "spindle on" in total

x-travel:800 mm y-travel:700 mm z-travel:600 mm table load capacity:600 kg control:Heidenhain iTNC 530 turning speeds:8000 1/min tool adaptor:SK 50 tool change unit:60 fach electr. connected load with add. coolant:38 kVA weight of the machine ca.:9 / 11 to. t transport measurements machine:4 x 2,5 x 2,75 m 5 Axis simultaneously machining center, h/v-head and NC- rotary-swivelling-table dia 630mm, prepared for central internal cooling device 40 bar, prepared for IR touchprobe RENISHAW (without probe), mech. tooling breakage control device, minimum quantity lubrication (internal+external), chip conveyor KNOLL, filter mist device ILT, flush-gun, el. handwheel, approx. 43.000 h mainswich ON , approx. 24.000 h Spindle ON

x-travel:500 mm y-travel:450 mm z-travel:400 mm turning speeds:20 -10.000 1/min control:HEIDENHAIN iTNC 530 tool change unit:60 Pos. tool taper:SK 40 rapid traverse:24 m/min spindle:13 / 9 kW Round-swivelling table:630 x 500 mm weight of the machine ca.:6,9 t 5-axis simultaneously machining center, NC-round-swivelling table B -5 / +110°, C360°, direct measuring system, el. handwheel, flush gun, chipconveyor, infrared touchprobe TS 649, mode 4, DMG netservice, approx. 20.000h "machine on", approx. 6.000h "spindle on"

X-travel: 800mm, y-travel: 800mm, z-travel: 800mm, max. rotational speed: 18,000/min, number of tool positions: 240, number of pallets: 45, rotary table dimensions: 900x700mm, control: Heidenhain iTNC 530, operating/spindle hours: 182,249/ 116. 336h, with tool storage, pallet automation, chip conveyor, handling robot, collision protection Branenkamp, loading crane, zero-point clamping system, accuracy package, automatic swivel milling head, horizontal tool changing device, double gripper, 240 magazine positions HSK 63, NC rotary table, coolant tank 900l, IKZ 80bar through spindle center (AD), chip conveyor, rotating inspection window, 3D path control, was regularly maintained by the manufacturer, on-site inspection is possible.

Operating voltage: 380/400 volts with digital positioning display x,y, without feed in y direction, with angular table, work surface with 4 T-slots Mistakes reserved!

Data sheet / Offer spare Monitor Deckel Controls Dialog 11 Dialog 12 Overview: - 12,1 industrial monitors TFT substitute with 14CRT monitors. - Connection: compatible plug connectors to the very easy installation. - Chassis monitor from high-quality high-grade steel case with compatible connection. Description: The monitor is conceived so he at few minutes of the operator independently after the enclosed instructions it can be exchanged. The control timing is preset i.e. the monitor is ready for use immediately. Micro-adjustments can be changed about the self explicatory menu ON SCREEN arbitrarily by customer wish.The connections for the graphics signal are by a Sub-D conector 25pol. he can not wrong are put on is able marked. The monitor TFT is fastened to the same points like the original monitor and this guarantees easy installation

Description The machine was without Accessories: Spannznangen, div. end mill holders. Technical data: x away the 300 mm y away 150 mm z away 340 mm Table 210 x 600 mm Spindle speeds 40-2000 RPM. Feed 10 500 rpm. Recording ISO 40

Technical data: X away the 800 mm Y away 300 mm Z away 400 mm Speed 40-2000 RPM. Recording ISO 40 Feed 10 500 mm / min. Spindle motor 2,2 KW

; very good

Horizontal round table - with bearing tracks Bearing tracks can be easily removed, Geraet fully ready for use without restrictions! Diameter 600mm construction height 140mm Partial setup via angular scale It's immediately available. Further horizontal parts available, please ask price. If you are not able to see what you need, please ask, we have not put the whole stock in place and probably the right one in stock. - Diameter 500mm built-in height 120mm with direct pitch over cam and angle scale - 2 pcs. diameter 400mm, can be used horizontally and vertically, indirect pitch for discs, once as good as new, once with bearing tracks Vertical sub-cameras and universal horizontal / Vertical pivoting sub-cameras 1. Walter with three-jaw lining 2. Lid with three-jaw lining and counter holder Special price

Various sub-equipment from a training workshop, to hand over individually, e.g. lid sub-device with upper beam and counter holder, Universal part apparatus with initial division Walter UTA150E with counter holder and rotary chuck 3 partial discs with parts see above, Part apparatus Walter can be swivelled without initial division. Furthermore Luenetten standing and running, on request please Specify the tip height and distance mid prism to mid plan area. Rest according to photo. Other sub-equipment susengar, Direct division Indirect division, various large sum. Please ask Sub-discs for UTA 150 E 22 24 29 36 37 49 57 63 16 30 33 36 39 51 57 63 16 27 30 33 41 47 53 61 Special price

Pallet Pool PS8

Fine drilling head for lid fraes machine, probably FP2, SK40, little used condition. Special price

Table size: 460 x 800 mm stroke x: 485 mm traverse path y: 385 mm traverse path z: 380 mm Quill stroke: by hand approximately 70 mm spindle speeds: 50-3150 rpm stufenl feeds. adjustable: 2-1000 mm / min rapid traverse rate: 2 m / min. Port: 3.7/4,4 kW space: 2100 x 1650 x 1730 mm weight: 1850 kg

Lid FP 2 NC Used machine (good condition) Control type NC Built in 1987 Operating hours n/a Price 9,900 € net plus VAT Dimensions 1325 x 1315x 1845 Weight 1450 kg Location 35708 Haiger The machine was part of a training workshop, it is made of 1st hand and has few hours of operation. Travel routes; x = 300, Y = 300, Z = 400 mm Speed range: 31.5 - 3150 rpm DESCRIPTION CNC milling machine lid FP 2 NC year: 1987 Control: 3-D web control dialog 4 Can also be operated manually via handwheels Travel paths; x = 300, Y = 300, Z = 400 mm Voltage: 380 volts Speed range: 31.5 - 3150 rpm power, 1.6/ 2.0 kW WZ recording, SK 40 Hydraulic Tool Clamping Rigid Angular Table Table Size: 620 x 390 mm Electronic handwheel Coolant device Machine light Spray protection cabin Accessories: operating and programing instructions, electrical circuit diagrams, WZ-holders Weight: 1450 kg Dimensions: L  ...

CNC toolmill cover FP 3 NC Dialog 11 Used machine (very good) Control type Cnc Built 1990 Hours K.a. Dimensions 1800x1700x2000 Weight 2000 kg Location Haiger Description Universal tool milling machine of the brand lid suitable for tooling, fixture construction, training as well as mold making • Travel distances: 400x400x400mm • Control: Dialog 11 Technical data • Control CNC Dialog 11 • Table 600x400mm • Longitudinal path (X,Y,Z axis) 400x400x400mm • Tool changer no • Tool holder: ISO 40 • Vertical spindle speeds: 31.5-3150rpm • Feeds 2-3600mm/min • Connection 50 Hz 3x 380V • Spindle motor 3.4KW

2 pallets, 108 wkzg., BJ 1988, interior cooling, with PS8, various clamping means - see pictures

Lid FP 4 MA Used machine (Very good) Control type CNC Built in 1990 Operating hours n/a Price 8,000 net plus VAT Dimensions 2500x2000x2500 Weight 1800 kg Location Haiger Description Universal tool ingescent machine of the brand lid suitable for tooling, fixture construction, training as well as mold making Travel: 465x385x380mm Control: Contour 2 Technical data Technical data: Lid FP4 MA (527) Built in 1992 Control CNC Hand / Contour 2 Table 800x465mm Laengsweg (X,Y,Z axis) 465x385x380mm Tool changer no Tool holder: ISO 40 Vertical spindle speeds: 31.5-3150rpm Vorschuebe 2-4000mm/min Connection 50 Hz 3x 380V Spindle motor 4KW Machine weight approx. 1900kg Dimensions 2800x2000x2500mm

3-axis machining center X: 560 mm Y: 500 mm Z: 390 mm Rapid traverse rate: 4 m / min Table load: 800 kg Speed range: 4000 RPM Spindle retainer: SK 40 Headstock speed range: 4000 RPM Spindle drive: 4 kW Control: Dialog 11 Electr. Handwheel Coolant system direct measuring system Documentation Total power: 19 kW Machine weight: approx. 2.8 kg Dimensions (W x D x H): 3.66 x 3.5 x 2.1 m

Description x-path: 300 mm y-way: 150 mm z-way: 340 mm Clamping area: 600 x 210 mm T-slots: 5 T - slot width: 12 mm Speed range - vertical: 250 - 2000 rpm Speed range - horizontal: 40 - 315 rpm Speed levels working spindle: 8 Feed range: 10 - 500 mm/min Feed levels: 8 Pinolene stroke: 60 mm Spindle holder: SK 40 Total power requirement: 1.7 kW Machine weight approx.: 0.8 t Space requirement approx.: 0.90 x 1.10 x 1.55 m Universal tool milling machine in very good condition, vertical head rotatable +/- 90° incl. drill pin with stroke 60 mm, horizontal spindle, automatic feed in X and Z direction, universal swivel table, turning and tilting range+/- 30°, swivel range+/- 90°, separate control cabinet + main switch incl. digital display (new)

Three T-slot plates of a copy-fraes machine from Lid are offered. The T-slot plates can be mounted as a cross table. Scope of delivery only according to photos, without spindles. If you are interested, please request more photos. Further spare parts of lide e.g. towing table of a KF3 pre-wheels. Please ask. Special price Lid cabinet tool cabinet
