x-travel: 630 mm y-travel: 560 mm z-travel: 560 mm control: iTNC 530 Heidenhain Main spindle:: turning speed range - main spindle: 20 - 12.000 min/-1 power capacity - main spindel: 15 / 10 kW max. Torque: 125 Nm tool taper: MAS BT 40 swivellable: B: 103 ° feed:: feed speeds: 20 - 10.000 mm/min rapid traverse X-axis: 26 m/min rapid traverse Y-axis: 26 m/min rapid traverse Z-axis: 20 m/min Resolution: 0,001 mm input unit: 0,001 mm work table:: surface area: 1.000 x 600 mm rotary table dia.: 600 mm number of T-slots: 8 / 1 T-slot - width: 14 H12 / 14 H7 T-slot - distance: 63 mm max. table loading capacity: 350 kg rotatable: C: 360 ° Tool-Presetter:: number of toolpositions: 24 pos. max. tool diameter: 80 mm max. tool-dia with free toolbox: 130 mm max. tool length: 315 mm max. tool weight: 8 kg total wight: max. 100 kg total power requirement: 26 kVA weight of the machine ca.: 6,7 t di ...
x-travel: 800 mm y-travel: 800 mm z-travel: 800 mm Control: iTNC 530 Heidenhain Main spindle:: Max. rpm: 18.000 min/-1 power capacity - main spindel: 28 / 19 kW max. Torque: 121 / 82 Nm tool taper: HSK-A63 swivellable: B: 0 - 190 ° swivle time: 1,2 s NC-Rotary table:: table diameter: 900 x 700 mm max. table load: 1.400 kg rotatable: C: 360 ° tool magazin:: number of toolpositions: 40 pos. tool taper: HSK-A63 change-time chip to chip: ca. 5,0 sec feeds:: rapid traverse ( X / Y / Z ): 60 m/min rapid traverse: B: 30 m/min rapid traverse: C: 30 m/min feed speeds: max. 60.000 mm/min total power requirement: 64 kVA weight of the machine ca.: 14,0 t dimensions of the machine ca.: 6,5 x 6,5 x 3,5 m Documents: Coolantsystem: high pressure coolant: through spindle coolant: 40 bar turning milling head: NC-rotary table: Tool Magazine: Chip conveyor: tool monitoring: BLUM Laser elektr. h ...
surface area: 1000 x 520 mm no. of flutes: 6 groove width: 16 mm weight of the machine ca.: 400 kg dimensions of the machine ca.: 1,20,80,8 m Turning, swivelling and tilting table ( universal table ) suitable for FP- 2 L / 3 L / 3 LV / 41 / 42 6 T-slots 16 mm at 90 mm centres. Table top can be swivelled +- 45° ( or 180° ). Table top can be tilted 4 x 15°. Table load moving/stiff: 1000/1500 kg, Weight approx. 400 kg Bearing frame and lifting beam The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
x-travel: 750 mm y-travel: 600 mm z-travel: 520 mm control: iTNC 530 Heidenhain Main spindle:: turning speed range - main spindle: 20 - 18.000 min/-1 power capacity - main spindel: 35 / 25 kW max. Torque: 130 / 87 Nm tool taper: HSK-A63 NC-Tilting round table:: table surface area: 700 x 500 mm Swivel range B-Axis: 0 - 180 ° Swivel range C-Axis: 0,001 ° max. table load: 350 kg center hole: 30 H6 mm T-slots: 7x 14H7 x 63 mm table turning speeds: 21,5 rpm tool magazin:: number of toolpositions: 32 pos. max. tool length: 315 mm max. tool diameter: 105 mm max. tool-dia with free toolbox: 130 mm max. tool weight: 6,0 kg feeds:: rapid traverse ( X / Y / Z ): 50 / 50 / 50 m/min feed speeds: 20.000 mm/min Feed force: X / Y / Z: 8 / 8 / 7 kN total power requirement: 50 kVA weight of the machine ca.: 8,5 t dimensions of the machine ca.: 6,5 x 3,5 x 3,5 m Documents: Chip-Tray: Coolantsystem: ...
surface area: 440 x 1000 mm no. of flutes: 5 groove width: 16 mm total power requirement: - kW weight of the machine ca.: 210 kg dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
inner taper of milling spindel: SK 40 collet diameter: 0,5-25 turning speed range: 1900 - 6000 U/min drive motor: 0,55 kW total power requirement: 0,55 kW weight of the machine ca.: 50 kg dimensions of the machine ca.: - m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
x-travel: 800 mm y-travel: 300 mm z-travel: 400 mm total power requirement: 3 kW weight of the machine ca.: 2,,2 t dimensions of the machine ca.: 2,522 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
Key data: 635 mm, 510 mm, 460 mm
CNC Vertical Machining Center "DECKEL MAHO DMC 635 eco" With path control Siemens 810 Powerline Year of Make: 2010 Travel: X 635 Y 510 Z 460 Speed range: 20 – 8,000 rpm infinitely variable With the following accessories: Rigid angle table 790 mm x 560 mm clamping surface Vertical tool changer with 20 magazine positions Electronic handwheel Tool length measurement Heidenhain TT 140 Full protection cabin with sliding doors and interior lighting Coolant Setup Signal light 4 colour Conveyor Chip rinsing gun 3 Height Adjustable Machine Shoes Operating instructions
Deckel FP3A 2820 - CNC Milling Machine - Deckel Contour 3 CNC control - Movable vertical milling head with extendable spindle - Counter bearings for long milling mandrels - Hydraulic tool clamp - Automatic speed manual transmission - Automatic clamping in X/Y/Z axes - Automatic central lubrication - Coolant device - Direct displacement measurement - Collision protection clutch in Z/Y axes - Built in 1987 Specifications Workspace: - X-axis (longitudinal): 485 mm - Y-axis (transverse): 385 mm - Z-axis (vertical): 380 mm - Quill stroke vertical: 80 mm Cpovd9Rv - Vertical milling head can be moved to the headrest: 150 mm Main Drive: - Motor: pole-switchable three-phase brake motor and manual transmission with clockwise/counterclockwise rotation - Power: 3.7 / 4.4 kW - 18 working spindle speeds: 50 - 2500 rpm - Level Jump: 1.25 - Tool holder: SK40 (M16) - Tool ...
x-travel: mm y-travel: mm z-travel: mm weight of the machine ca.: 1.700 kg dimensions: 2000 x 1000 x 1950 mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
Refurbished lid FP 1 for sale. - 3-axis digital display - Cooling/lubrication pump in the machine base - Overhauled 2024 - Incl. tool table and machine vice If you have any questions, please: 01728101136
x-travel: 2050 mm y-travel: 520 mm z-travel: 520 mm total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m CNC control Heidenhain TNC 430 2x 32-fold tool changer coolant device 2x chip conveyor measuring feeler The hole X-axis travel is 2050mm. You can work in one move 2 meters. A dividing wall is also with the machine. Then the X-travel will be split. Technische Daten / technical details: X-Weg / X-travel 2050 mm Y-Weg / Y-travel 520 mm Z-Weg / Z-travel 520 mm Spindelaufnahme / spindle taper SK40 Drehzahlbereich / spindle speed 12000 UpM /rpm Werkzeugwechselmagazinplätze / number of tool places in changer 2x 32 Antriebleistung Spindel / drive capacity spindle 36 kW Gewicht ca. / weight 12800 kg Technische Daten, Zubehör und Beschreibung der Maschine sind unverbindlich - Technical data, accessories and description of the machine are ...
for sale are partially overhauled milling machines of the type Deckel FP1 aktiv. Thanks to the 2-axis TNC113 active control, the machine can convince with very simple and comfortable handling. This newer version from 1989 has, among other things, a central lubrication, an electric coolant pump and a machine lamp. The machines are extensively partially overhauled in our workshop and are therefore in excellent condition. You are welcome to convince yourself of this on site. Shipping time: immediately Year of construction: 1989-1992 Machine no. 2102-xxxx Table: rigid angle table Travel: X300mm/Y160mm/Z340mm Quill Stroke: 60mm Connected load: 1.9KW Number of spindle speeds: 16 Speed range: 40-2000 rpm Tool holder: SK40 Feed: Stepless 5-500 mm/min Rapid traverse: 1200mm/min
for sale are partially overhauled milling machines of the type Deckel FP1 aktiv. Thanks to the 3-axis TNC113 active control, the machine can convince with very simple and comfortable handling. This newer version from 1989 has, among other things, a central lubrication, an electric coolant pump and a machine lamp. The machines are extensively partially overhauled in our workshop and are therefore in excellent condition. You are welcome to convince yourself of this on site. Shipping time: immediately Year of construction: 1989-1992 Machine no. 2102-xxxx Table: rigid angle table Travel: X300mm/Y160mm/Z340mm Quill Stroke: 60mm Connected load: 1.9KW Number of spindle speeds: 16 Speed range: 40-2000 rpm Tool holder: SK40 Feed: Stepless 5-500 mm/min Rapid traverse: 1200mm/min
for sale are partially overhauled milling machines of the type Deckel FP1 aktiv. Thanks to the 3-axis TNC113 active control, the machine can convince with very simple and comfortable handling. This newer version from 1989 has, among other things, a central lubrication, an electric coolant pump and a machine lamp. The machines are extensively partially overhauled in our workshop and are therefore in excellent condition. You are welcome to convince yourself of this on site. Shipping time: immediately Year of construction: 1989-1992 Machine no. 2102-xxxx Table: rigid angle table Travel: X300mm/Y160mm/Z340mm Quill Stroke: 60mm Connected load: 1.9KW Number of spindle speeds: 16 Speed range: 40-2000 rpm Tool holder: SK40 Feed: Stepless 5-500 mm/min Rapid traverse: 1200mm/min
Feed length X-axis: 500 mm Y-axis feed length: 300 mm Feed length Z-axis: 380 mm X-axis travel: 500 mm Y-axis travel: 300 mm Travel Z-axis: 380 mm X-axis feed speed: 500 mm/min Y-axis feed speed: 500 mm/min Z-axis feed speed: 500 mm/min Speed (max.): 2,000 rpm Speed (min.): 40 rpm Weight: 1,250 kg Equipment: Documentation/Manual
Specifications: 3-axis digital display Heidenhain active Working area: 500 x 400 x 400 mm Drive power: 4 kW Fixed table 800 x 460 mm Chip tray Spindle holder SK 40 Speed range n 50-2500 min-1 Feeds 8-630 mm/min Rapid traverse 1.3 m/min Space requirement approx. 2 x 2 x 2 m Weight approx. 1650 kg
Double Swivel Head Fast Runner SK40 for the Deckel FP Milling Machine without Motor However, the motor of the normal high-speed engine should fit just as well. Although the complete head probably has 70kg at the end, it probably even fits from FP1 upwards to FP4 Very good used condition, either never used, or only a few times. Except for slight traces of storage, no signs of wear to be seen. The spindle rotates cleanly and easily. However, the (drilling) stroke is a bit heavy, probably has to be adjusted. Pickup. However, a delivery can be arranged in advance, can... You will receive an invoice in paper form. Differential taxation according to sec. 25a of the German VAT Act. Therefore, no VAT is shown on the invoice.
Year of manufacture 2001 Heidenhain TNC 310 Travel distances 350 x 240 x 340 Spindle speed 20 - 5000 Drive power 6.3/10 KW Total connected load 15 kW Tool holder SK40 Accessories: el. Handwheel Universal swivel rotary table 400 x 280 mm, Rotation range 360°, swivel range +105/-15° with electronic angle display Coolant Setup
Inv. Num. : 5211 Type: DMU 80 P Producer: Deckel Maho Generated: 2000 Parameters: Control system: Heidenhein TNC 430 Switch-on hours: 87285 h Hours: 34100 h Minimum vertical spindle speed: 20 1/min Maximum vertical spindle speed: 12000 1/min X-axis travel: 800 mm Y-axis travel: 650 mm Z-axis travel: 550 mm Cone: ISO 40 Number of all tools: 30 pieces Equipment: IKZ Workpiece Probe Conveyor Spindle cooling 2020: Replacement of the PILS contactors New E/R module New X/Y Module 2019: Lock Replacement Workpiece Probe Sensor Replacement Replacing the hydraulic hose of the tool clamp 2018: New X/Y axle bolt Replacement of the Y-axis blind Replacement of the B-axis planetary gearbox New motor and B-axis measuring cable 2016: New spindle bearings System Replacement Replacing the UV105 power supply Replacement of the spindle mod ...
DECKEL S11, universal tool & cutter grinder, under power in our warehouse, Mimu machine-tools (Italy)
Key data: 600 mm, 525 mm, 200 mm
Tool Milling Machine - Universal DMU 60 E Machine x-travel: 600 mm y-travel: 525 mm z-travel: 500 mm Serial No.033 Table clamping surface: 1000 x 543 mm Spindle holder: SK 40 Spindle holder: DIN 69871 Spindle speeds - infinitely variable: 20 - 12,000 rpm Feeds X/Y/Z axis: 20 - 10,000 mm/min Rapid traverse X/Y/Z axis: 18 / 18 / 15 m/min Table load: max. 350 kg Control: HEIDENHAIN Head swivel +/-: 90 ° Total power requirement: 26 kVA Machine weight approx.: 4.2 t Machine dimensions L x W x H: 2.95 x 2.1 x 2.26 m Coolant Setup Machine was dismantled Machine is sold as a defect
Key data: 600 mm, 525 mm, 500 mm
Tool Milling Machine - Universal DECKEL-MAHO DMU 60 E Machine x-travel: 600 mm y-travel: 525 mm z-travel: 500 mm Serial no.023 Table clamping surface: 1000 x 543 mm Spindle holder: SK 40 Spindle holder: DIN 69871 Spindle speeds - infinitely variable: 20 - 12,000 rpm Feeds X/Y/Z axis: 20 - 10,000 mm/min Rapid traverse X/Y/Z axis: 18 / 18 / 15 m/min Table load: max. 350 kg Control: HEIDENHAIN Head swivel +/-: 90 ° Total power requirement: 26 kVA Machine weight approx.: 4.2 t Machine dimensions L x W x H: 2.95 x 2.1 x 2.26 m Coolant Setup Machine was dismantled
Key data: 600 mm, 525 mm, 500 mm
Tool Milling Machine - Universal DECKEL-MAHO DMU 60 E Machine x-travel: 600 mm y-travel: 525 mm z-travel: 500 mm Serial.no.063 Table clamping surface: 1000 x 543 mm Spindle holder: SK 40 Spindle holder: DIN 69871 Spindle speeds - infinitely variable: 20 - 12,000 rpm Feeds X/Y/Z axis: 20 - 10,000 mm/min Rapid traverse X/Y/Z axis: 18 / 18 / 15 m/min Table load: max. 350 kg Control: HEIDENHAIN Head swivel +/-: 90 ° Total power requirement: 26 kVA Machine weight approx.: 4.2 t Machine dimensions L x W x H: 2.95 x 2.1 x 2.26 m Coolant Setup Machine was dismantled
Key data: 710 mm, 520 mm, 520 mm
TECHNICAL DETAILS X-axis travel:710 mm Y-axis travel:520 mm Z-axis travel:520 mm Rapid traverse X-axis:30 m/min Y-axis rapid traverse:30 m/min Rapid traverse Z-axis:30 m/min X-axis feed speed:10 m/min Y-axis feed speed:10 m/min Z-axis feed speed:10 m/min Overall height:3,300 mm Overall length:4,600 mm Overall width:5,500 mm Total weight:6,000 kg Spindle speed (min.):20 rpm Spindle speed (max.):12,000 rpm Spindle motor power:25,000 W Input voltage:400 V Type of input current:three-phase Work table length:700 mm Worktable width:500 mm
x-travel: 500 mm y-travel: 300 mm z-travel: 380 mm spindle stroke: 100 mm turning speeds: 40-2000 U/min Table area: 380x800 mm Feed: 10-500 mm/min Feed: 10-500 mm/min Rapid movement: 1500 mm/min spindle taper: ISO: 40 digital readout: Elesta total power requirement: 3 kW weight of the machine ca.: 1,1 t dimensions of the machine ca.: 1,2x1,2x1,7 m The tech. Data are manufacturer or operator information and therefore for us not binding. We reserve the right to prior sale, it apply only our business and conditions of sale. About Us more than 400 own machines in stock over 12000 m² storage area, crane capacity 70 t more than 10000 articles accessories for your workshop You want to sell machines, production lines or your company, Then contact us. The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
spindle taper ISO: 40 x-travel: 710 mm y-travel: 600 mm z-travel: 445 mm Control: Heidenhain type: TNC355 mm table surface area: 1000x550 mm turning speeds: 6300 U/min quill stroke: 80 mm Feed: 1-3600 mm/min rapid traverse: 6 m/min total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
used
x-travel: 400 mm y-travel: 400 mm z-travel: 400 mm control: Grundig Contour tool taper: SK40 total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
Clamping plate, clamping table, machine table, T-slot plate LID Working surface: 700 x 250 mm for KF12 Plate thickness: 60 mm groove width: 12 / 21 mm used, tested ! Dimensions: 700 x 250 x 60 mm
Clamping plate, clamping table, machine table LID Working area: 600 x 430 mm for KF12 Panel thickness: 25 mm Groove width: 12 / 21 mm used ! Dimensions: 600 x 430 x 60 mm
2002 Deckel Maho DMU 50T still in use, can be viewed Find more here - / Contact us at -
Key data: 1200 mm, 600 mm, 500 mm
Dialog 11 Control Travels 1200 x 600 x 500 Max. spindle speeds 5000/rpm Spindle drive 12 kW Tool holder SK40 Quill stroke 80 mm, weight approx. 7000 kg. Accessories el. Handwheel, coolant device. The machine is in very good condition.
The 2005 Deckel Maho DMC 104 V linear is a CNC (Computer Numerical Control) vertical machining center manufactured by Deckel Maho, a part of DMG MORI. This machine is known for its precision and efficiency in machining tasks, including milling, drilling, and tapping. Here are some key features and specifications of the 2005 Deckel Maho DMC 104 V linear: - Travel and Table Size: - X-axis travel: Approximately 1040 mm - Y-axis travel: Approximately 600 mm - Z-axis travel: Approximately 500 mm - Table size: Large enough to accommodate substantial workpieces - Spindle: - Spindle speed: High rotational speeds for efficient cutting - Spindle power: Sufficient for heavy-duty machining tasks - Linear Drives: - Equipped with linear drives for the X, Y, and Z axes, providing higher precision and faster movements compared to traditional ball screw drives. - Control System: - Typically equip ...

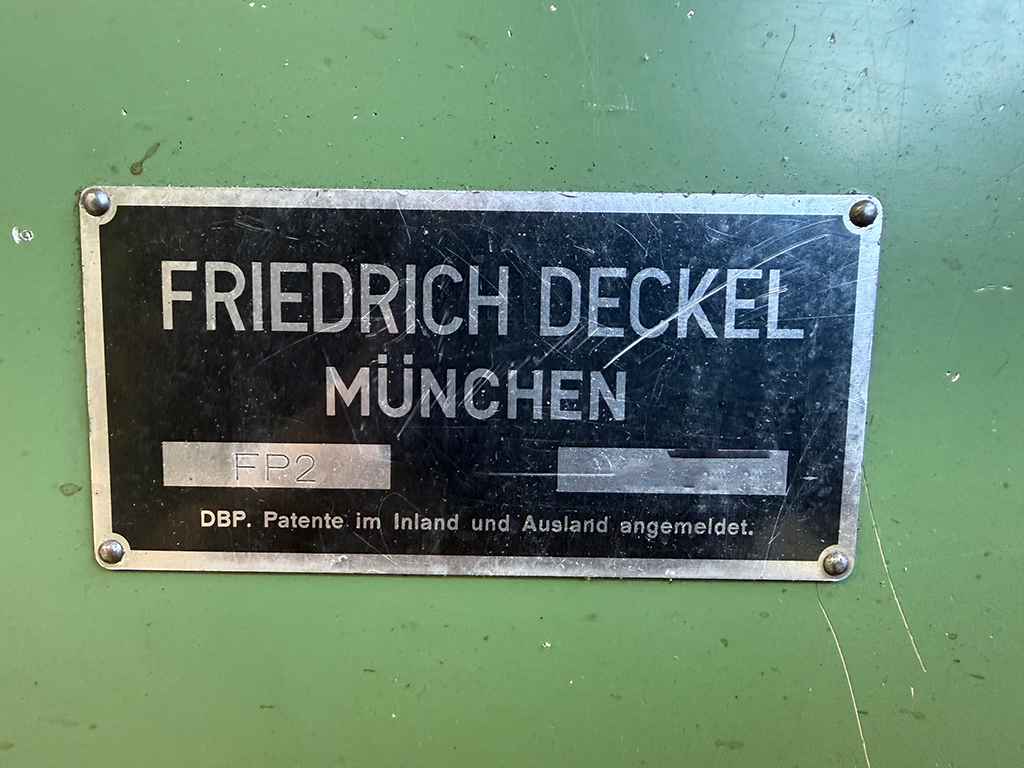

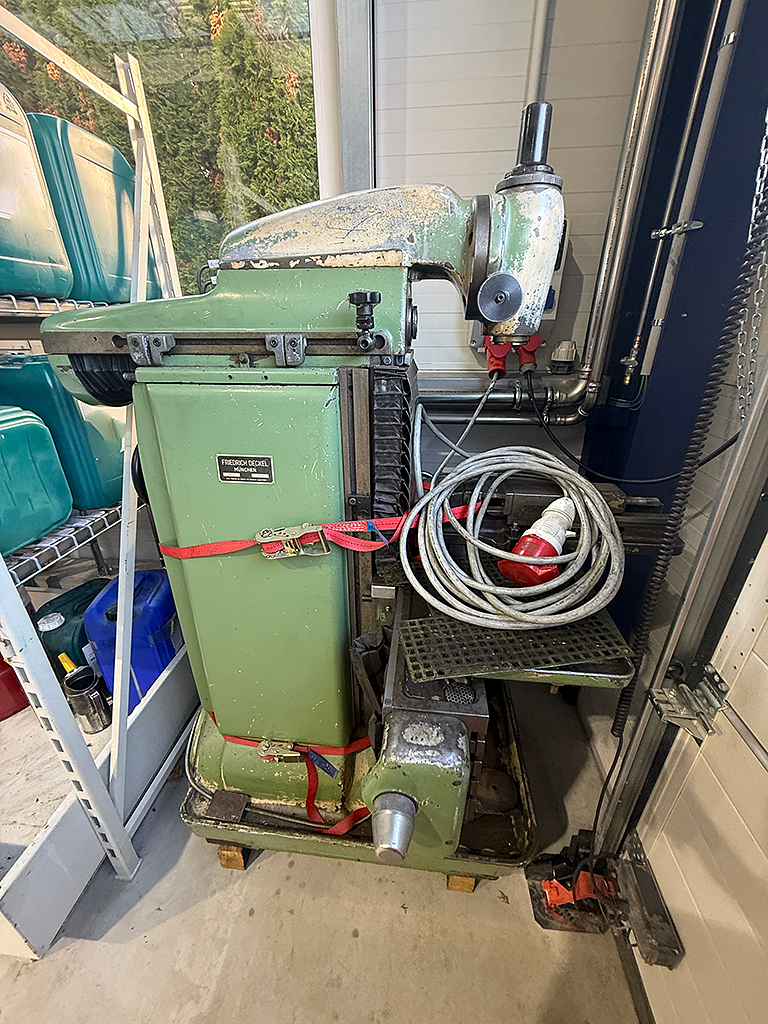

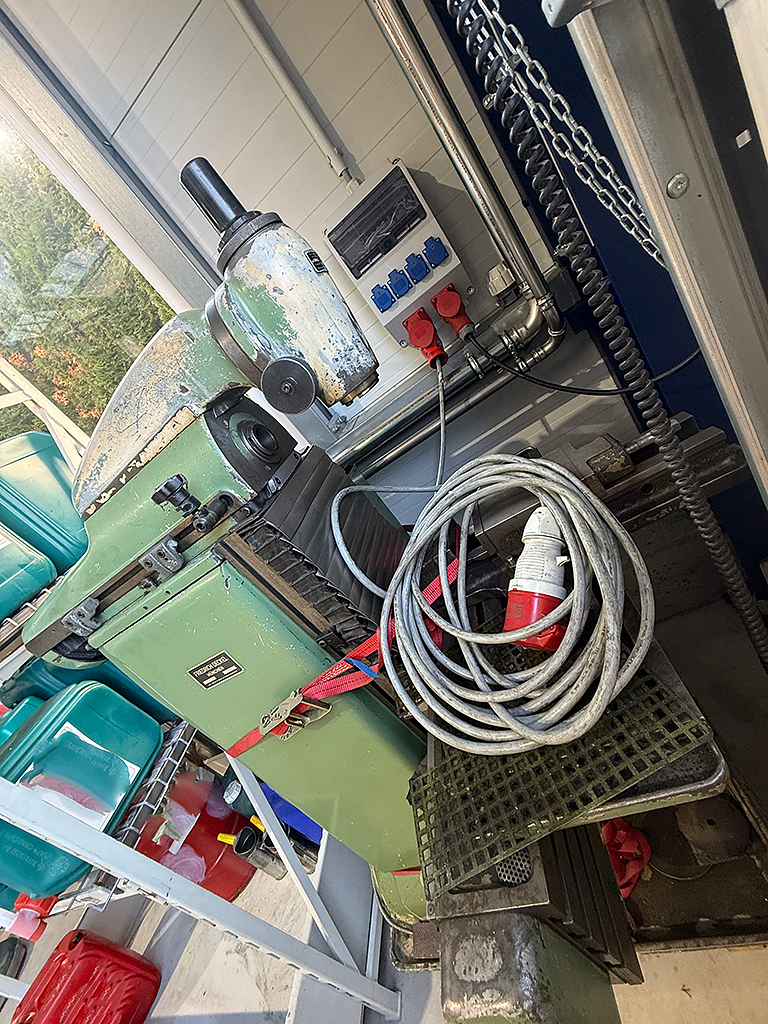

Lid FP2A from vocational training center freshly serviced in top condition x-travel 300 mm y-travel 300 mm z-travel 400 mm Spindle holder ISO 40 Spindle speeds 40 - 3150 rpm Table size 620 x 390 mm Feeds infinitely variable 4 - 4000 mm/min CNC control Dialog4 (software update) Table load 0.45 t Total power requirement kW Machine weight approx. 1.6 t Operating voltage 380 V Footprint 1.9 x 2.0 mm Control cabinet 1.90 x 0.75 x 1.05 m Dimensions approx. 2.9 x 2.7 x 2.0 m
Cover FP42NC 2387 X-Axis Ball Screw with Nut new! Number according to spare parts plan: 2388-002435 Shipping by arrangement
Handwheel Dialog 4/11 - Contour3 Two available, one in very good condition, the second is new NOS!
Deckel FP NC Measuring Microscope Hensold Wetzlar MZM30 with SK40 DIN Cone with Gripper Groove
Inv. Num. : 8185 Type: FP 3 NC Producer: Deckel Generated: Parameters: Work table length: 700 mm Work table width: 460 mm Maximum vertical spindle speed: 4000 1/min X-axis travel: 400 mm Y-axis travel: 400 mm Travel Z axis: 340 mm Machine height: 1800 mm Machine length: 2000 mm Machine width: 1400 mm Machine weight: 1900 kg
x-travel: 500 mm y-travel: 400 mm z-travel: 400 mm Control: Heidenhain TNC 310 tool taper: SK 40 speeds: 20-4500 U/min weight of the machine ca.: 3 t dimensions of the machine ca.: 2,15 x 2,00 x 2,50 m Equipment/accessories: -swivel rotary table -documentation The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
Michael Deckel S0E Stylus Tool Grinding Machine, SOE Weilheim TOP Condition Total weight approx. 90kg Top grinding wheels with an outer diameter of up to max. 100mm are used Absolute top condition! Only one overhauled machine has a slightly superficial patina the bare metal parts. The pictures speak for themselves. The workshop dream in Reseda green :-) Plug with phase inverter
x-travel: 640 mm y-travel: 600 mm z-travel: 500 mm control: Siemens 840 D total power requirement: 19 kW weight of the machine ca.: 8 t dimensions of the machine ca.: 5 x 4 x 3 m No. 5312: Vertical machining center DECKEL MAHO type DMC 64 V linear year of construction 2007 Siemens 810 D Shopmill Working area: 640 x 600 x 500 mm Drive power: 13/19 kW Equipment: Table 850 x 600 mm ( WITHOUT the clamping devices shown ) Preparation 4th axis Production package / IKZ 40 bar: BFA 600 cooling lubricant cleaning system Integrated spiral chip conveyor Separate scraper belt chip conveyor documentation Miscellaneous: Spindle ISO 40 Speed range 1-12,000 min-1 Space requirement see sketch Transport dimensions approx. 6.5 loading meters Weight approx. 8.8 tons The machine is ready for operation with wear and tear due to age and use. Short video: https://www.youtube.com/watch?v=sDkgx4BYXeY Special pric ...
x-travel: 2.200 mm y-travel: 560 mm z-travel: 720 mm control: iTNC 530 Heidenhain turning speed range - milling: 20 ~ 12.000 U/min power capacity - milling spindle: 35 / 25 kW tool taper: SK 40 tool piece magazine with: 100 pos. table surface area: 2.600 x 600 mm rapid traverse X-axis: 100 m/min rapid traverse Y-axis: 50 m/min rapid traverse Z-axis: 50 m/min max. tool diameter: 80 mm max. tool-dia with free toolbox: 130 mm max. tool length: 300 mm max. tool weight: 6 kg max. table load: 2.200 kg total power requirement: kW weight of the machine ca.: 12 t dimensions of the machine ca.: 7,0 x 4,2 x 2,7 m Chip conveyor: Coolantsystem: interface 4. axis: 4. axis: 560 mm Seperating wall: oil mist extraction: Tailstock: 350 mm / MK 5 elektr. hand wheel: through spindle coolant: 40 bar Travelling column milling machine DECKEL MAHO - DMF 220 Linear - new spindle installed (April 2024) - in ...
x-travel: 2.600 mm y-travel: 700 mm z-travel: 700 mm control: iTNC 530 Heidenhain Main spindle:: turning speed range - main spindle: 20 - 18.000 min/-1 power capacity - main spindel: 35 / 25 kW tool taper: SK 40 work table:: table surface area: 2.900 x 700 mm max. table load: 2.150 kg tool magazin:: number of toolpositions: 30 pos. tool taper: SK 40 max. tool diameter: 80 mm max. tool-dia with free toolbox: 130 mm max. tool length: 300 mm max. tool weight: 6,0 kg feeds:: rapid traverse ( X / Y / Z ): 40 m/min feed speeds: max. 40.000 mm/min feed power: max. 8 kN total power requirement: 54 kVA weight of the machine ca.: 14,4 t dimensions of the machine ca.: 8,0 x 5,6 x 2,8 m Chip conveyor: Coolantsystem: high pressure coolant: 40 bar through spindle coolant: Rotary screen: 2x Signal-Light: paper band filter: interface 4. axis: indexing attachment: Hofmann - RWNC-220L tool setti ...
Tool diameter: mm sanding disc diameter: mm Motor output: 3 kW total power requirement: 3 kw Weight: 1.400 kg Overall size: mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
1 pcs used tool milling machine Make of lid Model FP 3 A Control Dialog 11 Technical data: Travel X,Y,Z 400,300,400 mm Clamping area 700 x 400 mm Quill stroke 80 mm Spindle drive 3kW Speed 3150 rpm Spindle holder SK 40 Machine dimensions L x W x H 2400/2200/1900 mm Machine weight approx. 2500 kg, Accessories: Grundig Dialog 11, fixed angle table, electronic handwheel, documentation Errors of technical data and prior sale excepted
CNC controller: HEIDENHAIN iTNC 530 Axes X-axis travel mm: 700 Y-axis travel mm: 700 Z-axis travel mm: 700 Distance spindle nose - table surface mm: 100 - 800 Rapid traverse m/min: 60 Acceleration in the axes m/s2: 6 / 6 / 5 Worktable Number of pallets: 2 + 5 Table dimensions mm: 500 x 500 Maximum workpiece size (D x H) mm: 800 x 1.000 Max. workpiece weight kg: 600 T-Slot version: DIN 55201-A2 APC time s: 9,5 División estandar Grados: 360º (1º) Spindle Spindle speed rpm: 18.000 Spindle drive power kW: 34 / 28 Spindle torque Nm: 110 Tool system Tool holder: HSK-A63 Tool magazine slots: 120 Max. Tool Diameter: 80 Max. Tool Length mm: 550 Max tool weight kg: 12 Chip-to-chip time s: 2,9 Equipment Electronic Handwheel Chip conveyor Rotating inspection windows Rinsing gun Signal lamp Tool breakage probe 3D quickSET Workare ...
Control HEIDENHAIN TNC 430 Spindle speed 20 - 9,000 1/min Travel X= 500, Y= 400, Z= 400 mm Tool holder SK 40 Tool changer with 16 stations Rotary table with B and C axis Clamping surface Ø 700 x 500 mm max. table load 200 kg Infrared Probe Workpiece Measurement
