cylindrical grinding used for sale

Grinding lenght 6000 mm Grinding diameter 1050 mm

Key data: 125 mm, 406 mm

This machine is equipped with an automatic infeed of parts as well as an automatic removal by means of a conveyor belt.

Key data: 300 mm, 750 mm, 150 mm

Year of construction: 1981 REFURBISHED: 2016 Scheif-Ø max.: 300 mm Grinding length max.: 750 mm External grinding spindle drive: 5.5 kW External grinding wheel: left External Grinding Wheel Dimensions ØxWxBore Tailstock: manual Tailstock Mounting Cone: MK4 Tailstock stroke max.: 40 mm Workpiece headstock: MK4 Workpiece spindle bore: 24 mm Workpiece weight between tips max.: 200 kg Workpiece weight flying max.: 50 kg Workpiece spindle speed: 32-500 min-1 Strobe lamp for grinding wheel balancing: 1 pc. Grinding wheel flanges: div. External grinding wheels: various Belt filter with pump: 400 l Magnetic chuck Ø: 200 mm 3-jaw chuck Ø: 160 Weight approx.: 3.700 kg Operating Voltage: 380V/50Hz Space requirement LxW approx.: 3,420x2,155x1,700 mm All information is non-binding

Cylindrical grinder BU 28/1000 with accessories

Cylindrical grinder 2Ud/700 with accessories.

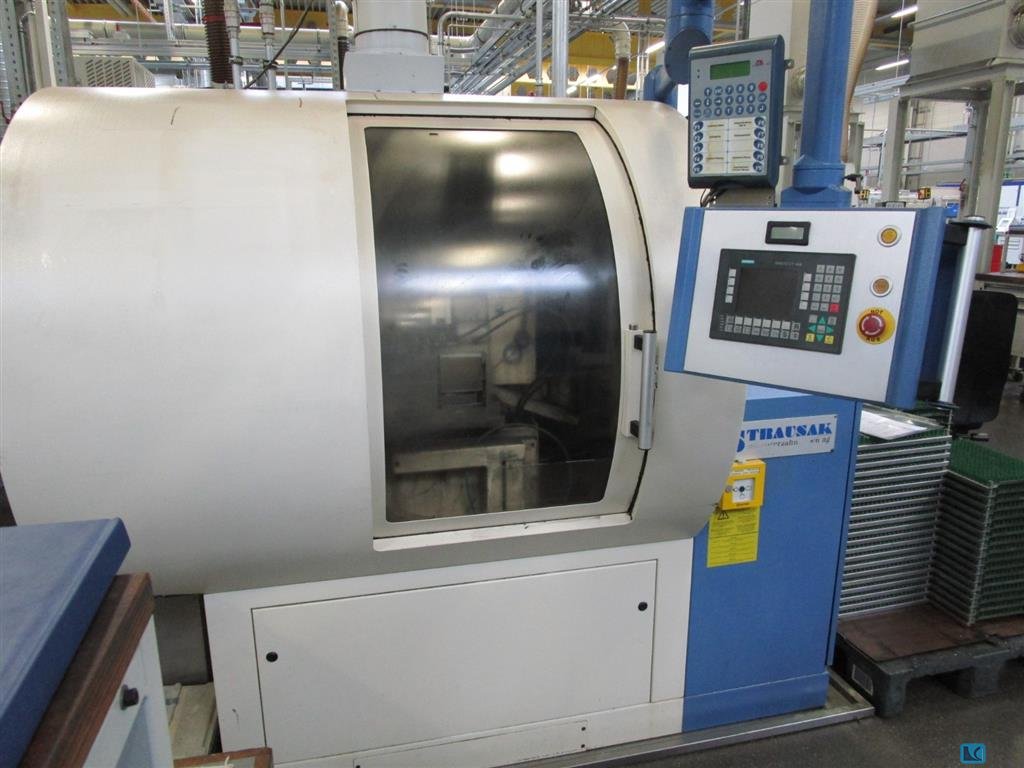

Control Siemens 810 Grinding diameter approx. 200 mm 2 grinding wheels installed Grinding wheels Ø approx. 500mm Centering tip Max length of component approx. 300mm Automatic stripping Hydraulic workpiece clamping Tailstock Driven rotary axis Guides mounted on oil film

grinding diameter: 250,350,450 mm grinding length: 1000 mm centre height: 125,175,225 mm grinding wheel diameter: 400 mm grinding wheel width: 50 mm bore: 127 mm : MK5 work piece spindle speed: 20-400 U/min workpiece spindle - bore: mm grinding head swivelling: 360 ° grinding spindle head - swivable: 180 + - ° grinding spindle speed: 1500,1700,2200 U/min : 0,001-0,030 mm/Ø : 0-0,95 mm/Ø : ±8 ° longitudinal feed of the table: 1300 mm table speeds: 0,02-6 m/min : 130 kg : 130 inkl. Spannugkg kg : mm grinding depth: mm : 70 mm total power requirement: 6,5 kW weight of the machine ca.: 2,5 t dimensions of the machine ca.: 4,2 x 2,0 m As the world’s leading company in Kellenberger overhaul and retrofit we are not only able to deliver machines in a quality similar to a new machine and with warranty, but we can also offer you the service for your machines.Version R: Maschine hat Zentral ...

grinding diameter: 500 mm grinding length: 500- 2500 mm centre height: 150 / 180 / 225 mm total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Key data: 50 mm

- Internal grinding Ø min: 1 mm - Internal grinding Ø max.: 50 mm - Grinding length: 200 mm - Center height: 132 mm - Tool spindle speed: 150 - 1,500 rpm - Table speed: infinitely variable up to 10 m/min - Dressing device: yes - Grinding spindle speed: 16,500 - 120,000 rpm - Internal grinding spindle: 16,500, 22,000, 33,000 rpm - Paper tape filter: yes - Total power: 3 kW - Machine weight: 2000 kg - Space requirements (W x D x H): 1.8 x 1.1 x 1.8 m - Condition: good Details well-maintained machine from a German car manufacturer Accessories Documentation, 1 drawer cabinet with accessories --> see pictures, 1 pallet of sharpening stones --> see pictures

Key data: 275 mm, 1000 mm, 140 mm

- Sanding Ø: 275 mm - Grinding length: 1000 mm - Circulation Ø: 275 mm - Tool weight max.: 125 kg - Center height: 140 mm - Tailstock: yes - Quill stroke: 32 mm - Tailstock mount: Morse 4 - Paper tape filter: yes - Machine weight: 5,200 kg - Space requirements (W x D x H): 4.3 x 2.3 x 1.6 m - Condition: good Details Well-maintained machine from the tool shop of a German car manufacturer Accessories Documentation, 2 tool cabinets with extensive accessories

Key data: 177 mm, 15000 mm, 460 mm

automatic internal grinding machine for pipes with outer diameter 177 .. 460 mm, grinding length up to 15000 mm (2 x 7500 mm), Overhaul in 2017

Key data: 177 mm, 15000 mm, 473 mm

Automatic internal grinding machine for pipes with external diameters of 177.8 .. 473 mm, grinding length 15,000 mm, (2 x 7500 mm) Overhaul in 2017

Key data: 177 mm, 15000 mm, 460 mm

automatic internal grinding machine for pipes with outer diameters of 177 .. 460 mm, 15000 mm sanding length (2 x 7500 m) Overhaul in 2017

The machine is in good technical condition, testing possible upon agreement. Revolving diameter mm 160 Center distance mm 250 Grinding wheel: diameter x hole x width mm 250 x 76 x 20 The largest width of the grinding wheel mm 40 Cone of the working spindle Morse 3 Cone in the tip socket of the tailstock Morse 2 Diameter of the three-jaw chuck mm 80 Rotation of the grinding spindle number of degrees 60 Rotation of the working spindle number of degrees 90 Rotation of the table on both sides number of degrees 10 Speed ​​of the grinding spindle min - 1 2420.3290 The largest longitudinal movement of the table mm 290 The smallest longitudinal movement of the table mm 1 Transverse movement of the grinding spindle mm 100 Quick adjustment of the grinding spindle mm 16 Total machine power kW 2.5 Maximum weight of the workpiece kg 10 Floor plan of the machine: length x width mm 1900 x 1100 Weig ...

Description: - Distance between centers : 350 mm - Maximum grinding diameter : 200 mm Stock N° : 7420 weight approx.: 5,000 kg, Approx. Onsite Dimension. (l x w x h): 3,850 x 2,400 x 2,600 mm

Description: Machine number 8506910211 Magnetic clamping plate diameter approx. 250 mm 3-jaw chuck diameter approx. 150 mm Grinding wheel diameter approx. 500 mm Center height over bed approx. 250 mm Includes internal sanding device and tailstock grinding length: 1,300 mm, weight approx.: 8,000 kg, Approx. Onsite Dimension. (l x w x h): 4,500 x 2,300 x 2,000 mm

Description: - Distance between centers : 600 mm , - Height of centers : 175 mm - Grinding wheel diamete r: 500 mm - Maximum grinding wheel width : 120 mm - Manual and automatic movement - Automatic pass taking Equipped with: - 1 Clamping clamp F68 - 1 Tailstock - 1 Lubrication tank Stock : 6684 weight approx.: 3,200 kg, Approx. Onsite Dimension. (l x w x h): 2,800 x 1,800 x 1,950 mm

Description: - Distance between centers : 1250 mm - Centers height: 200 mm - Grinding wheel: ∅ 400 mm - Thickness approximately 60 mm Equipped with: - 2 Steadies with buttons - 3 Grinding wheel holders - Automatic pass taking - Rough finishing and super finishing - Spindle speed variation Stock N° : 5914 - Parts holder from 20 to 120 rpm - Lubrication Pump Tray weight approx.: 5,300 kg, Approx. Onsite Dimension. (l x w x h): 4,200 x 1,900 x 1,850 mm

Description: Distance between centers: 500 mm - Centers height: 100 mm LONGITUDINAL SLIDE - Maximum stroke: 420 mm - Grinding length: 400 mm - Speed: 0.001 - 10,000 mm/min - Resolution: 0.0001 mm TRANSVERSE SLIDE - Maximum stroke: 150 mm - Speed: 0.001 - 10,000 mm/min - Resolution: 0.0001 mm HEADSTOCK PART HOLDER - number of revolutions: 30 - 1200 min - Inner cone: Morse 4 - Clamps: W20 SUB HEADSTOCK - Inner cone: Morse 2 - Sheath stroke: 20 mm Equipped with: - 1 CN FANUC 16-GC - 1 Tailstock - 1 Interior spindle - 1 Retractable diamond cutting device number of operating hours: 6 177 h Stock N°: EX936 weight approx.: 3,900 kg, Approx. Onsite Dimension. (l x w x h): 2,000 x 2,000 x 2,500 mm

Description: - B axis 360° - Distance between centers: 650 mm - Center height: 175 mm LONGITUDINAL SLIDE - Maximum displacement distance: 800 mm - Speed: 0.001 - 10,000 mm/min - Resolution: 0.0001 mm CROSS SLIDE - Maximum stroke: 285 mm - Speed: 0.001 - 5000 mm/min - Resolution: 0.0001 mm HEADSTOCK PART HOLDER - Rotation speed range with rotating center: 1 - 1500 rpm - Rotation speed range with fixed center : Max 1000 rpm - Lower cone : MK5 - Roundness accuracy : 0.0004 mm SUB HEADSTOCK - Lower cone: Morse 3 - Sleeve diameter: 50 mm - Sleeve stroke: 35 mm Equipped with: - 1 CN FANUC 21i-TB - 1 Support + motors for indoor device - 1 Sensitron device - 1 external pump tank + paper filter number of operating hours: 31 149 h Stock N° : 7472 weight approx.: 3,500 kg, Approx. Onsite Dimension. (l x w x h): 4,100 x 2,200 x 1,800 mm

Description: - 4 Axis - Distance between centers : 1000 mm - Height of centers : 175 mm LINEAR AXES - Axis strokes : X=275 mm - Z=1050 mm - Rapid travers rates : X=5 m/min - Z=10 m/min - Maximum orientation of the table : 8.5° WHEEL HEADSTOCK - Universal type : 2 external wheels left / right - External grinding wheel dimensions : 400 x 80 x 127 mm - Wheel motor power 7.5 kw - Rotation speed : 1670 - 2110 rpm - Headstock orientation : -15 to +225° - B axis resolution : 0.001° WORKPIECE HEADSTOCK - Rotation speeds : 0 - 1027 rpm - Type of cone : SA50 SUB HEADSTOCK - Inter cone : CM3 - Sleeve stroke : 35 mm Equipped with : - 1 CN FANUC 16-T - 1 Electronic reach handle - Axis B for indexing the grinding wheel headstock - 1 Tailstock with fine concentricity adjustment - 1 Sensitron electronic contact detection - 1 MOVOMATIC CR60 self-calibrating device with length sensor - HEIDENHAIN measu ...

Description: - Grinding diameter on the bed : 450 mm - Grinding wheel dimensions : 750 outside 750 width 80 mm - Distance between centers : 1600 mm - Longitudinal stroke: 1600 mm - Effective transverse axis stroke : 200 mm - Rotation speed : 16-650 rpm - Tilting wheel - Weight : about 7000 kg Equipped with: - 1 Full retrofit of the CN part and motorization in FANUC Oi-TD - 1 Tailstock - 1 Cooling system with magnetic separator and paper filtration, Stock N° : 5655 weight approx.: 10,000 kg, Approx. Onsite Dimension. (l x w x h): 6,300 x 2,600 x 2,100 mm

Dimensions (length x width): 2500x2000 mm, Weight: 5700 Kg, Ø max. wheel: 400 mm, cnc brand: FANUC, cnc model: 18i-T, main motor power: 7.5 Kw, Distance between centers: 430 mm, Max travel Z axis: 650 mm, Max travel X axis: 320, Z and X axis resolution: 0.1µmm, Workpiece head cone: MORSE 5, Accessories: FELSOMAT gantry loader; Refrigeration equipment with paper filter

Weight: 6300 Kg, cnc brand: FANUC, Accessories: Refrigeration equipment with paper filter

Description: serial number 182227  , working area : grinding diameter without steady rest 8-200 mm grinding length 500 mm center height 135 mm travel of worktable max. 640 mm grinding diameter with steady rest 8-60 mm inside grinding diameter without rest 25-100 mm inside grinding ,diameter with steady rest , 35-100 mm inside grinding depth 125 mm max.workpiece weight between centers 50 kg  , feeds : , table feed, infinitely variable - longitudinal axis 0,1-4 m/min traverse per. rev. of headwheel  ,1 mm traverse per. div. of headwheel  ,0.005 mm  , headstock:  , work spindle speeds 25 - 380 1/min working headstock swivel range ° 0 - 45° spindle taper MT4 inside grinding spindle speed  ,16000 min/1 grinding headstock swivel range ± 30° grinding head travel  ,200 mm grinding wheel peripheral speed 35 m/s  ...

Description: Belt width: 75 mm With suction unit from the manufacturer STRAHLBOSS Machine number: 4929 Material support length: approx. 900 mm (rolling elements) Installed belt grinding width: approx. 80 mm For belt lengths: 4000 mm weight approx.: 350 kg, Approx. Onsite Dimension. (l x w x h): 2,500 x 2,100 x 2,200 mm

Description: Palmary GU32x150S Cylindrical Grinder Dimensions: 4000 x 1800 x 1700 mm Net Weight: 3200 kg • Swivel over table: Ø320 mm • Distance between centers: 1000 mm • Max. external grinding diameter: Ø300 mm • Max. load of centers: 150 kgs • Spindle speed (variable): 10~300 r.p.m. • Wheel spindle lubricant tank: 9L • Hydraulic tank: 63 L • Coolant tank: 170 L (Not original!) • No Grinding wheel! • Grinding flange • Diamond leveler (table mounted) • Tool kit • Tips with carbide inserts (2 pcs.) • Work lamp • Splash protection cover elements • Angular truing device • 2-point steady rest diam. 10-130mm • 3-point steady rest diam. 6-110mm • Hydraulic operated tailstock with foot pedal weight approx.: 3,200 kg, Approx. Onsite Dimension. (l x w x h): 4,000 x 1,800 x 1,700 mm

Year of production: 1980 Maximum peripheral speed of the grinding wheel: 45 m/s Tusk lift: 150 mm Maximum grinding length: 500/1000 mm Maximum outer grinding diameter: 280 mm Maximum inner grinding diameter: 200 mm Maximum length of internal grinding opening: 120 mm Maximum weight of the grinding object in the canine: 125 kg Maximum weight of the ground workpiece in the chuck: 20kg Table travel range: 75-4000 mm/min Rotation of grinding wheel spindle: 2140, 2640 rpm Object spindle rotation: 50-520 rpm Total displacement of grinding wheel headstock by manual drive: 160 mm Secondary displacements: 60 mm Plunge feed range: -rubbing: 0.3-6 mm/min -finishing: 0.08-3 mm/min Workpiece spindle taper: 4 Morse Workpiece spindle bore: 22 mm Diameter of grinding wheel: 400 mm Width of grinding wheel: 50 mm Net weight: 2600, 2800 kg The dimensions of the grinder in motion (W x H ...

Distance between points: 1000 mm, Point height: 175 mm, grinding length: 500 mm, Ø max to be rectified: 300 mm, inner cone: Morse 5, Working wheel motor power: 7.5 Kw, Longitudinal travel of the carriage (X axis): 267 mm, Transverse travel of the carriage (Z axis): 650 mm, cnc brand: FANUC, cnc model: 16-T

Distance between centers: 1000 mm, Height of points: 230 mm, Main engine power: 9.2 Kw, Working wheel dimensions (od x id x width): 500x80x203.2mm, Ø max to be rectified: 460 mm, Tailstock cone: MORSE 4, Workpiece head cone: MORSE 5, Max. Z axis travel : 1115 mm, Max. X axis travel: 260 mm, Approximate dimensions (length x width): 440x370 cm, Approximate Weight: 4700 Kg

Description: Machine number: 81325 Operating voltage: 380 V Connection: 4.7 kW Rated current: 11 A Frequency: 50 Hz Table dimensions: 1000 x 200 mm Center height: approx. 100 mm Center length: approx. 400 mm Grinding wheel diameter: approx. 350 mm Grinding wheel width: approx. 50 mm weight approx.: 1,000 kg, Approx. Onsite Dimension. (l x w x h): 2,000 x 1,400 x 1,700 mm

grinding diameter:250 mm grinding length:630 mm centre height:125 mm control:Siemens S7 swing diameter:280 mm centre distance:630 mm grinding head swivelling:90 ° table swivelabel +/-:+10/-7 ° grinding wheel dia. x width x bore:400 x 40 x 127 mm grinding wheel dia. according abrasion:250 mm max. grinding wheel width:63 mm swing in open rest:70 mm swing in closed rest:70 mm taper bore of workpiece spindle:4 Morse taper of tailstock quill:4 Morse stroke tailstock centers:30 mm clamping force tailstock center:50-1500 s grinding head swivellable +/-:+15/-45 ° output of wheelhead motor:4 kW work piece motor:0,7 hydraulic motor:1,1 kW cool pump motor:0,155 kW lubrication pump motor:0,155 kW electro motor internal grinding:0,75 kW total power requirement:10 kVA weight of the machine ca.:3000 kg dimensions of the machine ca.:L3000/B2300/H1600 mm stepless spindle speed:und Werkstückantrieb M ...

grinding diameter:600 mm grinding length:4000 mm centre height:320 mm max. workpiece weight:3000 (zw. Spitzen) kg max. workpiece weight:6000 (m. Lünetten) kg grinding wheel diameter:760 mm grinding wheel width:100 mm grinding wheel speed:45 m/sec table travel:4400 mm table speed -stepless-:10~6000 mm/min Rotation speed of workhead :8~80 1/min tailstock quill stroke:100 mm taper in tailstock-quill:6 MK spindle drive:22,5 kW Weight approx.:14,1 t dimensions:13000x2900x1800 mm CNC controller:Siemens 828D mit Schleifzyklen open steady:2 Stk./pc live center:2 Stk./pc warranty: None payment: 100% before loading

grinding diameter:1000 mm grinding length:6000 mm centre height:510 mm max. workpiece weight:1800 (zw. Spitzen) kg max. workpiece weight:7000 (m. Lünetten) kg grinding spindle speed:400-1200 1/min grinding wheel diameter:915 mm grinding wheel width:100 mm grinding wheel peripheral speeds::35 m/sec cross adjustment:autom. 0,001 mm cross adjustment:mit Handrad: 0,001/0,01/0,1 mm table travel:6200 mm table speed -stepless-:10~4500 mm/min Rotation speed of workhead :3~30 1/min tailstock quill stroke:150 mm taper in tailstock-quill:6 MK tailstock adjustment:über Pneumatik tailstock quill adjustment:manuell spindle drive:30 kW Weight approx.:26 t dimensions:17500x3700x1900 mm surface roughness: max. 0.3µm Ra cylindricity:0.002~0.005 mm/m roundness:0.002~0.005 mm CNC controller:Siemens 828D mit Schleifzyklen fully enclosed:Optional open steady:Optional live center:2 Stk./pc warranty: None pa ...

grinding diameter:600 mm grinding length:3000 mm centre height:320 mm max. workpiece weight:3000 (zwischen Spitzen) kg max. workpiece weight:6000 (m. Lünetten) kg grinding wheel diameter:760 mm grinding wheel width:304,8 mm grinding wheel speed:45 (stufenlos) m/sec table travel:3400 mm table speed -stepless-:10~6000 mm/min Rotation speed of workhead :8~80 1/min tailstock quill stroke:100 mm taper in tailstock-quill:6 MK spindle drive:22,5 kW Weight approx.:13 t dimensions:13000x2900x1800 mm CNC controller:Siemens 840D mit Schleifzyklen Scales:in X-Achse von Heidenhain open steady:optional live center:optional Stk./pc workpiece drive:variable 4 jaw chuck:optional CE-design:verlängert die Auslieferung um ca. 3 Wochen warranty: None payment: 100% before loading

grinding diameter:600 mm grinding length:3000 mm centre height:300 mm weight of the machine ca.:11,8 t dimensions of the machine ca.:7100x2300 mm spindle turning speed range:14 - 220 U/min grinding wheel diameter:650 mm grinding wheel flange for width 25-40 mm:3 Stk. open tailstocks:3 Stk. chuck:Ø310 mm fixed steady:320 mm Distance between center: 3000 mm. Height of centres: 300 mm. Spindle speed: (n°12) 14 - 220 Rpm Max grinding diameter: 600 mm. Stroke the wheelhead:(rapid) 50 mm. Stroke the wheelhead:(rapid+ micrometrical): 1 5 500 m mmm. . Max grinding wheel diameter: 650 mm. Max tilt table: 3° 30' Total absorbed power: 27,7 Hp Dimension: 7100x2300 mm. Weight approx: 11800 Kg.

grinding diameter:750 mm grinding length:2000 mm centre height:375 mm grinding wheel size:750x100x305 mm :40-250 mm tailstock-quill conus:Morse 6 table swivable ca.:4° (1:8) turning speed range - workpiece spindle:(stufenlos) 1-50 U/min grinding wheel speed:20-33 m/sec grinding wheel motor:19 kW total power requirement:ca. 41 kW

grinding diameter:600 mm grinding length:2500 mm centre height:300 mm max. workpiece weight between centers:1000 kg grinding head swivellable +/-:30 ° workpiece spindle bore:42 mm spindle turning speed range:1000-1250 U/min work piece spindle speed:9-250 U/min table speeds:100-5000 mm/min total power requirement:15,48 kW steady fixed:bis 120 mm Further technical data, and standard and optional equipment, as defined in Appendix. Payment: 100% before loading of the machine Warranty: no

grinding diameter:500 mm grinding length:2000 mm centre height:251 mm max. workpiece weight between centers:500 kg workpiece spindle head::5 MK tailstock quill taper MT:4 MK Grinding wheel diameter / width / bore:400/100/127 mm Grinding wheel motor:4 KW Further technical data, and standard and optional equipment, as defined in Appendix. Payment: 100% before loading of the machine Warranty: no

grinding diameter:630 mm grinding length:5000 mm centre height:315 mm grinding wheel diameter x bore x width:750x80x305 mm grinding wheel peripheral speeds::35 m/sec grinding wheel speeds:500-1100 U/min max. workpiece weight:3000 kg weight of the machine ca.:17900 kg machine length:im Betrieb: ca. 15m

:Omicron 600 R | Omicron 1000 R grinding diameter:315 mm grinding length:600|1000 mm centre height:160 mm swing over bed:315 mm max. workpiece weight:120 kg grinding wheel size:450x127xmin.20-max.50 mm peripheral speed:33 m/sec grinding spindle speed:600-1600 1/min grinding head swivellable +/-:±180 ° infeed each handwheel rotation/division line:2 (0,05)/0,01 (0,002) mm automatic feeds:0,01/0,02/0,03/0,04 mm/min workhead - spindle speed:0-600 1/min swiveling workpiece drive:±90 ° workhead - center taper:4 MK tailstock quill adjustment:25 mm tailstock quill diameter:43 mm taper in tailstock:4 MK table speeds:0-5000 mm/min swivellable angle of table:600: +9°/-5° | 1000: +8°/-4 ° table adjustment - longitudinal:max. 680 mm | 1080 mm table cross movement -manual:13 mm grinding wheel motor:4 kW workhead motor:0,75 kW hydraulic motor:0,75 kW coolant pump:0,18 kW machine dimensions:2540 ...

:Omicron E 600 | Omicron E 1000 | Omicron E 1500 grinding diameter:355 / 455 mm grinding length:630 | 1030 | 1530 mm centre height:180 / 230 mm swing over bed:355 / 455 mm max. workpiece weight:250 (300 opt.) kg grinding headstock:_________________________________________________ __ grinding wheel size:450 (500 opt.) x127 x min.20-max.80 mm peripheral speed:33 m/sec grinding spindle speed:600-1600 (stufenlos) 1/min grinding head swivellable +/-:±180 ° infeed each handwheel rotation/division line:2 (0,05)/0,01 (0,002) mm automatic feeds:0,01/0,02/0,03/0,04 mm/min workhead:________________________________________________ __ workhead - spindle speed:0-600 (stufenlos) 1/min swiveling workpiece drive:±90 ° workhead - center taper:5 MK tailstock quill adjustment:35 mm tailstock quill diameter:48 mm taper in tailstock:5 MK table:__________________________________________________ __ table sp ...

:Omicron RT6 600 | Omicron RT6 1000 grinding diameter:315 mm grinding length:600|1000 mm centre height:160 mm swing over bed:315 mm max. workpiece weight:120 kg grinding headstock:_________________________________________________ __ grinding wheel size:450 x127 x min.20-max.50 mm peripheral speed:33 m/sec grinding spindle speed:600-1600 (stufenlos) 1/min feed per revolution of handwheel:0,001/ 0,01 / 0,1 mm grinding head swivellable +/-:±180 ° automatic feeds:0,2-3000 mm/min workhead:________________________________________________ __ workhead - spindle speed:0-600 (stufenlos) 1/min swiveling workpiece drive:±90 ° workhead - center taper:4 MK tailstock quill adjustment:25 (opt. 50) mm tailstock quill diameter:43 (opt. 70) mm taper in tailstock:4 MK table:__________________________________________________ __ table speeds:1-5000 mm/min swivellable angle of table:+9°/-5° | +8°/-4°  ...

:Omicron ET6 600 | Omicron ET6 1000 | Omicron ET6 1500 | Omicron ET6 2000 grinding diameter:355 / 455 mm grinding length:630 | 1030 | 1530 | 2030 mm centre height:180 / 230 mm swing over bed:355 / 455 mm max. workpiece weight:250 (300 opt.) kg grinding headstock:. grinding wheel size:450 (opt. 500) mm x127 x min.20-max.80 mm grinding spindle speed:600-1600 (stufenlos) 1/min feed per revolution of handwheel:0,001/ 0,01 / 0,1 mm grinding head swivellable +/-:±180 ° automatic feeds:0,2-3000 mm/min workhead:. workhead - spindle speed:0-600 (stufenlos) 1/min swiveling workpiece drive:±90 ° workhead - center taper:5 MK tailstock:. xx tailstock quill adjustment:35 (opt. 70) mm tailstock quill diameter:48 (opt. 70) mm taper in tailstock:4 (opt. 5) MK table:. table speeds:1-5000 mm/min swivellable angle of table:+9°/-5° | +8°/-4° | +7°/-3° | +6°/-2° ° table adjustment - longitudinal: ...

:Omicron PT6 1000 | Omicron PT6 1500 | Omicron PT6 2000 | Omicron PT6 3000 grinding diameter:595 / 695 mm grinding length:1000 | 1600 | 2100 | 3000 mm centre height:300 / 350 mm Distance between centres:1150 | 1750 | 2250 | 3150 mm swing over bed:595 / 695 mm max. workpiece weight:1200 (1800 opt.) kg grinding headstock:_________________________________________________ __ grinding wheel size:610 mm x 230 x min. 50-max.120 mm grinding spindle speed:600-1250 (stufenlos) 1/min feed per revolution of handwheel:0,001/ 0,01 / 0,1 mm grinding head swivellable +/-:±180 ° grinding spindle movement:480 mm automatic feeds:0,2-3000 mm/min workhead:________________________________________________ __ workhead - spindle speed:0-300 (stufenlos) 1/min swiveling workpiece drive:±90 ° workhead - center taper:6 MK tailstock:__________________________________________________ __ tailstock quill adjustment: ...

:Omicron CNC 3206 | Omicron CNC 3210 grinding diameter:315 mm grinding length:600|1000 mm centre height:160 mm swing over bed:315 mm max. workpiece weight:120 kg grinding headstock:_________________________________________________ __ grinding wheel size:450 x127 x min.20-max.50 mm grinding spindle speed:600-1600 (stufenlos) 1/min feed per revolution of handwheel:0,001/ 0,01 / 0,1 mm grinding head swivellable +/-:±180 ° automatic feeds:0,2-3000 mm/min workhead:________________________________________________ __ workhead - spindle speed:0-600 (stufenlos) 1/min swiveling workpiece drive:±90 ° workhead - center taper:4 MK tailstock:______________________________________________ __ tailstock quill adjustment:50 mm tailstock quill diameter:70 mm taper in tailstock:4 MK table:__________________________________________________ __ table speeds:1-5000 mm/min swivellable angle of table:+9°/-5 ...

:Omicron CNC 3606 | Omicron CNC 3610 | Omicron CNC 3615 | Omicron CNC 3620 grinding diameter:355 / 455 mm grinding length:630 | 1030 | 1530 | 2030 mm centre height:180 / 230 mm swing over bed:355 / 455 mm max. workpiece weight:250 (300 opt.) kg grinding headstock:_________________________________________________ __ grinding wheel size:450 (opt. 500) mm x127 x min.20-max.80 mm grinding spindle speed:600-1600 (stufenlos) 1/min feed per revolution of handwheel:0,001/ 0,01 / 0,1 mm grinding head swivellable +/-:±180 ° automatic feeds:0,2-3000 mm/min workhead:________________________________________________ __ workhead - spindle speed:0-600 (stufenlos) 1/min swiveling workpiece drive:±90 ° workhead - center taper:5 MK tailstock:__________________________________________________ __ tailstock quill adjustment:70 mm tailstock quill diameter:70 mm taper in tailstock:5 MK table:_______________ ...

:Omicron CNC 8030 | Omicron CNC 8040 | Omicron CNC 8050 | Omicron CNC 8060 grinding diameter:795/895/955 mm grinding length:3000|4000|5000|6000 mm centre height:400/450/500 mm Distance between centres:3000|4000|5000|6000 mm swing over bed:795/895/955 mm max. workpiece weight:zw. Spitzen 4 t grinding headstock:_________________________________________________ __ grinding wheel size:760-1200mm x 305 x min. 50-max.120 mm grinding spindle speed:600-1250 (stufenlos) 1/min feed per revolution of handwheel:0,001/ 0,01 / 0,1 mm grinding head swivellable +/-:±180 ° grinding spindle movement:480 mm automatic feeds:0,2-3000 mm/min workhead:________________________________________________ __ workhead - spindle speed:0-150 (stufenlos) 1/min swiveling workpiece drive:±90 ° workhead - center taper:6 MK tailstock:__________________________________________________ __ tailstock quill adjustment:120 mm ...

:Omicron CNC 6010 | Omicron CNC 6015 | Omicron CNC 6020 | Omicron CNC 60300 grinding diameter:595/695 mm grinding length:1000 |1600 |2100 |3000 mm centre height:300/350 mm Distance between centres:1150 |1750 |2250 |3150 mm swing over bed:600/700 mm max. workpiece weight:zw. Spitzen 1200 kg grinding headstock:_________________________________________________ __ grinding wheel size:610mm x 230 x min. 50-max.120 mm grinding spindle speed:600-1250 (stufenlos) 1/min feed per revolution of handwheel:0,001/ 0,01 / 0,1 mm grinding head swivellable +/-:±180 ° grinding spindle movement:480 mm automatic feeds:0,2-3000 mm/min workhead:________________________________________________ __ workhead - spindle speed:0-350 (stufenlos) 1/min swiveling workpiece drive:±90 ° workhead - center taper:6 MK tailstock:__________________________________________________ __ tailstock quill adjustment:70 mm tailst ...

weight of the machine ca.:24 t dimensions of the machine ca.:3900 x 3500 x 2500 m -the machine has no B axis -two grinding spindles with one grinding wheel each - The transport instructions can be found in the documentation (attachment). including Hoffmann KSM filter system Loading list available Operating data v. 03/27/2023: Operating time: 21727 h / production time: 11960 h Machine documentation: 1 set of circuit diagrams, electrical plans, operating instructions Accessories: 2 replacement measuring heads Marposs S/500; prism supports Other: Hoffmann KSM filter system Machine condition: according to age, due to processing with emulsion
