cut to length used for sale

total power requirement:2,4 kW weight of the machine ca.:1150 kg dimensions of the machine ca.:1550 x 1615 x 1630 mm table clamping surface LxW:315 x 710 mm max. tool weight:200 kg T - slots distance:63 mm T - slots - width:12 mm taper bore:Spindel SK 40 spindle turning speed range:56 - 1800 U/min feed speeds:11,2 -355 mm/min Documents:vorhanden

x-travel:600 mm y-travel:400 mm z-travel:380 mm total power requirement:6 kW weight of the machine ca.:1700 t dimensions of the machine ca.:1800 x 2130 x 1980 mm Table dimensions:400 x 800 mm T-slots:7 St.,14 x50 table load:300 kg spindle:SK40 turning speed range:63-250 U/min speed steps work spindle:18 spindle speeds::50- 2500 n/min feeds:10-500 mn/min Documents:vorhanden

sanding belt length:max. 470 mm workpiece dia.:600 mm table - swivable:0 - 6 Grad taper:Reitstock Morse 2 turning speed range::1260 - 3100 U/min table movement:längs 470 mm tool taper:schwenkbar 0-6 °, 90° dre total power requirement:0,4 kW weight of the machine ca.:950 kg dimensions of the machine ca.:1100 x 1100 x 1500 mm Documents:vorhanden

x-travel:600 mm y-travel:500 mm z-travel:450 mm turning speeds:5 - 5000 U/min quill stroke:90 mm total power requirement:9 kW feed range:0-10.000 mm/min weight of the machine ca.:3260 kg dimensions of the machine ca.:2200x2800x2000 mm spindle:6 kW vertical milling head:SK 40 CNC universal milling machine without toolchanger, Equipped with CNC-Heidenhain TNC 407 el.handwheel coolant device

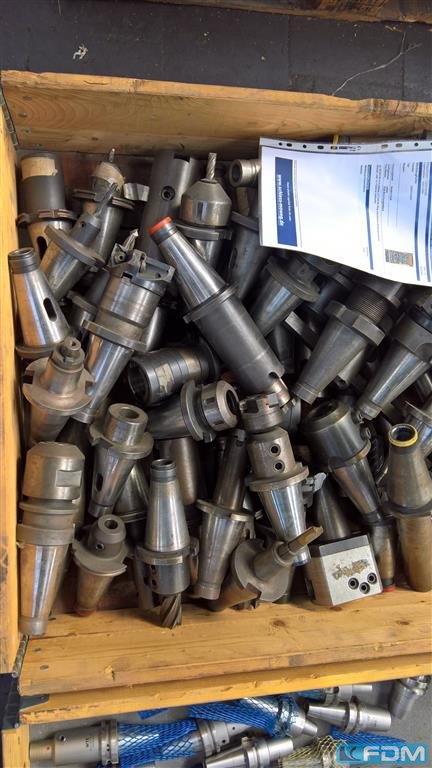

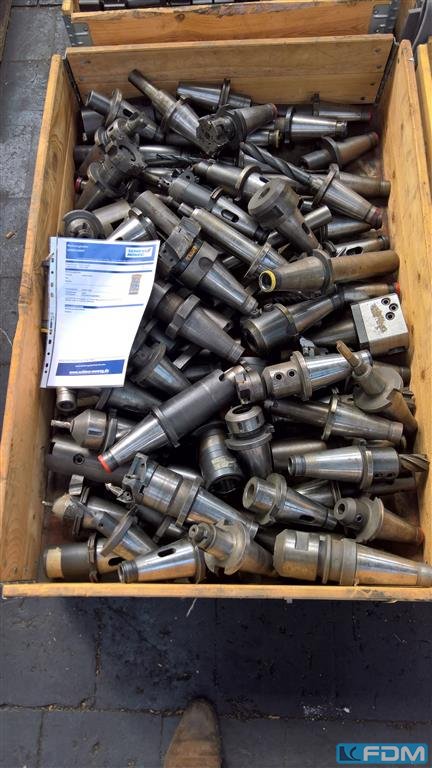

tool clamping area:diverse mm weight:0,1 t appr. 45 ISO 40 arbors, package or single sale Texte, Bilder, Grafiken, Layout, Strukturen und Algorithmen etc. unterliegen weltweitem Urheberrecht. Unerlaubte Verwendung der Daten, werden sowohl strafrechtlich als auch zivilrechtlich verfolgt. Das ausschließliche Urheber- / Nutzungsrecht dieser Daten wurde nachfolgender Person eingeräumt. Copyright © 2005-2024, Josef Weber. All rights reserved.

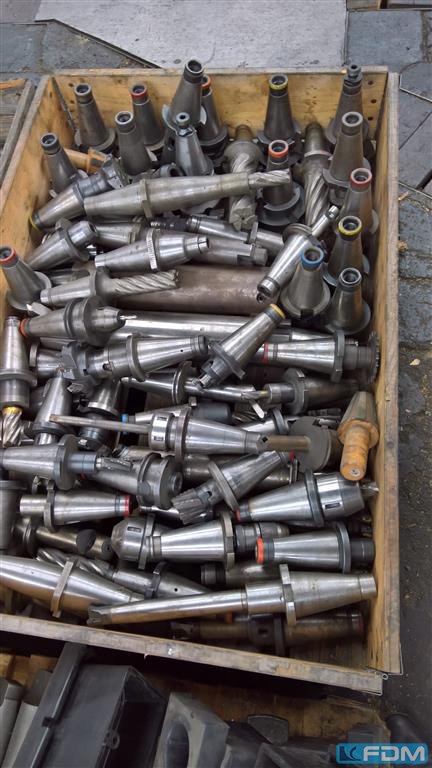

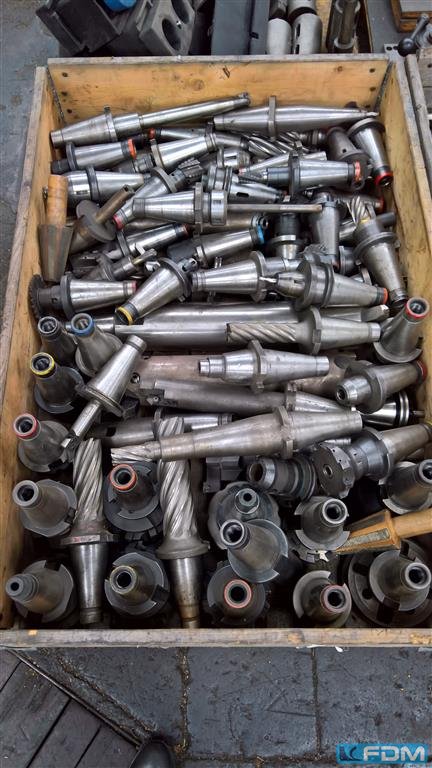

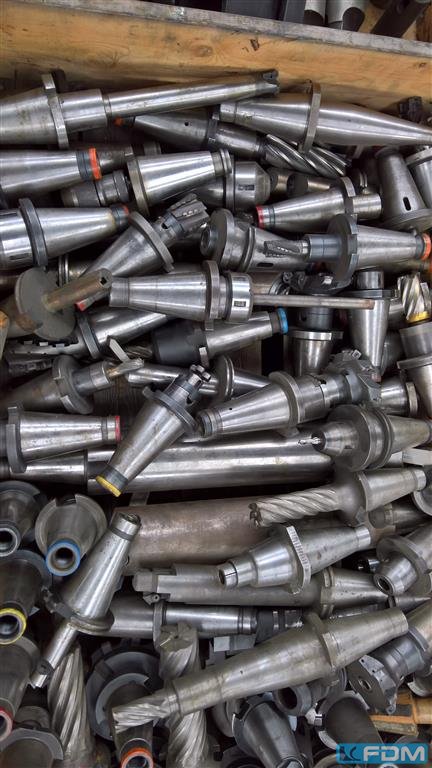

tool clamping area:ISO 50 mm weight:0,15 t appr. 70 ISO 50 arbors, partly with cutters for sale single or in package Texte, Bilder, Grafiken, Layout, Strukturen und Algorithmen etc. unterliegen weltweitem Urheberrecht. Unerlaubte Verwendung der Daten, werden sowohl strafrechtlich als auch zivilrechtlich verfolgt. Das ausschließliche Urheber- / Nutzungsrecht dieser Daten wurde nachfolgender Person eingeräumt. Copyright © 2005-2024, Josef Weber. All rights reserved.

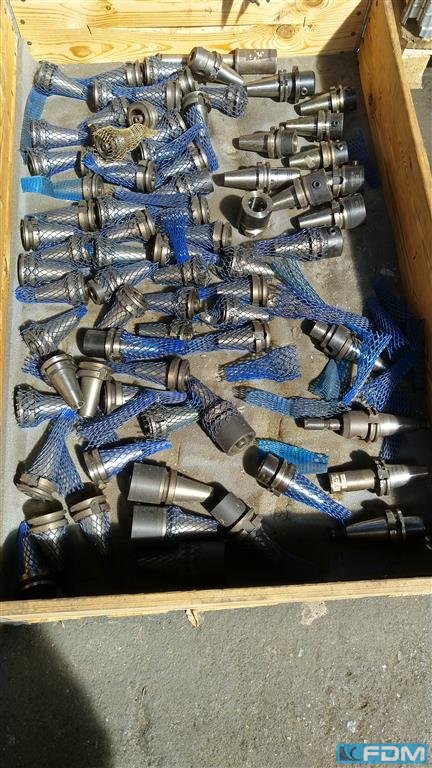

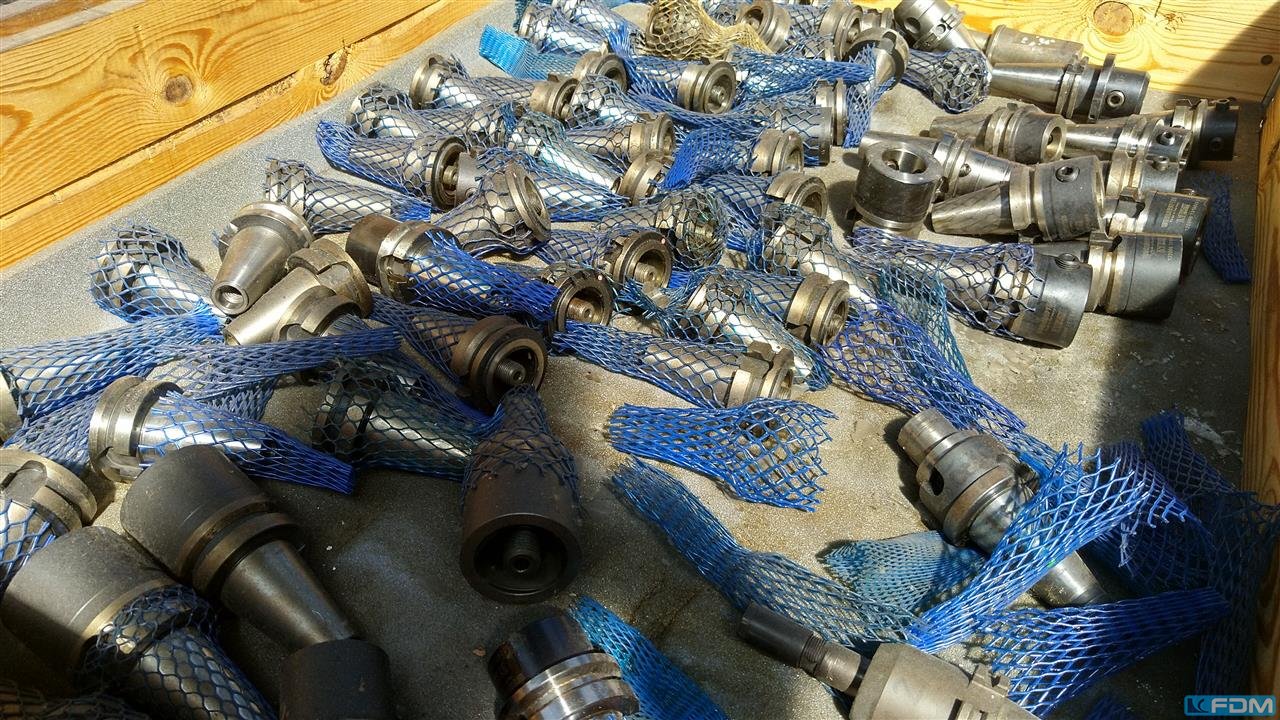

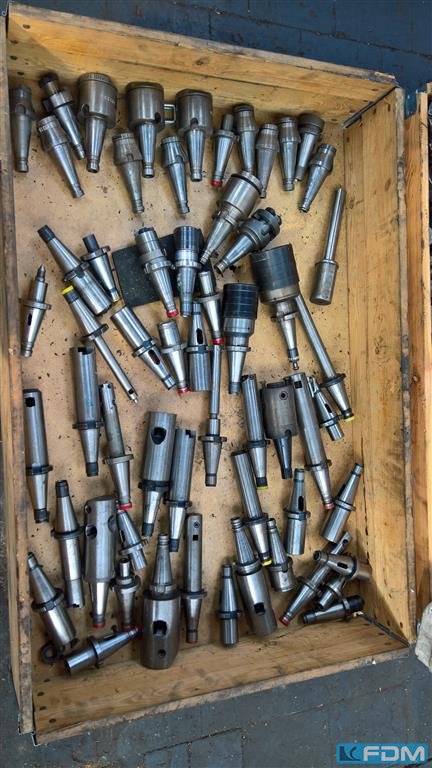

tool clamping area:ISO 50 mm weight:0,4 t single or package available. - appr. 75 tool arbors ISO 50 with partly tooling Texte, Bilder, Grafiken, Layout, Strukturen und Algorithmen etc. unterliegen weltweitem Urheberrecht. Unerlaubte Verwendung der Daten, werden sowohl strafrechtlich als auch zivilrechtlich verfolgt. Das ausschließliche Urheber- / Nutzungsrecht dieser Daten wurde nachfolgender Person eingeräumt. Copyright © 2005-2024, Josef Weber. All rights reserved.

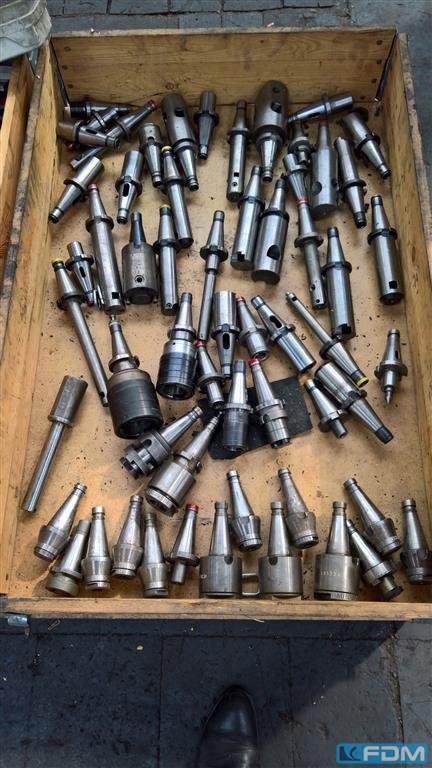

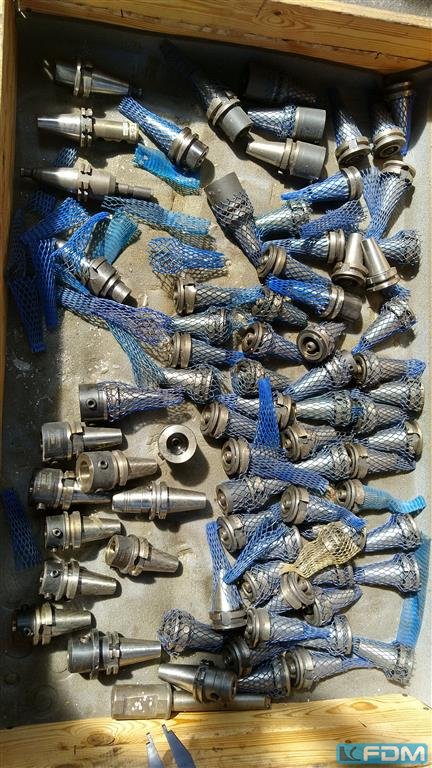

weight:0,04 t workpiece diameter:20/28/35 mm Tool taper:CAPTO C4/5/6 tool taper:ISO 40 Es handelt sich um ca. 68 ISO 40 NC Werkzeugaufnahmen mit 49 SANDVIC Capto C 5 Aufnahme, 6 x C 4, 4 x C 6 und 11 WOHLHAUPTER mit 6 x Schaftdurchmesser 28 mm und 5 x 35 mm und 1 SCHUNK mit 20 mm und 7 verschiedene Texte, Bilder, Grafiken, Layout, Strukturen und Algorithmen etc. unterliegen weltweitem Urheberrecht. Unerlaubte Verwendung der Daten, werden sowohl strafrechtlich als auch zivilrechtlich verfolgt. Das ausschließliche Urheber- / Nutzungsrecht dieser Daten wurde nachfolgender Person eingeräumt. Copyright © 2005-2024, Josef Weber. All rights reserved.

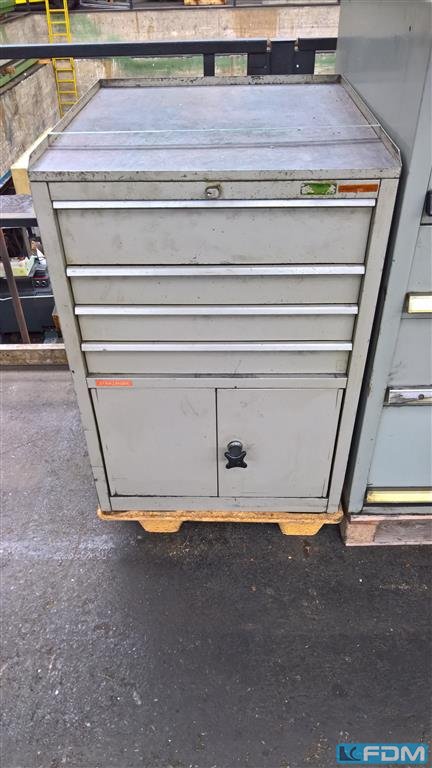

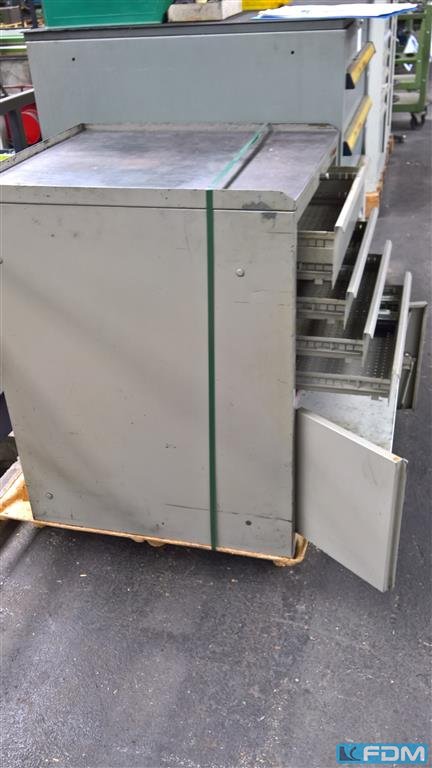

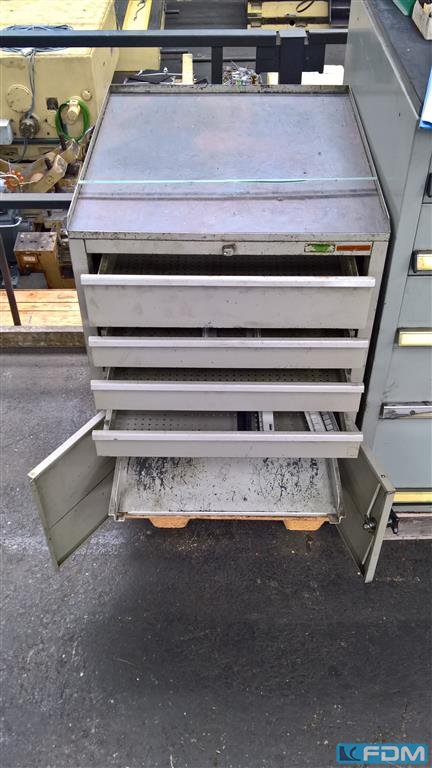

length:650 mm width:600 mm height:800 mm weight approx.:50 kg Texte, Bilder, Grafiken, Layout, Strukturen und Algorithmen etc. unterliegen weltweitem Urheberrecht. Unerlaubte Verwendung der Daten, werden sowohl strafrechtlich als auch zivilrechtlich verfolgt. Das ausschließliche Urheber- / Nutzungsrecht dieser Daten wurde nachfolgender Person eingeräumt. Copyright © 2005-2024, Josef Weber. All rights reserved.

Article: pickoff with shaft Manufacturer: Schütte pickoff with shaft for Schutte multi spindle automatic lathe SF67 pickoff C26GF pickoff shaft C26GF9S1 gear WG-67S holder B73GF1S1 Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

polygon turning unit for Schutte AG20, used 1 polygon turning unit type Saco SC 15.22.001-Nr.3 1 cardan shaft type Saco SC 15.52.188.00 1 gear box SC 15.22.001-Nr. 3 Please, contact us for getting more informations and pictures on mail@tar-mc.com or www.tar-mc.com

pressure:400 t distance between columns:1100 mm stroke:250 mm no. of strokes:25 - 75 /min distance table/ram, max. stroke up, adjustment up:900 mm table surface area:1100 x 965 mm capacity of ejector in table:30 t ejector stroke of ejector in table:80 mm capacity of ejector in ram:3 t stroke of ejector in ram:60 / 70 mm ram surface:980 x 800 mm column travel -side:800 mm ram adjustment:20 mm power capacity:80,0 + 5,5 kW weight:47,0 t Dimensions (WxDxH):3,5 x 3,3 x 6,0 m weight of switch cabinet:1,4 t dimensions of electrical cabinet (WxDxH):4,9 x 0,5 x 2,6 m ejector in ram:hydraulic

pressure:30 t throat:110 mm stroke:50 mm no. of strokes:35 - 80 /min distance table/ram, max. stroke up, adjustment up:230 mm table surface area:410 x 260 mm table height over floor:790 mm passage to the back:170 mm ram surface:190 mm ram adjustment:35 mm weight:1,3 t dimensions (WxDxH):1,0 x 1,1 x 1,8 m German Safety: moving screen:UVV 11.062 - VBG 7n5.1 § 6

pressure:400 t distance between columns:1060 mm stroke:450 mm no. of strokes:15 - 30 /min distance table/ram, max. stroke up, adjustment up:1160 mm table surface area:1000 x 700 mm capacity of ejector in table:2 x 16 t ejector stroke of ejector in table:125 mm Die cushion pressure in table:120 t Die cushion stroke in table:2 mm capacity of ejector in ram:2 x 4 t stroke of ejector in ram:100 mm ram surface:1000 x 700 mm column travel -side:630 mm power capacity:55,0 kW weight:50,0 t die cushion in table:2. station

pressure:800 t distance between columns:1050 mm stroke:200 mm no. of strokes:8 - 25 /min distance table/ram, max. stroke up, adjustment up:1300 mm Side window:550 mm table surface area:1030 x 900 mm Capacity of ejector in table:15 t Stroke of ejector in table:85 mm ram surface:1040 x 800 mm ram adjustment:120 mm Capacity of ejector in ram:12 t ejector stroke in ram :80 mm power requirement:36,0 - 112,6 kW weight:65,0 t Dimensions (WxDxH):3,0 x 3,1 x 6,07 m ejector in table:hydraulic ejector in ram:hydraulic

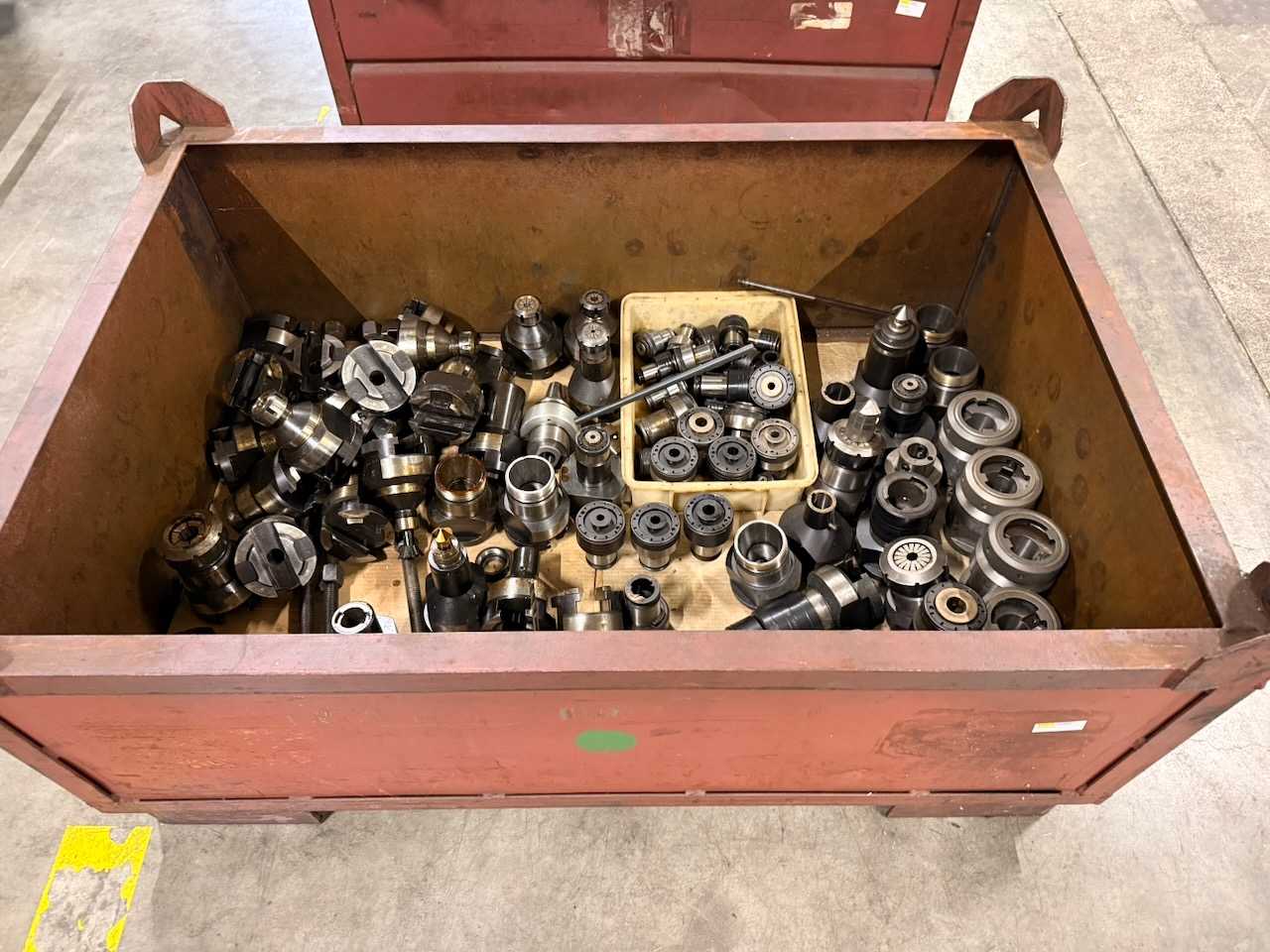

Tool holders and clamping adapters for BAZ special tool holders and clamping adapters for machining centres of the STAMA-MC series (including MC 440). Stock: Mixed lot with approx. several tool holders, chucks, reducers and spindle adapters. Typical designs include: STAMA special adapter with bayonet/form-fit contour Chuck with slotted clamping heads Reduction adapter for STAMA unit interfaces Mounting elements for special tools Tool carrier with STAMA logo and part numbers (including 150 864 / 150 865)

Serial number: 815 Operating voltage: 380 V Frequency: 50–60 Hz Rated current: 14 A Table dimensions: 500 x 200 mm Universal part-head tip height: 170 mm Tailstock tip height: 120 mm (with intermediate support: 170 mm) Max. workpiece length between tips: 336 mm Workpiece diameter with self-supporting fastening: approx. 600 mm Max. tip length: 950 mm Inner cone Partial spindle: Morse 4 / Unified 40 T-slots: 12 mm (machine stand), 8 mm (other elements) Sharpening stroke: 190 mm Transverse movement Tool holder: 100 mm Vertical movement Grinding head: 325 mm Tool holder: 230 mm Dividing head on tool slide: 330 mm Grinding head holder / Tool holder / Grinding head / Universal apparatus: 360° Three-phase motor: 0.7 / 0.85 kW DC motor: 1.3 kW Spindle speed: 4000 / 8000 rpm (double priority) Infinitely variable DC: 2000 – 10000 rpm incl. two-axis digital display, Extensive accessories suita ...

CNC Control: Fanuc 0T-F (with C Axis) Diameter Above Bed: 500 mm Max Turning Diameter: ~280 mm Max Turning Length: ~500 mm Bar Capacity (Main Spindle): 65 mm Bench Design: 30° or 45° Inclined Spindle Nose: ASA 6" Main Spindle Speed: Up to 4,000 RPM Sub-Spindle Speed: Up to 4,000 RPM C-Axis: 0.001°Turret : 12 stations Tooling type: VDI 40 Speed motorized tools: ~3,000 - 4,000 rpm Lots sold as is, unchecked, with tool and tool holder.

Toggle Press • Working height adjustable by simply loosening the clamping screws on the stand • Fine working height adjustment with HK 800 = millimetre-precise adjustment of the press head to the desired working height. The fine adjustment is done forcibly in both directions via a threaded spindle • Hand lever arranged in a user-friendly manner, return via spring Pressure 8.0 kN Stroke 40 mm Projection 90 mm Working height from up to 50 - 200 mm Table surface 120 x 160 mm Machine weight approx. 22 kg Dimensions L x W x H 160 x 230 x 410 mm Condition: never used / new (5)

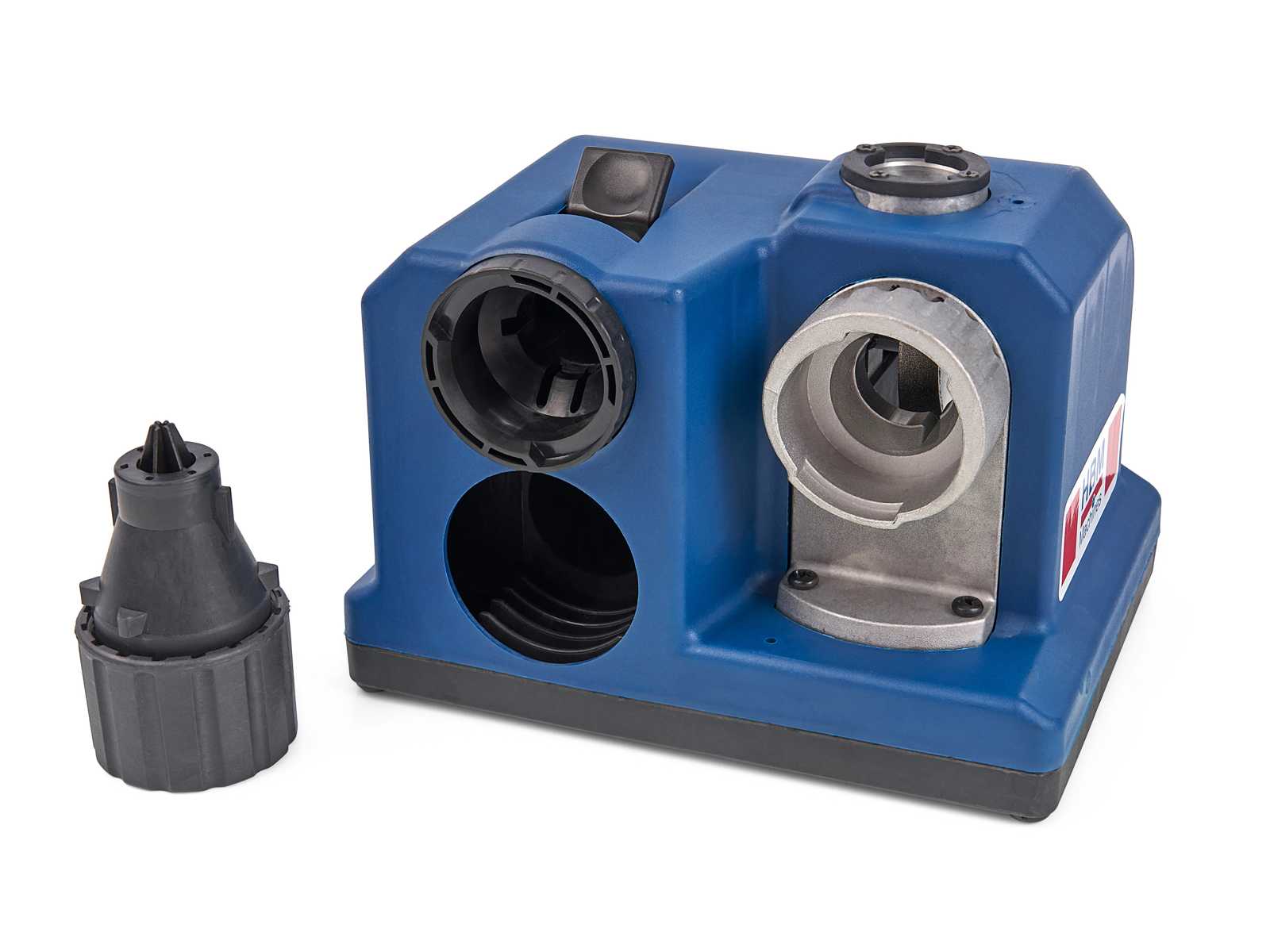

HBM Drill Sharpener, Drill Grinder From 3 to 13 mm In just three simple steps, you can ensure that blunt, worn drills are extremely sharp again. The grindstone at the drill grinder consists of diamond and is therefore extremely hard. That way you always achieve the desired results quickly. You can be sure of a good result, especially with HSS drills. In this way, this device is perfect for use in industrial workshops. Furthermore, the sharpener is suitable for use on just about any type of drill. So it is a flexible tool.

Machine number: 370648 Operating voltage: 400 V Frequency: 50 Hz Nominal current: 25 A Connection: 13 kVA Control: HEIDENHAIN Clamping surface: 800 x 425 mm Clamping grooves: 6 Groove width: 14 H7 Groove spacing: 63 mm Max. table load: 250 kg Travel X-axis: 600 mm Travel Y-axis: 400 mm Travel Z-axis: 400 mm Max. distance from top of the table to horizontal Spindle center: 130 to 550 mm Top of the table to vertical head Bottom edge: max. 480 mm Tool holder SK 40 Speed 1: up to 1125 rpm Speed 2: 1126 - 4500 rpm Quill stroke vertical: 60 mm Vertical head swivel on both sides: 90° Feed longitudinal and transverse: 0 - 2000 mm/min Rapid traverse longitudinal and transverse: 5000 mm/min Feed vertical: 0 - 2000 mm/min Rapid traverse: 4000 mm/min Reference: Hercegfi - Lot 7

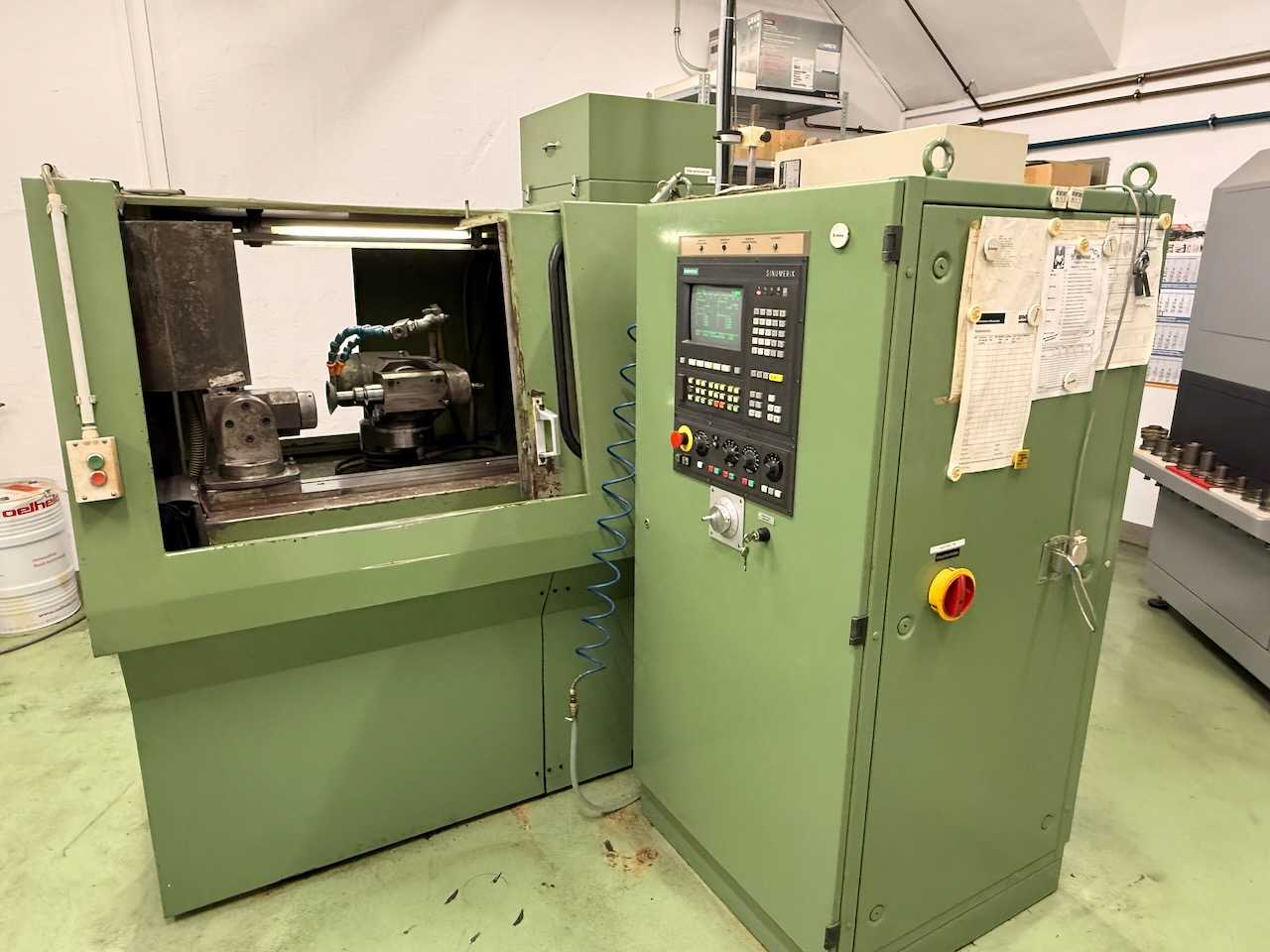

" CNC tool grinding machine SAACKE UWIA-CNC – Sinumerik 810 CNC universal tool grinding machine SAACKE type UWIA-CNC with Siemens Sinumerik 810 control including extensive accessory package, extraction system and cooling water treatment. The machine is suitable for grinding shape milling cutters, roller milling cutters, disc milling cutters, end mills, hobbing cutters, reamers, cutter heads, countersinks and taps up to Ø 200 mm . Age-appropriate optical condition. Functional. Viewing under power possible by appointment.>br Working area • Center height: 150 mm • Grinding length: 300 mm • Usable table area: 710 x 120 mm • Motorized table stroke: 300 mm • Table speed: 0.005 – 5 m/min axes • Transverse stroke Z-axis: 200 mm • Height stroke Y-axis: 200 mm • Swivel vertically: 360° • Swivel horizontally: 210° Grinding spindle • Ø 60 mm • 4 speeds: 2100 / 3000 ...

Product information "Henninger Schnellauf - Milling Spindle Type 801 " However, the Henninger quick-opening milling spindles are not highly sensitive devices. They are suitable for everyday production The Henninger quick-opening milling spindles are not only used with carbide milling cutters or when processing non-ferrous metals, but also for processing steel and casting. Even if the machines reach the required speeds, , people like to use the high-speed milling spindle to clean the machines. and to prevent dimensional deviations due to heating of the headstock. - Type: Quick-run - Milling spindle type 801 - Tool holder SK 40 - Tool holder collets: yes - Collet range: Ø 2 - 16 mm - Gear ratio: 1:6 - Maximum speed ED 70%: 6,000 1/min

Toggle hand presses HK 1700 stroke 60 mm with crank with working height fine adjustment Height of the stand 450 mm Without additional effort, even more pressure in production. Maximum pressure output shortly before the end of the stroke thanks to toggle technology. Particularly stable design of spindle head and stand Pressure 17.0 kN Stroke 60 mm Projection 105 mm Working height from up to 75 -180 mm Table surface 170 x 130 mm Spindle diameter 25 mm Machine weight approx. 35 kg Dimensions L x W x H 260 x 130 x415 mm Condition: never used / new (5)

CNC lathe for turning and machining metal parts. CNC control: Fanuc 16 T AA Max. turning diameter: 165 mm Turning length: 100 – 340 mm Diameter above bed: 220 mm Main spindle speed: 50 – 5,000 rpm Main spindle power: 5.5 / 7.5 kW Main spindle bar passing: 65 mm Sub-spindle speed: 50 – 5,000 rpm Sub-spindle power: 3.7 / 5.5 kW Sub-spindle bar passage: 42 mm C-axis: 0.001° Turrets: 2 Tool positions: 2 × 16 Motorized tools: 2 × 16 positions Strokes: X 175 mm / Z 240 – 680 mm Total power: 41 kVA Dimensions (mm): 3,500 × 2,800 × 2,000 Weight (kg): 5,500

Two fine boring/boring tools with ABS interface, KOMET license. 1 × unused / as good as new 1 × used Condition Unused tool: as good as new, no signs of use Used tool: technically apparently complete Scope of delivery 2 × ABS boring tools as shown Guide drill mounted Indexable inserts Marking according to tool ABS® 80 – License Komet Type/marking: S5K137141 Guide drill: Ø 12 × 62 (information refers to the guide drill only) Inserts Manufacturer: H. Bilz Indexable inserts: LCEX250604FRZ P5 Cutting material range according to packaging: P01–P30

3× TOS 3-jaw lathe chuck (Ø80 / 100/ 160 mm)Lot of three 3-jaw spiral chucks from the manufacturer TOS. Condition:     •    used     •    traces of wear     due to age and use •    only complete as an item     •    manufacturer: TOS     •    type: 3-jaw spiral chuck, self-centering     •    Jaws: hard jaws     •    Included sizes:     •    Ø80 mm – IU 80 M1 –     •    Ø100 mm – 100/3-2 M1 – max. 5,300 min⁻¹     •    Ø160 mm – IU 160 M1 – max. 3,500 min� ...
