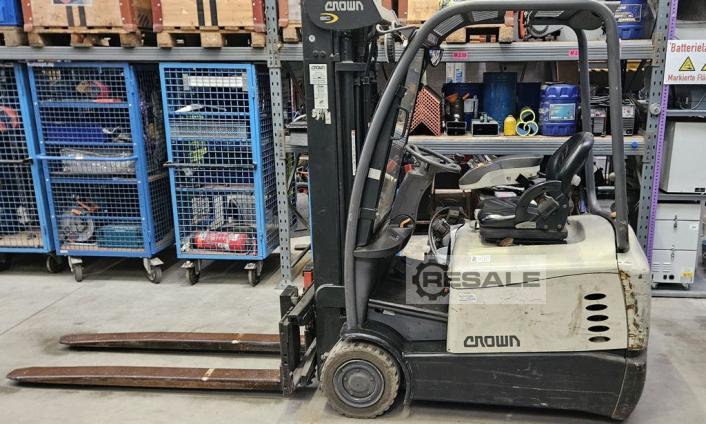

Crown SC 5360 1.8 Electric Forklift
The SC Series forklifts offer the power, manoeuvrability and
reliability needed to meet the demands of both the job and the
operator.
The optimal balance of attention to detail, advanced technology, a
solid foundation and ergonomics meets the requirements is the
advantage of the SC series.
Whether indoor or outdoor, the SC Series forklifts provide a working
environment that makes life easier for the operator.

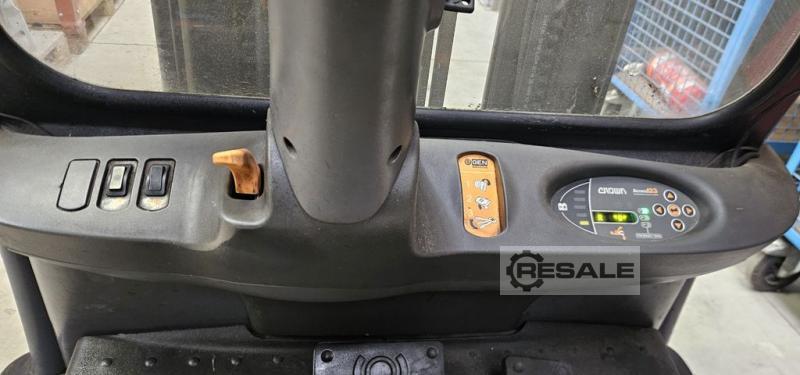

The position of the D4 armrest can be easily adjusted vertically and
horizontally with one hand.
The SC forklifts offer excellent all-round visibility in all
directions
Robust masts with double T-profile that withstand longitudinal,
lateral and torsional bending forces well.
Integrated sideshift with fork carriage that protects the cylinders
and helps prevent hydraulic oil leakage.
Electric motors designed and produced by Crown with the highest
thermal insulation values in the industry.
Symmetrical design of the box frame to reduce frame distortion caused
by collisions.
Robust steering axles with heavy-duty tapered roller bearings resist
impacts from bumpy floors and loading docks.
Easy maintenance

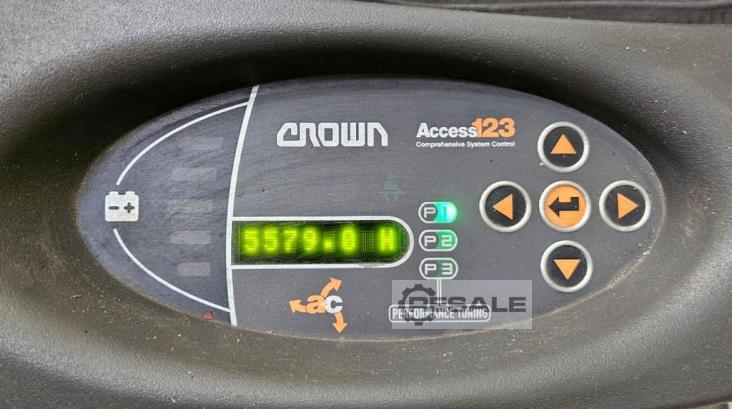

Crown Access 1 2 3 technology provides reliable, on-board diagnostics
and control of all forklift systems in real time.
This makes maintenance much easier and also creates confidence among
the operators.
The e-GEN brake system replaces the conventional friction brake and
thus provides performance, service and cost advantages. It enables the
controlled use of the regenerative engine brake depending on the
operating conditions and reduces pedal forces and long-term
maintenance requirements.

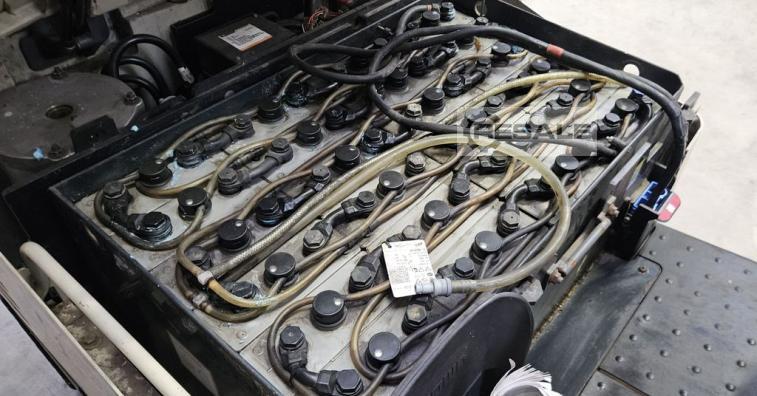

For easy and quick battery maintenance, the battery is accessible from
the top.
Technical data
Manufacturer: Crown

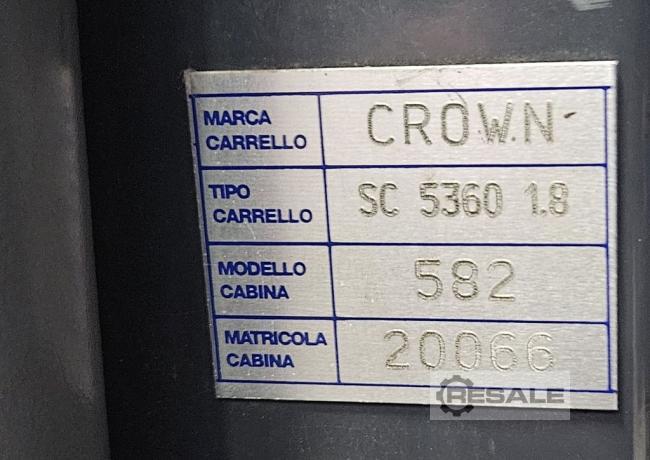

Model: SC 5360 1.8
Electric 3 Wheel Forklift
Weight: 2.88 t
Standard tires: 2x/2
Model Series: SC 5300
Overall width: 1123 mm
Turning radius: 1,694 m

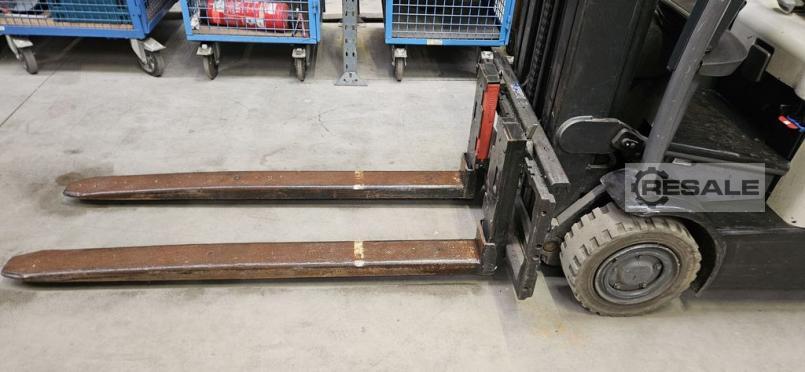

Fork length: 1600 mm iForks weighing forks
Propulsion system: D
Nominal load limit for LSP: 1.8 t
Center of gravity: 500 mm
Lifting height: 3.5 m
Voltage: 48 V
Travel motor(s): 9.6 kW
Lifting motor(s): 7.9 kW
Travel speed with/without load: 16 km/h
Lifting with/without load: 0.56/0.37 m/s
Lowering with load: 0.56 m/s
Construction height: 2260 mm
Battery weight: 0.962 t
New steering pump motor (2025)
Hours: 5579
iForks Forks for Forklifts Original Price 4300 ,- €
