crankshaft grinding used for sale

offer 23034 Specifications: - grinding length approx. 350 mm - grinding width 150 mm - installation height with / without magnet 150 / 210 mm - Grinding wheel stroke approx. 200 mm - Clamping surface 300 x 160 mm - Magnetic clamping plate 250 x 150 mm - Grinding wheel dimensions approx. 200 x 80 x 78 mm - Grinding wheel speed 2800 rpm - Swivel range of the grinding arm approx. 180 ° - manual swivel arm clamping via clamping lever - Wet grinding device - Drive 400 V / 1.85 kW - Space requirement approx. W 850 x H 1650 x D 800 mm - Weight approx. 350 kg

Manufacturer: ELB Type: SWN 6 VA2 Year of construction: 1982 Grinding length: 600 mm Grinding width: 320 mm Workpiece height: 525 mm Table clamping surface: 600x300 mm Magnetic plate: 600x300 mm Machine dimensions: 2600x1500x2000 mm Machine weight: ca. 2t

Various high-quality grinding wheels DM= 220mm, width 30 + 40mm, open-pored grain size 80 - 100- 120. Can be used for JUNG with bore dm 76.2mm, intermediate ring made of aluminium dm 76.2/50.8mm available.

We have about 50 different guide rails, different length/width and height for sale. The guide rails are HSS and HSS with HM. Partly new or used . Please contact us so that we can make you an offer.

grinding diameter:300 mm grinding length:540 mm centre height:175 mm total power requirement:20 kVA centre distance:1000 mm

We clear our grinding wheels warehouse, there are new wheels unused, undamaged. They are exclusively ceramic-bonded discs. Diameter from 200 mm - 500 mm Width from 10 mm - 40 mm Different bonds and hardness. Please contact us so that we can make you an offer. The discs are sold at reasonable prices.

SAACKE UW I D CNC universal grinding machine was manufactured in Germany in 2020. The extremely powerful machine is designed for the fully automatic wet grinding of a wide range of tools, such as knives, cutters or drills. Machining is performed in a single work cycle, which significantly increases production efficiency, saves time and reduces costs. The SAACKE CNC tool grinding machine allows the use of a chain or pallet system for automatic tool feeding and machining of workpieces within it with a maximum diameter of 250 mm and a length of 480 mm. Precision tool grinding is performed in five numerically controlled axes (X,Y,Z,A,B) using grinding wheels housed in a 6-position magazine separated from the workspace with an automatic grinding wheel changing system. In order to guarantee high travel speeds and positioning accuracy, the X,Y and Z axes of the UWID CNC tool grinder are m ...

grinding diameter:50 mm grinding length:100 mm centre height:100 mm centre distance:200 mm

dimensions of the machine ca.:3,5 x 2,0 x 2,5 m

max. wheel diameter:280 mm max. module:5 min. module:1 min. number of teeth:7 toolpiece turning speed range:4.000...10.000 U/min tool length:210 mm CBN

Surface Grinding HARIG Super 612 - No 2 Travel X: 300 mm Travel Y: 170 mm Travel Z: 250 mm Grinding wheel: Ø 200 mm Spindle motor: 3600 RPM Manual movement X - Y - Z Manual magnetic tray 345 mm x 145 mm Auto lubrication axes X and Y Delivered with 2 new grinding wheels 1 vacuum cleaner Voltage: 380 V Width: 1400 mm Depth: 1500 mm Total height: 1900 mm Weight: approx 1 T

grinding diameter max.:400 mm max. width of grinding wheel:180 mm grinding range:2-100 mm total power requirement:24 kW weight of the machine ca.:3,2 t Out of valve production

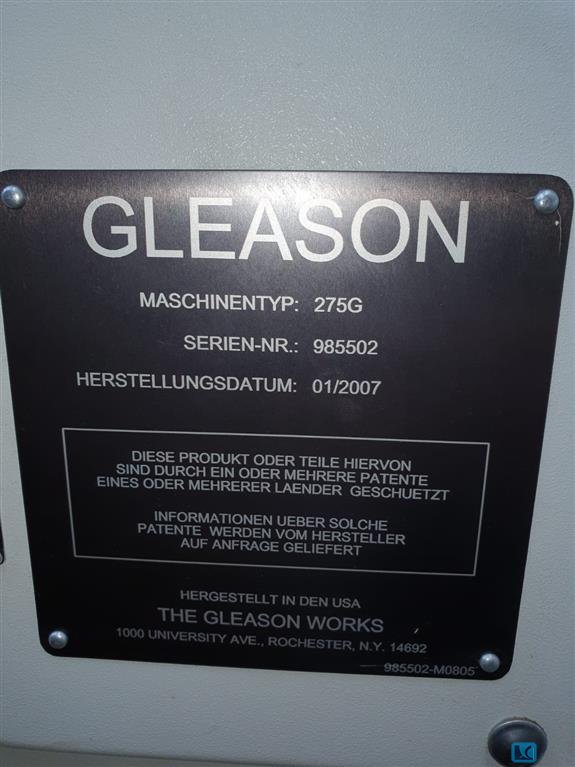

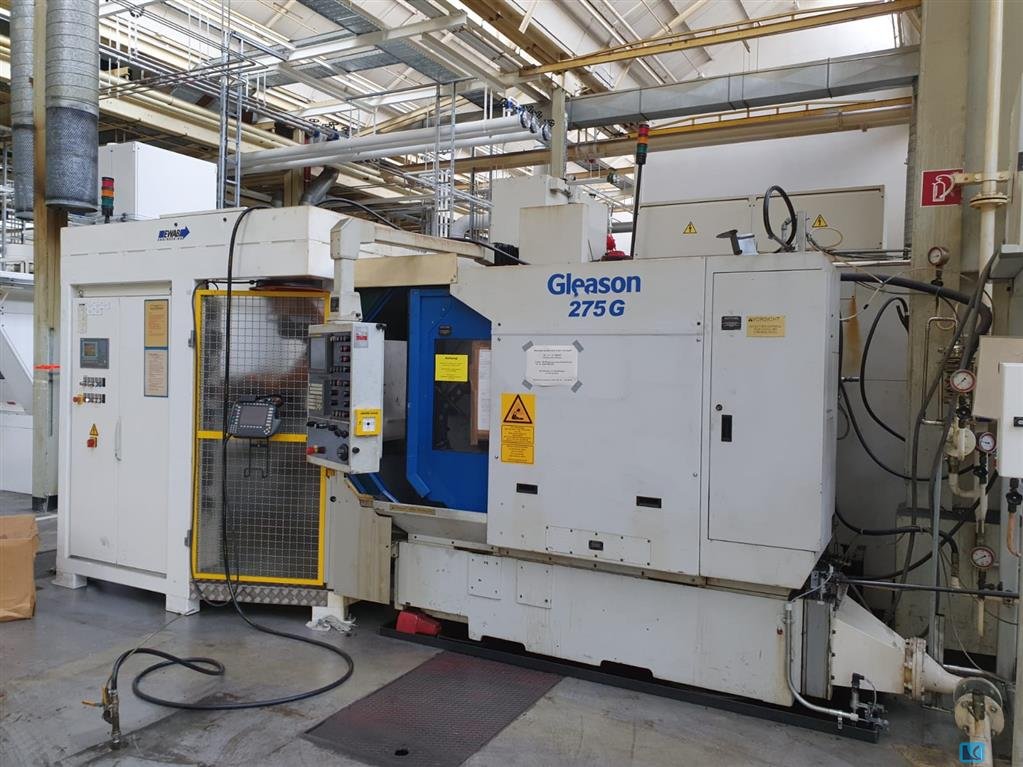

max. wheel diameter:275 mm gear width:58 mm max. module:8 min. module:0,5 weight of the machine ca.:10 t max. number of teeth:200 min. number of teeth:5

max. wheel diameter:275 mm gear width:58 mm max. module:8 min. module:0,5 weight of the machine ca.:10 t max. number of teeth:200 min. number of teeth:5

Surface Grinding HARIG Super 612 - No 1 Travel X: 300 mm Travel Y: 170 mm Travel Z: 250 mm Grinding wheel: Ø 200 mm Spindle motor: 3600 RPM Manual movement X - Y - Z Manual magnetic tray 345 mm x 145 mm Auto lubrication axes X and Y Delivered with 2 new grinding wheels 1 vacuum cleaner Voltage: 380 V Width: 1400 mm Depth: 1500 mm Total height: 1900 mm Weight: approx 1 T

- E L B - HIGH-PRECISION ROTARY TABLE SURFACE GRINDING MACHINE TYPE: ROTARY 80 SPS-NK / YEAR OF CONSTRUCTION 2002 = GRINDING DIAMETER : 800 mm GRINDING HEIGHT : 400 mm (from work table) TABLE LOAD : 300 kg Machine dimensions : 2800 X 2800 X 2660 mm ( WxDxH) Machine weight : 5,500 kg Motor version : DS flange motor Grinding spindle drive : 10 kW Grinding spindle speed : adjustable via frequency controller Grinding spindle cone : 60 mm Grinding wheel : 400x100x127 mm Control voltage : 24V DC Installed power : 20KW Fuse : 50A FULL ROOM COVERAGE

grinding length:900 mm grinding width:400 mm workpiece height:450/530 mm table clamping surface LxW:1.320 x 300 mm magnetic plate size:880 mm x 280 mm mm Finimatic Creep speed Add-on for Diaform Rectifier system Coolant device Infinitely variable grinding clamping drive

Specifications: - Sanding belt dimensions approx. 50 x 2500 mm - Contact wheel diameter approx. 250 mm - Drive 400 V / 5.5 kW - Space requirement approx. W 1350 x H 2050 x D 900 mm - Weight approx. 200 kg

Sharpening machine for band saw blades Manafacture: Alber Sharpening machine for band saw blades Sharpening circuit Fabr. Alber Model: TB1 - AE2 Year of construction: 1978

centre height:500 mm centre distance:2000 mm control:CNC Grundig Numerik total power requirement:400 V, 50 Hz, 22,5 kW weight of the machine ca.:3300 kg dimensions of the machine ca.:2500 x 4000 x 2400 mm

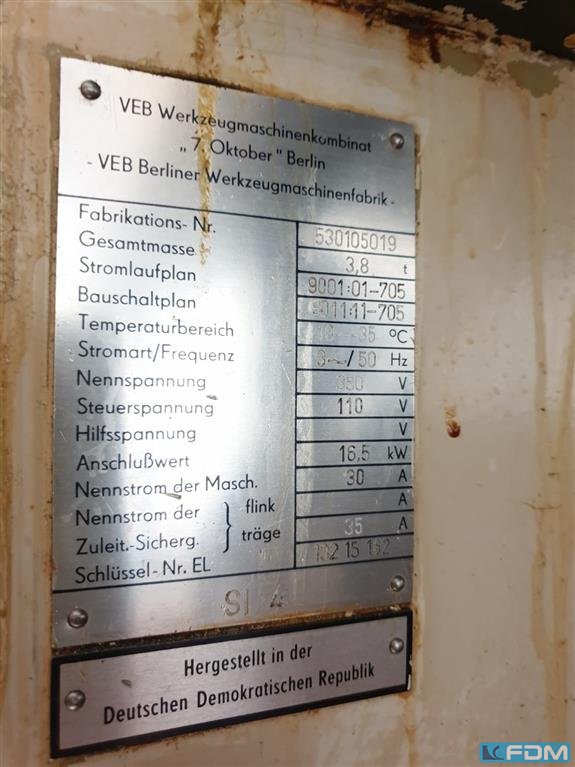

total power requirement:16,5 kW weight of the machine ca.:3,8 t

Specifications: - Polishing wheels - grinding wheel dimensions approx. 300 x 40 x 76 mm - Sanding belt dimensions approx. 3500 x 50 mm - Contact wheel dimensions 400 x 50 mm - Drive speed 1450 rpm - Drive 400 V / 1.8 kW - Space requirement approx. W 1100 x H 2450 x D 800 mm - Weight approx. 300 kg

Disc grinding machine Grinding machine for plates, bowls, rings, wheels, etc. Manufacturer: Hempel Model No.: PQ-4 Year of construction: 1982

grinding length:600 mm grinding width:200 mm total power requirement:5 kW weight of the machine ca.:1,4 t dimensions of the machine ca.:3 x 3 m

Inner diameter: 150 mm Grinding depth: 200 mm Table lift: 425 mm large oscillating circuit diameter: 250 / 420 mm Bore: 80 mm Table speed -infinitely-0.5 - 10 m/min Workpiece speeds: 125/176/246/350 rpm Spindle speed: 17000 rpm Total power requirement: 2.2 / 0.5 / 0.9 kW Machine weight ca. 2 t Space requirement approx. 2.40 x 1.20 x 1.45 m Control: conventional

grinding diameter:4000 mm centre height:310 mm weight of the machine ca.:17 t dimensions of the machine ca.:10.5 x 3.6 x 1,9 m

grinding diameter:3 - 150 mm grinding length:200 mm total power requirement:380V, 50Hz, 30 kW dimensions of the machine ca.:5 x 3 x 2,5 m

grinding diameter: 0,2 - 190 mm grinding length:400 mm centre height:100 mm weight of the machine ca.:1,6 t dimensions of the machine ca.:2 x 1,5 x 1,8 m

Shaft grinding machine with belt grinding attachment Specifications: - Flexible shaft 1500 mm - 5 speeds - Belt grinding attachment - Drive 380 V - mobile underframe - Space requirement approx. W 600 x H 1400 x D 600 mm - Weight approx. 80 kg

Specifications: - Flexible shaft 1500 mm - infinitely variable speeds 1000 to 12000 rpm - Drive 380 V - mobile underframe - Space requirement approx. W 750 x H 1400 x D 500 mm - Weight approx. 50 kg

Gear grinder REISHAUER OZA with change gears.

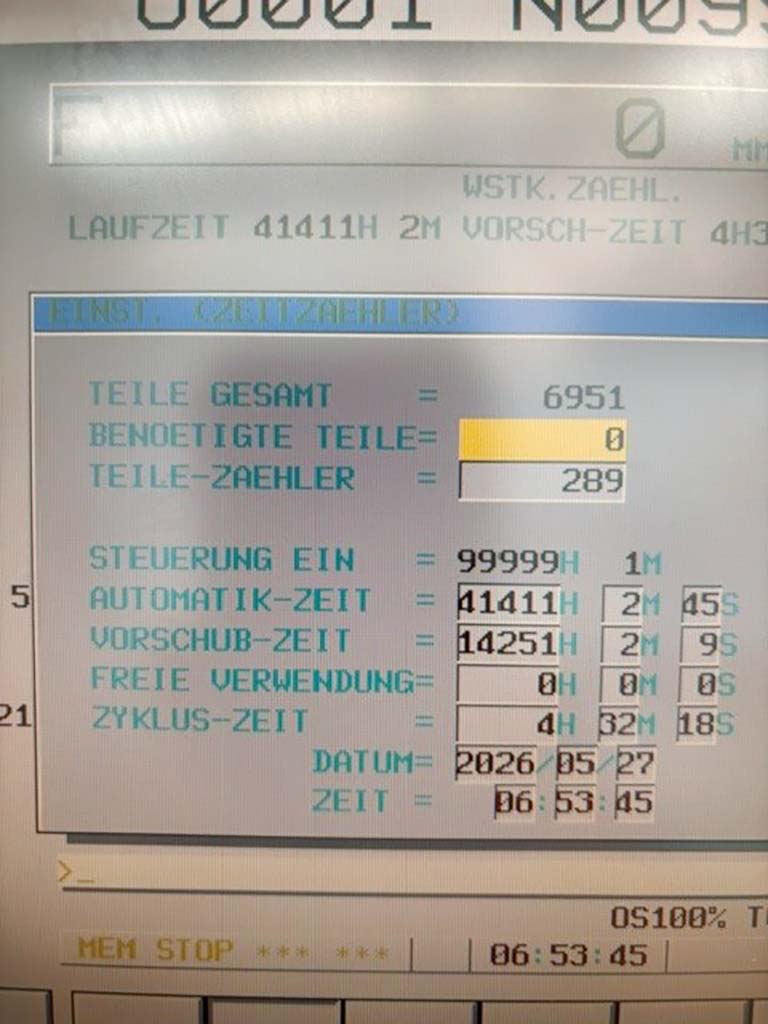

Weight: 4.7t, automatic system operating hours: 41,411h, feed operating hours: 14,251h, an on-site inspection is possible.

Belt grinding station, support table with T-slot, Sanding belt width 100 mm, Sanding disc D 300 mm, with support table 350 x 140 mm, Suction connection available. Motor power: 0.9/ 1.3 kW 400 V/ 50 Hz 1450/ 2900 rpm Connection cable with CEE plug 16 A Machine dimensions: H 1450 x D 410 x W 900 mm Weight approx. 200 kg Transport vertical, bolted to EURO pallet.

Long belt sanding machine, veneer sanding machine, Specifications: Table width 2800 mm Grinding width 2500 mm Table depth approx. 2000 mm Sanding belt length 9500 mm Pressure lamellar belt length 10 mm x 7750 mm Sanding belt dimensions 150 mm x 9500 mm Belt speed 25 + 12.5 m/s Suitable for intermediate paint sanding Workpiece height 6 - 220 mm Grinding engine power 24 kW Total power 27 kW Machine dimensions approx. L 5000 x W 2300 x H 2400 mm Space requirement of the machine in width is 3500 mm Machine weight 2600 kg TOP condition, technical documentation, sanding belt.

Technical data of the used Equiptop ESG-1228ASD Tangential Rectification: Magnetic plane: 712 x 330 mm Automatic working stroke: 760 mm (manual 830 mm) Grinding wheel diameter: 355 mm Grinding wheel thickness: 50 mm Engine: 7 1/2 hP Automatic diamond maker Increased working height CE certified; Year: 2000 Machine in excellent condition, CE certified.

Cross belt grinding machine Ashton AIS / XDIA Model AIS/3350 / XDIA S/N XP 20100082 (by Glasmek AB Sweden, renovated in 2005) Manufacture: Ashton Industrial Sales LTD / UK Year of manufacture approx. 2000 Professional high-performance glass grinding machine 2x diamond bracelet transverse straps High-speed abrasives and diamond abrasives 400 V , 50 Hz Ball roller tables for easy movement of the glass panes. Table dimensions: L x W x H = 3.85m x 1.20m x 0.9m Weight 600 kg CE marked

SPECIFICATIONS: Max. machining width: 800mm Working height: 150mm Installed power Kw: 3.0 2 brushing units consisting of 4 counter-rotating brushes Ø250mm x 220 mm Transport carpet with speed control Controller

max. grinding diameter: 238 - 620 mm grinding length: 190 mm workpiece length: 380 - 940 mm current capacity: 380 kVA power capacity - grinding motor: 1,1 kW speeds of grinding spindle: 2 - 10.000 U/min total power requirement: 2,2 kW Mechanic: very good: Optical condition: very good: Condition: general reconditioning: The machine can be viewed under current.: operating key and instruction: Machine and accessories completely overhauled with CE marking 400 V, 50 Hz, with CEE plug and cable BASICMACHINE! built of year 1988 / overhauled in 2023 Color: 2 K repainting Stand RAL 7005 mouse gray Structure and accessories RAL 7035 light gray motorized height adjustment, axial grinding spindle adjustment Complete electrical conversion includes: > Fi circuit breaker > new three-phase drive > new brake motor > new frequency regulation > new touch-safe built-in electronics > EMV screw ...

Technical data of Used Universal cylindrical grinding machines Cometa HSP 2000: Wheel diameter: 762 mm Max diameter working: 800 mm Center height: 410 mm Working lenght: 2000 mm Wheel power: 15 hP Weight: 11 ton

grinding length: 900 mm grinding width: 510 mm workpiece height: 400 mm table surface area: 800 x 400 mm longitudinal feed of the table: max. 980 mm table speed -stepless-: 1 - 35 m/min grinding wheel size: 355 x 51 x 127 mm cross feed of the table: 460 mm cross feed: 1 - 40 mm/Hub vertical feed autom.: 0,005 - 0,04 mm/Hub rapid traverse vertical: 0,5 m/min grinding spindle speed: 1450 U/min grinding spindle drive: 5,6 kW table load capacity: max. 1000 kg total power requirement: 10 kW weight of the machine ca.: 4,4 t Accessories: magnetic plate 800 x 400 mm, various grinding wheels with and without flanges, wet grinding attachment with paper band filter The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

SPECIFICATIONS: Workspace: Maximum width: 1600 mm Minimum length: 550 mm Working height: min. 10 mm - may. 120 mm PLC control COMPOSITION: I. Group: 02 Side brushes with automatic adjustment II. Group: 01 Transverse rotation brush (immersion brush) III. Group: 03 Interchangeable heads with disc brushes or brushes IV. Group: 02 edge strip heads V. Group: 03 Interchangeable heads with disc brushes or brushes VI. Group: 01 Transverse rotation brush (immersion brush) EQUIPMENT: 01 Motorized transport carpet: 2200 x 1600 mm 01 Self-cleaning motorized unloading belt (conveyor belt) 2500 x 1600 mm

NC – controlled precision rotary table surface grinding machine with horizontal grinding spindle and transverse slider - brand new Rotary table diameter 1,000 mm Largest grindable diameter 1,150 mm Rotary table speeds 0 to 50 rpm infinitely variable Maximum workpiece weight 800 kg Circumferential grinding wheel Ø 450/203 mm x W 80 mm Highest workpiece height with new grinding spindle 700 mm Smallest programmable infeed dimension of the grinding wheel 0.001 mm Grinding wheel drive power 14.7 kW Rotary table drive power 5 kW Torque 30 Nm Weight approx. 15,000 kg

max. grinding diameter: 238 - 620 mm grinding length: 190 mm workpiece length: 380 - 940 mm spindle turning speed - stepless: 2 - 10000 U/min current capacity: 380 kVA power capacity - grinding motor: 1,1 kW total power requirement: 2,2 kW weight of the machine ca.: 0,6 t Mechanic: very good: Optical condition: very good: The machine can be viewed under current.: Please notice: We would be happy to make you a free offer. However, please understand that we only process inquiries with complete address details. 1218 400 V, 50 Hz, with CEE plug and cable Colour: light grey RAL 7035 Stand traffic grey RAL 7042 (new paint) axial grinding spindle adjustment Accessories: Machine stand and carrier plate ground Complete electrical conversion included: > new three-phase drive > new brake motor > new frequency controller > new built-in electrics touch-proof > Fi circuit breaker >  ...

• Grinding chamber with gradation for large individual parts • Dimensions: 3400 x 3750 x 2400 mm • Performance: Long sanding belts 5500 x 100 mm

1 center grinding machine Make: Technica Model: 5100-810 Year of construction: 1988 Workpiece diameter: 150 mm Grinding depth: 5.0 mm Workpiece length: 1,100 mm Grinding spindle speed: 45,000 rpm Operating voltage: 380 V Total power requirement: 0.5 kW Machine weight approx.: 490 kg Dimensions approx.: 1,00 x 0,85 x 1,85 m

Grinding and polishing machine for the shoemaker's profession, cleaned and tested.

max. grinding diameter: 238 - 620 mm grinding length: 190 mm workpiece length: 380 - 940 mm spindle turning speed - stepless: 2 - 12000 U/min current capacity: 380 kVA power capacity - grinding motor: 1,1 kW total power requirement: 2,2 kW weight of the machine ca.: 0,6 t Mechanic: very good: Optical condition: very good: The machine can be viewed under current.: operating key and instruction: 2189 400 V, 50 Hz, with CEE plug and cable Colour: body pastel turquoise RAL 6034 Stand blue-grey RAL 7031 Motorized height adjustment, axial grinding spindle adjustment Machine like new Accesories: Sk 40 dividing head with 24 R dividing disc Graduated disc 20 R Tightening screw M 16 69871 Spiral and relief grinding device with rack housing Counter bearing with 4 tailstock centres Center point with driver Dressing device Dressing diamond Radius grinding device SK 40 complete w ...

Key data: 1300 mm, 5

Wide belt snding machine Manufacturer: Heesmann Model: LSM 8 Equipment: - Transverse sanding unit - Longitudinal sanding unit - Longitudinal sanding unit - Brush unit - Brush unit
