Code: 0381 Brand: OMC - ITALY Model: PL/160 - CE Standard Hydraulic hot press with solid platens, heated by an electric oil boiler, for panels, veneer, woodworking, furniture, custom-made furnishings, wooden doors, composite materials, and various - CE Standard Platens dimensions 3500 x 1300 mm Solid steel perforated platens N°1 intermediate platen Max temperature 250°C Opening 400 mm N° 8 pistons - diameter 85 mm Specific working pressure 30/40 kg/cm² Total thrust 160 tons Heating by 3 diathermic oil boilers Safety devices: perimeter safety cable, emergency stop button, two-hand control Automatic opening with timer Control panel Motor 3 Hp Power supply: 400 V / 50 Hz Overall dimensions mm 4200 x 1600 x 2250 h Weight kg 5500
200 ton x 4000mm with Rolleri Pneumatic clamps
Maximum force: 1600 tons Slider stroke length: 400 mm Unattainable-course: 12 mm Number of courses of a slider per minute: 16 Number of single turn-on: 12 The closed height: 870 mm Adjustment: 220 mm Under-forginig plate: -From left to right: 1600 mm -From front to rear: 1600 mm -Thickness: 650 mm Slider overall dimensions: 1600x1600 mm Aperture in a table: 1000x1000 mm window dimensions in cheeks: 1650x1650 mm Course of a rigid pusher in a slider: 100 mm Force of a rigid pusher in a slider ton-force: 80 Main electric motor power: 110 kW Course of pneumatic pillow: 160 mm Force of pushing out of a pneumatic pillow ton-force: 71 Hydropneumatic pillow: -Working course: 250 mm -Force of pushing out ton-force: 25 -Force of a clip ton-force: 250 Press overall dimensions: 4670x4670x8110 mm Press weight: 147 tons
Tincture press Manufacturer: Hubert Schwanke/Fischer Type HP-25 Serial No. 51-57 Mobile undercarriage Separation of liquid and substance under pressure Capacity approx. 25 litres Output depending on the pressed material max. 80 litres/h Hydr. High pressure max. 450 bar, min. infinitely adjustable on the pressure switch from 0 bar Total pressure on pressed material area 25.5 t Spec. Surface pressure for normal strainer 450 bar = 29 kg/cm² Hydraulic oil quantity in storage tank max. 17 litres Hydraulic Oil Type: Shell Ondina 17 Hydraulic oil change: after approx. 2000-3000 operating hours or according to the degree of contamination of the oil Hydraulic Oil Pump 2 Stage High Pressure And Low Pressure Pump Type RZ 0,6/2-12,3/W.FL.250 Flow rate double solenoid valve 1 Two-stage valve: Type NE 20-450/30 set to 470 bar 1 ...
Vacuum press, vacuum table, membrane press Vacuform from Columbus Universally applicable press, veneer press for veneering, coating, mold gluing, mold veneering, edge banding, etc. With this press, you can do without a hydraulic veneer press, with some restrictions. Natural rubber membrane, rubber membrane, extremely stretchy and easy to clean. Frame inner dimensions approx. 2920 x 1320mm Vacuum pump Becker, 400V, 0.75 kW with 25 m³/h output Large vacuum container, thus comfortable working, fast evacuation. Electronic vacuum pressure switch, which means that the pump switches off when the vacuum is reached and does not run continuously. Mobile on four swivel castors, lockable Work surface folds down for storage. CE mark Original paint, only a few places touched up Very good condition, see original photos Machine is immediately ready for use Dimensions approx. 316 ...
automatic baler Manufacturer: WELGER Type: SB 2000L Machine No.: 1307 51 321 specifications: Pressing force: 7 t Drive power: 11 kW Bale format 500 x 400 x length in mm Machine weight: approx. 1.9 t
Foot control / strip bender / opening 159x77cm Auction-ID: A3-43525-18410
HOT PRESS model SIMI 4LP second hand machine plates useful size mm. 2500 x 1300 n.04 pistons diam.mm. 80 max. thrust Ton. 60 specific pressure max. kg.2 / cm2 opening mm. 320 hot water plates heating via wood boiler (optional) weight kgs. 3000
Bale size (W x H) approx. 1,100 x 700 mm Bale weight approx550kg
Press brake manufactured in 2002. This HACO PPM 30135 b features a pressing force of 135 tons and a bending length of 3100 mm. It is equipped with a power of 15 kW, ensuring efficient operation. If you are looking to get high-quality bending capabilities, consider the HACO PPM 30135 b machine we have for sale. Contact us for further details.
Key data: 15 t, 66 mm
Burger Press D07 Length 1.20 m Width 0.60 m Height 1.70 m 2 Hand control Switch to foot control 1 press die
Specifications: Capacity 300 to Stroke rate 35 strokes Plunger width 1000 mm Projection 450 mm Plunger stroke 20 - 140 mm Plunger adjustment 80 mm Engine power 30 hp Weight roughly estimated 18 tons
Used multi-layer paver Zenit 844 Built in 1993 inclusive: 1 piece concrete mixer 750 l Teka 1 piece concrete mixer 500 l approx. 12 pieces of used moulds approx. 100 production pallets Used concrete multilayer machine Manufacturer: Zenith Type: 844 Year: 1993 including: - 1 pcs 750 liter mixer Teka - 1 pcs 500 liter blender - about 12 moulds - about 100 pcs production boards
Specifications: Capacity 40 tons 2 strokes 57 + 86 H/min Projection 250 mm Plunger stroke 8 - 88 mm Plunger adjustment approx. 63 mm Table , WxD approx. 570 x 450 mm Max. installation height approx. 330 mm
Press screw REG-MAC for drying foils and fibres, and for compacting foam (e.g. polystyrene, EPS) Drive motor 55 kw
VORONEZH K8544 Hot Forging press YEAR : 1980 / 2008 OVERHAUL AND INSTALLED FORCE : 2500ton RAM STROKE : 350 mm RAM SIZE : 1120X1070 mm TABLE OVERALL SIZE : 1400X1200 mm NUMBER OF STROKES IN CONTINUOUS MODE : 60 NUMBER OF STROKES IN MANUAL MODE : 26 SHUT HEIGHT : 890 mm STROKE OF UPPER KNOCK OUT : 60 mm STOROKE OF LOWER KNOCK OUT : 70 mm MAIN MOTOR : 132KW (CHANGED TO HYUDAI HEAVY Y2012) PRESS OVERALL DIMENSION : 5380X4680X6400 mm HYDRAULIC BOLSTER NEW IN 2007 CONDITION : VERY GOOD WORKING CONDITIONS Trimming press available
pressure:6,3 t throat:170/180 mm stroke:310 mm power capacity:3 kW dayligth:775 mm weight of the machine ca.:1,5 t clamping table:470 x 330 mm table height over floor:800 mm C-Type 1 Station
Press screw REG-MAC for drying foils and fibres, and for compacting foam (e.g. polystyrene, EPS) Drive motor 55 kw
Specifications Maximum pressure: 60 tons Press force: 156 t/m² Bale size: 1100 x 1100 x 700 mm Bale weight: 400 kg Power supply: 400V/ 13kW Year of construction: 2014 Dimensions of the tailgate: 2815 x 1085 x 2250 mm Machine weight: 7.5 t The machine is functional
pressure:2 t dayligth:80 mm Center of spindle to wall or column:100 mm weight of the machine ca.:0,5 t dimensions of the machine ca.:0,8 x 0,6 x 2,0 m Hand operated fly press, with center turning device appr. 100 x 400 mm length - Handwheel diameter 600 mm
press capacity:950 kN control:Siemens S7 Required air-pressure:6 bar loading area:1200 x 600 mm Pressure power:1000 kN total power requirement:18 kW weight of the machine ca.:6200 kg dimensions of the machine ca.:2600 x 1300 x 3100 mm
pressure:10 t distance between columns:450 mm :1500 mm table-size:450 x 400 mm weight of the machine ca.:470 kg dimensions of the machine ca.:1400 x 750 x 1600 mm
pressure:10 t stroke:400 mm total power requirement:1,6 kW weight of the machine ca.:1,1 t dimensions of the machine ca.:1100 x650 x 2050 mm dayligth:500 mm table-size:400 x 450 mm Documents:vorhanden
pressure:160 t throat:360 mm stroke:500 mm total power requirement:17 kW weight of the machine ca.:7,2 t dimensions of the machine ca.:2,0 x 0,95 x 3,70 m table-size:900 x 630 mm Documents:vorhanden
pressure:160 t throat:360 mm stroke:500 mm Documents:vorhanden
pressure:20 t Stroke:230 mm table surface area:Ø600 mm distance table - lower edge of ram:770 mm weight:595 kg
Gluing Press / Press Rotor / Gluing Stars For the production of solid wood panels or similar Manufacturer: ACMA Levels: 4 Hydraulic Cylinders: 6 per level Hold-down: 2 frames per level Working area per level approx. 2900 x 1150 mm
weight of the machine ca.:620 kg dimensions of the machine ca.:1000 x 920 x 1550 mm
SECOND HAND BENDING PRESS - plates dimensions mm. 3100X800 - opening mm. 800 - 8 cyl. diam. 80 mm.
Pressure:175 t chamfer lenght:4100 mm distance between columns:3600 mm column arm:410 mm ram stroke speed:180 mm/sec return speed:135 mm/sec working speed:10 mm/sec work stroke:275 mm oil volume:200 l dayligth:550 mm table height:900 mm table width:90 mm total power requirement:15 kW weight of the machine ca.:12000 kg dimensions of the machine ca.:5100 x 2150 x 2850 mm
nominal force:100 t stroke:320 mm no. of strokes:35 /min distance between columns:360 / 250 mm Distance table/ram, max. stroke up, adjustment up:500 mm table surface area:320 x 450 mm table height over floor:660 mm ram surface:250 x 280 mm spindle diameter:125 mm power capacity:3,0 kW weight:4,5 t Dimensions (WxDxH):2,0 x 1,6 x 3,1 m
pressure:60 t distance between columns:650 mm stroke:220 mm distance table/ram, max. stroke up, adjustment up:410 mm table surface area:600 x 525 mm hole in the table:110 mm table height over floor:900 mm side window:200 mm ram surface:560 x 490 mm power requirement:15,0 kW dimensions (WxDxH):1,9 x 1,3 x 2,7 m foundation pit:not necessary
pressure:250 t distance between columns:1110 mm stroke:250 mm Distance table/ram, max. stroke up, adjustment up:500 mm Table surface area:1100 x 900 mm Table height above floor:950 mm Side window:690 mm Ram surface:1100 x 900 mm Oil volume:730 l Power capacity:56,0 kW Dimensions (WxDxH):2,3 x 1,55 x 3,96 m
nominal force:160 t stroke:140 mm no. of strokes:85 /min distance between columns:400 mm distance table/ram, max. stroke up, adjustment up:500 mm table surface area:400 x 450 mm table height over floor:800 mm Allowed max. force:230 t ram surface:400 x 320 mm spindle diameter:125 mm power requirement:7,35 kW weight:5,0 t dimensions (WxDxH):1,7 x 1,2 x 2,9 m
pressure:300 t distance between columns:1800 mm stroke:1000 mm Distance table/ram, max. stroke up, adjustment up:1300 mm Table surface area:1600 x 1200 mm Table height above floor:1080 mm Ram surface:1600 x 1200 mm Weight:24,0 t Dimensions (WxDxH):2,8 x 2,1 x 6,0 m German Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2
no. of strokes:150 /min impact energy:420 kJ distance lower die block / ram gudeway:435 mm Throat:425 mm steel forging - rectangular up to:110 mm steel forging - diameter up to:125 mm power requirement:22,0 kW weight of hammer:3,9 t weight of anvil:3,0 t ram hammer weight:200 kg weight:6,9 t dimensions (WxDxH):1,1 x 2,3 x 2,4 m

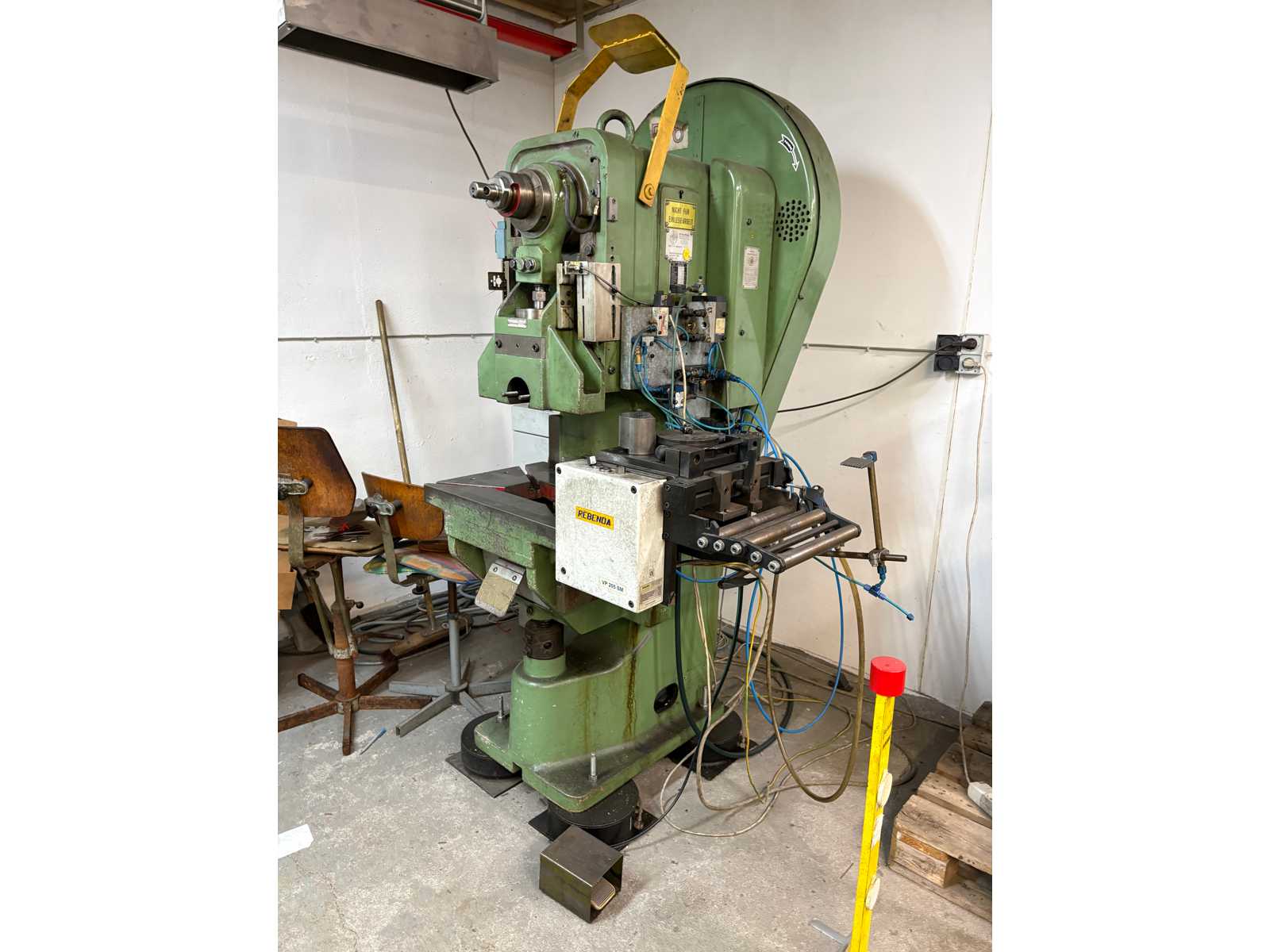

Machine number: 2810292 Operating voltage: 380 V Connection: 1.5 kW Max. pressing force: 250 kN Projection: 190 mm Plunger strokes: 120/min Plunger adjustable: 5 mm Stroke adjustable: 4 - 60 mm Table dimensions: 550 x 430 mm incl. straightening device from the manufacturer REBENDER
