conveyor bend used for sale

Offer 26338 Technical data: - max. Working length 3340 mm - Column passage 2600 mm - Max. pressing force 100 t - Projection 400 mm - Max. stroke 100 mm - max. Installation height 370 mm - Table height approx. 960 mm - Feed speed / rapid traverse 85 mm/s - Press speed 10 mm/s - Retraction speed 80 mm/s - Drive power 9.5 kW - Space requirement approx. W 3500 x H 2350 x D 1950 mm - Weight approx. 6.8 t - with: - CNC control DELEM DA 58 - Back gauge 0 - 600 mm

Used rotor straightener without bending device Manufacturer: Progress Type: MSR 20/6 Year of Make: 2015 For diameter: 8,10,12,14,16,20mm Used rotor straightening machine without bending device Manufacturer: Progress Type: MSR 20/6 Year of manufacture: 2015 For diameters: 8, 10, 12, 14, 16, 20 mm

Used hot-melt edge banding machine (edge bander), marked \"ΠΑΝΞΥΛ\" (Panxyl) in the seller's listing. Condition: - Used machine - Has not been operated for years; needs inspection before use Auction-ID: A7-50988-156

Complete with tools. In working order. The machine has a brewing length of approximately 3,600 mm and a pressing force of 250 tonnes. Thanks to the CNC control, various bending programs can be precisely set and repeated. Technical data: - Brand: ERMAK - Type: CNC HAP 3600 x 250 - Year of construction: 2008 - Machine: Hydraulic CNC Bending Machine - Brewing length: approx. 3,600 mm - Press force: approx. 250 tons - CNC control - Hydraulic drive - Suitable for bending metal sheets - Including tools and accessories, as visible in the photos The machine is offered in used condition and as shown in the photos. Any dismantling, loading and transport are entirely at the expense of the buyer. Auction-ID: A3-46137-6218

Lg.Nr. 25514 Defective Hydr. CNC - Press Brake Technical data: - Max. working length 3060 mm - Column passage 2690 mm - Max. pressing force 1300 kN - Max. distance table / plunger 370 mm - Stand projection 410 mm - Plunger stroke 215 mm - Lifting speeds - Downward speed idle max. 200 mm/sec - Upward speed 135 mm/sec - Downward pressing speed 1 to 11 mm/sec - Total drive power 18 kW - Pneumatic connection 6 bar - Space requirement approx. W 3800 x H 2400 x D 2400 mm - Weight approx. 11500 kg - with: - With 6-axis CNC control DELEM - Two-hand control panel with foot switch - crowning device - Controlled backgauge with height adjustment 5 - 860 mm - Hydr. Upper + Lower - Tool Clamping - Die table displacement pneumatically supported - Machine does not drive reverence because 2 axles right in the back gauge are without function, contr ...

Hydraulic version Includes pallet with spare parts. Auction-ID: A1-47366-274

Trumpf TruBend Center 5030Year of manuf. : 2021 ____________Description:TruBend Center 5030:- Robust machine frame: - Angular direct drive:- Crowning system:- Machine control with touchscreen operation:- TecZone Fold programming – floating licence:- 2-axis part manipulator with suction modules:- 5-axis backgauge:- Optical angle assistant:- ToolMaster:- Hold-down tools:- OBW90 and UBW90 bending toolsTechnical specificationsMinimum bending depth (standard tool):145 mmMinimum bending depth (with additional hold-down tool):40 mmMaximum bending length:3,123 mmMinimum bending length:80 mmHold-down force:101 tMaximum box height:220 mmMinimum material thickness:0.4 mmMaximum steel material thickness:3 mmMaximum stainless steel material thickness:2.2 mmMaximum aluminium material thickness:4 mmRapid traverse Y-axis (press beam):250 mm/s5-axis backgauge:1,700 mm/sToolMaster Bend:2,400 mm/sD ...

sheet width: 1550 mm plate thickness: 6.5 mm pre-bending: 4.5 mm diameter of upper rolls: 150 mm side roll diameter: 130 mm diameter of lower rolls: 150 mm distance: max. OW zu UW 20.0 mm voltage: 400 V total power requirement: 1.1 + 2.2 kW weight of the machine ca.: 2370 kg range L-W-H: 3300 x 1150 x 1110 mm Rarely used, according to the previous owner Current new price approx. 25.000 euros Special price upon request (!) Features: - Electro-hydraulic 4-roll plate bending machine Equipped with a driven top roll and bottom roll Sturdy welded construction - Application range: Light to heavy-duty sheet metal processing (steel/aluminum/stainless steel) - Electro-hydraulic adjustment of the bottom and side rolls - Linear guidance for the side rolls - Top roll driven by a robust electric motor and planetary gearbox - Mobile, separate control console - Hardened, crowned rolls (SAE 1050 /  ...

A ready-to-use TRUMPF TruBend 3100 press brake from 2017, in mint condition. This powerful and reliable machine is ideal for professional sheet metal work, delivering excellent precision and performance. The machine has a maximum pressing force of 100 tons and is equipped with an advanced control with graphical visualization. The machine has only 9000 hours on the odometer. Extra asset: when you buy this machine, 1 week of training at our company is possible, so that you can get started immediately and optimally. Manufacturer: TRUMPF Model: TruBend 3100 Year of construction: 2017 Bending Force: 100T Working width: 3100mm Stroke length: 350mm Total weight: 8300kg Working hours: 9000h 4-axis Programmable with trutops boost or on the machine itself. As good as new, fully functional. Auction-ID: A3-46142-6017

Bending Tensile Testing Machine Testing of large specimens for bending tensile strength Load ranges: 40kN, 100kN, 200kN Specimen width maximum 1.32 m Specimen length depends on the space required and the specimen weight The buyer must dismantle and load the machine/system. Auction-ID: A1-51071-16

Electromechanical recirculating bending testing machine Machine for determining flexural fatigue strength max. bending moment of 27 Nm with a specimen diameter of 6.74 mm, frequency: from 0 to 120 Hz 200 Hz possible, trapezoidal torque curve between the bearings The blue boxes in the background are not one of them. The control cabinet pictured belongs to this auction and can control up to two of these recirculating bending machines. However, there is only one PUNZ up for auction Auction-ID: A1-51071-18

Fatigue testing machine max. bending moment: ±12Nm alternating max. bending moment: 24Nm swelling, 3 different measuring springs are available, test frequency: 23Hz Waisted flat sample possible in three different variants Optical measuring device, preload and load amplitude can only be adjusted via travel Auction-ID: A1-51071-13

tube diameter:40-90 mm wall strength:20 mm weight of the machine ca.:11 t dimensions of the machine ca.:4 x 1,6 x 1,35 m bending radius max.:270 mm This machine is a mandrel bending machine that was designed exclusively for the production of pipe bends with pipes of 40 mm ? 90 mm outer diameter with a maximum wall thickness of 20 mm or for processing solid materials up to 70 mm outer diameter (max. section modulus 64.7 cm³) and is therefore intended only for this purpose. Scope of delivery, machine equipment, basic equipment ? Pipe length/usable length for mandrel bending: 3000 mm ? Radius range max. 270 mm ? Bending height 1050 mm ? Electro-hydraulic drive ? Clockwise bending direction ? With hollow shaft to achieve small radii ? Counter bearing rotates ? Rotates up to 180 degrees with a maximum tool radius of 270 mm ? Forward movement controlled via hydraulic cylinder with pressure va ...

Fatigue testing machine max. bending moment: ±12Nm alternating max. bending moment: 24Nm swelling, 3 different measuring springs are available, test frequency: 23Hz Waisted flat sample possible in three different variants Optical measuring device, preload and load amplitude adjustable via travel Auction-ID: A1-51071-14

Fatigue testing machine max. bending moment: ±12Nm alternating max. bending moment: 24Nm swelling, 3 different measuring springs are available, test frequency: 23Hz Waisted flat sample possible in three different variants Optical measuring device, preload and load amplitude adjustable via travel Auction-ID: A1-51071-12

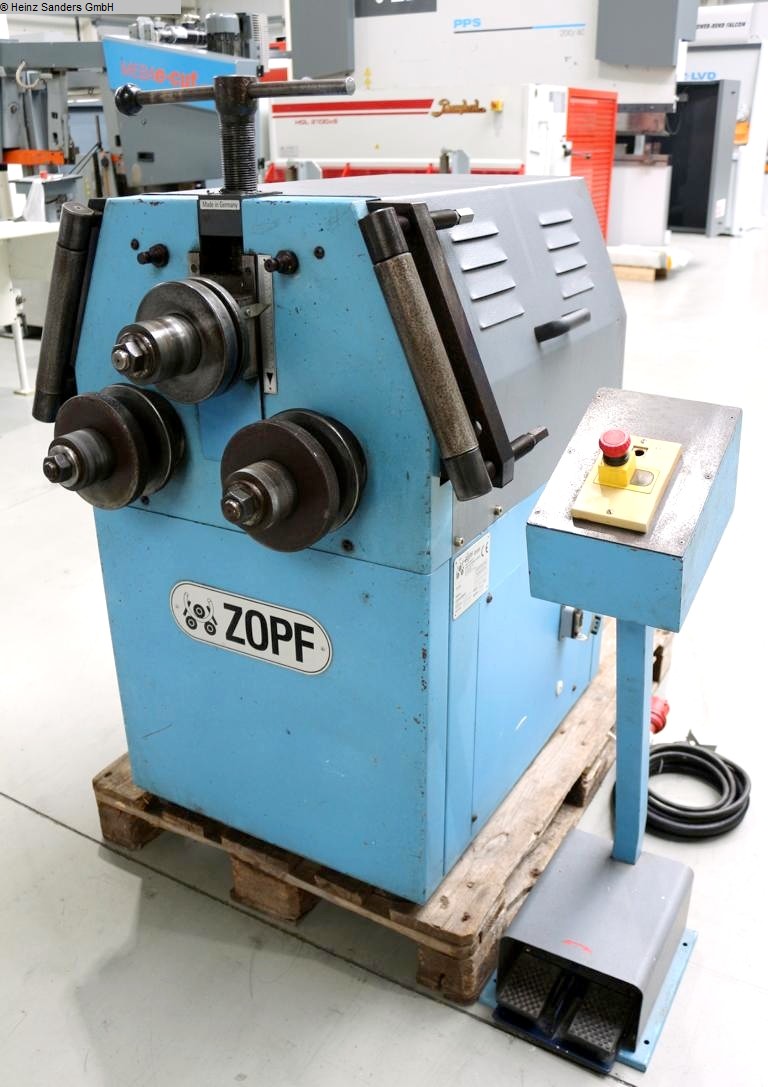

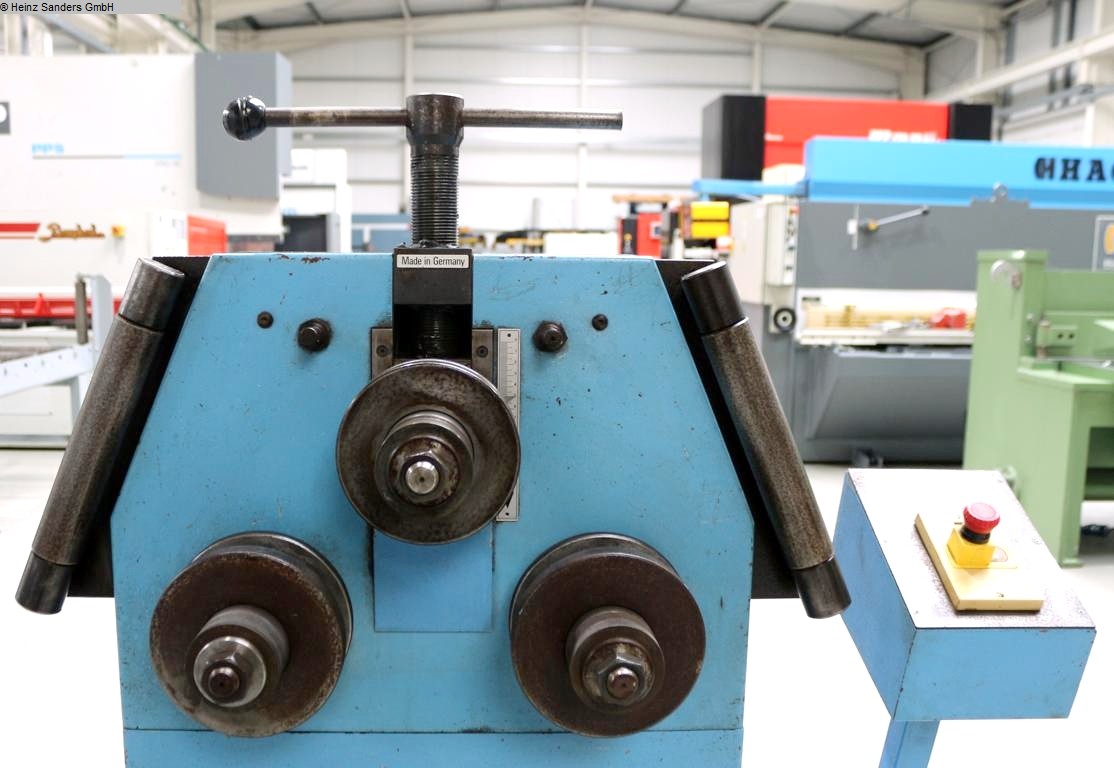

I - beam section - flat steel: 100 x 15 (d 400) mm I-beam section - upend: 60 x 10 (d 500) mm L-beam: 50x50x6,0 (d 600) mm round material: 35.0 (d 500) mm bar material dia. max.: 70 x 1.5 (d 1500) mm square material: 50x50x3.0 (d 1400) mm bending speed: 8.5 U/min roll diam. toproll: 152 / 162 mm bore: 40.0 mm Stroke length: 120 mm voltage: 400 V total power requirement: 1.1 kW weight: 470 kg range L-W-H: 900 x 600 x 1100 mm Original price with accessories: approx. 10.000 euros Features: - Two driven rollers (lower rollers) - Manual feed of the upper roller - Horizontal and vertical working positions - Shafts mounted with tapered roller bearings - Lateral, manually adjustable stop rollers - 1 set of standard rollersâsplit - 1 sets of tube rollers - 1 freely movable control unit - Operating instructions The data for this ad was created with ModulMWS - the software solution of LogoTech  ...

I - beam section - flat steel: 120 x 20 (d 750) mm I-beam section - upend: 60 x 10 (d800) mm L-beam: 50 x 5 (d 1200) mm bar material - diameter: 35.0 (d 800) mm bar material dia. max.: 70 x 3.0 (1200) mm : 50.0 mm diameter of upper rolls: 155 mm diameter of lower rolls: 155 mm Stroke length: 150 mm Rotating speeds: 9.0 U/min total power requirement: 1.3 kW weight: 305 kg range L-W-H: 900 x 700 x 1500 mm Features: - Robust electric-motor-driven ring/profile bending machine - Machine base frame with rear storage shelf - Can be used in both horizontal and vertical orientations - Equipped with a wide variety of roller sets Split roller segments Pipe rollers - Electro-hydraulic feed of the upper roller - Manually adjustable side/alignment rollers - 1 freely movable control panel - Base frame with forklift pockets For easy transport The data for this ad was created with ModulMWS - the sof ...

I - beam section - flat steel: 120 x 20 (d 750) mm I-beam section - upend: 60 x 10 (d800) mm L-beam: 50 x 5 (d 1200) mm bar material - diameter: 35.0 (d 800) mm bar material dia. max.: 70 x 3.0 (1200) mm : 50.0 mm diameter of upper rolls: 155 mm diameter of lower rolls: 155 mm Stroke length: 150 mm Rotating speeds: 9.0 U/min total power requirement: 1.3 kW weight: 305 kg range L-W-H: 900 x 700 x 1500 mm Features: - Robust electric-motor-driven ring/profile bending machine - Machine base frame with rear storage shelf - Capable of horizontal and vertical operation - Equipped with a wide variety of roller sets Split roller segments Pipe rollers - Manual feed of the upper roller - Analog position indicator for the upper rollers (scale) - Manually adjustable side/aligning rollers - Base frame with forklift pockets For easy transport The data for this ad was created with ModulMWS - the so ...
