Fully-automated yeast propagation plant with 2 cylindroconical tanks each 60 hl in stainless steel for yeast propagation and 2 cylindroconical tanks each 60 hl in stainless steel for yeast storage, A conversion and automation was carried out by Esau & Huber in 2007., 2 tanks for yeast propagation each: 80 hl total volume, 2 tanks for yeast storage each: 80 hl total volume, Material: stainless steel, Features: Yeast propagators and yeast tanks have a cooling zone + 1 cone cooling, PT100, weigh cells, circulation pump, yeast aeration

Brewing plant with a mash-out wort volume of 20 hl, comprising the following components: 1. Malting plant (Joh. Albrecht, 2000, 500 kg/h) with mill, malt hopper, floor scale, malt conveyor and control cabinet 2. 3-vessel compact brewhouse with insulated stainless steel vessels with copper lids, spindle station and control cabinet 3. Fermentation and storage cellar with 4 x fermentation vats (Joh. Albrecht, 1999, 25 hl), 1 x fermentation tank (Nerb, 2002, 50 hl, 0.99 bar), 5 x storage tanks (Joh. Albrecht, 1999, 44 hl, 0.99 bar) and 6 x storage tanks (Joh. Albrecht, 1999, 22 hl, 0.99 bar). All tanks with jacket cooling. 4. Pressure tank cellar with 2 x pressure tanks (Speidel, 2021, 86 hl, 3 bar) and 1 x pressure tank (INOX, 2018, 67 hl, 3 bar). All tanks with jacket cooling. 5. Keg cleaning and filling system (BTB. Multimat MT/2, 1997, 17–20 kegs/h) 6. Refrigeration system acting as an ...

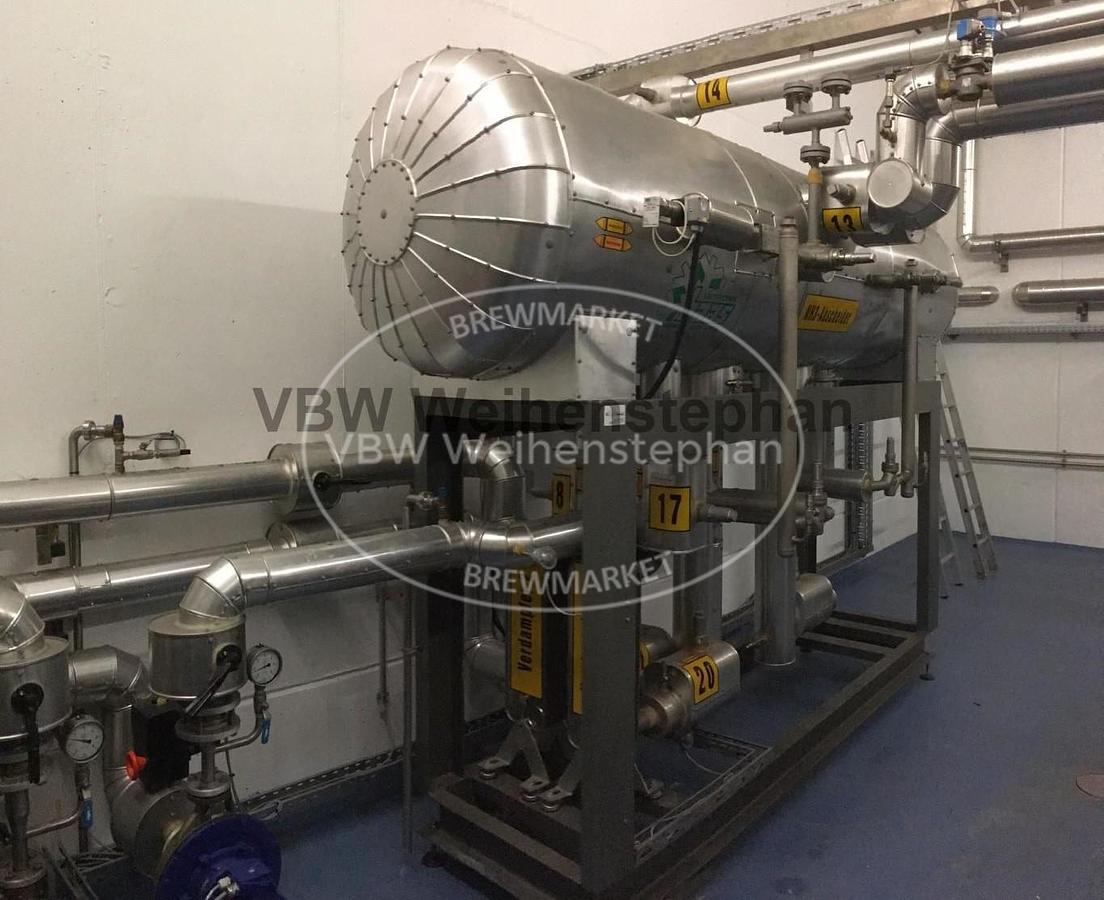

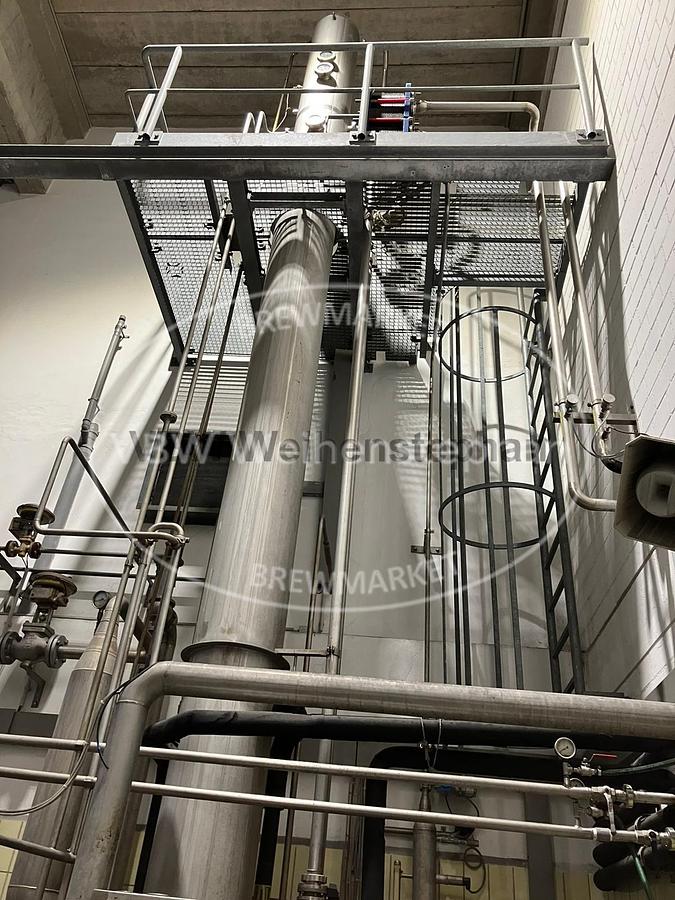

Concentrating plant for the juice industry. The plant dates back to 1977 and was rebuilt in 1992. It was extended and equipped with a new cooling tower circuit. The plant is designed for 6600 kg/h of cloudy apple juice. With a single-stage concentration, the juice is thickened from 12° to 25°Brix. Up to 71°Brix can be achieved in the second pass., Additional title: with aroma recovery, Input quantity apple juice: 6600 kg/h, Water evaporation: 4840 kg/h, Discharge quantity concentrated juice: 1760 kg/h, Steam consumption: 1685 kg/h, Length: 7,70 m, Width: 6,70 m

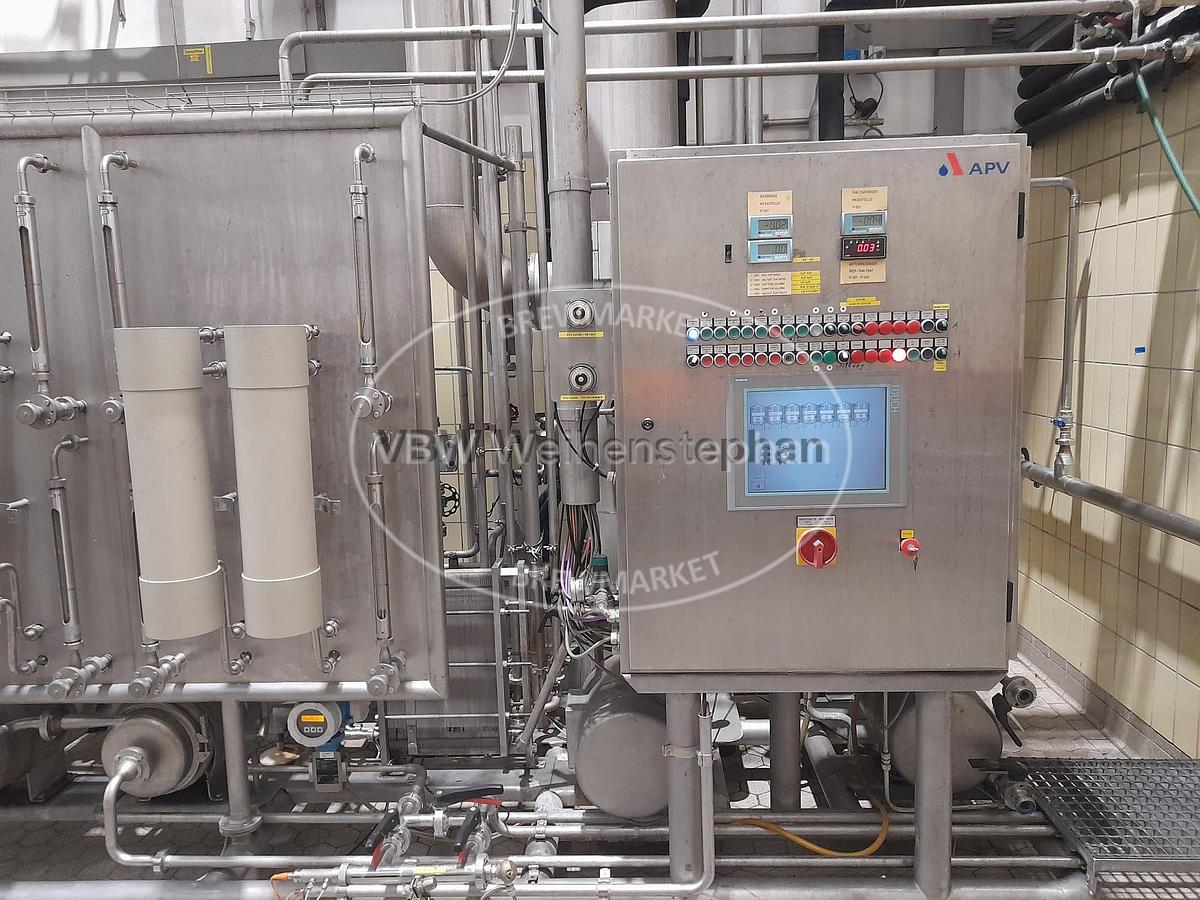

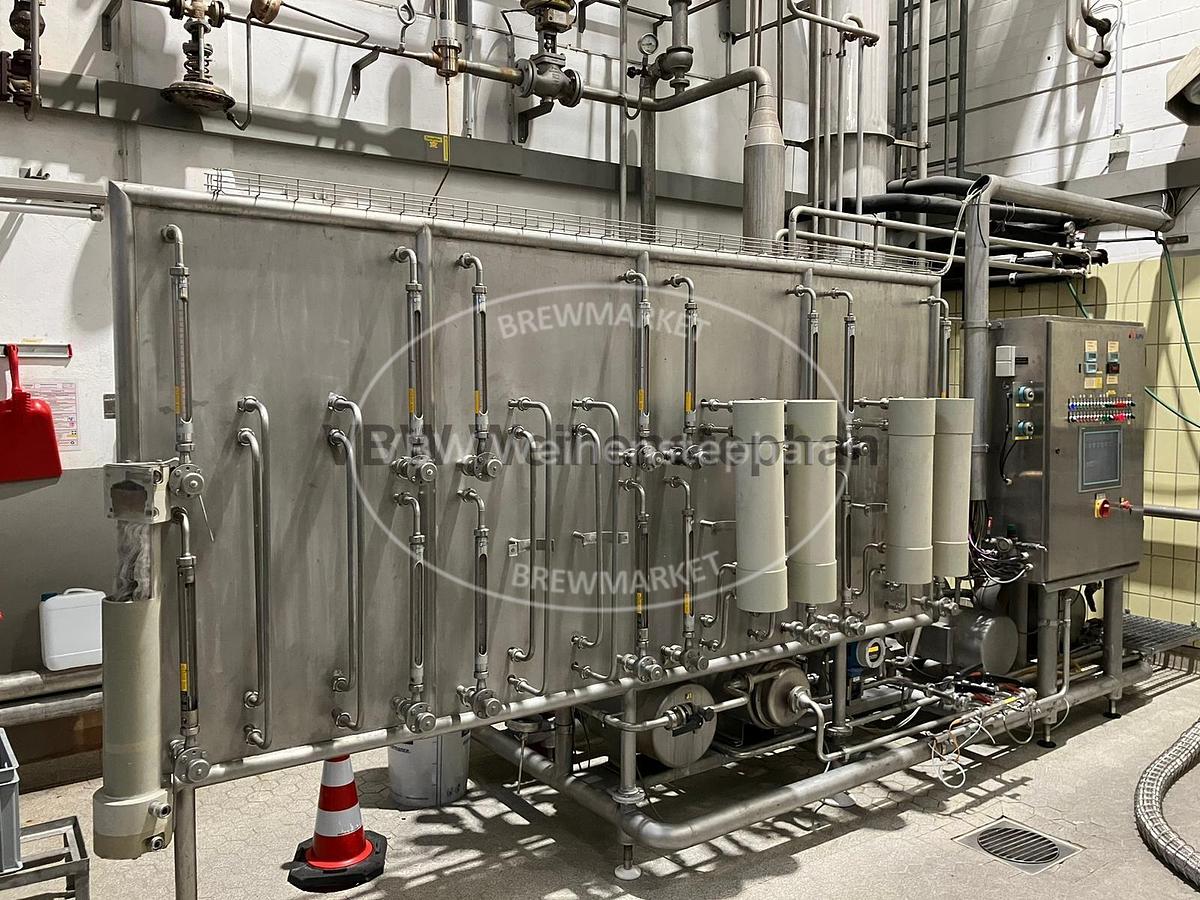

The dealcoholisation is carried out by a dialysis membrane module consisting of up to 8 modules connected in parallel. The mass transfer is driven by the concentration gradient between beer and dialysate (water or dealcoholised beer)., Additional title: dialysis, Capacity: 350 l/h remaining alcohol content: approx. 0,45 %; original alcohol content: approx. 5 %, Length: 3,6 m, Width: 1,7 m, Height: ca. 8,4 m, Weight: 900 kg, Operation / Control: Control cabinet with operating buttons and touch display, Features: 6 membrane modules, column DN400; plate heat exchanger TS6-MFG, Alfa Laval, year of manufacture 2006

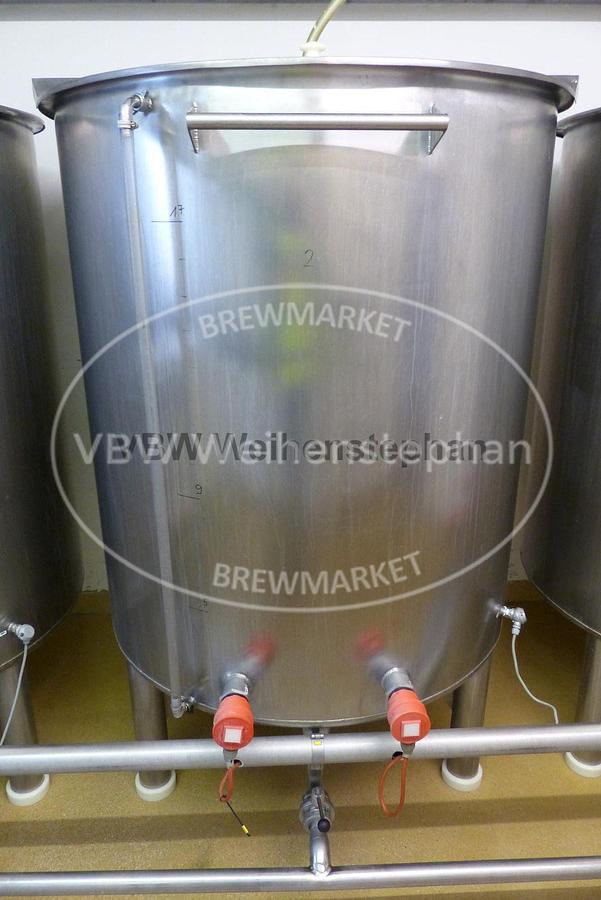

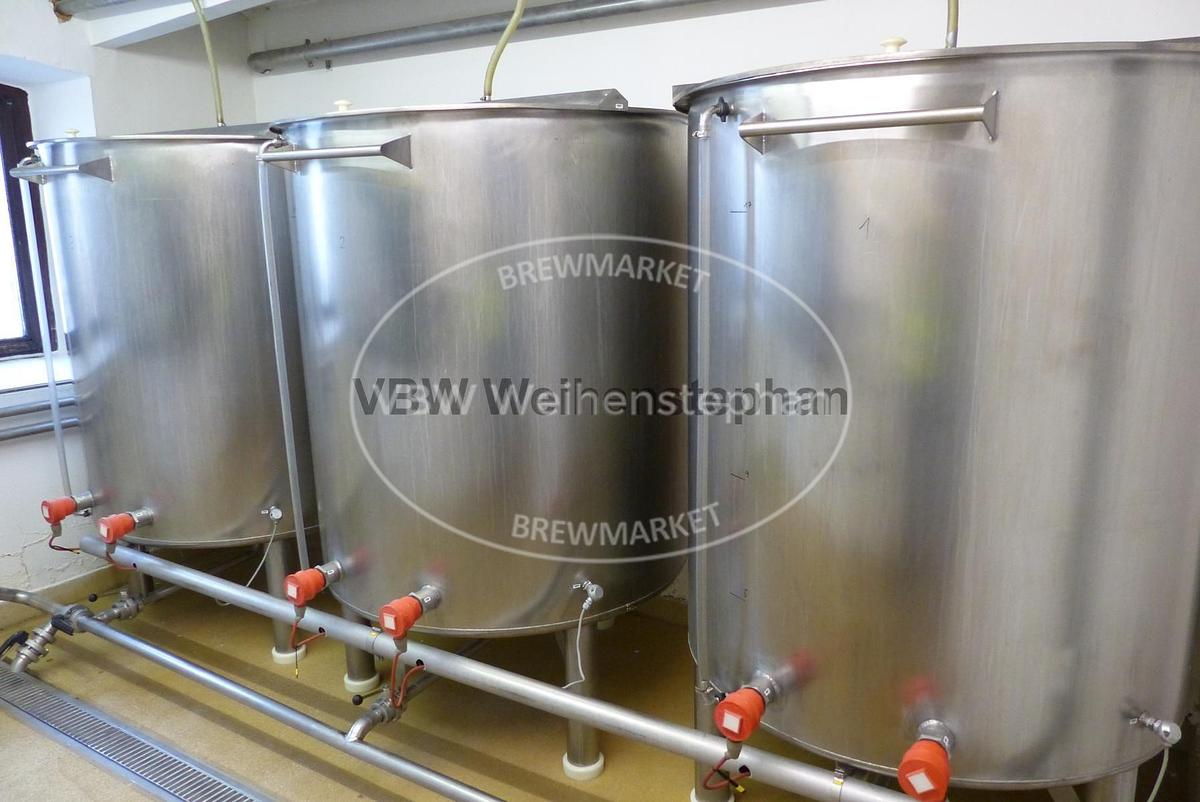

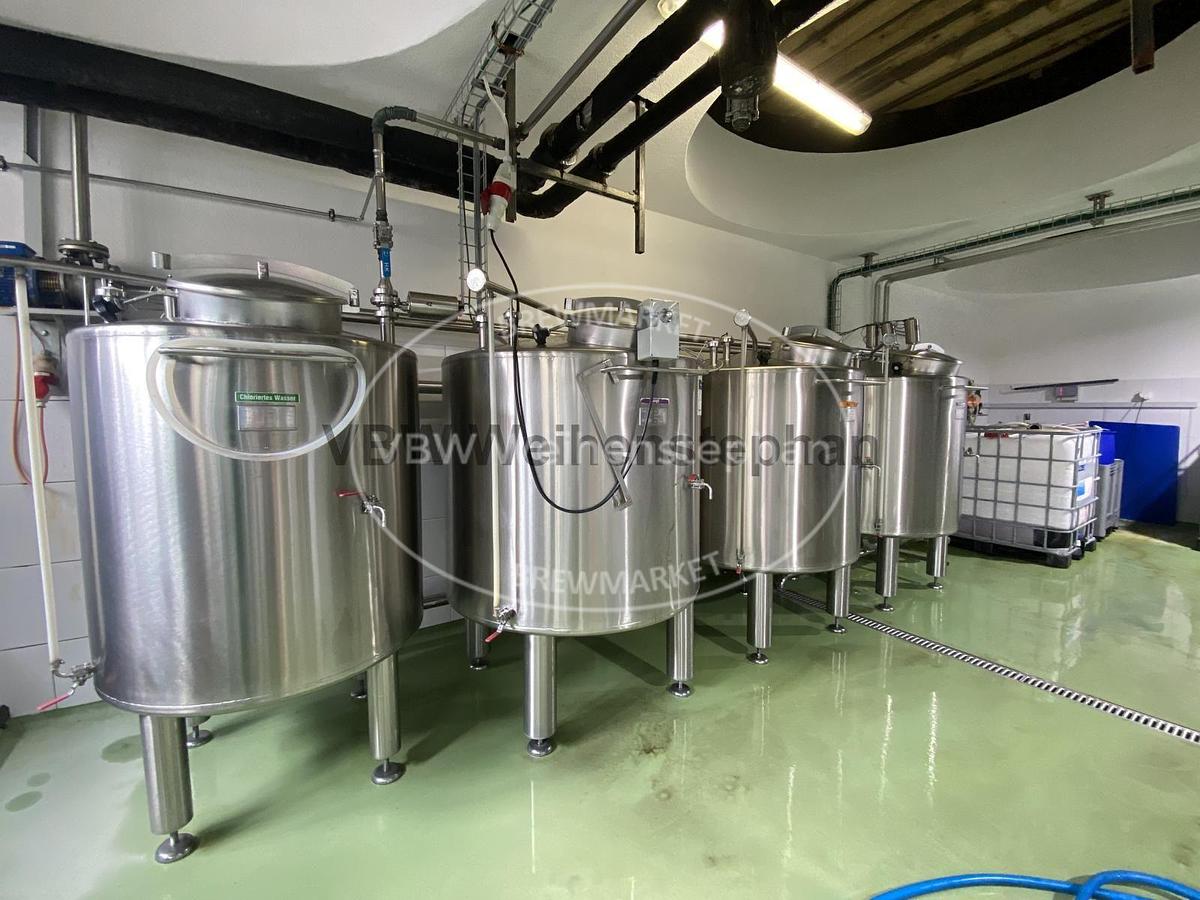

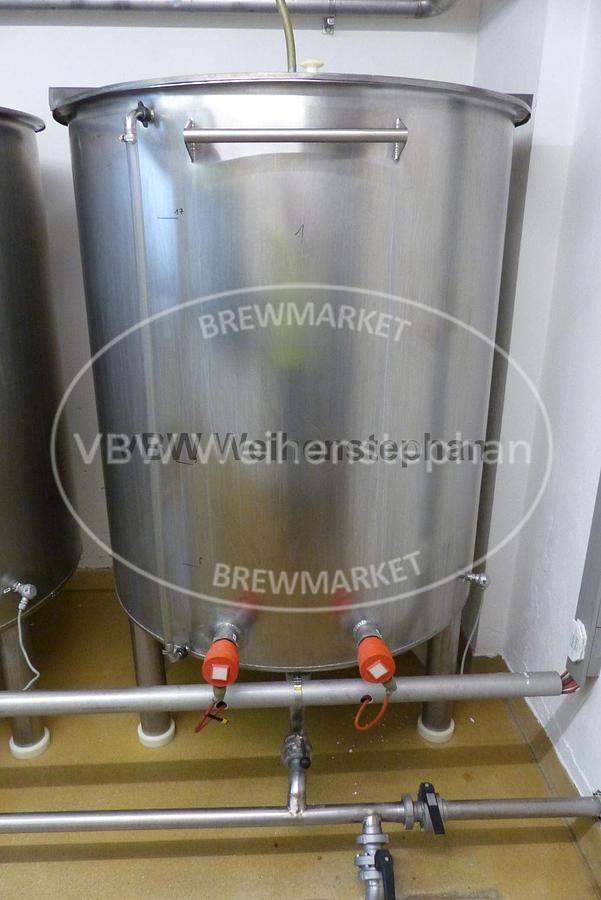

Manual operating biological lactic acid plant with 3 tanks in stainless steel as storage and dosing tanks, with all fittings, Additional title: 3-tank system with heating elements, aeration devices and temperature control, Volume and dimension per tank: 2000 l Diameter 1300 mm, cylindrical height 1500 mm, total height 2100 mm, Length: 4500 mm, Width: 1700 mm, Height: 2100 mm, Operation / Control: electrical box with buttons, switches and temperature controls, Material: stainless steel, Position: free standing, Base construction: standing tanks with lids, on pipe feet, Features: electric heating rods, temperature sensor, stand hose for content display, automatic gassing, ladder bracket, internal piping, control box

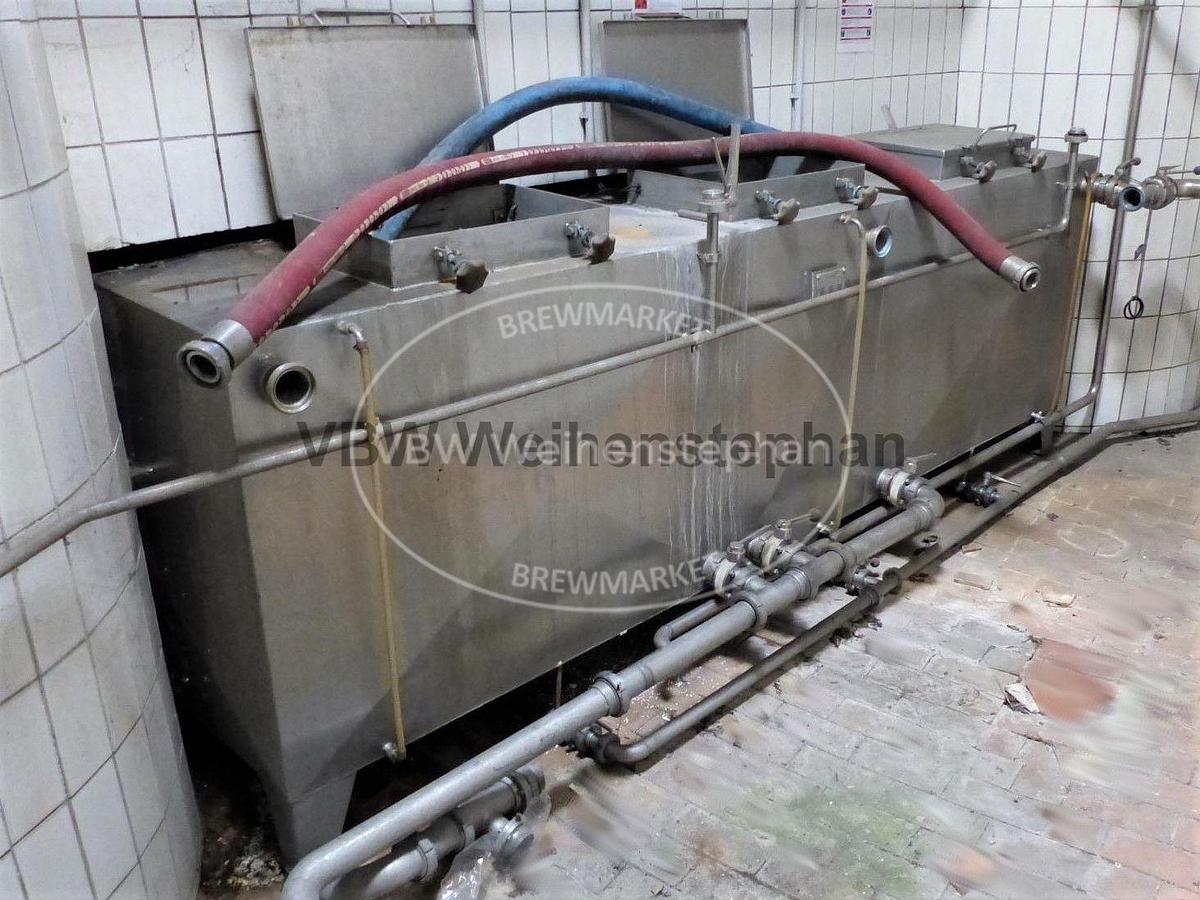

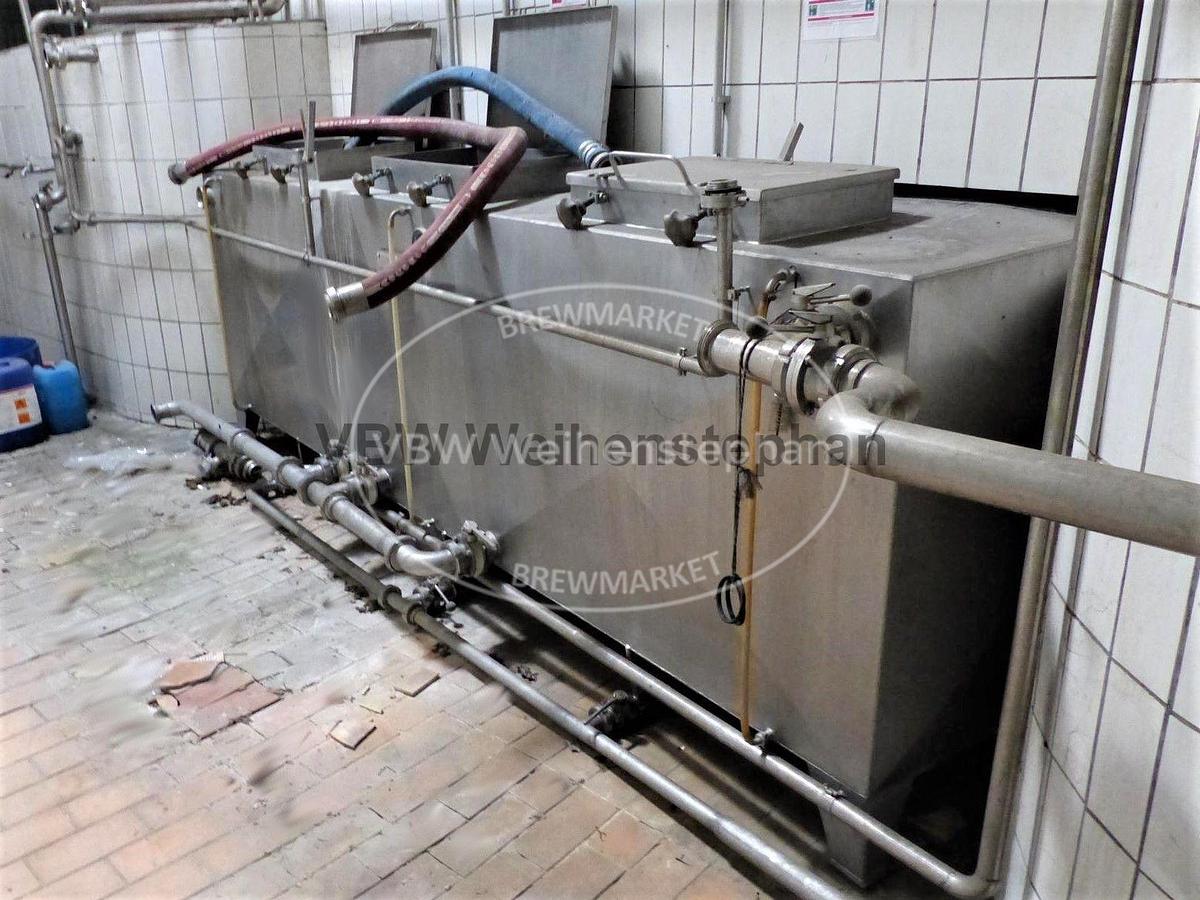

CIP system comprising three rectangular tanks with piping., Additional title: Cleanig system with 3 rectangular vessels, Capacity 1 x: 1000 l, Capacity 2 x: 2000 l, Length: 3,5 m, Width: 1,5 m, Height: 1,4 m, Material: stainless steel 1.4301 (AISI 304), Base construction: rectangular containers, Features: 2 x CIP vessel 20 hl; 1 x CIP vessel 10 hl; level indicator; manway, DN65 connections

Water treatment system consisting of: cation exchanger, reverse osmosis system, and pressure booster station, Additional title: Reverse osmosis system with cation exchanger and pressure booster station, Permeate capacity: 1100 l/h, Max. permissible pressure: 6 bar, Yield: 75 %, Salt retention: 98 %, Power: HD-pump 1,5 kW, 3,15 A, Frequency: 50 Hz, Length: approx. 2294 mm, Width: approx. 740 mm, Height: approx. 1220 mm, Weight: 200 kg, Features: Conductivity meter, fine filter, overpressure protection, high pressure pump, control unit, pressure booster station 2 salt dissolving and storage containers, 2 filter containers with nozzle rod and lower nozzle, central control valve with upper nozzle, control unit

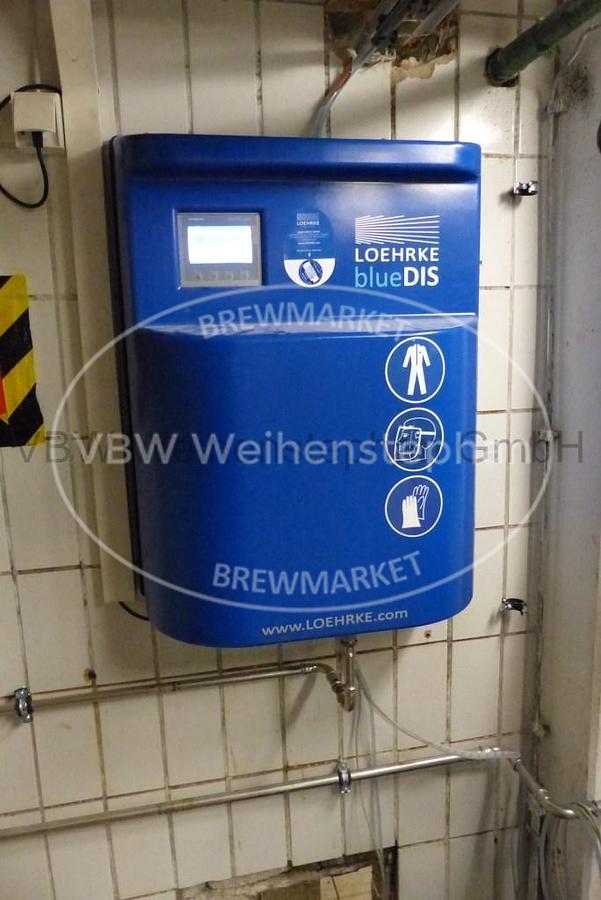

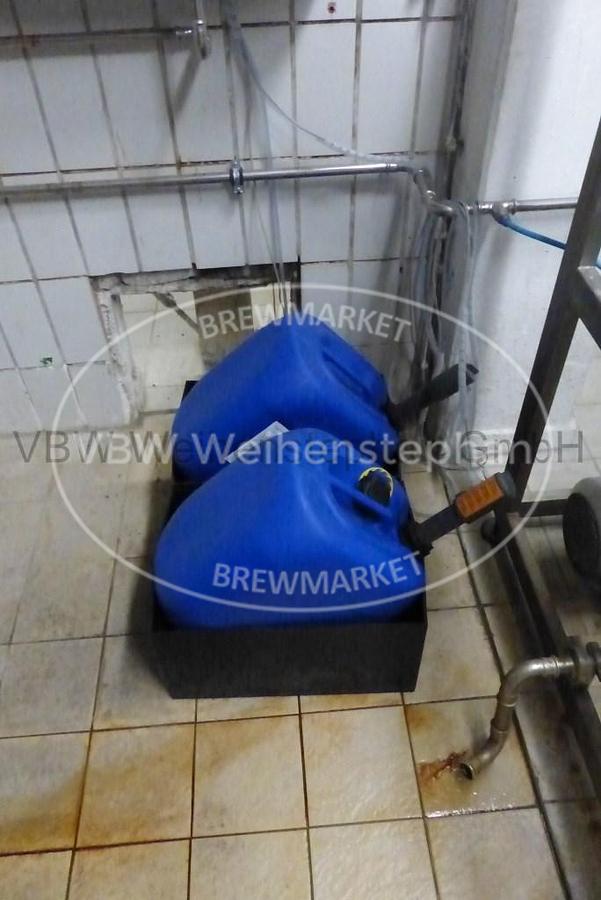

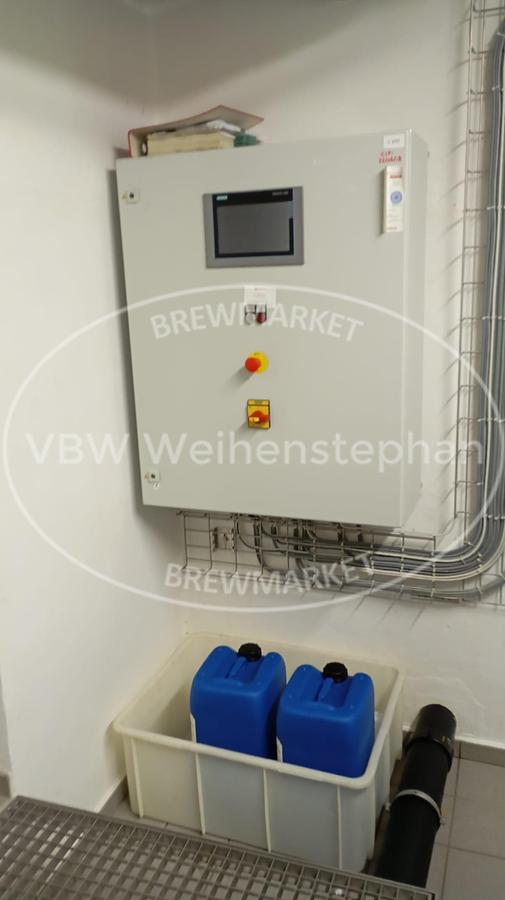

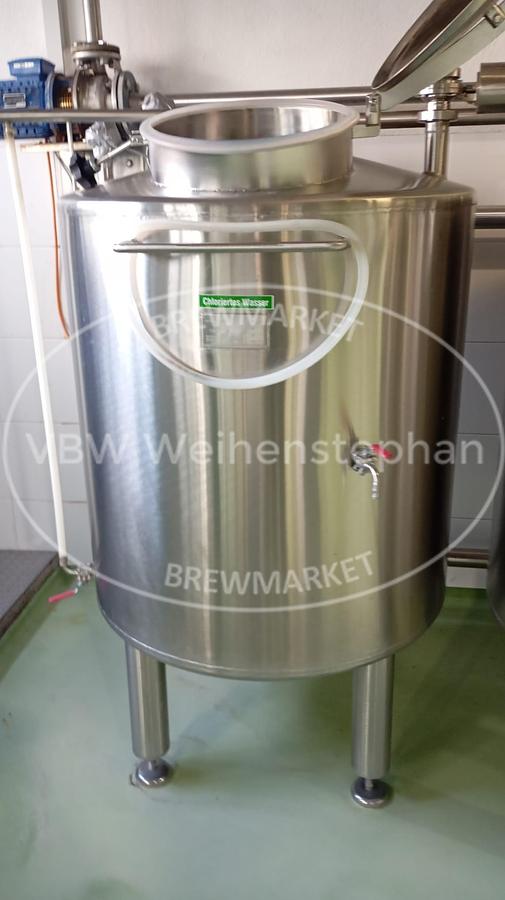

System for the pressureless production of aqueous chlorine dioxide solution This system enables the pressureless production of an aqueous chlorine dioxide solution. The two starting materials are fed into a reaction vessel one after the other via peristaltic pumps. The liquid level in the vessel is monitored by a level probe, ensuring a correct mixing ratio of 1:1. The operating time of the peristaltic pumps is also monitored and controlled by the software to ensure precise dosing. After the reaction time, the resulting chlorine dioxide solution is rinsed with water in the storage tank and then dosed to the point of use using a diaphragm dosing pump and a dosing valve. Our team at VBW Asset Trade will be happy to answer your questions. Send us an inquiry or simply give us a call!, Additional title: Water treatment - chlorination, Capacity: 18 g/h ClO2, Dosage volume: 9 l/h against 7 bar, ...

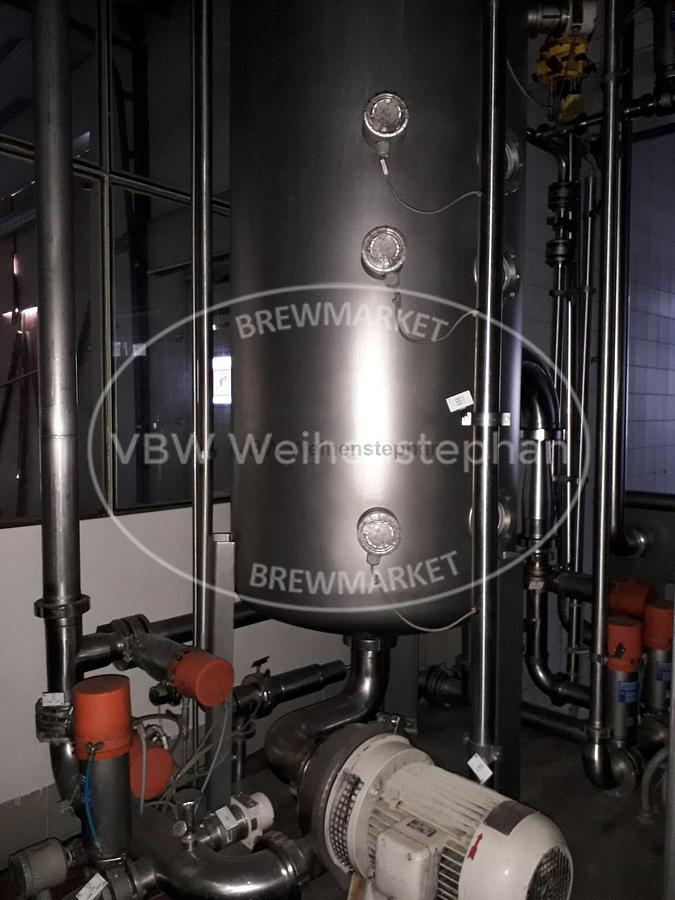

Carbonation system with integrated buffer tank, for the production of CO2-containing mineral water., Additional title: impregnation plant, Capacity: 20000 l/h, CO2 content: 12 g/l, CO2 carbonisation pressure: 7 bar, Max. tank pressure: 8 bar, Current: 69 A, Voltage: 230/400 V, Frequency: 50 Hz, Heating / Cooling: Connection pressure steam: min. 0.5, max. 1 bar, Water: Connection pressure: min. 4, max. 5 bar, Compressed air: min. 7, max. 10 bar, Length: 2 m, Width: 2,4 m, Height: 2,5 m, Weight: 4000 kg, Operation / Control: Siemens Simatic S5, Features: Saturation Tank (content = 750 l) with fill level detectors as a carbonisation tank, measuring writer (ABB), circulating pump (Hilge), various ventils

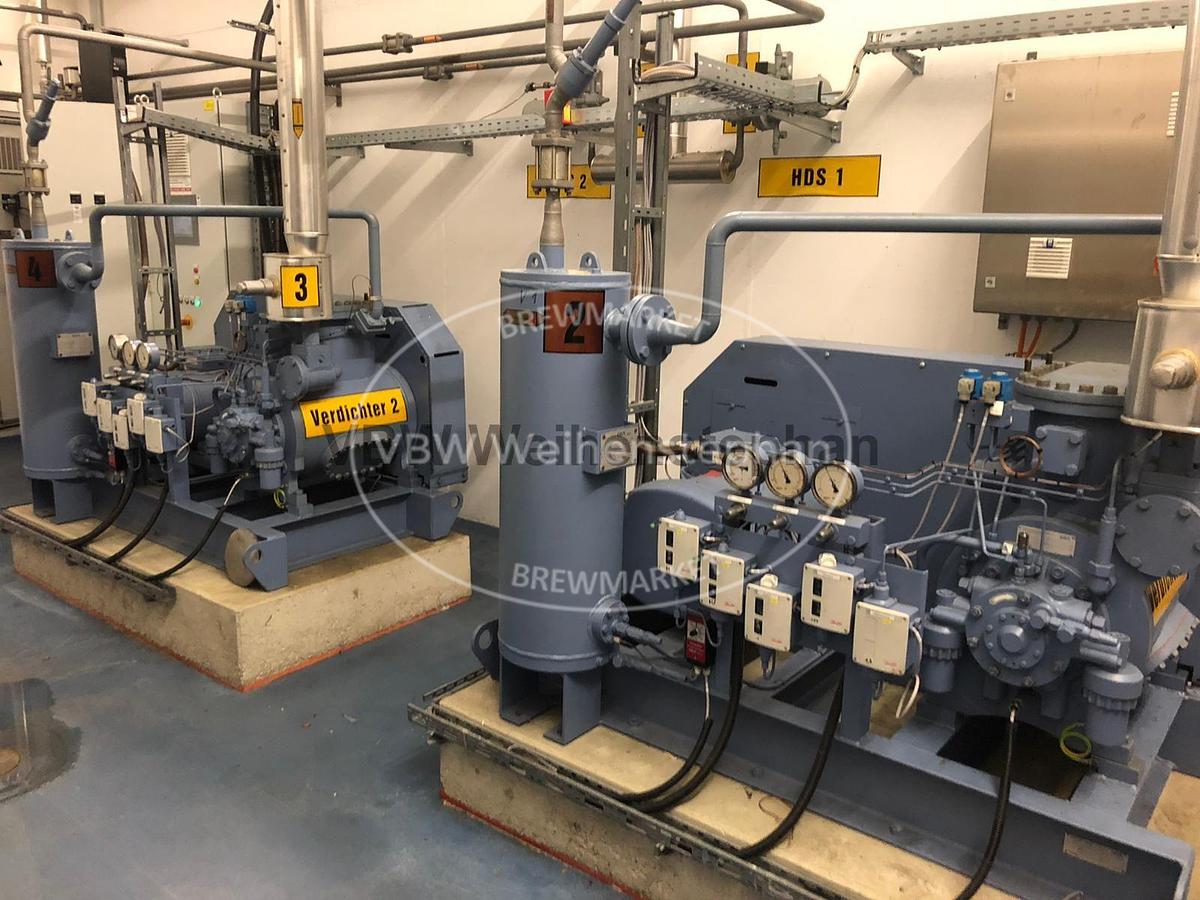

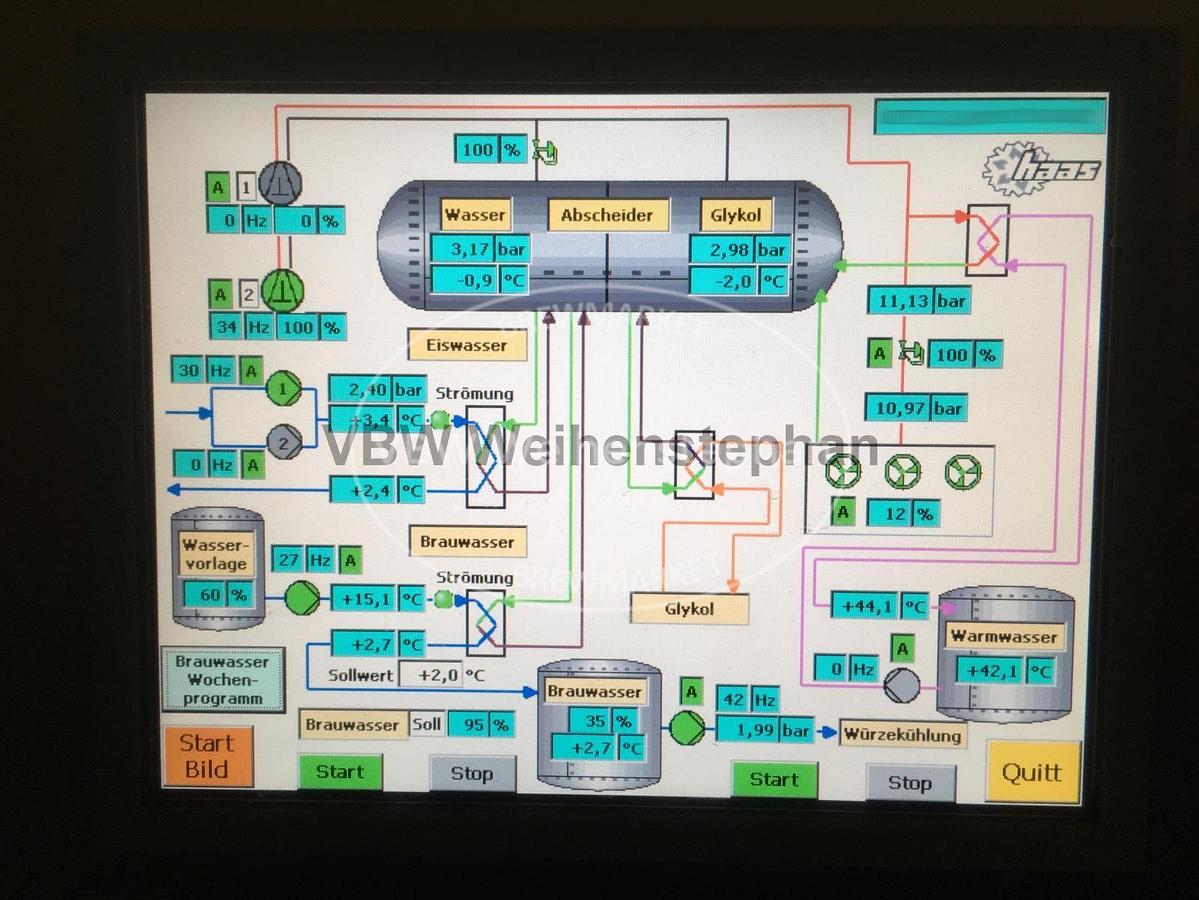

NH3 refrigeration system. Refrigeration system includes the following: - Compressor 1, GEA Grasso type OS3 - Compressor 2, GEA Grasso type OS3 - NH3 separator - Air condenser - Heat exchanger for energy recovery with pump - 2 x ice water pumps - Brewing water pump - 2 water coolers - Expansion tank with control cabinet for NH3 separator and compressors 1 and 2, with SIMATIC MULTI PANEL touch control, Additional title: refrigerant ammonia, Brew water flow: 5 m³/h 2 bar, Ice water flow: 15 m³/h 2 bar, Refrigerant capacity: 85 kg Ammonia, Compressor capacity: 145 m³/h, Power: Q0: 2 x 119 kW, Operation / Control: Siemens S7, Features: 2 x compressors: 145 m³/h, 26 kW with Frequency Converter, 37 kW nominal output; ammonia separator mounted on frame, with brewing water-cooler and ice water-cooler; air condenser on frame 3 x 2.95 kW; heat-exchanger for recovery with pump; 2 x ice water pum ...

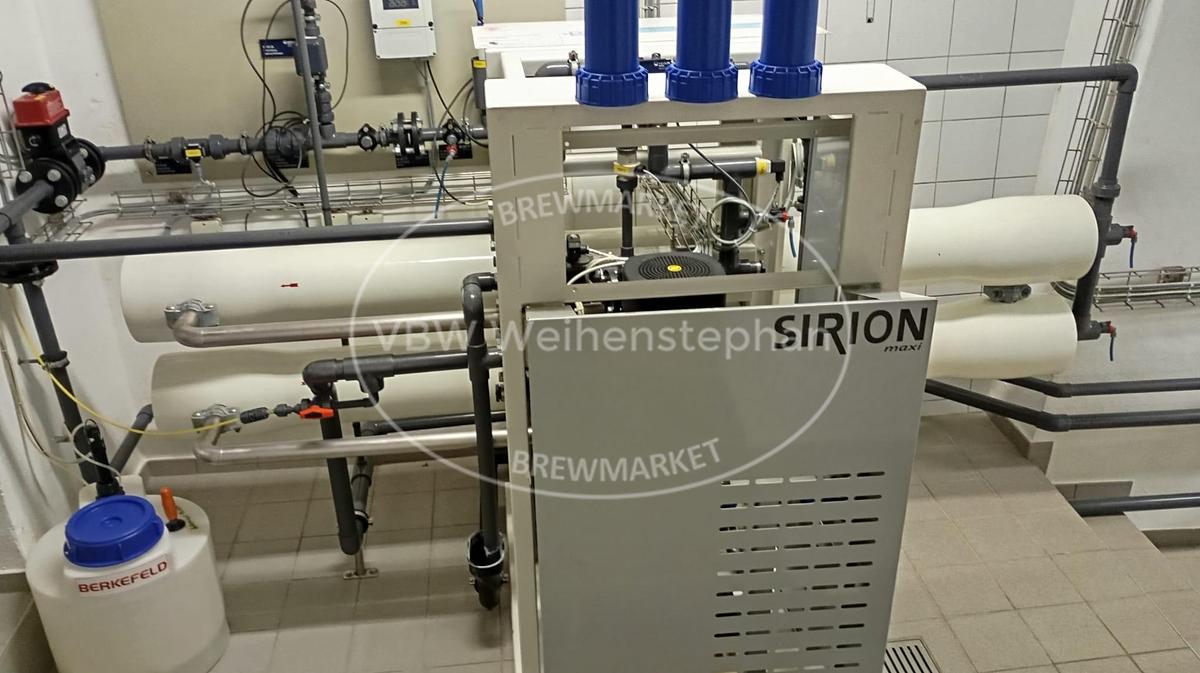

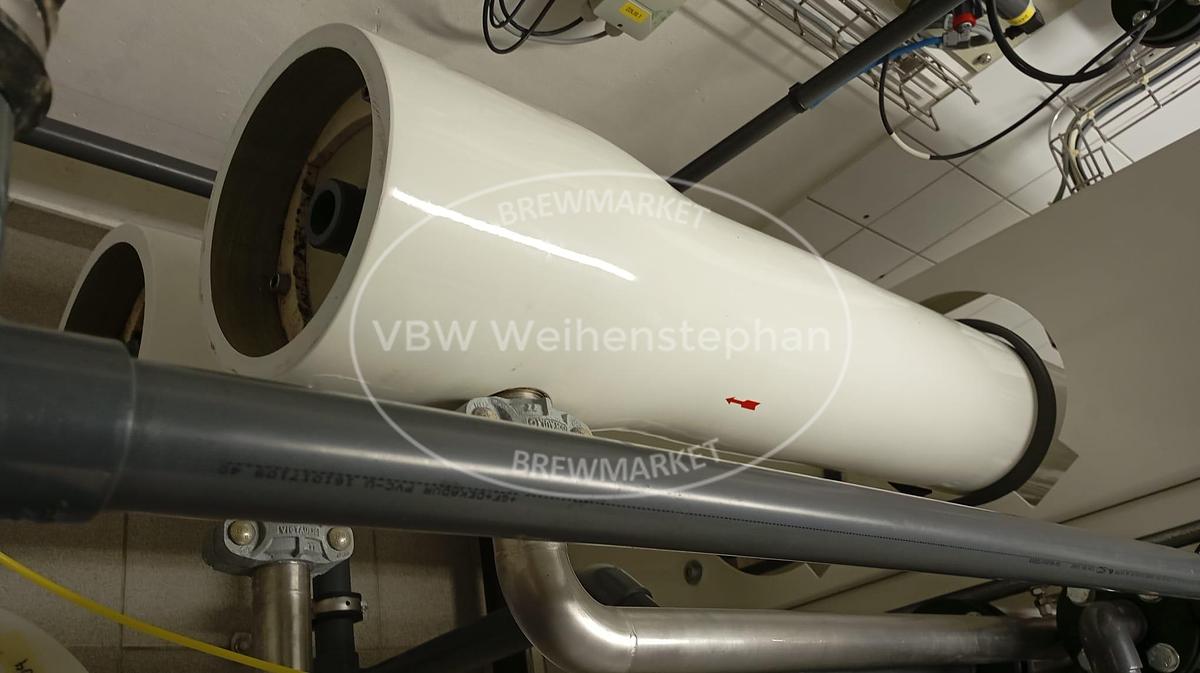

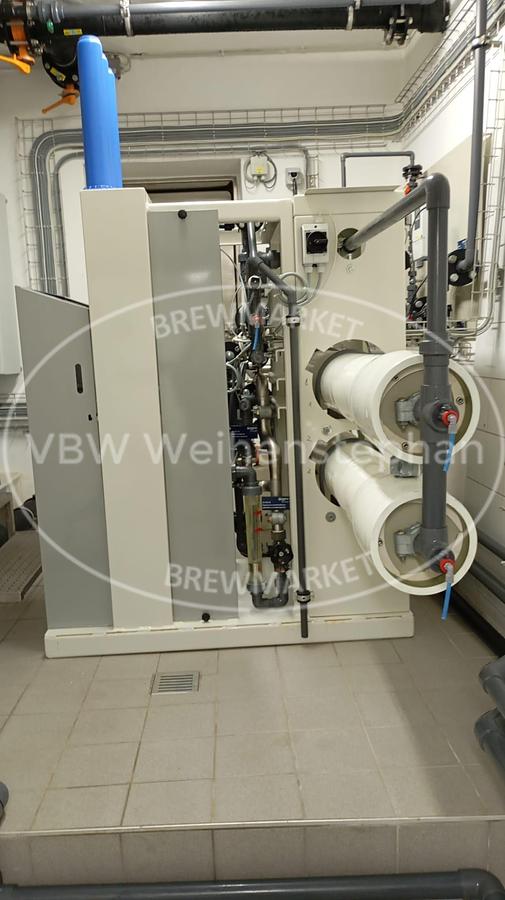

Water treatment plant with semi-permeable membrane modules for desalinating pre-treated water. Reverse osmosis takes place via a two-stage process consisting of two pressure pipes, each with two membrane modules. The plant consists of: - Two pressure pipes, each with two membrane modules - Permeate blending and concentrate recirculation - Upstream fine filtration - Various sampling taps - Various measuring instruments for pressure, flow, temperature, conductivity and pH value - Flushing station with flushing tank and flushing pump - Chemical dosing stations for antiscalant and NaOH - High-pressure pump - Various automatic fittings - Control cabinet with touch display, Additional title: Reverse osmosis for desalination of raw water, Flow rate: 6000 l/h depending on the blending quantity, Max. operating overpressure: 14 bar, Recovery appr.: 82 %, Water: 5-7 m3/h; 1-10 bar, Operation / Cont ...

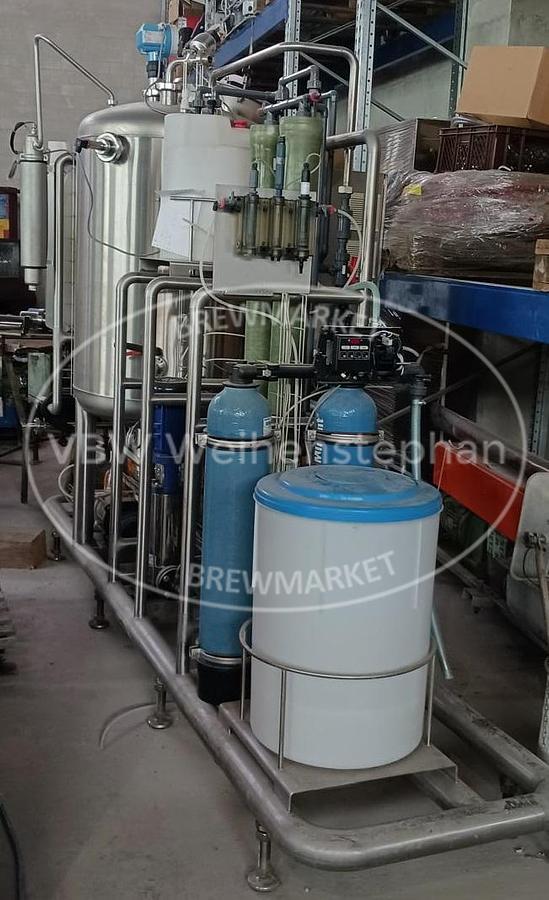

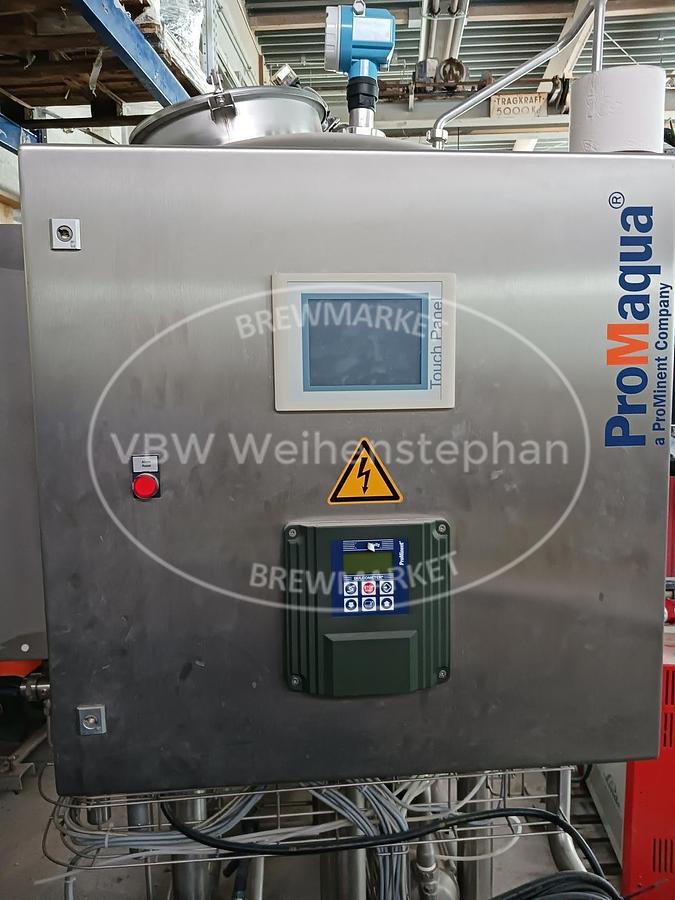

Prominent water treatment plant, consisting of: 1. Softening: The raw water is fed into the double softener. Only one bottle is ever in operation and the other is in regeneration or stand-by. In the softener, calcium and magnesium are replaced by sodium. The system has a volume counter that switches to the other bottle when the preset quantity is reached. Regeneration takes place with saline solution from the brine tank. The value at the outlet is 0°dH. 2. reverse osmosis: Reverse osmosis fills the permeate tank with demineralised water, so-called permeate. Depending on the raw water quality, water temperature, condition of the membrane and correct setting, different conductance values and operating pressures result. The following flow rates are set during commissioning: Permeate 600 l/h, concentrate 200 l/h, corresponding to a yield of 75%. 3. permeate tank and ozonisation: The unpress ...

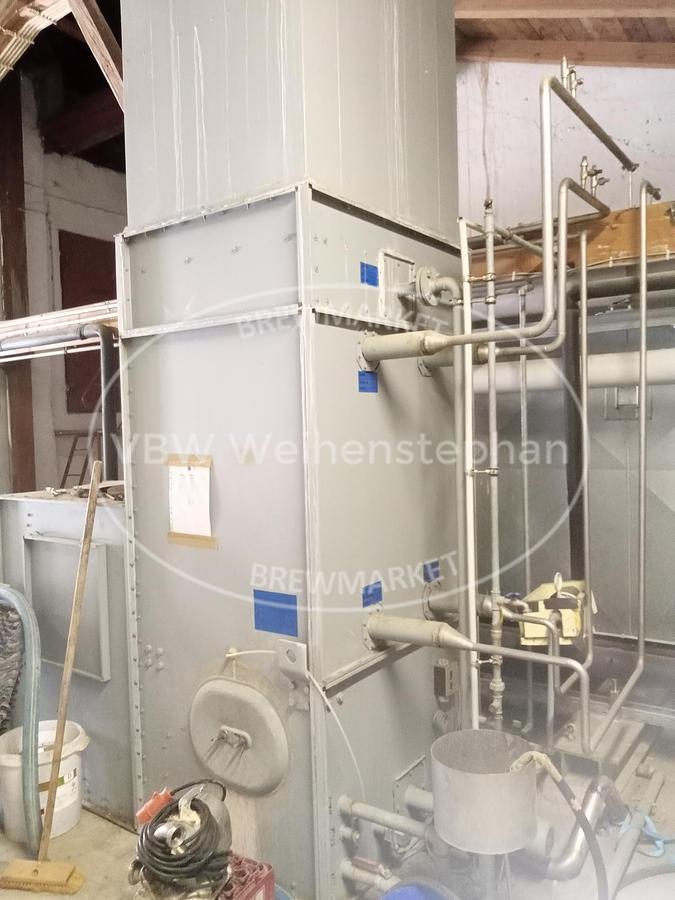

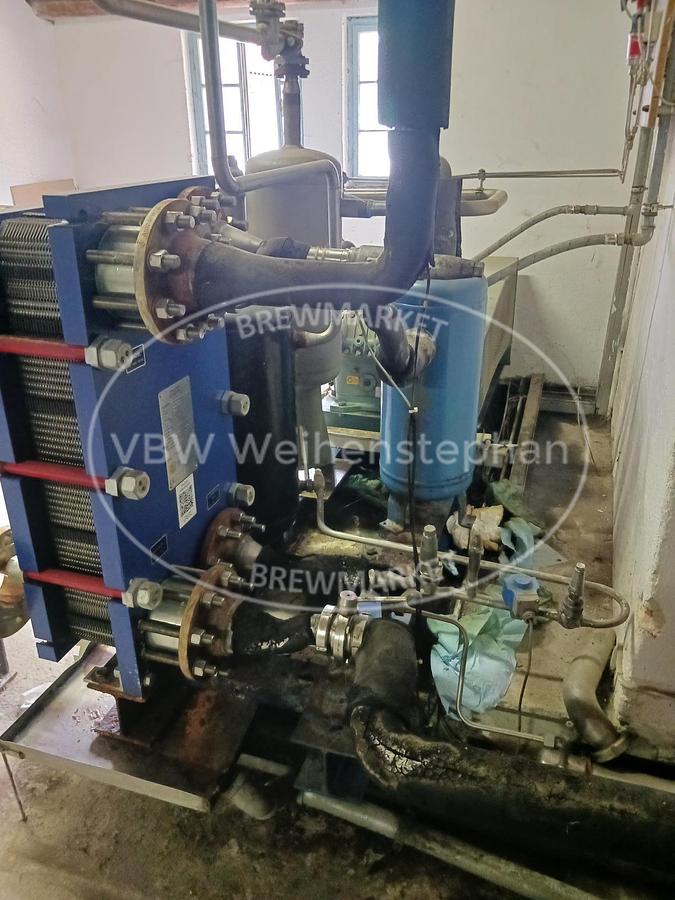

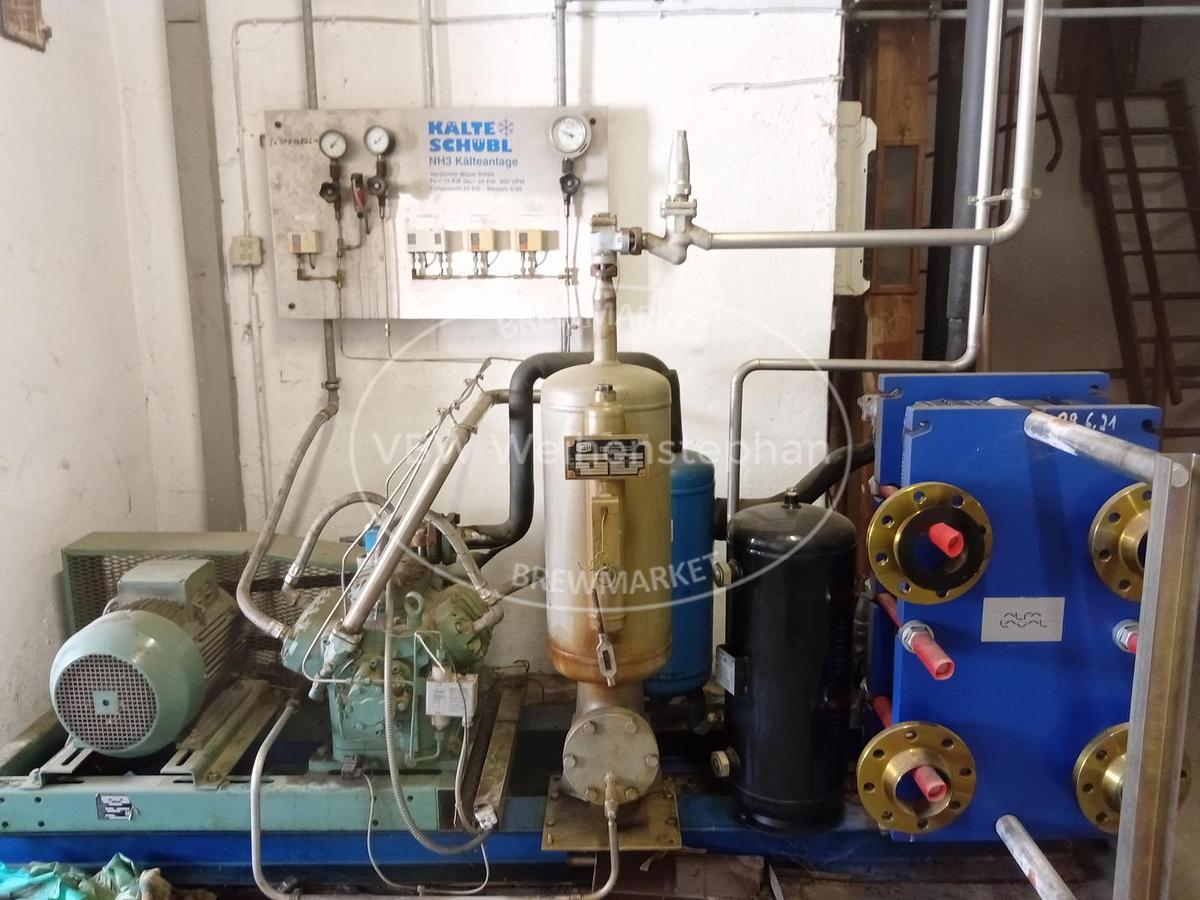

Refrigeration plant with 70 kW complete with compressor, condenser, in-house cooling tower, plate heat exchanger for glycol cooling and control cabinet. Refrigerant: Ammonia, Additional title: Refrigerant: Ammonia, Cooling capacity: 70 kW, Design to: -8 °C, Design tc: 27 °C, Power: 15 kW, Operation / Control: Control cabinet with hardware control, Features: Compressor, condenser, plate heat exchanger, glycol cooler, in-house cooling tower, control cabinet

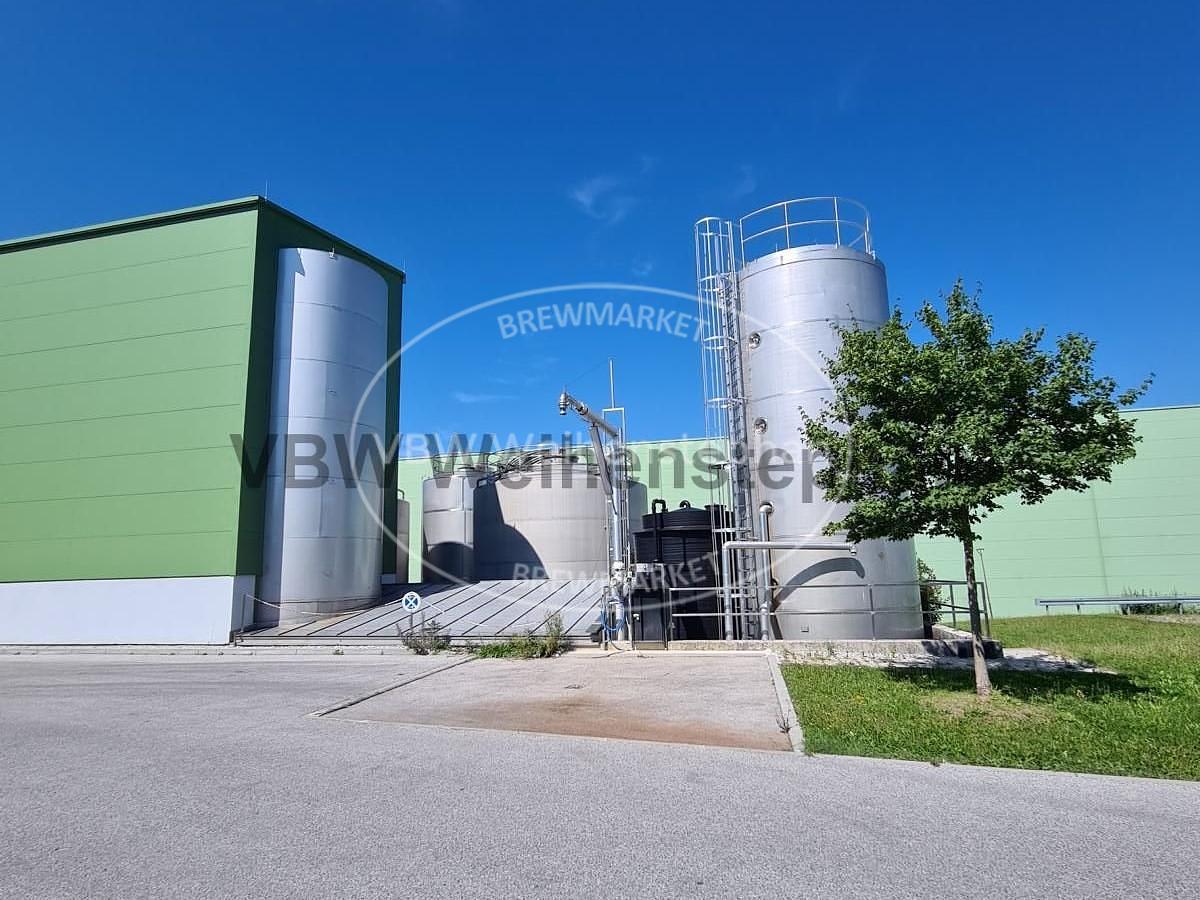

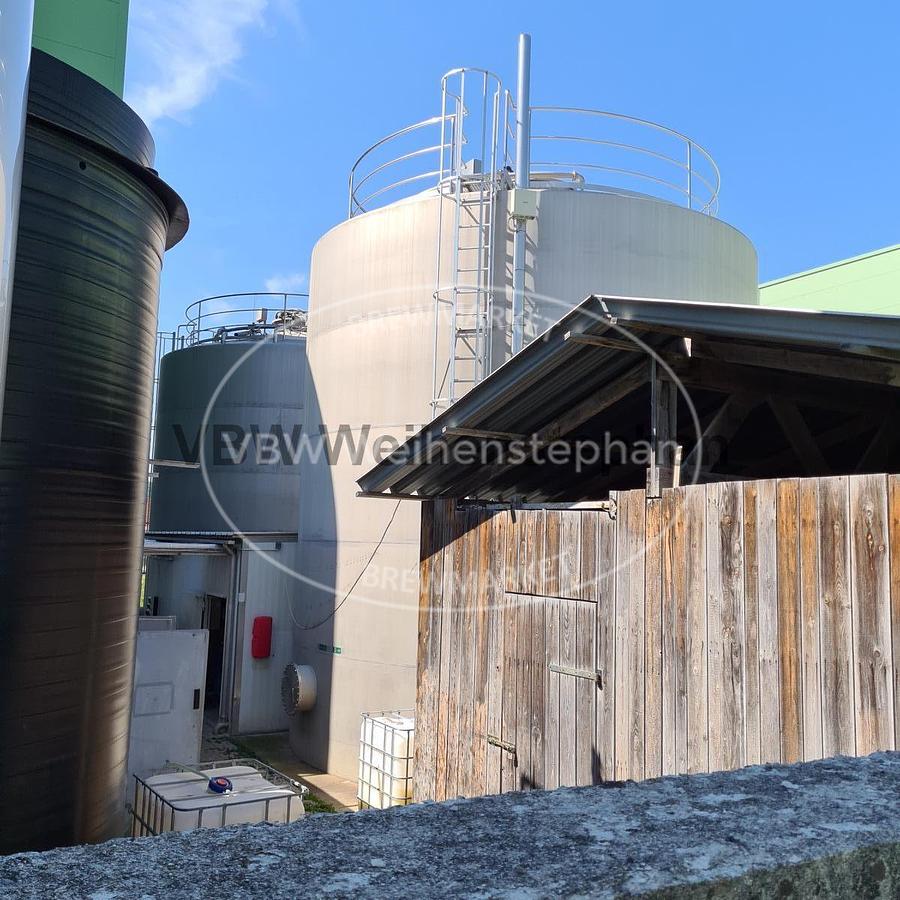

Effluent plant for waste water treatment. Includes: - Mixing and equalisation tanks 1, 140 m³ - Mixing and equalisation tanks 2, 40 m³ - Mixing and equalisation tanks 3, 80 m³ - Bioreactor 1, 240 m³ - Bioreactor 2, 240 m³ - 2 air compressors for aeration in the reactors - Secondary sedimentation tank 1, 100 m³ - Secondary sedimentation tank 2, 100 m³ - Thin sludge tank, 70 m³ - Thick sludge tank, 90 m³ - Sludge dewatering 1 and 2 - Precipitant tank, 25 m³ - Various process water pumps, Bioreactor capacity 2 x: 240 m³, Operation / Control: Siemens Simatic S7, Features: Mixing and equalisation tank 1, 2 & 3; Pumping station 1 - inlet bioreactor; pumping station 2 - inlet bioreactor; bioreactor 1; bioreactor 2; pumping station - outlet bioreactors; 2 x air compressor; Precipitant tank; filling unit; 2 x flocculent mixing station; secondary sedimentation tank 1 & 2; mixing tank; t ...

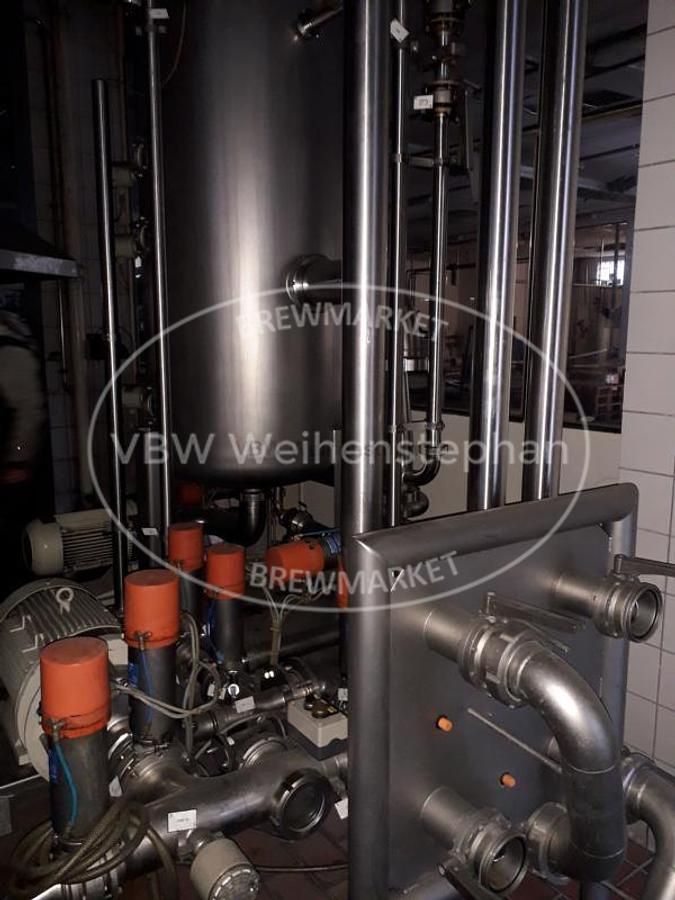

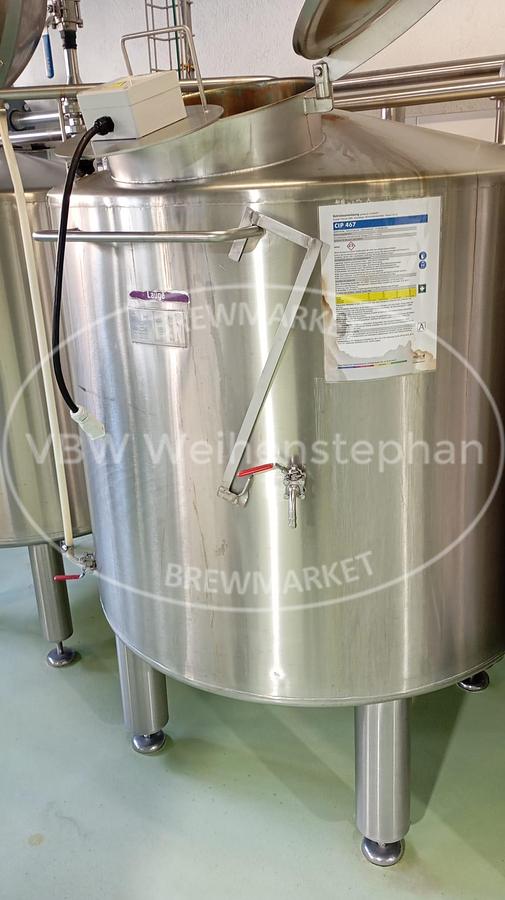

CIP tank with 4 separate tanks for water, lye, acid and disinfectant. The system consists of: - 4 tanks with various fittings - Feed and return pumps - 3 diaphragm dosing pumps - Pipework, pneumatic disc valves - Level sensors, in-line conductivity measurement, full and empty level probes, flow monitors., Additional title: Cleaning system with 4 vertical stainless steel vessels, Volume: 1270 l Caustic tank, acid tank, disinfectant tank, Material: Tanks made of V4A or V2A stainless steel, Features: 4 x CIP tanks, 3 x diaphragm metering pumps, 3 x pneumatic diaphragm valves, feed pump, return pump, 8 x pneumatic ball valves, 3 x full-level sensors, 3 x empty-level sensors, flow monitors, conductivity measurement, level control, switch cabinet

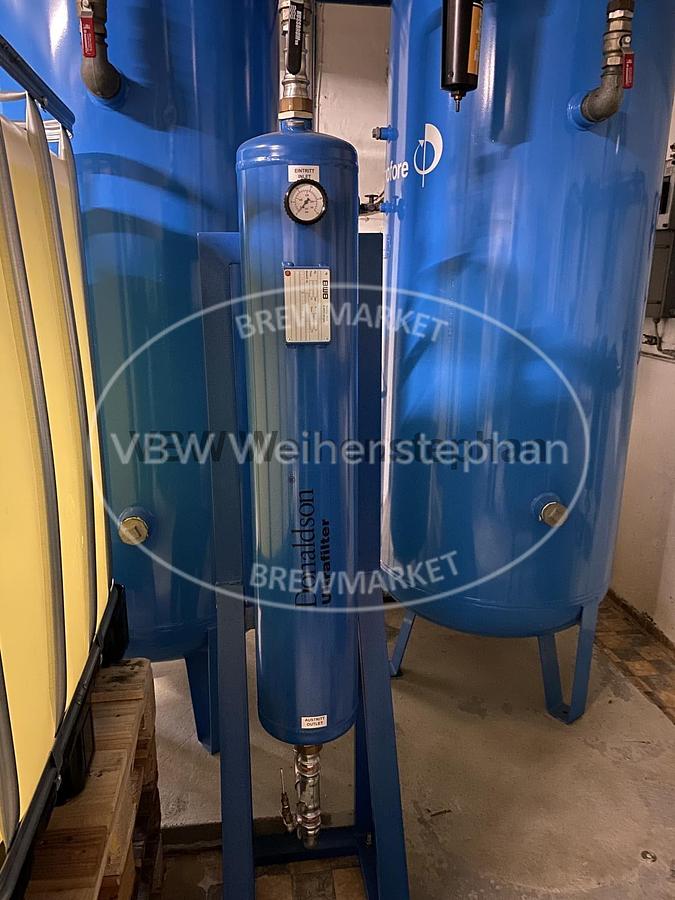

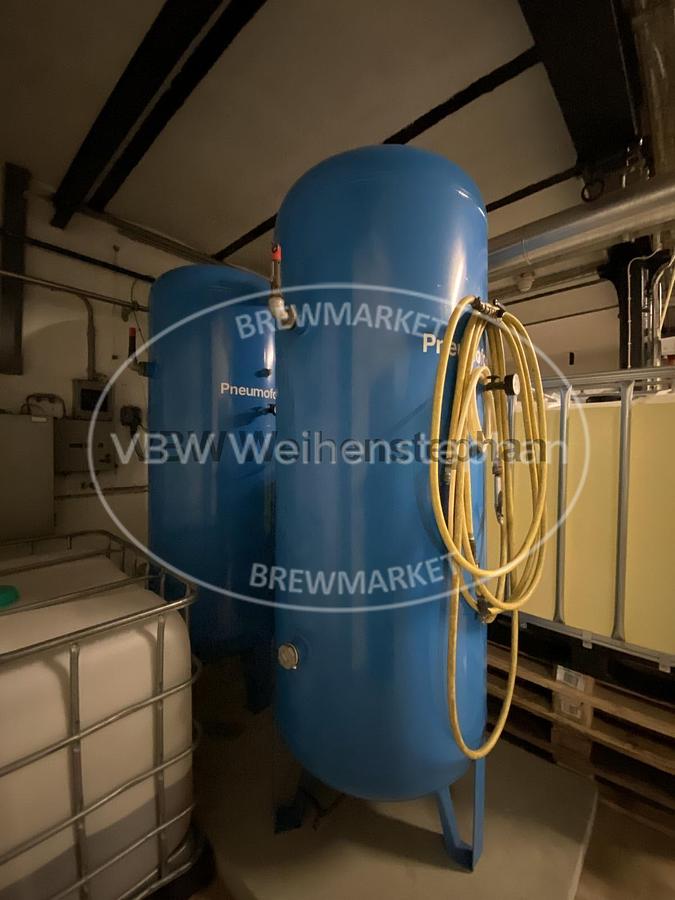

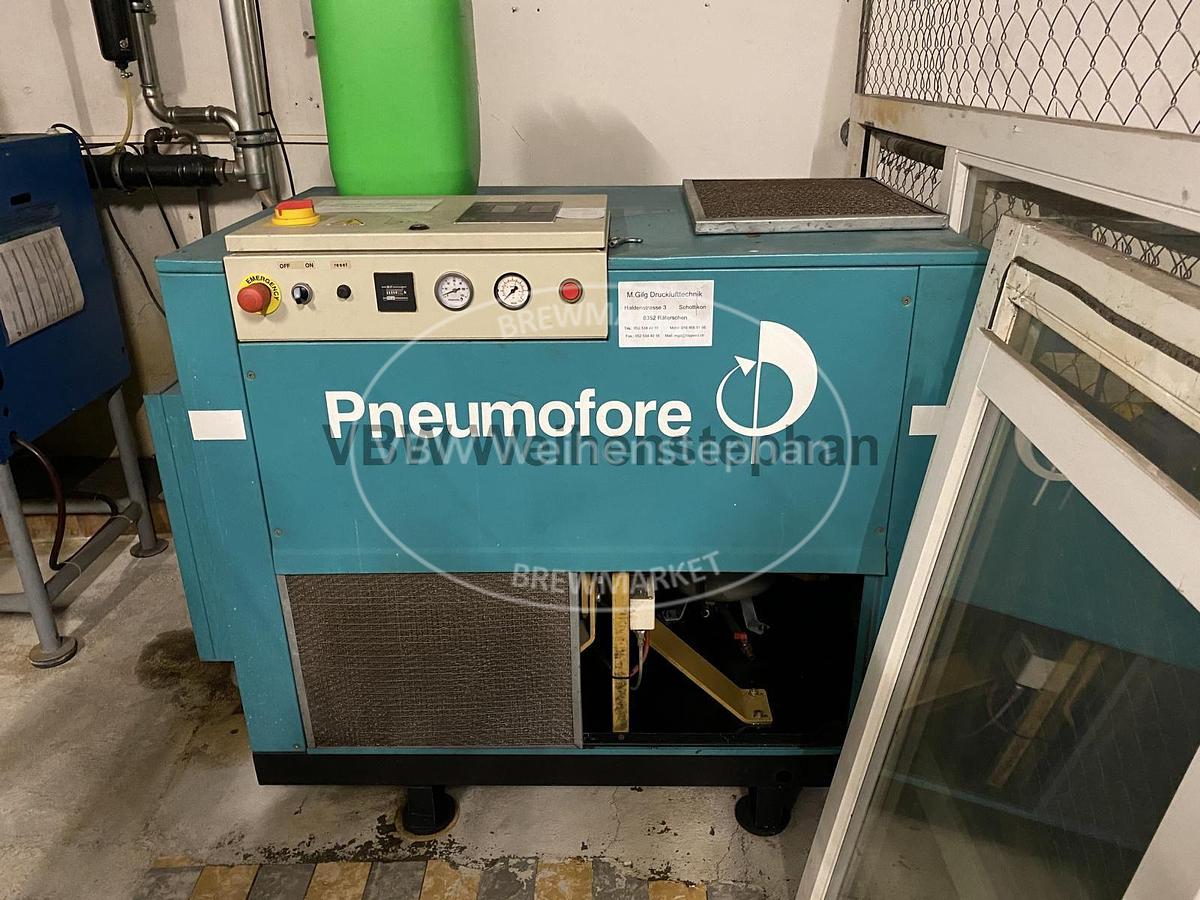

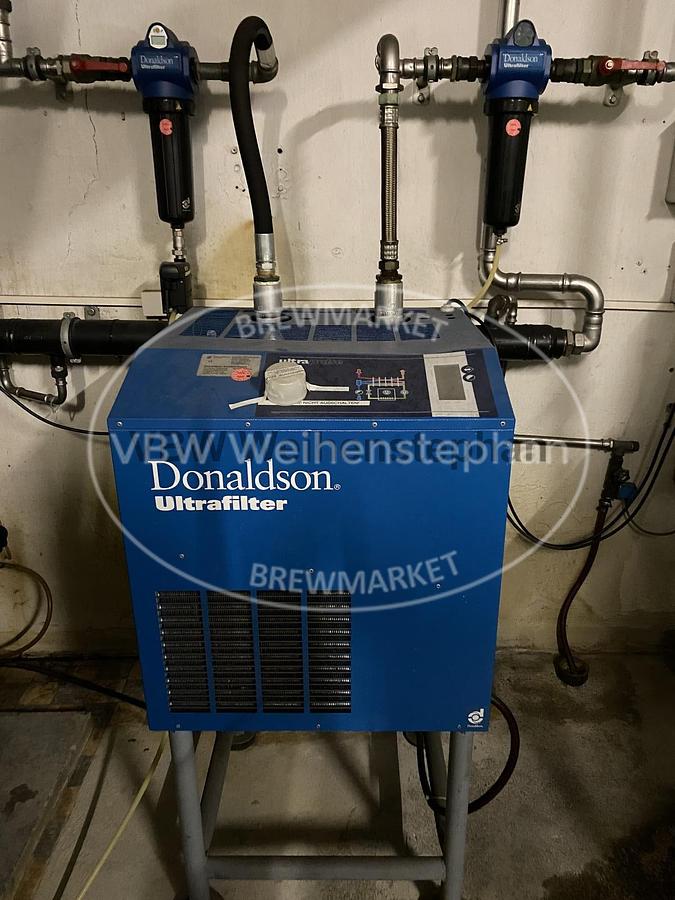

Compressed air system with air compressor, refrigeration dryer, activated carbon filter and two compressed air tanks., Capacity: 202 m3/h, Operating pressure: 10 bar, Features: Air compressor; refrigeration dryer; activated carbon filter; 2 x compressed air tanks.

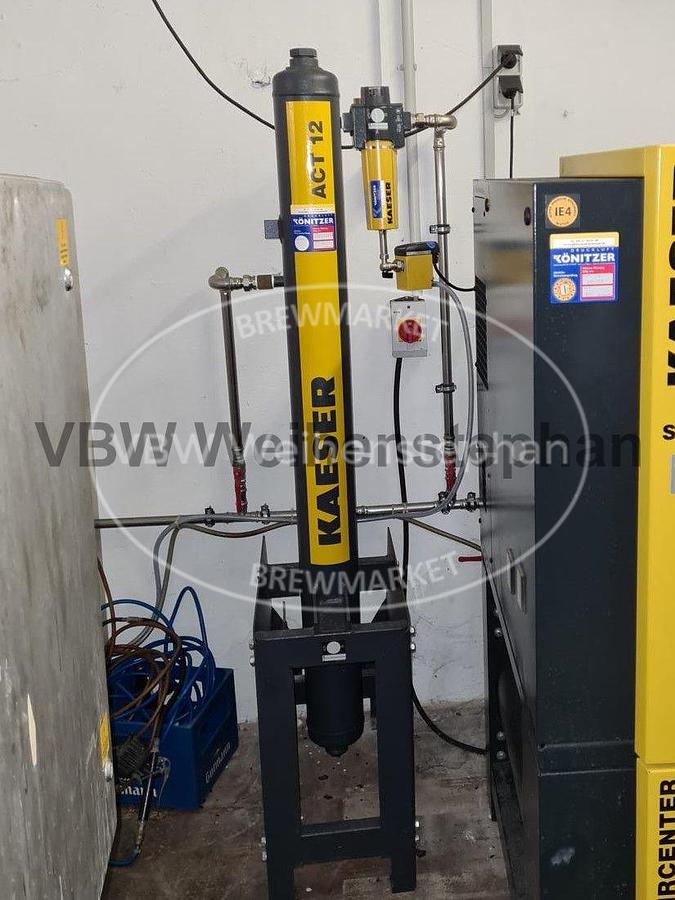

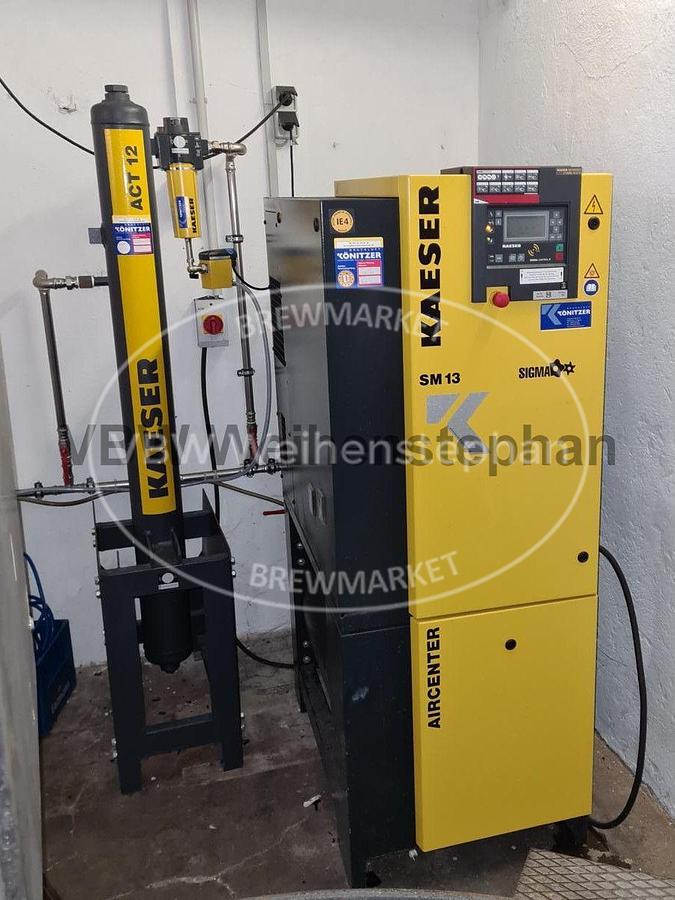

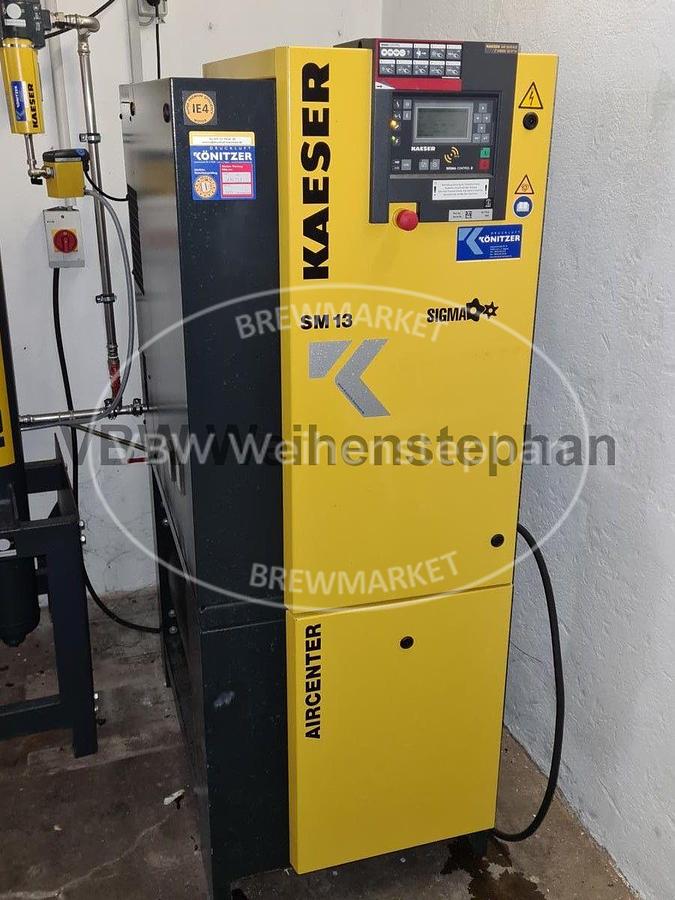

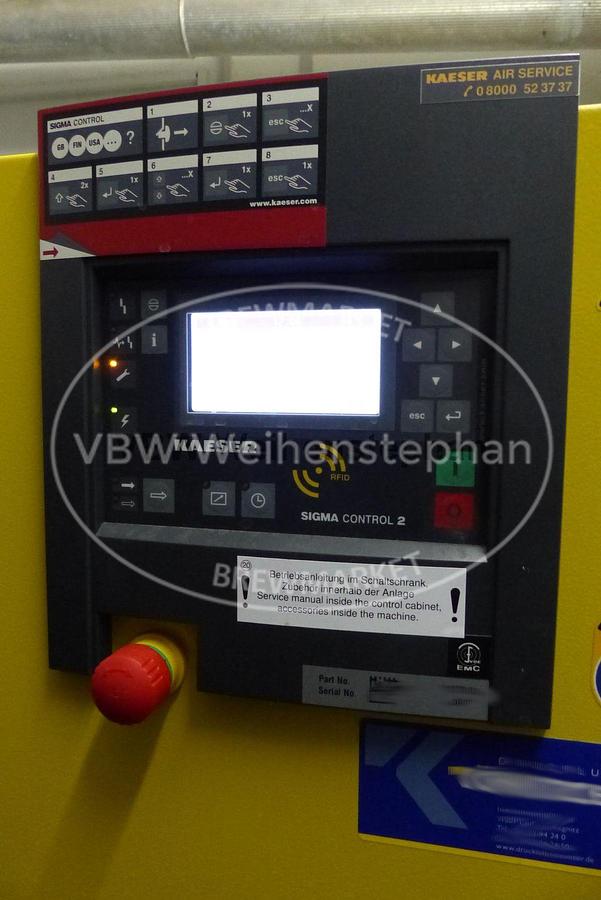

Complete compressed air system Aircenter SM13 with refrigerant dryer and a compressed air vessel. The Sigma Control 2 unit coordinates compressed air generation and consumption., Additional title: Screw compressor with refrigeration dryer and compressed air filters, Operating hours: 2169, Flow: 1,32 m³/min, Operating pressure: 8 bar, Compressed air vessel volume: 270 l, Power: 7,5 kW, Frequency: 50 Hz, Weight: 440 kg, Operation / Control: Operating terminal / Sigma Control 2, Base construction: screw compressor, mounted on frame, Features: compressed air vessel; refrigeration dryer; coalescence filter KE; activated carbon adsorber ACT 12; dust filter KD; coalescence filter KE Oil filter, oil separator tank, oil drainage system

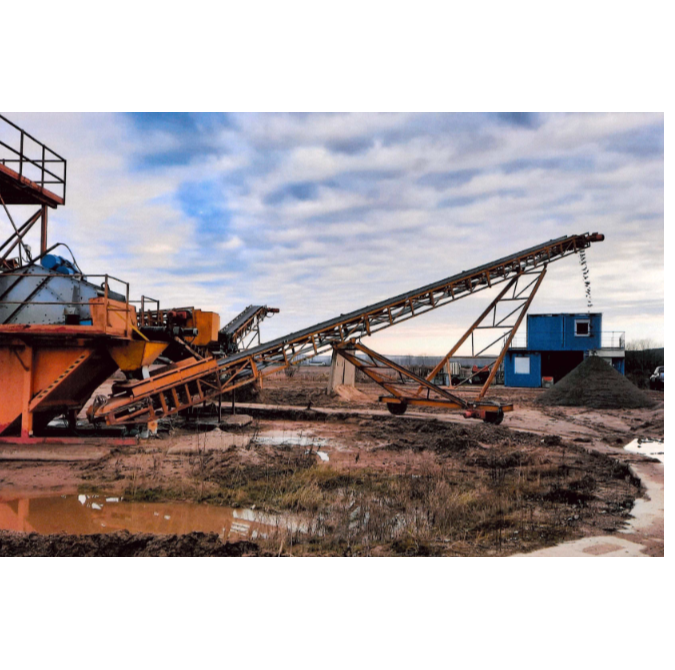

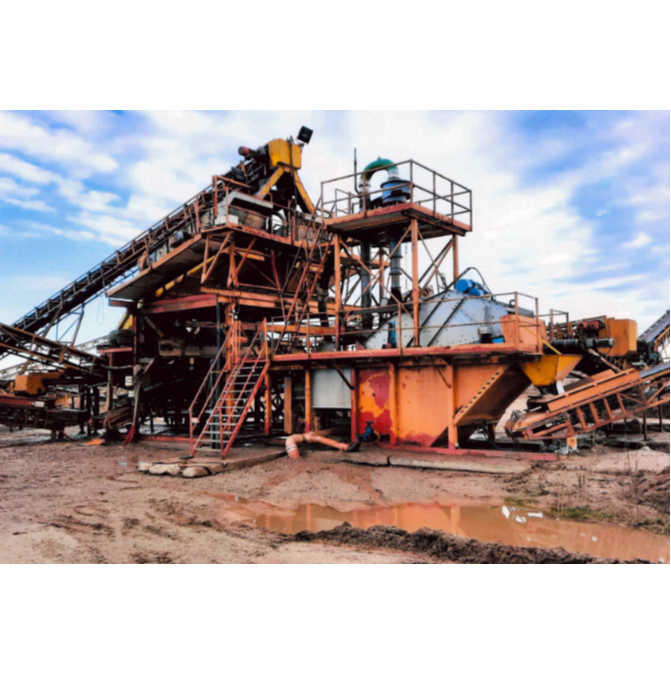

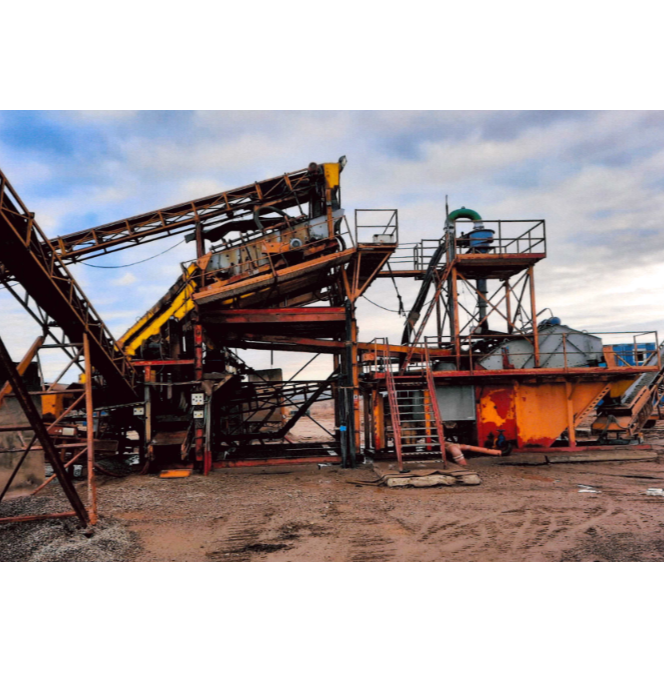

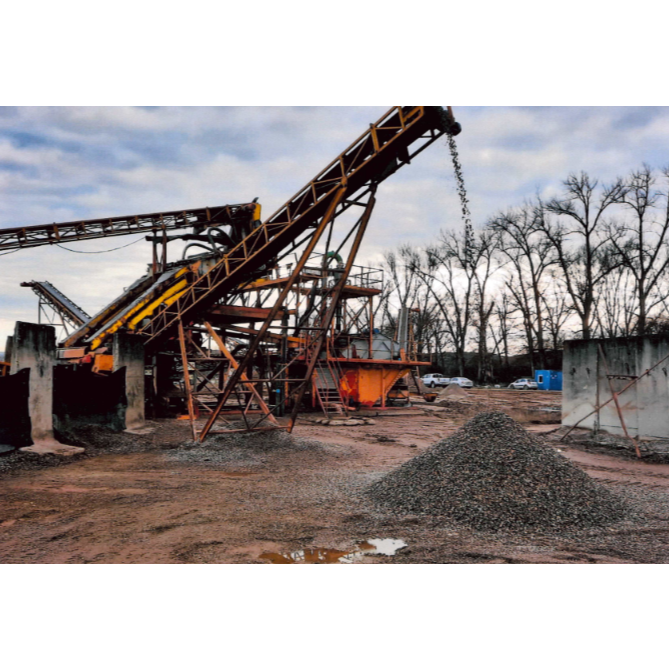

Complete used semi-mobile sand and gravel processing plant available for sale, currently dismantled and in storage at a gravel pit,ready for relocation. What is Included - Complete sand and gravel processing plant - Integrated crushing plant for oversize material up to 60 mm - Transformer station - Office and accommodation container - Workshop and storage container - Full site as shown in the site plan Plant Performance - Feed capacity: 150 to 200 tonnes per hour - Crushing range: 4/8 mm up to maximum 60 mm oversize material Products the Plant Can Produce - 0/1 - 0/4, 0/8, 0/16, 0/24, 0/32 - 0/4 crushed sand - 4/8 - 8/16 - 16/24 or 16/32 - 24/63 or 32/32 - 32/63 - 63/150 Find more here - / Contact us at -

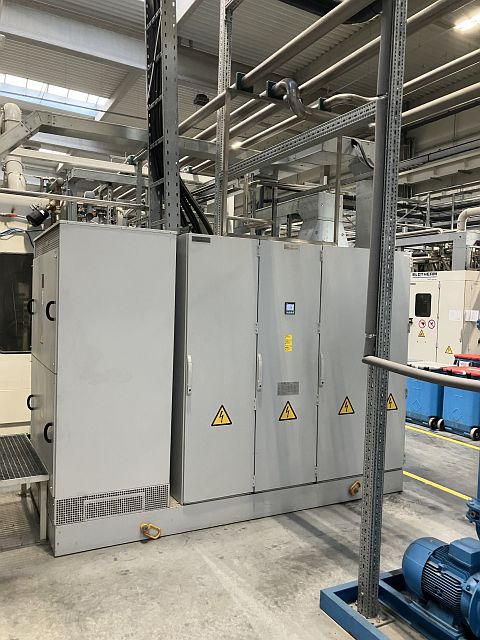

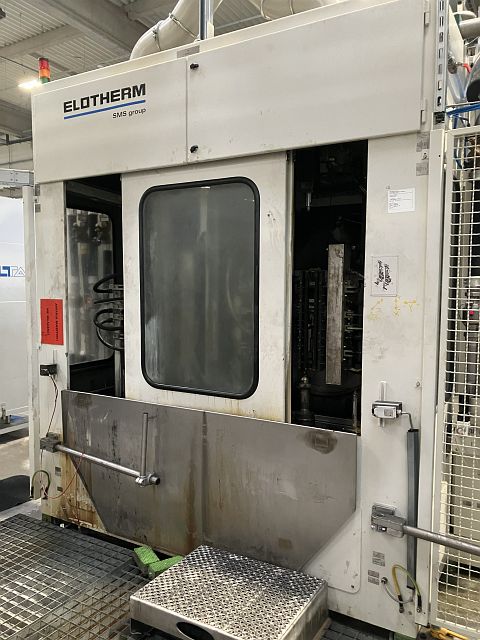

CONTROLS   CNC controls SIEMENS 840 D SL CHARACTERISTICS HEAT TREATMENT EQUIPMENT   heating method: induction DIMENSIONS / WEIGHTS   space requirements -left/right-: 8044 mm   space requirements -front/back-: 8046 mm   total height: 4000 mm ELECTRICAL SPECIFICATIONS   mains power supply: 624 kVA Power Data:Mains connection power: 624 kVAMains voltage: 400 VRated current: 900 AMains frequency: 50 HzTransformer:Power: 560 kVAVoltage: 400 / 580 VCurrent: 809 / 558 AFrequency: 50 HzConverter:Power: 552 kVA / 450 kWVoltage: 750 VCurrent: 667 AFrequency: 6 – 10 kHzStarting:Power: 50 kWVoltage: 400 VCurrent: 90 AFrequency: 50 HzAuxiliary Equipment:Voltage: 400 VCurrent: 25 AFrequency: 50 HzControl Voltage:Voltage: 230 / 24 VCurrent: 5 / 40 AFrequency: 50 Hz / DC Automation KUKA Roboter
