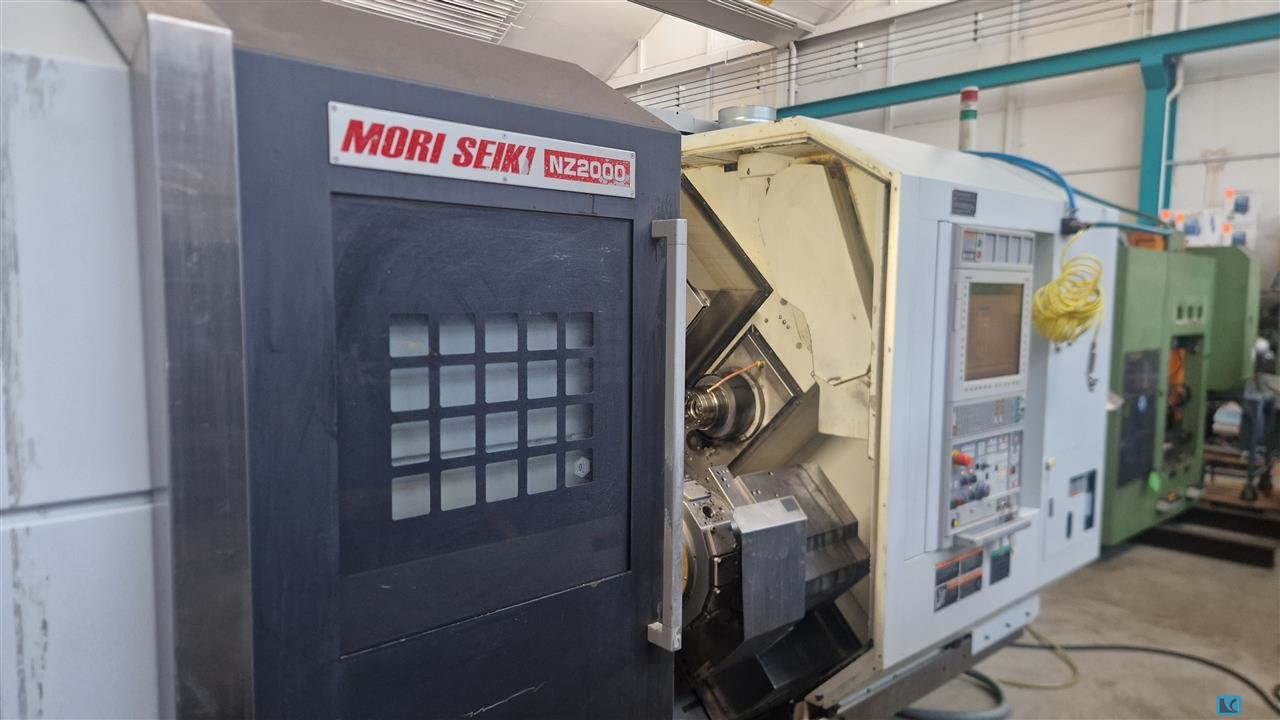

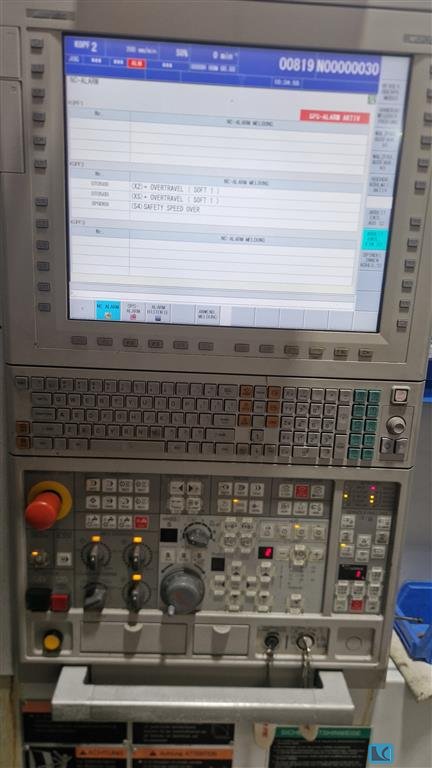

USED MORI SEIKI NZ2000 T2Y CNC LATHE Year: 2010 Number of cutting hours: approx. 19,500 hours Main spindle Bar diameter: 65 mm Max. turning diameter: 310 mm Max. turning length: 810 mm Spindle nose: JIS A2-6 Spindle bore: 73 mm Spindle power: 25/22 kW Spindle speed: 5000 rpm C-axis: 360° Indexing Increment 0.001° Counter Spindle Bar Diameter: 65 mm Spindle Nose: JIS A2-6 Spindle Bore: 73 mm Spindle Speed: 5000 RPM C-Axis: 360° Indexing Increment 0.001° Upper Turret Number of Positions: 16 Number of Motorized Positions: 16 Axis Travel: X=210 mm - Y=110 mm - Z=300 mm Lower Turret Number of Positions: 16 Number of motorized positions: 16 Axis stroke: X=210 mm - Y=110 mm - Z=810 mm Equipped with 1 CN MORI SEIKI MSX 701 IV 1 Clamping in collet on both spindles 1 Tool measuring arm 1 Workpiece retrieval arm 27 Fixed tool holders 1 Rotating tool holder 1 Chip conveyor 1 IEMCA MASTER  ...

USED OKUMA LCC15 2S CNC LATHE Serial No.: 0311 Year: 12/1998 Main spindle Max diameter above bed: 200 mm Diameter above carriage: 320 mm Max turning diameter: 260 mm Spindle speed: 35-4200 rpm Chuck clamping Ø160mm - 3 jaws Turret 2 Turret / 8 stations Equipped with 1 CN OKUMA OSP 1 Chip conveyor Dimensions and weight 4400x2000xH2400mm - weight 5000 kg Auction-ID: A1-50950-63

Auction-ID: A1-50373-16

Main spindle drive power 14 kW Table dimensions (lxw) 1000 x 560 mm Table load 800 kg Number of tool locations in the magazine 20 incl. handwheel Auction-ID: A1-50373-13

USED NAKAMURA SC300L CNC LATHE Serial No.: L301603 Working hours: 4524 hours Main spindle Bar diameter: 71 mm Turning diameter: 350 mm Max turning length: 1100 mm Spindle speed: 6000 rpm C-axis: 360° indexing increment 0.001° Counter-spindle Spindle speed: 6000 rpm C-axis: 360° indexing increment 0.001° Turret Number of positions: 12 Number of motorized positions: 12 Axis travel: X=222 mm - Z=1135 mm - Y=+/- 45 mm Equipped with 1 FANUC 18i-TB CNC 1 HAINBUCH 2701/0011 clamping clamping on the main spindle 1 HFKN 165/46 chuck clamping on the sub-spindle 1 Set of fixed and rotating tool holders 1 Workpiece recuperator 1 Chip conveyor Dimensions and weight Machine: 4650x2200xH2250mm - conveyor: 5300x1500mm - 2 pallets - total weight 5400 kg Auction-ID: A1-50950-56

USED CNC LATHE INDEX 170 M Serial No.: 24932 Spindle bore: 42 mm Max. diameter above the bed: 370 mm Distance between tips: 450 mm Longitudinal stroke of the carriage: 150 mm Stroke of the cross carriage: 400 mm Spindle speed: 4000 rpm Number of positions on the turret: 14 rotating tools Equipped with 1 FANUC series 21i-T CNC clamping on the main spindle1 Set of fixed and rotating tool holders 1 LNS HYDROBAR hydraulic tube Machine dimensions and weight : 3800x2200xH1800mm - weight4500kg - LNS tube: 4800x800xH1300mm - weight 500 kg Auction-ID: A1-50950-33

Table dimensions (lxw) 1800 x 1500 mm Table load 15000 kg Speed 2.3 - 810 rpm Spindle stroke max.800 mm Total power requirement 30 kW Table size 2,000 x 1,500 mm Face plate with NC face slide and NC rotary table Heidenhain Digital Display Various tool holders Various clamping devices Auction-ID: A1-50373-14

USED BIGLIA B470 YSM CNC lathe Serial No.: 9957 Year: 2007 Main spindle Bar diameter: 68 mm Max. turning diameter: 200 mm Max. turning length: 300 mm Spindle speed: 100-4000 rpm Spindle bore: 80 mm spindle nose: ASA 6'' C-axis: 360° indexing increment 0.001° Sub-spindle Maximum bar diameter: 42 mm Max turning diameter: 160 mm Max turning length: 200 mm Spindle speed: 100-4000 rpm Spindle bore: 56 mm spindle nose: ASA 5'' C-axis: 360° indexing increment 0.001° Upper turret Number of positions: 12 Number of motorized positions: 12 Axis travel: X: 165 mm - Y: +60/-40 mm - Z: 380 mm Lower turret Number of positions: 12 Number of motorized positions: 12 Axis travel: X: 147 mm - Z: 240 mm Equipped with 1 FANUC 18i-T CNC 1 Parts collection belt 1 Tool measuring arm 1 Set of fixed and rotating tool holders 1 Chip conveyor Dimensions and weight Machine:5000x2200xH2000mm - Total weight ...

The auction includes: - Index V250 CNC Vertical Lathe with Control Cabinet - Knoll 320 Hinged Belt Conveyor - Knoll HF 100/530 coolant system - Knoll TF40-75/07 Centrifugal Pump - LTA II R/H Solid Extraction System All other devices visible in the pictures are not part of the auction. Auction-ID: A1-51071-2

Max. tool weight 10 kg Max. tool length 350 mm Max. tool diameter 80 mm Tool holder HSK-A63 according to DIN 69893 Number of tool positions in the magazine 60 Spindle speeds - infinitely variable 50-10,000 rpm Number of pallets 2 Max. pallet load 400 kg Pallet size (lxw) 500 x 400 mm Pallet change time 8/5 s Coolant tank 1100 l Machine length 5800 mm Machine width 4800 mm Machine weight approx. 12.8 t Spindle power 24 / 37 kW Auction-ID: A1-50373-18

5-axis universal machining centre, Hermle Siemens CNC control (control panel with TFT screen) Round/swivel table integrated Tool magazine available Full protection cab Electronic handwheel Coolant Setup Machine Light CE marking Auction-ID: A1-51071-7

USED HARDINGE GT-CE CNC LATHE Serial No.: GT-753-B Main spindle Bar diameter: 27 mm Diameter above bed: 300 mm Spindle nose: A2-4 Spindle power: 3.7 kW Spindle speed: 60-6000 rpm Axle travel: X=281 mm - Z=304 mm Equipped with 1 FANUC 18-T CNC Dimensions and weight 1800x1500xH1800mm - weight 2500kg Auction-ID: A1-50950-24

sliding headstock CNC lathe, year 2007, CNC 31i - Model A. Used machine. More info & price on IndustrialBuyer.

turning diameter: 600 mm turning length: 1200-1280 mm control: Fanuc 210 : 400 mm spindle bore: 90 mm : 3000 U/min spindle drive motor: 18-36,5 kW x-travel: 320 mm z-travel: 1250 mm : 8 Stationen tail stock: MK5 tool taper: VDI 40 machine weight ab.: 5000- 5500 kg weight of the machine ca.: 3000 t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

faceplate diameter: 7100 mm swing diameter: 8000 mm turning height: 4700 mm distance between table and cross rail: 5495 mm workpiece weight: 150 t faceplate turning speed range: 0,3 - 19 U/min main drive motor: 125 kW cross travel: 4400 mm swivel range of slides - vertical: +30 / -15 ° Control: FANUC 18i-T total power requirement: ca. 155 kW weight of the machine ca.: 291 t dimensions of the machine ca.: 8,6 x 17,6 x 8,3 m - CNC Control Fanuc 18i-T --2-Axis simultanous (X- & Z) - Z-Axe with hydraulic balance - Digital Scale in X and Z Axis - 2 rams on crossrail The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

turning diameter: max. 240 mm turning length: 470 mm control: 840 D sl Operate 4.8 Celos greates pass round over bed: 500 mm swing diameter over slide rest: 290 mm centre distance: 780 mm Main spindle:: turning speed range - main spindle: max. 6.000 min/-1 power capacity - main spindel: 13 / 14 kW max. Torque: 171,5 / 192 Nm inner draw tube diameter: 52 mm C-Axis: 0,001 ° spindle diameter in front bearing: 100 mm spindle nose: FL 140H5 Subspindle:: Spindle speed range subspindle: max. 6.000 min/-1 power capacity - Sub spindle: 12,6 / 16,2 kW max. Torque: 48 / 62 Nm inner draw tube diameter: 37 mm C-Axis: 0,001 ° spindle diameter in front bearing: 90 mm spindle nose: FL 140H5 turret:: number of toolpositions: 12 pos. Number of driven toolspositions: 12 pos. tool taper: VDI 30 Spindle speed - driven tool stations: max. 5.000 min -1 power capacity - driven tool-stations: 4,18 kW max. T ...

turning diameter: max. 500 mm turning length: 800 mm control: sl Operate 3G ShopTurn Siemens swing diameter: 500 mm distance between spindles: 1.020 mm Main spindle:: turning speed range - main spindle: max. 5.000 min/-1 power capacity - main spindel: 25 / 34 kW max. Torque: 280 / 380 Nm spindle head: 170h5 spindle diameter in front bearing: 130 mm spindle bore: 87 mm C-Axis: 0,001 ° tool magazin:: tool taper: HSK 63 A number of toolpositions: 80 pos. max. tool diameter: 80 mm max. tool-dia with free toolbox: 120 mm max. tool weight: 12 kg max. tool length: 300 mm Milling Spindle:: Speed Milling Spindle: max. 12.000 min/-1 power capacity - milling spindle: 19 / 22 kW Torque: 85 / 100 Nm tool taper: HSK 63 A B-Axis: +/- 110 ° axis stroke:: x-axis: -10 ... +490 mm y-axis: +/- 100 mm z-axis: 1: 845 mm z-axis: 2: 600 mm z-axis: 3: 800 mm Subspindel:: Spindle speed range subspindle: ma ...

turning diameter: 820 mm turning length: 3000 mm control: Siemens 840 D workpiece weight: 2,5 t drive of main spindle: 77 kW spindle nose: A15 spindle bore: 160 mm Workpiece head (C-axis): 0,005 grad max. torque on the working spindle: 2500 Nm main spindle speeds:: 0-2.430 U/min feeds z-axis: 0,1-18.000 mm/min rapid traverse Z-axis: 18 m/min feeds x-axis: 0,1-30.000 mm/min rapid traverse X-axis: 30 m/min steady: 50-350 Spannbereich tailstock - quill dia: 180 mm tailstock - travel of quill: 170 mm y-axis: -100/+150 mm rapid traverse y-axis: 12.000 mm/min b-axis: -105/+95 Grad milling spindle - taper: HSK100 milling spindle motor: 43 kW milling head speed: 1-5.500 U/min max. torque on the milling spindle: 336 Nm tool changer: 96 Plätze weight of tools max.: 15 kg chip conveyor: kW total power requirement: 166 KVA weight of the machine ca.: 40 t dimensions of the machine ca.: 112x4,4x3,85  ...

• Lot of 4 numerical control motherboards • It includes: • 1 x FANUC OM-MODEL B A02B-0091-B501 motherboard: year 1988 • 3 x FANUC OM-MODEL A A02B-0089-B501 motherboard: year 1989 • Operating conditions of this machine: unchecked. • This item is delivered loaded on truck. Dismantling and loading costs are specified as additional costs. Auction-ID: A7-50834-524

turning diameter:120 mm turning length:100 mm control:Fanuc Spindle 1 power:7,5 kW Spindle 1 RPM:4500 1/min Spindle 2 power:7,5 kW Spindle 2 RPM:4500 1/min Distance between spindle noses:600 mm Turret No.1 stations / rotary tools:15/15 Power rotary tools turret 1:2,7 kW RPM of rotary tools turret 1:4000 1/min Turret No.2 stations / rotary tools:15/15 Power rotary tools turret 2:2,7 kW RPM of rotary tools turret 2:4000 1/min Travel x/z turret 1:250 / 300 mm Travel x/z turret 2:250 / 920 mm Bar capacity spindle 1:51 mm Bar capacity spindle 2:51 mm power chuck:165 mm Spindle bore sp. 1:62 mm Spindle bore sp. 2:62 mm dimensions of the machine ca.:3700 x 2300 x 3000 mm weight of the machine ca.:5600 kg Used CNC-2-spindle CNC turning and milling center with gantry loader - 2x 15 station turret -automatic gantry loader with turnaround station. 14 station-magazin right side Max. Parts size Ø 12 ...

• CNC machining centre • Serial number 0-250-06-1632 • Total installed power approx, 18 KW • Useful working area approx, 2750 x 1000 mm • Travelling way X-axis: 3455 mm, Y-axis: 1480 mm, Z-axis: 260 mm • Maximum travel speed in the axes direction x-y-z: 80-60-20 m/min • Tool magazine with 8 positions •  Electrospindle: power 7,50 KW-max, 24000 rpm, automatic tool change, for HSK F63 tool holder, liquid cooled • Milling / saw group with 1,50 KW motor • Saw unit to groove • Vertical drilling spindles in X-axis direction: 11 • Vertical drilling spindles in Y-axis direction: 8 • Horizontal drilling spindles in X-axis direction: 3 + 3 • NUM 1040 numerical control • Software Windows 95 / HOMAG WOODWOP • 6 consoles with 2 vacuum suction cups each • 6 lifting modules for heavy workpieces • BECKER KVT 3,100 vacuum pump with capacity 100 m ...

turning diameter:370 mm turning length:200 mm Spindle 1 RPM:4000 1/min control:Siemens 840 D Spindle 2 RPM:4000 1/min power capacity:L / R 18/24 kW max. torque on the spindle:630 nM C-Axis:0,001° Turret No.1 stations / rotary tools:12/12 VDI 40 Turret No.2 stations / rotary tools:12/12 VDI 40 turning speed range - milling:3000 1/min power capacity - milling spindle:8,8 kW torque rotary tools:28 Nm Bar capacity spindle 1:85 mm total power requirement:65 kVA weight of the machine ca.:13 t dimensions of the machine ca.:5,7x2,4x2,1 m Travel x1:260 mm Travel x2:260 mm Travel Y1:600 mm Travel y2:600 mm Power Chuck:2 x 250 mm manual tool eye:l & r High performance 6-axis subspindle CNC-Lathe with twin turren and rotating tools.

standard turning dia.:200 turning length:max. 810 mm control:MSX-701 MAPPS IV greates pass round over bed:800 mm Max. distance between centres:1130 mm max. turning diameter:320 mm max. workpiecediameter:300 mm bar material dia.:65 mm Traverse X-Axis 1:210 Traverse X-Axis 2:210 mm Traverse X-Axis 3:210 mm Traverse Y-Axis 1:110 (+65/-45) mm Traverse Y-Axis 2:110 (+45,/-65) mm Traverse Z-Axis 1:300 mm Traverse Z-Axis 3:300 mm Traverse Z-Axis 2:810 mm Traverse B-Axis:870 mm turning speed range - spindle:5.000 1/min Number of spindle speed ranges:2 . spindle nose:JIS A2-6 spindle bore:73 mm spindle bearing diameter:120 mm C-Axis:0,001 ° turning speed range - spindle:5.000 1/min spindle nose:JIS A2-6 spindle bore:73 mm bar material dia. max:65/52 mm spindle bearing diameter:120 mm C-Axis:0,001 ° Number of Turrets:3 . Number of tool stations:16 x 3=48 pos Schank height for square tool:20 mm D ...

turning diameter:640 / 400 mm turning length:1500 mm control:Siemens 840 D Powerline Travel turret No.1 (milling spindle) x/y/z:550 / 180 (±90) / 1585 mm Swivle angle milling spindle (B-axis):±120° interpol. ° Rapid traverse feeds turret 1 (milling head) x/y/z:40/24/60 m/min RPM milling spindle:12000 1/min power capacity - milling spindle:12 / 23 kW Torque of milling spindle:100 Nm Tool magazine for milling spindle (turret 1):120 HSK-A 63 Tool change time tool/tool, milling spindle:1,6 s Spindle 1 RPM:4000 1/min Spindle 1 power:36/ 45 kW Spindle 1 Torque:730 Nm Spindle 1 max. bar diameter:90 Spindle 2 RPM:4000 1/min Spindle 2 power:36 / 45 kW Spindle 2 torque:730 Nm Spindle 2 max. bar diameter:90 c-axis:0,001 ° Travel turret 2 x:225 mm Travel Turret 2 z:1595 mm RPM of rotary tools turret 2:4000 1/min no. of tools in turret 2:12 VDI 40 high-pressure pump:20 bar total power requiremen ...

turning diameter:500 mm turning length:1000 mm control:Siemens 840 D spindle:42 / 28 kW spindle turning speed - stepless:31 - 4000 1/min max. torque on the spindle:345 Nm c-axis:360000 x 0,001° feeds -stepless-:0 - 10000 mm/min rapid traverse:10000 mm/min turret stations / rotary tool stations:12/12 VDI 40 RPM of rotary tools:2000 1/min diameter of quill:90 mm quill stroke:80 mm tailstock quill taper ISO:SK 30 Tailstock Travel:600 mm Power rotary tools:3,5 kW :22,5 Nm Rotary tool holders:4 ax./ 4 rad. spindle passage:66 mm total power requirement:30 kW weight of the machine ca.:7,5 t dimensions of the machine ca.:8x 3 x 4 m

standard turning dia.:200 turning length:max. 810 mm control:MSX-701 MAPPS III greates pass round over bed:800 mm Max. distance between centres:1130 mm max. turning diameter:320 mm max. workpiecediameter:300 mm bar material dia.:65 mm Traverse X-Axis 1:210 Traverse X-Axis 2:210 mm Traverse X-Axis 3:210 mm Traverse Y-Axis 1:110 (+65/-45) mm Traverse Y-Axis 2:110 (+45,/-65) mm Traverse Z-Axis 1:300 mm Traverse Z-Axis 3:300 mm Traverse Z-Axis 2:810 mm Traverse B-Axis:870 mm turning speed range - spindle:5.000 1/min Number of spindle speed ranges:2 . spindle nose:JIS A2-6 spindle bore:73 mm spindle bearing diameter:120 mm C-Axis:0,001 ° turning speed range - spindle:5.000 1/min spindle nose:JIS A2-6 spindle bore:73 mm bar material dia. max:65/52 mm spindle bearing diameter:120 mm C-Axis:0,001 ° Number of Turrets:3 . Number of tool stations:16 x 3=48 pos Schank height for square tool:20 mm  ...

turning diameter:410 mm turning length:500 mm control:Fanuc 21i TB standard turning diameter:275 mm travel -x axis:277 mm travel -y axis:82 (±41) mm travel -z axis:500 mm Spindle 1 RPM:4500 1/min Spindle 1 Power:18,5/18,5/15 kW Spindle 1 max. bar diameter:65 mm turret stations / rotary tool stations:12/12 Power rotary tools:5,5 kW RPM of rotary tools:6000 1/min total power requirement:39,2 kVA weight of the machine ca.:6,2 t dimensions of the machine ca.:3,1 x 2,0 x 2,2 m collet chuck:Hainbuch High precision Turning and Milling Centre with Y-axis and robot loading. Stäubli Robot for shaft loading can be supplied. Machine was running with oil, not coolant. A fire extinguisher system is installed

max. turning diameter:350 mm turning length:1040 mm control:OSP E 100 L Fanuc greates pass round over bed:550 mm Max. distance between centres:1200 mm max. workpiecediameter:550 mm Traverse X-Axis 1:270 Traverse X-Axis 2:230 mm Traverse Y-Axis 1:120 (±60) mm Traverse Z-Axis 1:930 mm Traverse Z-Axis 2:920 mm Spindle 1 Power:22 / 15 kW Spindle 1 RPM:5000 1/min spindle nose:JIS A2-8 bar material dia.:65 mm C-Axis:0,001° Number of Turrets:2 Turret No.1 stations / rotary tools:12/12 VDI 40 Turret 1 tool RPM:4500 1/min Turret 1 power rotary tools:7.0 / 3,3 kW Turret No.2 stations / rotary tools:12/12 VDI 40 Turret 2 tool RPM:4500 1/min Turret 2 power rotary tools:7.0 / 3,3 kW rapid traverse X-axis:30 m/min rapid traverse Y-axis:26 m/min rapid traverse Z-axis:40 m/min total power requirement:33 kVA weight of the machine ca.:10 t dimensions of the machine ca.:7,0 x 2,3 x 2,3 m spindle load m ...

max. turning diameter:320 mm turning length:1040 mm control: OSP E 100 L Dialog Fanuc greates pass round over bed:530 mm standard turning dia.:350 Max. distance between centres:1200 mm max. workpiecediameter:525 mm Traverse X-Axis 1:500 Traverse X-Axis 2:350 mm Traverse Y-Axis 1:160 (+80/-80) mm Traverse Z-Axis 1:1200 mm Traverse Z-Axis 2:1200 mm Spindle 1 Power:22 kW Spindle 1 RPM:3800 1/min spindle nose:JIS A2-8 spindle bore:80 mm bar material dia.:65 mm C-Axis:0,001° Number of Turrets:2 Turret No.1 stations / rotary tools:12/12 Turret 1 tool RPM:4500 1/min Turret No.2 stations / rotary tools:12/12 rapid traverse X-axis:20 m/min rapid traverse Z-axis:25 m/min total power requirement:33 kVA weight of the machine ca.:10 t dimensions of the machine ca.:6,0 x 2,5x 2,3 m High pressure coolant system:INterlit 8/20 bar spindle load monitor:B Spindle 1 Chuck:SMW 300 mm CNC Turning-and Milli ...

turning diameter:1600 mm turning length:12000 mm control:FAGOR 8050 Used CNC Lathe with FAGOR 8050 and extensive accessories. For further technical data and accessories, pls browse the Appendix. Parallellathe WMW mod. 4 GUIDE-WAYS ¦ CNC: FAGOR 8050 ¦ bed: monolithic ¦ centres height: 800 mm ¦ centres distance: 12000 mm ¦ swing over cross-slide: 1250 mm ¦ turret: automatic 4 positions ¦ tailstock: motorized ¦ tailstock connection: hydraulic ¦ platform: diam. 1000 mm ¦ steady rests: nr.02 ¦ chip conveyor Warranty: none Take advantage of the favorable leasing and hire-purchase terms from IKB Leasing. Ask us about it.

turning diameter:270 -300 mm turning length:710 mm total power requirement:43 kW weight of the machine ca.:8,5 t dimensions of the machine ca.:3,16 x 2,15 x 2,15 m The machine does not include a chuck or tools ? the machine was originally purchased without these accessories. The G300 has X, Z, Y, C, SP, and driven tools. A bar feeder can be used, but the machine does not have one.

turning diameter:220 mm turning length:310 mm total power requirement:17 kW weight of the machine ca.:3,3 t dimensions of the machine ca.:2,25 x 1,63 x 1940 m greates pass round over bed:430 mm bore diameter:45 mm centre distance:687 mm slide travel radial ( X-axis ):160 mm slide travel axial ( Z-axis ):310 mm spindle turning speed range:0-6.300 U/min

turning diameter:220 mm turning length:700 / 665 mm total power requirement:17 kW weight of the machine ca.:2,6 t dimensions of the machine ca.:2,63 x 1,98 x 1,94 m greates pass round over bed:430 mm Part length max.:510 slide travel radial ( X-axis ):160 mm bore diameter:45 mm Texte, Bilder, Grafiken, Layout, Strukturen und Algorithmen etc. unterliegen weltweitem Urheberrecht. Unerlaubte Verwendung der Daten, werden sowohl strafrechtlich als auch zivilrechtlich verfolgt. Das ausschließliche Urheber- / Nutzungsrecht dieser Daten wurde nachfolgender Person eingeräumt. Copyright © 2005-2026, Josef Weber. All rights reserved.

turning diameter:270 mm turning length:710 mm weight of the machine ca.:6,5 t max. swing diameter:590 mm with automatic loading and unloading system G300 with "spindle bore clamping capacity 90mm" in tailstock version The machine has no driven tools. The information in the circuit diagram refers to the rotary drive for indexing the turret, not to driven tools.

turning diameter:270 mm turning length:710 mm weight of the machine ca.:6,5 t max. swing diameter:590 mm with live tools:VDI40 Live tooling VDI40 with automatic loading and unloading system G300 with "spindle bore clamping capacity 90mm" in tailstock version Chip conveyor, belt filter press, hydraulic unit, as well as infeed and outfeed chain conveyor EWAP, with 33 pallets. The machine has no driven tools. The information in the circuit diagram refers to the rotary drive for indexing the turret, not to driven tools.

turning diameter:270 mm turning length:710 mm weight of the machine ca.:6,5 t max. swing diameter:590 mm with automatic loading and unloading system, chip conveyor G300 with "spindle bore clamping capacity 90mm" in tailstock version The machine has no driven tools. The information in the circuit diagram refers to the rotary drive for indexing the turret, not to driven tools.

turning diameter:120 mm turning length:650 mm weight of the machine ca.:11 t dimensions of the machine ca.:5,032 x 3,048 x 2,445 m Gildemeister MF Twin 65-II lathe with loading automation. This machine is suitable as a counter spindle machine for 4-axis machining on the main and counter spindles, complete machining (turning, drilling, milling, Y-axis, B-axis) of bar and shaft parts.

turning diameter:120 mm turning length:650 mm weight of the machine ca.:11 t dimensions of the machine ca.:5,032 x 3,048 x 2,445 m max. swing diameter:250 mm Gildemeister MF Twin 65-II lathe with loading automation. This machine is suitable as a counter spindle machine for 4-axis machining on the main and counter spindles, complete machining (turning, drilling, milling, Y-axis, B-axis) of bar and shaft parts.

turning diameter:200 mm turning length:600 mm capacity X-axis:190 mm capacity Z-axis:555 mm double spindle units: spindle distance:800 mm spindle drive:Links (40/100%ED): 18/14 kW spindle turning speed range:31-6300 U/min spindle drive:Rechts (40/100%ED): 18/14 kW spindle turning speed range:31-6300 U/min speeds of tool:2x12 Werkzeuge: 7/5 KW, 40-4200 U/min dimensions of the machine ca.:5,032 x 3,048 x 2,445 m weight of the machine ca.:6500 Kg Gildemeister MF Twin 65-II lathe with loading automation. This machine is suitable as a counter spindle machine for 4-axis machining on the main and counter spindles, complete machining (turning, drilling, milling, Y-axis, B-axis) of bar and shaft parts.

turning diameter:33 mm turning length:330 mm control: 840 total power requirement:20 kW weight of the machine ca.:6 t dimensions of the machine ca.:3850,2000,2100 m 17 axes 3 revolvers with the powered tools 1 gantry with the driven tools Main and counter spindle with C axes Barfeeder Machine On-time 58,133 hours

turning diameter:145 mm turning length:210 mm total power requirement:40 kW swing diameter:145 mm Spindle bore sp. 1:56 mm Spindle bore sp. 2:56 mm swing diameter over face slide:145 mm greates pass round over bed:145 mm RPM Main Spindle:7.000 1/min number of workpiece supports:12 Shank diameter:25 mm C-axis RPM:2.000 1/min Chuck diameter spindle 1:140 mm Chuck diameter Spindle 2:140 mm Number of tools:12 fach St. Tool bore:VDI 25 Shank diameter:25 mm weight of the machine ca.:5.300 kg dimensions of the machine ca.:5.000 x 4.100 x 2.050 mm Slide path flat: X1, X2, X3: 220mm, 120mm ( 145mm ) Longitudinal slide travel: Z1, Z2, Z3: 320mm, 345mm, 380mm Vertical slide travel Y1: +/- 30mm Longitudinal spindle travel Z3: 380mm Clamping tube inner draw tube 46mm diameter Speed range main drive 1+2 up to 7,000 rpm Speed of driven tools up to 6,000 rpm Main and counter spindle collet chuck 1 axial ...

turning diameter:220 mm turning length:- mm control:- distance between milling spindels:800 mm spindle speed max.:12.000 U/min daylight:66 mm machine weight ab.:11 t total power requirement:90 kVA Fanuc control Two turrets Two spindles Spindle bore 66 mm on both spindles Two Y-axes Parts gripper Hainbuch chuck on both spindles Tailstock function Chip conveyor Tool eye Short bar loader Tool holder package

travel -x axis:800/1825 mm travel -y axis:800/460 mm travel -z axis:600 mm Feeding X,Y,Z up to:0 - 40/40/40 mm/min. swival range +/-:+10 bis -90 x 360 Grad Rotary-table:800 x 630 mm number of T-slots:5 T-slot - distance:125 mm T-Slots:18 mm center hole:30H7X15 mm swival range +/-:90 Grad turning speed:20 m/min. Number of axles:3-7 St. Spindle RPM:12.000 1/min max. tool weight:10 kg max. tool length:330 mm diameter of tools max.:80 mm tool changing time:4 sec CNC control with 15.1" color flat-screen 19" machine control panel PCU 50 with Intel Pentium II Windows XP 10.0 GB hard drive

turning diameter:356 mm turning length:700 mm y-axis:±60 mm spindle drive:18 kW counterspindle motor:15 kW Direct drive for driven tools:5,5 kW Motor starting torque:640 Nm Main spindle mount:A2-8 counter spindle mount:A2-6 Rod passage:80 mm main spindle speeds::4.000 U/min Drehzahl angetriebene Werkzeuge :6.000 U/min rapid traverse speed:30 m/min auf X- und Z-Achse machine weight ab.:5.800 kg 12-station turret, all positions driven C-axis on both spindles Belt-driven and infinitely variable drive on all motors Prismatic guideways on all axes Oil cooler for both spindles, manufacturer Daikin Automatic, dialog-guided programming system MAPPS Automatic monitoring of tool load and tool wear Two Renishaw measuring arms for automatic tool measurement Interfaces: USB, PCMCIA card, and RS-232 port Interface for bar feeder Automatic parts catcher Dual foot pedal for independent opening and clos ...

turning diameter:570 mm turning length:635 mm travel -x axis:220 mm travel -z axis:635 mm Torque:240 Nm feed::X: 20m/min; T: 24m/min disc turret:12 fach with live tooling:6 fach main spindle speeds::25-25.000 dimensions of the machine ca.:3210 x 1750 x 1750 mm weight of the machine ca.:5.300 t swing diameter max. over bed cover:570 mm spindle bore:79 mm chuck diameter:200/250 mm rapid power traverse in X-and Z direction:20/24 m/min numbers of tools:12 C-axis

turning diameter:1070 mm turning length:8500 mm total power requirement:62 kW turning diameter over slide rest:800 mm spindle bore:128 mm max. workpiece weight between centers:8000 kg max. workpiece weight:12000 kg bore spindle turning speed range:1,120-01120 U/min tailstock quill diameter:200 mm dimensions of the machine ca.:12 x 2,8 x 2,4 m Machine equiped with Alan Bradley 9 series CNC control - SAUTER 6-postiion revolving head - 360 mm seld centering steady rest - 385 mm rotary work rest (used for gun barrels) - faceplate 800 mm - chip conveyor

turning diameter:480 mm turning length:1250 mm control:H 645 weight of the machine ca.:8 t dimensions of the machine ca.:5 x 2 x 2 m centre distance:1580 mm swing over bed:495 mm swing diameter:üb.Querschlitten ca.350 mm working area:1600 mm control:H645 connected load:50 kW

turning diameter:275 mm turning length:900 mm spindle passage:65 mm power capacity at 100 % load:25/20 kW spindle turning speed range:1 - 5000 U/min spindle diameter in front bearing:110 mm c-axis:1 - 500 U/min. number of workpiece supports:4 tool turret:1 x-axis:290 mm y-axis:165 mm z-axis:360 mm b-axis:360 ° rapid speed:18/30 m/min number of tools:2x2 + 2x2 number of driven tools:2x2 + 2x2 mm toolpiece turning speed range:8000 / 2000 U/min power capacity:25% ED 5,8 kW tool taper:TRAUB 60 tool turret:2/3/4 x-axis:170 mm z-axis:600/950 mm y-axis:+/- 60 mm rapid speed:18/15/30 m/min number of driven tools:10 mm toolpiece turning speed range:1 - 6000 U/min power capacity:25% ED 5,8 kW tool taper:DIN 69880 40 x 63 total power requirement:95 kW weight of the machine ca.:16 t dimensions of the machine ca.:10,0 x 3,5 x 3,0 m with CNC TRAUB TX 8i, Barloader TRAUB Stamag DNH61 / 3000, Main and  ...

turning diameter:480 mm turning length:800 mm total power requirement:30 kW turning diameter over bed slide:240 spindle bore:65 mm disc turret:12 fach rapid travel range:20 / 10 m/min weight of the machine ca.:4,5 t dimensions of the machine ca.:4 x 2,2 x 2,1 m with CNC TRAUB TX 8 H C-axis driven tooling, 6 positions 3,5 kW / 4000 rpm power chuck coolant attachment, chip conveyor diverse toolholders

turning diameter:1600 mm turning length:6200 mm turning diameter over bed slide:1250 Turning rate:5 - 710 U/min. total power requirement:37/52 kW weight of the machine ca.:16 t dimensions of the machine ca.:12 x 4 x 2 m CNC SIEMENS Sinumerik 3-jaw chuck SCHUNK Rota Plus Dia. 630 mm 3 x fixed steadies ( 1200 / 570 / 400 mm ) coolant attachment and chip conveyor diverse accessories
