cnc vertical milling used for sale

x-travel:2000 mm y-travel:1500 mm z-travel:1460 mm milling spindle motor:35/30 kW spindle taper ISO:50 spindle turning speed range:24 - 3000 U/min table surface area:1350 x 1550 mm table load:6 t feed speeds:10 - 3000 mm/min rapid speed:10 m/min total power requirement:48 kW weight of the machine ca.:24 t CNC HEIDENHAIN TNC 426 B-axis table round Horiz. and Vertikal automatic positioning Milling Head diverses accessories

x-travel:16300 mm y-travel:2600 mm z-travel:1600 mm spindle taper ISO:50 spindle turning speed range:22 - 4000 U/min rapid traverse:24 / 36 m/min main drive:37 kW total power requirement:50 kW with CNC HEIDENHAIN TNC 430 automatic Universal Milling Head automatic toolchanger 90-pockets coolant attchament and chip conveyor

The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

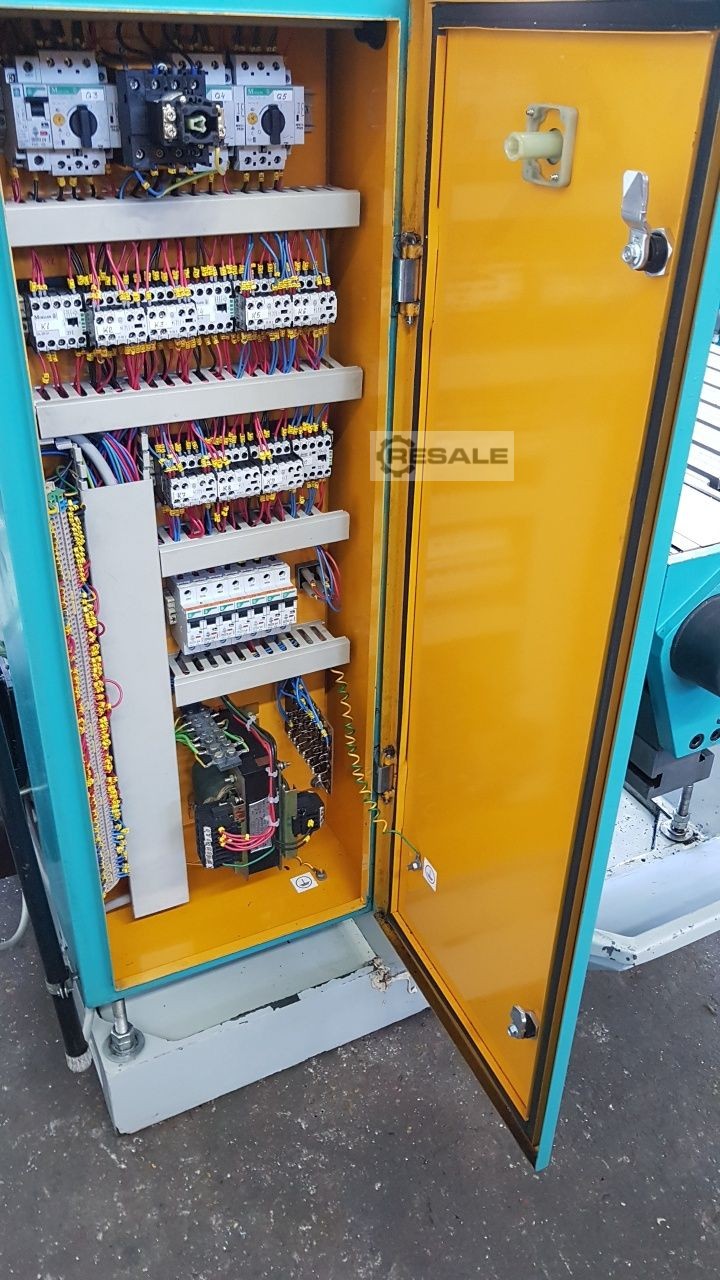

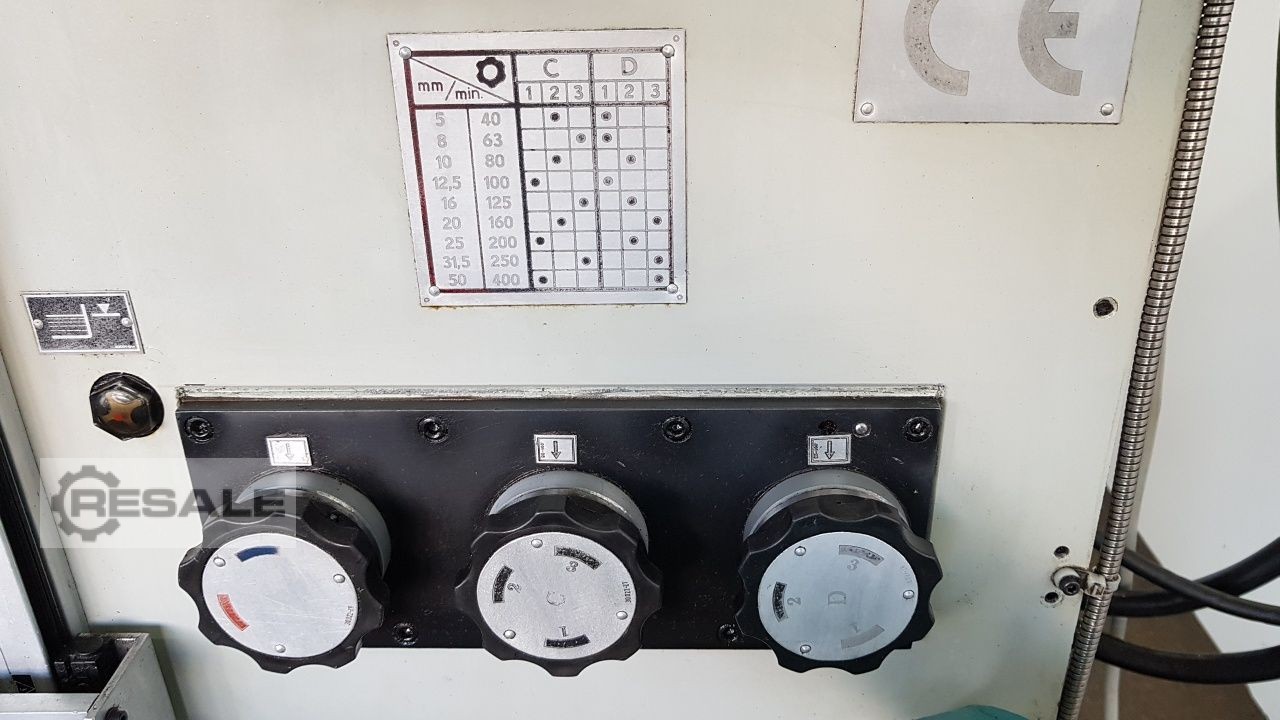

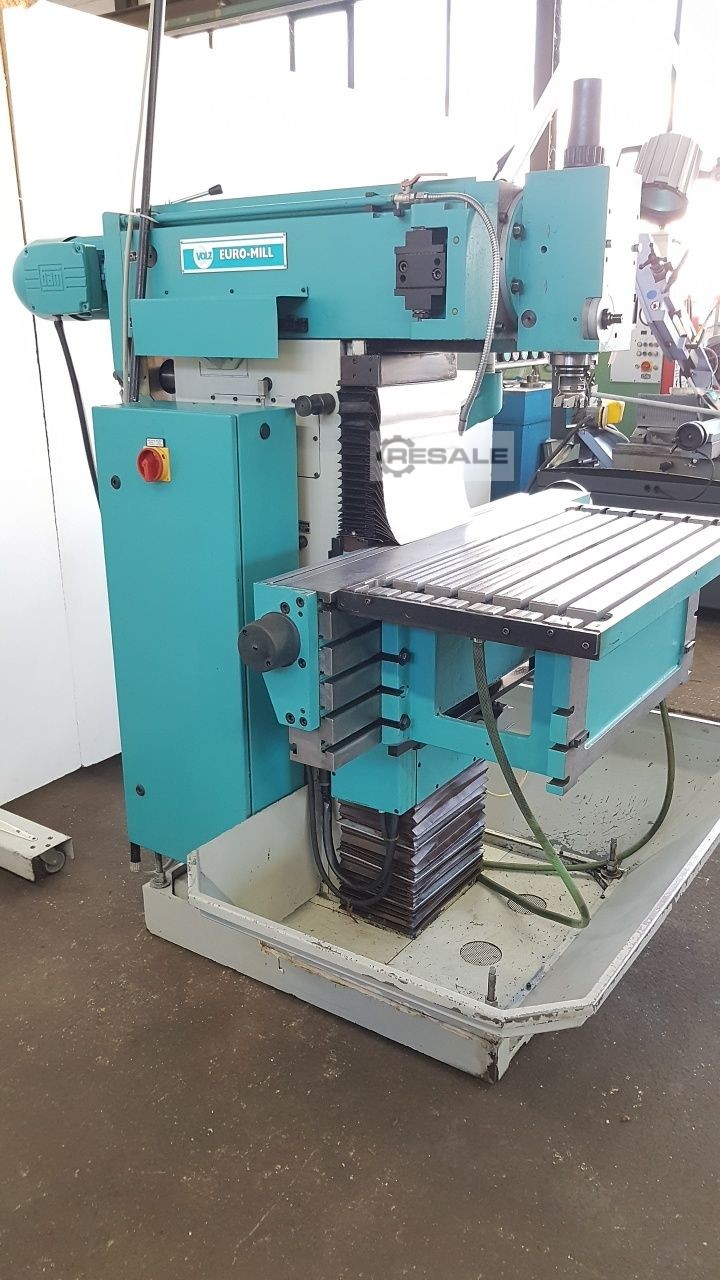

Offer 22065 Defective tool milling machine with gearbox damage Technical data: - Table size 950 x 450 mm - Axis working range - X (longitudinal) 560 mm - Y (landscape) 320 mm - Z (vertical) 400 mm - Max. distance between milling spindle and angle table 510 mm - Tool holder SK 40 - Work spindle speeds adjustable in 18 steps 25 - 2000 rpm - Drilling spindle stroke 100 mm - Axis feed speed up to 1200 mm/min - Rapid traverses - Drive 400 V / 3 kW - Space requirement approx. W 1200 x H 1650 x D 1000 mm - Weight approx. 1700 kg - with : - 3 A. – Digital display - Coolant device - Fixed angle table

Control: SIEMENS 840D Max.turning length: 450 mm Max swing diametr over bed/Slide: 500 mm/375mm Workpiece diametr: 246 mm Material passage through the spindle: 0 mm Rotation speed(max.) 6000 rpm Quick Change Toolposts:12 Taper ? VDI30 Coolant tank:175l M

Control: Heidenhain Max.turning length: 450 mm Max swing diameter over bed/slide: 500 mm/375mm Workpiece diametr: 246 mm Material passage through the spindle: 0 mm Rotation speed(max.) 6000 rpm Quick Change Toolposts:12 Taper ? VDI30 Coolant tank:175l Ma

General Description CNC automatic production lathe designed for high-volume turning of small to medium-sized rotational components. The machine features a fixed-headstock configuration with enclosed machining area and automatic workholding for efficient production machining. Technical Details Machine type: CNC automatic production lathe Fixed-headstock configuration Early-generation electronic NC/CNC control Production tool slide assembly Automatic hydraulic/pneumatic workholding system Enclosed machining chamber Coolant system Chip collection area Original operator control panel Emergency stop Condition Used industrial condition. The machine appears largely complete with production spindle, tool slide, control panel, enclosure and workholding system installed. Heavy oil contamination, cosmetic wear and missing side access panels are visible, consistent with long-term  ...

Technical details Type: CNC turning center Control system: ZIT Sistema 500T Configuration: - Horizontal CNC lathe - Semi-enclosed machining area - Hydraulic power chuck - 6-station hydraulic indexing turret - CNC-controlled longitudinal and cross axes - Electrical control cabinet - Hydraulic unit - Coolant enclosure Application: - CNC turning - Facing - Boring - Thread cutting - Precision machining of rotational components Construction: - Heavy-duty cast-iron machine bed - Early-generation CNC control system - Automatic turret indexing Dimensions: - Length: Approx. 3200 mm - Width: Approx. 1800 mm - Height: Approx. 2000 mm Weight: Approx. 3800 kg Condition: Used Observed condition: - Machine appears mechanically complete - Hydraulic chuck and 6-station turret installed - CNC electronics and electrical cabinet present - Hydraulic unit installed - Heavy du ...

General Description CNC profile and tool & cutter grinding machine manufactured by KELCH , model PFS 30-CNC . Designed for precision grinding of cutting tools, profiles and special tooling. The machine is equipped with CNC-controlled axes, a precision grinding spindle and a tilting workhead for versatile grinding applications. Technical Details Manufacturer: KELCH Model: PFS 30-CNC Machine type: CNC profile and tool & cutter grinding machine CNC-controlled axes Control: Bosch CNC Alpha with Bosch Alpha CRT Digital readouts: Heidenhain Control panel manufactured by Präzisionstechnik GmbH Tilting workhead Precision grinding spindle Precision workholding fixture Coolant enclosure Dust/coolant extraction system Condition Used industrial condition. The machine appears complete with Bosch CNC control, Heidenhain digital readouts, tilting workhead, precision grindi ...

Doosan Lynx 220A CNC Lathe – 2 X/Z Axis – Year 2007 DOOSAN Infracore Co., Ltd. CNC lathe LYNX 220A , manufactured in South Korea in July 2007. This used machine is configured in 2 X and Z axes and equipped with a tool turret. It is suitable for CNC turning operations, general mechanics, and CNC machine tool part production. Sales category: CNC lathe/CNC lathe. Technical data checked: X-axis stroke: 175 mm; Z-axis stroke: 330 mm; maximum spindle speed: 6,000 rpm; power supply: AC 200/220 V, three-phase 3Ø, PE, 50/60 Hz; rated capacity: 23.68 kVA; maximum load indicated on the manufacturer's plate: 11.0 kW; full load current: 62.15 A; breaking current: 17000 A. Machine identification: manufacturer DOOSAN Infracore Co., Ltd.; model LYNX 220A; serial number L2202101; year 2007; manufacturer marking \"MADE IN KOREA\". Connection diagram reference: L22H01CA01. The machine has a ful ...

CNC Control: FANUC 21i-TB Number of axes: 3 (including C-axis) Max. rotation diameter: 120 to 150 mm (depending on tooling) Max. turning length: 120 mm X/Z axis strokes: 340 / 240 mm Max. spindle speed: up to 8,000 rpm Spindle nose: designed for precision grippers or chuck C-axis: 0.001° resolution (positioning and milling) Turret: high-precision, 12 positions (VDI 16 or VDI 20) Motorized tools: radial and axial drilling/milling, speed 4,000 to 6,000 rpm Documentation: complete Weight (kg): 2200 Year & Manufacturer: 2007 – SPINNER Auction-ID: A1-50714-4019

4 position automatic toolchanger - charging options available Auction-ID: A1-50718-14

CNC LATHE Inv. No. 12.710C1 Make MONDIALE Model GALLIC 420 CNC Control FANUC 10TF Serial number CNCG16AC Centre distance 870 mm Max. swing over Bed Ø 420 mm Max. swing over Cross Slide Ø 214 mm Spindle bore Ø 69 mm R.P.M. 45 – 2500 (inf. var.) kW 11 Volts 400 Cycles 50 Including: 6 Pos. turret Coolant Auction-ID: A1-50718-28

CNC LATHE Inv. No. 12.711C1 Make MONDIALE Model GALLIC 420 CNC Control FANUC 10TF Serial number CNCG1685B17GE Centre distance 870 mm Max. swing over Bed Ø 420 mm Max. swing over Cross Slide Ø 214 mm Spindle bore Ø 69 mm R.P.M. 45 – 2500 (inf. var.) kW 11 Volts 400 Cycles 50 Including: 6 Pos. turret Coolant Auction-ID: A1-50718-32

32 fold tool changer. Main spindle 50- 9200 rpm X shaft 700 mm Y shaft 315 mm Z shaft pinole controlled 172 mm Includes tool drawer Z axis (hand 180 mm) W shaft (Machine head) 495 mm Rapid traverse 9 mtr/min Auction-ID: A1-47366-147

X shaft 700 mm Y shaft 315 mm Z shaft pinole controlled 172 mm Z shaft manual pinole 180 mm W shaft ( Machine head ) 495 mm 4th axle 360 x 0,001 gr with against center. Table size 1230 x 410 Spindle holder SK 30 / DIN 69871A Includes tool drawer Auction-ID: A1-47366-148

W-axis 630 mm Table dimensions (lxw) 1,250 x 1,400 mm Number of tables 1 Auction-ID: A1-50373-15

Includes all live tools/tools Infinitely adjustable Auction-ID: A3-46142-20701

CNC lathe HEYLIGENSTAEDT HEYNUMAT 21U x 2000 Robust horizontal CNC lathe, manufactured by Heyligenstaedt & Comp. GmbH in Giessen, Germany. A 2-axis machine equipped with a FANUC 0T series control , suitable for medium and large-scale turning operations. Technical data Manufacturer Heyligenstaedt & Comp. GmbH Córdoba Heynumat 21U x 2000 Year of manufacture 1981 Machine type Horizontal CNC lathe, 2 axes Nominal working length 2.000 mm Turnable/swing diameter Approx. 719mm Maximum spindle speed 2.240 rpm Spindle power Approx. 55,9 kW / 75 hp Bar capacity Approx. 76mm tool tower 12 positions CNC control FANUC 0T series Source Giessen, Germany Availability In stock The photographs show auxiliary equipment and tooling associated with the machine, including the KNOLL Filtron 300S-2 filtration system . Auction-ID: A1-51153-4

Manufacturer: BURKHARDT + WEBER GmbH Model (Typ): MC 100 S0 Machine Type: CNC Horizontal Machining / Boring Center (floor-type) Country: Germany Delivery Date: July 1992 Series: MC Series (Modular Machining Centers) Travels X (Column travel): ~3,000 – 5,000 mm Y (Vertical): ~2,000 – 2,500 mm Z (Ram): ~800 – 1,200 mm W (Spindle quill): ~500 – 800 mm Spindle Diameter: 100 mm (this is what MC 100” refers to) Spindle Taper: ISO 50 / SK50 Spindle Speed: ~2,000 – 3,000 rpm Main Motor Power: ~30 – 50 kW Auction-ID: A1-51153-37

incl. accessories, consisting of: e.g. 1 RENISHAW - OMP 60 - Probe 1 tool presetting device 1 turntable for 5th axis various tool holders and spindle tools, ATTENTION: The buyer is responsible for the disassembly, loading and transport of the machine himself Auction-ID: A7-51326-1

Technical data: Turning diameter over bed: 1260 mm Turning diameter at opening: 2700 mm Turning diameter at the pit: 3800 mm Turning diameter via slide: 900 mm Turning length: 4000/5000 mm

Technical data: Diameter over bed: 625 mm Turning length: 1500 mm Diameter via slide: 325 mm Spindle head shape: Cam-Lock Spindle drilling diameter: 105 mm

The machine is equipped with controlled B-axis smallest delivery 0.001, swivel range 340, controlled workpiece spindle stick (C-axis)smallest delivery 0.05, max. 42 rpm, equipped with an external grinding spindle (left and right spindle end), 1 internal grinding spindle. For an additional charge, a second internal grinding spindle can be delivered. Z-way 680 mm, X-way 255 mm, smallest delivery of the axles 0.001 mm. Tip height 175 mm, W.-stock MK 5, step. adjustable 1 - 1200 rpm, external grinding spindle 1000 - 3000 rpm, max. grinding wheel perm. 300 mm. The machine is suitable for ideal for the processing of carbide and technical ceramics (SIC and Al 2). Intermediate sale:reservations Delivery time:4-6 months

Technical data: The machine is completely overhauled in 2011 with new electrics, new wiring, including new control SIEMENS Sinumerik 840D max. circulating and turning diameter: 2,000 mm max. turning height: 1,500 mm Sheet disc diameter: 1,600 mm max. table load: 11.20 to. Cross-beam adjustment: 1,170 mm

Aufspannflaeche 3,000 x 2,000 mms table height 1,150 mms

Machine number: 3728-87 Grinding length 2000 mm (Roll grinding machine)

Force of pressure: 400 tons of working width: 4100 mm clear stand width: 3150 mm stand projection: 330 mm Electr. Supply: 400 V, 37 kW weight: 25 tons of space: 4100 x 2300 x 3910/530 mm

Force of pressure: 150 t working width: 4500 mm clear stand width: 3050 mm stand projection: 300 mm rear gauge: 1000 mm Electr. Supply: 380 V, 18.5 kW weight: 14.8 t space: 4200 x 2000 x 3000/3150 mm

Force of pressure: 250 t working width: 3550 mm clear stand width: 3050 mm stand projection: 300 mm rear gauge: Yes Electr. Supply: 400 V, approx. 26 kW weight: 20 t space: 2100 x 3800 x 3100 mm

Force of pressure: 150 t working width: 4300 mm clear stand width: 3600 mm stand projection: 300 mm maximum height: approx. 500/700 mm operating speed: up / down 41 - 65/10 mm / sec back gauge: 1000 mm Electr. Supply: 400 V, approx. 15 kVA kW weight: 14 t space: 4600 x 1950 x 3100 mm

Working width: 3050 mm sheet thickness: 6 mm throat depth: 200 mm rear gauge: 1000 mm power: 15 kW space: 4100 x 2300 x 2100 mm weight: 8500 kg well-preserved CNC hydraulic shear, with pivoting Panel, serial control. CYBELEC, CNC 1000, Hours of operation according to the operating hour counter: 2700 h

MAZAK laser cutting machine STX510 MKIII 4kW TOP CONDITION - LIKE NEW - ONLY 700 RUNNING HOURS year: 2012 refurbished, MAZAK lasercutting machine with 2500W table size: 3000mm x 1500mm machine dimension 2,9m x 7,3m chip conveyor LAN / USB connection automatic nozzle change fast piercing in heavy materials piercing sensor plasma sensor for stainless steel cutting burning sensor for mild stelle cutting full covered machine table FE: 22mm VA: 15mm ALMG: 10mm plastics possible to cut incl. software incl. exhauster option: warranty, setup, training option: fully automatic loading/unloading CELL system

Almost unused used CNC rotary axis from ISEL Automation ! By exception, a competitor's product. From a payment of a complete CNC fraes machine from ISEL due to the switch to a T-Rex CNC Fraes machine from CNC-STEP Top exact product, solid, stable processing. A few years old but top in shot. 100mm Holder for chuck 23mm Throughlet Height 320mm Width: 21 0mm Stabile cast aluminum discharge 4 Screw fasteners on the foot step motor 6.0 Ampere ! Controltable up to 48 volts Please also note our other CNC machines offers;

Almost Unused Used CNC rotary axis of company ISEL Automation ! Exceptionally, the product of a competitor . From a trade-in of a complete CNC milling machine ISEL because switching to a T -Rex CNC milling machine by CNC-STEP Top exact product , solid , stable processing . A couple of years old but in top shape . 100mm intake of feed 23mm passage height 320mm Width: 210mm Depth: 270mm Robust cast aluminum design 4 screw fastenings at the foot Stepper Motor 6.0 amps ! Controllable to 48 volts Also have a look at our other cnc machine offers please; ready for operation

TOP STATE - OVERHAUL IN 2016! Year of construction: 2001 2D table format: 2500 x 1250 3D Max processing size: 900 mm x 2150 mm x 300 mm Power: 2000W Control: FANUC incl. cooler incl. 2D programming software + chamfer module + tube/profile module incl. training incl. commissioning incl. quick penetration incl. ball roller table with 3D cutting head incl. CNC tube axle tube and profile up to 160 mm diameter plates, chamfering 3D molded parts, tubes and profiles FE: up to 15mm Oxide-free VA: up to 8mm designed for high pressure cutting up to 20 bar no foundation required! Optional automatic loading and unloading by Mazak FMS48 is available always regularly serviced with warranty / commissioning / training

CNC plasma cutting system working range: 1500 x 3000mm OTC Superplasma 12000 Cutting up to 20mm quality cutting New control ProDNC from Micompan data transfer via USB; ready to use

Controls: Heidenhain TNC 360 (1992) Table size: 1,000 x 1,000 mm Table size with extension: 1,345 x 1,000 mm Table load max.: 2,000 kg Distance between the s distance Spindle to table top: 0 - 1,100 mm Travel distances: X 1400 mm Y 900 mm Z 850 mm W 370 mm spindle holder: MK 5 spindle drive power: 6 kW spindle speeds: 30 - 1,500 rpm Drilling spindle diameter: 82 mm drill diameter: 2 - 70 mm Drilling tools Diameter: 17 - 450 mm Drilling capacity to full ST60: 45 mm Drilling capacity to full GG: 70 mm Zubehoer: drills; tools; usw. machine was rebuilt in 1992 and !; Very good

Technical data: Double column vertical turret lathe CNC control Siemens 802 D Weight 66 to 63 kw Dimensions 13,600 x 9,800 x 6,750 mm Faceplate diameter 3,500 mm Maximum workpiece height 2000 mm Max support adjustment 30 ° Maximum workpiece diameter 4,000 mm Maximum workpiece diameter with page support 3,750 mm Number of support 2 Max turning height 1,400 mm Maximum workpiece weight 25 to Max speed 30/min Min. speed 1/min

Control Siemens

Replacement TFT monitor for MAHO machines with control of Philips CNC 432. Suitable for MAHO CNC 432/10 Philips control machines. Front panel aluminum black powder coated High quality anti-reflective glass Dimensions 400 x 308 mm front panel Technical data: TFT-LCD monitor 12.1 inch Display/Aufloessung 800 x 600 pixel brightness 400 cd/m2 Contrast ratio 500:1 Response time 8 ms Frequency 60 hz Display area 246 x 185 mm External power supply 12V Operating temperature-10 ° c + 60 ° c Power consumption of 30 W Max D-Sub 9pin connector. 2 row OSD control brightness, contrast ratio, auto adjustment Install phase position, clock, language, reset Included accessories: power adapter, Achschlusskabel 15-pol. D-Sub 24 months warranty!

Excellent general condition. Used in plastic mold makers mainly for 3D graphite-carbon tool models and engraving work. Low cutting strengths, low machine load... Travel x=1200 y=800 z=500 Spindle speed 0 - 8000 rpm / Drive power main spindle 11 kW feed speed 0 - 30 m/min / table dimensions 1320 x 800mm Table load max. 2,000kg / 20-fold tool changer / max wzg diameter 63mm / WZG Long 200mm / tool holder SK 40 / 3D probe, Fabr. Heidenhain, type TS 220 / Cooling agent equipment / Spaenefoerderer / Suction (optional) Complete enclosure Heidenhain Control type TNC 426 PB digital / Electronic handwheel Heidenhain HR 410

Control panel for MAHO Fraea machine 500W with Heidenhain control TNC 232; New

Type SX1325AP-2128 Axis: Useful working area axis X-Y-Z 2070-2800-100 mm Pieces clearance in Z 100 mm Max. traveling speed 70 m/min Max. working speed 30 m/min Working table: Phenolic multifunction Nr. of stops standard 10 (4X-6Y) Vacuum pump 45,5 kW(50/60 Hz), air cooled Electrospindle: Standard power (S6) 9,5 kW, ISO30 Max. speed 24 000 rpm Tool changer: ATC carousel for 12 positions Lubrication: Automatic centralized lubrication Installation: Installed power 22-33 kW Compressed air cosumption 450 NL/min Extraction air consumption 3000 m3/h Extraction air speed 25 m/sec Suction hood diameter 2x150 mm Weight 3500 kg Video abcs://youtu.be/2q3wHCalvSg

Retrofitted in 2005 electrical / CNC control Siemens 840 d Retrofitted in 2012 and 2019 mechanical what made. Technical datas: Rotary spindle speed: 1.25-600 tr/min Spindle maximum power: 55 kW 215 tr/min Horizontal run of the upright on the bench - X 15,000/30,000 mm . X travel 30,000 mm is for both machine Vertical stroke of carriage on upright - Y (mm) 5,600 mm Spindle stroke - 1,100 mm Z: Flowing stroke - w: 1,100 mm Advance - X: 3-5000 mm / min Feed - Y: 3-5000 mm / min Feedrate - Z: 1.5 2,500 mm / min Total weight: 100,000 kg Foundation pit OSTEO. for both machine Length x width x height: 40,000 x 5,000 x 1,800 mm all accessories are available and can be sold at extra costs. For both machines are the following attachments available: â?¢ Chip conveyor For both machines including lubrication and coolend unit for the cutting operation &aci ...

Post driven tools from a Traub CNC lathe VDI 40 As well as some measuring geraete for Traub Rest according to photos Special price

The CNC press brake SMD PBH 110-3100-4C produced in 2006 is offered in a set with the ANTIL TWISTER F5 robot. Technical parameters : - manufacturer: SMD - type: PBH 110-3100-4C - year of production: 2006 - control: CNC CYBELEC ModEva 10 - overworked time: about 20,000 man-hours - pressure force: 110 tons - bending width: 3100 mm - maximum working speed: 10 mm / s - table width: 60 mm - table height: 960 mm - stroke: 465 mm - frame spacing: 2600 mm - throat: 410 mm - power supply: electric - 11.5 KW, 400 V three phases - oil tank capacity: 250 l - dimensions of the press: 3960 × 2045 × 3650 mm - total weight: 9500 kg Processing on a 3 m table and palletizing of finished details on 3 europallets.

diameter 200mm, little used, dusted, good condition.4 Bolts with bolt spacing approx. 94mm, Hole circle diameter of the bolts approx. 133mm, the largest diameter of the short cone approx. 106mm, Drawbar in the middle. All information to the best of our knowledge but without any information. Special price

TFT replacement monitor for MAHO machines with Philips control CNC 432 2 year warranty!; New
