cnc vertical milling used for sale

Deckel FP2 Milling Machine Component Type: Milling machine component Manufacturer: Deckel Model: FP2 Length: approx. 100 cm Height: approx. 31 cm Functionality not tested This item is delivered loaded on truck. Dismantling and loading costs are specified as additional costs. Auction-ID: A1-51153-59

GeneralVertical Machining Center; Control: Control M730UM with CELOS CharacteristicsTable surface1350 x 600 mmMaximum load (table centre)1200 KgSpeed max.12000 rpmDrive power (100% DC)22 kWDrive power (25% DC)37 kWTool Magazine with30 PositionsSpindle taperBT 40 Movement X / Y / Z1050/530/510 mmRapid feed X / Y / Z30/30/30 m/minDimensions (L x W x H)3,02 x 2,98 x 2,61 mWeight approx.7000 KgCELOS - ERGOline TouchCELOS - ERGOline Touch to facilitate machine operation incl. 21.5 " ERGOline Touch ® control with multi touch screens Uniform management, documentation and visualization of order, process - and machine data Networkable with CAD / CAM User friendly and p High-torque spindle 12,000min-1, 37/ 22 kW (#40)High-torque Spindle 12,000 min-1, 37/22 kW (#40) Motor spindle powerMASTER® Spindle speed: 12,000 min-1 Output: 37/22 kW (50/30 HP) (10%ED/cont) Torque: 360/177 Nm (265.52/130. ...

GeneralHorizontal machining center; Control: Siemens S840Dsl with CELOS CharacteristicsSpeed max.-20000 rpmDrive power (100% DC)25 kWDrive power (40% DC)42 kWTable size400x400 mmSwivelling range360x1 degreeMaximum load (table centre)400 KgMax. work piece diameter630 mmMax. work piece height900 mmPalett changer with2 PalletMovement X / Y / Z560/560/660 mmRapid feed X / Y / Z60/60/60 m/minTool Magazine with60 PositionsSpindle taperHSK-A 63 Max. tool length450 mmDimensions (L x W x H)2,68 x 4,19 x 2,54 mWeight approx.8500 KgPreparation for Center Through-spindle coolant systemCenter Through-Spindle Coolant System It can supply coolant through the holes of the spindle and tool. The coolant supply path to the tool tip is a center-through type. Effective for removing chips, cooling a machining point and prolonging a tool life. Spindle Taper HSK-A63Spindle Taper HSK-A63 This specification uses ...

GeneralHorizontal machining center; Control: Siemens S840Dsl with CELOS CharacteristicsSpeed max.-15000 rpmDrive power (100% DC)30 kWDrive power (40% DC)46 kWTable size400x400 mmSwivelling range360x1 degreeMaximum load (table centre)400 KgMax. work piece diameter630 mmMax. work piece height900 mmPalett changer with2 PalletMovement X / Y / Z560/560/660 mmRapid feed X / Y / Z60/60/60 m/minTool Magazine with60 PositionsSpindle taperHSK-A 63 Max. tool length450 mmDimensions (L x W x H)2,68 x 4,19 x 2,54 mWeight approx.8500 KgHigh-torque spindle 46 /30 kW, 15,000 min-1High-torque spindle 46 /30 kW, 15,000 min-1 (SIEMENS) Preparation for Center Through-spindle coolant systemCenter Through-Spindle Coolant System It can supply coolant through the holes of the spindle and tool. The coolant supply path to the tool tip is a center-through type. Effective for removing chips, cooling a machining poin ...

GeneralHorizontal machining center Chip conveyor (ejection to the rear) Coolant gun for setup station side Oil skimmer Sludge collecting function inside coolant tank In-machine measuring system (spindle) touch sensor (Renishaw OMP60) + workpiece setter Tool breakage detection system Manual pulse generator (separate type) Full closed loop control (Scale feedback); Control: Control F31iB with CELOS CharacteristicsSpeed max.-12000 rpmDrive power (100% DC)30 kWTable size630 x 630 mmSwivelling range360 x 1 degreeMaximum load (table centre)1500 KgMax. work piece diameter1050 mmMax. work piece height1300 mmPalett changer with2 PalletMovement X / Y / Z1050/900/1030 mmRapid feed X / Y / Z60/60/60 m/minTool Magazine with60 PositionsSpindle taperBT 50 Weight approx.18750 KgCELOS - ERGOline TouchCELOS - ERGOline Touch to facilitate machine operation incl. 21.5 " ERGOline Touch ® control with m ...

GeneralHorizontal machining center Chip conveyor (ejection to the rear) Coolant gun for setup station side Oil skimmer Sludge collecting function inside coolant tank In-machine measuring system (spindle) touch sensor (Renishaw OMP60) + workpiece setter Tool breakage detection system Manual pulse generator (separate type) Full closed loop control (Scale feedback); Control: Control F31iB with CELOS CharacteristicsSpeed max.-12000 rpmDrive power (100% DC)30 kWTable size630 x 630 mmSwivelling range360 x 1 degreeMaximum load (table centre)1500 KgMax. work piece diameter1050 mmMax. work piece height1300 mmPalett changer with2 PalletMovement X / Y / Z1050/900/1030 mmRapid feed X / Y / Z60/60/60 m/minTool Magazine with120 PositionsSpindle taperHSK-A 100 Weight approx.18750 KgCELOS - ERGOline TouchCELOS - ERGOline Touch to facilitate machine operation incl. 21.5 " ERGOline Touch ® control w ...

table-size: 1300 x 280 mm travel -x axis: 950 mm travel -y axis: 300 mm travel -z axis: 450 mm spindle speed:: 60–3.000 U/min : 16 spindle taper: NT40 quill stroke: 140 mm automatic feeds: 13–600 mm/mi rapid traverse: 2.500 mm/min m/min table load: max. 250 kg weight of the machine ca.: 2040 kg dimensions: 2.450 × 1.800 × 2.370 mm The machine is equipped with a digital position display, a machine vise, a swiveling vertical milling head, and several mechanical feed drives. The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

with digital display, Fabr. FAGOR, table size: approx. 1250 x 800 mm

CNC control HEIDENHAIN iTNC 530 with handwheel, travels: X-axis approx. 1,500 mm, Y-axis s approx. 2,400 mm, Z-axis approx. 800 mm, clamping table length x width x height approx. 2,500 x 1,500 x 530 mm, table load max. 500 kg, milling spindle spindle power 4 KW, spindle speed 6,000 rpm, tool holder 78/8 flange, feed speed X-, Y-, Z-axis 20 m/min, axis acceleration 1.5 m/s², space requirement machine 6,000 x 4,000 x 3,900 mm, total weight approx. 8,000 kg, NOTE: Fully functional condition, regular maintenance by machine manufacturer! The machine is already at another location at Kartonstraße 2, D-88255 Baienfurt. Freely loaded FCA D-88255 Baienfurt

number of aggregates: 2 St. working width: 2000-3500 mm work height max.: 2450-3200 mm Wintech M9Cb Sealing Machine Automatic sealing system for wooden windows and doors with 2 processing units. For a detailed description, see the PDF document. ----------------------------------- Manufacturer’s technical description: M9Cb robotic sealing system The machine comprises a robust structure made from aluminium profiles, fitted with motorised conveyor belts on which the window units are transported. The silicone is distributed evenly into the joint by means of two automatically controlled nozzles. The electronic control system, which is in constant communication with the sensor, determines the movement of the guns and the operating parameters. Technical data: Standard Optional Max. window width 2000 mm 3500 mm Max. window height 2450 mm 3200 mm  ...

Manufacturer: Brandt Kantentechnik GmbH Model: Optimat KDN 350 C Machine type: single-sided edge banding machine Year of Make: 2005 Engine No.: 0-261-06-3872 Electrical connection: 400 V / 50 Hz / 3~ Control voltage: 24 V Fuse: 16 A Edge thickness: 0.4–3 mm Workpiece thickness: 8–50 mm Workpiece width: min. 70 mm Workpiece length: min. 140 mm Feed rate: 11 m/min Edge magazine: automatic for roll material and fixed lengths Cross-cut unit: 2 motors, 0.18 kW / 12,000 rpm each Milling unit: top/bottom, 2 × 0.27 kW / 12,000 rpm Shape milling unit: top/bottom Scraper unit: for PVC edging Buffing unit: 2 motors, 0.09 kW each Control: electronic PC control Accessories: existing edge rollers and edge material to the right of the machine included Suction: separate small suction unit behind the machine included Auction-ID: A ...

Auction-ID: A1-41281-13

Various attachments; including plastic case; Auction-ID: A1-50707-326

Auction-ID: A1-41281-46

x-travel:14000 mm y-travel:3100 mm z-travel:1.200 mm (220 - 1.420) mm distance between columns:4.417 mm table-size:14.000 x 2.500 mm workpiece weight:15.000 kg/m drive capacity - spindle motor:25 kW spindle cone:63 HSK spindle turning speed range:18000 rpm milling feeds:30000 mm/min dimensions of the machine ca.:15.000 x 8.418 x 6.033 mm weight of the machine ca.:135 t CNC controller: SIEMENS 840 D universal milling head:5 Achsen mit ?C5C? Elektrospindel automatic tool changer:24 fach

x-travel:2000 mm y-travel:800 mm z-travel:800 mm table-size:2.000 x 700 mm workpiece weight:3500 kg drive capacity - spindle motor:17 kW spindle cone:50 ISO spindle turning speed range:3000 U/min dimensions of the machine ca.:5265 x 3250 x 2730 m weight of the machine ca.:9 t CNC controller:HEIDENHAIN TNC-426 :manuell used universal bed type milling machine with chip conveyor, automatic 2 position (vertical/horizontal) head 3000Rpm The retrofitting jobs done in this machine, are the same than those done to all of our machines. - Completely repair of the head, replacing bearings, shafts and engaging gears. - Completely replacement of all the bearings of the machine. - Replacing the joining screws of the bodies. - Completely repair of spindles. - Adjustment and repair of axis. - Grinding and adjusting all guides, because of deterioration. - Grinding and adjusting of the guide ways of the ...

x-travel:600 mm y-travel:580 mm z-travel:530 mm distance spindle center to column:630 mm distance spindle center to table:100-600 mm milling feed range:1-10.000 mm/min max. table load:200/100 kg max. tool weight:8 kg positioning accuracy:+/- 0,01 mm :8000/15000 1/min spindle drive:7,5/11,5 /5,5 kW repeating accuracy:+/- 0,008 mm weight of the machine ca.:7,4 / 7,65 t Brand-new CNC vertical machining center with CNC control FANUC or HEIDENHAIN Warranty: 12 months More information can be found in the Appendix.

x-travel:1000 mm y-travel:1150 mm z-travel:700 mm table-size:900 mm table load:1500 kg spindle speeds:10.000 1/min spindle drive:Motorspindel von Cytec CS34-180-A 34&42KW/160&200 Nm spindle taper:A100 HSK T-slots:18mm/7/100 mm milling feed range:20.000 mm/min rapid traverse feeds:X/Y/Z: 24 m/min diameter of tools max.:150 mm workpiece length:300 mm weight of tools max.:20 kg weight of the machine ca.:15 t dimensions of the machine ca.:s. Katalog m CNC controller:Heidenhain iTNC-640 HSCI-Steuerung cnc rotary table:von Cytec; mit Ø900mm; 800 1/min Drehmomenttisch (AS3347) + HSK-T63/100 Spindel & ATC + TNC-640 Fräsdrehzahlregelung B-axis:Fräskopf, 0-180° c-axis:0,001° automatic tool changer:HSK-A/T100; 60 fach Scales:in X/Y/Z von Heidenhain mit Druckluft inner coolant:20

x-travel:6000 mm y-travel:2100 mm z-travel:1500 mm Controls:HEIDENHAIN iTNC 530 BASIC DESIGN:. - basic design : travelling column :. WORKING RANGE -MILLING-:. - x-axis travel:6000 mm - y-axis travel:2100 mm - z-axis travel:1500 mm WORKING SPINDLE / HEAD:. - spindle type : orthogonal head :. - tilting range:360 ° - - mode of operation : automatic :. - - positioning/indexing:1 ° - tilting range (2nd axis):270 ° - - mode of operation : automatic :. - - positioning/indexing:1 ° - spindle revolutions (min):20 /min - spindle revolutions (max):4000 /min - spindle diameter:90 mm - taper fixture : ISO SK 50 :. - spindle power (continuous):32 kW - torque (max.):910 Nm AXIS DRIVES:. - feed velocity (min):2 mm/min - feed velocity (max):20000 mm/min - rapid traverse:25000 mm/min ELECTRICAL SPECIFICATIONS:. - total power consumption:79 kW - mains voltage:400 V - mains freque ...

x-travel:3600 mm y-travel:1250 mm z-travel:1600 mm table load capacity:8000 kp table clamping surface::4100 x 1050 feed range:10 - 5000 mm/min rapid traverse feeds:10000 mm/min spindle motor:29 kW spindle taper::ISO 50 spindle turning speed range:5 - 4000 U/min total power requirement:70 kW weight of the machine ca.:28 t dimensions of the machine ca.:8,5 x 5,4 x 3,2 m Machine with Heidenhain TNC 430 Steuerung - tool changer 30-fold - milling head indexable 2,5° - 4. axis turn table

spindle diameter:130 mm spindle diameter:130 mm x-travel:2190 mm y-travel:1520 mm z-travel:1000 mm w-axis:1075 mm table surface area:2000 x 1800 mm workpiece weight max.:8000 kg spindle turning speed range:4,5 x 900 U/min spindle taper: ISO:50 faceplate turning speed range:4,5 x 180 U/min faceplate diameter:785 mm rapid traverse::5000 mm/min total power requirement:40 kW weight of the machine ca.:35 t dimensions of the machine ca.:5,5 x 6,9 x 5,2 m Machine retrofit and overhould with TNC 360 Heidenhain in 2023 and stepless spindle speeds - table indexing 4 x 90° - facing head 785 mm - exhauster - various arbors and tooling

x-travel:1000 mm y-travel:600 mm z-travel:550 mm fixed clamping table:1200 x 600 mm spindle drive motor:9 kW spindle taper ISO:40 spindle turning speed range:10 - 5000 U/min feed range:2 - 6000 mm/min total power requirement:15 kW weight of the machine ca.:6 t

spindle diameter:150 mm x-travel:10000 mm y-travel:2500 mm bore spindle stroke:700 mm Speed of boring spindles:1,25 - 1250 U/min. ram stroke:700 mm dimension of the ram:340 x 340 mm mm spindle taper ISO:50 rapid traverse:5 m/min total power requirement:120 kW weight of the machine ca.:115 t dimensions of the machine ca.:15,1 x 10 x 6,4 m CNC control Siemens 840 Dsl completely modernized 2010 FIBRO CNC drilling work table 2500 x 2500 mm 50 to. workpiece weight Longitudinal travel 2500 mm Angular milling head 4 x 90° Universal angular milling head Panel area approx. 10000 x 5000 mm Chip conveyor and coolant device Aerostatic guides

x-travel:6500/13150 mm y-travel:4000 mm z-travel:1250 mm w-axis:2250 mm table surface area:5500/12150 x 3000 mm max. workpiece weight:70.000/105.000 kg ram head dimension:480 x 510 mm milling spindle motor:63 kW max. torque on the spindle:3300 Nm tool taper:DIN 39871 AD ISO 50 milling head speed:6,3 - 4000 U/min feed speeds:1 - 24000 mm/min w-axis:1 - 6000 mm/min distance between columns:3500 mm passage:3000 mm total power requirement:120 kW weight of the machine ca.:245 t dimensions of the machine ca.:29,0 x 7,7 x 8,1 m Machine is in nearly new condition and was completely modernized in 2020! With CNC SIEMENS 840 D Automatic tool magazine for 153 tool positions Automatic milling head magazine for 6 milling heads Machining module ? straight ? straight long ? Machining module ? angle standard ? 4000 rpm, 144 x 2.5°, ISO 50 Machining module ? narrow angle extended ? 40 kW, 4000 rpm, 1800  ...

bore capacity in steel (diameter):- mm throat:- mm bore stroke:- mm x-axis:1.800 mm y-axis:1.600 mm z-axis:1.250 mm w-axis:630 mm max. table load:5.000 kg table length:1.400 mm table width:1.600 mm spindle diameter:105 mm spindle turning speed range:3.300 U/min numbers of positions in the tool changer:40 internal coolant system feed:40 bar Splash guard around rotary table Chip Conveyor Oil cooling unit (chiller) Touch probe Renishaw RMP60 Upgrades in 2024 and 2025 Retrofit of X and Z axis ball screws at producer ? KSK Kurim CZ New linear scales Heidenhain in X and Z axis including cabling retrofit of Z axis - new Biplast V lining on guideways, hand scraped Biplast lining on Z axis new TOS Varnsdorf parts for tool clamping and automatic tool changer arm Overhaul of X, Z and Y axis feed motors at authorized Siemens service (new bearings and sensor) New Siemens hand wheel

spindle diameter:100 mm x-travel:1250 mm y-travel:1100 mm z-travel:950 mm spindle turning speed range:2500 U/min Rotary-table:1100 x 1000 mm table surface area:1000 x 1100 mm tool clamping:69871 DIN spindle stroke:630 mm spindle taper:SK50 total power requirement:22/34 kW max. workpiece weight:3000 kg weight of the machine ca.:13000 kg

spindle diameter:180 mm x-travel:6.000 mm y-travel:2.900 mm total power requirement:95 kW Machine Technical Data ·Machine weight: approx. 130 t including accessories ·Z travel (ram): 1250 mm ·W axis (spindle): 1000 mm ·Sleeve extension: 1250 mm ·Sleeve dimensions: 450 x 450 mm ·Boring spindle stroke: 1000 mm ·Boring spindle speed: 920 rpm Rotary Table: ·Motor driven rotary table ·IOS 40 ·CNC control ·2 axes B and V ·Rotary table size: 3000 x 3500 mm ·Rotary table CNC IOS 40 NC Indexing and Accuracy: ·Infinitely adjustable ·Diameter related ·Indexing: 4 x 90 degrees up to 360000 ·Angular resolution: 0.001 degrees Travel Ranges: ·Longitudinal cross travel: 1230 mm Load Capacity: ·Maximum rotary table load: 40 t Clamping Plate: ·Clamping plate: 3 x 8000 x 2000 mm

x-travel:3500 mm y-travel:2500 mm z-travel:1250 mm w-axis:800 mm bore spindle speeds:2500 U/min table load:12 t dia. of rotary table:1800 x 2200 mm numbers of positions in the tool changer:60 ? Overhauled in 2025 and 2026 ? The spindle was relubricated and new spindle bearings fitted in 2025 by technicians from TOS Varnsdorf ? 12-month warranty and guarantee on geometric accuracy Scope of repairs to the X, Z and B axes 1. Complete dismantling and cleaning of the machine bed for the X and Z axes as well as the B axis 2. Regrinding of X and Z axis guide ways at Czech manufacturer of CNC horizontal boring machines 3. Removal of the old lining from the X- and Z-axis slides and the B-axis 4. Anchoring of re-grinded X and Z axis machine bed 5. New, hand-scraped lining made from Biplast-V on the X- and Z-axis slides, and from new Biplast-V on the B-axis 6. Installation of ball screws, lin ...

spindle diameter:150 mm x-travel:3.000 mm y-travel:2.000 mm spindle stroke:700 mm dimension of the ram:340 x 340 mm ram stroke:700 mm column travel:1.500 mm high speed spindle taper ISO:50 bore spindle turning speed range:3,2 - 1.600 U/min table surface area:2.000 x 2.500 mm max. table load:25.000 kg rapid traverse speed:5/10 m/min feed speeds:1 - 1.500 mm/min faceplate speeds from - to:3,2 - 140 U/min dimensions of the machine ca.:8,4 x 6,8 x 5,9 m weight of the machine ca.:57 t total power requirement:100 kW Full B-axis Aerostatic guides Coolant system with IKZ

x-travel:800 mm y-travel:300 mm z-travel:400 mm total power requirement:ca. 4,0 kW weight of the machine ca.:ca. 1,7 t dimensions of the machine ca.:ca. 2,10 × 1,90 × 2,00 m The Klopp FWUE 8 is a conventional universal tool milling machine designed for precise milling, drilling and threading operations in toolmaking, mechanical engineering, maintenance, and single-part and small-batch production. Thanks to its horizontal and vertical milling capabilities, the machine offers versatile machining options for a wide variety of workpieces. The robust cast iron construction ensures high rigidity and machining accuracy, even during demanding milling operations. The machine is fitted with a 3-axis digital readout (DRO) and features automatic feeds along the X, Y and Z axes, selectable feed rates and a rapid traverse function. This enables convenient operation and precise positioning of the axe ...

spindle diameter:130 mm x-travel:5000 mm y-travel:3000 mm z-travel:2000 mm The TOS Varnsdorf WHQ 13 CNC is a high-performance CNC-controlled horizontal table drill press fitted with a Siemens Sinumerik 840D CNC control system, designed for the precise machining of large and heavy workpieces. The machine is suitable for drilling, boring and milling complex components and is typically used in heavy machinery manufacturing, plant engineering, toolmaking, and in the energy and heavy industries. With generous travel ranges of 5,000 mm on the X-axis, 3,000 mm on the Y-axis and 2,000 mm on the Z-axis, the machine offers an extensive working area. The worktable, measuring 2,500 × 1,800 mm, can accommodate workpieces weighing up to 20 tonnes. The horizontal spindle achieves a speed of up to 3,000 rpm. In combination with the supplied milling head, even demanding milling operations and various ma ...

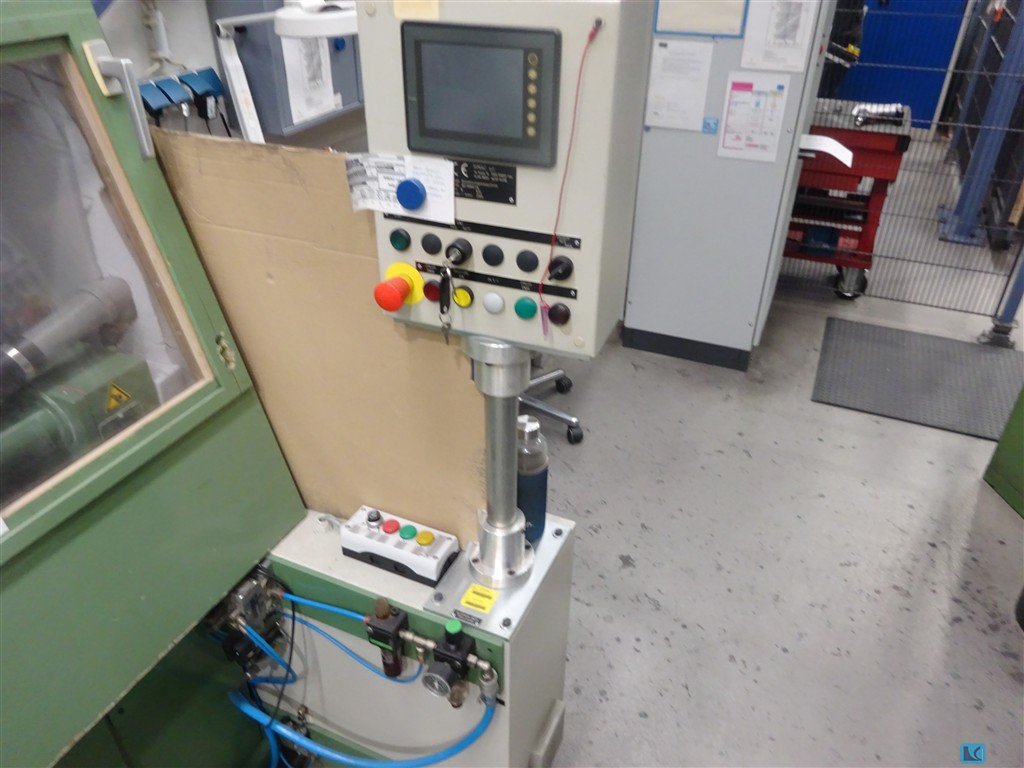

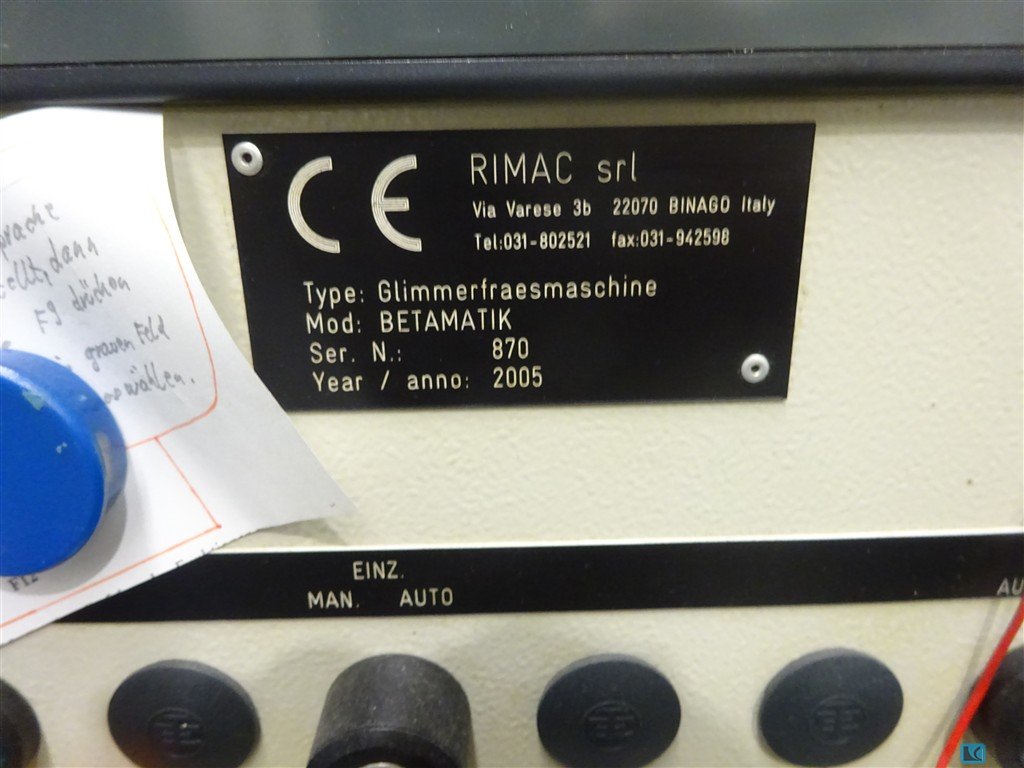

x-travel:60 mm The RIMAC BETAMATIK is a specialised collector mica milling machine for the manufacture and repair of electric armatures and commutators. It is used for the precise milling or undercutting of the mica insulation between the individual copper lamellae of a collector. The mica joints are detected by a laser optical system. A stepper motor then automatically positions the armature from lamella to lamella. The milling cutter is automatically raised during the return stroke. According to the data sheet, the machining time is approximately 0.8 to 1.3 seconds per lamella. The machine can process armatures up to a diameter of 100 mm, collectors up to 70 mm in diameter and shafts up to 500 mm in length. The maximum milling length is 60 mm. The milling spindle reaches 8,000 rpm. The machine, originally purchased around 1983/1984, was extensively modernised and mechanically overhaule ...

automatic:Werkzeugspannung Spannk.15000 N total power requirement:63 KVA weight of the machine ca.:56000 kg table-size:22000 x 800 mm Tool bore:ISO 50, DIN 69871 AD x-travel:20500 mm y-travel:1600 mm z-travel:1000 mm dimensions of the machine ca.:24 x 6 x 4 m tool piece magazine with:30 Plätze

bore capacity in steel (diameter):5 - 30 mm x-travel:450 mm y-travel:380 mm total power requirement:1,4 / 2,2 kW weight of the machine ca.:1.100 kg dimensions of the machine ca.:1.000 x 1.400 x 2.900 mm gear box:85 - 2.000 U/min spindle diameter:72 mm bore depth:700 mm throat:300 mm spindle taper MT:3 T-slots:3 x 16/25 mm table-size:700 x 300 mm spindle turning speed range:85/170/250/355/475/710/1000/2000 U/min motor speeds::705/1425 Year:ca. 1975

x-travel:500 mm y-travel:400 mm z-travel:330 mm table-size:710 x 410 mm spindle taper ISO:40 quill stroke:100 mm control:HEIDENHAIN TNC 335 B table load:180 kg no. of flutes:8 groove width:14/25 mm tool taper:SK 40 speeds::20 - 3000 U/min feeds:infinitely variable1-1250 mm/min rapid traverse:5000 mm/min total power requirement:13 kW weight of the machine ca.:2500 kg dimensions of the machine ca.:2000 x 2800 x 2300 mm Year:ca. 1984 Zusatzinformationen ? Schile-Elektroschrank mit CNC-Steuerung Heidenhain TNC 355 ? Starrer Winkeltisch 710 x 400mm ? Spritzschutzverkleidung / Halbkabine ? Kopf nach Skala präzise drehbar über Kurbel ? Kopf komplett wegschwenkbar für horizontal Spindel

x-travel:1190 mm total power requirement:25 kW feeds::3 - 2000 mm/min weight of the machine ca.:4,3 t table-size:1600 x 400, 5 Spannbacken mm dimensions of the machine ca.:4000 x 3600 x 2200 mm speeds:45 - 1800 U/min y-travel:530 mm z-travel:540 mm tool taper:ISO 50 control cabinet:940 kg

x-travel:700 mm y-travel:450 mm z-travel:500 mm total power requirement:23,4 kW weight of the machine ca.:3100 kg dimensions of the machine ca.:3200 x 4000 x 2500 mm tool taper:ISO 40 feeds:0,2 - 0,6 - 0,12 mm/U spindle speeds::20 - 3150 , direkt programmierbar /min feed range:1 - 3000, in B=0,01 - 3 U/min rapid traverse in x-y-z axis:6m/ min, B = 7,6 U/min work table::NC Rundtisch(B-Achse) D=630 mm, 9T-nuten control:CNC432

x-travel:500 mm y-travel:400 mm z-travel:330 mm table-size:400 x 710 mm spindle taper ISO:40 quill stroke:100 mm control:HEIDENHAIN TNC 335 table load:180 kg no. of flutes:8 groove width:14/45 mm tool taper:ISA 40 speeds::20 - 3000 /28- 4000 U/min feeds:infinitely variable1-1250 mm/min rapid traverse:5000 mm/min total power requirement:13 kW weight of the machine ca.:2500 kg dimensions of the machine ca.:2000 x 2800 x 2300 mm Documents:inkl. Zusatzinformationen ? Schile-Elektroschrank mit CNC-Steuerung Heidenhain TNC 355 ? Starrer Winkeltisch 710 x 400mm ? Spritzschutzverkleidung / Halbkabine ? Kopf nach Skala präzise drehbar über Kurbel ? Kopf komplett wegschwenkbar für horizontal Spindel

x-travel:850 mm y-travel:280 mm z-travel:355 mm total power requirement:8 kW weight of the machine ca.:4 t dimensions of the machine ca.:2 x 2 x2.40 m revolutions per minute: 28-1.400 U/min table-size:1.200 x 370 mm surface area:1.060 x 260 mm spindle taper:SK 50

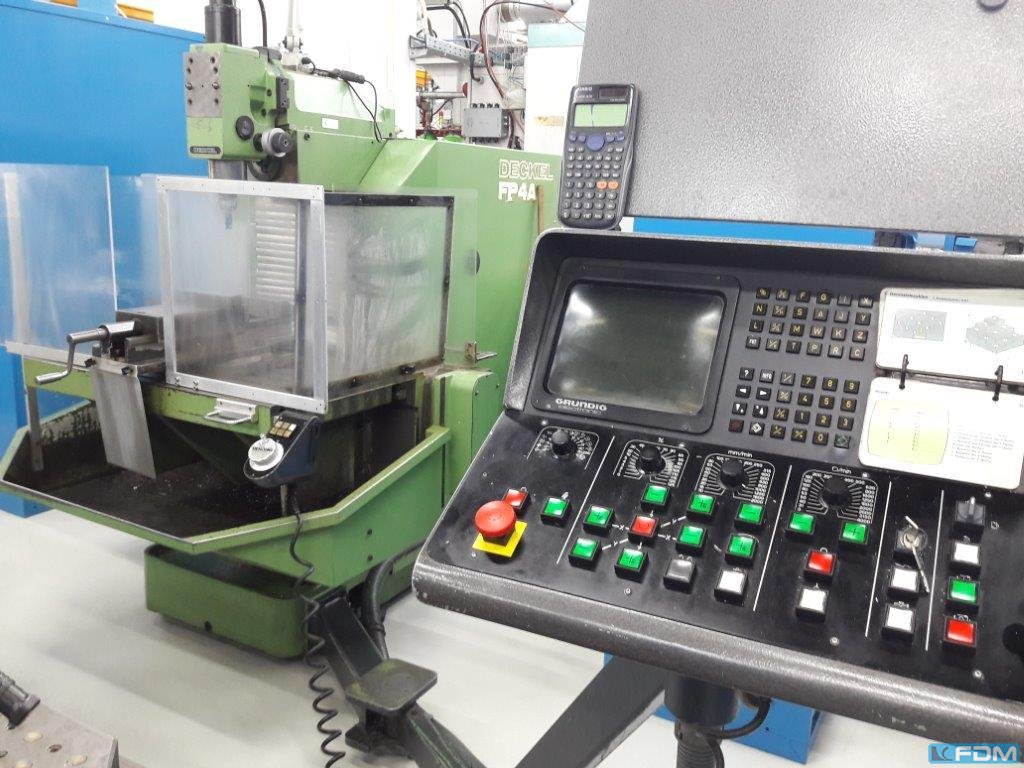

x-travel:560 mm y-travel:500 mm z-travel:450 mm total power requirement:16,5 kVA weight of the machine ca.:2700 kg dimensions of the machine ca.:2,30 x 3,0 x 1,90 m control:Grundig quill stroke:80 mm tool taper:SK 40 spindle speeds::40..4000 1/min feed:2 .3600 mm/min rapid traverse:4000 mm/min Documents:vorhanden

total power requirement:2,4 kW weight of the machine ca.:1150 kg dimensions of the machine ca.:1550 x 1615 x 1630 mm table clamping surface LxW:315 x 710 mm max. tool weight:200 kg T - slots distance:63 mm T - slots - width:12 mm taper bore:Spindel SK 40 spindle turning speed range:56 - 1800 U/min feed speeds:11,2 -355 mm/min Documents:vorhanden

x-travel:600 mm y-travel:400 mm z-travel:380 mm total power requirement:6 kW weight of the machine ca.:1700 t dimensions of the machine ca.:1800 x 2130 x 1980 mm Table dimensions:400 x 800 mm T-slots:7 St.,14 x50 table load:300 kg spindle:SK40 turning speed range:63-250 U/min speed steps work spindle:18 spindle speeds::50- 2500 n/min feeds:10-500 mn/min Documents:vorhanden

x-travel:500 mm y-travel:400 mm z-travel:340 mm work table::800 x 400 mm control:Numerik CNC - H 646 spindle turning speed - stepless:20 - 3000 U/min total power requirement:14 kW weight of the machine ca.:2400 kg dimensions of the machine ca.:2100 x 1800 x 2400 mm

x-travel:600 mm y-travel:500 mm z-travel:400 mm spindle diameter:90 mm spindle turning speed range:45 - 2000 U/min table length:1250 mm table width:200 mm groove width:14 mm table rotating:45 ° total power requirement:4,2 kW weight of the machine ca.:2000 kg dimensions of the machine ca.:2000 x 1800 x 1550 mm Year:ca.1957 Documents:vorhanden

spindle diameter:150 mm x-travel:10000 mm y-travel:2500 mm bore spindle stroke:700 mm ram stroke:700 dimension of the ram:340 x 340 mm spindle taper ISO:50 Speed of boring spindles:1,25 - 1250 U/min. feed speeds infinitely variable:1 - 5000 mm/min rapid traverse:5 m/min total power requirement:120 kW weight of the machine ca.:115 t dimensions of the machine ca.:15,1 x 10 x 6,4 m with CNC SIEMENS 840 Dsl complete retrofit in 2010 FIBRO CNC rotary table 2500 x 2500 mm, 50 to. loading capacity, longitudinal movement 2500 mm, angular milling head 4 x 90° universal milling head floor plate area ca. 12000 x 6000 mm ( 72 m²) chip conveyor and coolant attachment aerostatic guideways

spindle diameter:150 mm x-travel:3000 mm y-travel:2000 mm spindle stroke:700 mm dimension of the ram:340 x 340 mm ram stroke:700 column travel:1500 mm spindle taper ISO:50 bore spindle turning speed range:3,2 - 1600 U/min table surface area:2000 x 2500 mm max. table load:25000 kg rapid speed:5 / 10 m/min feed speeds:1 - 5000 mm/min total power requirement:100 kW weight of the machine ca.:57 t dimensions of the machine ca.:8,4 x 6,8 x 5,9 m with CNC SIEMENS 840 D full B-axis aerostatic guideways facing head ( 3,2 - 140 rpm ) angular milling head 1000 Nm coolant attahcmnet with internal cooling supply

x-travel:2500 mm y-travel:935 mm z-travel:1000 mm table surface area:I 1615 x 800 mm table surface area:II 800 x 800 mm spindle taper ISO:50 milling head speed:60 - 3000 U/min feed speeds:1 - 3000 mm/min rapid speed:10 m/min total power requirement:45 kW weight of the machine ca.:18,5 t dimensions of the machine ca.:5 x 5 x 4 m with CNC HEIDENHAIN TNC 426 Universa Milling Head -C-axis automatic Horiz-Vertical - Intermediate angles manual table II 800 x 800 mm as B-axis ( rotary table ) coolant attachment diverse accessories

spindle diameter:130 mm x-travel:2190 mm y-travel:1520 mm z-axis:1520 mm w-axis:1000 mm table surface area:2000 x 1800 mm workpiece weight:8 t spindle motor:18 kW spindle taper ISO:50 spindle turning speed range:4,5 - 900 U/min faceplate diameter:785 mm rapid traverse:5 m/min total power requirement:40 kW dimensions of the machine ca.:5,5 x 6,9 x 5,2 m weight of the machine ca.:35 t Machine was retrofitted in 2023 with HEIDENHAIN TNC 360 CNC control - inf. variable spindle spped - 4 x 90° table positioning - diverse toolholders - dDust exhauster

spindle diameter:120 mm x-travel:1250 mm y-travel:1250 mm z-travel:800 mm W-axis (spindle longitudinal):600 mm Speed of boring spindles:1- 2000 U/min. spindle taper ISO:50 table surface area:1000 x 1000 mm total power requirement:55 kW weight of the machine ca.:18 t with CNC HEIDENHAIN TNC 426 autom. toolchnager 40-pockets coolant attachment

x-travel:30000 mm y-travel:3600 mm z-travel:1900 mm milling head speed:1 - 4000 U/min spindle taper ISO:50 feed speeds:1 - 10000 mm/min rapid traverse:25 m/min milling spindle motor:46 kW total power requirement:85 kW dimensions of the machine ca.:45 x 8,7 x 5,5 ü.F. m with CNC HEIDENHAIN iTNC 530 autom. milling head indexing 2,5° floor plate field 31000 x 2500 mm ( 4 floor plates 6000 x 2500 mm + 1 floor plate 7000 x 2500 mm ) 2 chip conveyors, coolant attachment
