cnc vertical milling used for sale

x-travel: 630 mm y-travel: 500 mm z-travel: 500 mm Control: CNC total power requirement: 13 kW weight of the machine ca.: 4,5 t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Carousel contouring machine with 2 shafts (1 milling and 1 sanding) - Complete with 3-sided cab -Diam. max. machinable mm. 800

Heidenhain TNC 530, Table size 700 x 500 mm, Spindle holder CAT40, 24-position automatic, 10,000 rpm spindle Machine weight 7,500 kg, Connection 16 kW

Technical data shown on picture. Parts shown by hand not come.

x-travel: 820/850 mm y-travel: 300/330 mm z-travel: 485/505 mm weight of the machine ca.: 1,8 t dimensions of the machine ca.: 1670 x 1620 x 2500 m Further techniscal detals please consider pictures The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Offered is a Deckel FP4NC vertical milling machine with Heidenhain TNC 355 control. Year 1987, including tool cabinet as well as various tools. Travel distances: X/Y/Z: 560mm/500mm/410mm, dimensions X/Y/Z: approx. 1800mm/1600mm/2000mm, weight: approx. 2400kg. Viewing is possible by appointment.

Key data: 300 mm, 150 mm, 250 mm

Hello, We hereby offer you a used universal/vertical milling machine, type SH 4 D, from the manufacturer Steinel. Manufacturer: Steinel Model SH 4 D with vertical milling head FRP 3 Machine No. 8160 Travels X-Y-Z axis X = 300mm, Y = 150 mm. Z = 250mm. Table dimensions 740 x 200 mm Clamping surface 620 × 130 mm Spindle speed 32 – 1250 rpm Feed stages 0.2 / 0.32 / 0.5 / 0.63 / 1 / 1.6 mm/min Quill stroke / drilling spindle stroke 100 mm Power main motor 1.5 kW Weight approx. 800 kg Dimensions approx. 1,100 × 1,300 × 1,600 mm Conventional control Note: The aforementioned technical data have been taken from the operating instructions, brochures of the manufacturer or other sources, for which we cannot assume any liability for the correctness and completeness. Scope of delivery: 1 piece used Universal/Vertical Milling Machine, Steinel, Type SH 4 D Area of ap ...

Key data: 700 mm, 250 mm, 350 mm

Beautiful Rambaudi V2 XYZ= 700x250x350 The stroke of the upper ram is 400 mm Table dimensions 1070x300mm Quill with R8 cone Feeds and rapids on X Rapids on Z Feed up/down on the quill Spindle speed 65 to 4750 Head can turn Automatic Bird Lubricator DRO on 3 axes Some tools

GeneralPrecision centre - Linear drive package - Active cooling for spindle, linear drives and electrical cabinet - Frame temperatur control - Direct measuring system - Chiptray, coolant/airblast changing - Full cabin including 2nd door; Control: 3D-control Siemens 840D sl Operate Technical DataFeed rate longitudinal/transverse/vertical1-80000/1-80000/1-80000 mm/minSpindle taperHSK-A 63 Rapid traverse longitudinal/transverse/vertical80/80/80 m/minWorking area 1Longitudinal650 mmCross600 mmVertical380 mmTool changerType of magazineChain Type of gripperDouble gripper Number of tools120 Floor space/WeightDimensions (L x W x H)7,28 x 6,63 x 3 mWeight approx.9600 KgRigid tableRigid table clamping area 850 x 600 mm // 33,46 x 23,62 inch loading weight max. 700 kg // 1543,23 lbsSpindle speed up to 28,000rpm Shaft CoolingSpindle speed 20 up to 28,000 rpm within shaft cooling inclusive MPC Machi ...

x-travel: 380 mm z-travel: 140 mm dist. cutter spindle - workpiece spindle: 370 mm distance spindle - column: 163 mm table-size: 630 x 150 mm quill stroke: 40 mm milling head -swivable: 360 Grad spindle turning speed range: 120-2000 U/min table feed: 35/65/170 mm/min voltage: 380 V weight of the machine ca.: 130 kg total power requirement: 0,5 kW dimensions of the machine ca.: 0,91 x , 0,68 x 1,80 m Includes 32-piece collet set Includes base cabinet with key Includes small parts Includes operating instructions The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 4.000 mm y-travel: 1.200 mm z-travel: 2.000 mm Control: HEIDENHAIN iTNC 530 HSCI total power requirement: 40 kW weight of the machine ca.: 20 t dimensions of the machine ca.: 10,2 x 5,3 m High-performance CNC bed milling machine MTE BF 4200 equipped with HEIDENHAIN iTNC 530 control, ideal for precise machining of large and heavy workpieces up to 13,000 kg. The machine offers generous travels (X: 4,000 mm, Y: 1,200 mm, Z: 2,000 mm), a universal swivel milling head, and a 60-position tool changer. Fully refurbished, the machine is in very good technical and visual condition and ready for immediate operation. • Machine bed, column, and vertical saddle: cast construction, stress-relieved • Milling slide: cast construction • Universal milling head, positioned via Hirth splines, front plane 2.5°, rear plane 2.5° • Oil cooling unit for cooling the main gearbox • Spindle dr ...

Offered is a universal tool milling machine. Working area X/Y/Z: approx. 330mm/145mm/370mm, table clamping surface: 630mm × 180mm, spindle speeds: 63-3150rpm (across 8 steps), spindle mount: SK 30, connected load: 380V/16A, control: manual. Equipped with swiveling vertical head, manual axis feed via handwheels, T-slot table, integrated chip support tray. Overall dimensions X/Y/Z: approx. 1100mm/1200mm/1650mm. Inspection possible by arrangement.

x-travel: 1200 mm y-travel: 350 mm z-travel: 350 mm table-size: 1800x405 mm spindle taper ISO: 50 spindle turning speed range: 30-1800 U/min weight of the machine ca.: 4.4 t Misc accessories www.marcels-maschinen.ch The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 600 mm y-travel: 350 mm z-travel: 500 mm total power requirement: 3 kW weight of the machine ca.: 3 t dimensions of the machine ca.: 2,5 x 2,5 x 2,5 m No. 3701 Vertical console milling machine HESSAPP HC 50 et Working area: 600 x 350 x 500 Drive: 2,3 Control: Heidenhain TNC 135 / Indramat Table surface 1180 x 330 mm Speed range 70 - 6000 rpm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: ca. 900 mm y-travel: ca. 280 mm z-travel: ca. 400 mm total power requirement: 5 kW weight of the machine ca.: 3 t dimensions of the machine ca.: 2,52,52,5 m No. 5100: 1 used vertical milling machine FRITZ WERNER, type FV 2 The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

spindle diameter: - mm x-travel: 1250 mm y-travel: 630 mm Control: Heidenhain TNC 426 / 430 total power requirement: 48 kW weight of the machine ca.: 12 t dimensions of the machine ca.: ca. 5 x 6 x 4 m m CNC jig boring machine / vertical machining centre overhauled in 2000 Spindle ISO 50, speed range 30-3000 min-1 max. torque 522 Nm feeds 3-2000 mm, rapid traverse 10 m/min max. distance spindle nose - table surface 725 mm Projection spindle centre - stand 800 mm. Space requirement approx. 5 x 5 m, Weight approx. 12 tonnes The machine was completely overhauled and modernised in 2000 with digital drives and drives and Heidenhain control Fixed table 1200 x 710 36-fold tool changer, coolant system, the pictured magnetic clamping table is not included in the scope of delivery ! - Working area: 1250 x 630 x 560 Drive: 44 kW Control: Heidenhain TNC 426 PB The data for this ad was created with ...

DMG DMU 35M ist eine CNC Vertikalfräsmaschine mit 5 Achsen (3+2), ausgelegt für präzise, hochgenaue und zuverlässige Bearbeitung. Arbeitsvermögen: Tisch 400×280 mm, 5 T-Nuten 12H7 mm im Abstand 50 mm, Zentrierbohrung 30H6 mm, Drehbereich 360°, Schwenk +105/-15°, Tischbeladung max. 100 kg; Verfahrwege X350 Y240 Z340 mm. Technische Eckdaten: stufenloser Spindelbereich 20–6300 t/min, Werkzeugaufnahme SK40 DIN 69871, Anzugsbolzen DIN 69872, Frässpindelmotor 6.3/10 kW; Vorschübe 5000 mm/min, Eilgang 5 m/min; Druckluft 6 bar; 3x400 V 50 Hz; Gesamtleistungsbedarf 15 kVA; Gewicht ~1600 kg; Abmessungen L1860×B1700×H2100 mm. Zubehör: 4+5 Achse manuell, elektronisches Handrad, Kühlmitteleinrichtung, Beleuchtung. Erreicht enge Toleranzen; geeignet für Automotive, Uhrenindustrie, Werkzeugbau, Luftfahrt und Medizintechnik Technische Daten ohne Gewähr

KUNZMANN WF 4/3 ist eine CNC Vertikalfräsmaschine für Präzisionsbearbeitung mit hoher Genauigkeit und Zuverlässigkeit. Tisch 650×350 mm, 5 T-Nuten 14 mm (Abstand 63 mm), max. Werkstückgewicht 250 kg; Verfahrwege X 400 mm, Y 320 mm, Z 400 mm; Spindel-Tisch Abstand 140–540 mm; Kopf ±90°. Spindelaufnahme ISO 40, Drehzahlen 50–3300 min-¹ (stufenlos); Spindelmotor 5,5 kW; Gesamtleistungsbedarf 15 kVA; Eilgang X/Y 4 m/min, Z 3 m/min; Pinolenhub 60 mm; Gewicht ~1300 kg; Abm. 2000×1950×1900 mm; Geräusch 78 dB; Betriebsdaten: Einschaltzeit 6652 h, Betriebszeit 1584 h, Arbeitszeit 940 h. Zubehör: starrer Tisch, elektronisches Handbedienpult, Handräder, Spritzschutzkabine, Kühlmitteleinrichtung, automatische Zentralschmierung, RS232. Ermöglicht enge Toleranzen; geeignet für Automotive, Uhrmacherei, Werkzeugbau, Luftfahrt und Medizintechnik. Technische Daten ohne Gewähr

SIXIS S 2104 ist eine Vertikalfräsmaschine mit hoher Präzision, ausgelegt auf hohe Genauigkeit und Zuverlässigkeit in anspruchsvollen Bearbeitungen. Arbeitskapazitäten: Tisch 850 x 400 mm; Verfahrwege X 450 mm, Y 350 mm, Z 400 mm; Vertikalkopf schwenkbar 360°. Technische Daten: Spindelaufnahme 40 ISO mit stufenloser Drehzahlregelung von 50 t/min bis 4000 t/min; Vorschub 0–750 mm/min; Eilgang 30 m/min; Spindelmotor 6,8 kW; Anschluss 50 Hz 3x 380 V; Maschinengewicht ca. 1550 kg; Abmessungen L1700 x B1550 x H2250 mm. Ausstattung: Digitalanzeige für 3 Achsen. Ermöglicht enge Toleranzen; typischer Einsatz in Automotive, Uhrenindustrie, Maschinenbau, Luftfahrt und Medizintechnik Technische Daten ohne Gewähr

GeneralHSC-Precision Centre - Active chiller for main spindle and linear drives - Active chiller for electrical cabinet - Direct absolute measuring system with air purge - Coolant-airblast changeover - MPC (Machine Protection Control); Control: CELOS X with HEIDENHAIN TNC7 Technical DataSpindle taperHSK-E 50 Feed rate longitudinal/transverse/vertical1-80000/1-80000/1-80000 mm/minRapid traverse longitudinal/transverse/vertical80/80/80 m/minWorking area 1Longitudinal450 mmCross580 mmVertical460 mmTool changerApplicationVertical Type of magazineChain Type of gripperDouble gripper Number of tools60 Special equipmentFischer spindle 40,000 rpm with wave cooling 5-axis design Tool magazine 60 places HSK-E50 Production package high chip volume with IKZ (chip conveyor, rinsing gun, rotating viewing panel, AR flushing, IKZ 40 bar/600 1) Oil Mist Separator AFS BlowinSpecial equipmentPreparation aut ...

GeneralPrecision centre - Linear drive package - Active cooling for spindle, linear drives and electrical cabinet - Frame temperatur control - Direct measuring system - Chiptray, coolant/airblast changing - Full cabin including 2nd door; Control: 3D-Control Heidenhain TNC 640 Technical DataFeed rate longitudinal/transverse/vertical1-80000/1-80000/1-80000 mm/minSpindle taperHSK-A 63 Rapid traverse longitudinal/transverse/vertical80/80/80 m/minWorking area 1Longitudinal650 mmCross600 mmVertical450 mmTool changerType of magazineChain Number of tools30 Type of gripperDouble gripper Floor space/WeightDimensions (L x W x H)2,92 x 2,42 x 2,88 (3,0) mWeight approx.9600 KgHSC70 5-Axis SpecificationHSC70 with 5-Axis specification clamping area Ø 600 mm // Ø 23.61 inch swivel range B-axis +20/-110°; C-axis 360° table load max. 500 kg // 1102.31 lbs absolute measuring systems incl. permanent co ...

Vertical milling machine Mark ACE BJ 1998

Vertical milling machine Viktor 1 1/2 VA BJ 1976

Equipped with: has a table of 1350 × 320 mm, a longitudinal travel of 700 mm, a transverse travel of 240/260 mm, a vertical travel of 370 mm, 18 spindle speeds of 31.5–1600 rpm, a main motor of 7.5 kW, a number 3 spindle cone, a spindle bore of 29 mm, a swivel range of ±45°, a maximum workpiece weight of 250 kg Auction-ID: A1-47363-79

60 tool positions, tool clamping force 25 kN, control voltage 24 V, main fuse 160 A, connected load 60 KVA, rapid traverse/feed X/Y/Z axis each 20000 mm/min with 15000 N Auction-ID: A1-50260-7

x-travel:200 mm y-travel:100 mm z-travel:100 mm total power requirement:1,5 kW weight of the machine ca.:1,1 t dimensions of the machine ca.:0,6 x 0,6 x 1,8 m table-size:350 x 150 mm New class condition milling machine with vize and dividing head - Original year of manufacture unknown

x-travel:1660 mm y-travel:760 mm z-travel:660 mm weight of the machine ca.:8700 t dimensions of the machine ca.:4.320 x 3.380 mm distance spindlenose - table min./max.:808 mm distance work spindle /surface of the table:155 - 815 mm Machine height:2850 mm floor space required (w/o switchgear cabinet):4.320 x 3.380 mm spindle motor:11 (10 Minuten) /7,5 (30 Minuten)/ 5,5 (Dauerbetrieb) kW tool taper:SK 40 Spindle RPM:40 - 7.000 (Standard ) / 40 - 10.000 ( Option ) 1/min surface area:2.000 x 760 mm max. table load:1.000 kg feeds X-axis:1 - 5.000 mm/min rapid traverse X-axis:24.000 m/min rapid traverse Y-axis:24.000 feeds Y-axis:1 - 5.000 mm/min feeds Z-axis:1 - 5.000 mm/min rapid traverse Z-axis:20.000 m/min

groove width:40 mm x-travel:1300 mm throat:- mm y-travel:150 mm z-travel:200 mm tool taper:SK40 spindle speed::350 ? 4000 upm table clamping surface::1300 x 300 mm weight of the machine ca.:3,5 t Coolant system Dimensions: 1600 mm x 1500 mm x 1800 mm (L x W x H) Hydraulic system Partially overhauled

x-travel:1020 mm y-travel:510 mm z-travel:510 mm Table 1,200 x 530 mm Max. table load 800 kg Spindle mount ISO 40 Spindle speeds 10,000 rpm Drive power 14.5 kW Tool changer 20-position Coolant system External cooling Chip conveyor Yes The Y-cover is leaking (see photos)

x-travel:1400 mm y-travel:400 mm z-travel:500 mm total power requirement:ca. 7,5 kW weight of the machine ca.:ca. 2,7 t dimensions of the machine ca.:ca. 2,60 × 2,30 × 2,20 m The KNUTH KB 1400 is a conventional bed-type milling machine designed for precise milling, drilling and threading operations on medium to large workpieces. The robust bed construction ensures high rigidity and machining accuracy, even for demanding machining tasks. Thanks to its robust construction, the machine is ideally suited for use in mechanical engineering, toolmaking, maintenance, and in single-part and small-batch production. Technical data ·X-axis travel: 1,400 mm ·Y-axis travel: 400 mm ·Z-axis travel: 500 mm ·Table size: 1,700 × 400 mm ·Table load capacity: approx. 800 kg ·Spindle chuck: SK 40 (DIN 69871) ·Spindle speed: 40?2,000 min?¹ ·Main drive: 7.5 kW ·Machine weight: approx. 2,700 kg  ...

x-travel:630 mm y-travel:560 mm z-travel:560 mm total power requirement:10 /15 kW weight of the machine ca.:6500 kg dimensions of the machine ca.: 4,4 x 5,4 x 2,9 m Table dimensions:1000 x 610 mm Loading:400 kg rapid traverse::X 26, Y 26, Z 20 m/min speeds::20 - 12.000 min -1 tool taper:SK 40 Number of tools:20 ( 2 x 10 ) St. control:CNC MillPlus/TNC430 Documents:vorhanden

x-travel:800 mm y-travel:250 mm z-travel:350 mm table-size:1130 x 250 mm no. of flutes:4 groove width:14/25 mm taper MK:4 spindle turning speed range:56 - 2800 U/min total power requirement:9,5 kW weight of the machine ca.:2009 kg dimensions of the machine ca.:1400 x 1700 x 2800 mm Documents:vorhanden

Complete system with all accessories required for installation and operation, see below! Travels x = 7000 y = 1600 z = 800 / quill stroke w = 600mm General overhaul in 2007, year of production 1991: New control system Siemens Sinumerik 840D, new drive motors, guideways refurbished, new control cabinets. ECOCUT 1 was only operated for a few months thereafter Feed rate 12000 mm / min // w axis 6000 mm / min Xua2eg8fx Rotary table TDV 2 max. Workpiece weight 6t / clamping surface 1000x1000 Rotary table TDV 3 max. Workpiece weight 12t / clamping surface 1250x1600 Accessories: 2 like new angular crankset / chain tool change system / plate field / complete housing / Knoll funnel feeder / extraction / coolant system with belt filter All BWF fixators for installation of machine bed and panel

End Milling Machine Drill Milling Machine working width mm: 3200 Left - right swivelling saws from 0° - 45°. Complete with drilling unit Suitable for machining doors and door posts.

Univ. Tool Milling Machine DECKEL Type FP 1Masch. No. 33064 Year of construction approx. 1960 Overhauled in 2012Travel distances X: 300 mm Y: 150 mm Z: 330 mmTable size 600 x 210 mmSpindle holder MK 4 - S20 x 2Spindle speed vertical 95-1900 rpm. 12 stepsSpindle speed horizontal 60-1200 rpm. 12 stepsMotor power 1.1 and 1.4 kWNerg connection 380 volts, 50 Hz- Feed in the X and Y axis- Pinol displacement on the vertical milling head- Fixed angle table- Coolant device with mechanical pump in the machine foot-

Univ. Tool Milling Machine DECKEL Type FP 1Masch. No. 52185/08 Year of construction 1968Travel distances X: 300 mm Y: 150 mm Z: 340 mmTable size 600 x 250 mmSpindle holder SK 40 - S20 x 2Spindle speed 40-2000 rpm. 16 stagesMotor power 1.0 and 1.4 kW pole-switchableMains connection 380 volts, 50 Hz- Feed in the X and Z axis- Two motor speeds and 8 gear stages- Pinol shift on the vertical milling head 60 mm- Fixed angle table- Coolant device in the machine foot- Adjacent control cabinet- Counter holder

Univ. Tool Milling Machine DECKEL Type FP 1Masch. No. 51265/08 Year of construction approx. 1967Travel distances X: 300 mm Y: 150 mm Z: 340 mmTable size 600 x 2100 mmSpindle holder SK 40 - S20 x 2Spindle speed 40-2000 rpm. 16 stagesMotor power 1.0 and 1.6 kW pole-switchableMains connection 380 volts, 50 Hz- Feed in the X and Z axis- Spindle speed over 2 motor speeds and 8 gear stages- Pinol shift on the vertical milling head 60 mm- Fixed angle table- adjacent control cabinetSpace requirement L x W x H 1100 x

Univ. Tool Milling Machine DECKEL Type FP 1Masch. No. 28317 Year of construction approx. 1960Travel distances X: 245 mm Y: 150 mm Z: 340 mmTable size 600 x 210 mmSpindle holder horizontal MK 4 - S20 x 2Spindle speed vertical 95-1900 rpm. 12 stepsSpindle speed horizontal 60-1200 rpm. 12 stepsMotor power 0.8 and 1.1 kW pole-switchableMains connection 380 volts, 50 Hz spindle speed over 2 motor speeds and 6 gear stages- Feed in the X and Z axis coolant device with mechanical pump in the machine base

End mill, end mill, cutter, shell cutter, milling head, angle cutter, shell angle cutter, angle end mill, prism cutter -Angle milling cutters: Attachment angle milling cutters, prism milling cutters -Type: Ø85 x 35 mm -Hole: Ø 27 mm -Quantity: 1x milling cutter available -Dimensions: Ø 85 x 35 mm -Weight: 0.8 kg

High-precision multifunctional milling unit Auction-ID: A1-49756-99

MILLING MACHINE IMES-ICORE CORITEC 350i loader with its suction THE BEST MILLING ON THE MARKET Auction-ID: A1-49756-33

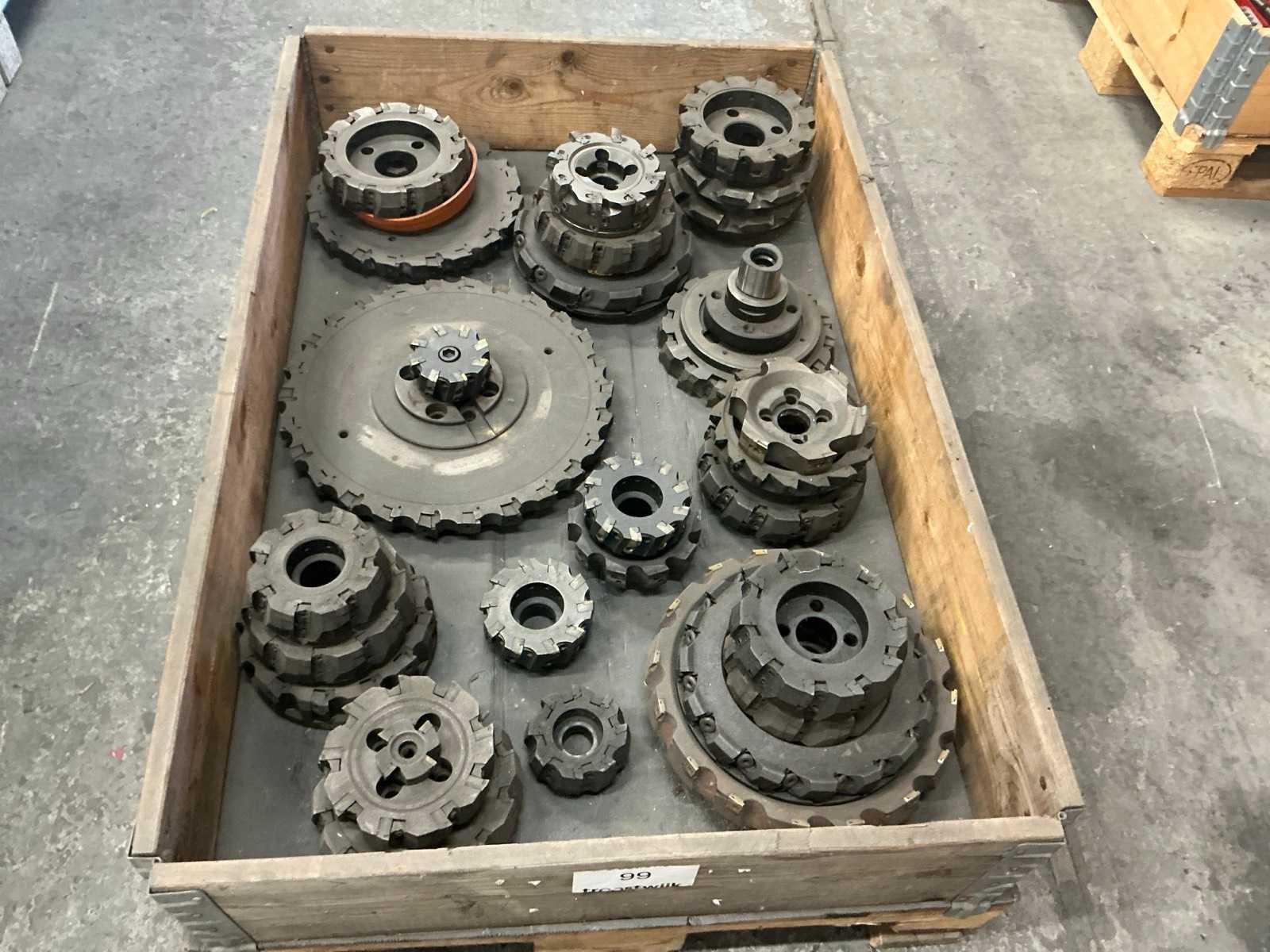

Various diameters, maximum 400 mm; approximately 26 pieces; including pallet box Auction-ID: A1-49785-99
