cnc vertical lathe used for sale

Number of spindles: 6 St. Working width: 230 mm Working height: 120 mm Length of the planing table: 2500 mm Feed motor: 4 kW Feed speed: 5-30 m/min. control: Memory-Funktion Weinig Powermat 400 with HSK/Powerlock, axial/radial CNC controlled ---------------------------------------------------------------------- - The machine renovated and functionally checked ! Short summary: ---------------------------------------------------------------------- - 6 spindles with 8,000 rpm 5 x HSK/Powerlock Axial and radial CNC adjustment of the spindles via control CNC - controlled adjustment and positioning of the feed Detailed description: ---------------------------------------------------------------------- - Technical specifications: Working width: 20-230 mm Working height: 8-120 mm Number of spindles: 6 1. Tool holder - below ------------------------------------------------ Motor with brake: 5.5  ...

3 assen: Y1 / Y2 / X Capacity: 160 ton x 3100 mm Backgauge: CNC Control: 2D Touch Passage between uprights: 2550 mm Max stroke: 200 mm Max distance between table -- ram: 400 mm Depth of throat: 300 mm Table width: 180 mm Locking speed: 100 mm/sec Working speed: 10 mm/sec Returning speed: 79 mm/sec Electric motor (power): 14 kW Length: 3500 mm Depth: 2350 mm Height: 2850 mm Weight: 9 ton

Opklapbare achteraanslag Cutting length: 3100 mm Max sheet thickness st 45: 12 mm Strokes/min: 7 > 17 str/min Backgauge: CNC SP8 - 1000 mm Adjustable cuttingedge: 0,5 > 3° Electric motor (power): 22 kW Length: 4050 mm Depth: 1900 mm Height: 2200 mm Weight: 10 ton

Type: EC-1600ZT voor het bewerken van grote onderdelen met geïntegreerde draaitafel met 4e as Tafeldiameter: 760 mm X-axes: 1626 mm Y-axes: 1270 mm Z-axes: 1016 mm Table dimensions: 1626 x 914 mm Max weight on the table: 4536 kg Admission in spindle (ISO): BT50 Power on the spindle: 22,4 kW Control: Haas Toolstore: yes Tools: 50 positions Frequency : 7500 rpm (460Nm) Length: 3378 mm Depth: 4928 mm Height: 4674 mm Weight: 14 ton ACCESSORIES: yes

Type: EC-1600ZT voor het bewerken van grote onderdelen met geïntegreerde draaitafel met 4e as Tafeldiameter: 760 mm X-axes: 1626 mm Y-axes: 1270 mm Z-axes: 1016 mm Table dimensions: 1626 x 914 mm Max weight on the table: 4536 kg Admission in spindle (ISO): BT50 Power on the spindle: 22,4 kW Control: Haas Toolstore: yes Tools: 50 positions Frequency : 7500 rpm (460Nm) Length: 3378 mm Depth: 4928 mm Height: 4674 mm Weight: 14 ton ACCESSORIES: yes

LVD PPEB 320 ton x 6100 mm CNC Capacity: 320 ton x 6100 mm Backgauge: CNC Control: Cadman B Touch Passage between uprights: 5050 mm Max stroke: 300 mm Max distance between table -- ram: 570 mm Depth of throat: 400 mm Table width: 200 mm Locking speed: 120 mm/sec Working speed: 14 mm/sec Returning speed: 130 mm/sec Electric motor (power): 42 kW Length: 8000 mm Depth: 3200 mm Height: 3775 mm Weight: 36 ton Capacity: 320 ton Bending length: 6100 mm

cutting diameter: 360 mm saw band length: 4870 x 41 x 1,3 mm cutting width: 360 mm cutting speed: 11 - 110 m/min : 4,0 kW height of the workpiece: 800 mm weight of the machine ca.: 2,1 t dimensions of the machine ca.: 2,3 x 1,9 x 2,2 m Automatic hydraulic band saw with - SIMATIC OP17 NC control - Single material feed 600 mm - Max. programmable length 6000 mm - Hydraulic saw blade tensioning (36–40 bar) - Motorized chip conveyor - Emergency stop device - infeed roller conveyor 4m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

pressure: 56.0 t chamfer lenght: 1400 mm distance between columns: 1300 mm throat: 220 mm stroke: 200 mm dayligth: 485 mm work speed: 8.0 - 10.0 m/min return speed: 35.0 mm/sec Control: CNC Boschert back stop - adjustable: 0 - 370 mm work height max.: 915 mm Cylinders :: 2 Stück voltage: 3x 400 V connected load: 8.0 kVA weight: 3700 kg very good / well-maintained condition () with lots of bending tools - in checked conditions - machine video - https://www.youtube.com/watch?v=NrpZs6Ar0Vo Equipment: - NC electro-hydraulic press brake - BOSCHERT NC control unit, front - NC electro-motorized back stop (X axis) with 2x manually adjustable stop fingers (R+Z axis) - AMADA PROMECAM (SYSTEM A) upper tool holder - AMADA PROMECAM (SYSTEM A) lower tool holder - Handwheel with analog display for adjusting the bending angle - lots of insert tools, including tool cabinet - 1x working cylinder = dou ...

dimensions of the machine ca.: 6,2 x 3,4 x 2,6 m weight of the machine ca.: 9,6 t power requirement: 22 kW Control: FAGOR 8055i table-size: 1800x500 mm long. travel of table: 1660 mm table weight: 1700 Kg cross travel: 600 mm number of spindle speeds: 1500 U/min/rpm spindle drive: 12 kW -Usable grinding area 1,500 x 680 mm -Max. distance table – grinding wheel center 625 mm -Infinitely variable table speed 2–28 m/min -Cross-feed speed 0.02 – 5 m/min -Vertical feed speed 0.02 – 2 m/min -Infinitely variable table speed control Included -Max. grinding width (with 80 mm wheel) 680 mm -Smallest programmable CNC increment 0.001 mm -Grinding wheel dimensions Ø 400 x 80 x 127 mm -FAGOR servo motors and drives for 3 axes (X, Y, Z) Included -Electromagnetic chuck (high density) Included -Electromagnetic chuck dimensions 1,500 x 600 mm -Coolant filtration system with paper filt ...

- Max afstand tussen de punten: 7100 mm - Max bewerkingslengte: 6600 mm - Max werkstukgewicht tussen de punten: 18 ton - 2x 2 brillen worden meegeleverd met de machine - Max conische slijphoek: 10° - Max concaaf/convex slijpen: max 12,7 mm van de diameter - 1 bed met slijpkop (in twee delen over de lengte) en 1 werkstukbed met aandrijfkop en tegenpunt. - 1 filtereenheid - 1 elektrische kast Center distance: 7100 mm Max dia of the workpiece: 1100 mm Control: Num 1060 Motorpower: 90 kW Weight: 126 ton

LVD-gereedschap 4 assen: Y1 / Y2 / X / R 2 beweegbare plaatsteunen Capacity: 80 ton x 2100 mm Backgauge: CNC Control: 2D Touch Passage between uprights: 1550 mm Max stroke: 200 mm Max distance between table -- ram: 400 mm Depth of throat: 400 mm Table width: 120 mm Locking speed: 130 mm/sec Working speed: 10 mm/sec Returning speed: 113 mm/sec Electric motor (power): 12,5 kW Weight: 6 ton Capacity: 80 ton Bending length: 2100 mm

dist. between centers: 6.000 mm greates pass round over bed: 1.200 mm swing diameter over slide transversal: 1.000 mm rapid traverse feeds: X/Z 10.000 mm/min guideways: 4 St. cross travel: 530 mm centre height: 600 mm control: FAGOR 8055 TC : main spindle speeds:: 20-1.600 U/min main drive motor: 42 kW spindle passage: 150 mm transmission ratio: 2 Turret: DUPLOMATIC Revolver station: 8 tools dimension: VDI-50 tail stock: tailstock quill diameter: 180 mm total power requirement: 61 kW weight of the machine ca.: 20 t dimensions of the machine ca.: 11.210 x 3.700 mm Equipment C-axis + live tooling Ø 800 mm 4-jaw independent chuck 3-point steady rest, Ø 50 -500 mm 3-point steady rest, Ø 50 - 520 mm 3-point steady rest, Ø 480- 930 mm MORARI hydraulic self-centering steady rest, capacity 50 - 315 mm MORARI hydraulic self-centering steady rest, capacity 280 - 540 mm Motorized tailstock V- ...

Spindle diameter: 110 mm Travel: X: 1985 mm Y: 1620 mm Z: 1260 mm W: 710 mm Table surface: 1400 x 1600 mm Spindle taper: ISO 50 Control system: HEIDENHAIN TNC 426 Maximum table load: 6300 kg Feed rate: 5 m/min Working feed rate: 5 to 2500 mm/min Spindle speed: 6 to 1250 rpm Motor power: 33 kW Total power: 90 kW Table rotation: 360° Weight: 25400 kg

grinding length: 5200 mm grinding width: 1000 mm workpiece height: 320 mm Control: Siemens 840D Passage width: 1300 mm grinding height: 320 mm grinding motor: 306 kW grinding motor turning speeds up to: 320 U/min grinding motor feed, infinitely variable: 0,5-35 m/min grinding motor adjustment in steps: 0,002-1 mm grinding motor adjustment, continuously stepless: bis/upto 5 mm/min dimensions of the machine ca.: 11,21 x 3,2 x 3,85 m CNC production surface grinding machine with segment head Equipment / Accessories: - with segment head, diameter 1400 mm segment head dimensions: 120/106 x 41 x 250 mm number of segments: 1 set = 26 pieces - with electro-magnetic table 5200 x 1300 mm - Marposs measuring control travel (Z1 axis), vertical: 420 mm - coolant flow rate 2000 l/min lifting station 2x pump for 1000 l/min The data for this ad was created with ModulMWS - the software solution of L ...

Martin T26 tilting table spindle moulder with CNC 4-ax control Manufacturer: Martin Type: T26 CNC Year: 2002 Control: 4-ax CNC Control Control panel: eye-level Remark: Special paint Martin 75 Years Ral 7035& 6004 Motor: 7.5/9.5 kW – twin-speed motor Tilting: -45 tot + 45° Spindel diam.: ø40 mm spindel SK40 – Dornfix-quick change Spindel elevation: Electric spindel elevation 150mm (2 speed) Spindel elevation Electric-pneumatic spindel lock (Tool changing) Central greasing Rotation speed: Twin-speed 3000-6000 rpm or 4.500-9000 rpm, electronic display, electric -automatic brake Spindel pick-up: Dornfix-quick change spindel Table: Table extension, infeed and outfeed 2405mm long, frontside support 3000mm long, frontside extension 700mm Control panel: 1. CNC-controlled spindel elevation, with automatic dept and height control when spindle is tilted 2. CNC-controlled spindel tilting, with ...

CNC Machining Center Kunzmann WF 600 CNC Control: Heidenhain TNC 640 Year of Make: 2015 Internal machine number: 76 Travels: X-axis 600 mm Y-axis 400 mm Z-Axis 400 mm Z-Axis 400 mm Mount: SK 40 DIN69871 Speed: 1 - 5,000 rpm

HAUSER S 50 CNC 311 ist eine CNC Koordinatenschleifmaschine, die Präzision, hohe Genauigkeit und Zuverlässigkeit für anspruchsvolle Schleifaufgaben bietet. Ausführung 2-Ständer, Tisch 1020×860 mm, Längsweg X 900 mm, Querweg Y 600 mm, Weg Vertikalschlitten 635 mm, Durchlass Spindel-Tisch 750 mm, Durchlass zwischen Ständern 950 mm; größter Schleifdurchmesser 230 mm (360 mm mit Auslegerplatte); Konusschleifen bis 16°. Technische Daten: Z-Hub 0–170 mm stufenlos, Hubgeschwindigkeit Z 1–12000 mm/min, Hubfrequenz 6 Hz, radiale Feinzustellung U max 6 mm, Planetenbewegung C 5–300 t/min, Schleifspindel 4500–80000 t/min (Luftturbine 160000 t/min); Anschluss 3×400 V 50 Hz, Gesamtleistung 9 kVA; Gewicht ~6300 kg; Abmessungen 3000×2500×2870 mm. Ausstattung: retrofizierte Steuerung, Satz Schleifstifte/Maschinenschraubstock, Schleifmotoren 45 S/45 ST, C-Achse; Maschine revidiert 20 ...

• Incl. left roller conveyor • Roller conveyor width: 240 mm

drill diameter:5,,,,40 mm drilling length:600 mm lip angle:90-150 ° total power requirement:4,5 kW weight of the machine ca.:0,8 t dimensions of the machine ca.:2-2-2 m CNC programmable according to ISO Point angle 90-140 degrees, disc stroke x 80mm y 80mm grinding wheel 6mm to 150mm ceramic or CBN speed 2500 to 6000 rpm Grinding options - 3 facets 6 surface grinding (Renault patent) - conical surface grinding with cross-section correction / point thinning / cross point. / Type 2/1 Avyac grind / 4 faces gr. Cross for deep drill

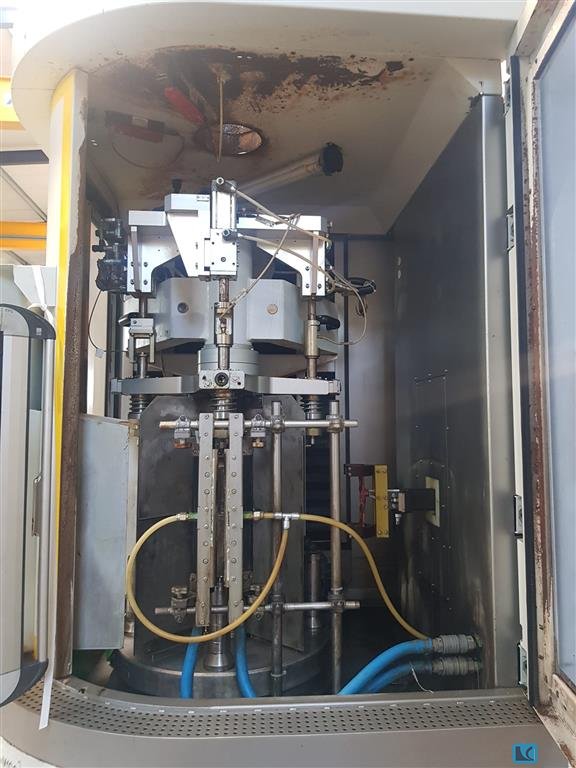

total power requirement:413 kW Induction hardening machine Rotary table Eldec: Z (servo drive 750 mm Y (electromechanical) 300 mm X (electromechanical) 200 mm Maximum part diameter 600 mm Maximum workpiece weight 500 kg High frequency generator type HFG 200 Medium frequency generator type MFG 30

max. wheel diameter:210 mm total power requirement:60 kW weight of the machine ca.:8 t dimensions of the machine ca.:2,85 x 2,60 x 1,80 m grinding slide feed:700 mm grinding slide feeds:1-15.000 m/min max. workpiece weight:150 kg centre height:260 mm grinding wheel diameter:240 mm

rotor dia:30-500 mm hobbing length:500-1000 mm total power requirement:80 kW weight of the machine ca.:15 t dimensions of the machine ca.:3,6 x 2,5 x 3,0 m max. module:8 Max. module Et milling = 12 Max. module hobbing = 12 Max. axial travel = 110 to 1100mm Max. cutter speed = 300rpm Max. cutter displacement tangential = -350 to -55mm Max. table speed = 100rpm Table drive: torque motor Filter system: chip conveyor is for magnetic materials, belt filter is for all suspended matter that floats in the oil Including milling mandrel

grinding length:600 mm grinding width:250 mm workpiece height:380 mm :Sinumerik max. dia. of grinding wheel:300 mm weight:4000 kg total power requirement:12,5 kW grinding wheels:Ø 400 mm max. width of grinding wheel:100 mm grinding wheel hole diameter:127 mm turning speeds:470 - 12030 1/min x-axis:600 mm y-axis:300 mm z-axis:250 mm grinding range:450 x 200 mm distance spindle nose and table:500 mm table load:250 kg dimensions of the machine ca.:2600 x 2100 x 2400 mm switchgear cabinet:1300 x 800 x 2000 mm hydraulical unit::450 x 350 x 500 mm Documents:vorhanden

spindle diameter:160 mm x-travel:6500 mm y-travel:3000 mm W-axis (spindle longitudinal):1000 mm dimension of the ram:400 x 420 mm ram stroke:1000 mm bore spindle turning speed range:1 - 2000 U/min spindle taper ISO:50 feed speeds:2 - 6000 - 8000 mm/min rapid speed:8/10 m/min total power requirement:100 kW weight of the machine ca.:76 t dimensions of the machine ca.:12 x 4 x 7,5 ( 5,4 ü.F. ) m with CNC Steuerung HEIDENHAIN iTNC 530 autom. toolchanger 40-pockets autom. Pickup Station for universal milling head, and facing head rotary table 2500 x 2500 mm , max load 25 to. 1500 mm longitudinal movement floor plate 4000 x 2000 mm measuring probe, chip conveyor and coolant attachment

grinding length:1250 mm grinding width:600 mm workpiece height:730 mm table surface area:1720 x 500 mm headstock: dist. table - spindle center:900 mm max. longitudinal movement:X-1450 feed range:10 - 20.000 mm/min vertical movement:Y-730 mm feed range:0,2 - 3.000 mm/min cross travel:Z-550 mm feed range:5 - 5.000 mm/min power capacity:1500 U/min.- 44 kW / 8000 U/min. - 38 kW kW grinding wheel turining speeds:50-6.000 U/min cutting speed:max. 80 m/sec. weight of the machine ca.:11 t with CNC SIEMENS 840 C auto. dynamic balncing system integrated in the grinding conus profile grinding unit ( on table mounted ) Diamant profile rollers ( dia. max 140 mm , width max. 200 mm, hole 52 H3 ) speed 3000 rpm two magnetic plates ( 1000 x 400 mm, 1200 x 350 mm ) divers Flanges ect.

L + Z lathe HOLZMANN type ED 914GNMasch. No. 20265 Year of construction 2006Center width 800 mmTurning diameter over bed 300 mmCenter height over bed 150 mmTurning diameter over support 190 mmCenter height over support 95 mmSpindle bore 38 mmSpindle speed 70 - 1400 rpm. 9 stepsFeed longitudinal and flatChuck flange Short taper DIN 55029 D1-4 Camlock 63 mmTailstock inner taper MK 3Drive power 1.5 kWNet connection 400 volts, 50 Hz- Spindle speed over 9 gear stages - 4-jaws

CNC Vertical Lathe VTL with Tool Changer.You Ji GTH-35/45 ATC-I.Year of manufacture 2012.Fanuc 0i-TD CNC Control.Face plate diameter 3500 mm.Hydrostatic table - Load max. 50 t.Swing diameter max. 4500 mm.Turning diameter max. 4000 mm.Turning height max. 2200 mm.Ram cross travel X -1750/+2160 mm.Ram vertical travel Z 1500 mm.Table drive 60/75 KW.Table turning speeds 2 ~ 75 mm.Torque at the table 67330 Nm.Tool magazine with 16 positions.Tool taper 7/24 BT 60.Floor space required 12375 x 8210 mm.Machine height 7920 mm.Full guarding.3-colour signal lamp (tower).AS NEW - 200 run hours !Available immediately.; As new

Table diameter: 2,000 mm Max diameter of workpiece: 3,000 mm Main drive: 60 KW Speed rotation of the table: 2.8 - 162 rpm Max workpiece height under the cross member: 2,500 mm Travel RAM: 1,750 mm Tool magazine: 12 workstations Machine Weight: 35 t Accessories: Grinding spindle and various tool holders 3000 rpm Wheel diameter 250 mm

An Emag vertical CNC lathe is available. Clamping chuck diameter: 250mm, max. circulation diameter: 270mm, max. machining diameter: 250mm, max. machining length: 175mm, speed: 4500rpm, tool positions: 12, tool holder: VDI 40, travel X/Z: 660mm/300mm, rapid traverse X/Z: 60m/30m/min. Machine dimensions X/Y/Z: approx. 4300mm/1600mm/3300mm, weight: approx. 7500kg, control: Fanuc Series 32i-Model A, operating hours: 64137h. Including automatic loading and unloading with pick-up spindle and integrated part diverter and workpiece storage. Documentation available. On-site inspection is possible.

DÖRRIES SCHARMANN VCE 3000 / 280 CNC Vertikaldrehmaschine Modernisierung: im Rahmen des Retrofits im Jahr 2014 auf Siemens SINUMERIK 840D SL Arbeitsbereich Tischdurchmesser: 2.800 mm Max. Umlaufdurchmesser / Drehdurchmesser: 3.000 mm Max. Tischbelastung: 25.000 kg Max. Drehhöhe: ca. 2.100 mm Verfahrweg X-Achse: ±1.550 mm Verfahrweg Z-Achse / RAM-Hub: 1.500 mm Hauptantrieb und Spindeln Hauptantrieb: Siemens-Hauptmotor Antriebsleistung: 130 kW Max. Spindeldrehzahl: 4.500 min⁻¹ Betriebsart: S6, 40 % Ausstattung: 2 vertikale Spindeln Werkzeugwechsler und Peripherie o    2 automatische Werkzeugwechsler o    Kühlschmierstoffanlage o    Späneförderer o    Ölnebelabsaugung o    2 separate Hydraulikaggregate Betriebsstunden: ca. 12.571 Stunden laut mechanischem Betriebsstundenzähler

- Chainring diameter 1600 mm. - Maximum machining height approx. 1250 mm. - Maximum turning diameter 1850 mm. - Maximum permissible weight on the chainring 5000 kg. - Platter rotation speed from 5 rpm to 195 rpm. - Horizontal movement (X): 1200 mm. - Vertical movement (Z): 700 mm. - Motorized tool turret with 4 positions. - Main motor power 37 kW. - FAGOR 8055 numerical control. - Chip extractor. - Hydraulic unit and lubrication/cooling tank included. - Includes metal shelf with tooling and machining accessories visible in the photographs. - Includes 2 metal cabinets with their contents, consisting of turning tools, tool holders, screws, lanyards, fixing tools and various accessories. - The waste container shown in the photographs is NOT included. - Operating conditions of this item without checking. Auction-ID: A7-48839-50

Vertical band saw HESKA type ESA 4Fabr. No. 681174 year of construction approx. 1985Roller diameter 420 mmThroat depth 400 mmTable size 500 x 500 mmCutting height 285 mmSaw blade length min. 3200 - max. 3400 mmSaw blade speed Gear stage (1) 15-140 m/min. Saw blade speed gear stage (2) 150-1400 m/min. Motor power 1.5 kWNet connection 380 volts, 50 Hz - stepless saw blade speed via PIV gearbox with handwheel adjustment and 2 gear steps - saw table swivel in 2 axes -

Vertical band saw MÖSSNER REKORD type SM 420Masch. No. 17010 Year of construction 1968Roller diameter 420 mmRadius in width 415 mmRadius in height 265 mmTable size 605 x 600 mmBelt speed 18 - 562 m/min. 8 stepsSaw blade length min/max. 3150 / 3260 mmDrive power 1.1 / 1.7 kWNet connection 380 V 50 Hz- Saw blade speed over 4 gear stages and 2 motor speeds- Saw blade butt welder IDEAL BS 0-16 with scissors and grindstone- swivelling work table in 2

Vertical band saw JAESPA type MSU 4Fabr. No. 724749 year of construction approx. 1980Roller diameter 420 mmProjection 400 mmTable size 610 x 610 mmCutting height 260 mmSaw blade length min. 3200 - max. 3400 mmSaw blade speed 10-1500 m/min. infinitely variableMains connection 400 volts, 50 Hz- infinitely variable saw blade speed via 2 gear stages and infinitely variable via belt drive- Saw table swivel- Saw blade butt welding machine IDEAL BS0-16- Saw blade shear- Sharpening stone for grinding the weld seamSpace requirement L x W

Thimonier THB9200 Vertical Form Fill & Seal Filling Machine (2021) 50-500ml berlingot (pillow-style triangular pouch) Liquids & viscous products (including corrosive detergents) Auction-ID: A1-48805-2

Thimonier THB9200 Vertical Form Fill & Seal Filling Machine (2021) 50-500ml berlingot (pillow-style triangular pouch) Liquids & viscous products (including corrosive detergents) Auction-ID: A1-48805-1

Machine weight: 20,000 kg Faceplate diameter 1250 mm Number of supports: 1 pcs Dimensions: height 4250 mm width 5630 mm depth of 3550 mm Extras: copying apparatus, turret head on the vertical support Technical condition at the time of sale: Replacement rotary amplifier on thyristor converter. Not operated since 1994 p. Small repair and adjustment of electrical and mechanical parts. The maximum dimensions of a workpiece Height 1150 mm The diameter of 1400 mm Weight 8000 kg

INDEX - V 300 Y/B Stock number 1039-9419 Country of origin Germany - incl. 24 pos. Pallet circulation system Schnaithmann - Incl. ball screw as spare part - Incl. 39x driven tools - Incl. 39x tool holders Technical details Circumferential diameter max. 450 mm Chuck diameter 400 mm Control Siemens 840D (Index) Main spindle: Max. speed 4,200 min/-1 Drive power - main spindle ( 35.5 / 56 ) kW Max. torque ( 340 / 550 ) Nm C-axis 0.001 ° Tool turret: Number of tool positions 2x 12 pos powered stations 2x 12 pos VDI 30 tool system Max. speed of the applied speed Tools 6,000 rpm Drive power - applied Tools 9.5 kW Max. torque 40%: 19 Nm Y - axis +/- 90 mm B-axis +270° / -90° Travels: x-axis 730 mm z-axis 340 mm y-axis +/- 90 mm B-axis +270° / -90° Feeds: Rapid traverse X: 40 / Z: 30 m/min Pallet changer: Number of pallets 24 pos. Pallet size 410 x ...

chuck diameter, mm 7100 (8000) Max. work piece diameter, mm 8000 Max. work piece height, mm 3200 Max. work piece weight, kg 125000 Chuck speed, rpm 0,22...20,1 Max. ram movement of vertical support, mm 2000 Max. movement of vertical, mm 4275 Support feed range, mm/min 0,0352...285 Support rapid feed, mm/min 2500 Supports possible work angle, deg. -15...+40 Jaws, units 4 Machine overall dimensions, mm 8615 x 17600 x 9800 Machine weight, kg app. 247300

CNC vertical lathe Type: SKJ 12 NC Manufacturer: TOS Modernization: 2002 Control: Mefi CNC 856 Max workpiece diameter: 1400 mm Clamping plate diameter: 1250 mm Maximum workpiece height: 1150 mm Maximum workpiece weight: 6000 kg Clamping plate speed: 2.5 - 225 rpm Main motor power: 37 kW Machine weight: 13000 kg In good condition, fully functional Find more here - .ucymachines/ Contact us at - sales@ucymachines

CNC Vertical Turret Lathe with C axis and live tool 3 Turning Plates Changer (translating pallet system) EQUIPPED WITH: Siemens Sinumerik 840C CNC Control (2015 Retrofit) Vertical Ram with Live Spindle Pallet Changer (3-Pallets) 16-Station Automatic Tool Changer C-Axis Table Year 2005 CNC Siemens 840 C Max. turning dia.: 2200 mm Max. turning height: 1800 mm Ram travel: 1500 mm Main drive: 75 kW Live spindle: 15 kW Spindle rotations: 45- 1350 1/min Max. workpiece weight: 12 000 kg Pallet changer with 3 pallets (turning plates) Tool magazine: Right: 8 turning tools Left: 8 boring/milling tools Feeds: 0,1-6000 mm/min Carriage feed: Vertical: 1500 mm Horizontal: 1320 mm Table rotation (2 ranges): 2,5 – 70 / 10-280 Max. table torque: 50 000 Nm Machine weight: 43 Ton Machine HxWxL: 6,8 m x 10 m x 9,7 m

Dörries Contumat VCE 2000-160Year of manuf. : 1991 Control : Siemens 840 Dsl Turning diam. : 1600 mmTurning length : 1800 mm____________Description:In General:Year of manufacture:1991 / 2010Control system retrofit:2010Control system:Siemens 840 DslCircumferential diameter:2,000 mmTurning diameter:1,600 mmTurning height:1,800 mmTable / Faceplate:Technology:Gear-driven tableSpeed:315 rpmPower:105 kWMax. torque:50,000 NmFaceplate:1,600 mmMax. table load:12,000 kgTool carrier:Crossbeam travel (vertical):1,200 mmChisel slide travel:1,500 mmSupport travel (horizontal):2,300 (+/-1,150) mmPenetration diameter:340 mmChisel slide cross-section:240 x 240 mmEquipment:Tool magazine:20 stationsChip removal:Chip conveyorCoolant supply:Coolant system with filterTool measurement:ProbeSet-up:Electronic handwheelTool holders:Various tool holdersControl system overhaul:Year of overhauling:2010Technol ...

CONTROLS   CNC controls FANUC BASIC FUNCTIONS   number of spindles: 1   number of turrets: 1 WORKING RANGE TURNING   turning diameter (max): 220 mm   worpiece length max.: 175 mm MAIN SPINDLE   spindle revolutions (max): 6000 /min X/Z SLIDE   Z-axis travel: 300 mm   X-axis travel: 660 mm ELECTRICAL SPECIFICATIONS   total power consumption: 36 kW   mains voltage: 400 V   mains frequency: 50 Hz DIMENSIONS / WEIGHTS   space requirements -left/right-: 3820 mm   space requirements -front/back-: 2040 mm   total height: 2400 mm   total weight approx.: 6500 kg

Max. turning diameter: 1000mm, max. swing diameter: 1250mm, max. workpiece diameter: 1000mm, max. workpiece length: 850mm, max. workpiece weight: 1000kg, X/Z travel: 1250mm/1000mm, max. speed: 900rpm, feed rate: 14m/min, rapid traverse: 20m/min, spindle nose: DIN 55026 short taper size A15, tool interface: DIN 69880 VDI60 tool holder, spindle diameter at the front bearing: 240mm, control: Siemens Sinumerik 840D. Machine weight: approx. 25t, space requirement: 85m². Equipment: SMW IN-D 1000 chuck, chip conveyor. The machine has no driven tools. Documentation available. Inspection possible by appointment.

CONTROLS   CNC controls SIEMENS BASIC FUNCTIONS   number of spindles: 2   number of turrets: 1   number of c-axes: 2 WORKING RANGE TURNING   turning diameter (max): 100 mm   worpiece length max.: 150 mm MAIN SPINDLE   spindle revolutions (max): 6000 /min TOOL MAGAZINE   number of positions: 12 ELECTRICAL SPECIFICATIONS   total power consumption: 36 kW   mains voltage: 400 V   mains frequency: 50 Hz DIMENSIONS / WEIGHTS   total weight approx.: 7000 kg ATTACHMENTS (TURNING)   hydraulic system: yes   European CE standards: yes Machines in good condition: - Integrated pick-up automation - Two EMAG machines configured in a line are for sale. - A robot destacking unit with 100% parts inspection can also be purchased.

Daewoo Puma V 550Year of manuf. : 2001 Control : Fanuc 18i-T Turning diam. : 730 mmTurning length : 750 mm____________Description:In General:Year of manufacture:2005Control system:Fanuc 18i-TMax. speed:2,000 rpmTurning diameter:730 mmTurning height:750 mmX-axis:390 mmZ-axis:780 mmChuck diameter:600 mmTool turret:8 stationsEquipment:Chip removal:Chip conveyorCoolant supply:Coolant pumpChuck:3-jaw chuck

Daewoo Puma V 550Year of manuf. : 2005 Control : Fanuc 21i-TB Turning diam. : 730 mmTurning length : 750 mm____________Description:In General:Year of manufacture:2005Control system:Fanuc 21i-TBMax. speed:2,000 rpmTurning diameter:730 mmTurning height:750 mmX-axis:390 mmZ-axis:780 mmChuck diameter:600 mmTool turret:8 stationsEquipment:Chip removal:Chip conveyorCoolant supply:Coolant pumpTool measurement:Renishaw tool setterChuck:SMW Autoblok 3-jaw chuck

faceplate diameter:4000 mm swing diameter:4300 mm turning height:2500 mm max. workpiece weight:63 t total power requirement:125 kW weight of the machine ca.:134 t dimensions:6100x10400x8400 mm Used Vertical Turret Lathe with 2 plungers and CNC Siemens 840 table is hydrostatically. Machine equipped with a grinding head. CNC was overhauled in 2000.
