cnc vertical lathe used for sale

turning diameter: 275 mm turning length: 900 mm control: TRAUB TX8i Main- opposite spindle: spindle passage: 65 mm power capacity at 100 % load: 25,20 kW power capacity at 40 % load: 30,20 KW max. torque at 40% / 100% load: 180 / 135 Nm spindle turning speed - stepless: 1 - 5.000 U/min spindle diameter in front bearing: 110 mm C-axis: 1 - 500 U/min worktool support: No. 1 x-axis: 290 mm y-axis: 165 mm z-axis: 600/950 mm B - axis: 360 ° rapid traverse X/Y/Z: 18 / 18 / 30 m/min feed capacity X/Y/Z: 10 / 10 / 7 kN number of tools: 2x2 + 2x2 number of driven tools: 2x2 + 2x2 mm toolpiece turning speed range: 8.000 / 2.000 U/min power capacity at 25 % load: 5,80 kW max. torque at 25% load: 4x18,6 / 4x74 Nm tool taper: TRAUB Ø60 worktool support: No.2 / No.3 / No.4 x-axis: 170 mm z-axis: 600/950 mm y-axis: +/- 60 mm rapid traverse X/Y/Z: 18 / 15 / 30 m/min feed capacity X/Y/Z: 10 / 10 / 7 k ...

Deckel FP4MA 2204 - CNC Tool Milling Machine - 2022 refurbished - Heidenhain TNC320 CNC control - CNC or manual control possible - Movable vertical milling head with extendable spindle - Counter bearings for long milling mandrels - Hydraulic tool clamping - Automatic manual transmission - Automatic clamping in the X, Y and Z axis - Automatic central lubrication - Coolant device - Direct displacement measurement - Anti-collision clutch in the Y and Z axes - Year of construction 1988 - Incl. tool holders, drilling/milling tools & tool trolleys Specifications Working Range: - X-axis (longitudinal): 485 mm - Y-axis (transverse): 385 mm - Z-axis (vertical): 380 mm - Quill stroke (vertical): 80 mm - Vertical milling head can be moved manually on the headdle block: 150 mm Main Drive: - Pole-switchable three-phase brake motor: manual transmission with clockwise/cou ...

Bridgeport Interact 1 CNC Milling Machine Type: CNC milling machine Manufacturer: Bridgeport Model: Interact 1 X-axis travel: 457 mm Y-axis travel: 305 mm Z-axis travel: 365 mm T-slot table size: 410 x 1065 mm Speed range: up to 4000 rpm Machine weight: 1600 kg Dimensions (L x W x H): approx 1700 x 1300 x 2300 mm Functionality not tested This item is delivered loaded on truck. Dismantling and loading costs are specified as additional costs. Auction-ID: A1-51153-19

Twin-spindle configuration with pallet changer HSK-A63 spindles Auction-ID: A1-47368-3502

Manufacturer: FIL FRESATRICI (Italy ) Model: FCM Type: FCM 600 Serial Number: L1090 Year of Manufacture: 2000 Controler: Heidenhain TNC426 Machine Type Category: CNC Milling Machine Bed-type / moving table milling machine Or travelling column machining center Travels X (longitudinal): 6000 mm Y (cross): 600 mm Z (vertical): 1000 mm Spindle Taper: ISO 50 Spindle Speed: 6000 rpm Motor Power: ~10 – 25 kW Auction-ID: A1-51153-71

MININI large surface grinding machine with guarding and control panel. Magnetic chuck. Travels 1800 mm x 800 mm Exact model, grinding capacity, coolant system approx. 4500 x 2500 x 2600 Auction-ID: A1-51153-8

Okamoto ACC818NC Grind-X Precision Surface Grinding Machine Type: CNC surface grinding machine Manufacturer: Okamoto Model: ACC818NC – Grind-X Year of build: 2019 Serial number: Not visible Control: CNC Application: Precision surface grinding Power supply: 3 phase, 200 V, 50 Hz Control circuit: AC100 / DC24 V Total power: Approx. 9 kVA / 6.5 kW Main motor power: Approx. 2.2 kW Maximum load current: 30 A Short circuit interrupting capacity: 5 kA Installation dimensions: approx. 2105 x 1611 x 2233 mm Machine weight: approx. 1800 kg Grinding capacity: Maximum workpiece length: approx. 450 mm Maximum workpiece width: approx. 200 mm Maximum grinding height: approx. 350 mm Functionality not tested This item is delivered loaded on truck. Dismantling and loading costs are specified as additional costs. Auction-ID: A1-51153-33

Manufacturer Nicolás Correa SA, Spain Door Design A-10 Year of manufacture 1989 Registration/machine identification 9562807 Machine type CNC bed-type milling machine X-axis travel 1,300 mm Transverse travel 630 mm Vertical travel 630 mm Table size 1,700 × 630 mm Spindle taper ISO 50 Spindle speed range 80-3,150rpm Spindle motor power 16 kW Table load capacity 3,000 kg machine weight 9,000 kg Auction-ID: A1-51153-77

Mecof CS500 High Rotation CNC Head Type: High-speed CNC milling head Manufacturer: Mecof Model: CS500 Year of build: 2012 Functionality not tested This item is delivered loaded on truck. Dismantling and loading costs are specified as additional costs. Auction-ID: A1-51153-62

Mori Seiki NT 5400 DCG - 1800 SZYear of manuf. : 2009 Control : Fanuc 30i (MSX-711) Turning diam. : 920 mmTurning length : 1800 mm____________Description:In General:Year of manufacture:2009Control system:Fanuc 30i (MSX-711)Max. turning diameter:920 (470) mmTurning length:1,800 mmBar capacity:103 mmMilling spindle:8,000 rpm, HSK 100Main spindle:RPM:2,400Max. power:37 kWMax. torque:1,432 NmC-axis:0.001°Chuck:SMW Autoblok KNCS 500-155Sub spindle:RPM:2,400Max. power:37 kWMax. torque:1,432 NmC-axis:0.001°Chuck:SMW Autoblok KNCS 500-155Tool carrier I (X/Y/Z/B):Technology:Traveling column with milling spindleMilling spindle:8,000 rpmPower:30 kWTorque:302 NmTool holder:HSK 100X-axis:1,040 mmY-axis:510 (+/- 255 mm) mmZ-axis:1,940 mmB-axis:+/- 120°, index 1°Tool carrier II (X/Z):Technology:Cross slide with tool turretTool drive:6,000 rpm, 40 NmNumber of stations:10X-axis:267 mmZ-axis:1,8 ...

Cleancut EDM650 CNC Wire EDM & Eroding Machine Type: Wire EDM and eroding machine Manufacturer: Cleancut Model: EDM650 CNC Year of manufacture: 1999 Serial number: 904669 Electric connection: 380 V / 50-60 Hz Amps: 150 A Functionality not tested This item is delivered loaded on truck. Dismantling and loading costs are specified as additional costs. Auction-ID: A1-51153-17

turning diameter: 800 mm turning length: 2000 mm control: MONFORTS control: Control System MTC-K centre height: 400 mm centre distance: 1970 mm swing over bed: 830 mm swing diameter over slide rest: 540 mm spindle bore: 135 mm face slide travel: 450 mm spindle turning speed range: 2 - 1600 U/min transmission ratio: 4 feed power X/Z axis: 11,3 / 23,9 kN rapid traverse X-axis: 4 m/min rapid traverse Z-axis: 6,8 m/min tailstock quill diameter: 125 mm tailstock quill stroke: 200 mm tailstock taper MT: 6 total power requirement: 53 kVA weight of the machine ca.: 6 t dimensions of machine L x W x H: 4,35 x 2,17 x 2,10 m Accessories: 3-jaw chuck 630 mmø, MULTIFIX head D, various tool holders, chip conveyor, coolant The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

turning diameter: 560 mm turning length: 2000 mm control: Heidenhain ManualPlus swing diameter over face slide: 340 mm spindle turning speed range: 1-2500 U/min spindle bore: 63 mm rapid travel - longitudinal/face: 10 / 7 m/min tailstock quill taper MT: 5 tailstock quill diameter: 70 mm tailstock quill stroke: 160 mm main drive motor: (100 / 60 % ED) 15 / 20 kW max. torque on the spindle: max. 1800 Nm max. workpiece weight -without tailstock: 500 kg max. workpiece weight between centres: 1000 kg weight of the machine ca.: 3,6 t dimensions of the machine ca.: 5,5 x 2 x 2 m Equipment: CNC-control Heidenhain Manual Plus M 3-jaw manual chuck Multifix tool holder 3 steady rests Coolant equipment The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 1200 mm y-travel: 600 mm z-travel: 600 mm control: Sinumerik 840D SIEMENS table-size: 1.420 x 600 mm table load: 2,0 t spindle taper ISO: 50 spindle turning speed range: 4.000 U/min feed: 2.000 mm/min rapid traverse: 10,0 m/min voltage: 400 V total power requirement: 42 kW weight of the machine ca.: 6,5 t dimensions of the machine ca.: 3,60 x 2,45 x 2,15 m coolant tank: 1,25 x 1,25 x 0,50 m - Serial-No.: 076 - Control system: SIEMENS Sinumerik 840D - Electric handwheel - Hydraulic tool clamping with foot switch - SEMPUCO universal milling head - Coolant system The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

HURON VX8 CNC Machining Center – Year 2015 For sale is a CNC vertical machining center HURON VX8, built in 2015, with Heidenhain TNC 620 control. The machine is in very good general condition, has been tested in the workshop and is energized. With a spindle speed of up to 12,000 rpm, a 24-fold tool changer and a wide range of accessories, the machine offers solid equipment for demanding milling operations. Technical data Manufacturer: HURON Model: VX8 Year of Make:2015 Control: Heidenhain TNC 620 Engine hours ON: 22,873 h Program running time: 6,968 h Travel X: approx. 820 mm Travel Y: approx. 510 mm Travel Z:approx. 510 mm Rapid traverse:approx. 24 m/min Usable table surface: approx. 1,000 × 530 mm Permissible table load: approx. 500 kg Spindle speed: up to 12,000 rpm Tool holder:ISO 40 Tool changer:24 places Dimensions (L × W × H): approx. 2, ...

Heidenhain Programming Station 599609-01 For sale is an unused Heidenhain programming station for the CNC controllers TNC320 / TNC620 With this external USB control panel, the Heidenhain programming station software can be conveniently operated on a PC. Since the layout corresponds exactly to the real controls on the milling machine, it enables practical writing, testing and simulation of NC programs (e.g. in the Heidenhain plain text dialog or according to DIN/ISO) without blocking a real machine or having to use cumbersome PC keyboard shortcuts. Technical data: - Manufacturer: Heidenhain - Designation: Programming station TNC320 / TNC620 - ID-No.: 599 609-01 - Version: N10 - Interface/Connector: USB - Keyboard type: Industrial, ergonomic membrane keyboard - Compatible software: Heidenhain programming station software (for TNC 320 & TNC 620) - Serial numbe ...

Key data: 500 mm, 1000 mm, 2500 1/min

Control: Name: Siemens 840 D Travels: x-travel: 382 mm // z-travel: 1080 mm Technical data: • Speed range 20-2500 rpm • Turning diameter 500/600 mm • Turning length 1000 mm • Spindle bore 136 mm • Rod diameter 121 mm • Torque 2200 Nm • Automatic hydraulic bezel • 12-fold tool turret

HAAS VF-2SS CNC vertical machining center was built in 2013 in the United States by HAAS AUTOMATION, INC. The machine is designed for the automatic machining of metal workpieces weighing up to 680 kg. It performs such operations as precision milling, threading and drilling. Its wide machining capabilities, combined with proven components, make it an excellent choice for the production of repeatable parts used in many industries. The HAAS VF-2SS is equipped with a spindle with Inline Direct-Drive drive, reaching a maximum speed of 12000 rpm. It cooperates with a 31-position tool magazine that automatically changes tools according to the machining program. Machining is performed in three axes, X, Y and Z, with feed ranges of 762 mm, 406 mm and 508 mm respectively. The worktable with T-slots allows for the quick clamping of the tooling and workpieces. The machine’s rigid design ensures ...

Key data: 630 mm, 500 mm, 500 mm

Control: Name: Heidenhain Technical data: • Spindle: 20-7000 rpm • Table: 900 mm x 528 mm • SK40 interface • Quill • Semi-cabin Prior sale is reserved. No liability is assumed for the technical information provided here. The legal provisions apply.

HAAS VF-4SS CNC vertical machining center was built in 2012 in the United States by HAAS AUTOMATION, INC. The machine is designed for the automatic machining of metal workpieces weighing up to 794 kg. It performs such operations as precision milling, threading and drilling. Its wide machining capabilities, combined with proven components, make it an excellent choice for the production of repeatable parts used in many industries. The HAAS VF-4SS is equipped with a efficient spindle reaching a maximum speed of 12000 rpm. It cooperates with a 31-position tool magazine that automatically changes tools according to the machining program. Machining is performed in three axes, X, Y and Z, with feed ranges of 1270 mm, 508 mm and 635 mm respectively. The worktable with T-slots allows for quick clamping of the tooling and workpieces. The machine’s rigid design ensures stable operation even du ...

General Description Industrial CNC fiber laser cutting machine manufactured by Bodor Laser / Jinan Bodor CNC Machine Co., Ltd. . Designed for high-precision cutting of metal sheets and plates. The system comprises a large-format cutting bed, CNC-controlled laser cutting gantry, operator control system and associated cooling equipment. Technical Details Manufacturer: Bodor Laser / Jinan Bodor CNC Machine Co., Ltd. Machine type: CNC fiber laser cutting machine Component identifier visible: JZA120168 Additional identifier: VID 1000523 Bodor touchscreen CNC operator terminal CNC-controlled laser cutting head and gantry Large-format slat-type sheet support bed Industrial cooling / chiller equipment Enclosed cutting-head area Flat-sheet metal processing configuration Condition Used industrial condition. The machine appears substantially complete with cutting bed, laser cutti ...

\" WEEKE Optimat BHC 250 CNC Processing Centre Manufacturer: WEEKE Bohrsysteme GmbH / HOMAG Group Model: Optimat BHC 250 Machine type: CNC Processing / Machining Centre Year: 2004 Serial number: 0-250-04-2244 Quantity: 1 machine CNC machining centre designed for drilling, routing/milling and grooving of wood and wood-based panel materials. Equipped with movable vacuum consoles, vacuum workpiece clamping, integrated drilling/routing equipment and original WEEKE PC/CNC control system. Technical specifications: Connected load: 15 kW Electrical supply: 400 V, 50 Hz, 3+N Rated current: 35 A Control voltage: 24 V Working length: Approx. 2,750 mm configuration X-axis travel: Approx. 3,185 mm Y-axis travel: Approx. 1,080 mm Z-axis travel: 135 mm Pneumatic requirement: 7 bar Equipment / features: CNC drilling and routing/milling Integrated machining head Movable  ...

General Description CNC fiber laser tube and profile cutting machine manufactured by Bodor / Jinan Bodor CNC Machine Co., Ltd. . Designed for precision laser cutting of round, square, rectangular and other metal tubes and structural profiles. The system features a long processing bed, powered rotary chuck and automatic tube loading/handling equipment. Technical Details Manufacturer: Bodor / Jinan Bodor CNC Machine Co., Ltd. Machine type: CNC fiber laser tube/profile cutting machine Bodor touchscreen CNC control Powered pneumatic/automatic rotary chuck system Automatic/semi-automatic tube loading and handling system Long tube support/processing bed Enclosed laser cutting section Extraction system Chuck clamping ranges depending on jaw configuration: 8–102 mm, 66–160 mm, 76–170 mm and 134–228 mm Dedicated Hanli HL-3000-QG2/2 fiber-laser chiller Chiller supply: 220 V ...

With two machining modules, X-axis: -50 to 725mm, Y-axis: -200 to 300 / -250 to 250mm, rapid traverse X-, Y-, Z-axis: 18/12/30m/min, control: Siemens Sinumerik, temperature range: 5–40°C, power type/frequency: 3 PEN / 50Hz, rated voltage: AC 400V, control voltage: DC 24V, auxiliary voltage: AC 230V, connected load: 102kVA, rated current: 148A, rated current (fast): 148A, fuse (slow): 160A, length: 8000mm, width: 3000mm, height: 4000mm, weight: approx. 17t, operating hours: approx. 80,000h. The machine is fully functional, the ball screw drive (recirculating spindle) of the Z-axis was renewed in 2024 and it has been regularly maintained. Comes with documentation, control cabinet, hydraulic unit, filter elements, and chip conveyor. An on-site inspection is possible.

A Pfauter vertical CNC gear hobbing machine is available. Modules min./max.: 1/3, max. workpiece diameter: 150mm, max. tooth width: 150mm, milling head tilt: +/-45°, milling cutter axis-table axis distance: 10mm-160mm, table diameter: 160mm, table bore: 63mm. Tool holder: SK40, max. cutter diameter: 130mm, max. cutter length: 220mm, speed: 600rpm, feed: 1500mm/min, tangential path: 170mm, rapid traverse: 3m/min. Machine dimensions X/Y/Z: approx. 4000mm/3000mm/2500mm, weight: approx. 6500kg. On-site inspection is possible.

An Amada CNC turret punching machine for medium format sheets including an MP300 M loading unit, Wilson X-Sharp grinding machine and numerous standard and special punching tools are available. 1) CNC turret punching machine Amada, year of manufacture: 2007, punching force: 300kN, max. sheet dimensions X/Y: 3000mm/1500mm, max. sheet thickness: 6.35mm, stroke rate: 600 strokes/min, simultaneous positioning speed: 128m/min, repeat accuracy: +/-0.1mm, machine dimensions X/Y/Z: approx. 5100mm/3200mm/2300mm, weight: approx. 18000kg. 2) Automatic sheet loading and unloading system Amada MP 300 M, max. sheet dimensions X/Y: 3000mm/1500mm, min. sheet dimensions X/Y: 1000mm/300mm, sheet thickness range: 0.8mm-6mm, max. load capacity per pallet: 3000kg, max. stacking height: 400mm, max. sheet weight: 170kg, max. pallets: 9, pallet change time: 25s, sheet loading time: 18s, weight: approx. 4900kg. 3 ...

centre height: 280 mm centre distance: 1000 mm turning diameter over bed: 570 mm turning diameter over slide rest: 340 mm turning length: 1000 mm spindle head: A8 DIN55027 spindle diameter: 120 mm spindle bore: 83 mm torque: 1600 Nm turning speed range: 1-2500 (2 Stufen) U/min worktool system: Multifix C face stroke: 340 mm rapid power traverse in X-and Z direction: 5 / 10 m/min feed Z / X: 0,001 - 20 m / U feeding dorce: 10000 / 7000 N tailstock quill diameter: 80 mm tailstock quill stroke: 160 mm tailstock quill taper ISO: MK 5 total power requirement: 15 kW Weight: 3550 Kg dimensions of the machine ca.: 3,85 x 2,30 x 1,80 m WEILER D3 Control Unit (SIN810D), Three-Jaw Chuck Multifix C Steel Holder, Chip Conveyor, Various Interchangeable Jaws MULTIFIX C Quick-Change Steel Holders The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

: neu : ca. 12 Wochen ab Auftrags : Türkei : 62500 € : 1181.25 € : 40 to : 1250 mm : Y1 / Y2 / X und R Achse : 200 mm : 1050 mm : 250 mm : 440 mm : servomotorischer Spindela : 115 mm/s : 10 mm/s : 115 mm/s : 650 mm : 250 mm : 1000 mm : 7.2 kW : 1950 mm : 1450 mm : 2650 mm : 3600 kg servomotorized spindle drive 4 axes (Y1, Y2, X and R) CNC control SKY 22 - intuitive touch-screen control (simple drawing of the bending outline with your finger) 21,5 in full HD - with 2D and 3D working screen - direct programming of the bending angle - user friendly programming in dialogue form optionally in 2D or 3D mode - 2D and 3D simulation of the bending sequence - automatic tool selection in 3D mode - automatic calculation of the blank sheet size - bending order calculation - graphic product and tool memory - correction possibility - USB and Ethernet interfaces for import, backup and programm tran ...

: neu : ca. 12 - 14 Wochen ab Auf : Türkei : 65200 € : 1232.28 € : 40 to : 2050 mm : Y1 / Y2 / X und R Achse : 200 mm : 1700 mm : 350 mm : 440 mm : servomotorischer Spindela : 180 mm/s : 10 mm/s : 115 mm/s : 650 mm : 250 mm : 1000 mm : 7.2 kW : 2600 mm : 1450 mm : 2650 mm : 4400 kg servomotorized spindle drive 4 axes (Y1, Y2, X and R) CNC control SKY 22 - intuitive touch-screen control (simple drawing of the bending outline with your finger) 21,5 in full HD - with 2D and 3D working screen - direct programming of the bending angle - user friendly programming in dialogue form optionally in 2D or 3D mode - 2D and 3D simulation of the bending sequence - automatic tool selection in 3D mode - automatic calculation of the blank sheet size - bending order calculation - graphic product and tool memory - correction possibility - USB and Ethernet interfaces for import, backup and programm tran ...

: neu : ca. 12 Wochen ab Auftrags : Türkei : 154500 € : 2920.05 € : 3 kW : - : 12 mm : 6 mm : 6 mm : 3 mm : 6 mm : 26,5 kW : 250 mm : 16 mm : 160 x 160 mm : 200 x 150 mm : 6000 mm : 58 kg/m : +/- 0,2 mm : +/- 0,05 mm : rund, quadratisch, rechte : 40 m/min : 94 m/min : 30 m/min : 510 °/s The machine consists of the following components: - Encapsulated cutting room with protective glazing - CNC graphic control with touchscreen - Laser source Brilase 3 kW Premium incl. chiller - Cutting head with automatic focus adjustment - manual loading -manual unloading table 3 m - Positioning laser - Central lubrication - slug car - CAD/CAM software with autonesting - Work area lighting PRICE FCA TÜRKIYE OPTIONS: Suction unit with filters Semi-automatic loading system Manual unloading table 6 m with conveyer Durma cloud license Lasersources with 4 or 6 kW on request The data for this ad was cr ...

: neu : ca. 12 - 14 Wochen ab Auf : Türkei : 219400 € : 6 kW : Wechseltisch : 25 mm : 15 mm : 20 mm : 10 mm : 12 mm : 4100 x 2070 mm : 4100 mm : 2070 mm : 125 mm : 4064 x 2032 mm : 240 (für 3 - 12 kW) / 400 kg/m² : 3900 (für 3 - 12 kW) / 64 kg : 100 m/min : 100 m/min : 141 m/min : 14 m/s² : +/- 0,05 mm : +/- 0,05 mm : 32 s The HD-FN has two tables which are automatically switched alternately to enable simultaneous cutting and loading/unloading. The shuttle table is positioned longitudinally, which results in the best possible accessibility for optional loading and unloading systems. Control, laser source and cooling are integrated into the machine. The cutting head has automatic focus adjustment. The system consists of the following components: Shuttle table (positioned longitudinally for best possible accessibility for optional loading and unloading systems) Encapsulated cutting  ...

: neu : ca. 12 - 14 Wochen ab Auf : Türkei : 185300 € : 3502.17 € : 6 kW : Wechseltisch : 25 mm : 15 mm : 20 mm : 10 mm : 12 mm : 3100 x 1525 mm : 3100 mm : 1525 mm : 125 mm : 3084 x 1524 mm : 240 (für 3 - 12 kW) / 400 kg/m² : 2200 (für 3 - 12kW) / 360 kg : 100 m/min : 100 m/min : 141 m/min : 14 m/s² : +/- 0,05 mm : +/- 0,05 mm : 25 s The HD-FN has two tables which are automatically switched alternately to enable simultaneous cutting and loading/unloading. The shuttle table is positioned longitudinally, which results in the best possible accessibility for optional loading and unloading systems. Control, laser source and cooling are integrated into the machine. The cutting head has automatic focus adjustment. The system consists of the following components: Shuttle table (positioned longitudinally for best possible accessibility for optional loading and unloading systems) Encapsu ...

: neu : ca. 12 - 14 Wochen ab Auf : Türkei : 253800 € : 6 kW : Wechseltisch : 25 mm : 15 mm : 20 mm : 10 mm : 12 mm : 6100 x 2070 mm : 6100 mm : 2070 mm : 125 mm : 6096 x 2032 mm : 240 (für 3 - 12kW) / 400 kg/m² : 5800 (für 3 - 12kW) / 960 kg : 100 m/min : 100 m/min : 141 m/min : 14 m/s² : +/- 0,05 mm : +/- 0,05 mm : 42 s The HD-FN has two tables which are automatically switched alternately to enable simultaneous cutting and loading/unloading. The shuttle table is positioned longitudinally, which results in the best possible accessibility for optional loading and unloading systems. Control, laser source and cooling are integrated into the machine. The cutting head has automatic focus adjustment. The system consists of the following components: Shuttle table (positioned longitudinally for best possible accessibility for optional loading and unloading systems) Encapsulated cutting r ...

Key data: 40 t, 1500 mm

1500 x 40 ton Cybelec Cybtouch 12" X & Z Axis

Key data: 4000 mm, 1000 mm, 1700 mm

with CNC control, Fabr. FIDIA, Type: M 2, Travels: X-axis: 4000 mm, Y-axis: 1000 mm, Z-axis: 1700 mm, with autom. Tool changer with 10 tool positions, 2 pcs. clamping bracket, Fabr. MECOF

Key data: 2400 mm, 2850 mm, 1000 mm

with CNC control, Fabr. FIDIA, type: C20, travels: X-axis: 2400 mm, Y-axis: 2850 mm, Z-axis: 1000 mm, with automatic clamping plate. Tool changer with 20 tool positions, with T-slot clamping plate, size: approx. 2000 x 1800 mm, coolant device

Control Fanuc 16-TC Max. turning diameter 20 mm Spindle speed 10,000 min-1 8-fold revolver with antr. Wkz. Linear slides (3 operated stations) Pick-up spindle (indexing 15°) C-axis main spindle Chip conveyor Extinguishing system Bar loading magazine FMB Turbo 3-26/3200

A Takamatsu CNC twin-spindle turning and milling center is available. 1) Turning diameter: 190mm, turning length: 150mm, max. one-sided machining length: 440mm, max. bar diameter main spindle/counter spindle: 51mm/42mm, spindle nose 1/2: A2-6/A2-5, spindle bearing 1/2: 100mm/85mm, main spindle bore 1/2: 52mm/43mm, spindle speed: 5000rpm, tool stations: 2×12, travel X1/X2: 162.5mm/170mm, travel Z1/Z2: 500mm/500mm, travel Y: +/-35mm, travel A: 550mm, machine dimensions X/Y/Z: approx. 3000mm/2250mm/2100mm, weight: approx. 7400kg, control: Fanuc 32i-B. 2) TOP Automazioni FU350SX bar feeder, max. bar capacity: 52mm, max. bar length: 3200mm, max. remnant length: 300mm, max. feed rate: 30m/min, max. bundle weight: 2000kg, machine dimensions X/Y/Z: approx. 4300mm/1400mm/1200mm, weight: approx. 1200kg. 3) LTA E 120-X-2-H filtration system, year of manufacture: 2022, filter stages: 2, extraction  ...

turning diameter: 400 mm turning length: 650 mm control: Siemens 840D SL x-travel: 275 mm z-travel: 700 mm spindle turning speed range: 4000 U/min spindle bore: 65 mm turret (x-stations): 16 Pcs. VDI30 tailstock quill taper MT: 4 swing dia.: 600 mm Tools speed: 5000 U/min total power requirement: 37 kW weight of the machine ca.: 5,5 t dimensions of the machine ca.: LBH 2,5 x 1,6 x2,0 m - C-axis - 3 driven tools - 4-jaw chuck (Röhm, 250 mm) - Renishaw measuring arm - Chip conveyor - Interface for bar loader - Siemens ShopTurn - Documentation The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

turning diameter: 300 mm spindle bore: 75 mm bar capacity: 65 mm turning speed range: 6.000 U/min turning length: 508 mm travel -z axis: 560 mm travel -x axis: 210 mm turret (x-stations): 24 control: FANUC 0i Smart Plus Touch c-axis: 0,001° 0 total power requirement: 23 kVA weight of the machine ca.: 3,8 t dimensions of the machine ca.: LTH 2,9 x 1,7 x 1,8 m Power-on hours = 9,723 hrs Processing time = 2,158 hrs - 24-station tool turret, driven tools at 6,000 rpm - Workpiece catcher - RENISHAW measuring probe, automatically swiveling - Sub-spindle - Chip conveyor - Coolant pump - Magazine equipped with static tools, including 2 driven tools Accessories: Includes SAMSYS Multi3000 short-bar loader Includes collet chuck Includes 38 collets Includes 210 mm power chuck with various jaws Includes 130 mm power chuck for sub-spindle Includes 2 x driven tool holders (radial + axial) Includes 10  ...

x-travel: 2.600 mm y-travel: 700 mm z-travel: 700 mm control: Celos 840 D SL Operate Siemens Main spindle:: turning speed range - main spindle: 20 - 20.000 min/-1 power capacity - main spindel: 35 / 25 kW Torque: 130 / 86 Nm tool taper: HSK-A63 b - axis: +-100 ° work table:: table surface area: 2.900 x 700 mm max. table load: 2.150 kg tool magazin:: number of toolpositions: 120 pos. tool taper: HSK-A63 max. tool diameter: 80 mm max. tool-dia with free toolbox: 130 mm max. tool length: 300 mm max. tool weight: 6,0 kg feeds:: rapid traverse ( X / Y / Z ): 40 m/min feed speeds: max. 40.000 mm/min feed power: max. 8 kN total power requirement: 67 kVA weight of the machine ca.: 16,24 t dimensions of the machine ca.: 8,0 x 5,6 x 2,9 m Chip conveyor: Coolantsystem: 980 L high pressure coolant: 80 bar through spindle coolant: Rotary screen: 2x Signal-Light: paper band filter: test probe ...

Manufacturer: CauCau Model No.: F2030 Year: 2021 Condition: Used Stock number: 9625 Work table length: 3000 mm Work table width: 2000 mm Machine weight: 1650 kg

Manufacturer GEMINI Model GHT9 G2 1,800 x 3,000 Year 2008 CNC FAGOR 8055 TC/C Capacity Point height 900 mm Maximum Bed Turning 1,835 mm Ø max. Turning on transverse carriage 1,425 mm Distance between points 3,000 mm Cross carriage travel 830 mm. Head Head hole diameter 150 mm Nose head DIN-55026-B15 Head revolutions 0-720 rpm Head ranges 2 In-service head power S1 82 kW Maximum head torque S1 10,750 Nm Progress Fast forward longitudinal carriage 8,000 mm/min Fast feed transverse carriage 6,000 mm/min Turret Quick-change turret, Multifix type INCLUDED Bench Width 1,000 mm Height 680 mm Counterpoint Tailstock shank diameter 180 mm Tailstock shaft course 300 mm Equipment Motorized tailstock with Manual Lock INCLUDED 4 Independent Claws Plate Ø 1400 mm INCLUDED Plate Protection INCLUDED Portable electronic steering wheel INCLUDED Longitudinal Chip E ...

We are pleased to offer a late-2024 Mazak QT-Ez 10MSY CNC lathe with only 637 cutting hours, located in USA. This is an exceptionally clean, well-maintained machine that is currently installed, under power, operating properly, and available for immediate delivery. It holds excellent tolerances and is equipped with an extensive range of valuable options and accessories. The machine features a Y-axis, live tooling, and a second/sub-spindle, allowing turning, milling, drilling, and tapping operations to be completed in a single setup. It is equipped with a Mazatrol SmoothEz CNC control, a 10-inch main spindle chuck, a 6-inch sub-spindle chuck, and a 12-position turret. Key Specifications Manufacturer: Mazak Model: QT-Ez 10MSY Year: Late 2024 Cutting hours: Only 637 CNC control: Mazatrol SmoothEz Maximum swing: 27.4” Maximum machining length: 20.78” Maximum bar ...

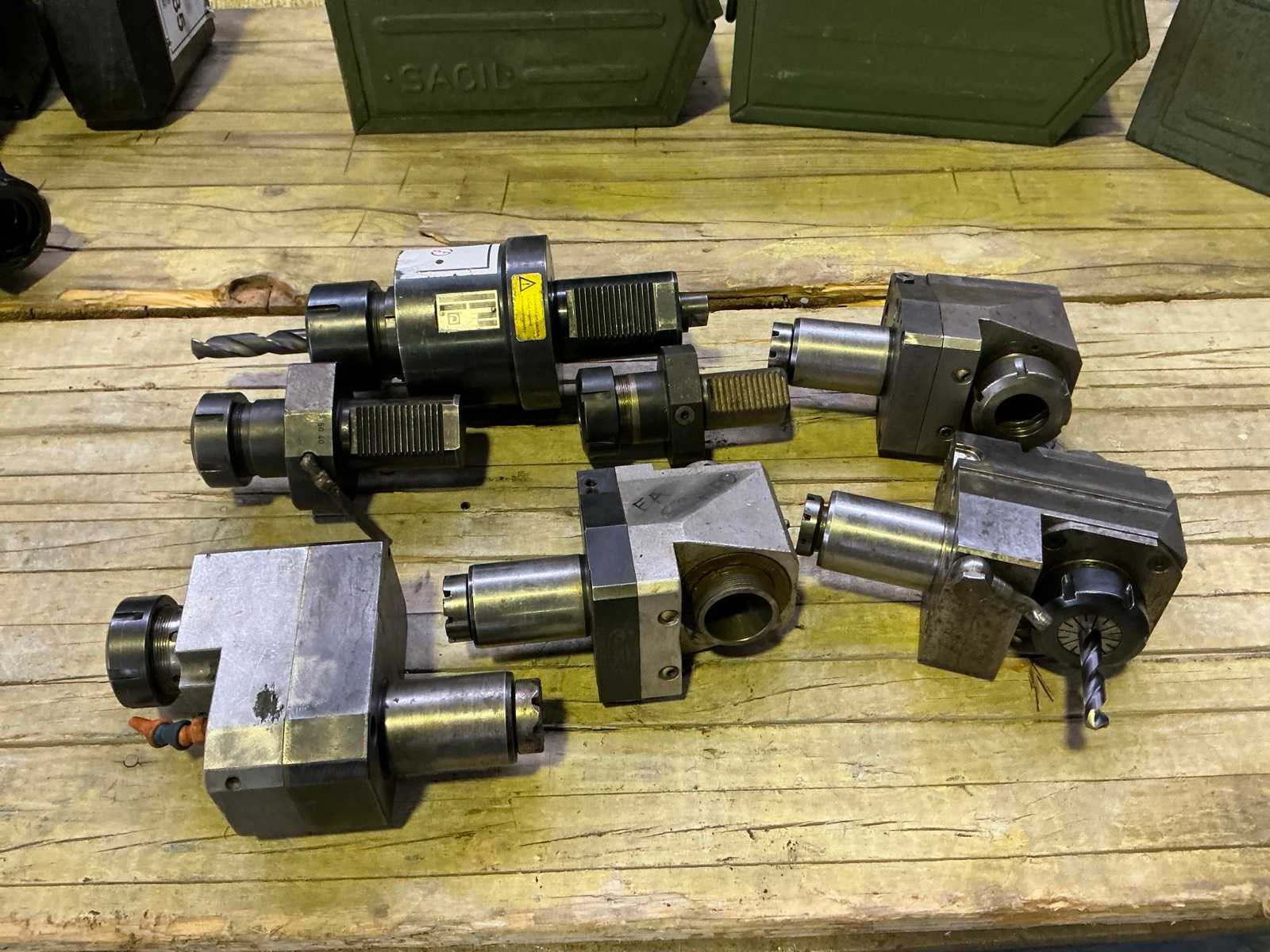

Consisting of different aggregates and tool holders Auction-ID: A7-51362-6

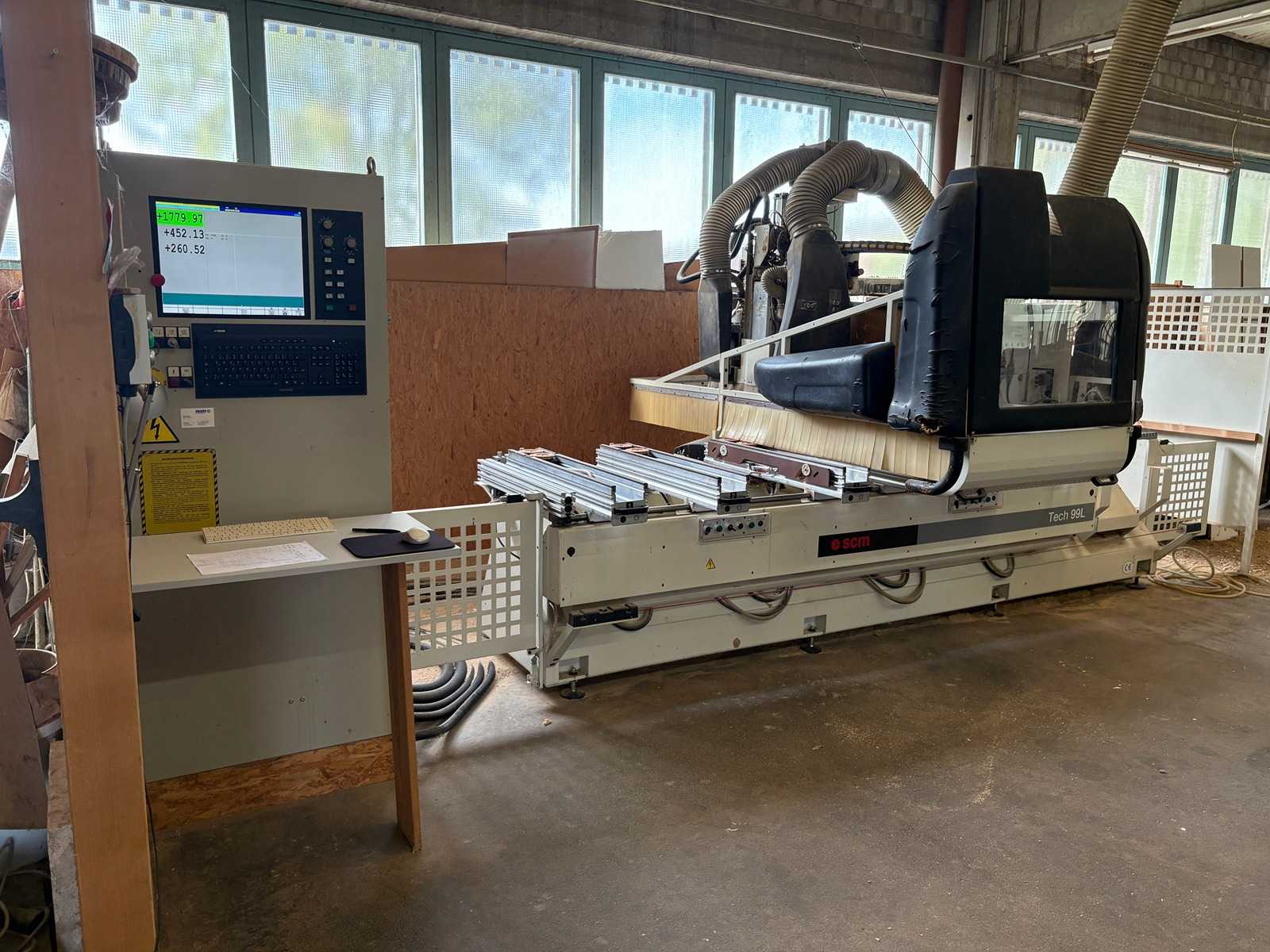

Manufacturer: SCM Model No.: Tech 99L Machine Type: CNC Machining Center Year of Make: 2000 Machine weight: approx. 2,600 kg Electrical connection: 400 V / 3 phases / 50 Hz / 35 A Working range X: 3,000 mm, expandable to 3,800 mm Working range Y: 979 mm drilling / 1,200 mm milling Max. panel thickness: 180 mm Vertical spindles: 10 Horizontal spindles: 1+1 in X / 1 in Y Spindle speed: 4,000 rpm Drilling unit: 2.2 kW Z-stroke: 200 mm Feed axes: X/Y/Z 67 / 67 / 22.5 m/min Milling unit: ISO 30, 6.6 kW Tool changer: 4-fold, for tools up to Ø 120 mm Grooving and sawing unit: Ø 200 mm, bore 30 mm, 2.2 kW, 6,000 rpm 6 workpiece supports: 1,030 mm Vacuum pump: 100 cbm/h Working range X: 3,800 mm with roller conveyor according to equipment 4 positioning aids for heavy workpieces Control: PC-NUM 1040 Additional features: 10. ...

Here's a version that you can use directly as a lot description: Auction title: FORMAT 4 Profit H350 16.50 5-axis CNC machining centre – working area 5000 x 1550 mm FORMAT 4 Profit H350 16.50 – 5-axis CNC machining centre Professional 5-axis CNC machining centre from FORMAT 4, type Profit H350 16.50 , equipped with a large working field of 5000 x 1550 mm, automatic tool changer and provisions for sawing operations. Specifications: Brand: FORMAT 4 Model: Profit H350 16.50 Type: CNC Machining Center Number of axles: 5 Connection: 380 V / 50 Hz CE: Yes Working area: 5000 x 1550 mm Travel speed X-axis: max. 20 m/min Commuting work: in 2 fields of work Execution and options: Security system with fenders instead of light curtain 2 continuous stop rulers in Y-direction Stop rulers mounted on the stop cylinders at the left and right end of the work area ...

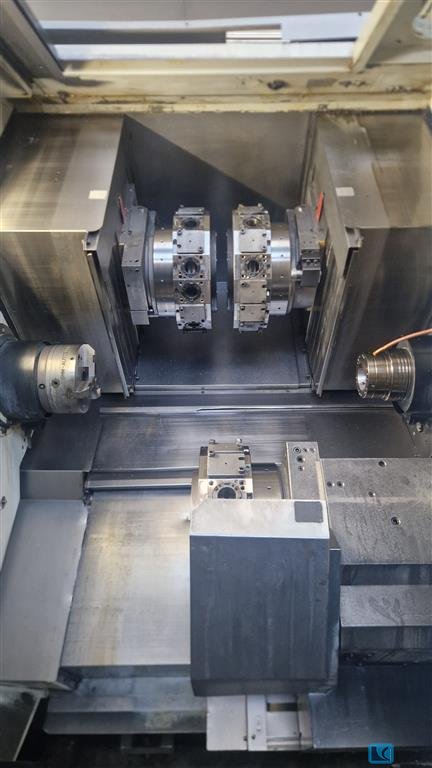

turning diameter:120 mm turning length:100 mm control:Fanuc Spindle 1 power:7,5 kW Spindle 1 RPM:4500 1/min Spindle 2 power:7,5 kW Spindle 2 RPM:4500 1/min Distance between spindle noses:600 mm Turret No.1 stations / rotary tools:15/15 Power rotary tools turret 1:2,7 kW RPM of rotary tools turret 1:4000 1/min Turret No.2 stations / rotary tools:15/15 Power rotary tools turret 2:2,7 kW RPM of rotary tools turret 2:4000 1/min Travel x/z turret 1:250 / 300 mm Travel x/z turret 2:250 / 920 mm Bar capacity spindle 1:51 mm Bar capacity spindle 2:51 mm power chuck:165 mm Spindle bore sp. 1:62 mm Spindle bore sp. 2:62 mm dimensions of the machine ca.:3700 x 2300 x 3000 mm weight of the machine ca.:5600 kg Used CNC-2-spindle CNC turning and milling center with gantry loader - 2x 15 station turret -automatic gantry loader with turnaround station. 14 station-magazin right side Max. Parts size Ø 12 ...

turning diameter:370 mm turning length:200 mm Spindle 1 RPM:4000 1/min control:Siemens 840 D Spindle 2 RPM:4000 1/min power capacity:L / R 18/24 kW max. torque on the spindle:630 nM C-Axis:0,001° Turret No.1 stations / rotary tools:12/12 VDI 40 Turret No.2 stations / rotary tools:12/12 VDI 40 turning speed range - milling:3000 1/min power capacity - milling spindle:8,8 kW torque rotary tools:28 Nm Bar capacity spindle 1:85 mm total power requirement:65 kVA weight of the machine ca.:13 t dimensions of the machine ca.:5,7x2,4x2,1 m Travel x1:260 mm Travel x2:260 mm Travel Y1:600 mm Travel y2:600 mm Power Chuck:2 x 250 mm manual tool eye:l & r High performance 6-axis subspindle CNC-Lathe with twin turren and rotating tools.

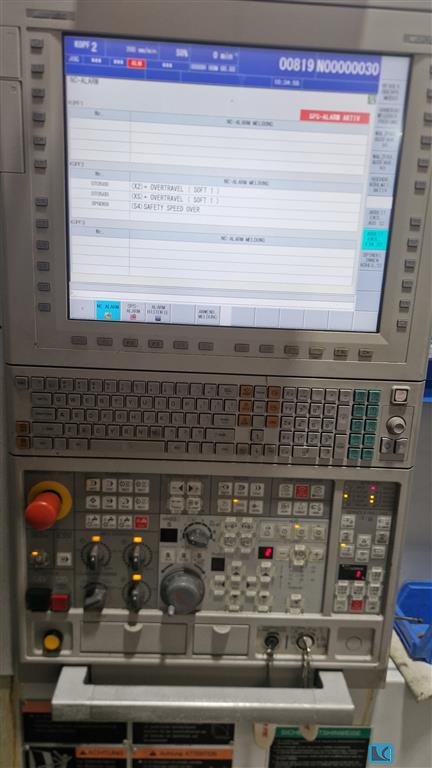

standard turning dia.:200 turning length:max. 810 mm control:MSX-701 MAPPS IV greates pass round over bed:800 mm Max. distance between centres:1130 mm max. turning diameter:320 mm max. workpiecediameter:300 mm bar material dia.:65 mm Traverse X-Axis 1:210 Traverse X-Axis 2:210 mm Traverse X-Axis 3:210 mm Traverse Y-Axis 1:110 (+65/-45) mm Traverse Y-Axis 2:110 (+45,/-65) mm Traverse Z-Axis 1:300 mm Traverse Z-Axis 3:300 mm Traverse Z-Axis 2:810 mm Traverse B-Axis:870 mm turning speed range - spindle:5.000 1/min Number of spindle speed ranges:2 . spindle nose:JIS A2-6 spindle bore:73 mm spindle bearing diameter:120 mm C-Axis:0,001 ° turning speed range - spindle:5.000 1/min spindle nose:JIS A2-6 spindle bore:73 mm bar material dia. max:65/52 mm spindle bearing diameter:120 mm C-Axis:0,001 ° Number of Turrets:3 . Number of tool stations:16 x 3=48 pos Schank height for square tool:20 mm D ...
