cnc turning milling used for sale

HAUSER S 50 CNC 311 ist eine CNC Koordinatenschleifmaschine, die Präzision, hohe Genauigkeit und Zuverlässigkeit für anspruchsvolle Schleifaufgaben bietet. Ausführung 2-Ständer, Tisch 1020×860 mm, Längsweg X 900 mm, Querweg Y 600 mm, Weg Vertikalschlitten 635 mm, Durchlass Spindel-Tisch 750 mm, Durchlass zwischen Ständern 950 mm; größter Schleifdurchmesser 230 mm (360 mm mit Auslegerplatte); Konusschleifen bis 16°. Technische Daten: Z-Hub 0–170 mm stufenlos, Hubgeschwindigkeit Z 1–12000 mm/min, Hubfrequenz 6 Hz, radiale Feinzustellung U max 6 mm, Planetenbewegung C 5–300 t/min, Schleifspindel 4500–80000 t/min (Luftturbine 160000 t/min); Anschluss 3×400 V 50 Hz, Gesamtleistung 9 kVA; Gewicht ~6300 kg; Abmessungen 3000×2500×2870 mm. Ausstattung: retrofizierte Steuerung, Satz Schleifstifte/Maschinenschraubstock, Schleifmotoren 45 S/45 ST, C-Achse; Maschine revidiert 20 ...

• Incl. left roller conveyor • Roller conveyor width: 240 mm

cutting diameter: 360 mm saw band length: 4870 x 41 x 1,3 mm cutting width: 360 mm cutting speed: 11 - 110 m/min : 4,0 kW height of the workpiece: 800 mm weight of the machine ca.: 2,1 t dimensions of the machine ca.: 2,3 x 1,9 x 2,2 m Automatic hydraulic band saw with - SIMATIC OP17 NC control - Single material feed 600 mm - Max. programmable length 6000 mm - Hydraulic saw blade tensioning (36–40 bar) - Motorized chip conveyor - Emergency stop device - infeed roller conveyor 4m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

CNC SCREEN PRINTING MACHINE Balsfulland CNC 1500 H Manufacturer: Werner Kamann Model: CNC 1500 H Year of manufacture: 2008 Design: Fully enclosed safety cabinet with protective glazing Machine type: Multi-color CNC screen printing system CE certified: Yes Details: CNC-controlled axes Multi-color printing stations Automatic product transport system Fully enclosed safety housing Integrated drying / curing unit Designed for industrial serial production Heavy-duty steel / aluminum frame construction Application: Cosmetic containers Brochure stand Glass bottles Plastic packaging Cylindrical or slightly tapered products Industrial packaging components

centre height: 175 mm grinding length: 650 mm grinding diameter: 350 mm control: Fanuc 0i-TD Resolution: 0,0001 mm grinding spindle head:: grinding wheel turining speeds: 1-2810 U/min grinding spindle - swivable: 0-15 -30 ° grinding wheel size: 500 x 63 x 203 mm peripheral speed: max. 50 m/sec power capacity: 11,5 kW workpiece spindle head:: Number of revolutions: 1-1500 U/min power capacity: 1,8 kW spindle passage: 26 mm Fitting taper: MK 4 Tailstock:: taper of center: MK 3/4 quill stroke: 35 mm diameter of quill: 50 mm fine adjustment: +/- 0,04 mm axis stroke:: x-axis: 370 mm z-axis: 800 mm b-axis: ? ° feeds:: feed speeds: X: 0,001 - 15.000 mm/min feed speeds: Z: 0,001 - 20.000 mm/min workpiece weight: 80 kg workpiece length - max.: 650 mm max. workpiece diameter: 349 mm table swivelabel +/-: 10 ° total power requirement: 20 kVA weight of the machine ca.: 9 t dimensions of the  ...

3 assen: Y1 / Y2 / X bovenste Amada-systeemtooling Achteraf ingebouwd door Haco met Easybend 2D Touch-bediening Capacity: 200 ton x 4100 mm Backgauge: CNC Control: Easybend 2D Passage between uprights: 3670 mm Max stroke: 200 mm Max distance between table -- ram: 450 mm Depth of throat: 300 mm Table width: 200 mm Locking speed: 100 mm/sec Working speed: 8 mm/sec Returning speed: 80 mm/sec Electric motor (power): 19 kW Length: 4330 mm Depth: 1950 mm Height: 2980 mm Weight: 17 ton

3 assen: Y1 / Y2 / X bovenste Amada-systeemtooling Achteraf ingebouwd door Haco met Easybend 2D Touch-bediening Capacity: 150 ton x 4300 mm Backgauge: CNC Control: Easybend 2D Passage between uprights: 3750 mm Max stroke: 200 mm Max distance between table -- ram: 400 mm Depth of throat: 250 mm Table width: 180 mm Locking speed: 100 mm/sec Working speed: 10 mm/sec Returning speed: 80 mm/sec Electric motor (power): 15 kW Length: 4700 mm Depth: 1700 mm Height: 2850 mm Weight: 11 ton

Haco ERMS 230 ton x 4300 mm CNC Capacity: 230 ton x 4300 mm Backgauge: CNC Control: Easybend 2D Passage between uprights: 3150 mm Max stroke: 200 mm Max distance between table -- ram: 450 mm Depth of throat: 300 mm Table width: 180 mm Locking speed: 200 mm/sec Working speed: 8 mm/sec Returning speed: 125 mm/sec Electric motor (power): 19 kW Length: 4320 mm Depth: 2000 mm Height: 2800 mm Weight: 15 ton

3 assen: Y1 / Y2 / X bovenste Amada-systeemtooling Achteraf ingebouwd door Haco met Easybend 2D Touch-bediening Capacity: 135 ton x 3100 mm Backgauge: CNC Control: Easybend 2D Passage between uprights: 2600 mm Max stroke: 200 mm Max distance between table -- ram: 400 mm Depth of throat: 250 mm Table width: 180 mm Locking speed: 100 mm/sec Working speed: 10 mm/sec Returning speed: 80 mm/sec Electric motor (power): 15 kW Length: 3500 mm Depth: 1700 mm Height: 2500 mm Weight: 8 ton

3 assen: Y1 / Y2 / X bovenste Amada-systeemtooling Achteraf ingebouwd door Haco met Easybend 2D Touch-bediening Capacity: 135 ton x 3100 mm Backgauge: CNC Control: Easybend 2D Passage between uprights: 2600 mm Max stroke: 130 mm Max distance between table -- ram: 325 mm Depth of throat: 250 mm Table width: 180 mm Locking speed: 100 mm/sec Working speed: 10 mm/sec Returning speed: 100 mm/sec Electric motor (power): 12 kW Length: 3270 mm Depth: 1500 mm Height: 2460 mm Weight: 8 ton

3 assen: Y1 / Y2 / X bovenste Amada-systeemtooling Achteraf ingebouwd door Haco met Easybend 2D Touch-bediening Capacity: 135 ton x 4100 mm Backgauge: CNC Control: Easybend 2D Passage between uprights: 3600 mm Max stroke: 130 mm Max distance between table -- ram: 325 mm Depth of throat: 250 mm Table width: 180 mm Locking speed: 100 mm/sec Working speed: 10 mm/sec Returning speed: 100 mm/sec Electric motor (power): 15 kW Length: 4270 mm Depth: 1500 mm Height: 2530 mm Weight: 11,5 ton

3 assen: Y1 / Y2 / X bovenste en onderste Amada-systeemtooling Gerenoveerd door Haco in 2024 Capacity: 135 ton x 3600 mm Backgauge: CNC Control: Easybend 2D Passage between uprights: 3150 mm Max stroke: 200 mm Max distance between table -- ram: 400 mm Depth of throat: 250 mm Locking speed: 100 mm/sec Working speed: 10 mm/sec Returning speed: 80 mm/sec Electric motor (power): 15 kW Length: 4200 mm Depth: 1700 mm Height: 2500 mm Weight: 9 ton Capacity: 135 ton Bending length: 3100 mm

3 assen: Y1 / Y2 / X bovenste Amada-systeemtooling Achteraf ingebouwd door Haco met Easybend 2D Touch-bediening Capacity: 200 ton x 4300 mm Backgauge: CNC Control: Easybend 2D Passage between uprights: 3700 mm Electric motor (power): 15 kW Weight: 18 ton Capacity: 200 ton Bending length: 4300 mm

Eclipse 7/7/6 CNC Technical data: Measuring range X=700mm, Y=700mm, Z=700mm Control C99 with control panel BP26_SE Renishaw TP20 probing system Equipment: Calibration ball Pushbutton Accessories Calculator HP with monitor 27" Software: Calypso Basic 2017 CNC Preset Module Freeform surface Upgrade to current version possible The machine is technically and visually in excellent condition and has very few operating hours Immediately available

Control: SIEMENS 840D Max.turning length: 450 mm Max swing diametr over bed/Slide: 500 mm/375mm Workpiece diametr: 246 mm Material passage through the spindle: 0 mm Rotation speed(max.) 6000 rpm Quick Change Toolposts:12 Taper ? VDI30 Coolant tank:175l M

Control: Heidenhain Max.turning length: 450 mm Max swing diameter over bed/slide: 500 mm/375mm Workpiece diametr: 246 mm Material passage through the spindle: 0 mm Rotation speed(max.) 6000 rpm Quick Change Toolposts:12 Taper ? VDI30 Coolant tank:175l Ma

Thickness: 16 x 16 mm number: 4 Stähle weight: 3 kg dimensions: 300m x 200 x 50 mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

SMT Lathe 80001350 The machine was designed and manufactured to produce rotor shafts for power tools. The machine is designed and manufactured to perform the following operations automatically. - Load/unload parts automatically from/to tool carrier line with a pick-up & placement unit between the shaft ends. - Rotate ring seat + flat rotate commutator + rotate commutator. - Ring mounting - Commutator side - Ring mounting - Drive wheel side The machine has several production programs to produce different parts. Each program uniquely corresponds to a wave type Specifications Anchor wavelength from up to 92.5 - 163.1 mm Bearing pin diameter commutator side 8; 10; 12.5 mm Drive side 12; 8 mm Min. Available length bearing position 3.6 mm Package diameter 52; 55; 59 mm Ring dimensions Outer diameter 40 - 57.4 mm Inner diameter 37.4 - 56 mm Ring width 4 - 8 mm R ...

Various quick-change swivel holders / quick-change holders / accessories in total 42 pcs: 7 pcs WDL 4/50 16 WDR 4/40 10 pcs WDL 4/40 3 pcs WB 4/60⌀ 3 pcs. WBW 4/60⌀ 1 pcs. WBW 23/60⌀ 2 pcs. without type Please let us know which items you are interested in for an offer. We are happy to provide you with more photos.

Automatic straightener, shaft straightener , MAE -25RH, 1996, used Manufacturer: Maschinen- & Apparatebau Götzen GmbH, Germany Connected load: 14.5kva , Dim.: 2.5 x 1.5 x 1.8m, Weight : 5000kg

Including VCMT11/16, DCMT11T3; mainly shaft 16 and 20 mm; total 53 pieces; in 2 cardboard boxes Auction-ID: A1-49785-153

Ref. -No.: 10372 Manufacturer: STAMA Year of construction: 2021 Type of control: CNC Control: SINUMERIK Siemens 840 D sl Storage location: Halberstadt Country of origin: Switzerland Turning Speeds: 4200 RPM X-axis travel: 615 mm Y-axis travel: 290 mm Z-axis travel: 500 mm Number of tools in the chain magazine: 64 Max. Rapid traverse: 65 m / min Max. Feed force: 4000 N Acceleration (X): 7 m/s² Acceleration (Y): 9 m/s² Acceleration (Z): 13 m/s² Further information: - Ball screw - Automation - Workpiece loading/unloading chuck parts with X- / Z- gantry loader - Clamping pressure preselection 15 - 50 bar for both spindles - Buffer station for constant short chip-to-chip times - NCU High Performance NCU 730.3.m - Magnetic gripper

Control: SIEMENS 840D Max.turning length: 1185 mm Max swing diameter over bed/slide: 640 mm/550mm Workpiece diametr: 400/250 mm Material passage through the spindle: 65 mm Max.diameter of the material for barloader: 65 mm Rotation speed(max.) 5000 rpm Sp

revolutions per minute: 8000 U/min x-travel: 1000 mm y-travel: 500 mm z-travel: 570 mm Control: Siemens weight of the machine ca.: 5000 KG The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

turning diameter: 250 mm turning length: mm control: Siemens 840D 0 total power requirement: 25 KVA kW weight of the machine ca.: 4 t required space: 5.5 x 2.5 x 2.5 m m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

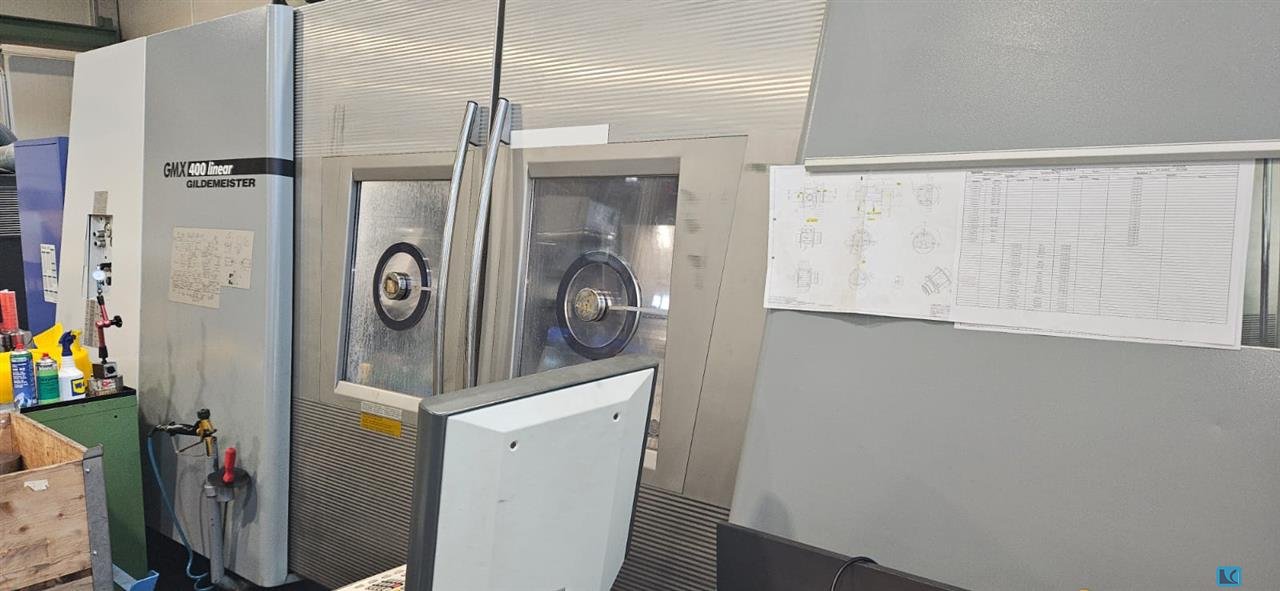

A Gildemeister CNC double-spindle turning and milling center including coolant system and chip conveyor is available. Turning diameter over bed: 640mm, machining diameter: 400mm, center distance: 1930mm, travel X/Z: 550mm/1585mm, travel Y: +/-110mm, B-axis: +/-120° (interpolating), C-axis: 360°. Main spindle: power: 36kW/45kW, speed: 4000rpm, torque: 600Nm-730Nm, bore: 107mm. Milling spindle: Speed: 12000rpm, power: 13.2kW/22kW, torque: 100Nm. Tool places: 60, carrier: turret 12-fold star SW 380, machine dimensions X/Y/Z: approx. 9300mm/4600mm/3100mm, weight: approx. 20000kg, control: Siemens Sinumerik 840D powerline. Documentation available. On-site inspection is possible.

Swing diameter over bed/cross slide: 820mm/550mm, distance between centers: 2666mm, max. turning diameter: 610mm, max. workpiece length: 2500mm, travel X/Z: 410mm/2560mm, travel Y: -80mm/100mm, max. workpiece weight without/with tailstock: 500kg/1500kg, tool positions: 12, rapid traverse X/Z/Y: 24m/30m/12m/min, feed force X/Z/Y: 17kN/20kN/17kN. Machine dimensions X/Y/Z: approx. 5500mm/2250mm/2550mm, weight: approx. 15000kg, operating hours: approx. 56089. Documentation available. An on-site inspection is possible. Expected to be available from mid-2026.

A Mazak CNC 5-axis turning and milling center with counter spindle is available. Swing diameter: 820mm, machining diameter: 820mm, machining length: 1500mm, max. workpiece weight in chuck/between centers: 650kg/150kg, main spindle speed: 1600rpm, spindle bore: 185mm, power: 30kW/40kW, tailstock force: 15kN, quill stroke: 1466mm, tool holder: BT50, spindle speed: 10000rpm, travel X/Y/Z: 870mm/500mm/1600mm, rapid traverse: 40m/min. Machine dimensions X/Y/Z: approx. 6500mm/3700mm/3200mm, weight: approx. 26000kg, control: Mazatrol Matrix. Documentation available. An on-site inspection is possible. The machine is located in China.

Inv. Num. : 9033 Type: PUMA ST32G Producer: DOOSAN Created: 2018 Parameters: Control System: FANUC Series 31i Model B Switch-on hours: 4,360 h Hours: 2,443 h Maximum turning diameter: 32 mm Max. turning length: 320 mm Maximum spindle speed: 8000 1/min Axis Z: 320 mm Rapid traverse X/Y/Z: 32 m/min Spindle diameter: 32 mm Length: 2640 mm Width: 1400 mm Height: 1840 mm Weight: 3500 kg Equipment: Technical documentation Chip conveyor High-pressure cooling 70 bar IEMCA BOSS 338 Bar Feeder Oil mist extraction Losma

For sale is a high-quality CNC turning-milling center spinner TC77-SMCY with Siemens Sinumerik control. The machine is equipped with: Y-axis C-axis Sub-spindle powered tools Chip conveyor extensive tool package Technical data: Bar passage 77 mm 12-speed VDI50 turret Main spindle ASA 8 Sub-spindle ASA 6 Speed up to 4000 rpm Turning diameter approx. 500–690 mm Turning length approx. 800–900 mm Y-axis ±60 mm Main and sub-spindle Weight approx. 6000–7000 kg Nloc Egsy Uwmws S Rrgob

SMEC NS 2000 MYear of manuf. : 2022 Control : Siemens SINUMERIK 828D Turning diam. : 288 mmTurning length : 243 mm____________Description:Main spindleTechnology:Belt-driven spindleSpeed:4,500 rpmPower (max.):20 kWBar capacity:67 mmWorkpiece clamping:3-jaw chuck, Samchully MH-208BV1Tool holder:Technology:12-station turretTool holder:BMT45Tool drive:5,000 rpmTravel in X/Y/Z:175/-/350TailstockTechnology:Manual adjustmentTubus stroke:80 mmTubus diameter:65 mmMount:MT4Features/Accessories:Chip Management:Chip ConveyorCoolant Management:IKZ Pump with Oil Skimmer and High Pressure, 10 barAutomation:PreparedFinished Parts Removal:Parts Catcher with Collection Box

Index R 200Year of manuf. : 2011 Control : Siemens C200-4D SL ____________Description:In General:Year of construction:2011Control system:Siemens 840 Dsl (C200-4D SL)Bar capacity:65 mmMilling spindles:18,000 rpmMain spindle:Technology:Motorised spindleSpeed:5,000 rpmMax. power:35.5 kWTorque max.:170 NmC-axis:0.001°Z-axis:390 mmBar capacity:65 mmClamping cylinder:Hollow clamping cylinderChuck:3-jaw chuckSub spindle:Technology:Motorised spindleSpeed:5,000 rpmMax. power:35.5 kWTorque max.:170 NmC-axis:0.001°X-axis:600 mmZ-axis:390 mmBar capacity:65 mmChuck:3-jaw chuckTool carrier I:Technology:Milling spindle on cross slideSpeed:18,000 rpmTool holder:HSK 40X-axis:350 mmY-axis:160 mm (+/- 80 mm)B-axis:230°Tool carrier II:Technology:Milling spindle on cross slideSpeed:18,000 rpmTool holder:HSK 40Y-axis:160 mm(+/- 80 mm)B-axis:230°Tool magazin:Technology:Chain magazineNumber of station ...

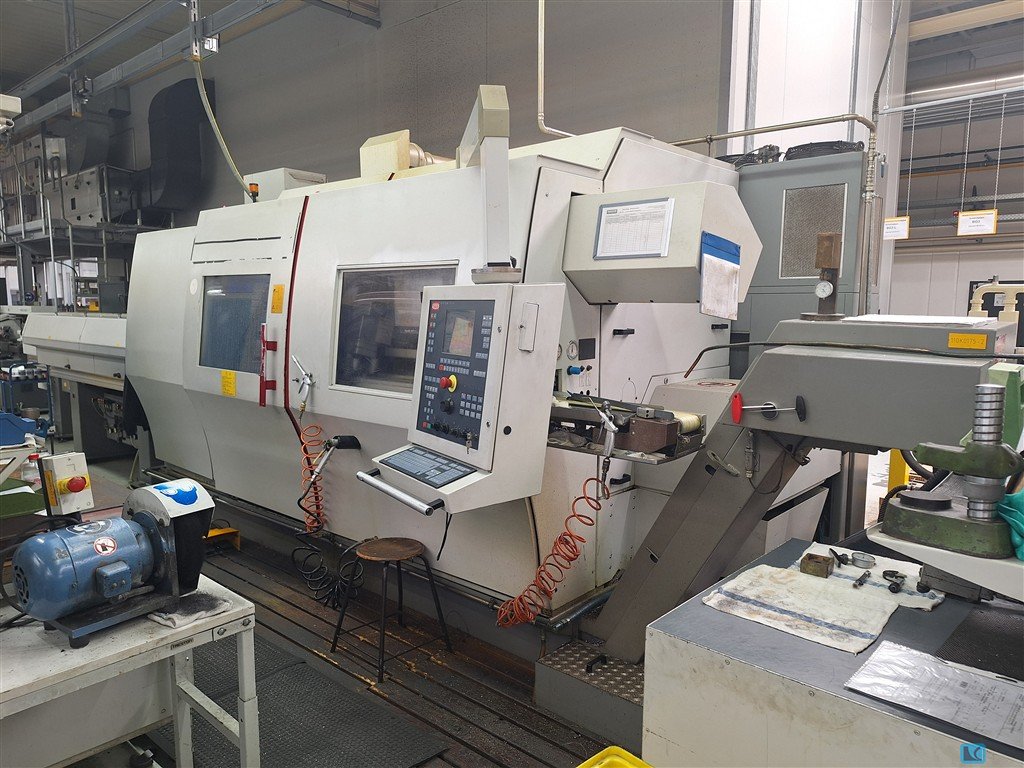

An unused Traub CNC twin-spindle turning and milling center with peripheral equipment is available. Spindle types 1/2: D76/D76, max. turning length: 900mm, max. workpiece diameter: 76mm, number of tool carriers: 3, control system: Traub TX8i-s V8. Main spindle bore: 76mm, taper size: 6, hollow clamping cylinder: D76/20, indexing: 2.5°, clamping pressure range: 8bar-75bar. Counter spindle bore: 76mm, taper size: 6, hollow clamping cylinder: D76/20, indexing: 2.5°, clamping pressure range: 8bar-75bar. Upper tool carrier: axes: X/Y/Z, stations: 12. Lower left tool carrier: axes: X/Y/Z, stations: 12. Lower right tool carrier: axes: X/Y/Z, stations: 12. Including Isi Elbaron RON4DHEC mist extraction and filtration system, custom-built circulation conveyor, Bürener hinged belt chip conveyor, Bürener Eco-Fluid coolant system (600l), cooling unit, coolant chiller, Traub WH workpiece handling ...

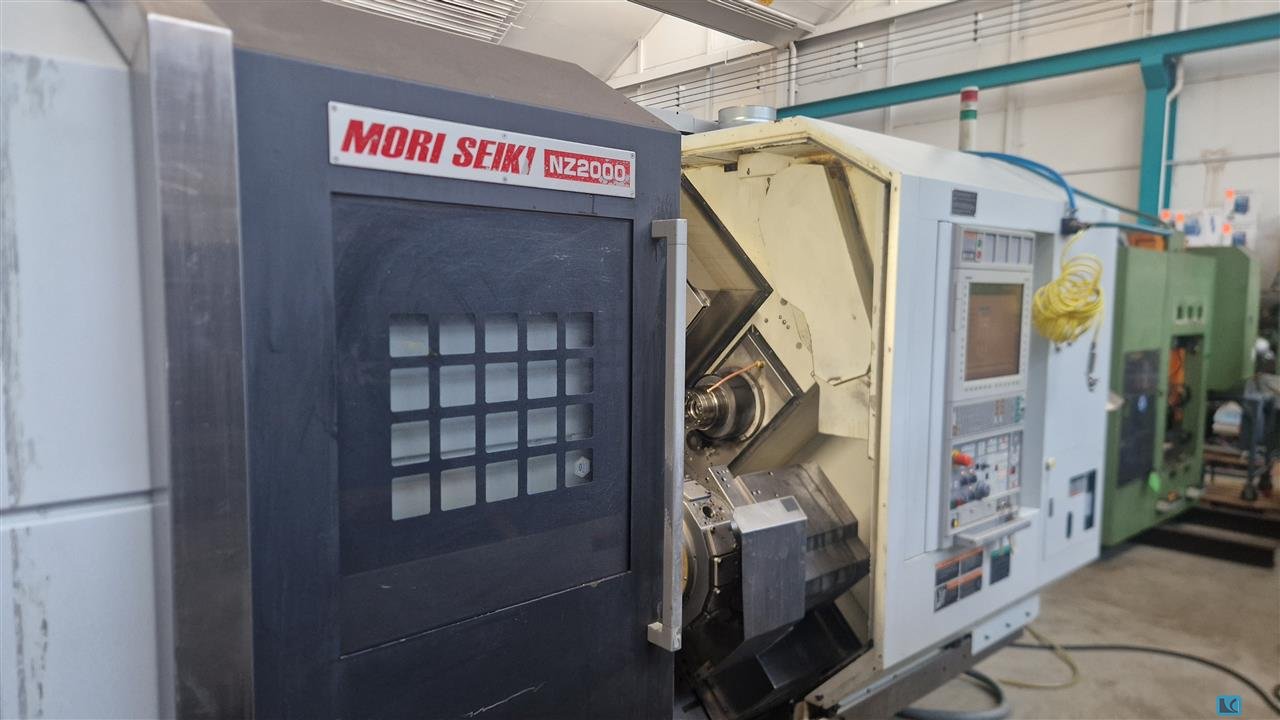

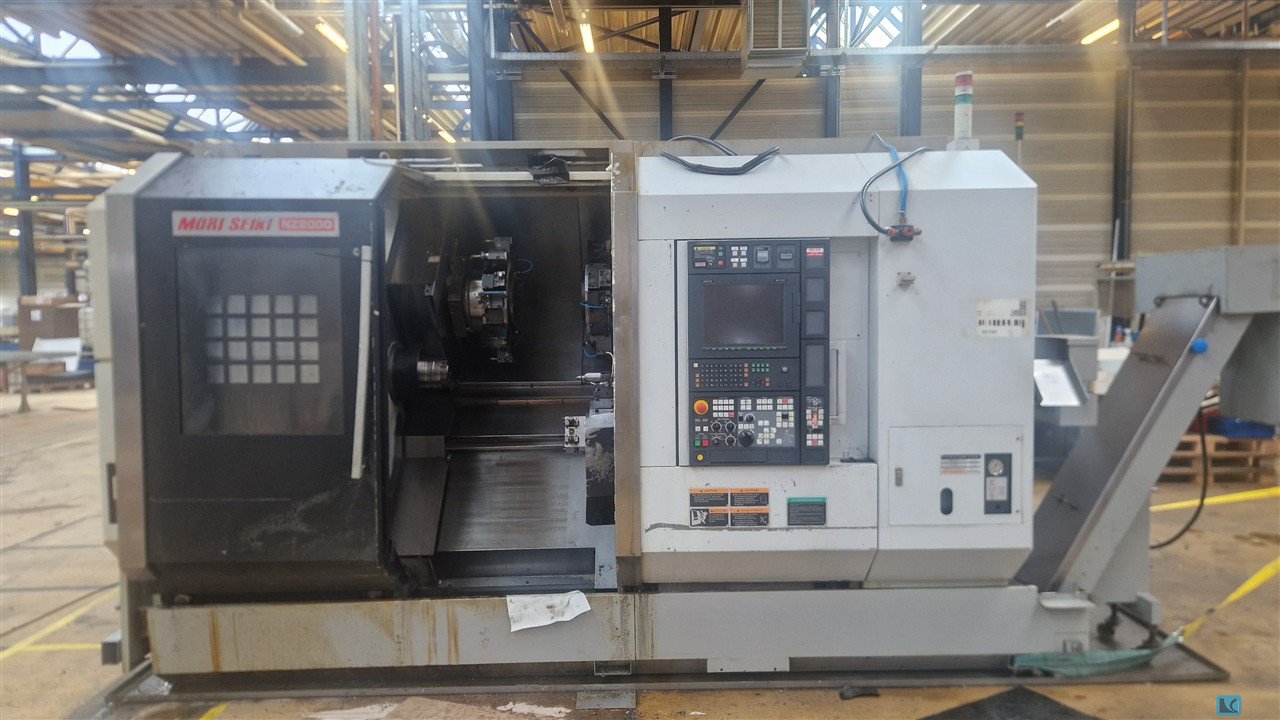

A Mori Seiki CNC turning and milling center with counter spindle including automation is available. Tool turrets: 3, tool stations: 3×16, live tools: all stations, X-axis travel: 210mm, Z1/Z2/Z3-axis travel: 300mm/810mm/300mm, main spindle bore: 55mm, spindle speed: 6000rpm, automation robot: LR Mate 200iC 5L, payload: 5kg, reach: 892mm, repeatability: 0.03mm. Machine dimensions X/Y/Z: approx. 3800mm/2700mm/2500mm, weight: approx. 8900kg, control: Fanuc 31i-A, power-on hours: 101035h, operating hours: 68322h, process hours: 34697h. Including an automated CO2 fire detection system, transformer, machine extraction system, 4× workpiece carriers and an automatic diameter detection system. Documentation available. An on-site inspection is possible.

A Mori Seiki CNC turning and milling center with counter spindle including automation is available. Tool turrets: 3, tool stations: 3×16, live tools: all stations, X-axis travel: 210mm, Z1/Z2/Z3-axis travel: 300mm/810mm/300mm, main spindle bore: 55mm, spindle speed: 6000rpm, automation robot: LR Mate 200iC 5L, payload: 5kg, reach: 892mm, repeatability: 0.03mm. Machine dimensions X/Y/Z: approx. 3800mm/2700mm/2500mm, weight: approx. 8900kg, control: Fanuc 31i-A, power-on hours: 101035h, operating hours: 68322h, process hours: 34697h. Including an automated CO2 fire detection system, transformer, machine extraction system, 4× workpiece carriers and an automatic diameter detection system. Documentation available. An on-site inspection is possible.

A Takamatsu CNC twin-spindle turning and milling center is available. 1) Turning diameter: 190mm, turning length: 150mm, max. one-sided machining length: 440mm, max. bar diameter main spindle/counter spindle: 51mm/42mm, spindle nose 1/2: A2-6/A2-5, spindle bearing 1/2: 100mm/85mm, main spindle bore 1/2: 52mm/43mm, spindle speed: 5000rpm, tool stations: 2×12, travel X1/X2: 162.5mm/170mm, travel Z1/Z2: 500mm/500mm, travel Y: +/-35mm, travel A: 550mm, machine dimensions X/Y/Z: approx. 3000mm/2250mm/2100mm, weight: approx. 7400kg, control: Fanuc 32i-B. 2) TOP Automazioni FU350SX bar feeder, max. bar capacity: 52mm, max. bar length: 3200mm, max. remnant length: 300mm, max. feed rate: 30m/min, max. bundle weight: 2000kg, machine dimensions X/Y/Z: approx. 4300mm/1400mm/1200mm, weight: approx. 1200kg. 3) LTA E 120-X-2-H filtration system, year of manufacture: 2022, filter stages: 2, extraction  ...

Two Index CNC turning and milling centers are available. 1) Index G250, year of manufacture: 2008, swing diameter: 560mm, turning length: 800mm, bar capacity: 90mm, spindle diameter: 140mm, spindle speed: 3500rpm, spindle power: 43kW/57kW, torque: 275Nm/363Nm, indexing: 2.5°, tool speed: 6000rpm, tool drive power: 11kW, X/Z travel: 300mm/800mm, rapid traverse X: 30m/min, rapid traverse Z: 22.5m/min, feed force X/Z: 7200N/9000N, quill diameter: 65mm, machine dimensions X/Y/Z: approx. 7300mm/4000mm/2600mm, weight: approx. 14000kg, control: Siemens 840D C200-4D. 2) Index G300, year of manufacture: 1998, retrofit: 2022, turning diameter: 270mm, turning length: 710mm, max. swing diameter: 590mm, main spindle bore: 65mm, spindle diameter: 110mm, spindle speed: 5000rpm, torque: 275Nm, power: 43kW, tailstock center distance: 740mm, max. thrust force: 10kN, short slide travel X/Y: 215mm/180mm, s ...

CMZ TD-30-TM-800 CNC Turning-Milling Center Technical Specifications Manufacturer: CMZ Model: TD-30-TM-800 Year of Manufacture: 2021 Control System: FANUC 32i-TB Plus Maximum Turning Length: 800 mm Maximum Turning Diameter: 550 mm Spindle Power: 42 kW Bar Capacity: 82 mm Tool Turret: 16 positions Machine Weight: 8,700 kg Equipment: Driven Tools, C-axis, Chip Conveyor

Machine number: 34101101 Operating voltage: 400 V Rated current: 128 A Frequency: 50 Hz Power: 89 kVA Operating hours read: 2782 Turning length: 3000 mm Center height above floor: 1270 mm Circulation diameter over slide top: 520 mm Circulation diameter over telescopic left: 520 mm Circulation diameter over steady rest slide: 520 mm Main spindle left, spindle diameter in front bearing: 160 mm Spindle bore: 77 mm Spindle speed: 4000 rpm Torque: max. 630 Nm tailstock moving built-in centering tip: MK 5 tailstock Quill diameter: 135 mm Starting force: 200 to 1200 daN Max. workpiece weight: 1000 kg Turning-drilling-milling unit Drive power: 15 kW Torque: max. 190 Nm Tool holder: HSK 63 The machine is equipped with a tailstock, a moving steady rest SMW Autoblock and a three-jaw chuck RÖHM, diameter: 310 mm incl. matching workshop cabinet and workbench with large items Documentation max. tool  ...

turning diameter:120 mm turning length:100 mm control:Fanuc Spindle 1 power:7,5 kW Spindle 1 RPM:4500 1/min Spindle 2 power:7,5 kW Spindle 2 RPM:4500 1/min Distance between spindle noses:600 mm Turret No.1 stations / rotary tools:15/15 Power rotary tools turret 1:2,7 kW RPM of rotary tools turret 1:4000 1/min Turret No.2 stations / rotary tools:15/15 Power rotary tools turret 2:2,7 kW RPM of rotary tools turret 2:4000 1/min Travel x/z turret 1:250 / 300 mm Travel x/z turret 2:250 / 920 mm Bar capacity spindle 1:51 mm Bar capacity spindle 2:51 mm power chuck:165 mm Spindle bore sp. 1:62 mm Spindle bore sp. 2:62 mm dimensions of the machine ca.:3700 x 2300 x 3000 mm weight of the machine ca.:5600 kg Used CNC-2-spindle CNC turning and milling center with gantry loader - 2x 15 station turret -automatic gantry loader with turnaround station. 14 station-magazin right side Max. Parts size Ø 12 ...

turning diameter:370 mm turning length:200 mm Spindle 1 RPM:4000 1/min control:Siemens 840 D Spindle 2 RPM:4000 1/min power capacity:L / R 18/24 kW max. torque on the spindle:630 nM C-Axis:0,001° Turret No.1 stations / rotary tools:12/12 VDI 40 Turret No.2 stations / rotary tools:12/12 VDI 40 turning speed range - milling:3000 1/min power capacity - milling spindle:8,8 kW torque rotary tools:28 Nm Bar capacity spindle 1:85 mm total power requirement:65 kVA weight of the machine ca.:13 t dimensions of the machine ca.:5,7x2,4x2,1 m Travel x1:260 mm Travel x2:260 mm Travel Y1:600 mm Travel y2:600 mm Power Chuck:2 x 250 mm manual tool eye:l & r High performance 6-axis subspindle CNC-Lathe with twin turren and rotating tools.

standard turning dia.:200 turning length:max. 810 mm control:MSX-701 MAPPS IV greates pass round over bed:800 mm Max. distance between centres:1130 mm max. turning diameter:320 mm max. workpiecediameter:300 mm bar material dia.:65 mm Traverse X-Axis 1:210 Traverse X-Axis 2:210 mm Traverse X-Axis 3:210 mm Traverse Y-Axis 1:110 (+65/-45) mm Traverse Y-Axis 2:110 (+45,/-65) mm Traverse Z-Axis 1:300 mm Traverse Z-Axis 3:300 mm Traverse Z-Axis 2:810 mm Traverse B-Axis:870 mm turning speed range - spindle:5.000 1/min Number of spindle speed ranges:2 . spindle nose:JIS A2-6 spindle bore:73 mm spindle bearing diameter:120 mm C-Axis:0,001 ° turning speed range - spindle:5.000 1/min spindle nose:JIS A2-6 spindle bore:73 mm bar material dia. max:65/52 mm spindle bearing diameter:120 mm C-Axis:0,001 ° Number of Turrets:3 . Number of tool stations:16 x 3=48 pos Schank height for square tool:20 mm D ...

turning diameter:640 / 400 mm turning length:1500 mm control:Siemens 840 D Powerline Travel turret No.1 (milling spindle) x/y/z:550 / 180 (±90) / 1585 mm Swivle angle milling spindle (B-axis):±120° interpol. ° Rapid traverse feeds turret 1 (milling head) x/y/z:40/24/60 m/min RPM milling spindle:12000 1/min power capacity - milling spindle:12 / 23 kW Torque of milling spindle:100 Nm Tool magazine for milling spindle (turret 1):120 HSK-A 63 Tool change time tool/tool, milling spindle:1,6 s Spindle 1 RPM:4000 1/min Spindle 1 power:36/ 45 kW Spindle 1 Torque:730 Nm Spindle 1 max. bar diameter:90 Spindle 2 RPM:4000 1/min Spindle 2 power:36 / 45 kW Spindle 2 torque:730 Nm Spindle 2 max. bar diameter:90 c-axis:0,001 ° Travel turret 2 x:225 mm Travel Turret 2 z:1595 mm RPM of rotary tools turret 2:4000 1/min no. of tools in turret 2:12 VDI 40 high-pressure pump:20 bar total power requiremen ...

turning diameter:500 mm turning length:1000 mm control:Siemens 840 D spindle:42 / 28 kW spindle turning speed - stepless:31 - 4000 1/min max. torque on the spindle:345 Nm c-axis:360000 x 0,001° feeds -stepless-:0 - 10000 mm/min rapid traverse:10000 mm/min turret stations / rotary tool stations:12/12 VDI 40 RPM of rotary tools:2000 1/min diameter of quill:90 mm quill stroke:80 mm tailstock quill taper ISO:SK 30 Tailstock Travel:600 mm Power rotary tools:3,5 kW :22,5 Nm Rotary tool holders:4 ax./ 4 rad. spindle passage:66 mm total power requirement:30 kW weight of the machine ca.:7,5 t dimensions of the machine ca.:8x 3 x 4 m

standard turning dia.:200 turning length:max. 810 mm control:MSX-701 MAPPS III greates pass round over bed:800 mm Max. distance between centres:1130 mm max. turning diameter:320 mm max. workpiecediameter:300 mm bar material dia.:65 mm Traverse X-Axis 1:210 Traverse X-Axis 2:210 mm Traverse X-Axis 3:210 mm Traverse Y-Axis 1:110 (+65/-45) mm Traverse Y-Axis 2:110 (+45,/-65) mm Traverse Z-Axis 1:300 mm Traverse Z-Axis 3:300 mm Traverse Z-Axis 2:810 mm Traverse B-Axis:870 mm turning speed range - spindle:5.000 1/min Number of spindle speed ranges:2 . spindle nose:JIS A2-6 spindle bore:73 mm spindle bearing diameter:120 mm C-Axis:0,001 ° turning speed range - spindle:5.000 1/min spindle nose:JIS A2-6 spindle bore:73 mm bar material dia. max:65/52 mm spindle bearing diameter:120 mm C-Axis:0,001 ° Number of Turrets:3 . Number of tool stations:16 x 3=48 pos Schank height for square tool:20 mm  ...

turning diameter:410 mm turning length:500 mm control:Fanuc 21i TB standard turning diameter:275 mm travel -x axis:277 mm travel -y axis:82 (±41) mm travel -z axis:500 mm Spindle 1 RPM:4500 1/min Spindle 1 Power:18,5/18,5/15 kW Spindle 1 max. bar diameter:65 mm turret stations / rotary tool stations:12/12 Power rotary tools:5,5 kW RPM of rotary tools:6000 1/min total power requirement:39,2 kVA weight of the machine ca.:6,2 t dimensions of the machine ca.:3,1 x 2,0 x 2,2 m collet chuck:Hainbuch High precision Turning and Milling Centre with Y-axis and robot loading. Stäubli Robot for shaft loading.

standard turning dia.:42 / 140 turning length:170 mm control:Mitsubishi max. turning diameter:140 mm bar material dia.:42 mm turning speed range - spindle:80-8000 1/min spindle bearing diameter:120 mm C-Axis:0,001 ° turning speed range - spindle:60-6000 1/min spindle nose:JIS A2-6 bar material dia. max:42 mm collet chuck:173E C-Axis:0,001 ° Number of Turrets:2 . Number of tool stations:12 x 2=24 pos power capacity - driven tools:7,5 / 5,5 kW total power requirement:92,7 kVA weight of the machine ca.:3,3 t dimensions of the machine ca.:2,4 x 1,6 x 2,2 m The Boley BE 42 2 has 2 spindles und 2 turrets with 12 toolstations VDI 20 each. It can work simultaneus with 7 Achsen. The machine has ca. 22.000 run hrs. The coolant system has a cooling unit 15 collets 173E come with the machine. A bar feeder interface is installed.

max. turning diameter:350 mm turning length:1040 mm control:OSP E 100 L Fanuc greates pass round over bed:550 mm Max. distance between centres:1200 mm max. workpiecediameter:550 mm Traverse X-Axis 1:270 Traverse X-Axis 2:230 mm Traverse Y-Axis 1:120 (±60) mm Traverse Z-Axis 1:930 mm Traverse Z-Axis 2:920 mm Spindle 1 Power:22 / 15 kW Spindle 1 RPM:5000 1/min spindle nose:JIS A2-8 bar material dia.:65 mm C-Axis:0,001° Number of Turrets:2 Turret No.1 stations / rotary tools:12/12 VDI 40 Turret 1 tool RPM:4500 1/min Turret 1 power rotary tools:7.0 / 3,3 kW Turret No.2 stations / rotary tools:12/12 VDI 40 Turret 2 tool RPM:4500 1/min Turret 2 power rotary tools:7.0 / 3,3 kW rapid traverse X-axis:30 m/min rapid traverse Y-axis:26 m/min rapid traverse Z-axis:40 m/min total power requirement:33 kVA weight of the machine ca.:10 t dimensions of the machine ca.:7,0 x 2,3 x 2,3 m spindle load m ...

turning diameter:270 mm turning length:710 mm weight of the machine ca.:6,5 t max. swing diameter:590 mm with automatic loading and unloading system G300 with "spindle bore clamping capacity 90mm" in tailstock version The machine has no driven tools. The information in the circuit diagram refers to the rotary drive for indexing the turret, not to driven tools.

turning diameter:270 mm turning length:710 mm weight of the machine ca.:6,5 t max. swing diameter:590 mm with live tools:VDI40 Live tooling VDI40 with automatic loading and unloading system G300 with "spindle bore clamping capacity 90mm" in tailstock version Chip conveyor, belt filter press, hydraulic unit, as well as infeed and outfeed chain conveyor EWAP, with 33 pallets. The machine has no driven tools. The information in the circuit diagram refers to the rotary drive for indexing the turret, not to driven tools.
