cnc turning milling used for sale

turning diameter:1600 mm turning length:12000 mm control:FAGOR 8050 Used CNC Lathe with FAGOR 8050 and extensive accessories. For further technical data and accessories, pls browse the Appendix. Parallellathe WMW mod. 4 GUIDE-WAYS ¦ CNC: FAGOR 8050 ¦ bed: monolithic ¦ centres height: 800 mm ¦ centres distance: 12000 mm ¦ swing over cross-slide: 1250 mm ¦ turret: automatic 4 positions ¦ tailstock: motorized ¦ tailstock connection: hydraulic ¦ platform: diam. 1000 mm ¦ steady rests: nr.02 ¦ chip conveyor Warranty: none Take advantage of the favorable leasing and hire-purchase terms from IKB Leasing. Ask us about it.

turning diameter:270 -300 mm turning length:710 mm total power requirement:43 kW weight of the machine ca.:8,5 t dimensions of the machine ca.:3,16 x 2,15 x 2,15 m The machine does not include a chuck or tools ? the machine was originally purchased without these accessories. The G300 has X, Z, Y, C, SP, and driven tools. A bar feeder can be used, but the machine does not have one.

turning diameter:220 mm turning length:310 mm total power requirement:17 kW weight of the machine ca.:3,3 t dimensions of the machine ca.:2,25 x 1,63 x 1940 m greates pass round over bed:430 mm bore diameter:45 mm centre distance:687 mm slide travel radial ( X-axis ):160 mm slide travel axial ( Z-axis ):310 mm spindle turning speed range:0-6.300 U/min

turning diameter:220 mm turning length:700 / 665 mm total power requirement:17 kW weight of the machine ca.:2,6 t dimensions of the machine ca.:2,63 x 1,98 x 1,94 m greates pass round over bed:430 mm Part length max.:510 slide travel radial ( X-axis ):160 mm bore diameter:45 mm Texte, Bilder, Grafiken, Layout, Strukturen und Algorithmen etc. unterliegen weltweitem Urheberrecht. Unerlaubte Verwendung der Daten, werden sowohl strafrechtlich als auch zivilrechtlich verfolgt. Das ausschließliche Urheber- / Nutzungsrecht dieser Daten wurde nachfolgender Person eingeräumt. Copyright © 2005-2026, Josef Weber. All rights reserved.

turning diameter:145 mm turning length:210 mm total power requirement:40 kW swing diameter:145 mm Spindle bore sp. 1:56 mm Spindle bore sp. 2:56 mm swing diameter over face slide:145 mm greates pass round over bed:145 mm RPM Main Spindle:7.000 1/min number of workpiece supports:12 Shank diameter:25 mm C-axis RPM:2.000 1/min Chuck diameter spindle 1:140 mm Chuck diameter Spindle 2:140 mm Number of tools:12 fach St. Tool bore:VDI 25 Shank diameter:25 mm weight of the machine ca.:5.300 kg dimensions of the machine ca.:5.000 x 4.100 x 2.050 mm Slide path flat: X1, X2, X3: 220mm, 120mm ( 145mm ) Longitudinal slide travel: Z1, Z2, Z3: 320mm, 345mm, 380mm Vertical slide travel Y1: +/- 30mm Longitudinal spindle travel Z3: 380mm Clamping tube inner draw tube 46mm diameter Speed range main drive 1+2 up to 7,000 rpm Speed of driven tools up to 6,000 rpm Main and counter spindle collet chuck 1 axial ...

travel -x axis:800/1825 mm travel -y axis:800/460 mm travel -z axis:600 mm Feeding X,Y,Z up to:0 - 40/40/40 mm/min. swival range +/-:+10 bis -90 x 360 Grad Rotary-table:800 x 630 mm number of T-slots:5 T-slot - distance:125 mm T-Slots:18 mm center hole:30H7X15 mm swival range +/-:90 Grad turning speed:20 m/min. Number of axles:3-7 St. Spindle RPM:12.000 1/min max. tool weight:10 kg max. tool length:330 mm diameter of tools max.:80 mm tool changing time:4 sec CNC control with 15.1" color flat-screen 19" machine control panel PCU 50 with Intel Pentium II Windows XP 10.0 GB hard drive

turning diameter:356 mm turning length:700 mm y-axis:±60 mm spindle drive:18 kW counterspindle motor:15 kW Direct drive for driven tools:5,5 kW Motor starting torque:640 Nm Main spindle mount:A2-8 counter spindle mount:A2-6 Rod passage:80 mm main spindle speeds::4.000 U/min Drehzahl angetriebene Werkzeuge :6.000 U/min rapid traverse speed:30 m/min auf X- und Z-Achse machine weight ab.:5.800 kg 12-station turret, all positions driven C-axis on both spindles Belt-driven and infinitely variable drive on all motors Prismatic guideways on all axes Oil cooler for both spindles, manufacturer Daikin Automatic, dialog-guided programming system MAPPS Automatic monitoring of tool load and tool wear Two Renishaw measuring arms for automatic tool measurement Interfaces: USB, PCMCIA card, and RS-232 port Interface for bar feeder Automatic parts catcher Dual foot pedal for independent opening and clos ...

turning diameter:570 mm turning length:635 mm travel -x axis:220 mm travel -z axis:635 mm Torque:240 Nm feed::X: 20m/min; T: 24m/min disc turret:12 fach main spindle speeds::25-25.000 dimensions of the machine ca.:3210 x 1750 x 1750 mm weight of the machine ca.:5.300 t

turning diameter:x. 350 mm turning length:985 mm swing dia.:610 mm clamping range for bar work:77 mm speeds:350 - 4.000 U/min Torque:465 Nm spindle nose:A2 - 8" spindle bore diameter:88 mm chucking diameter:254 mm numbers of tools:12 travel -x axis:190 mm travel -z axis:1.025 mm rapid traverse X-axis:30 m/min rapid traverse Z-axis:33 m/min Tailstock Travel:1.010 mm tailstock taper MT:4

turning diameter:1070 mm turning length:8500 mm total power requirement:62 kW turning diameter over slide rest:800 mm spindle bore:128 mm max. workpiece weight between centers:8000 kg max. workpiece weight:12000 kg bore spindle turning speed range:1,120-01120 U/min tailstock quill diameter:200 mm dimensions of the machine ca.:12 x 2,8 x 2,4 m Machine equiped with Alan Bradley 9 series CNC control - SAUTER 6-postiion revolving head - 360 mm seld centering steady rest - 385 mm rotary work rest (used for gun barrels) - faceplate 800 mm - chip conveyor

turning diameter:480 mm turning length:1250 mm control:H 645 weight of the machine ca.:8 t dimensions of the machine ca.:5 x 2 x 2 m centre distance:1580 mm swing over bed:495 mm swing diameter:üb.Querschlitten ca.350 mm working area:1600 mm control:H645 connected load:50 kW

turning diameter:1600 mm turning length:3000 mm centre height:800 mm turning diameter over bed:1600 mm turning diameter over bed slide:1400 mm turning dia. over face-slide:1200 mm max. workpiece weight between centers:20 to speeds:5,6 -800 1/min transmission ratio:3 spindle bore:112 mm turret (x-stations):8 / VDI 60 travel -x axis:850 mm travel -z axis:3020 mm rapid power traverse in X-and Z direction:6 / 10 m/min power maindrive:46 kW weight of the machine ca.:22 to. dimensions of the machine ca.:7,2 x 4 (3,11) x 2,7 m tech-in lathe, flatbed, tailstock, 8-pos. BARUFFALDI turret with 4 live tools, power 9kW, 4-pos. BARUFFALDI square-headed turret horizontal, C-axis, 3-jaw hydr. chuck SMW Autoblock KNCS 800/165, dia. 800mm, quick adjustment, power cylinder with 2 pressure clamping system, chipconveyor, coolant device, accessories

bar material dia.:65 mm turning length:644 mm turning dia. over bed:600 mm turning diameter over slide:430 mm y-axis:100 (+-50) mm turning speeds:2x 5.000 1/min positive location each:2x C-Achse, 0,001° Grad Sub spindle:ja/yes turret (x-stations):2x 12 VDI 30 Pos. driven tools:2x 12 Pos. turning speeds:2x 4.000 1/min control:FANUC 18 iTB total power requirement:30 kVA weight of the machine ca.:8 t dimensions of the machine ca.:3,5 x 2,5 x 2,3 m turning- milling center with Y-axis, collet device on main and subspindle, high pressure pumps 2x 14bar, parts catcher/conveyor, barloader ENTL 10-65, chip conveyor, lot of accessories approx. 54.500 hours "machine on", 30.500 h "automatic", 14.000 h "feeding"

turning diameter:80 mm turning length:235 mm max. bar capacity:42 mm power capacity - driven tools:1 kW speeds spindle 1:6000 1/min speeds spindle 2:5000 1/min numbers of turret head positions:8 pos drive capacity - spindle motor:SP1 11 / SP2 5,5 kW Tools speed:60-6000 1/min weight of the machine ca.:ca. 3 t dimensions of the machine ca.:2,4 x 1,5 x 1,6 m High Performance CNC Turning- and Milling Center - chipconveyor - subspindle - live tools - C-axis - brake - partscatcher and partsconveyor - tool eye - barloader LNS HYDROBAR MINI-SPRINT approx. 5000 working hours

turning diameter:420 turning length:1230 mm swing over bed:700 mm swing diameter over slide rest:550 mm centre distance:1390 mm y-axis:+/- 60 mm turning speeds:3500 1/min turret (x-stations):12 power capacity:22 / 18,5 kW :1 / 12 x BMT rapid traverse x + z axis:20 / 24 m/min :76 mm total power requirement:50 kVA weight:7,8 t dimensions of the machine ca.:4,10 x 2,05 x 2,21 m CNC lathe with Y-Axis and driven tools, C-axis, tool eye, hydraulic 3-chaw-juck D= 250 mm, reinforced pump 15 bar, pressure-compensated clamping cylinder , 2 step clamping pressure, prepared for steady (without steady), progr. tailstock (dragging device), live tool device (3,7 kW, 3.000 rpm), chipconveyor, 1 pcs. live tool included approx. 15.500 working hours

turning diameter:325 mm turning length:600 mm total power requirement:35 kW spindle drive:25 kW spindle turning speed range:5000 U/min speeds of tool:4500 U/min rapid traverse X-axis:60 m/min diverse toolholders:VDI 40 rapid traverse Z-axis:45 m/min weight of the machine ca.:6,5 t dimensions of the machine ca.:3,5 x 2,5 x 2,1 m Machine with SIEMENS 840 D control power line with shopturn - C and Y-axis, driven tools - bar loader IRCO ILS-RBK - coolant device with coolant throough revolving head - Revolver - counter spindle - chip conveyor - collet clamping - part catcher

turning diameter:626 mm turning length:3000 mm Turning diameter:600 mm spindle bore:100 mm spindle turning speed range:2800 U/min weight of the machine ca.:18 t Machine overhold and retrofit in 2003 with SIEMENS 840 D control - NC steady rest - 12-fold revolving head - splash doors - tailstock - coolant device

turning diameter:38 mm Article: CNC lathe Manufacturer: Hanwha Type: STL38H Year of construction: 2013 Control: Siemens 840SL for 8 axes Main spindle: max. turning diameter: 38mm; spindle bore max. 42mm, n max. 6,500 rpm Power max. 23 kW; C-axis with 0.001 degree; stroke Z1 320mm; synchronised guide bush unit; guide bush type JBS or SL38; type collet 173E / F48 Counter spindle: max. pick-up diameter: 38mm, n max. 6,500 rpm Power max. 23 kW; C-axis with 0.001 degree; stroke Z2 320mm; type collet 171E / F42 Tool turret: n max. 6,000 rpm Power max. 2.6 kW; Servo axes: X2, Y2, Z2; Stroke [mm]: X2 = 115, Y2 = 100, Z2 = 120 Bar feeder FMB Turbo 5-55 High-pressure station SFB-301 eco 150bar Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

turning diameter:26 mm Article: High-precision CNC lathe with linear cross slide Manufacturer: Benzinger Type: GOFuture B1 Yob: 2015 Machine was only used for reworking, so only light machining work was carried out! Control: Siemens Sinumerik 840Dsl Main spindle: maintenance-free motor spindle Bar capacity: D26mm Chip processing container with coolant pump: 30l/min at 5bar Loading and unloading device type IB Additional gripper system for placing the workpieces in the correct position on the unloading conveyor Coaxial valve for coolant to the linear tools (3 pieces) Internal clamping device C-axis main spindle for digital control incl. Transmit function Adjusting microscope 16x magnification Coolant supply through the clamping cylinder of the spindle, sealing air, Speed increase of the motor spindle to 8,0000 rpm Nordmann tool monitoring Profibus master interface Hinged belt conveyor Kno ...

turning diameter:26 mm Article: High-precision CNC lathe with linear cross slide Manufacturer: Benzinger Type: GOFuture B1 Yob: 2016 Machine was only used for reworking, i.e. only light machining work was carried out! Control: Siemens Sinumerik 840Dsl Main spindle: maintenance-free motor spindle Bar capacity: D26mm Loading and unloading device type IB Additional gripper system for placing the workpieces in the correct position on the unloading belt Coaxial valve for coolant to the linear tools (3 pieces) Internal clamping device C-axis main spindle for digital control incl. transmit function Adjusting microscope 16x magnification Coolant supply through the spindle clamping cylinder, Sealing air, Speed increase of the motor spindle to 8. 0000 rpm Nordmann tool monitoring Profibus master interface Hinged belt conveyor Knoll Compact coolant device Knoll MBE interface Small fire extinguishin ...

FOR SALE – SW BAS03-X2 2XRDT TMB 5-Axis Table for Machining Center Brand: SW (Schwäbische Werkzeugmaschinen) Model: BAS03-X2 2XRDT TMB Type: 5-axis rotary/tilting table Application: SW Horizontal Machining Center Description Original SW 5-axis table disassembled from a machining center. Complete equipment with electrical harnesses, connectors, hoses and pipes visible in the photo. Designed for machining complex parts requiring simultaneous multi-axis operations (rotation + tilt). Rugged industrial equipment, ideal for: Replacement Retrofit Reconditioning Spare parts ⚙️ Technical characteristics Configuration: 2XRDT TMB Function: Rotation + tilting axis Integrated drive Hydraulic/pneumatic connections Complete industrial connectors High rigidity cast iron construction (Nameplate and detailed specifications on request) Status Dismantled in an industrial environ ...

CNC Control: GE FANUC Series 16i-T Number of axes: 2 (with sub-spindle) Main spindle: ASA 5 nose, max. bar passage 42 mm, power 11 kW, max. speed 6,000 rpm Max. rotation diameter: 519.2 mm Max. turning diameter: 308 mm X/Z axis strokes: 189.2 / 406 mm Turret: VDI 30 bidirectional, 16 positions (16 motorized) Sub-spindle: ASA 5 nose, max. bar passage 42 mm, power 7.5 kW, max. speed 6,000 rpm Included equipment: parts catcher, motorized tools and stationary tools (depending on seller) Weight (kg): 5071 Year & Manufacturer: 2001 – HARDINGE

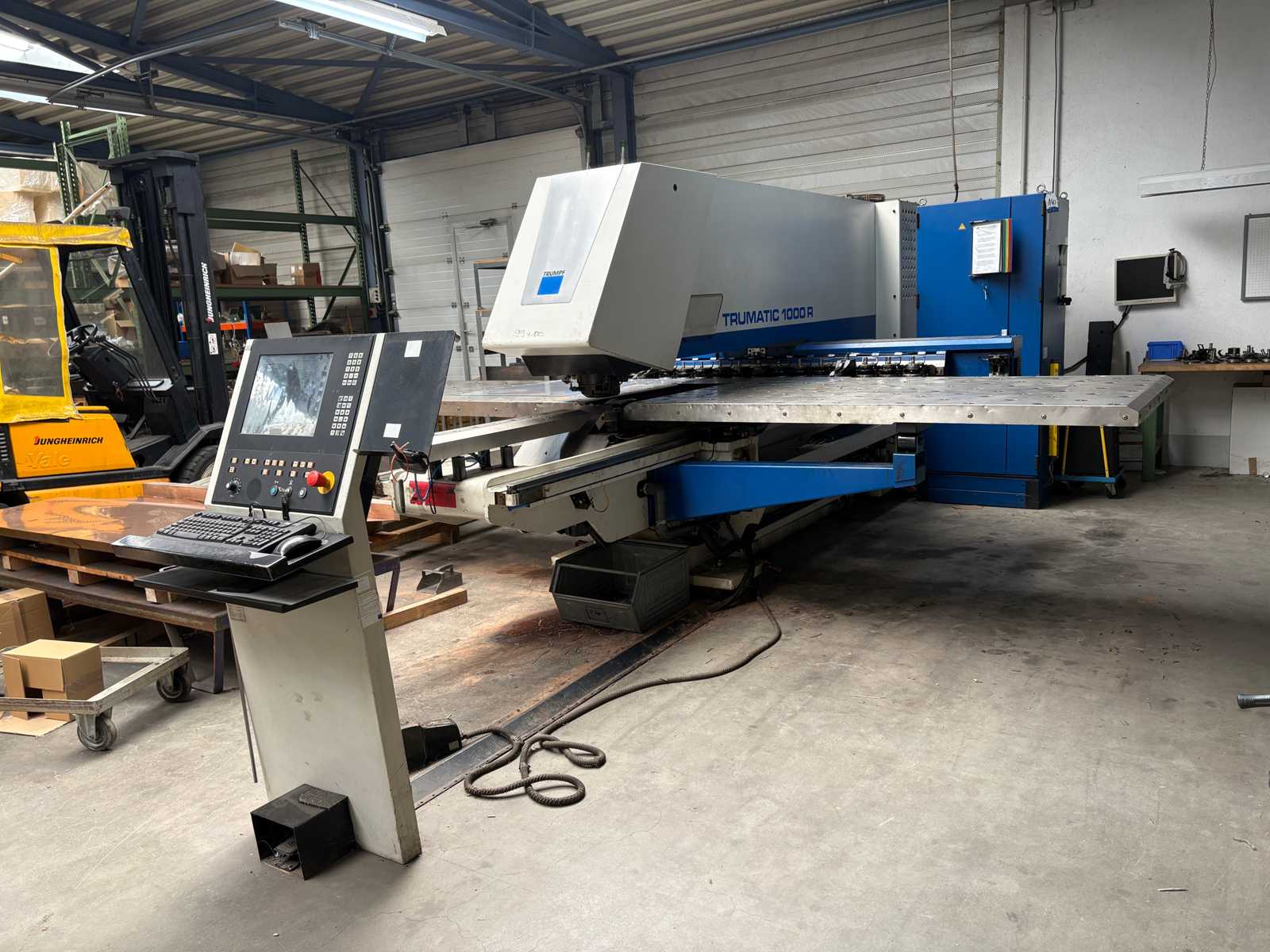

Functions/Processing: Punching & Punching Nibbling Laser cutting (contours, inner contours), forming (e.g. beading, thread forming), countersinking / deburring, combination of several processes in one process This makes it particularly suitable for: thin to medium sheet metal Punching force: 220 kN (22 tons) Laser power: approx. 1.8 – 2.7 kW Working range circa. 3000 × 1500 mm Working range: approx. 3000 × 1600 mm Max. sheet thickness to approx. 6- 8 mm steel maximum. Punching diameter: 76.2 mm travel speed to approx. 108 m/min. - incl. 20 scoffers - incl. air cushion at the front - incl. table extension on the right and left for processing material up to 4.5mtr. Length - without punching tools, these are sold separately as a bundle - Regular maintenance and water change carried out by the service for trump machines - All service documents available A license of the Trumpf Tops  ...

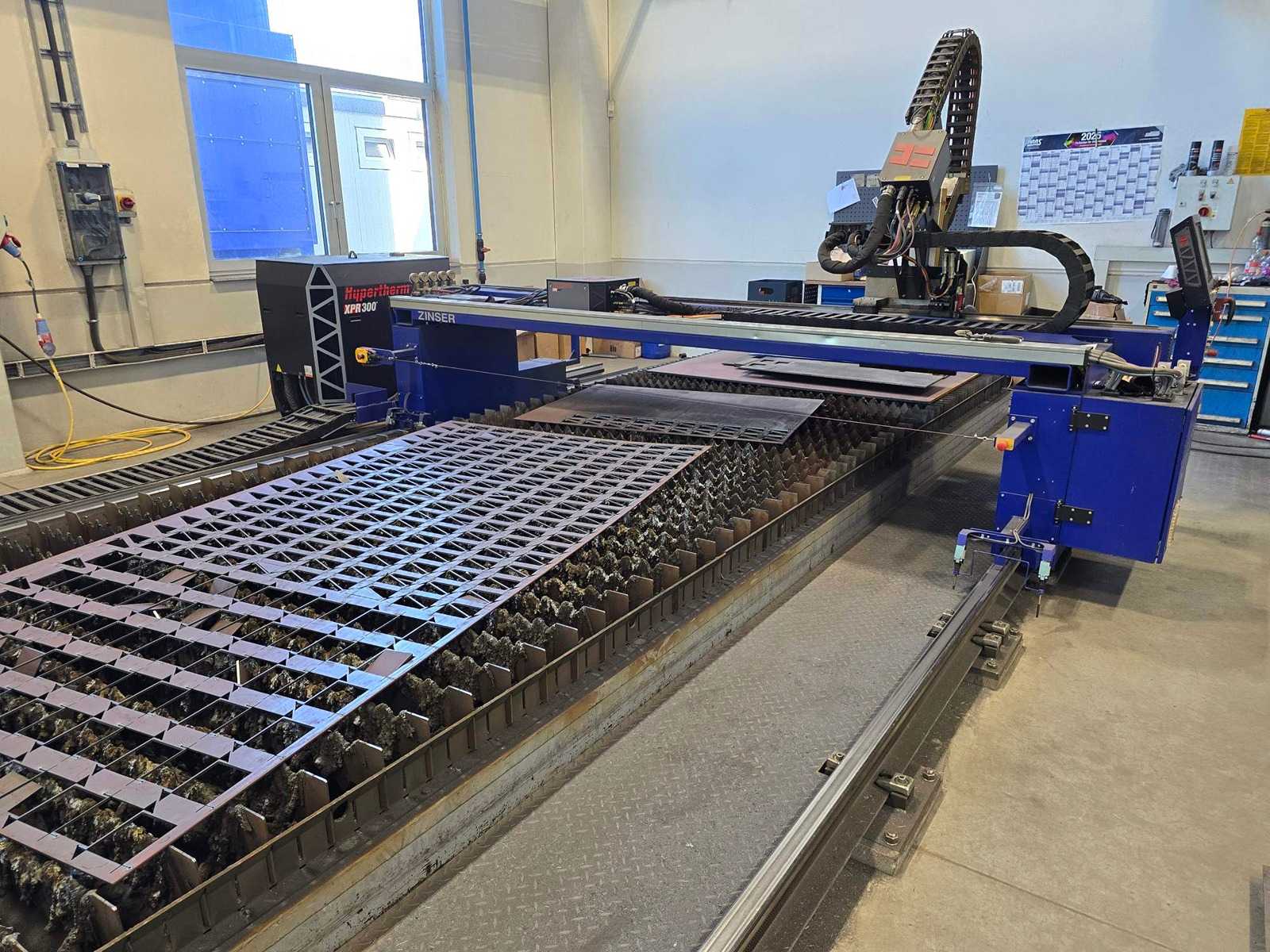

ZINSER 2425-I/3600 CNC Plasma Cutting Machine Year of construction 2017 With Hypertherm XPR300 plasma system incl. bevel head incl. Hypertherm ProNest software The facility is in a very well-maintained and functional condition and is ready for immediate use. Equipped with the modern Hypertherm XPR300 high-performance plasma system for high-precision cutting work with excellent cutting quality. Particularly noteworthy is the integrated bevel head, which enables automatic weld seam preparation and bevel cuts. The cutting head can be swivelled in automatically. Technical equipment: • ZINSER CNC plasma cutting machine type 2425-I / 3600 • Hypertherm XPR300 plasma source • Hypertherm XPR VWI Interface • CNC control with touch operation • Automatic Bevel Head • Cable towing system • Extractable cutting table • ProNest nesting software included Maximum cu ...

Manufacturer: HYUNDAI Year: 1999 Type: CNC lathe CNC numerically controlled: Siemens Sinumerik 840C Max. turning circle: Ø 254 mm Diameter above bed: Ø 440 mm Max. turning length: 500 mm Bar capacity: Ø 51 mm Spindle: 36–4,000 rpm – nose A2-6 – 11 kW (continuous) / 15 kW (30 min) Chuck: Ø 210 mm, Hydraulic clamping Turret: 8 stations – 25 × 25 mm tools / Ø 40 mm bars Tailstock: programmable hydraulic – CM4 taper Chip conveyor: hinged, side outlet Dimensions (mm): 2600 × 1700 × 1750 Weight (kg): approx. 4200 Remarks: Machine used, sold with tailstock and conveyor.

CNC Control: MAZAK & FANUC L-64 Cutting table: spiked Cutting head: CO₂ laser Suction system: KEMPER with external unit Indicated voltage: 40000 V X-Y-Z axis strokes: 3335 x 1545 x 420 mm A-axis: ±360° B-axis: ±135° Maximum part dimensions: 3050 x 1525 x 22 mm Load capacity: 7.9 kN / 810 kgf Laser power: 4000 W Laser Model: YB-L400A8M Weight: 14600 kg Status: Complete machine with suction unit and accessories Additional information: Sold with an additional laser unit and many spare parts Additional information: Disassembly and loading at the expense of the buyer

CNC Control: Siemens 828D ShopMill Courses X/Y/Z: 1220 / 600 / 610 mm Total power: 10 / 14 kW Spindle speed: 8,000 rpm Spindle taper: SK40 Tool magazine: 20 positions Equipment: Chip conveyor, coolant, technical documentation Power supply: 400 V – 50 Hz Manufacturer: Huron Year: 2012 Serial number: M02741 Estimated dimensions (mm): 3500 x 2800 x 3200 Weight (kg): 10000

Manufacturer: DOOSAN Year: 2008 Type: CNC Vertical Machining Center Numerical Control: FANUC 0i-M Series Strokes: X 1020 mm / Y 510 mm / Z 525 mm Fast Feeds: X/Y 36 m/min – Z 30 m/min Spindle: 12,000 rpm – 11 kW (continuous) Tool magazine: 30 tools Table: 1200 × 500 mm – max. load 799 kg Accuracy: ±0.005 mm – repeatability±0.003 mm Dimensions (mm): 2795 × 2850 × 2275 Weight (kg): 6500

Manufacturer: FAMUP Year: 1998 Type: CNC vertical machining center Numerical control: Heidenhain 410 AC.Strokes : X 1000 mm / Y 470 to 600 mm / Z 470 to 600 mm (according to documentation) Table: 1300 x 520 mm – T-slots 5 x 18 mm (pitch 100 mm) – max. load 800 kg Spindle: ISO 40 DIN 69871 – AC Brushless – 50 to 8000 rpm – 11 kW (30 min) / 7.5 kW S1 Feeds: X/Y/Z 10000 mm/min – X/Y/Z 30000 mm/min fast tool magazine: 24 positions – max. tool diameter 94 mm – max. length 280 mm – max. weight 6 kg – changeover time 3 s Equipment: without spindle center coolant, without chip conveyor, sold without tools Dimensions: 4247 x 3105 x 3310 mm Weight: 6000 kg Lots sold as is, unchecked, without tools or tool holders.

Machine number: A0045A0007 Operating voltage: 400 V Frequency: 50 Hz Connection: 17 kVA Rated current: 35 A Travel X-axis: 2015 mm Travel Y-axis: 1215 mm Max. material thickness: 6.4 mm Max. workpiece weight: 150 kg Max. punching force: 165 kN max. hold-down force: 10 kN Max. stroke sequences punching Hole spacing 1 mm: 600 rpm Signing: 1300 rpm Max. axis speed X-axis: 80 m/min Y-axis: 55 m/min simultaneous: 97 m/min max. acceleration X-axis: 10 m/qs Y-axis: 5 m/qs C-axis punching/thread forming: 175/min Number of positions in the linear magazine: 17 Number of tools/claws: 15/2 Number of tools when using multi-tool/claws: 15-150/2 Number of claws location/2: max. 2/3 Reject parts: max. part size via disc chute: standard 180 x 150 mm max. part size via disc chute with movable support table: 460 x 500 mm Accuracy position deviation: +- 0.1 mm Average position spreading width: +- 0.03 mm in ...

CNC lathe Angelini Oscar Year of Make: 2003 Control: GE Fanuc Series 21i-T Technical data Permissible diameter on the slide: 320 mm Recommended turning diameter: 220 mm Maximum turning diameter: 320 mm Turning length with chuck: 600 mm X-axis travel: 270 mm Travel Z-axis: 720 mm C-axis: available Tool turret: 12-speed VD30 Rapid traverse X-axis: 24 m/min Rapid traverse Z-axis: 32 m/min Spindle nose: ASA 5" Spindle bore: 61 mm Bar Passage: 52 mm Power spindle motor: 15 kW Maximum spindle speed: 4,500 rpm Diameter hydraulic chuck: 210 mm Tailstock quill diameter: 70 mm Tailstock quill stroke: 190 mm Collet chuck: available Dimensions (L x W x H): 402 x 130 x 199 cm Weight: 4,500 kg

Manufacturer: DMG (Deckel Maho Gildemeister) Year: 2006 Type: CNC Vertical Machining Center Numerical Control: Heidenhain TNC 530 Strokes: X 635 mm / Y 510 mm / Z 460 mm Spindle: 12,000 rpm Tool magazine: 32 positions Spindle center coolant: 20 bar Filtration: Cartridge filtration Tooling: No tooling supplied with the machine Weight (kg): approx. 6000 Notes: Multi-purpose CNC vertical machining center. Serial number included in the description.

Manufacturer: HURON Year: 2001 Type: 4-axis CNC vertical machining center Numerical control: Siemens Sinumerik 840D Strokes: X 700 mm / Y 600 mm / Z 450 mm Table: 800 × 600 mm – max. load 500 kg 4th axis: Integrated rotary table Spindle: HSK63-A – SKF – 24,000 rpm – 18 kW (spindle overhauled in 2024, approx. 1,000 h) Tool magazine: 20 stations Dimensions (mm): 3000 × 2100 × 3300 Weight (kg): 8000 Remarks: High-speed machining center with 4th axis. Machine used, functional.

Manufacturer: VICTOR Year: 1996 Type: CNC Vertical Machining Center Numerical Control: FANUC Series O-M Strokes: X 800 mm / Y 500 mm / Z 510 mm Table: 1100 × 500 mm – max. load 600 kg Guides: Prismatic slides with Turcite-B coating Spindle: 60–6,000 rpm – BT40 / SK40 taper – 7.5 kW (continuous) / 11 kW (30 min) Tool changer: 24 tools – exchanger arm – 2.5 s tool-tool – max. tool Ø 80 mm Weight (kg): approx. 6000 Notes: Mehanite heavy construction machining centre. Good working condition.

Diameter above the bench : 700 mm Maximum turning diameter: 420 mm Maximum turning length: 737 mm Chuck: 305 mm (12 inches) Spindle speed: 2,500 RPM Engine power: 22 kW (peak) / 18.5 kW (continuous) Maximum torque: 1,050 Nm Spindle Bore: 105 mm Turret: 12 positions Power Tools: 5,000 RPM (5.5 / 7.5 kW) X-axis: 280 mm Z-axis: 790 mm Y-axis: 120 mm (± 60 mm, optional) Fast Forwards: 20 / 24 m/min Tailstock Stroke: 750mm (Standard) CNC Control: FANUC Weight: 5,200 kg Dimensions: 4,354 x 2,076 x 1,917 mm

LID MAHO DMU 125 T hi-dyn 3-axis CNC universal machining center Control: Heidenhain MillPlus Year of Make: 2002 Powerful and robust 3-axis machining center from DECKEL MAHO. Ideal for complex milling operations in tool, mould and machine construction. Travels • X-travel: 1,250 mm • Y-travel: 880 mm • Z-travel: 800 mm Main spindle • Speed range up to 18,000 rpm⁻¹ • Drive power: 15 / 10 kW • Max. torque: 500 Nm • Tool holder: SK 40 Work table • Table clamping surface: 1,500 × 1,050 mm • Max. table load: 2,500 kg • Number of T-slots: 10 • T-slot width: 18 H7 mm • T-slot spacing: 100 mm Tool Changer • 30 tool positions • Max. tool diameter: 80 mm • 160 mm with free adjacent position • Max. tool length: 315 mm • Max. tool weight: 8 kg • Max. total weight in the magazine: 100 kg Feeds • Rapid traverse  ...

Machine number: 71401453 Operating voltage: 400 V Frequency: 50 Hz Rated current: 80 A Connection: 44 kVA Spindle hours read: 26350 Control: MILLPLUS Spindle speed: up to 12000 rpm Feed X/Y/Z axis: 20 - 15000 mm/min Rapid traverse X/Y/Z axis: 40 m/min Displacement measuring system Resolution X/Y/Z axis: 0.001 mm Input gauge X/Y/Z axis: 0.001 mm Position tolerance in X/Y/Z axis: 0.010 mm Travel X-axis: 600 mm Travel Y-axis: 700 mm Travel Z-axis: 600 mm Tool holder: SK 40 incl. 60-fold tool changer Max. tool diameter: 100 mm Max. tool length from spindle nose without tool breakage monitoring: 350 mm NC rotary table Clamping surface: 630 mm Diameter Distance between T-slots: 63 mm Number: 9 Centering bore: 50 mm Diameter Max. rotation of table top: 10.7 rpm Feed: 3600°/min Resolution of the measuring system: 0.001° incl. chip conveyor and cooling system Attention: the machine can be trans ...

Manufacturer: HEAD / KENT Model: CUV-10 (KMV 10) Year: 1999 Robust CNC vertical machining center, Meehanite cast iron construction, suitable for machining single parts and small to medium series. Numerical control: FANUC OMD Structure: Meehanite cast iron Turcite B-coated slides Rigid thread Portable electronic crank Full protective guard Sprinkler system Work light and end-of-cycle lamp Toolbox Races: X: 1,020 mm Y: 510 mm Z: 510 mm Distance between spindle nose and table: 105 to 740 mm Table: Dimensions: 1,200 × 600 mm T-slots: 18 mm – 3 grooves Max. permissible load: 1,000 kg Spindle: Speed: 30 – 7,500 rpm Transmission: ZF gearbox – 2 ranges Cone: BT 40 Engine power: 11 kW Feeds: Fast feed (X,Y,Z): 24 m/min Working feed: 1 – 10,000 mm/min Tool changer: Capacity: 20 tools Max. tool weight: 6 kg Bidirectional selection Machine dimensions: 2,880 × 2,420 × 2,980 mm Floor space  ...

Ø grinding wheel dimensions (od x id x width): Ø 650 x Ø 304,8 x 500mm, Ø min / max to grinding: 3/200 mm, Peripheral grinding wheel speed (m / s): Variable with regulator, Regulating wheel width: 500 mm, Regulating wheel speed nº: Infinite, Dressing (auto / manual): Automatic CNC the 2 grinding wheels, Min / max regulating wheel speed (r.p.m.): 10/255 r.p.m., Lubrication (auto / manual): Automatic, Control type ((cnc / manual): CNC, Cnc axes nº: 8, Infeed (auto / manual): Automatic, Diamond dressing speed: 255 r.p.m., Regulating wheel dimensions (od x id x width): Ø 350 x Ø 203,2 x 500mm, Grinding wheel width: 500 mm, Maximum infeed grinding length: 500 mm, Motor power grinding wheelhead: 75 Kw, Power hydraulic motor: 3 Kw, Accessories included: Fairing, rule holder and plongeé, MARPOSS E50 meter, speed regulator. grinding wheel work, Total power: 90 Kw, Voltage: 220 / 380V, Lo ...

CNC vertical machining center Type: DMC 1035 V ECOLINE Manufacturer: DMG MORI Year: 2012 Control: Siemens Sinumerick 840D Total hours: 12,058 Spindle hours: 5,039 X: 1035 mm Y: 560 mm Z: 510 mm Working table: 1200 x 560 mm Tool magazine: 20 positions Max spindle speed: 8,000 rpm Chip conveyor Machine in good condition, fully functional, under power Find more here - / Contact us at -

CNC vertical machining center Type: DMC 1035 eco Manufacturer: DMG Year: 2010 Control: Siemens Sinumerik 810D Total hours: 25,503 Spindle hours:13,362 X: 1035 mm Y: 560 mm Z: 510 mm Max spindle speed: 8,000 rpm Tool magazine: 20 positions Rapid traverse X/Y/Z: 30 m/min Rated power: 17 kVA Torque:83 Nm Table:560 x 1200 mm Table load: 1000 kg Chip conveyor Dimensions: 3137 x 3355 x 2758 mm Machine weight: 4250 kg In good condition, fully functional, under power Find more here - / Contact us at -

CNC portal machining center Type: DV 1432 Manufacturer: Pinnacle Year: 2015 Control: Fanuc α 30/3000i 7.0 X: 3200 mm Y: 1400 mm Z: 900 mm X-axis rapid traverse: 16 m/min Y-axis rapid traverse: 20 m/min Z-axis rapid traverse: 20 m/min X/Y/Z feed: 10 m/min Rated power: 50 kVA Workpiece length (max.): 4000 mm Workpiece width (max.): 1350 mm Workpiece weight (max.): 8000 kg Max spindle speed: 8,000 rpm Spindle motor power: 18,5 kW Tool length: 350 mm Tool diameter: 127 mm Tool weight: 20 g Table: 1200 x 3200 mm Table load: 8000 kg Dimensions: 8130 x 4150 x 4500 mm Machine weight: 17000 kg Chip conveyor Machine in good condition, fully functional, under power Find more here - / Contact us at -

CNC vertical machining center Type: DNM 400 Manufacturer: Doosan Year: 2010 Control: Fanuc i Series X: 635 mm Y: 435 mm Z: 510 mm Table size: 790 × 435 mm Max. table load: 400 kg Tool magazine: 20 positions Max. spindle speed: 8000 rpm Spindle power: 15 kW Spindle taper: ISO 40 Machine weight: 5000 kg Dimensions: 1962 × 2093 × 2509 mm Chip conveyor Machine in good condition, fully functional, under power Find more here - / Contact us at -

A vertical glass mitre grinding machine is offered. Working range (glass thickness): 3mm-40mm, minimum glass size: 80mm × 80mm, number of spindles: 10, angle adjustment (mitre): 0°-45°, feed speed: 0.4m/min-6.0m/min, working height: 830mm, control: CNC control with digital display. Equipped with automatic chain conveyor, water recirculation system, motorized thickness adjustment, polishing automation for the glass edge. Weight: approx. 3800kg, overall dimensions X/Y/Z: approx. 7800mm/1600mm/2600mm. Inspection possible by arrangement.
