cnc step used for sale

Used machine NLX2000SY with loading magazine Machine Type: Turning Center Model No.:NLX2000SY Manufacturer: DMGMORI Control: CELOS Year of construction/IB: 2021/2022 Location:: Germany - Main spindle 15/11 KW - Chuck for main spindle - Automatic path control of the clamping cylinder for the main spindle. - Sub-spindle 11/7.5kw - Chuck for sub-spindle - Automatic path control of the clamping cylinder for the sub-spindle - Double footswitch for HSp and GSp - Coolant shower on lining - Spindle 2 tailstock specification - 20 Station turret - Milling drive for all stations 10,000 min-1 - Direct position measuring system X-Y-Z axis - Y-axis - Chip conveyors - Coolant pump 8bar - Bar feeder IF - Parts catcher conveyor belt for parts - Irco Bar Loading Magazine MUK 7012 III - Workpiece ejector (headstock 2) - Oil separator - Alternating speed - Spindle orientation ...

FALCON S4020 6 kW fiber laser was built in 2025 in China by FFG CHINA CO., LTD. The machine was launched in March 2026 and has been in operation for a small number of hours. It is covered by a valid warranty until February 2031. This fibre laser belongs to the FALCON S Masterline series, developed for users seeking high performance while keeping operating costs low. The machine is designed for the precise cutting of large sheets of metal with a maximum thickness of 30 mm. Cutting is performed using a fiber optic beam generated by a high-performance ULTRON 6 kW laser source. The narrow focal spot, combined with high energy density, ensures precise material machining with minimal thermal deformation. The fibre laser technology also offers greater energy efficiency and performance compared with other cutting methods. The FALCON S4020 features a BOCHU 3D cutting head with a range of us ...

CNC lathe Okuma LB 3000 EX II MYW 800 Control: OSP-300L Year of Make: 2014 Internal machine no. 75 Distance between tips or spindle lugs: 1085 mm Circumferential diameter over carriage / bed: 340 / 580 mm X-axis travel: 260 mm Y-axis travel: 115 mm Z-axis travel: 1,010 mm Travel C-axis: 360 mm Travel W-axis 895 mm Spindle passage: 72 mm Main spindle speed: 45 - 5,000 rpm Sub-spindle speed: 45 - 6,000 rpm Recording: BMT Tool turret: V12 (driven) Equipment: Chip conveyor Touchsetter Parts catcher Bar loading magazine IRCO MUK 7012 Bar length:1250 mm Coolant system TM 24, 8 bar

Technical data Manufacturer: Haas Automation, Inc. Model No.: VF-3YT Serial Number: 1126820 Date of manufacture: 03/2015 Travels: X 1,016 mm / Y 660 mm / Z 635 mm Table: approx. 1,372 × 610 mm, 7 T-slots, 80 mm spacing Spindle holder: 40-taper Power supply: 3-phase, 50/60 Hz, 354-488 V AC Full load current: 40 A Maximum load current: 70 A Control: Haas CNC Control Version: Vertical CNC machining center, YT version with extended Y-travel Configuration Equipment: Tool changer with tool holders, T-slot table, work area with cooling/lubrication device. Remarks - 2026 Buffer battery replaced - Without clamped or surface-mounted tools! Offer refers to the machine only! Note Only operating instructions, but no technical documents available. Information researched to the best of our knowledge and belief. No guarantee is assumed for completeness and corre ...

Connection: 13 kW Control: HEIDENHAIN TNC 425 Table dimensions: 700 x 360 mm T-slots Number x width x distance: 3 x 18 x 110 mm Distance table to floor: 840 mm Max. table load capacity: 300 kg Travel X-axis: 660 mm Travel Y-axis: 380 mm Ball screw X and Y axis: 32 x 10 mm Pitch Diameter Distance from table center to stand: min. 190 mm, max. 570 mm Spindle mounting taper: ISO 40 Travel Z-axis: 380 mm Spindle speed: 100 to 6000 rpm Rapid traverse: 15 m/min Positioning accuracy: +-0.01 mm Repeatability: +-0.005 mm Resolution: 0.001 mm incl. 16-fold tool changer Max. diameter for adjacent tools: 85 mm Max. diameter for free secondary positions: 135 mm Max. tool length: 250 mm Permissible weight per tool: 6 kg max. total weight of the tools: 60 kg Attention: without the machine vice shown in the photos! incl. the tool holders located in the tool changer as well as touch probe and 4th axis Ref ...

Technical data Manufacturer: BOEHRINGER VDF Type: DUS 560 Year of Make: 1993 Machine number: 1022.3095-03 Center width: approx. 2,000 mm Tip height: 280 mm (Source: Online research) Turning diameter over bed: 570 mm (Source: Online research) Turning diameter over facing slide: 365 mm (Source: Online research) Spindle bore: 62 mm (Source: Online research) Main spindle speed: 3–2,500 min⁻¹ (Source: online research) Tailstock mount: MK 5 (Source: Online research) Quill diameter / stroke: 80 / 190 mm (Source: Online Research) Workpiece weight between tips: max. 1,000 kg (Source: Online Research) Control: Siemens CNC, design not clearly determinable on the basis of the available pictures Configuration Equipment: CNC control panel, tailstock, three-jaw chuck and tool holder system. Operating data according to the display: 627 h 50 min operating time, 248 ...

Serial number: 416158 Travel X-axis: 1200 mm Travel Y-axis: 900 mm Travel Z-axis: 250 mm Z-passage: 200 mm T-slot clamping table: 1250 x 1000 mm Speed: max. 20,000 rpm Table dimensions: approx. 1250 x 1000 mm for further technical data see pictures with documentation with accessories Important note: the tool changer is not installed ! Reference: Wup - Lot 16 Auction-ID: A7-49882-297

Operating voltage: 380 V Frequency: 50 Hz Control voltage: 220 V Rated current: 50 A Control: PHILIPS Tool holder: SK 40 Table dimensions: 550 x 280 m with 4 grooves and a vise attached, jaw width: 125 mm Travel X-axis: approx. 800 mm Travel Y-axis: approx. 400 mm Travel Z-axis: approx. 300 mm incl. documentation Reference: Süßen - Lot 12 Auction-ID: A7-49882-260

5-axis CNC machining center Type: DMU 40 eVo Manufacturer: DMG MORI Year: 2013 Control: Heidenhain iTNC 530 X: 400 mm Y: 400 mm Z: 375 mm B: -5•/+110• C axis Spindle speed: 18000 rpm Spindle taper: HSK 63 Max work diameter: 450 mm Max work height: 460 mm Max work weight: 250 kg Machine weight: 6900 kg Chip conveyor Machine in good condition, fully functional, under power Find more here - .ucymachines/ Contact us at - sales@ucymachines

Machine number: 13088094 Operating voltage: 380 V Frequency: 50 Hz Drilling depth: up to 120 mm Control: HEIDENHAIN TNC 155 Table clamping surface: 780 x 230 mm Spindle speed infinitely adjustable: from 50 to 9000 rpm Drive power of the spindle motor: 3.7 kW Drilling capacity in steel: 20 mm Drilling distance of the drill head: 450 mm Travel X-axis: 420 mm Travel Y-axis: 240 mm Travel Z-axis: 120 mm Travel A-axis: +- 30000° Rapid traverse X-axis: 7 m/min Feed X-axis: 7000 mm/min Rapid traverse Y-axis: 7 m/min Feed Y-axis: 1 - 7000 mm/min Feed Z-axis: 0.02 - 0.30 mm/rev Rapid traverse A-axis: 10800°/min Feed: 1 - 10800°/min incl. built-in workshop drawer cabinet with contents of various hand tools, milling cutters, matching tool holders, collets Attention: the machine is expressly sold as untested! Reference: C.O. - Lot 23 Auction-ID: A7-49882-292

X-axis: 330mm, Z-axis: 1650mm, max. swing over bed: 910mm, swing over cross slide: 560mm, distance between centers: 1820mm, standard turning diameter: 450mm, max. turning diameter: 610mm, max. turning length: 1650mm, bar capacity: 184mm, spindle speed: 12-1200rpm, spindle nose: A2-15, spindle bore: 200mm, spindle bearing diameter: 266mm, turret type: T10, square tool height: 32mm, boring bar holder diameter: 65mm, tailstock travel: 1400mm, quill stroke: 200mm, tailstock taper: MT5, tailstock quill diameter: 160mm, rapid traverse X-axis: 20m/min, rapid traverse Z-axis: 24m/min, jog feed X-axis: 0-1260mm/min, jog feed Z-axis: 0-1260mm/min, spindle motor power: 30/37kW, X-axis servo motor: 4kW, Z-axis servo motor: 7kW, hydraulic pump: 2.2kW, lubrication pump: 0.004kW, coolant pump: 1.1kW, connected load: 52kW, coolant tank capacity: 300l, hydraulic tank capacity: 83l, lubricating oil tank c ...

Connection: 13 kW Control: HEIDENHAIN TNC 425 Table dimensions: 700 x 360 mm T-slots Number x width x distance: 3 x 18 x 110 mm Distance table to floor: 840 mm Max. table load capacity: 300 kg Travel X-axis: 960 mm Travel Y-axis: 380 mm Ball screw X and Y axis: 32 x 10 mm Pitch Diameter Distance table center to stand: min. 190 mm, max. 570 mm Spindle holder taper: ISO 40 Z-axis travel: 380 mm Spindle speed: 100 to 6000 rpm Rapid traverse: 15 m/min Positioning accuracy: +-0.01 mm Repeatability: +-0.005 mm Resolution: 0.001 mm incl. 16-fold tool changer Max. diameter for adjacent tools: 85 mm Max. diameter for free secondary positions: 135 m Max. tool length: 250 mm Permissible weight per tool: 6 kg max. total weight of the tools: 60 kg Attention: without the machine vise shown in the photos! Inkl. 3D touch probe Reference: Schönichen - Lot 23 Auction-ID: A7-49882-157

pressure: 160 t chamfer lenght: 4100 mm distance between columns: 3600 mm column arm: 400 mm ram stroke speed: 200 mm/sec work speed: 10.0 mm/min return speed: 165 mm/sec work stroke: ca. 350 mm dayligth: ca. 660 mm oil volume: 450 ltr. table height: 830 / 950 mm table width: 75.0 / 60.0 mm voltage: 400 Volt total power requirement: 18.5 kW weight: 13440 kg range L-W-H: 5150 x 2050 x 3150 mm current new price approx. 90.000 euros special price on request ------------------------------------------------------ ULTIMA PLUS electro-hydraulic press brake with: increased installation height .. approx. 660 mm increased cylinder stroke .. approx. 350 mm ----------------------------------------------------- - in checked condition - machine video - https://www.youtube.com/watch?v=chgCaXLnpa8 Equipment: - CNC electro-hydraulic die/press brake - CYBELEC CNC control DNC 880 S swiveling control p ...

Connection: 13 kW Control: HEIDENHAIN TNC 425 Table dimensions: 700 x 360 mm T-slots Number x width x distance: 3 x 18 x 110 mm Distance table to floor: 840 mm Max. table load capacity: 300 k Travel X-axis: 960 mm Travel Y-axis: 380 mm Ball screw X and Y-axis: 32 x 10 mm Pitch Diameter Distance table center to stand: min. 190 mm, max. 570 mm Spindle mounting taper: ISO 40 Travel Z-axis: 380 mm Spindle speed: 100 to 6000 rpm Rapid traverse: 15 m/min Positioning accuracy: +-0.01 mm Repeatability: +-0.005 mm Resolution: 0.001 mm incl. 16-fold tool changer Max. diameter for adjacent tools: 85 mm Max. diameter for free secondary positions: 135 mm Max. tool length: 250 mm Permissible weight per tool: 6 kg max. total weight of the tools: 60 kg Attention: without the machine vise shown in the photos! Inkl. 3D Probe Reference: Schönichen - Lot 25 Auction-ID: A7-49882-158

control: SIEMENS - - -: - - - - - - - - -: - - - - - - CNC Turning- and Milling Center | INDEX - GU 600 The machine is in a well-maintained condition. Technical data of the machine will follow soon. We ask for your understanding ! - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - #Tags: GU600 | GU-600 The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

control: SIEMENS - - -: - - - - - - - - -: - - - - - - CNC Turning- and Milling Center | INDEX - GU 600 The machine is in a well-maintained condition. Technical data of the machine will follow soon. We ask for your understanding ! - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - #Tags: GU600 | GU-600 The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

centre height: 255 mm centre distance: 1.080 mm turning diameter over bed: 500 mm turning diameter over slide: 290 mm turning length: 1.000 mm control: EuroTurn spindle bore: 70 mm spindle taper: KK 8 DIN 55027 3-jaw-chuck diameter: 250 mm bed width: 360 mm turning speed range: 2 - 2.800 U/min rapid travel - longitudinal/face: 10 / 5 m/min quick change toolholder: PARAT Gr. 2 drive capacity - spindle motor: 11,0 kW taper in tailstock-quill: MK 5 dia. of quill: 80 mm quill stroke: 160 mm coolant: voltage: 400 V total power requirement: 16,0 kVA weight of the machine ca.: 3,0 t dimensions of the machine ca.: 2,85 x 1,60 x 1,80 m - Serial-No.: 495 / 03 - control: EuroTurn - quick change tool holder PARAT - coolant equipment - machine lamp The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

turning diameter:120 mm turning length:100 mm control:Fanuc Spindle 1 power:7,5 kW Spindle 1 RPM:4500 1/min Spindle 2 power:7,5 kW Spindle 2 RPM:4500 1/min Distance between spindle noses:600 mm Turret No.1 stations / rotary tools:15/15 Power rotary tools turret 1:2,7 kW RPM of rotary tools turret 1:4000 1/min Turret No.2 stations / rotary tools:15/15 Power rotary tools turret 2:2,7 kW RPM of rotary tools turret 2:4000 1/min Travel x/z turret 1:250 / 300 mm Travel x/z turret 2:250 / 920 mm Bar capacity spindle 1:51 mm Bar capacity spindle 2:51 mm power chuck:165 mm Spindle bore sp. 1:62 mm Spindle bore sp. 2:62 mm dimensions of the machine ca.:3700 x 2300 x 3000 mm weight of the machine ca.:5600 kg Used CNC-2-spindle CNC turning and milling center with gantry loader - 2x 15 station turret -automatic gantry loader with turnaround station. 14 station-magazin right side Max. Parts size Ø 12 ...

turning diameter:370 mm turning length:200 mm Spindle 1 RPM:4000 1/min control:Siemens 840 D Spindle 2 RPM:4000 1/min power capacity:L / R 18/24 kW max. torque on the spindle:630 nM C-Axis:0,001° Turret No.1 stations / rotary tools:12/12 VDI 40 Turret No.2 stations / rotary tools:12/12 VDI 40 turning speed range - milling:3000 1/min power capacity - milling spindle:8,8 kW torque rotary tools:28 Nm Bar capacity spindle 1:85 mm total power requirement:65 kVA weight of the machine ca.:13 t dimensions of the machine ca.:5,7x2,4x2,1 m Travel x1:260 mm Travel x2:260 mm Travel Y1:600 mm Travel y2:600 mm Power Chuck:2 x 250 mm manual tool eye:l & r High performance 6-axis subspindle CNC-Lathe with twin turren and rotating tools.

standard turning dia.:200 turning length:max. 810 mm control:MSX-701 MAPPS IV greates pass round over bed:800 mm Max. distance between centres:1130 mm max. turning diameter:320 mm max. workpiecediameter:300 mm bar material dia.:65 mm Traverse X-Axis 1:210 Traverse X-Axis 2:210 mm Traverse X-Axis 3:210 mm Traverse Y-Axis 1:110 (+65/-45) mm Traverse Y-Axis 2:110 (+45,/-65) mm Traverse Z-Axis 1:300 mm Traverse Z-Axis 3:300 mm Traverse Z-Axis 2:810 mm Traverse B-Axis:870 mm turning speed range - spindle:5.000 1/min Number of spindle speed ranges:2 . spindle nose:JIS A2-6 spindle bore:73 mm spindle bearing diameter:120 mm C-Axis:0,001 ° turning speed range - spindle:5.000 1/min spindle nose:JIS A2-6 spindle bore:73 mm bar material dia. max:65/52 mm spindle bearing diameter:120 mm C-Axis:0,001 ° Number of Turrets:3 . Number of tool stations:16 x 3=48 pos Schank height for square tool:20 mm D ...

turning diameter:640 / 400 mm turning length:1500 mm control:Siemens 840 D Powerline Travel turret No.1 (milling spindle) x/y/z:550 / 180 (±90) / 1585 mm Swivle angle milling spindle (B-axis):±120° interpol. ° Rapid traverse feeds turret 1 (milling head) x/y/z:40/24/60 m/min RPM milling spindle:12000 1/min power capacity - milling spindle:12 / 23 kW Torque of milling spindle:100 Nm Tool magazine for milling spindle (turret 1):120 HSK-A 63 Tool change time tool/tool, milling spindle:1,6 s Spindle 1 RPM:4000 1/min Spindle 1 power:36/ 45 kW Spindle 1 Torque:730 Nm Spindle 1 max. bar diameter:90 Spindle 2 RPM:4000 1/min Spindle 2 power:36 / 45 kW Spindle 2 torque:730 Nm Spindle 2 max. bar diameter:90 c-axis:0,001 ° Travel turret 2 x:225 mm Travel Turret 2 z:1595 mm RPM of rotary tools turret 2:4000 1/min no. of tools in turret 2:12 VDI 40 high-pressure pump:20 bar total power requiremen ...

turning diameter:500 mm turning length:1000 mm control:Siemens 840 D spindle:42 / 28 kW spindle turning speed - stepless:31 - 4000 1/min max. torque on the spindle:345 Nm c-axis:360000 x 0,001° feeds -stepless-:0 - 10000 mm/min rapid traverse:10000 mm/min turret stations / rotary tool stations:12/12 VDI 40 RPM of rotary tools:2000 1/min diameter of quill:90 mm quill stroke:80 mm tailstock quill taper ISO:SK 30 Tailstock Travel:600 mm Power rotary tools:3,5 kW :22,5 Nm Rotary tool holders:4 ax./ 4 rad. spindle passage:66 mm total power requirement:30 kW weight of the machine ca.:7,5 t dimensions of the machine ca.:8x 3 x 4 m

standard turning dia.:200 turning length:max. 810 mm control:MSX-701 MAPPS III greates pass round over bed:800 mm Max. distance between centres:1130 mm max. turning diameter:320 mm max. workpiecediameter:300 mm bar material dia.:65 mm Traverse X-Axis 1:210 Traverse X-Axis 2:210 mm Traverse X-Axis 3:210 mm Traverse Y-Axis 1:110 (+65/-45) mm Traverse Y-Axis 2:110 (+45,/-65) mm Traverse Z-Axis 1:300 mm Traverse Z-Axis 3:300 mm Traverse Z-Axis 2:810 mm Traverse B-Axis:870 mm turning speed range - spindle:5.000 1/min Number of spindle speed ranges:2 . spindle nose:JIS A2-6 spindle bore:73 mm spindle bearing diameter:120 mm C-Axis:0,001 ° turning speed range - spindle:5.000 1/min spindle nose:JIS A2-6 spindle bore:73 mm bar material dia. max:65/52 mm spindle bearing diameter:120 mm C-Axis:0,001 ° Number of Turrets:3 . Number of tool stations:16 x 3=48 pos Schank height for square tool:20 mm  ...

turning diameter:160 mm turning length:300 mm control:Siemens 840D Spindle 1 Power:22 kW Spindle 1 RPM:5000 1/min Spindle 1 max. bar diameter:65 Spindle 1 Torque:150 Nm Spindle 2 power:16,8 kW Spindle 2 RPM:5000 1/min Spindle 2 torque:100 Nm Travel for pick up of 2nd Spindle:W2=690 mm dimensions of the machine ca.:´4,5x2,0x2,3 m weight of the machine ca.:9 t CNC turning center with 3 turrets with rotary tool drives and 2 spindles. There is an internal coolant system for the turrets with individual pumps

turning diameter:190 mm turning length:503 mm control: Fanuc 31i - TA Travel x/z turret 1:135 / 503 mm Travel Y1:62 (± 31) mm Travel x/z turret 2:135 /503 mm c-axis:Sp. 1 / 2 Spindle 1 RPM:6000 1/min Spindle 1 Power:11/7,5 kW Spindle 1 max. bar diameter:42 mm Spindle 2 RPM:6000 1/min Spindle 2 power:11/7,5 kW Turret No.1 stations / rotary tools:12/12 Turret 1 tool RPM:6000 1/min Turret 1 power rotary tools:7,1 / 2,2 kW Turret No.2 stations / rotary tools:12/12 Turret 2 tool RPM:6000 1/min Turret 2 power rotary tools:7,1 / 2,2 kW total power requirement:53 kVA weight of the machine ca.:5700 t dimensions of the machine ca.:2,3 x 1,6 x 1,94 m High precision cnc turning center, rotary tools and y-axis on upper turret, Robot loader for shafts.

turning diameter:410 mm turning length:500 mm control:Fanuc 21i TB standard turning diameter:275 mm travel -x axis:277 mm travel -y axis:82 (±41) mm travel -z axis:500 mm Spindle 1 RPM:4500 1/min Spindle 1 Power:18,5/18,5/15 kW Spindle 1 max. bar diameter:65 mm turret stations / rotary tool stations:12/12 Power rotary tools:5,5 kW RPM of rotary tools:6000 1/min total power requirement:39,2 kVA weight of the machine ca.:6,2 t dimensions of the machine ca.:3,1 x 2,0 x 2,2 m collet chuck:Hainbuch High precision Turning and Milling Centre with Y-axis and robot loading. Stäubli Robot for shaft loading.

standard turning dia.:42 / 140 turning length:170 mm control:Mitsubishi max. turning diameter:140 mm bar material dia.:42 mm turning speed range - spindle:80-8000 1/min spindle bearing diameter:120 mm C-Axis:0,001 ° turning speed range - spindle:60-6000 1/min spindle nose:JIS A2-6 bar material dia. max:42 mm collet chuck:173E C-Axis:0,001 ° Number of Turrets:2 . Number of tool stations:12 x 2=24 pos power capacity - driven tools:7,5 / 5,5 kW total power requirement:92,7 kVA weight of the machine ca.:3,3 t dimensions of the machine ca.:2,4 x 1,6 x 2,2 m The Boley BE 42 2 has 2 spindles und 2 turrets with 12 toolstations VDI 20 each. It can work simultaneus with 7 Achsen. The machine has ca. 22.000 run hrs. The coolant system has a cooling unit 15 collets 173E come with the machine. A bar feeder interface is installed.

max. turning diameter:350 mm turning length:1040 mm control:OSP E 100 L Fanuc greates pass round over bed:550 mm Max. distance between centres:1200 mm max. workpiecediameter:550 mm Traverse X-Axis 1:270 Traverse X-Axis 2:230 mm Traverse Y-Axis 1:120 (±60) mm Traverse Z-Axis 1:930 mm Traverse Z-Axis 2:920 mm Spindle 1 Power:22 / 15 kW Spindle 1 RPM:5000 1/min spindle nose:JIS A2-8 bar material dia.:65 mm C-Axis:0,001° Number of Turrets:2 Turret No.1 stations / rotary tools:12/12 VDI 40 Turret 1 tool RPM:4500 1/min Turret 1 power rotary tools:7.0 / 3,3 kW Turret No.2 stations / rotary tools:12/12 VDI 40 Turret 2 tool RPM:4500 1/min Turret 2 power rotary tools:7.0 / 3,3 kW rapid traverse X-axis:30 m/min rapid traverse Y-axis:26 m/min rapid traverse Z-axis:40 m/min total power requirement:33 kVA weight of the machine ca.:10 t dimensions of the machine ca.:7,0 x 2,3 x 2,3 m spindle load m ...

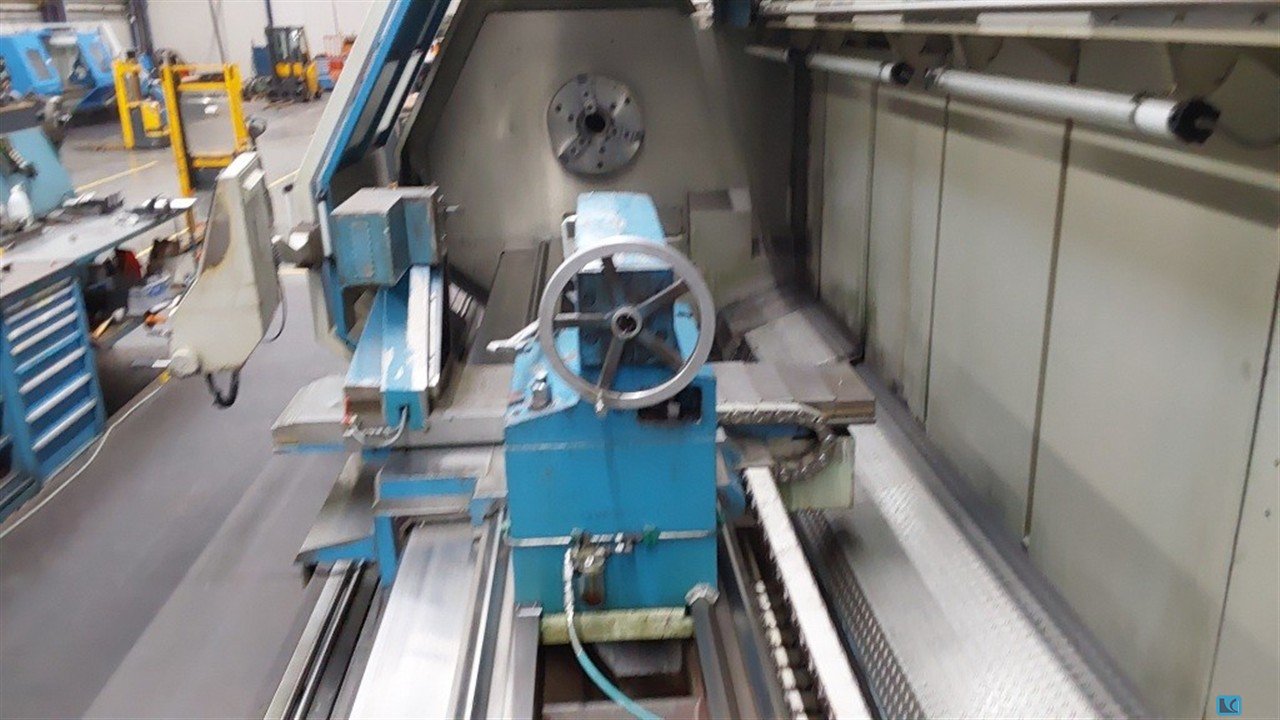

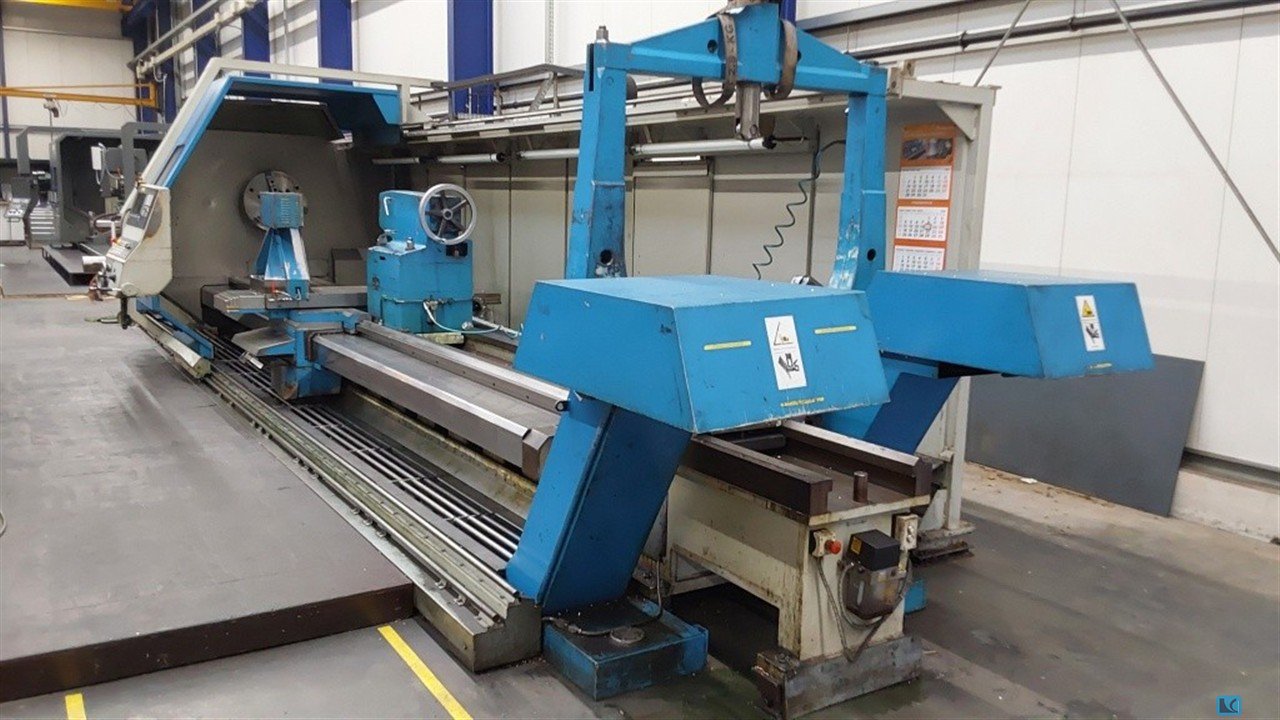

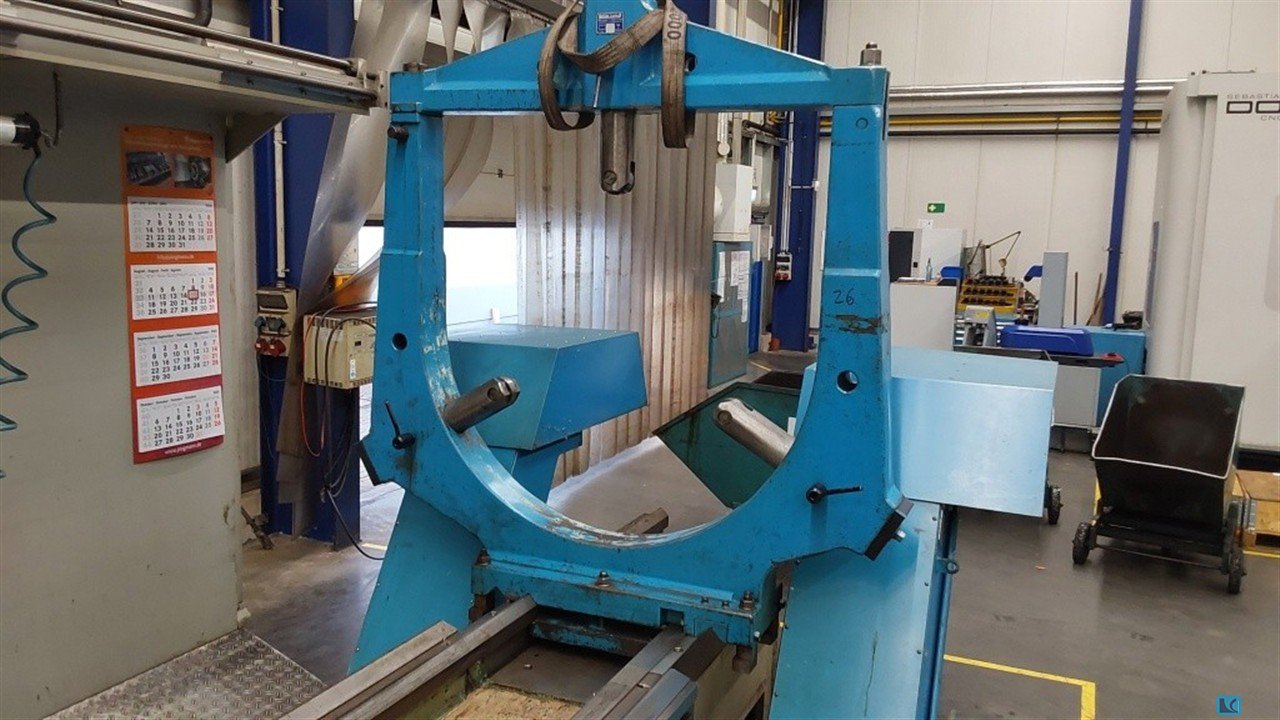

turning diameter:1600 mm turning length:12000 mm control:FAGOR 8050 Used CNC Lathe with FAGOR 8050 and extensive accessories. For further technical data and accessories, pls browse the Appendix. Parallellathe WMW mod. 4 GUIDE-WAYS ¦ CNC: FAGOR 8050 ¦ bed: monolithic ¦ centres height: 800 mm ¦ centres distance: 12000 mm ¦ swing over cross-slide: 1250 mm ¦ turret: automatic 4 positions ¦ tailstock: motorized ¦ tailstock connection: hydraulic ¦ platform: diam. 1000 mm ¦ steady rests: nr.02 ¦ chip conveyor Warranty: none Take advantage of the favorable leasing and hire-purchase terms from IKB Leasing. Ask us about it.

turning diameter:270 -300 mm turning length:710 mm total power requirement:43 kW weight of the machine ca.:8,5 t dimensions of the machine ca.:3,16 x 2,15 x 2,15 m The machine does not include a chuck or tools ? the machine was originally purchased without these accessories. The G300 has X, Z, Y, C, SP, and driven tools. A bar feeder can be used, but the machine does not have one.

turning diameter:220 mm turning length:310 mm total power requirement:17 kW weight of the machine ca.:3,3 t dimensions of the machine ca.:2,25 x 1,63 x 1940 m greates pass round over bed:430 mm bore diameter:45 mm centre distance:687 mm slide travel radial ( X-axis ):160 mm slide travel axial ( Z-axis ):310 mm spindle turning speed range:0-6.300 U/min

turning diameter:220 mm turning length:700 / 665 mm total power requirement:17 kW weight of the machine ca.:2,6 t dimensions of the machine ca.:2,63 x 1,98 x 1,94 m greates pass round over bed:430 mm Part length max.:510 slide travel radial ( X-axis ):160 mm bore diameter:45 mm Texte, Bilder, Grafiken, Layout, Strukturen und Algorithmen etc. unterliegen weltweitem Urheberrecht. Unerlaubte Verwendung der Daten, werden sowohl strafrechtlich als auch zivilrechtlich verfolgt. Das ausschließliche Urheber- / Nutzungsrecht dieser Daten wurde nachfolgender Person eingeräumt. Copyright © 2005-2026, Josef Weber. All rights reserved.

turning diameter:270 mm turning length:710 mm weight of the machine ca.:6,5 t max. swing diameter:590 mm with automatic loading and unloading system G300 with "spindle bore clamping capacity 90mm" in tailstock version The machine has no driven tools. The information in the circuit diagram refers to the rotary drive for indexing the turret, not to driven tools.

turning diameter:270 mm turning length:710 mm weight of the machine ca.:6,5 t max. swing diameter:590 mm with live tools:VDI40 Live tooling VDI40 with automatic loading and unloading system G300 with "spindle bore clamping capacity 90mm" in tailstock version Chip conveyor, belt filter press, hydraulic unit, as well as infeed and outfeed chain conveyor EWAP, with 33 pallets. The machine has no driven tools. The information in the circuit diagram refers to the rotary drive for indexing the turret, not to driven tools.

turning diameter:270 mm turning length:710 mm weight of the machine ca.:6,5 t max. swing diameter:590 mm with automatic loading and unloading system, chip conveyor G300 with "spindle bore clamping capacity 90mm" in tailstock version The machine has no driven tools. The information in the circuit diagram refers to the rotary drive for indexing the turret, not to driven tools.

turning diameter:120 mm turning length:650 mm weight of the machine ca.:11 t dimensions of the machine ca.:5,032 x 3,048 x 2,445 m Gildemeister MF Twin 65-II lathe with loading automation. This machine is suitable as a counter spindle machine for 4-axis machining on the main and counter spindles, complete machining (turning, drilling, milling, Y-axis, B-axis) of bar and shaft parts.

turning diameter:120 mm turning length:650 mm weight of the machine ca.:11 t dimensions of the machine ca.:5,032 x 3,048 x 2,445 m max. swing diameter:250 mm Gildemeister MF Twin 65-II lathe with loading automation. This machine is suitable as a counter spindle machine for 4-axis machining on the main and counter spindles, complete machining (turning, drilling, milling, Y-axis, B-axis) of bar and shaft parts.

turning diameter:33 mm turning length:330 mm control: 840 total power requirement:20 kW weight of the machine ca.:6 t dimensions of the machine ca.:3850,2000,2100 m 17 axes 3 revolvers with the powered tools 1 gantry with the driven tools Main and counter spindle with C axes Barfeeder Machine On-time 58,133 hours

turning diameter:145 mm turning length:210 mm total power requirement:40 kW swing diameter:145 mm Spindle bore sp. 1:56 mm Spindle bore sp. 2:56 mm swing diameter over face slide:145 mm greates pass round over bed:145 mm RPM Main Spindle:7.000 1/min number of workpiece supports:12 Shank diameter:25 mm C-axis RPM:2.000 1/min Chuck diameter spindle 1:140 mm Chuck diameter Spindle 2:140 mm Number of tools:12 fach St. Tool bore:VDI 25 Shank diameter:25 mm weight of the machine ca.:5.300 kg dimensions of the machine ca.:5.000 x 4.100 x 2.050 mm Slide path flat: X1, X2, X3: 220mm, 120mm ( 145mm ) Longitudinal slide travel: Z1, Z2, Z3: 320mm, 345mm, 380mm Vertical slide travel Y1: +/- 30mm Longitudinal spindle travel Z3: 380mm Clamping tube inner draw tube 46mm diameter Speed range main drive 1+2 up to 7,000 rpm Speed of driven tools up to 6,000 rpm Main and counter spindle collet chuck 1 axial ...

turning diameter:220 mm turning length:- mm control:- distance between milling spindels:800 mm spindle speed max.:12.000 U/min daylight:66 mm machine weight ab.:11 t total power requirement:90 kVA Fanuc control Two turrets Two spindles Spindle bore 66 mm on both spindles Two Y-axes Parts gripper Hainbuch chuck on both spindles Tailstock function Chip conveyor Tool eye Short bar loader Tool holder package

travel -x axis:800/1825 mm travel -y axis:800/460 mm travel -z axis:600 mm Feeding X,Y,Z up to:0 - 40/40/40 mm/min. swival range +/-:+10 bis -90 x 360 Grad Rotary-table:800 x 630 mm number of T-slots:5 T-slot - distance:125 mm T-Slots:18 mm center hole:30H7X15 mm swival range +/-:90 Grad turning speed:20 m/min. Number of axles:3-7 St. Spindle RPM:12.000 1/min max. tool weight:10 kg max. tool length:330 mm diameter of tools max.:80 mm tool changing time:4 sec CNC control with 15.1" color flat-screen 19" machine control panel PCU 50 with Intel Pentium II Windows XP 10.0 GB hard drive

turning diameter:356 mm turning length:700 mm y-axis:±60 mm spindle drive:18 kW counterspindle motor:15 kW Direct drive for driven tools:5,5 kW Motor starting torque:640 Nm Main spindle mount:A2-8 counter spindle mount:A2-6 Rod passage:80 mm main spindle speeds::4.000 U/min Drehzahl angetriebene Werkzeuge :6.000 U/min rapid traverse speed:30 m/min auf X- und Z-Achse machine weight ab.:5.800 kg 12-station turret, all positions driven C-axis on both spindles Belt-driven and infinitely variable drive on all motors Prismatic guideways on all axes Oil cooler for both spindles, manufacturer Daikin Automatic, dialog-guided programming system MAPPS Automatic monitoring of tool load and tool wear Two Renishaw measuring arms for automatic tool measurement Interfaces: USB, PCMCIA card, and RS-232 port Interface for bar feeder Automatic parts catcher Dual foot pedal for independent opening and clos ...

turning diameter:570 mm turning length:635 mm travel -x axis:220 mm travel -z axis:635 mm Torque:240 Nm feed::X: 20m/min; T: 24m/min disc turret:12 fach with live tooling:6 fach main spindle speeds::25-25.000 dimensions of the machine ca.:3210 x 1750 x 1750 mm weight of the machine ca.:5.300 t C-axis

turning diameter:1070 mm turning length:8500 mm total power requirement:62 kW turning diameter over slide rest:800 mm spindle bore:128 mm max. workpiece weight between centers:8000 kg max. workpiece weight:12000 kg bore spindle turning speed range:1,120-01120 U/min tailstock quill diameter:200 mm dimensions of the machine ca.:12 x 2,8 x 2,4 m Machine equiped with Alan Bradley 9 series CNC control - SAUTER 6-postiion revolving head - 360 mm seld centering steady rest - 385 mm rotary work rest (used for gun barrels) - faceplate 800 mm - chip conveyor

turning diameter:480 mm turning length:1250 mm control:H 645 weight of the machine ca.:8 t dimensions of the machine ca.:5 x 2 x 2 m centre distance:1580 mm swing over bed:495 mm swing diameter:üb.Querschlitten ca.350 mm working area:1600 mm control:H645 connected load:50 kW

turning diameter:275 mm turning length:900 mm spindle passage:65 mm power capacity at 100 % load:25/20 kW spindle turning speed range:1 - 5000 U/min spindle diameter in front bearing:110 mm c-axis:1 - 500 U/min. number of workpiece supports:4 tool turret:1 x-axis:290 mm y-axis:165 mm z-axis:360 mm b-axis:360 ° rapid speed:18/30 m/min number of tools:2x2 + 2x2 number of driven tools:2x2 + 2x2 mm toolpiece turning speed range:8000 / 2000 U/min power capacity:25% ED 5,8 kW tool taper:TRAUB 60 tool turret:2/3/4 x-axis:170 mm z-axis:600/950 mm y-axis:+/- 60 mm rapid speed:18/15/30 m/min number of driven tools:10 mm toolpiece turning speed range:1 - 6000 U/min power capacity:25% ED 5,8 kW tool taper:DIN 69880 40 x 63 total power requirement:95 kW weight of the machine ca.:16 t dimensions of the machine ca.:10,0 x 3,5 x 3,0 m with CNC TRAUB TX 8i, Barloader TRAUB Stamag DNH61 / 3000, Main and  ...

turning diameter:480 mm turning length:800 mm total power requirement:30 kW turning diameter over bed slide:240 spindle bore:65 mm disc turret:12 fach rapid travel range:20 / 10 m/min weight of the machine ca.:4,5 t dimensions of the machine ca.:4 x 2,2 x 2,1 m with CNC TRAUB TX 8 H C-axis driven tooling, 6 positions 3,5 kW / 4000 rpm power chuck coolant attachment, chip conveyor diverse toolholders

turning diameter:1600 mm turning length:6200 mm turning diameter over bed slide:1250 Turning rate:5 - 710 U/min. total power requirement:37/52 kW weight of the machine ca.:16 t dimensions of the machine ca.:12 x 4 x 2 m CNC SIEMENS Sinumerik 3-jaw chuck SCHUNK Rota Plus Dia. 630 mm 3 x fixed steadies ( 1200 / 570 / 400 mm ) coolant attachment and chip conveyor diverse accessories

turning diameter:325 mm turning length:600 mm total power requirement:35 kW spindle drive:25 kW spindle turning speed range:5000 U/min speeds of tool:4500 U/min rapid traverse X-axis:60 m/min diverse toolholders:VDI 40 rapid traverse Z-axis:45 m/min weight of the machine ca.:6,5 t dimensions of the machine ca.:3,5 x 2,5 x 2,1 m Machine with SIEMENS 840 D control power line with shopturn - C and Y-axis, driven tools - bar loader IRCO ILS-RBK - coolant device with coolant throough revolving head - Revolver - counter spindle - chip conveyor - collet clamping - part catcher

turning diameter:626 mm turning length:3000 mm Turning diameter:600 mm spindle bore:100 mm spindle turning speed range:2800 U/min weight of the machine ca.:18 t Machine overhold and retrofit in 2003 with SIEMENS 840 D control - NC steady rest - 12-fold revolving head - splash doors - tailstock - coolant device
