NEW UNUSED MACHINE WITH DRIVEN TOOLING AND Y-AXIS! Specifications: Spindle: - Spindle hole diameter: 65mm - Bar capacity: 51mm - Chuck: 10” - Max spindle speed: 2600rpm Capacity: - Max. Swing diameter over bed: 600mm - Max. Turning diameter: 420mm - Max. Turning length: 550mm - X-axis: 280mm - Z-axis: 650mm - Y-axis: +/- 50mm - C-axis: yes Feedrate: - Rapid traverse X: 20m/min - Rapid traverse Z: 25m/min Turret: - Positions on turret: 12 - Driven tooling: yes - Tool shank: BMT-55 Tailstock: - Tailstock quill taper: MT-5 - Travel: 600mm Accuracy: - Positioning accuracy: 0.008mm - Repeated positioning accuracy: 0.008mm Machine is equipped with: - Chip conveyor - Tool setter - All tooling in turret included - Tailstock - Tooling as showed in pictures Auction-ID: A1-45752-4

CNC lathe for turning and machining metal parts. CNC control: Traub TX 8 Max. turning circle: 275 mm Max. turning length: 450 mm Bar pass: 65 mm Chuck diameter: 210 / 250 mm Bench inclination: 40° Spindle speed: 0 – 4,000 rpm Spindle nose: A2-6 Spindle motor power: 11 / 18.5 kW C-axis: 0.001° with hydraulic brake Turret: 12 positions VDI 30 Motorized tools: 4,000 rpm – 4.4 kW Fast feeds: X 15 m/min / Z 20 m/min Auction-ID: A1-46647-241

Machine is equipped with: - chip conveyor - renishaw probe system Auction-ID: A1-45752-12

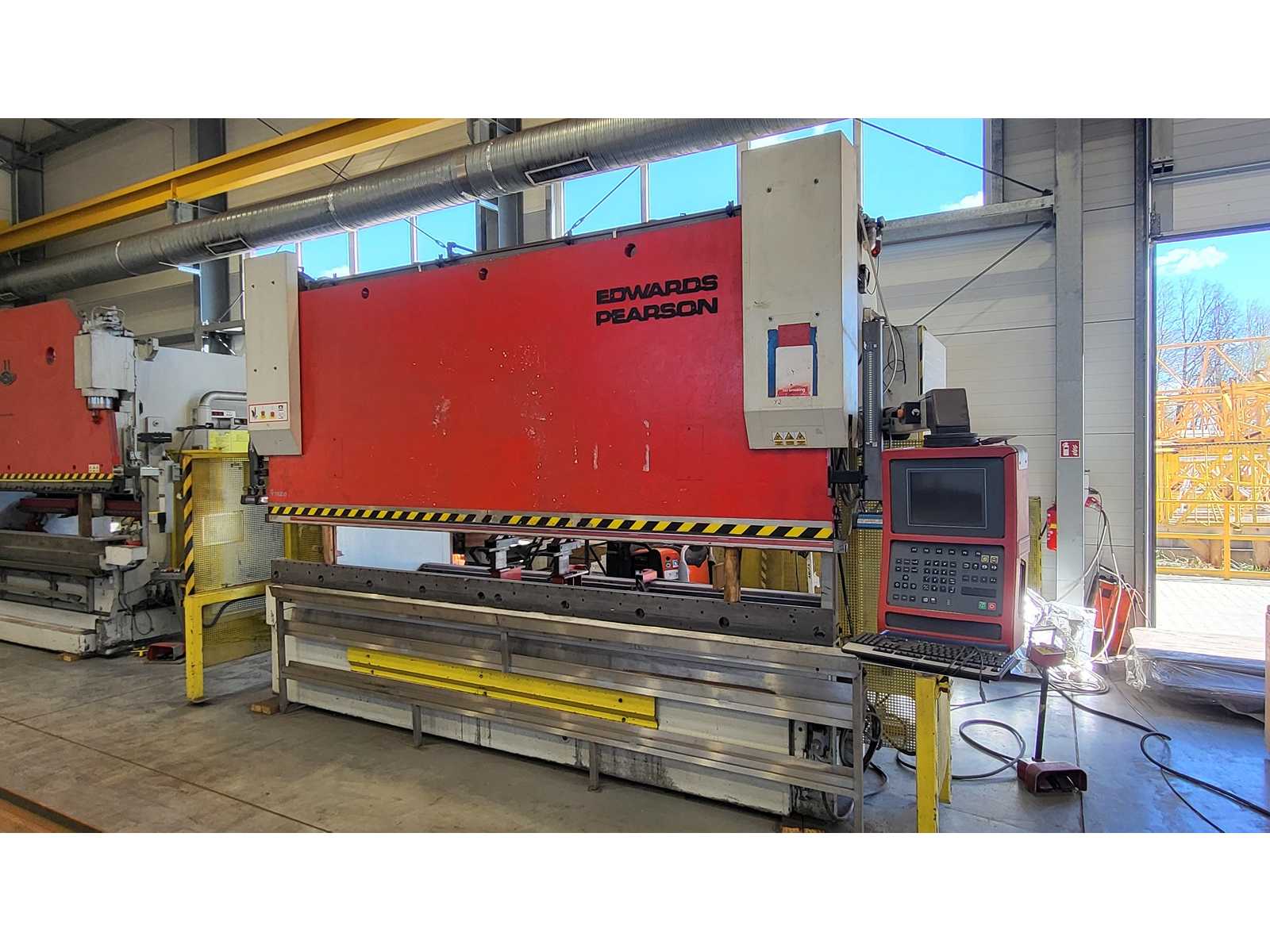

CYBELEC V-DNC-1200/B DNC 1200 Ps/B, working lengh - 4100mm, pressing force - 150 ton, max. stroke - 415mm, max. closing speed - 200mm/s, pressing speed - 1-10mm/s, Auction-ID: A7-46486-4

Spindle diameter: 580 mm Tailstock stroke: 570 mm Turret stroke: 150 mm Machine not working, FANUC power unit NEEDS REPLACEMENT Sale intended only for revampists or scrap dealers Auction-ID: A7-46538-32

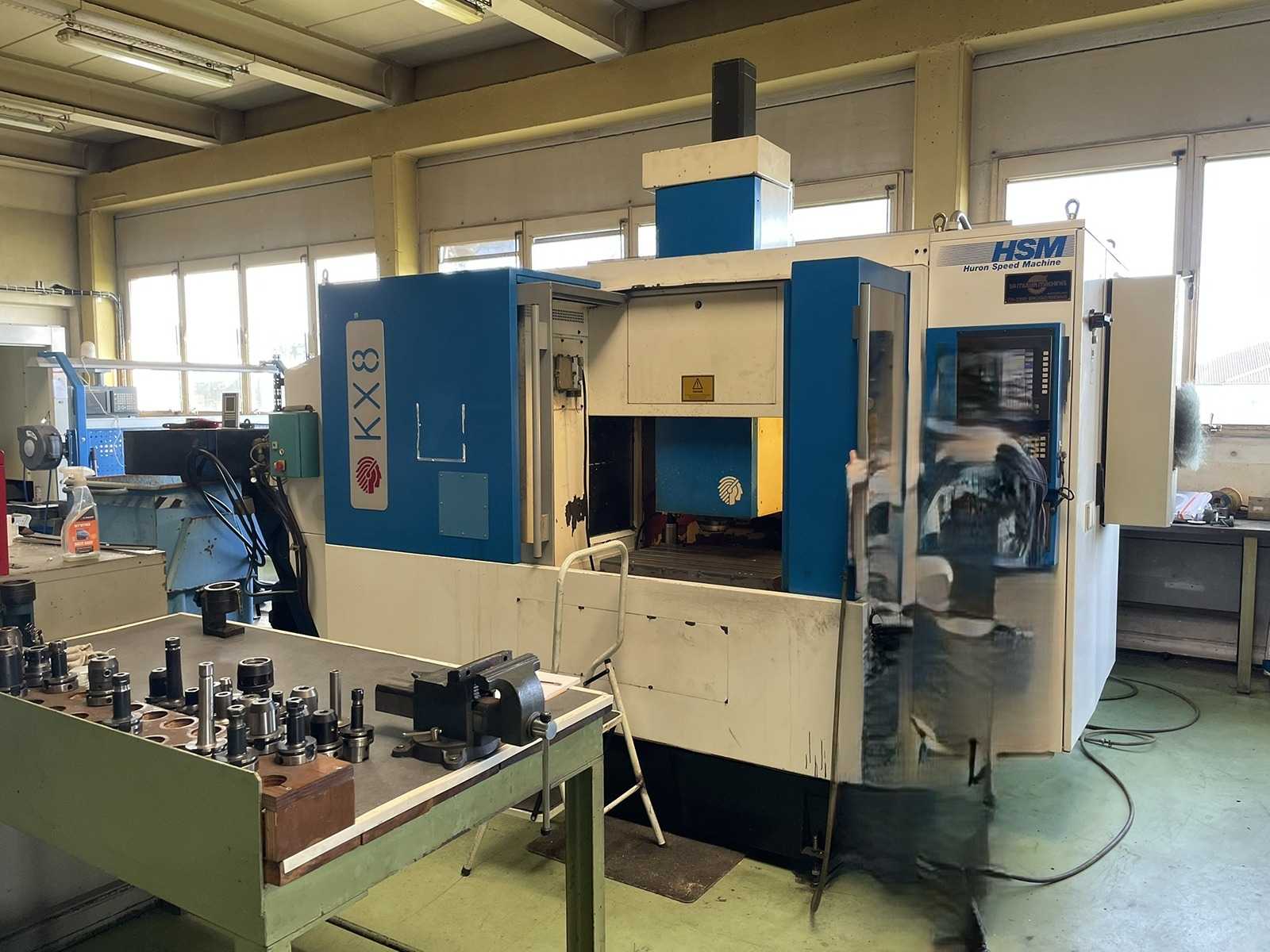

Manufacturer: HURON Year: 2001 Type: 4-axis CNC vertical machining center Numerical control: Siemens Sinumerik 840D Strokes: X 700 mm / Y 600 mm / Z 450 mm Table: 800 × 600 mm – max. load 500 kg 4th axis: Integrated rotary table Spindle: HSK63-A – SKF – 24,000 rpm – 18 kW (spindle overhauled in 2024, approx. 1,000 h) Tool magazine: 20 stations Dimensions (mm): 3000 × 2100 × 3300 Weight (kg): 8000 Remarks: High-speed machining center with 4th axis. Machine used, functional. Auction-ID: A1-46647-215

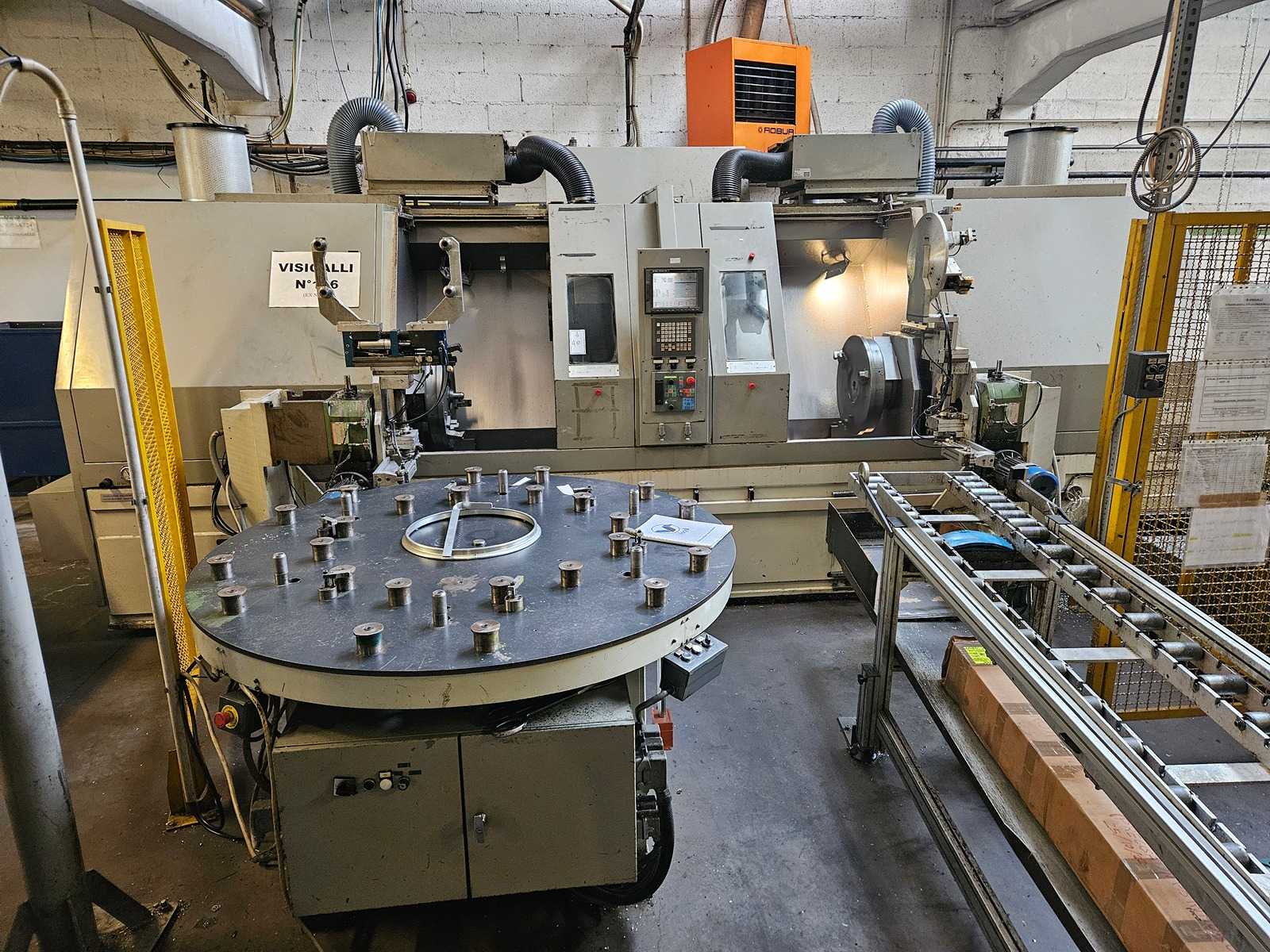

X-axis travel 420 mm Z-axis travel 1100 mm VDI 50 tool holder 2x ASA 8 spindles LH Head Working Hours: 16624 Working hours head RH: 16272 With loading table diameter: 1700 mm Equipment: 2x automatic arms for loading and unloading workpieces Unloading roller conveyor dimensions: 3000x530 mm Tools and spare parts included Assorted quantities and types, as shown in the photo. The total availability of individual visible elements is not guaranteed. Auction-ID: A7-46538-40

CNC vertical machining center for machining metal parts. Numerical control: Heidenhain TNC 426 (3D) Strokes: X 1,000 mm / Y 600 mm / Z 600 mm Table: 1,250 ×,800 mm Tool changer: 30 positions Spindle taper: SK 40 (DIN) Spindle speed: up to 15,000 rpm Spindle motor power: 18 / 15 kW IKZ / CTS: 40 bar Equipment: Chip conveyor, air blowing, closed cab Auction-ID: A1-46647-243

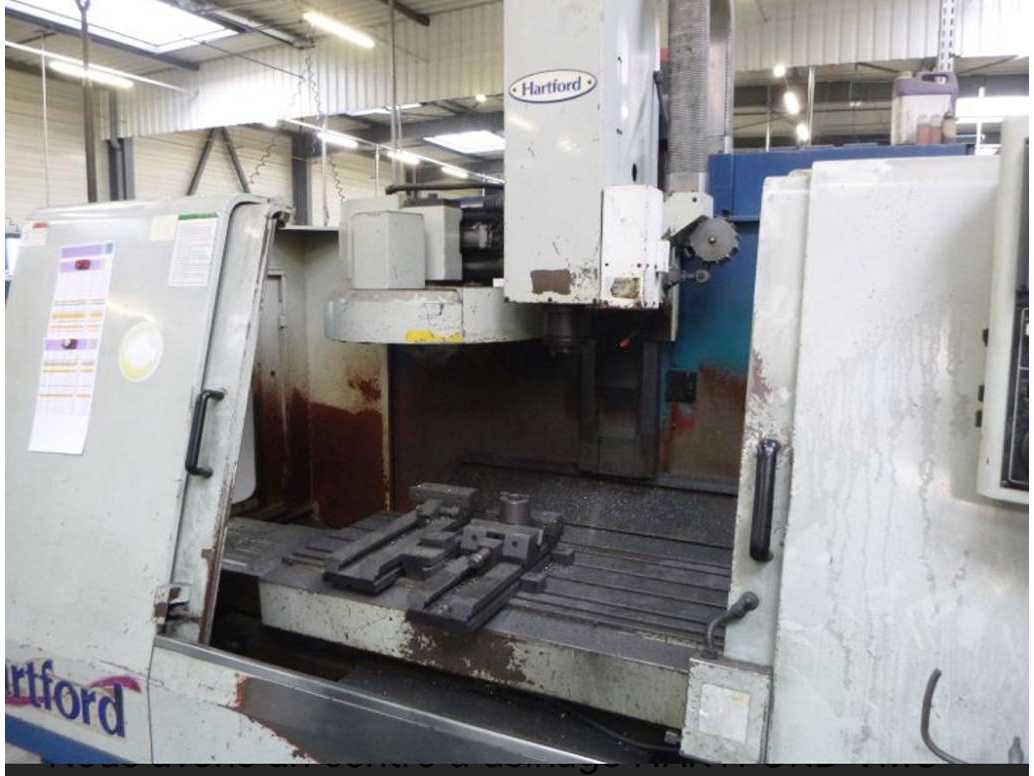

Manufacturer: HARTFORD Year: 1999 Type: CNC Vertical Machining Center Numerical Control: FANUC O-M Axes: 3 Axes (X, Y, Z) Strokes: X 1000 mm / Y 500 mm / Z 550 mm Spindle: BT40 – 8000 rpm Equipment: Chip Conveyor, Full Documentation (Operator's Manual, Electrical Diagrams, FANUC Documentation) Condition: Machine in working order, loaded on truck (LOADED) Condition: used Auction-ID: A1-46647-229

AC power supply 220 V, 3PH, 50/60 Hz; control voltage AC 110 V / DC 24 V; rated current 75 A; installed power 35 kVA; spindle speed up to 6000 rpm; ASA A2#5 spindle nose; 53 mm spindle passage; 12-tool VDI turret; Tool dimensions 25 x 25 mm; boring bar Ø 40 mm; strokes X 242 mm / Z 440 mm; fast feeds X 20 m/min, Z 25 m/min; 11 kW spindle motor; X-axis motors 1.4 kW / Z axis 2.8 kW; lubricating tank capacity 100 L; Max turning Ø 350 mm; Max turning length 425 mm Auction-ID: A1-46647-12

Control: Heidenhain iTNC 530 Speed: 10,000 rpm Travel in X/Y/Z: 1,050/540/720 mm Spindle: Technology: Belt spindle Speed: 10,000 rpm Power: 12 kW Tool holder: SK40 Work table: Clamping area: 1,120 x 610 mm Table load (max.): 1,000 kg General: Tool magazine: 30 stations Rapid traverse in X/Y/Z: 36/36/30 m/min Equipment/accessories: Chip management: Chip conveyor Coolant management: IKZ pump with filter and high pressure Setup operation: Electronic handwheel Other accessories: Div. gebr. Tool holder and 3 pcs machine vices (1x 125/2x 160), rinsing gun Auction-ID: A7-46660-102

Manufacturer: YAMAZAKI MAZAK Model: Quick Turn 20 Year: 1998 Numerical Control: Mazatrol T Plus Axes: 2 Axes (X, Z) Capacities: Max. diameter above bed: Ø 300 mm Distance between points: 446 mm X-axis stroke: 180 mm Spindle: Bore: 61 mm Max. speed: 4500 rpm Engine power: 15 kW Turret: 8 positions Dimensions per machine: 2660 x 1520 x 1879 mm Unit weight: approx. 4170 kg (total batch weight approx. 8340 kg) Condition: used Lot sold as a single set (2 machines) Auction-ID: A1-46647-231

Year: 1998 Serial No.: 458-66 Type/Function: 4-Axis Vertical CNC Machining Center Configuration: 2 Pallets, 2 × 4th Axis Tsudakoma Numerical Control: SIEMENS Included Equipment: KNOLL Filter Unit, Chip Conveyor Auction-ID: A1-46647-270

Control: Siemens Acramatic A2100 Di Speed: 6,000 rpm Travel in X/Y/Z: 510/510/510 mm Spindle: Technology: Belt spindle Speed: 6,000 rpm Tool holder: SK40 Work table: Clamping area: 700 x 520 mm Table load (max.): 500 kg General: Tool magazine: 21 stations Rapid traverse in X/Y/Z: 24/24/24 m/min Equipment/accessories: Chip management: chip tray Coolant management: IKZ pump with filter and high pressure Tool Measurement: Pushbutton, Renishaw TS27R Setup operation: Electronic handwheel Other equipment: Div. gebr. Tool holder and 1 pc. machine vice (Allmatic HD 125), transformer ATTENTION: The machine is not wide and is sold as a parts carrier. According to the dispenser, the control (board) is defective. Auction-ID: A7-46660-129

Manufacturer: HERMLE Year: 1999 Type: Universal CNC machining center Numerical control: Heidenhain TNC 430 PA Axes: 5 axes (3 linear axes + 2 rotary axes in positioning) Strokes: X 800 mm / Y 500 mm / Z 500 mm Table: integrated roto-pallet table – max. load 250 kg Spindle: ISO 40 – 20 to 15,000 rpm Tool magazine: 30 tools SK40 Equipment: remote crank, external coolant, external blowingWeight: approx. 8,500 kg Notes: Robust and precise CNC universal machining center, functional machine. Auction-ID: A1-46647-224

CNC control: Heidenhain TNC 530 Machine 5 simultaneous axes Strokes: X = 730 mm, Y = 560 mm, Z = 560 mm Spindle speed: up to 12,000 rpm Cone: SK40 Feeds: 20 – 20,000 mm/min Fast feeds: 30 m/min Table: 1000 x 600 mm Max load table: 800 kg Tool changer: 24 / 30 positions Machine hours≈ 31,481 h Spindle hours≈ 25,087 h Lots sold as is, unchecked, without tools or tool holders. Auction-ID: A1-46647-203

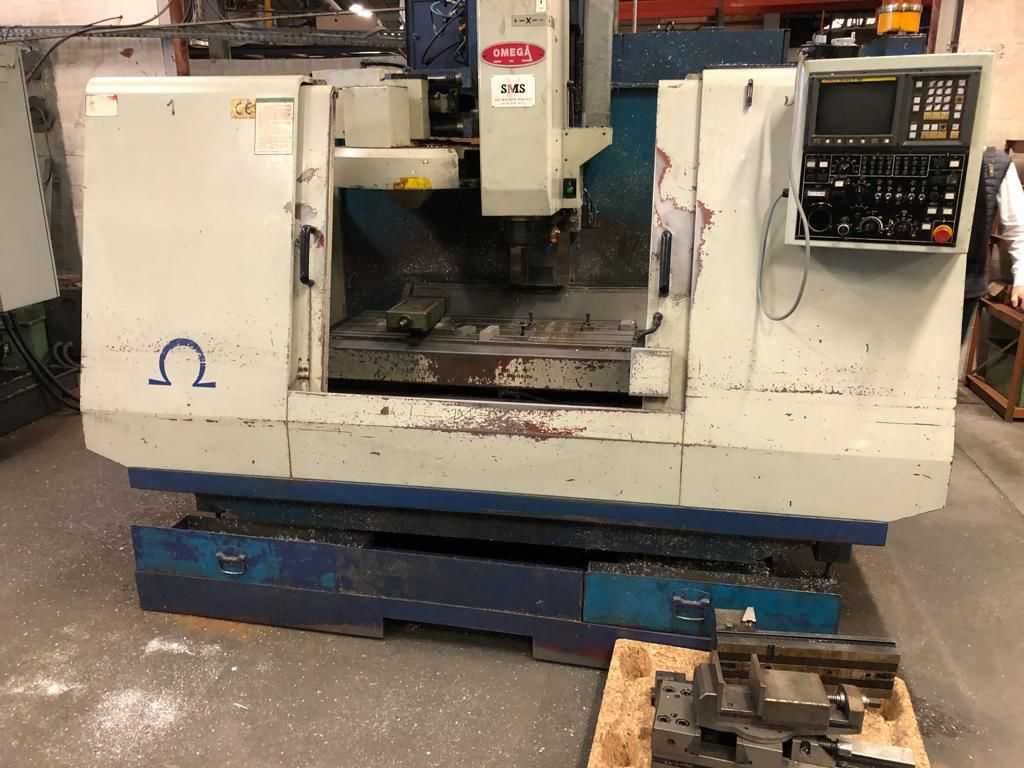

Manufacturer: OMEGA Year: 1990 Type: High-capacity CNC vertical machining center Numerical control: FANUC 15M Axes: 3-axis (X, Y, Z) Strokes: X 1650 mm / Y 850 mm / Z 790 mm Table: 1900 x 850 mm Spindle: BT50 – up to 6000 rpm – gearbox 2 ranges Tool magazine: 30 positions Weight: approx. 15000 kg Notes: Heavy duty CNC vertical machining center, suitable for intensive machining and large parts. Auction-ID: A1-46647-227

Maximum rotation diameter: 760 mm Maximum turning diameter: 550 mm Maximum turning height: 600 mm Chuck: 15 inches X-axis: 325 mm Z-axis: 625 mm Axis C: Indexation 0.001° Spindle speed: 2,000 RPM Spindle power: 22 kW Spindle nose: A2-11 Type of training: By belt Turret: 12 stations (BMT75) Motorized tool speed: 3,000 rpm Power of motorized tools: 7.5 / 5.5 kW Tool dimensions: 32 x 32 mm Bore bar diameter: Ø 50 mm Fast Forwards: 20 / 18 m/min CNC Control: Fanuc 32i Model B Weight: 8,500 kg Floor dimensions: 2,010 x 3,212 mm Auction-ID: A1-46647-17

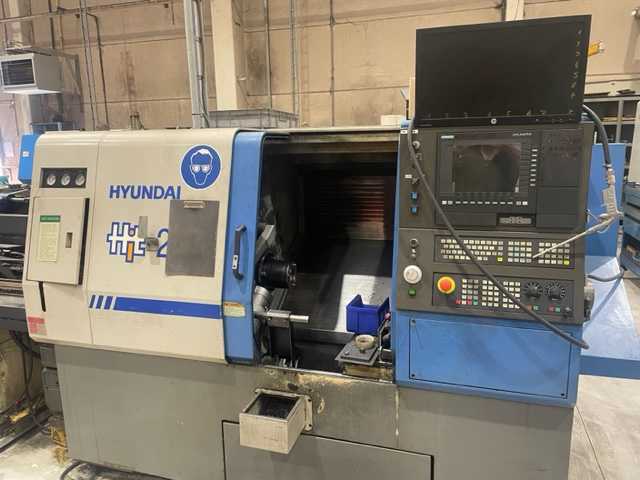

Manufacturer: HYUNDAI Year: 1999 Type: CNC lathe CNC numerically controlled: Siemens Sinumerik 840C Max. turning circle: Ø 254 mm Diameter above bed: Ø 440 mm Max. turning length: 500 mm Bar capacity: Ø 51 mm Spindle: 36–4,000 rpm – nose A2-6 – 11 kW (continuous) / 15 kW (30 min) Chuck: Ø 210 mm, Hydraulic clamping Turret: 8 stations – 25 × 25 mm tools / Ø 40 mm bars Tailstock: programmable hydraulic – CM4 taper Chip conveyor: hinged, side outlet Dimensions (mm): 2600 × 1700 × 1750 Weight (kg): approx. 4200 Remarks: Machine used, sold with tailstock and conveyor. Auction-ID: A1-46647-214

24-position tool changer HAAS HRT310 Rotary Table - 4 Axis Table diameter: 310 mm Bore diameter: 82 mm RENISHAW 40-2 Probe With accessories Assorted quantities and types, as shown in the photo. The total availability of individual visible elements is not guaranteed. Auction-ID: A7-46538-30

Specifications: - X-axis: 162mm - Z-axis: 750mm - Y-axis: +/- 50mm - C-axis: yes - B-axis: 670mm - sub spindle speed: 4500rpm - sub spindle motor power: 5,5kW - live tooling: yes - live tooling speed: 3000rpm - live tooling type: BMT-55 Machine is equipped with: - Chip conveyor - Bar feeder - live tooling - y-axis - tooling in turret included - pallet with tooling included Auction-ID: A1-45752-10

CNC control: MSX-850 III Number of axes: 2 Strokes: X = 260 mm, Z = 590 mm Spindle speed: 50 – 5000 rpm Power: 15 kW Bar capacity: Ø 65 mm Spindle bore: 73 mm Turret : 12 stations (BMT) Max turning diameter: 356 mm Max turning length: 510 mm Chip conveyor: yes 235L high-pressure pump: yes Lots sold as is, unchecked, without tools or tool holders. Auction-ID: A1-46647-204

CNC controller CYBELEC MODEVA 10S working lengh - 3550mm, pressing force - 150 ton, Auction-ID: A7-46486-3

Manufacturer: GILDEMEISTER Year: 1996 Type: CNC lathe Numerical control: Heidenhain ELECTRO PILOT turn plus Axes: 2 axes (X, Z) Turning diameter above the bench: Ø 500 mm Turning diameter above the carriage: Ø 290 mm Max. turning length: 640 mm Spindle: 20–5,000 rpm – 22 kW – max. torque 150 Nm – bore 72 mm – passage 65 mm Strokes: Z 650 mm / X 212 mm Fast feeds X/Z: 10 m/min Tailstock: sleeve Ø 80 mm – CM4 – stroke 100 mm Equipment: 3-jaw chuck Ø 250 mm, SAUTER turret 12 positions VDI 30, tailstock, full documentation Dimensions: approx. 3300 × 1800 × 1900 mm Weight: approx. 5000 kg Remarks: Robust German-made CNC lathe. Auction-ID: A1-46647-225

CNC Machining Center JOHNFORD VMC-850 | Year of construction 2023 | FANUC | 60-fold tool changer Manufacturer: JOHNFORD Model No.: VMC-850 Machine Type: CNC Machining Center Year of manufacture: 2023 Operating hours: approx. 667 h ⸻ CNC control • FANUC 0i-MF Plus • Manual Guide i • Dual Check Safety (safety software) ⸻ Spindle & Tool Changer • Tool changer with double-arm gripper • 60 tool positions • Tool holder: SK40 • Milling spindle: 5.5 / 7.5 kW • Speed: up to 12,000 1/min ⸻ Measuring & Cooling Systems • Glass scales in X, Y and Z axes • IKZ 30 bar through the spindle • Programmable air/water switching • Oil mist extraction, programmable • Renishaw OMP40-2 touch probe (wireless) • Renishaw OTS tool measuring tool setter (wireless) ⸻ Workspace • X-axis travel: 800 mm • Y-axis  ...

CNC Control: FANUC series O-M Axis strokes: X 600 mm / Y 420 mm / Z 450 mm Table: 750 × 400 mm Spindle speed: 6000 rpm Spindle power: 13 kW Spindle taper: ISO 40 Tool changer: 30 positions Included equipment: NIKKEN 4th axis divider Ø 250 mm Year: 1989 Manufacturer: SIGMA Lots sold as is, unchecked, without tools or tool holders. Auction-ID: A1-46647-267

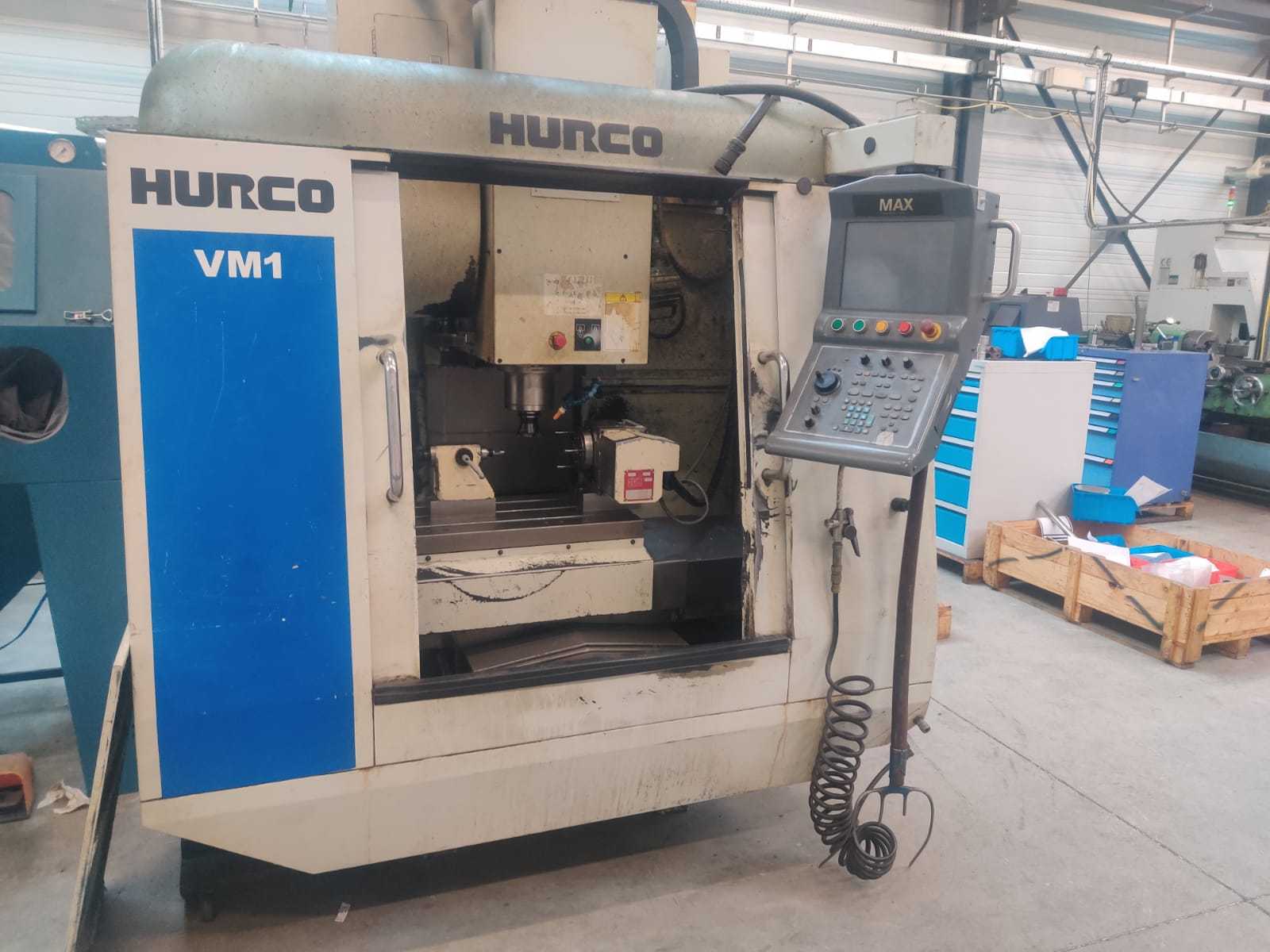

CNC vertical machining center for machining metal parts. Numerical control: Hurco WinMax Axes: 4 axes (including 1 rotary axis) Strokes: X 660 mm / Y 355 mm / Z 457 mm Table: 762 × 355 mm Maximum load table: 500 kg Spindle taper: ISO 40 Spindle speed: 10,000 rpm Spindle power: 11 kW Tool changer: 24 tools (RANDOM type) Equipment: 1-axis divider with tailstock Auction-ID: A1-46647-245

CNC Control: BROTHER CNC-A00 X/ Y/Z Axis Travels: 480 × 360 × 410 mm Table Dimensions: 600 × 300 mm Number of Tools: 14 Spindle Taper: BT30 Max. Spindle Speed: 16,000 RPM Spindle Motor Power: 7 kVA Drilling Capacities: Steel Ø 32 mm, Aluminum Ø 25 mm, Cast Iron Ø 25 mm Tapping Capacities: steel up to M16 Included equipment: 4 BT30 tool holders, lubrication tank with pump Weight (kg): 1800 Year & Manufacturer: 2007 – BROTHER Auction-ID: A1-46647-252

Strokes: X = 635 mm, Y = 510 mm, Z = 460 mm Spindle speed: 20 – 12,000 rpm Spindle power: AC 13/9 kW Fast feeds: 30 m/min Taper: SK40 DIN69871 Tool changer: 20 positions (disc magazine) + 30 position option Table dimensions: 560 x 790 mm RENISHAW probe: OMP40-2, OTS, OMI-2T module Machine hours: 21,788 h Spindle hours: 8,654 h Lots sold as is, unchecked, without tools or tool holders. Auction-ID: A1-46647-202

CNC Control: SIEMENS 810 D Number of axes: 3 Max. turning diameter: 325 mm Max. turning length: 400 mm Max. passage over the bed: 500 mm X/ Z axis strokes: 215 / 420 mm Spindle speed: 30 – 4,500 rpm Spindle bore: 52 mm Spindle power: 15 kW Turret: 12 VDI 40 positions with motorized tools Chuck: 3-jaw hydraulic Ø 204 mm Tailstock: present, CM4 taper Tailstock sleeve stroke: 130 mm, Ø 80 mm Included equipment: coolant, bar feeder Weight (kg): approx. 4500 Year & Manufacturer: 2000 – HYUNDAI Auction-ID: A1-46647-253

Manufacturer: VICTOR Year: 1996 Type: CNC Vertical Machining Center Numerical Control: FANUC Series O-M Strokes: X 800 mm / Y 500 mm / Z 510 mm Table: 1100 × 500 mm – max. load 600 kg Guides: Prismatic slides with Turcite-B coating Spindle: 60–6,000 rpm – BT40 / SK40 taper – 7.5 kW (continuous) / 11 kW (30 min) Tool changer: 24 tools – exchanger arm – 2.5 s tool-tool – max. tool Ø 80 mm Weight (kg): approx. 6000 Notes: Mehanite heavy construction machining centre. Good working condition. Auction-ID: A1-46647-213

CNC Control: FANUC 0M (original manual) Number of axes: 3 Axis strokes: X 1100 mm / Y 650 mm / Z 800 mm Maximum spindle speed: 8000 rpm Cooling: with coolant Spindle taper: BT40 Tool changer: automatic, 30 stations Year: 1994 Manufacturer: SUPERMAX Auction-ID: A1-46647-269

Manufacturer: FAMUP Year: 1998 Type: CNC vertical machining center Numerical control: Heidenhain 410 AC.Strokes : X 1000 mm / Y 470 to 600 mm / Z 470 to 600 mm (according to documentation) Table: 1300 x 520 mm – T-slots 5 x 18 mm (pitch 100 mm) – max. load 800 kg Spindle: ISO 40 DIN 69871 – AC Brushless – 50 to 8000 rpm – 11 kW (30 min) / 7.5 kW S1 Feeds: X/Y/Z 10000 mm/min – X/Y/Z 30000 mm/min fast tool magazine: 24 positions – max. tool diameter 94 mm – max. length 280 mm – max. weight 6 kg – changeover time 3 s Equipment: without spindle center coolant, without chip conveyor, sold without tools Dimensions: 4247 x 3105 x 3310 mm Weight: 6000 kg Lots sold as is, unchecked, without tools or tool holders. Auction-ID: A1-46647-221

CNC vertical machining center for machining metal parts. CNC control: Fanuc 0M Strokes: X 850 mm / Y 440 mm / Z 630 mm Table: 940 × 400 mm Max. table load: 250 kg Spindle taper: BT 40 Spindle speed: 45 – 8,000 rpm Spindle motor power: 7.7 / 5.5 kW Tool changer: 22 positions Projection: 380 mm Total power: 10 kVA Voltage: 380 V Auction-ID: A1-46647-240

Clamping System: SK40 30-position tool changer Minimum and maximum tool diameter: 76/125 mm Maximum tool length: 280 mm Maximum tool weight: 7 kg Including tool holders and related drills/cutters. With the possibility of converting clamping system to the desired type, subject to a quote from the product representative. Assorted quantities and types, as shown in the photo. The total availability of individual visible elements is not guaranteed. Auction-ID: A7-46538-10

CNC lathe for turning and machining metal parts. CNC control: Fanuc 16 T AA Max. turning diameter: 165 mm Turning length: 100 – 340 mm Diameter above bed: 220 mm Main spindle speed: 50 – 5,000 rpm Main spindle power: 5.5 / 7.5 kW Main spindle bar passing: 65 mm Sub-spindle speed: 50 – 5,000 rpm Sub-spindle power: 3.7 / 5.5 kW Sub-spindle bar passage: 42 mm C-axis: 0.001° Turrets: 2 Tool positions: 2 × 16 Motorized tools: 2 × 16 positions Strokes: X 175 mm / Z 240 – 680 mm Total power: 41 kVA Dimensions (mm): 3,500 × 2,800 × 2,000 Weight (kg): 5,500 Auction-ID: A1-46647-237

Capabilities: Maximum turning diameter: 420 mm (standard 290 mm) Maximum turning length (Z-axis): 635 mm Bar passage: 65 mm Spindle Bore: 79 mm Spindle: Rotational speed: 25 to 5,000 rpm Power: 21 kW (100%) / 28 kW (40%) 3-jaw hydraulic chuck (Ø approx. 200–250 mm) Turret & tooling: Sauter Turret VDI 30 (DIN 69880) Capacity: 12 stations Motorized substations C-axis (pin indexing) CNC Control: Heidenhain Turn Plus Electrical data: Power supply: 400 V / 3~ / 50 Hz Installed effective power: 44 kVA Current rating: 64 A Protection: 80 A Auxiliary voltage: 230 V Control voltage: 24 V DC Auction-ID: A1-46647-262

Manufacturer: YAMAZAKI MAZAK Model: Quick Turn 20 Year: 1997 CNC Machine: Mazatrol T Plus Axes: 2 Axes (X, Z) Capacities: Max. diameter above bed: Ø 300 mm Distance between points: 446 mm X-axis stroke: 180 mm Spindle: Bore: 61 mm Max. speed: 4500 rpm Motor power: 15 kW Turret: 8 positions Dimensions per machine: 2660 x 1520 x 1879 mm Unit weight: approx. 4170 kg (total batch weight approx. 8340 kg) Condition: used Auction-ID: A1-46647-261

X-axis travel: 150 mm Z-axis travel: 520 mm Tailstock stroke: 340 mm Self-centering head diameter: 210 mm X-axis repeatability +/- 0.003 mm Z-axis repeatability +/- 0.005 mm Sale intended only for revampists or scrap dealers NOT Working - Faulty Board Auction-ID: A7-46538-33

CNC vertical machining center for machining metal parts. CNC control: Heidenhain TNC 410 Axes: 3 axes Strokes: X 1,020 mm / Y 610 mm / Z 560 mm Table: 1,400 ×,650 mm Maximum load table: 2,000 kg Spindle taper: BT 40 Spindle speed: 10,000 rpm Spindle power: 15 kW Tool changer: 40 positions High-pressure coolant: 20 bar through spindle Equipment: Chip conveyor, 2 augers, spindle cooling, closed cab, machine lighting Auction-ID: A1-46647-247

CNC vertical machining center for machining metal parts. Axes: 3-axis Strokes: 610 x 410 x 450 mm Numerical Control: Fanuc OT Equipment: Chip Conveyor Manufacturer: Yang Iron Works Co., Ltd.Country of Manufacture: Taiwan Serial No.: Z00321 Auction-ID: A1-46647-239

Specifications: Control: Fanuc 0i-TD Hours: 12009 Capacity: - Swing over bed: 970mm - Swing over cross slide: 600mm - Centre height: 490mm - Width of carriage: 885mm - Width of cross slide: 350mm - Distance between centers: 4300mm - Width of bed: 560mm Headstock: - Chuck size: 605mm - Spindle bore: 153mm - Spindle nose: A2-11 - Spindle speed: 6.5 ~ 600rpm - Spindle power: 22/26kW Turret: - Tool size: 32mm - 4 positions Tailstock: - Quill diameter: 165mm - Quill traverse: 200mm - Tailstock center: MT#6 - Body movement: motorized Machine is equipped with: - 2 chip conveyors - Motorized tailstock body - Steady rest - Tooling as showed in pictures - Auction-ID: A1-45752-7

CNC Vertical Machining Center Order: Heidenhain TNC 426 Axes: 3 Table (mm): 1100 × 600 X/Y/Z strokes (mm): 1000 × 600 × 800 Spindle: ISO 40, max. 8,000 rpm Tool magazine: 40 positions Equipment: Chip conveyor Serial number: Notes: Used machine, Auction-ID: A1-46647-260

turning diameter:120 mm turning length:100 mm control:Fanuc Spindle 1 power:7,5 kW Spindle 1 RPM:4500 1/min Spindle 2 power:7,5 kW Spindle 2 RPM:4500 1/min Distance between spindle noses:600 mm Turret No.1 stations / rotary tools:15/15 Power rotary tools turret 1:2,7 kW RPM of rotary tools turret 1:4000 1/min Turret No.2 stations / rotary tools:15/15 Power rotary tools turret 2:2,7 kW RPM of rotary tools turret 2:4000 1/min Travel x/z turret 1:250 / 300 mm Travel x/z turret 2:250 / 920 mm Bar capacity spindle 1:51 mm Bar capacity spindle 2:51 mm power chuck:165 mm Spindle bore sp. 1:62 mm Spindle bore sp. 2:62 mm dimensions of the machine ca.:3700 x 2300 x 3000 mm weight of the machine ca.:5600 kg Used CNC-2-spindle CNC turning and milling center with gantry loader - 2x 15 station turret -automatic gantry loader with turnaround station. 14 station-magazin right side Max. Parts size Ø 12 ...

2-axis CNC lathe with HAAS CNC Manufacturer: HAAS Model: HL-2 Year: 1997 Serial Number: 61212 Max turning diameter: 508 mm Max turning length: 610 mm Spindle Bore: 76.2 mm Max spindle speed: 3750 rpm Turret: 10 positions CNC Control: HAAS CNC Power supply: 360 / 480 V – 3 phases – 50/60 Hz Dimensions approx. (L x W x H): 3200 x 1778 x 1778 mm Weight approx.: 4082 kg Auction-ID: A1-46647-263

turning diameter:356 mm turning length:705 mm control: CELOS M730 UM MAPPS swing dia.:742 mm standard turning diameter:275 mm travel -x axis:260 mm travel -y axis:100 ( ±50) mm travel -z axis:795 mm rapid travel - longitudinal/face:30 / 30 m/min Rapid travel B-axis (parts transfer subspindle):734 m/min Spindle 1 RPM:4000 1/min Spindle 1 Power:15/18,5/18,5 kW Spindle 1 Torque:409/505 /599 Nm Spindle 1 max. bar diameter:80 mm Spindle 2 RPM:4500 1/min Spindle 2 power:7,5/11 kW turret stations / rotary tool stations:20 / 20 BMT40 speed of driven tools:10000 1/min :3.7/5,5/5,5 kW torque rotary tools:14 / 24 Nm total power requirement:38 kVA weight of the machine ca.:6,3 t dimensions of the machine ca.:4 (9) x 2,1 x 2,2 m Parts catcher:Sp. 1 und Sp. 2 Spindle 1 Chuck:Kitagawa B 210 (250 mm) Spindle 2 Chuck:Kitagawa B 206 (160 mm) Tool presetter:Spindle 1 & 2 High precision Turning and Millin ...

Manufacturer: INDEX Year: 2005 Type: Moving spindle CNC lathe with motorized tools and C-axis Numerical control: Siemens Sinumerik 840D Powerline Chuck: Ø 160 mm Max. rotation diameter: Ø 180 mm Strokes: X-axis 520 mm / Z-axis 200 mm Fast feeds: X/Z 40 / 30 m/min Moving spindle: 5,000 rpm – 13 kW (100%) / 20 kW (40% ED) – max. torque 105 Nm C-axis: 0.001° resolution Turret: 12 positions – all motorable stations – VDI 30 Motorized tools: up to 6,000 rpm – 8.5 kW Power supply: 400 V / 50 Hz / 3 phases – installed power approx. 25 kW Weight (kg): approx. 4500 Auction-ID: A1-46647-273

CNC lathe for turning and machining metal parts. CNC control: Fanuc 16 T AA Max. turning diameter: 165 mm Turning length: 100 – 340 mm Diameter above bed: 220 mm Main spindle speed: 50 – 5,000 rpm Main spindle power: 5.5 / 7.5 kW Main spindle bar passing: 65 mm Sub-spindle speed: 50 – 5,000 rpm Counter-spindle power: 3.7 / 5.5 kW Counter-spindle bar passage: 42 mm C-axis: 0.001° Turrets: 2 Tool positions: 2 × 16 Motorized tools: 2 × 16 positions Strokes: X 175 mm / Z 240 – 680 mm Total power: 41 kVA Dimensions (mm): 3,500 × 2,800 × 2,000 Weight (kg): 5,500 Serial No.: 1105-02957 Auction-ID: A1-46647-238

turning diameter:370 mm turning length:200 mm Spindle 1 RPM:4000 1/min control:Siemens 840 D Spindle 2 RPM:4000 1/min power capacity:L / R 18/24 kW max. torque on the spindle:630 nM C-Axis:0,001° Turret No.1 stations / rotary tools:12/12 VDI 40 Turret No.2 stations / rotary tools:12/12 VDI 40 turning speed range - milling:3000 1/min power capacity - milling spindle:8,8 kW torque rotary tools:28 Nm Bar capacity spindle 1:85 mm total power requirement:65 kVA weight of the machine ca.:13 t dimensions of the machine ca.:5,7x2,4x2,1 m Travel x1:260 mm Travel x2:260 mm Travel Y1:600 mm Travel y2:600 mm Power Chuck:2 x 250 mm manual tool eye:l & r High performance 6-axis subspindle CNC-Lathe with twin turren and rotating tools.

turning diameter:65 mm turning length:120 mm control:Index C200-4D SL z-axis main spindle travel:390 mm z-axis subspindle travel:390 mm x-axis subspindle travel:600 mm Travel Y1:± 80 mm Travel y2:± 80 mm x-axis rapids:45 m/min y-axis rapids:15 m/min z-axis rapid travel:45 m/min Spindle 1 RPM:5000 1/min Spindle 1 Power:35,5/27,5 kW Spindle 1 Torque:170 /125 Nm Spindle 2 RPM:5000 1/min Spindle 2 power:35,5/27,5 kW Spindle 2 torque:170/125 Nm c-axis:0,00014 ° bar material dia.:65 mm spindle nose:AD 140 spindle bore:85 mm Milling spindle 1 RPM:18000 1/min Milling spindle 1 power:11 kW Milling Spindle1 torque:19 Nm Milling spindle 2 RPM:18000 1/min Milling Spindle 2 power:11 kW Milling spindle 2 torque:19 Nm B-axes swivel angle:230 ° B-axes torque:440 Nm B-axes angle resolution:0,001 ° Milling spindle 1 & 2 tool magazine:80 HSK A40 Milling spindle 2 tool magazine static tools :6 x VDI 25 ...
