cnc press brake used for sale

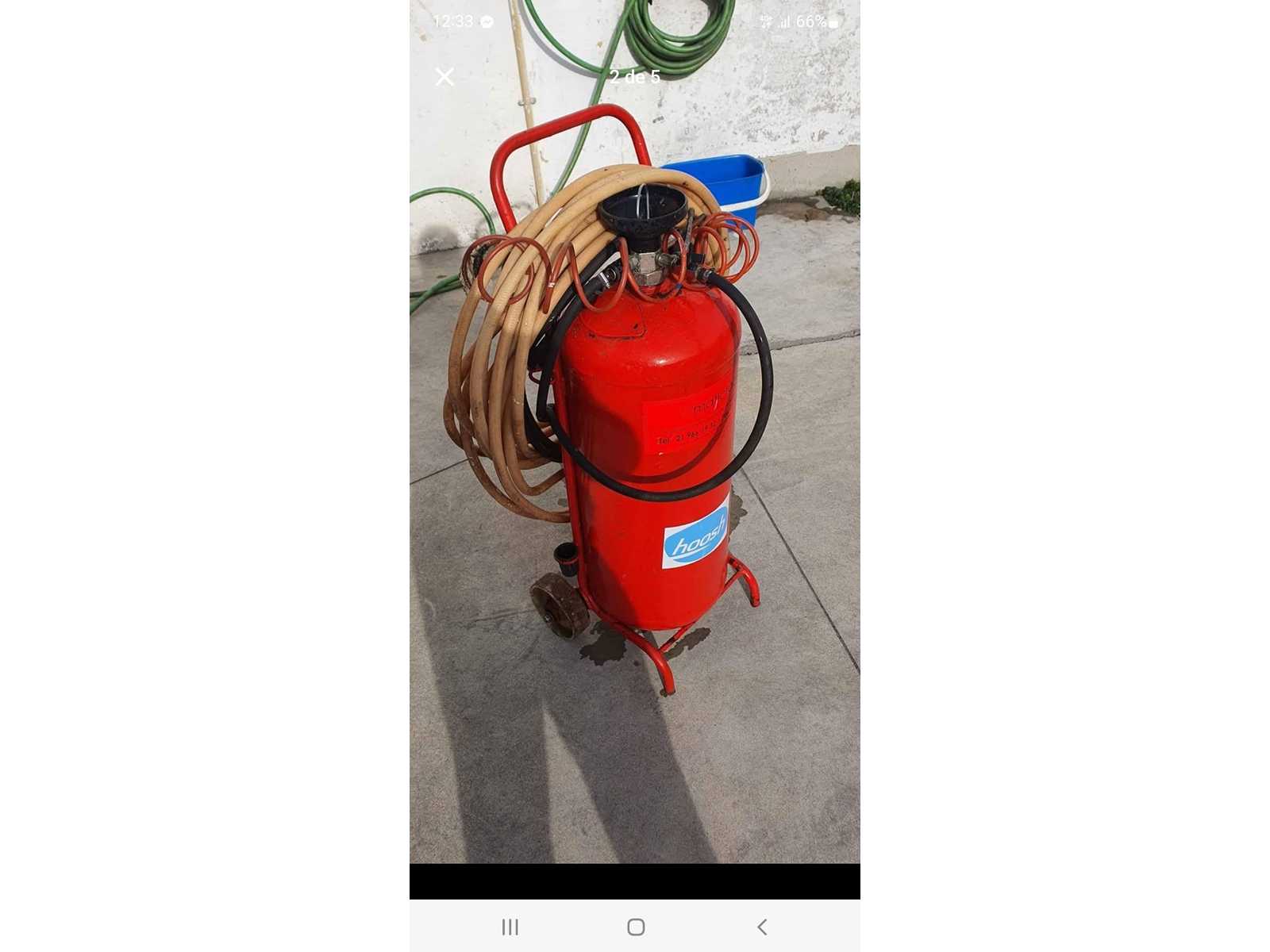

Mobile pressurised tank set with pump, hoses and accessories. Plate visible: type SCO/50, 50 L, 8 bar, year 2004. Sold as a lot; condition and pressure certification to be checked by buyer. Auction-ID: A1-51153-83

Hydraulic die spotting press for assembly, adjustment, inspection, maintenance and testing of large moulds and dies. Year 1991. Serial no. 635/2036. Useful platen dimensions approx. 2,000 × 1,500 mm. Distance between columns 2,130 × 1,630 mm. Vertical stroke 1,200 mm. Maximum closing force 1,500 kN (approx. 150 t). Maximum opening force 350 kN (approx. 35 t). Adjustable hydraulic pressure 0–250 bar. Maximum load on lower platen 30,000 kg and upper platen 15,000 kg. Upper platen rotation 100° and lower platen rotation 70°. T-slots 22 mm, DIN 650. Lower platen height from floor 770 mm. Rapid approach speed 65–80 mm/s, working speed 8 mm/s and return speed 35–50 mm/s. Main motor power 11 kW, auxiliary motor 1.1 kW, total installed power 12.1 kW. Electrical supply 380 V / 50 Hz. Approx. overall dimensions 6,150 × 2,130 × 4,700 mm. Approx. machine weight 27,000 kg. Equipped with o ...

High-pressure industrial piston compressor, mounted on a chassis and equipped with an electrical control cabinet. Manufacturer: Neuenhauser Kompressorenbau GmbH – NK Type: 40.2.3.02.01.10.63 Year of manufacture: 2020 Serial Number: 28/20 Effective flow rate (f.o.d.): 30 m³/h Operating pressure: 60 bar Speed: 1,500 RPM Power Requirement: 13 kW Visible equipment: electric motor, cooler, pressure gauge and control cabinet with Siemens display Marking: CE – Made in Germany Auction-ID: A1-51172-26

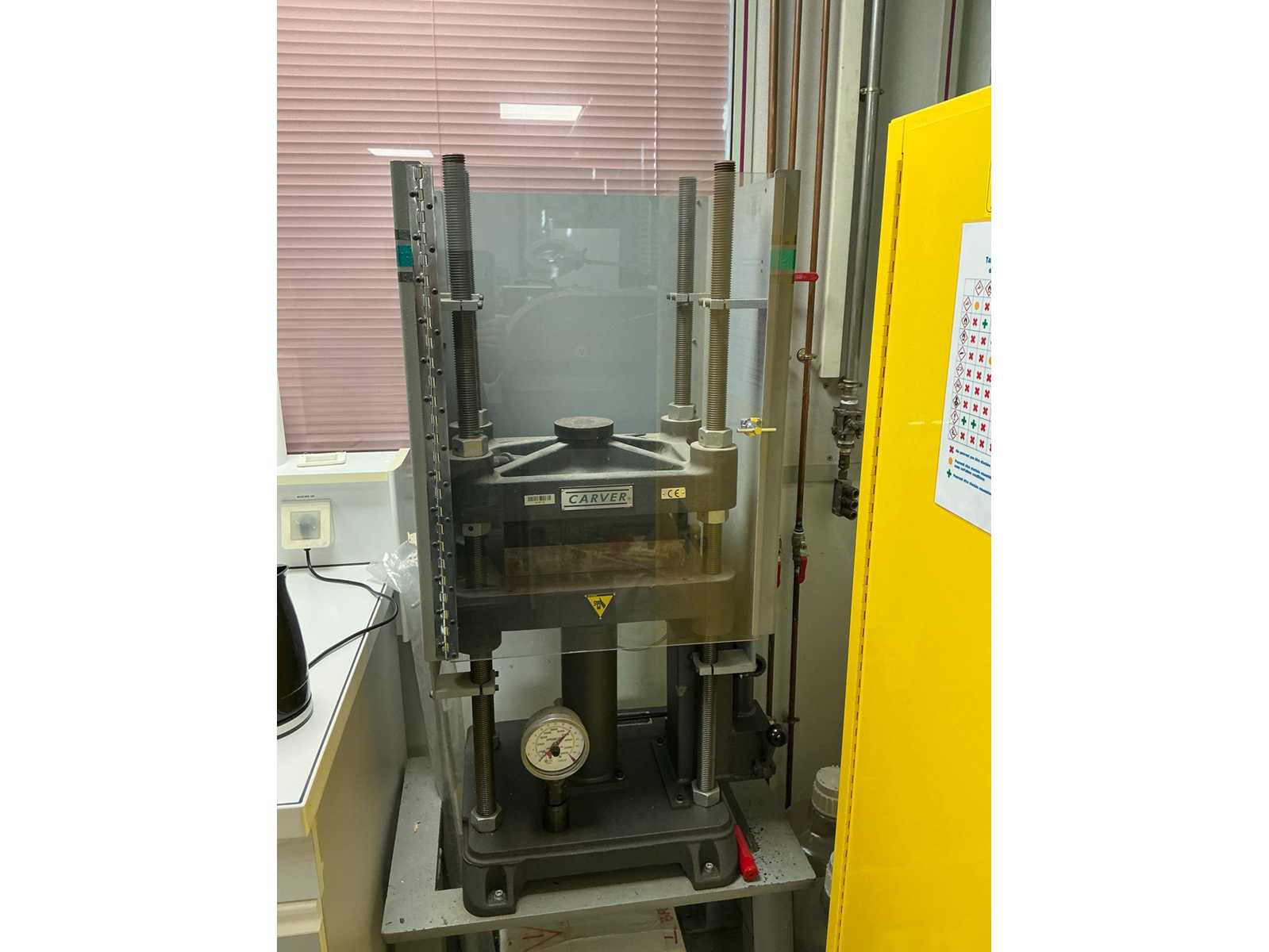

Maximum compressive force: 30 US tons / approx. 267 kN Manual hydraulic control 2-speed hydraulic pump 4-Threaded Column Configuration Working surface: 305 x 305 mm Cylinder stroke: 152 mm Adjustable vertical opening: 25 to 432 mm Fully guided mobile platform Dual Scale Analog Pressure Gauge Pressure Gauge Range: 0 to 60,000 lbs Pressure gauge graduation: 500 lbs Overall dimensions: approx. 610 x 737 x 1,168 mm Weight: approx. 312 kg Equipped with a transparent protective screen Auction-ID: A1-51172-109

Brand: Kremer Type: 20 meters with reel 20 mtr air hose extendable 2 mtr air supply hose 280 bar working pressure 1/4\" quick fitting 3/8\" hose Delayed roll-in mechanism Auction-ID: A1-40900-291

Brand: Kremer Type: 20 meters with reel 20 mtr air hose extendable 2 mtr air supply hose 280 bar working pressure 1/4\" quick fitting 3/8\" hose Delayed roll-in mechanism Auction-ID: A1-40900-435

225x127x155 No keys available for shutters No coc present Trailer 750kg Auction-ID: A3-46140-11445

pressure:250 t table length:4000 mm table width:3000 mm Controls:SIEMENS SIMATIC C7 PRESS DESIGN:. - frame design : 4 column :. - moving bolster : yes :. PRESS FORCES:. - total force (nominal):250 to PRESS TABLE:. - clamping surface (left-right):4000 mm - clamping surface (front-back):3000 mm - tool weight max.:100000 kg - number of T-slots:12 - distance between T-slots:375 mm - height above floor level:390 mm RAM:. - clamping surface (left-right):4000 mm - clamping surface (front-back):3000 mm - number of T-slots:12 - distance between T-slots:375 mm - stroke:2900 mm - tool weight max.:50000 kg RAM (HYDR. PRESS):. - number of main-cylinders:1 - approximation velocity max.:180 mm/s - working velocity max.:50 mm/s - restoring force of ram:95 to TOOL ASSEMBLY DIMENSIONS:. - distance table - ram max.:2750 mm - distance between columns (H-frame):4100 mm - Free passage be ...

pressure:800 t distance between columns:2900 mm stroke:350 mm Controls:SIEMENS PRESS DESIGN:. - frame design : H-frame :. - Drive type : mechnical :. - openings in uprights : yes :. - number of cushions:0 - opening in table : yes :. - moving bolster : yes :. PRESS FORCES:. - total force (nominal):800 to PRESS TABLE:. - clamping surface (left-right):2800 mm - clamping surface (front-back):2800 mm - rectangular breakthrough (width):2000 mm - rectangular breakthrough (front-back):1800 mm - height above floor level:850 mm RAM:. - clamping surface (left-right):2800 mm - clamping surface (front-back):2800 mm - stroke:350 mm - number of strokes max:55 /min RAM (MECHAN. PRESS):. - ram adjustment:350 mm TOOL ASSEMBLY DIMENSIONS:. - shut height (stroke down, adjustment up):1100 mm - distance between columns (H-frame):2900 mm - Free passage between side columns (width):2560 mm ...

pressure:1000 t table length:4000 mm table width:1600 mm Controls:SIEMENS S7-1500F PRESS DESIGN:. - frame design : Transfer press :. - Drive type : mechnical :. - openings in uprights : yes :. - opening in table : yes :. - moving bolster : yes :. - number of tables:2 PRESS FORCES:. - total force (nominal):1000 to PRESS TABLE:. - clamping surface (left-right):4000 mm - clamping surface (front-back):1600 mm - height above floor level:600 mm - autom. tool clamping device : yes :. RAM:. - stroke:400 mm RAM (MECHAN. PRESS):. - ram adjustment:300 mm - ram adjustment:100 mm - number of strokes min:8 /min - number of strokes max:50 /min - hydraulic overload protection : yes :. TOOL ASSEMBLY DIMENSIONS:. - shut height (stroke down, adjustment up):900 mm - shut height (stroke down, adjustment up):766 mm - distance between columns (H-frame):4250 mm - Free passage between side c ...

pressure:40 t throat:220 mm stroke:8 / 88 mm table pass:ø- abgesetzt 225/200 mm ram head dimension:400 x 250 mm distance table/ram:228 mm stroke adjustable from - to:30 - 140 mm ram adjustment:63 mm thickness of bolster:80 mm no. of strokes:70 Hub/min total power requirement:5,5 kW weight of the machine ca.:2600 kg dimensions of the machine ca.:1100 x 1300 x 2300 mm Documents:vorhanden

pressure:250 t passage width:1280 mm stroke:bis 500 mm total power requirement:47 kW weight of the machine ca.:23 t dimensions of the machine ca.:2200 x 1850 x 4600 mm table surface area:1250 x 1000 mm dayligth:800 mm daylight between the side columns:520 x 750 mm table height above floor:1000 mm Documents: vorhanden

pressure:160 t throat:370 mm stroke:150 mm total power requirement:45 kW weight of the machine ca.:22 t dimensions of the machine ca.:2,75 x 1,85 x x 4,80 m rules for accident prevention:Vorhanden work table::1500 x 700 mm Documents:vorhanden

pressure:063 t throat:250 mm stroke:8 - 100 mm no. of strokes:56 / 84 /min distance table/ram, max. stroke up, adjustment up:415 mm table surface area:710 x 500 mm hole in the table:320 mm table height over floor:800 mm passage to the back:320 mm ram surface:450 x 280 mm ram adjustment:63 mm weight:4,1 t dimensions (W x D x H):1,35 x 2,0 x 2,6 m overload protection in ram:mechanical

pressure:200 t distance between columns:2100 mm stroke:550 mm Distance table/ram, stroke up:1800 mm table surface area:2000 x 2800 mm table height over floor:760 mm ram surface:2000 x 2000 mm Side window:2000 mm feed down:400 mm/s power requirement:51,0 kW weight:33,0 t dimensions (WxDxH):3,25 x 3,5 x 5,4 m Height above floor:5,4 m foundation pit:not necessary

pressure:200 t distance between columns:2100 mm stroke:550 mm Distance table/ram, stroke up:1800 mm table surface area:2000 x 2800 mm table height over floor:760 mm ram surface:2000 x 2000 mm Side window:2000 mm feed down:400 mm/s power requirement:52,0 kW weight:33,0 t Dimensions (WxDxH):3,25 x 3,5 x 5,4 m Height above floor:5,4 m foundation pit:not necessary

pressure:400 t distance between columns:3250 mm distance table/ram, max. stroke up, adjustment up:1000 mm stroke:800 mm table surface area:3250 x 1400 mm table height over floor:1250 mm die cushion capacity:170 t die cushion stroke:200 mm die cushion area:1800 x 1000 mm distance between cutting impact cushioning:2610 mm side window:800 mm ram surface:3250 x 1400 mm return capacity:51 t speed down:300 mm/s speed up:300 mm/s working speed:16 - 33 mm/s quantity of oil:2900 l power requirement:100,0 kW weight:70,0 t Dimensions (WxDxH):4,9 x 3,1 x 7,6 m German Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2 cutting impact absorption:hydraulic

pressure:400 t distance between columns:1250 mm stroke:250 fix mm no. of strokes:45 /min distance table/ram, max. stroke up, adjustment up:825 mm table surface area:1000 x 900 mm column travel -side:400 x 700 mm ram surface:1000 x 900 mm ram adjustment:100 mm capacity of ejector in table:40 t ejector stroke:160 mm power capacity:270,0 kW weight:44,0 t Dimensions (WxDxH):2,4 x 3,6 x 7,2 m height over floor:6,4 m

pressure:125 t stroke:25 fix mm no. of strokes:70 - 700 /min distance between columns:1150 mm distance table/ram, max. stroke up, adjustment up:400 mm table surface area:1150 x 1000 mm hole in the table:900 x 220 mm side window:650 mm ram surface:990 x 850 mm ram adjustment:60 mm material width:250 mm material thickness:2,5 mm power requirement:46,5 kW weight:29,5 t roll feed:mechanical, Schuler, WK 8-250

Pressure:080 t throat:380 mm stroke:8 - 112 mm no. of strokes:60 /min distance table/ram, max. stroke up, adjustment up:472 mm table surface area:840 x 610 mm table height over floor:800 mm passage to the back:520 mm ram surface:650 x 400 mm ram adjustment:70 mm power capacity:7,5 kW weight:6,9 t Dimensions (WxDxH):1,1 x 2,15 x 3,2 m German Safety: permitted for manual loading:UVV 11.062 - VBG 7n5.1 overload protection in ram:mechanical ram counterbalance:pneumatic clutch-/ brake combination:pneumatic

pressure:250 t distance between columns:930 mm stroke:200 mm Distance table/ram, stroke up:600 mm table surface area:900 x 860 mm die cushion capacity:100 t die cushion stroke:50 mm die cushion area:350 x 400 mm table height over floor:950 mm side window:380 x 380 mm ram surface:850 x 700 mm feed down:400 mm/s feed up:400 mm/s working feed:30 mm/s oil volume:350 l power capacity:45,0 kW weight:11,5 t Dimensions (WxDxH):2,0 x 1,2 x 3,4 m German Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2 drawing cushion in table:hydraulic depth stop:mechanical foundation pit:not necessary

pressure:1000 t distance between columns:3030 mm stroke:350 mm Distance table/ram, max. stroke up, adjustment up:1400 mm table surface area:3000 x 2000 mm table height over floor:430 mm side window:1450 x 1400 mm ram surface:3000 x 2000 mm speed down:300 mm/s speed up:340 mm/s working speed:18 - 44 mm/s return capacity:120 t oil volume:4400 l width with platform:4950 mm power capacity:2 x 90,0 + 10,0 kW weight:87,0 t Dimensions (WxDxH):4,35 x 3,65 x 7,55 m height over floor:6,05 m height beneath floor:1,5 m German Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2

pressure:200 t distance between columns:1650 mm stroke:600 mm distance table/ram, max. stroke up, adjustment up:1200 mm table surface area:1600 x 1250 mm die cushion capacity:80 t die cushion stroke:300 mm die cushion area:1300 x 900 mm table height over floor:800 mm ram surface:1600 x 1250 mm oil volume:ca. 2000 l power capacity:43,0 kW weight:25,0 t Dimensions (WxDxH):2,9 x 2,3 x 5,8 m height beneath floor:0,85 m German Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2 § 20

pressure:350 t distance between columns:1350 mm stroke:900 mm distance table/ram, max. stroke up, adjustment up:1300 mm table surface area:1300 x 1000 mm pressure of drawing cushion in table:100 t stroke of drawing cushion in table:380 mm die cushion area:350 x 285 mm capacity of ejector in ram:25 t ejector stroke in ram:200 mm table height over floor:750 mm ram surface:1300 x 1000 mm speed down:500 mm/s speed up:160 - 470 mm/s working speed:16 - 44 mm/s drawing speed:57 - 160 mm/s return capacity:32 t oil volume:1700 l power requirement:91,0 kW Dimensions (WxDxH):3,75 x 2,8 x 7,2 m height over floor:5,28 m German Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2 light guard:Sick drawing cushion in table:hydraulic ejector in ram:hydraulic ram interlocking:in TDC foundation pit:necessary

pressure at min. stroke:3 t throat:150 mm stroke:- 39 mm distance table/ram, max. stroke up, adjustment up:200 mm table surface area:280 x 380 mm pressure at min. stroke:1,5 t no. of strokes with min. stroke:- 80 /min no. of strokes with max. stroke:- 50 /min hole in the table:45 mm table height over floor:790 mm ram surface:115 x 100 mm Required air-pressure:4 bar weight:0,2 t Dimensions (WxDxH):0,5 x 0,9 x 1,4 m

pressure at min. stroke:3 t throat:150 mm stroke:- 40 mm distance table/ram, max. stroke up, adjustment up:200 mm table surface area:280 x 250 mm pressure at max. stroke:1,5 t no. of strokes with min. stroke:- 80 /min no. of strokes with max. stroke:- 50 /min hole in the table:45 mm table height over floor:810 mm ram surface:115 x 100 mm Required air-pressure:4 bar weight:0,15 t Dimensions (WxDxH):0,7 x 0,8 x 1,4 m

Pressure:063 t throat:250 mm stroke:8 - 100 mm no. of strokes:120 /min distance table/ram, max. stroke up, adjustment up:415 mm table surface area:700 x 500 mm hole in the table:250 mm table height over floor:800 mm passage to the back:320 mm ram surface:450 x 280 mm ram adjustment:63 mm weight:4,5 t Dimensions (WxDxH):1,6 x 2,0 x 2,8 m overload protection in ram:mechanical

pressure:65 t distance between columns:930 mm stroke:1100 mm distance table/ram, stroke up:2400 mm table surface area:1340x700 / 930x1085 mm hole in the table:320x260 / 600x410 mm table height over floor:850 mm side window:700 mm ram surface:990 x 930 mm power requirement:15,0 kW weight:8,0 t Dimensions (WxDxH):2,8 x 2,6 x 5,2 m blank holder / ejector in ram:hydraulic side shifting device:hydraulic

Pressure:500 t distance between columns:1550 mm stroke:600 mm distance table/ram, max. stroke up, adjustment up:900 mm table surface area:1200 x 1300 mm pressure of drawing cushion in table:250 t stroke of drawing cushion in table:150 mm die cushion area:950 x 950 mm table height over floor:1245 mm side window:1250 mm ram surface:1200 x 1300 mm speed down:750 mm/s speed up:780 mm/s working speed:105 mm/s oil volume:4000 l power requirement:263,0 kW weight:45,0 t Dimensions (WxDxH):3,3 x 3,3 x 6,1 m height over floor:6,1 m German Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2 drawing cushion in table:hydraulic cutting impact cushioning:motoric adjustable

Pressure:315 t distance between columns:1350 mm stroke:600 mm distance table/ram, max. stroke up, adjustment up:1000 mm table surface area:1200 x 1300 mm table height over floor:1245 mm side window:1250 mm ram surface:1200 x 1300 mm speed down:750 mm/s speed up:680 mm/s working speed:180 mm/s oil volume:2000 l power requirement:150,0 kW weight:35,0 t Dimensions (WxDxH):3,3 x 3,3 x 5,5 m height over floor:5,5 m German Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2 cutting impact cushioning:motorisch verstellbar ram interlocking:hydraulisch

pressure:200 t throat:360 mm stroke:560 mm distance table/ram, max. stroke up, adjustment up:780 mm table surface area:740 x 720 mm pressure of drawing cushion in table:80 t stroke of drawing cushion in table:200 mm die cushion area:530 x 530 mm table height over floor:920 mm ram surface:560 x 560 mm slide drill hole x depth:70 mm power requirement:35,0 kW weight:10,0 t dimensions:1,3 x 2,0 x 3,4 m

pressure:160 t distance between columns:1340 mm stroke:300 mm Distance table/ram, max. stroke up, adjustment up:620 mm table surface area:1300 x 900 mm table height over floor:930 mm side window:600 mm ram surface:1300 x 900 mm speed down:367 mm/s speed up:390 mm/s working speed:58 mm/s power requirement:30,0 kW weight:15,0 t Dimensions (WxDxH):2,5 x 2,2 x 4,0 m German Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2 foundation pit:not necessary

pressure:063 t stroke:70 fix mm no. of strokes:15 - 60 /min distance between columns:1340 mm width between oil collecting pans:1180 mm distance table/ram, max. stroke up, adjustment up:328 mm table surface area:1260 x 700 mm hole in the table:1000 x 100 mm table height over floor:1000 mm column travel -side:470 mm ram surface:1300 x 650 mm ram adjustment:100 mm power requirement:27,5 kW weight:13,7 t Dimensions (WxDxH):3,4 x 2,1 x 3,4 m clutch:pneumatic overload protection in ram:hydraulic ram counterbalance:pneumatic ram adjustment:motoric

Pressure:063 t throat:250 mm stroke:10 - 100 mm no. of strokes:120 /min distance table/ram, max. stroke up, adjustment up:380 mm table surface area:700 x 500 mm hole in the table:180 x 140 mm table height over floor:700 mm ram surface:360 x 275 mm ram adjustment:60 mm power requirement:5,5 kW weight:3,8 t Dimensions (WxDxH):1,9 x 1,7 x 2,4 m German Safety: permitted for manual loading:UVV 11.062 - VBG 7n5.1 clutch-/ brake combination:hydraulic overload protection in ram:mechanical

pressure:150 t throat:400 mm stroke:30 - 150 mm no. of strokes:50 /min distance table/ram, max. stroke up, adjustment up:620 mm table surface area:1000 x 750 mm hole in the table:320 x 200 mm table height over floor:800 mm ram surface:800 x 600 mm ram adjustment:85 mm weight:10,0 t Dimensions (WxDxH):1,4 x 2,2 x 3,1 m German Safety: permitted for manual loading:UVV 11.062 - VBG 7n5.1 clutch:pneumatic ram counterbalance:pneumatic

nominal force:2500 t stroke:600 mm cycle time:13 - 18 s distance between columns:1720 mm Distance table/ram, max. stroke up, adjustment up:2600 mm table surface area:1720 x 1800 mm allowed max. force:4000 t blow die to die:5000 t ram surface:2100 x 1320 mm capacity of ejector in table:40 t ejector stroke in table:250 mm ejector surface area in table:900 x 820 mm capacity of ejector in ram:6 t ejector stroke in ram:40 mm spindle diameter:425 mm power requirement:900,0 kW weight:335,0 t Dimensions (WxDxH):3,4 x 4,6 x 9,7 m height over floor:8,3 m fully-automated forging line:to produce axle shaft

pressure:100 t throat:380 mm stroke:650 mm distance table/ram, max. stroke up, adjustment up:950 mm table surface area:800 x 700 mm hole in the table:200 mm table height over floor:920 mm ram surface:630 x 600 mm speed down:65 mm/s speed up:375 mm/s working speed:17 mm/s oil volume:350 l power requirement:18,5 kW weight:9,0 t Dimensions (WxDxH):1,5 x 2,5 x 4,0 m German Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2 §20

pressure:250 t distance between columns:1125 mm stroke:250 mm distance table/ram, max. stroke up, adjustment up:800 mm table surface area:1100 x 900 mm pressure of drawing cushion in table:63 t stroke of drawing cushion in table:100 mm die cushion area:700 x 400 mm table height over floor:960 mm side window:700 mm ram surface:1080 x 900 mm oil volume:1000 l power requirement:35,0 kW weight:23,0 t Dimensions (WxDxH):2,5 x 2,3 x 4,5 m German Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2 light guard:Sick foundation pit:not necessary

pressure:250 t throat:450 mm stroke:36 - 126 mm no. of strokes:40 /min distance table/ram, max. stroke up, adjustment up:525 mm table surface area:1000 x 750 mm hole in the table:400 x 360 mm table height over floor:1000 mm ram surface:600 x 500 mm ram adjustment:111 mm power requirement:19,0 kW weight:13,5 t Dimensions (WxDxH):1,3 x 3,2 x 3,35 m clutch:pneumatic overload protection in ram:mechanical ram adjustment:motoric

pressure:100 t distance between columns:1230 mm stroke:20 - 200 mm no. of strokes:20 - 60 /min distance table/ram, max. stroke up, adjustment up:650 mm table surface area:1050 x 750 mm table height over floor:760 mm side window:540 mm ram surface:1000 x 750 mm ram adjustment:100 mm power requirement:18,0 kW weight:20,5 t Dimensions (WxDxH):2,8 x 1,9 x 4,3 m infinitely variable drive:PIV clutch:pneumatic overload protection in ram:hydraulic ram counterbalance:pneumatic ram adjustment:motoric

pressure:160 t distance between columns:880 mm stroke:150 mm distance table/ram, max. stroke up, adjustment up:400 mm table surface area:830 x 1000 mm hole in the table:265 x 365 mm table height over floor:850 mm side window:610 mm ram surface:860 x 1000 mm power requirement:55,0 kW weight:14,7 t Dimensions (WxDxH):2,2 x 2,0 x 4,3 m German Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2 § 20 depth stop:motoric adjustable table:motoric foundation pit:not necessary

Pressure:250 t throat:450 mm stroke:8 - 135 mm no. of strokes:50 /min distance table/ram, max. stroke up, adjustment up:635 mm table surface area:1250 x 850 mm hole in the table:355 mm table height over floor:950 mm passage to the back:660 mm ram surface:790 x 610 mm ram adjustment:120 mm power requirement:18,5 kW weight:14,0 t Dimensions (WxDxH):1,5 x 2,8 x 3,65 m German Safety: permitted for manual loading:CE-Norm - EN 692, BGR 500 clutch:pneumatisch overload protection in ram:mechanisch ram counterbalance:pneumatisch

pressure:500 t distance between columns:2400 mm stroke:400 fix mm no. of strokes:13 - 23 /min Distance table/ram, max. stroke up, adjustment up:1600 mm table surface area:2300 x 1800 mm column travel -side:1600 mm ram surface:2170 x 1800 mm ram adjustment:300 mm total power requirement:110,0 kW Weight:135,0 t Dimensions (WxDxH):3,35 x 4,85 x 7,0 m clutch:pneumatic overload protection in ram:hydraulic ram adjustment:motoric

pressure:300 t distance between columns:2500 mm stroke:350 mm distance table/ram, max. stroke up, adjustment up:1280 mm table surface area:2500 x 1500 mm table height over floor:850 mm side window:900 mm ram surface:2500 x 1500 mm speed down:300 mm/s speed up:240 - 450 mm/s working speed:23 - 44 mm/s oil volume:3000 l power requirement:132,0 kW weight:54,0 t Dimensions (WxDxH):3,25 x 3,2 x 4,8 m German Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2 ram interlocking:SITEMA

Pressure:100 t distance between columns:910 mm stroke:600 mm distance table/ram, stroke up:1000 mm table surface area:1340x680 / 910x1085 mm hole in the table:700 x 510 mm table height over floor:800 mm side window:680 mm ram surface:1230x680 / 910x1000 mm capacity of ejector:7,5 t ejector stroke:150 mm power requirement:15,0 kW weight:9,5 t Dimensions (WxDxH):2,3 x 1,9 x 3,6 m light guard:Sick blank holder / ejector in ram:hydraulisch

pressure:150 t throat:450 mm stroke:115 fix mm no. of strokes:45 /min distance table/ram, max. stroke up, adjustment up:400 mm table surface area:2250 x 1090 mm table height over floor:900 mm passage to the back:1900 mm ram surface:1900 x 900 mm ram adjustment:100 mm power requirement:16,0 kW weight:19,5 t Dimensions (WxDxH):3,0 x 2,3 x 3,9 m

pressure:200 t distance between columns:1800 mm stroke:710 mm Distance table/ram, max. stroke up, adjustment up:1100 mm table surface area:1600 x 1300 mm pressure of drawing cushion in table:80 t stroke of drawing cushion in table:250 mm die cushion area:1400 x 1080 mm table height over floor:800 mm side window:1300 mm ram surface:1660 x 1300 mm speed down:400 mm/s speed up:410 mm/s working speed:14,3 - 49,7 mm/s power requirement:46,0 kW weight:25,0 t Dimensions (WxDxH):3,65 x 3,3 x 5,4 m height over floor:5,05 m height beneath floor:0,4 m German Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2 light guard at front and back:Sick drawing cushion in table:hydraulic ejector in ram:hydraulic depth stop:mechanical

pressure:50 t distance between columns:1750 mm stroke:500 mm Distance table/ram, max. stroke up, adjustment up:800 mm table surface area:1700 x 750 mm table height over floor:800 mm side window:650 x 750 mm ram surface:1700 x 750 mm power requirement:11,0 kW weight:11,0 t Dimensions (WxDxH):2,1 x 1,15 x 3,4 m German Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2 foundation pit:not necessary

pressure:015 t throat:200 mm stroke:4 - 70 mm no. of strokes:140 /min distance table/ram, max. stroke up, adjustment up:310 mm table surface area:430 x 395 mm hole in the table:165 x 160 mm table height over floor:560 - 735 mm table adjustable:175 mm ram surface:160 x 130 mm ram adjustment:80 mm power requirement:1,2 kW weight:0,9 t Dimensions (WxDxH):1,0 x 1,25 x 1,8 m clutch:Drehkeil overload protection in ram:mechanical

pressure:030 t stroke:8 - 40 mm no. of strokes:100 - 600 /min distance between columns:325 mm distance table/ram, max. stroke up, adjustment up:250 mm table surface area:540 x 300 / 325 x 395 mm hole in the table:315 x 110 mm table height over floor:1000 mm column travel -side:290 mm ram surface:250 mm material width of feeder:120 mm material thickness of feeder:3,0 mm feed length:60 mm power requirement:5,5 kW weight:2,6 t Dimensions (WxDxH):1,5 x 1,2 x 2,2 m clutch:pneumatic roll feed:mechanical, Bruderer BBV 120/60
