cnc portal milling used for sale

Technical data: Manufacturer: ogp Type: Smartscope CNC 250 Year of Make: 2004 Travel distances X/Y/Z: X 250 mm, Y 150 mm, Z 200 mm Scale resolution: 0.5 μm Condition Condition: Used Functional: Tested and fully functional

CONTROLS   CNC controls SIEMENS TECHNICAL SPECIFICATION   Max. diameter of tube: 120 mm   Max. bending radius: 180 mm ELECTRICAL SPECIFICATIONS   mains voltage: 400 V   mains frequency: 50 Hz DIMENSIONS / WEIGHTS   space requirements -left/right-: 8000 mm   space requirements -front/back-: 2600 mm   total height: 2300 mm   total weight approx.: 16500 kg machine in a very good condition Machine in very good condition Special features: - Free-form bending option - Laser scanner for securing the bending area - Foot pedal for safe start - Bending simulation Automation: - CNC control BEND MOTION CONTROL - Automatic mandrel lubrication as MMS Retrofit 2018: - Control system retrofit - Cables replaced - Bending head overhauled - Guides replaced - complete equipment (see photos) (Ø22x2, Ø28x2, & ...

turning diameter over bed: 1450 mm turning diameter over slide rest: 950 mm turning length: 4000 mm centre height: 725 mm faceplate diameter: 1000 mm travel -x axis: 980 mm travel -z axis: 4000 mm workpiece weight: 2 to turning speed range: 1,5 - 1000 U/min spindle hollow: 500 mm Control: Siemens 828D total power requirement: - kW weight of the machine ca.: - t dimensions of the machine ca.: - m - CNC Control Siemens 828D - Front and Rear 1000mm dia. 4 – chucks - Tailstock - Chip Conveyor - Boring Bar 1500 mm x 120 mm - Boring Bar 1690 mm x 120 mm - Boring Bar 1000 mm x 80 mm - Boring Bar 1500 mm x 100 mm - Quantity of KM Tooling The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

A hydraulic sheet punching machine Indumasch without sheet manipulation axes, but with CNC backgauges for manual sheet positioning, is available. Punching force: 40t, max. sheet thickness: 10mm, stroke rate: 150/min, max. punching diameter: 105mm, working dimensions X/Y: 1000mm/750mm, positioning accuracy: 0.1mm, weight: approx. 3500kg. Without tools. The controls were overhauled in 2014. Documentation available. An on-site inspection is possible.

3 assen: Y1 / Y2 / X Handmatige bombeertafel De achterkant van de machine is gesloten. Capacity: 175 ton x 3600 mm Backgauge: CNC Control: 2D Touch Passage between uprights: 3150 mm Max stroke: 200 mm Max distance between table -- ram: 450 mm Depth of throat: 300 mm Locking speed: 80 mm/sec Working speed: 9 mm/sec Returning speed: 95 mm/sec Electric motor (power): 15 kW Length: 3880 mm Depth: 1750 mm Height: 2750 mm Weight: 13,4 ton

spindle diameter: 130 mm x-axis: 4000 mm y-axis: 2100 mm z-axis: 1500 mm w-axis: 700 mm spindle taper: BT 50 spindle turning speed range: 2500 U/min spindle drive: 22 / 26 kW table surface area: 1600 x 2000 mm table load: 12 t B-axis (table): 0,001 ° feeds longditudinal/cross/vertical: 5000 mm/min rapid motion -longitudinal/cross/vertical: 15 / 12 / 15 m/min Control: Fanuc 0i MF total connected load: kW weight of the machine ca.: 35 t dimensions of the machine ca.: 7,5 x 6,7 x 4,5 m Equipped with: - FANUC 0i MF (10.4” LCD) - Data Server + AICC II - ATC for 60 Tools (BT 50) - X/Y/Z axis THK roller linear guide way - X/Y/Z axis Haidenhain linear scales - Coolant thru spindle 40bar - Spindle oil cooler - Hydraulic cooler - Air conditioner - Chip conveyor Operating Hours: 14761h Cutting Hours: 4382h The data for this ad was created with ModulMWS - the software solution of LogoTech oHG. ...

grinding diameter: 200 mm grinding length: 340 mm centre height: 100 mm Control: CNC : 25 kVA voltage: 110 / 220 / 3x165 / 3x380 VAC control voltage: 24 VDC total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

CNC SCREEN PRINTING MACHINE Balsfulland CNC 1500 H Manufacturer: Werner Kamann Model: CNC 1500 H Year of manufacture: 2008 Design: Fully enclosed safety cabinet with protective glazing Machine type: Multi-color CNC screen printing system CE certified: Yes Details: CNC-controlled axes Multi-color printing stations Automatic product transport system Fully enclosed safety housing Integrated drying / curing unit Designed for industrial serial production Heavy-duty steel / aluminum frame construction Application: Cosmetic containers Brochure stand Glass bottles Plastic packaging Cylindrical or slightly tapered products Industrial packaging components

2 Column Heavy Duty Band Saw Machine BERG & SCHMID SBS 300 VA-1/CNC Year of Make: 2019 Cutting diameter round: 300 mm Square cutting diameter: 300 mm Cutting diameter flat: 300 mm x 260 mm Belt speed: 20 – 100 m/min Modern SNC 20 control system Frequency-controlled saw drive Control buttons with pictograms Powered chip brush Belt Tension Hydraulic Clamping Pressure Regulation Work light Chip conveyor Taxiway 2 m

x-travel: 600 mm y-travel: 400 mm z-travel: 400 mm Spindle Speed: 4.000 U/min. table surface area: 800 x 425 mm tool taper: SK 40 feed: 2.000 mm/min total power requirement: 5 kW machine weight ab.: 2.000 kg The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

VOUMARD Model: CNC 300 Condition: Excellent Year: 2007 Machine type: BU 1000 T L7400 Was recently removed from power due to routine upgrades and was making good parts with full functionality. Siemens 840D CNC Control. Manuals included. Has grinding capability for: Internal diameters External diameters Front faces Back faces Internal tapers External tapers Profiles Drive spigots Face keyways Cams Bilobes and trilobes Internal threads External threads Bearing tracks Travels Display .0001degrees or .0001mm A - 360 degrees - 34 t/min B - -20/+1 degrees - 240 degree/min C- 360 degrees - 500 t/min U- 300mm - 20 m/min X - 300mm - 20 m/min Z travel - 1000mm - 20 m/min 4 position turret Workhead Through Bore - 50mm Rotation Speed - 850 Max workpiece weight - 200 daN at 100 mm from flange Taper - metric 70 Weight - 8000kg

diameter range 10-24 mm Forging power 7-20 to thread length plunge method 195 mm daylight 160 mm max. pitch 3,5 mm roller bore 80 mm roller width 235 mm roller length 195 mm

pressure: 135 t chamfer lenght: 3050 mm distance between columns: 2600 mm stroke of upper beam: 265 mm throat: 450 mm dayligth: 530 mm working feed: 10,0 mm/sec ajustment speed: 160 mm/sec return speed: 100 mm/sec Control: CYBELEC ModEva 10S work height max.: 900 mm table width: 104 mm back stop - adjustable: 800 mm oil volume: 250 l total power requirement: 18,5 kW weight: 10900 kg range L-W-H: 4250 x 1700 x 2850 mm from a maintenance workshop - good condition () New price ~ 84.000 euros Furnishing: - with DELEM numerical CNC control model DA 66W 2D graphical programming automatic bending sequence calculation and collision detection high-quality color LCD screen (TFT) - pivoting control, front right - controlled axes : Y1 + Y2 + X + R + CNC crowning (WILA) - CNC electric backgauge (X axis) Travel speed 500 mm/sec. - CNC electric height adjustment (R axis) Travel speed 350 mm/sec. ...

Manufacturer: Priess und Horstmann, Type: BAT III-CNC-2, Year: 1996, Control: Priess und Horstmann, Program: yes, Function: Frontenbohrmaschine, Work piece width min-max mm: 100-600, Min.-max. workpiece length in mm: 100-1000, Min.-max. workpiece height in mm: 16-25, Destacking unit: 2, Einlaufrollengang: 2, Dowel driving station: 80, Milling spindles horizontal: Blum, Milling spindles vertical: yes, Fitting type: 21000, Schliesszylinder Bohrstationen: 2600, Schlosskastenfrässtationen: 60, Bänderbohrstationen: 2, Bänder Eindrehstation: 15, Hinges inserting unit: no, Dowel driving station: 3, Working range X: 2, Dowel driving station: 3, Working range Z: 1, Dowel driving station: 3, Drilling support horizontal: yes, Drill gearings: yes, Number of tables: yes, Year :1996

Hersteller : Costa, Type: Optima 2000 CNC, Year: 1993, Control: CNI, Positioning of CNC axis: yes, Double edge bander: yes, Hand-over: yes, Longitudinal edge banding: yes, Sanding machine: no, Tool exchange places: yes, Working width min-max mm: 320-4000, Arbeitshöhe min-max mm: 30-100, Saw Units: 1, Double edge bander - milling units/side total: 1, Spindle length of double edge bander mm: 620, Double edge bander with stoppers: yes, Longitudinal milling units total: 5, Längsprofiler Fräsaggregate linke Seite: 2, Längsprofiler Fräsaggregate rechte Seite: 2, Längsprofiler Fräsaggregate linke Seite: 2, Longitudinal milling units horizontally: 1, Spindle length - longitudinal milling mm: 320, Spindle diameter - longitudinal milling mm: 50, Feeding speed min-max m/min: 2,5-23, Vorschub stufenlos: yes, inkl Werkzeuge, Year :1993

CNC CYLINDRICAL GRINDING MACHINE Fritz Studer AG — Model S22 CNC Hours in picture MACHINE IDENTITY Machine type CNC Cylindrical Grinding Machine Manufacturer Fritz Studer AG Model S22 CNC Serie 004 Serial No. 040.0004 Year of manufacture 2009 Machine base Granitan® S103 mineral casting Control system FANUC 31i-A CNC Configuration Fixed straight wheelhead (OD grinding) WORKPIECE DIMENSIONS Distance between centers 650 mm (25.6") Center height 175 mm (6.9") Max. workpiece weight 150 kg (330 lbs) Max. workpiece length 700 mm Max. workpiece diameter 449 mm GRINDING WHEEL Grinding wheel diameter 610 mm Grinding wheel width 160 mm Grinding wheel speed Up to 3,200 rpm Spindle power 15 kW (20.5 hp) Wheelhead type Fixed straight HSG peripheral speed Up to 140 m/s (optional) AXIS TRAVEL & DYNAMICS X-axis travel 310 mm X-axis max. speed 15,000 mm/min Z- ...

Met RoboHelix-machines kunnen spiraalvormige schoepen worden gevormd uit standaard ronde of van een patroon voorziene werkstukken. RoboHelix-machines vereisen uiterst nauwkeurige synchrone bewegingsbesturing. Door de gebruiker gegenereerde gegevens worden vanuit cloudgebaseerde software, HelixNinja, naar het apparaat gedownload. Deze informatie wordt vervolgens verder verwerkt om coördinaten in het 3D-vlak te genereren, waarmee het proces van het creëren van een vliegtuig vanuit een blanco basis wordt nagebootst. De motoren volgen synchroon deze coördinaten om het vliegtuig te produceren. Met de elektronische nokkenplaatfunctie in TwinCAT NC Camming (TF5050) is relatieve synchrone beweging overal en altijd mogelijk. Afmetingen en toleranties zijn geen probleem meer zodra de motoren en aandrijvingen zijn gekalibreerd. De tweede generatie RX250 uit de machinelijn van RoboHelix heeft een ...

Tenoning spindle: 2 St. Number of milling agregates: 7 St. Spindle diameter: 50 mm # 6726 Weinig Unicontrol 12 CNC -------------------------------------------------------- Sale on behalf of a customer. Machine connected and ready for demonstration. crosscut saw -------------------------------------------------------- Crosscut saw electronically, horizontally infinitely adjustable Number of tools: 1 pc. Spindle speed: 3000-6000 rpm Spindle diameter: 40mm Tool diameter max.: 400 mm Motor power: 3 kW Laser guide light to identify the saw section rounding aggregate -------------------------------------------------------- Position: horizontally below Motor power: 1 kW Spindle diameter: 20mm Spindle speed: 9000 rpm Tool flight circle max.: 130 mm electronic length stop, length: 3500 mm -------------------------------------------------------- 1. tenoning Spindle ---------------------- ...

Inv. Num. : 9058 Type: SPV 40 CNC Producer: CZ. TECH Created: 2008 Parameters: Control system: SIEMENS Table diameter: 533 mm Feed length X-axis: 550 mm Feed length Z-axis: 850 mm Max. turning diameter: 850 mm Max. workpiece height: 800 mm Max. workpiece weight: 800 kg Weight: 12500 kg

CNC Deep Hole Drilling Machine Shinil (Korea) Year: 2009 Control: Fanuc Oi-TD Key Technical Specifications • Drilling diameter (solid): Ø 50 – 200 mm • Counter boring max: 500 mm • Trepanning max: 500 mm • Max drilling depth: 6000 mm (6 meters) Workpiece & Motion • Z-axis stroke (tool free): 6000 mm • Work spindle stroke (max): 4000 mm • Z-axis rapid feed: 5000 mm/min • Z-axis cutting feed: 0 – 1000 mm/min • Control axis: Z-axis CNC controlled Spindle & Speed Range • Headstock rotation: 5 – 30 rpm • Tool holder spindle speeds: • 50 – 500 rpm • 25 – 250 rpm • 16.6 – 166 rpm • 8.3 – 83.3 rpm Cooling & Drives • Coolant pump control: Inverter-driven • Motor control: NC controlled spindle & tool rotation Power & Installation • Total power: approx. 335 kW • Power supply: AC 440V / 60Hz  ...

CNC Machining Center Kunzmann WF 600 CNC Control: Heidenhain iTNC 530 Year of Make: 2014 Operating hours approx. 55 h Internal machine no. 52 Machine from training workshop / as good as new condition Travels: X-axis 600 mm Y-axis 400 mm Z-axis 400 mm Mount: SK 40 DIN69871 Speed: 1 - 5,000 rpm Accessories - Probes - Vise - Tools

CONTROLS   CNC controls SIEMENS 810 T WORKING RANGE (DOUBLE DISC GRINDER)   Grinding wheel diameter: 750 mm   grinding width max. - throughfeed grinding: 180 mm   material thickness max. - throughfeed grindin: 30 mm   grinding width max. - plunge cut grinding: 180 mm   material thickness - plunge cut grinding: 30 mm COMPONENT-FEEDER   Feeder Design: rotary Feeder ELECTRICAL SPECIFICATIONS   total power consumption: 95 kW Scope of delivery: - Machine - div. flanges and used grinding wheels - Measuring control IONIC 17A Optional: - 270 pcs. grinding segments 22A 100 S 6 B20 - 289 pieces grinding segments 14C 80 L 10 B30 Machine is dismantled and stored

groove width: 3-100 mm drawing length: 750 mm working speed: 0-20 m/min boring diameter: 10-500 mm cutting speed: 0-20 m/min return speed: 0-50 m/min carrying capacity: 35.000 kg Power connection: 12,27 kW cutting capacity: 40.000 N machine table: 500 x 770 mm total power requirement: kW weight of the machine ca.: 2,1 t dimensions of the machine ca.: m Equipment / accessories: Original year of manufacture reconditioned in 2019 and equipped with new controler - dividing head - many accessories (grooving knives, tools, various) - Documentation The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

spindle diameter: 150 mm x-travel: 6000 mm y-travel: 2600 mm z-travel: 2300 mm w-axis: 900 mm spindle taper ISO: 50 rotary table dia.: 2000 x 3000 mm table load capacity: 30 t spindle turning speed - stepless: 3250 U/min spindle motor: 53 / 65 kW spindle taper ISO: 50 Feeds (X,z,u,w-axis): 12 / 15 / 15 / 7,5 m/min total power requirement: 55 kW weight of the machine ca.: t dimensions of the machine ca.: m - CNC Control HEIDENHAIN iTNC 530 - Rotary Table, Size 2000×3000 mm, 30 t - ATC 120-fold (ISO 50) - DANDREA UT5/500S Automatic Universal Indexing Head 1°×1° - Head pickup - Chip conveyor The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

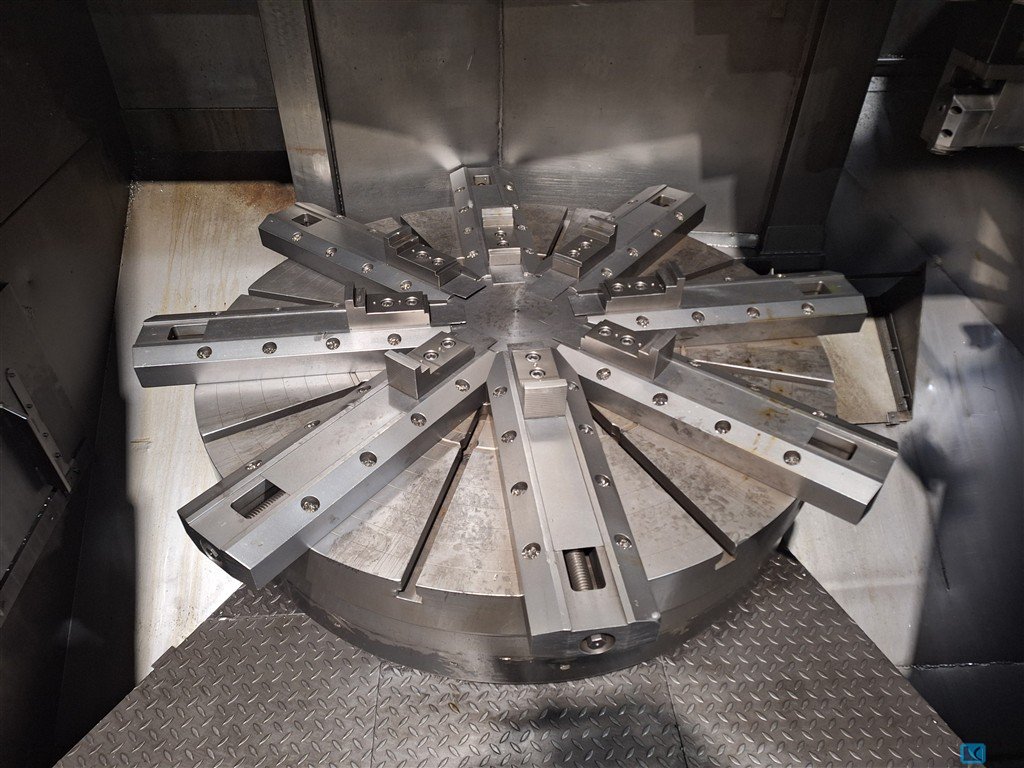

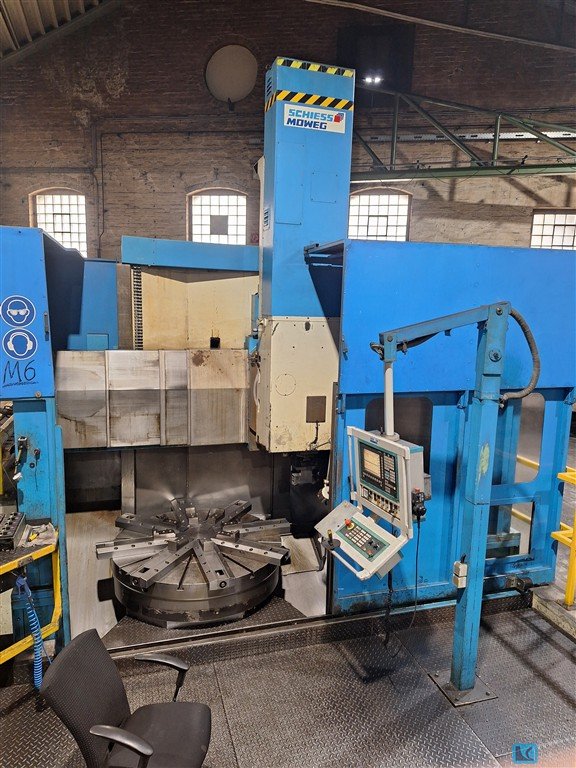

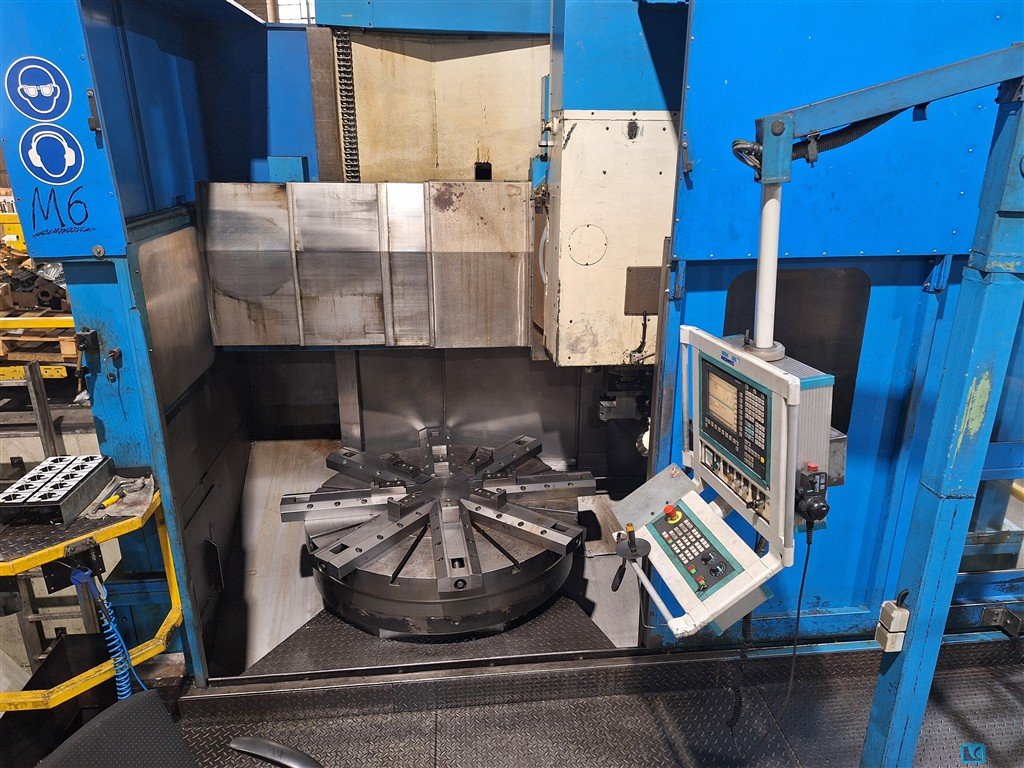

faceplate diameter: 2500 mm max. swing diameter over bed: 2700 mm turning height: 2500 mm Control: Siemens 840D CNC workpiece weight max.: 30 t workpiece dia.: 2500 mm Crossbar travel distance every 100 mm: 1200 mm Piston rod: 1500 mm ram diameter: 250 x 250 mm traversing speed: 8 m/min Max. vertical feed rate: 6000 mm/min Max. cross feed: 8000 mm/min Speed of the machine table: 180 U/min tool changing time: 1 min cutting speed: 140 m/min Cutting depth: 14 mm Power Capacity of main drive: 100 kW weight of the machine ca.: 47 t dimensions of the machine ca.: 12,5 x 8,0 x 6,7 m Features/Accessories: - Crossbars every 100 mm, including locking mechanism - 2 ram units with a cross-section of 250 x 250 mm, travel distance 1500 mm - Both ram units can be moved through the center (100 mm each, i.e., both ball screws are offset from each other with collision protection - ZF gearbox for main driv ...

hogedrukkoeling via de spindel spanentransporteur X-axis: 1660 mm Y-axis: 510 mm Z-axis: 510 mm Table dimensions: 2000 x 510 mm Max weight on the table: 1000 kg Admission in spindle (ISO): BT-40 Power on the spindle: 18,5 kW Control : Mazatrol 640M Toolchanger: yes Number of toolholders: 30 positions Number of rotations: 12 000 rpm Weight: 8250 kg

Maximale afmetingen van het werkstuk: 800 x 1000 mm tabelindexering elke 0,001° afstand van palletcentrum tot spindelneus: 70 gt; 810 mm afstand van palletoppervlak tot spindelcentrum: 100 gt; 830 mm Hogedrukkoeling via de spindel (70 bar) Uitgerust met Palletech High Rise System = uitbreidbare palletopslag met 2 niveaus voor 12 pallets. spanentransporteur X-axes: 730 mm Y-axes: 730 mm Z-axes: 740 mm Table dimensions: 500 x 500 mm (2x) Max weight on the table: 700 kg Admission in spindle (ISO): BT40 Power on the spindle: 30 kW Toolstore: yes Tools: 160 positions Frequency : 18000 rpm Number of pallets : 12 pallets Length: 9000 mm Depth: 8000 mm Height: 2850 mm Weight: 12,4 ton

Asse X Trasversale 3160 mm Asse Y Estrazione 1200 mm Asse Z Verticale 1860 mm Circuiti vuoto : 1 (predisposto per 2 con generatore vuoto maggiorato con soffio) N.3 comandi pneumatici Gruppo ribaltamento 0°-90° nuovo Carrelli asse X nuovi

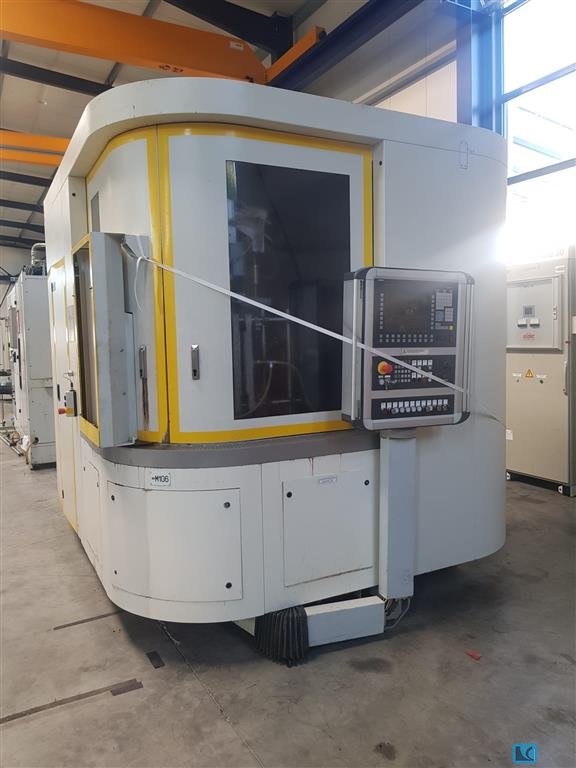

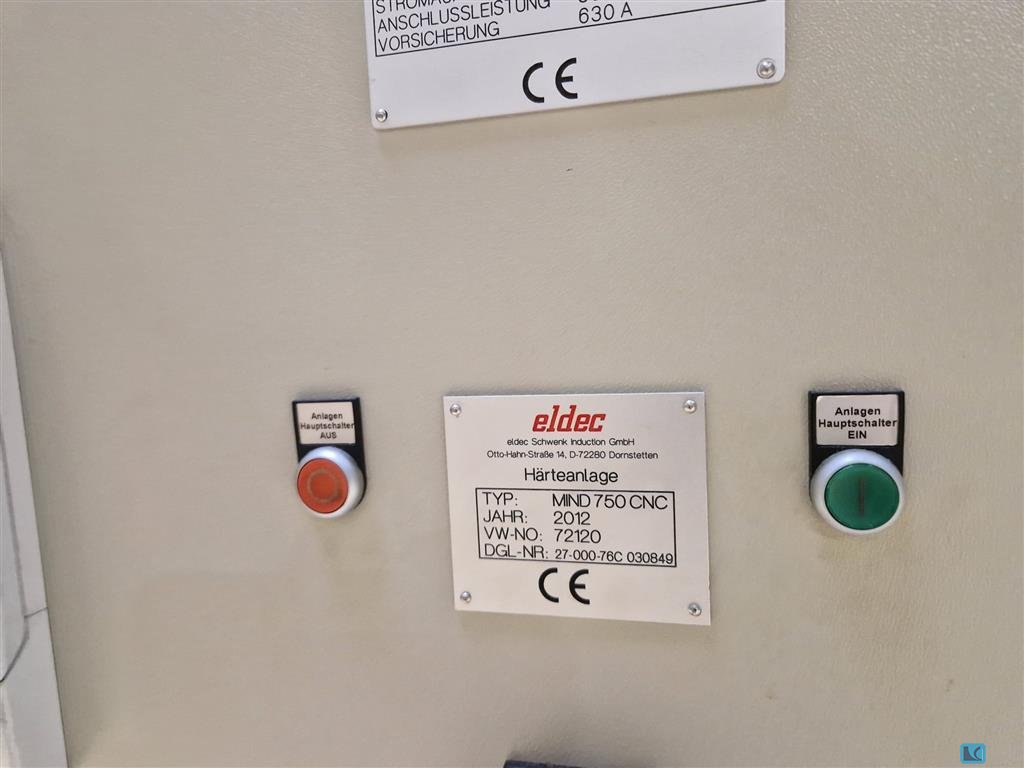

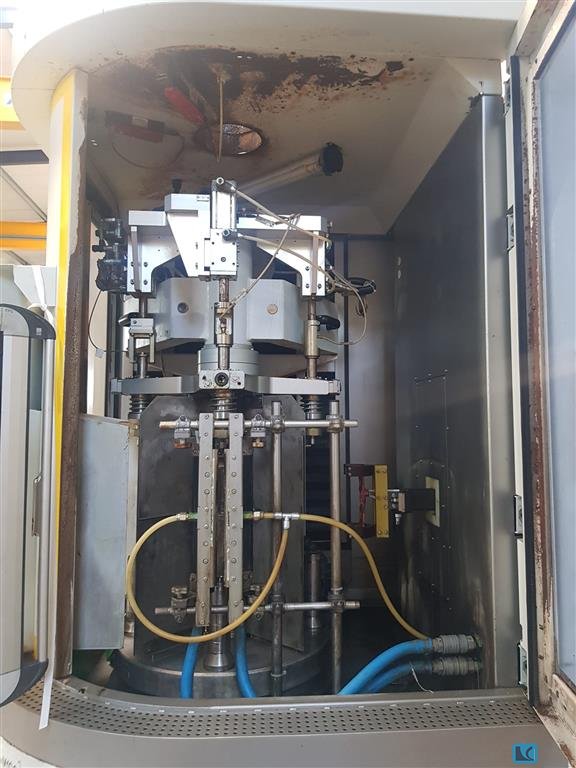

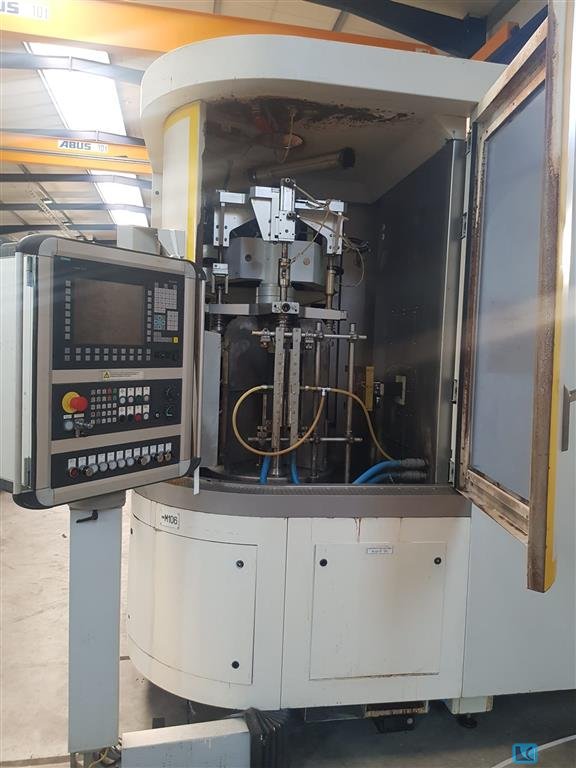

total power requirement:413 kW Induction hardening machine Rotary table Eldec: Z (servo drive 750 mm Y (electromechanical) 300 mm X (electromechanical) 200 mm Maximum part diameter 600 mm Maximum workpiece weight 500 kg High frequency generator type HFG 200 Medium frequency generator type MFG 30

max. wheel diameter:210 mm total power requirement:60 kW weight of the machine ca.:8 t dimensions of the machine ca.:2,85 x 2,60 x 1,80 m grinding slide feed:700 mm grinding slide feeds:1-15.000 m/min max. workpiece weight:150 kg centre height:260 mm grinding wheel diameter:240 mm

distance spindle /table:min /max 190 / 570 mm distance spindle /table:190 - 570 mm surface area:650 x 300 mm Boring power:in GG 20 40 mm bore capacity in steel:ST 60 32 mm turning speed range::50 - 5000 UpM total power requirement:2,2 kW threading:GG 20 M30 threading::ST 60 M 24 weight of the machine ca.:1400 kg table load:max. 150 kg table height:770 mm traversing speed:max X-, Y- u. W-Achse 5 m/min max. traversing speed:Z-Achse 3 m/min w-axis:380 mm workpiece height max.:495 mm tool changing time:ca. 3 sec x-travel:450 mm y-travel:300 mm z-travel:180 mm workpiece weight:1,5 kg

grinding length:600 mm grinding width:250 mm workpiece height:380 mm :Sinumerik max. dia. of grinding wheel:300 mm weight:4000 kg total power requirement:12,5 kW grinding wheels:Ø 400 mm max. width of grinding wheel:100 mm grinding wheel hole diameter:127 mm turning speeds:470 - 12030 1/min x-axis:600 mm y-axis:300 mm z-axis:250 mm grinding range:450 x 200 mm distance spindle nose and table:500 mm table load:250 kg dimensions of the machine ca.:2600 x 2100 x 2400 mm switchgear cabinet:1300 x 800 x 2000 mm hydraulical unit::450 x 350 x 500 mm Documents:vorhanden

faceplate diameter:1600 mm swing diameter:1800 mm turning height:1500 mm max. ram stroke:1200 mm faceplate turning speed range -stepless-:2,5 - 250 U/min workpiece weight max.:10.000 kg ram head dimension:240 x 240 mm feed range:1 - 3000 mm/min power capacity:45 kW weight of the machine ca.:20 t modernized and overhauled in 2010 with CNC SIEMENS 840 D 12 positions automatic toolchanger telescopic covers splash guarding chip conveyor coolant attachment diverse toolholders

grinding length:1250 mm grinding width:600 mm workpiece height:730 mm table surface area:1720 x 500 mm headstock: dist. table - spindle center:900 mm max. longitudinal movement:X-1450 feed range:10 - 20.000 mm/min vertical movement:Y-730 mm feed range:0,2 - 3.000 mm/min cross travel:Z-550 mm feed range:5 - 5.000 mm/min power capacity:1500 U/min.- 44 kW / 8000 U/min. - 38 kW kW grinding wheel turining speeds:50-6.000 U/min cutting speed:max. 80 m/sec. weight of the machine ca.:11 t with CNC SIEMENS 840 C auto. dynamic balncing system integrated in the grinding conus profile grinding unit ( on table mounted ) Diamant profile rollers ( dia. max 140 mm , width max. 200 mm, hole 52 H3 ) speed 3000 rpm two magnetic plates ( 1000 x 400 mm, 1200 x 350 mm ) divers Flanges ect.

Corpus press manufactured in 2003. This PRIESS U HORSTMANN KP-5-CNC + ZWA-1-CNC + Buffer features workpiece dimensions with a cabinet height ranging from 300 mm to 2500 mm, a width of 300 mm to 1300 mm, and a depth of 160 mm to 700 mm. It requires a minimum room height of 3700 mm and operates at a working height of 930 mm. If you are looking to get high-quality veneer processing capabilities, consider the PRIESS U HORSTMANN KP-5-CNC + ZWA-1-CNC + Buffer machine we have for sale. Contact us for further details.

EMAG WEISS W 11-CNC SL650Year of manuf. : 2020 Control : Sonstige WEISS CNC Centre width : 650 mm____________Description:In Generel:ear of construction:2020Control system:WEISS CNCCentre width:650 mmCentre height:200 mmGrinding wheel dimensions:400x60 mm + 500x60 mmWorkpiece headstock:Speed:10 -650 rpmWorkpiece weight max.:250 (100) kgSanding diameter max.:390 mmMounting:MK4Grinding headstock:Peripheral speed:20 - 50 m/sGrinding disc dimensions right:500 x 60 mmGrinding disc dimensions left:400 x 60 mmX-axis:380 mmZ-axis:700 mmB-axis:torque motor, infinitely variableTailstock:Pinole diameter:50 mmPionole stroke:45 mmMounting:MK 4Cylinder fine adjustment:+/- 0.04 mmEquipment:Positioning sensors:Direct scalesGrinding spindles:2x grinding spindle (left/right)GAP / Crash Controll:Structure-borne sound (Sensotronik)Balancing:MPM balancing deviceWorkpiece measurement:Marposs PF MEAutomat ...

Width of the band swa blades: 50-200 mm Sharpening pitch: 60 mm Weight: 750 kg WINTER CNC BAND SAW GRINDER BANDSAWMAX PNK-CNC PNK-CNC is designed to grind all types of band saw blades used in metal cutting. PNK-CNC guarantees a flawless, fast and precise grinding of NU, NV, PV, PU, KV, SB tooth forms with its state-of-the-art grinding technology Technical specifications: - Band saw width 50-200mm - Band saw length Max. 12m - Blade thickness Min 0.4mm - Tooth pitch Max. 60mm - Tooth depth Max. 30mm - Tooth forms NU, NV, PV, PU, KV, SB Hook angle (0°) (+40°) - Feed rate (speed controlled) Max. 90 teeth/min. - Grinding wheel dimensions D: Ø250mm d:Ø20mm - Grinding wheel thickness 5-13mm (depending on tooth pitch) - CBN Grinding wheel dimensions D: Ø250mm d:Ø20mm - CBN Grinding wheel thickness 2-3mm (depending on tooth pitch) - Grinding wheel rotation (speed controlled) 1400-5500 r.p. ...

Machine is already ready for transport and can be assessed on viewing day. Workbench with magnetic plate and milling tool not included Auction-ID: A1-44905-9

5 axis CNC – portal profile machining center for all materials - aluminum - steel - stainless steel - plastics - non-ferrous metals. Drilling + tapping, flow drilling, milling + thread milling, as well as sawing at free angles – for example, steel profile saws up to 6 mm wall thickness Largest saw blade diameter 500 mm Largest machining length 7,000 mm Largest workpiece cross-section 650 x H 300 mm Working range in five-axis operation 6,400 mm x 480 x H 300 mm Spindle drive power 17 kW at 100% ED Milling spindle speeds up to 24,000 rpm Moving tool magazine for 12 tools Tool holder HSK 63 Rapid speeds up to 100 m/min / acceleration 2.5 G Space requirement (including control cabinet and control panel) approx. 9 m x 2.5 m x H 2.6 m Weight approx. 5,000 kg. equipment: - OSAI® CNC control - YASKAWA® feed drives and feed controllers - HITECO® milling spindle wit ...

X-axis: 13,000 mm Y-axis: 4,500 mm Z-axis: 1,000 mm Distance between stand: 6,500 mm C-axis: 190º A-axis: 110º Rapid speed XYZ: 15,000 mm/min. Rapid response AC: 10 tpm CNC control: Siemens 840D Spindle mounting: HSK A63 Spindle speeds: 30,000 rpm. Spindle power: 20 kW Tool changer: 20 positions Torrestool tables: 16 pieces X-axis: 11,500 mm Y-axis: 3,500 mm Z-axis: 750 mm Country of origin Spain Machine dimensions LxWxH: 19,000 x 11,000 x 6770 mm Machine weight: 70,000 kg

First commissioning: 2016 Control: Heidenhain iTNC 530 incl. handwheel HR 520 X-axis: approx. 2,500 mm Y-axis: approx. 3,000 mm Z-axis: approx. 1,250 mm A-axis: ± 110° C-axis: ± 300° Clamping table Clamping surface: approx. 2,500 x 3,250 x 400 mm 2-axis milling head VH30 Spindle power: 60 kW Spindle speed: max. 22,000 min-1 Torque: 95 Nm Tool holder: HSK 63A Tool tensioning: hydraulic Coolant supply: outside and inside Blowing air: Outdoor Drives Linear axes Feed speed X-, Y-, Z-axis: up to 60 m/min Axle acceleration X-, Y-, Z-axis: up to 5 m/s2 Connection data Connected load: 190 kVa Fuse: 315 A Dimensions, weights Space requirement machine with peripherals: approx. 10,000 x 9,000 x 5,650 mm Total weight: approx. 55,000 kg Colour Housing, portal, control cabinet: RAL 7035 light grey Milling head and applications: RAL 6038 luminous green  ...

First commissioned: 2006 Control: Fidia C20 incl. handwheel X-axis: approx. 7,000 mm Y-axis: approx. 3,000 mm Z-axis: approx. 1,751 mm A-axis: + 125° / - 95° C-axis: ± 275° Clamping table Clamping surface: approx. 6,000 x 2,000 x 400 mm Head Spindle power: 20 kW Spindle speed: max. 20,000 min-1 Tool holder: HSK 63A Tool tensioning: hydraulic Drives Linear axes Feed speed X-, Y-, Z-axis: 65 m/min Axle acceleration X-, Y-, Z-axis: 5 m/s2 Connection data Connected load: approx. 150 KW Dimensions, weights Space required Machine with protective cabin Dimensions: approx. 12,200 x 6,300 x 5,800 mm Total weight: approx. 105,000 kg Auxiliary - 20-fold tool changer - Engine room surveillance (camera) Options at extra cost: - Renishaw RMP60 probe - Fidia HMS System Condition of the machine Fully functional, very good condition

Key data: 5000 mm, 1600 mm

Multifunctional panel and panel machining center These are two CNC machines integrated into a compact multifunctional machine – designed for the production of rear-ventilated facades – for prefabrication in drywall and acoustic construction, for aluminium and wood panel processing. Sawing + drilling + milling (also V - groove milling with a separate milling unit) + brushing + grinding + polishing, all with a single multifunctional machine. CNC – controlled, very compact, multifunctional inclined table machining centre with a small footprint – for the processing of plates and panels made of all (easily) machinable materials such as aluminium plates and aluminium sheets, non-ferrous metal plates and non-ferrous metal sheets, composite materials – such as Alucobond – Reynobond® – Dibond® and others, fibre cement panels – such as Eternit®, synthetic resin panels –  ...

Key data: 3100 mm, 2100 mm, 1000 mm

First commissioning: 2024 Control: OSAI Arbeitsbereich / Working Ranges X-axis: 3,100 mm Y-axis: 2,100 mm Z-axis: 1,000 mm Clamping table: 3,100 x 2,100 mm T-slot spacing: 250 mm Table load: 1,000 kg Milling unit: Spindle power:10 kW Spindle speed: Max. 24,000 min-1 Torque: 10.9 Nm Tool holder: HSK 63F Drives Linear Axes Feed speed X/Y axis: up to 40 m/min Z-axis feed speed: up to 25m/min Electrical connected loads: Voltage: 400 V Frequency: 50 Hz Fuse: 45 A Power requirement: 35 kVA Dimensions & Weights: Machine space requirements: approx. 4,800 x 5,000 x 4,300 mm Total weight: approx. 6.5 tons Colour: light grey Auxiliary: - 15-fold tool changer - Mobile control panel Machine Condition: New Availability: Immediate - subject to prior sale

Key data: 4000 mm, 2700 mm, 1250 mm

Year of manufacture: 2024 Steuer / Control: Heidenhain TCN640 inkl. HR520 Handrad - handwheel Arbeitsbereich / Working Ranges X-axis / X-axis: 4,000 mm Y-axis / Y-axis: 2,700 mm Z-axis / Z-axis. 1,250 mm Clamping table: aluminium table with T-slots at a distance of 250 mm Milling Unit / Milling Head Spindle power: 22 / 25 kW Spindle speed / rotation speed: Max. 24,000 min-1 Drehmoment / torque: 18 Nm Tool holder: HSK 63A Drives Linear Axes / Feed & Acceleration Feed speed X/Y-axis / max feedrate X/Y-axis. Up to 60/40 m/min Feed speed Z-axis / max feedrate Z-axis: Up to 35 m/min Electrical Connection Values / Electronic Consumption Spannung / voltage: 400 V Frequenz / frequency: 50 Hz Fuse / current power: 45 A Power requirement / power required: 25 kVA Dimensions & Weight & Dimensions: Required space: approx. 9,100 x 5,100 x 4,400 mm Total weight /  ...

Key data: 13000 mm, 4500 mm, 1000 mm

CNC gantry milling machine (for aluminum skin drilling/milling operations) MTorres MGP-51350-TT Year of construction 2003 Siemens Sinumerik 840D CNC Control Travel: X 13,000 mm - Portal longitudinal path Y 4,500 mm - Crossbeam path of the milling support Z 1,000 mm – Milling ram vertical travel Positioning speed / rapid traverse speed 15,000 mm/min. 2-axis rotary/swivel milling head A & C A-bushes simultaneously Positioning speeds / rapid traverse speeds 10 rpm. Spindle drive power 20 kW Spindle speeds up to max. 30,000 rpm (electrospindle) 20-fold tool changer Tool diameter max. 80 mm Tool length max. 125 mm Tool weight max. 10 kg 16 units TorresTool pogo stick clamping system - NC controlled 5-axis gantry milling and drilling machine. Designed for high-speed milling and drilling of aircraft structural compone ...

Key data: 10000 mm, 3000 mm

Ram travel (W) 1,500 mm Taper ISO 50 P.D.B. R.P.M. 4,500 kW 33 Volts 400

Key data: 6000 mm, 2000 mm

Ram travel (W) 1,200 mm Taper ISO 50 P.D.B. RPM 10 - 4,000 kW 22 Volts 400 A.T.C. 40 positions

Key data: 5000 mm, 3100 mm, 1200 mm

Machine Type: CNC Gantry Milling Machine Make CORREA Type Rapid 50 Year of manufacture 2004 Heidenhain control type Table dimensions (mm) 5000 x 2000 mm X-way (mm) 5000 mm Y-way (mm) 3100 mm Z-way (mm) 1200 mm Table load max. 15 ton Speeds of (rpm) max. 18,000 Tool holder HSK 63 Total power(KW) 20/27 Length (mm) 15000 Width (mm) 6200 Height (mm) 6000 Weight 65 ton

VISION WIDE SF-2116 CNC PORTAL MILLING MACHINE Year of construction 2016 Fanuc 31i ModelB Table : 2000 X 1500 mm X-axis travel 2000 mm Y-axis travel 1500 mm Z-axis travel 800 mm Engine power: 44 kW With tool changer Total weight : 20t approx. Horizontal Head 90 Degree
