cnc milling used for sale

modernization 2006 Control system 'Siemens' Max working diameter: 700-1500 mm Distance between railway wheels: 1435 mm Regulating distance between railway wheels: 1524 or 1676 mm Length of railway wheels sets: 1640-3000 mm Jaws clamp diameter: 550-1350 mm Max wheel width: 140 mm Spindle turn range: 4 Spindle turn: 9, 13, 5-18, 27 rpm Stepless feed speed range: 1,6-50 mm/min Machine dimensions: 8700 x 3650 x 3250 mm

turning diameter: ca. 500 mm swing diameter: ca. 600 mm travel -x axis: ca. 400 mm travel -z axis: ca. 600 mm spindle turning speed range: 2000 U/min spindle drive: 63 kW control: SIEMENS control: SINUMERIK System 3 tool turret: 1 x 12 Pos total power requirement: kW weight of the machine ca.: 9,3 t dimensions of the machine ca.: m - R-version, turret right hand side of 3-jaw chuck - Accessories: hydr. 3-jaw chuck 400 mmø, various toolholders for turret, chip conveyor, coolant The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

CNC controlled three-axis under-table cross-cut saw with additional drilling unit for wood and wood-like materials, but also suitable for sawing aluminium non-ferrous metals and plastics. Closed compact production island, low noise pollution and no chips in the machine environment. Our automatic sawing and drilling machine KA 550 CNC - SAW and DRILL is versatile einsetzbar_ – Only saws in automatic mode and for single cuts - Drilling only - Combines drilling and sawing in a single operation The possibilities to work with the drilling unit include drilling and countersinking, combined drilling + countersinking with a combination tool, drill milling of longitudinal holes – longitudinal holes transversely – rectangular cut-outs. The drill feed speed and the drilling pressure can be sensitively adjusted. Technical data Circular Saw and Drilling Machine KA 550 CNC - SAW an ...

CNC – controlled profile and tube bending machine for demanding and precise bending work with hollow sections and tubes. With our machines, aluminium – steel / stainless steel – various plastics such as PVC window profiles (depending on the application) can be bent with repeatable accuracy, regardless of the material. Depending on the equipment, our machines can also be used for three-dimensional bending work. Our REPANDUS models can work both horizontally and vertically. The models of the REPANDUS series work with a fixed upper roller and two movable lower rollers – this means that the straight end piece is relatively short compared to machine concepts with fixed lower rollers. The machine body is made of vibration-absorbing cast steel Shaft diameter of upper and lower rollers Ø 70 mm Shafts made of special steel – hardened and ground Bending force 190 kN Maximu ...

CNC – controlled profile and tube bending machine for demanding and precise bending work with hollow sections and tubes. With our machines, aluminium – steel / stainless steel – various plastics such as PVC window profiles (depending on the application) can be bent with repeatable accuracy, regardless of the material. Depending on the equipment, our machines can also be used for three-dimensional bending work. Our REPANDUS models can work both horizontally and vertically. The models of the REPANDUS series work with a fixed upper roller and two movable lower rollers – this means that the straight end piece is relatively short compared to machine concepts with fixed lower rollers. The machine body is made of vibration-absorbing cast steel Shaft diameter of upper and lower rollers Ø 70 mm Shafts made of special steel – hardened and ground Bending force 190 kN Maximu ...

grinding length: 4200 mm grinding width: 1300 mm workpiece height: 550 mm Control: Siemens 840D passage width: 1300 mm electro-magnetic table: 4200 x 1300 mm grinding height: 550 mm grinding motor: 306 kW grinding motor turning speeds up to: 370 U/min grinding motor feed, infinitely variable: 0,5-35 m/min coolant flow rate: 2000 l/min weight of the machine ca.: 50 t dimensions of the machine ca.: 11,21 x 5,25 x 3,85 m Equipment / Accessories: - segment head - diameter 1400 mm - for segment dimensions 120/106 x 41 x 250 mm - number of segments: 1 set = 26 pieces - grinding motor adjustment - in steps: 0,002 - 1 mm - continuous: up to 5 mm/min stepless The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Working wheel dimensions (od x id x width): Ø610x80xØ304.8 mm, cnc brand: FANUC, CNC brand: FANUC, CNC model: 21 Oi TB, Maximum length between points: 1060 mm, Max travel Z axis: 750 mm, Maximum length to be rectified: 600 mm, Height of points: 225 mm, Ø min/max to be rectified: 10 - 300 mm, Max. piece weight: 125 Kg, Max travel X axis: 325 mm, Grinding wheel speed: 45 m/s, Main engine power: 11 Kw, Workpiece head speed: from 30 to 1000 rpm, Workpiece holder head cone: MORSE 5, Power of workpiece head motor: 12 Nm, tailstock cone: MORSE 4, Travel of the tailstock quill: 70 mm, Hydraulic movement of the tailstock: 150 mm, Total power: 22 Kw, Long: 2300 mm, Tall: 1900 mm, Width: 2634 mm, Weight: 7750 Kg, Accessories: Cooling equipment with paper filter; MARPOSS meter, positioner and balancer;

Key data: 350 mm, 500 mm, 450 mm

CNC-controlled precision vertical slotting machine with four CNC axes and an electronic control of the rotary cutting table with a positioning accuracy of 0.001°. A machine for the efficient production of: - Fitting grooves (also conical grooves) -Splines - Internal and external gears -Racks CNC control with 10" color screen and touch screen software for roughing – finishing – fine finishing (This achieves surfaces of the highest possible grades.) Lifting range of the push carriage can be programmed up to 350 mm Push-slide speeds 0 to 80 strokes/min infinitely variable Push-slide swivel range +/- 20° Largest workpiece height 640 mm Projection 500 mm Round table size 450 mm Bore in the round cutting table Ø 135 mm Maximum table load 1,250 kg Table travels longitudinal and transverse – 340 x 340 mm Power transmission of the X + Y axis by precision ball screw ...

Generating Grinding Machine Grinding Machine Gleason Pfauter G320 CNC + Promot Automation Hersteller [manufacturer]: Gleason Pfauter G320 + with Promot Automation handling unit Type [ type]: G 320 Control unit: Siemens 840 Incl. control panel Baujahr[construction year]: 10/2001 Module [ ]: 0.5-7.0 Min. workpiece diameter [ ]: 10 mm Max. workpiece diameter [ ]: 380 mm Number of teeth [ ]: 10-600 Vertical carriage stroke "Z" [ ]: 200mm Horizontal carriage stroke "X" [ ]: 230mm Tangential carriage stroke (SHIFTING) "Y" [ ]: 135mm Swivel angle clamping head "A" [ ]: +-45° Tailstock tip stroke [ ]: 125mm tangential slide stroke – dressing [ ]: "V" 180mm radial carriage stroke – dressing [ ]: "U" 110mm Rotation speed – grinding wheel in progress [ ]: 3000rpm max - infinitely variable Egg speed - linear axes [ ]: 10000 mm/min Max. table rotation speed [ ]: 240 RP ...

Inv. Num. : 7661 Type: 605 CNC Producer: Witech Created: 2005 Parameters: Control system: NUM 1040 Work table length: 220 mm Work table width: 210 mm X-axis travel: 330 mm Y-axis travel: 150 mm Z-axis travel: 150 mm Machine height: 2300 mm Machine length: 1650 mm Machine width: 1730 mm Machine weight: 750 kg Equipment: 4 Tool Holders Pump Spindle temperature device Heidenhain Linear Measurement

Danobat RTM-2500 CNC X600 CNC Surface Grinder Grinding Length: 100" Grinding Width: 28" Table Length Dimension: 98.43" Table Width Dimension: 19.690" -Grinding Wheel- Grinding Wheel Diameter: 20" Grinding Wheel Width: 4" Grinding Wheel Bore: 8" -Wheel Head- Angle Adjustment: 0 DEG Wheel Head Motor: 20 HP Wheel Head Speed: 1,200 RPM -EQUIPPED WITH- Fagor 8055 CNC Control Magnetic Swarf Conveyor

max. wheel diameter: 0 mm max. number of teeth: 0 max. module: min. module: total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m CNC controlled milling machine for synchronous rings The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Distance between points: 1000 mm, Ø max to be rectified: 350 mm, Max travel Z axis: 1.180 mm, Max travel X axis: 350 mm, Height of points: 180 mm, Ø max to be rectified with the left wheel: 350 mm, Left grinding wheel dimensions (od x id x width): Ø450xØ203x80 mm, Working wheel dimensions (od x id x width): 508x203.2x80mm, Right grinding wheel dimensions (od x id x width): Ø300xØ127x40 mm, cnc brand: FANUC, cnc model: 18TC, Main engine power: 7.5 Kw, Maximum weight between points: 120 Kg, Total installed power: 15 KW, Standard peripheral speed: 45 m/s, Automatic grinding head rotation with Hirt 2.5º: +5º_-180º, B axis control system: Incremental encoder + 2.5º Hirt ring, B axis motor: 2.5 Nm at 3000 rpm, X axis speed: 10,000 mm/min, X axis resolution: 0.0005 mm, Z axis speed: 10,000 mm/min, Z axis resolution: 0.005 mm, Z axis table rotation: 0º_9º, Workpiece head cone: MORSE  ...

Key data: 6400 mm, 3 mm

with the following equipment: - Tin cassette - Hydraulic upper beam adjustment - Additional stand unit - Cheeks laser-hardened - Control with swivel arm - Motor stop system type 11 measuring range 20-1250mm - Stop finger 4x - Crowning device, manual - Control on the swivel arm Original price of the machine approx. 269,000 € Machine is repaired, checked, cleaned by a professional and is then fully functional. Test run is carried out.with the following equipment: - Tin cassette - Hydraulic upper beam adjustment - Additional stand unit - Cheeks laser-hardened - Control with swivel arm - Motor stop system type 11 measuring range 20-1250mm - Stop finger 4x - Crowning device, manual - Control on the swivel arm Original price of the machine approx. 269,000 € Machine is repaired, checked, cleaned by a professional and is then fully functional. Test run is carried  ...

Max. bar length: 1400mm, bar diameter: 6.35-80mm, weight: 450kg, accessories: cabling, servo amp, bar pusher 52D=12, bar pusher 52D=15, bar pusher 52D=21, with delivery note, copy of the invoice, various manuals, operating and maintenance instructions. An on-site inspection is possible.

groove width: mm x-travel: 1000 mm throat: mm table length: 1300 mm table width: 300 mm total power requirement: 14 kW weight of the machine ca.: 3.2 t required space: 2.9x3.1x2.7 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Horizontal machining centre manufactured in 2004. This IRLE IRD 1600 CNC features a maximum pipe diameter processing capability of 1,625 mm and a maximum pipe length of 13,200 mm. It supports a maximum pipe wall thickness of 70 mm and can handle pipe weights up to 250 kN. If you are looking to get high-quality machining capabilities, consider the IRLE IRD 1600 CNC machine we have for sale. Contact us for further details.

CNC Press Brake manufactured in 2024. This DAMAMT WC67K 63T/2500 CNC features a pressing force of 63 tons and a bending length of 2,500 mm. It includes advanced CNC control with 4+1 axes and motorized V-axis crowning for precision bending. If you are looking to get high-quality bending capabilities, consider the DAMAMT WC67K 63T/2500 CNC Press Brake we have for sale. Contact us for further details.

NUM 1020 T 131352 CNC control

faceplate diameter: 1800 mm turning diameter over slide rest: 2500 mm turning length: mm Control: FAGOR 8050 T total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m Stocknumber 1010063 Type of machine CNC Facelathe Make TADU Type FS 1250 Build in nb Type of control FAGOR, 8050T Turnung diameter over bed 2500 mm Additional information 4-jaws chuck 1800 mm floorplate 3250 x 2850 mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

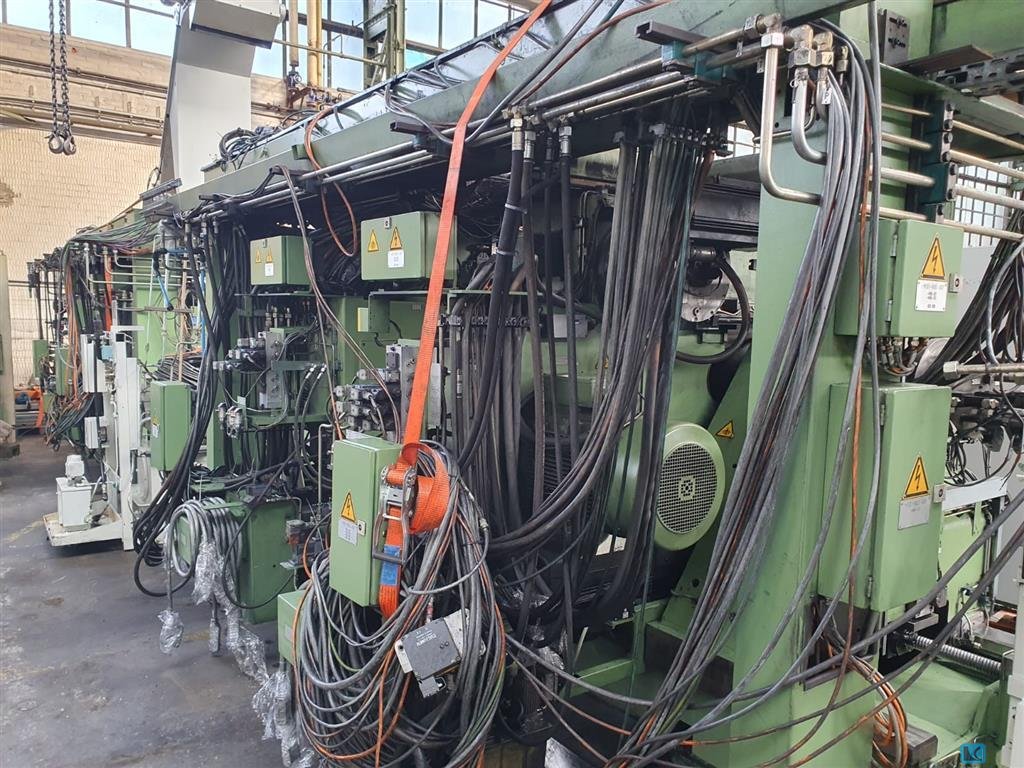

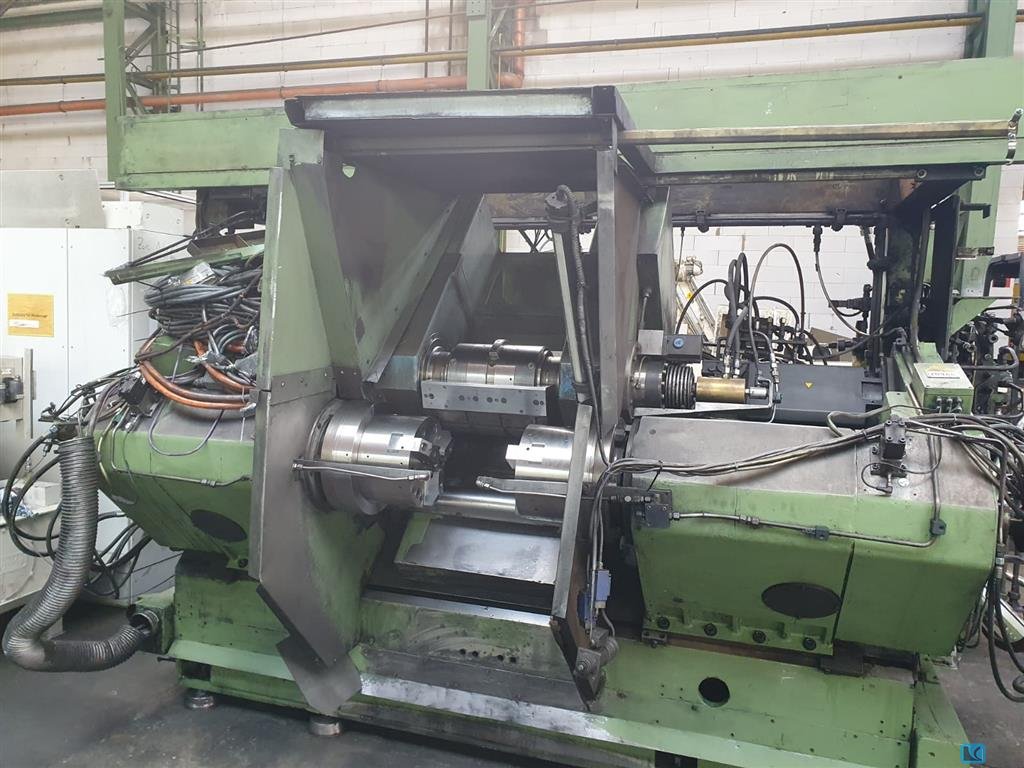

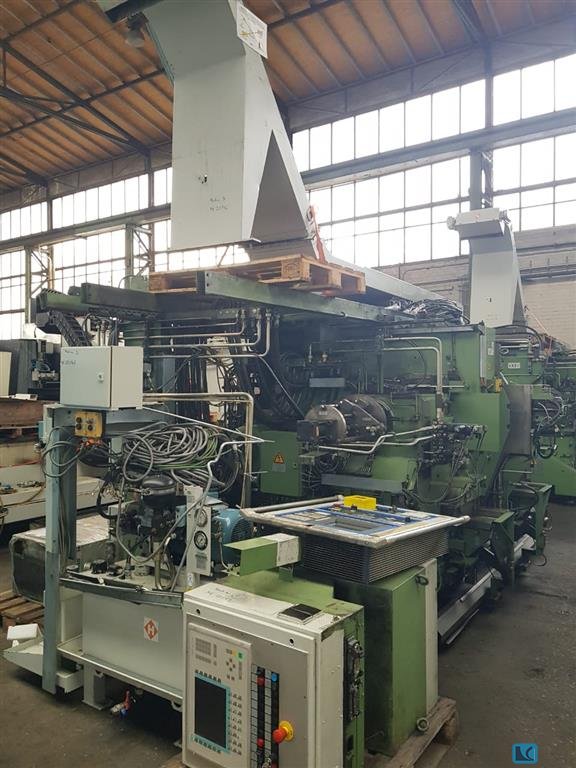

Lathe with 4 tools only for 3-cylinder crank shaft

weight of the machine ca.:18 t centre distance:700 mm max. swing diameter:200 mm Lathe with 4 tools only for 3-cylinder crank shaft

dimensions of the machine ca.:3,5 x 2,0 x 2,5 m

turning length:140 mm dimensions of the machine ca.:4 x 2 x 1,9 m

centre height:500 mm centre distance:2000 mm control:CNC Grundig Numerik total power requirement:400 V, 50 Hz, 22,5 kW weight of the machine ca.:3300 kg dimensions of the machine ca.:2500 x 4000 x 2400 mm

total power requirement:10,5 kW weight of the machine ca.:4800 kg dimensions of the machine ca.:3000 x 2100 x 2000 mm centre distance:1200 mm Height of centres:200 mm grinding-table stroke max.:X -Achse 1000 mm table-size:2060 x350 mm z-axis:Querhub 250 mm Feed speed:0,005 - 5 m/min. grinding head - swivable:360 ° taper ISO:50 control:Sinumerik System 8 Documents:vorhanden

Siemens Sinumerik 840D control, incl.: grinding tool preparation, hydraulic unit, and portal loading system for loading and unloading the machine, Technical specifications:, Tip distance: 600mm, tip height: 180mm, maximum grinding diameter: 355mm, maximum workpiece weight: 150kg, maximum Z-axis speed: 11 m/min, minimum Z-axis speed: 0.01 m/min, maximum X-axis speed: 7.5 m/min, minimum X-axis speed: 0.01 m/min, External/internal grinding spindle:, Grinding wheel standard (Øa x b x Øi): 600 x 80 x 304.8 mm, Grinding wheel circumferential speed: 5 - 50 m/s, Power consumption of grinding spindle motor: 11 kW, Workpiece spindle:, Taper bore workpiece headstock: MK 5, Power consumption: 2.7 kW, Tailstock:, Taper hole center point: MK 4, Coolant reservoir: 2000 liters, lubricating oil: 30 liters, hydraulic oil: 60 liters, Operating voltage: 400 volts, 3 phases, Mains frequency: 50 Hz, Total w ...

- Working area pipe steel  up to 30 mm x 2 mm - Pipe working area stainless steel  up to 30 mm x 1.5 mm - Pipe extension length 2,000 mm - Bending angle up to 180° + 10° overbending - Automatic bending sequence ( bending, twisting, longitudinal ) - CNC control - Input PC with software Transpro V2 + Tanspro V2 package (indication of previous owner) - Function triggering via hand switch - Clockwise bending direction - Radius range max. 125 mm mm -Auto. Mandrel lubrication - Laser scanner for security area - Incl. existing used tool for stainless steel pipe 1 mm  15, 18, 22, 28 mm Bending radius 1.5 D (various wrinkle smoothers, mandrels

(3) Mikrosa SASL 5 CNC (size similar to Kronos M, MX, L) CNC overhaul and retrofit in progress full overhaul and CNC retrofit (pending) komplett Ueberholung + CNC retrofit Grinding wheel 500mm wide x 610mm dia. CNC 5 axis / 5 axis Mikrosa SASL 5 CNC photos of the last finished machine, for reference only complete overhaul and retrofit Grinding wheel 500 x 610 mm Regulating wheel 400 x 650mm Fixed center Complete mechanical overhaul Complete electrical overhaul Elimination of hydraulic movements Application CNC Siemens 840D 5 axes controlled in position with digital brushless motors: - Operating wheel axis motor with optical scale - 4 dressing axes: 2 on the grinding wheel, 2 on the regulating wheel - rotating axis with adjustable speed motor on regulating wheel - rotating axis with 55kW AC motor with inverter on grinding wheel to adjust RPM / peripheral speed (m/sec) Set-up for through-f ...

1998 Sato Elektronik SATRONIK CNC 801 Flame cutting machine Find more here - .ucymachines/ Contact us at - sales@ucymachines

Specifications: Maximum cutting width: 2050 mm Maximum cutting capacity steel: 0.5 - 4.0 mm Adjustable rip fence: 1050 mm Retraction function Cutting gap adjustment Working height: 1030 mm Dimensions (length x width x height): approx. 2500 x 1900 x 1750 mm Weight: approx. 3,6 tons
