cnc milling used for sale

Round bending machine Vogel Durst VWR 14 CNC BJ 1992

Reconditioned machine fitted with Elgo CNC control for bending angle Also equipped with 2 digital readouts for positioning of lower table Emergency cord at the front Foot pedal for semi-automatic use Bending radius (R) = 1.5 E - 10 mm on 3 meter length - 12 mm on 2 meter length - 15 mm on 1 meter length Bending radius (R) = 2 E - 12 mm on 3 meter length - 15 mm on 2 meter length Pre-bending - 15 mm on 3 meter length - 20 mm on 2 meter length Type: hydraulic Max worklength: 3050 mm Max tickness: 12 mm Distance between clampblock -- ram: 700 x 500 mm Eletric motor (power): 25 HP Length: 4300 mm Depth: 2300 mm Hight : 2300 mm Weight: 15 ton

CNC cylindrical grinding machine, STUDER S31 CNC LeanPro, with Pictogramming, Distance between centers: 1000mm, Center heigh 175mm, Grinding Wheel head rotation (B) 360° (1°), 2 ext Grinding Wheels, 1 int Grinding Wheel > 20000 RPM spindle + 60000 RPM spindle, Ext Grinding wheel, 400 mm x 40 mm x 127 mm, Workhead, CM 4, 0-1000 RPM, CNC Fanuc, Programming: Pictogramming, Heidenhain linear encoders, This machine can be inspected under power in our warehouse in Gussago BS Italy

Key data: 100 mm, 200 mm, 350 mm

2014 VOUMARD 130 Gang-Style 3-Spindle CNC ID Grinder Technical Specifications X-Axis Travel: 300 mm Y-Axis Travel: 200 mm Z-Axis Travel: 250 mm Spindle Motor: 4.1 kW Maximum Swing Diameter Over Table: 350 mm Center Height: 165 mm Maximum Workpiece Length: 200–300 mm Maximum Grinding Depth: 200 mm Maximum Grinding Wheel Diameter: 150 mm Maximum Grinding Wheel Width: 15 mm Grinding Wheel Bore Diameter: 50 mm ID Grinding Diameter Range: 1–100 mm Maximum Chuck Diameter: 152 mm Workhead Speed Range: 1,000–1,500 RPM Workhead Swivel Range: -30° to +120° Electrical Requirements: 460 V, 3-phase Approximate Machine Weight: 4,500 kg Approximate Machine Dimensions (L × W × H): 2,591 × 2,032 × 2,184 mm Equipped With GE Fanuc Series 32i-Model A CNC Controller MistBuster Mist Collector

CNC SCREEN PRINTING MACHINE Balsfulland CNC 1500 H Manufacturer: Werner Kamann Model: CNC 1500 H Year of manufacture: 2008 Design: Fully enclosed safety cabinet with protective glazing Machine type: Multi-color CNC screen printing system CE certified: Yes Details: CNC-controlled axes Multi-color printing stations Automatic product transport system Fully enclosed safety housing Integrated drying / curing unit Designed for industrial serial production Heavy-duty steel / aluminum frame construction Application: Cosmetic containers Brochure stand Glass bottles Plastic packaging Cylindrical or slightly tapered products Industrial packaging components

Model : V550 CNC Vertical Lathe Year : 2012 Max cutting dia : 730mm Max cutting height : 730mm Table speed : 2000rpm 21" hyd. Chuck 10 Position Turret Gearbox Chip conveyor Fanuc control

Model : VTS-1620 CNC Vertical Lathe Year : 2013 Table : 1600mm manual chuck/10,000 kg load Table speed : 250 rpm Max swing : 2000mm Max cutting height : 1556mm X/Z : -127~1600mm/960mm Ram size : 308x250mm 37.5/45 kW motor 18 position ATC 8 tool holders Tool presetter Manual guide i Chip conveyor Fanuc control

pressure: 320 t chamfer lenght: 3100 mm distance between columns: 2600 mm column arm: 510 mm ram stroke speed: 140 mm/sec work speed: 8.0 mm/sec return speed: 130 mm/sec work stroke: 310 mm dayligth: 525 mm table height: 900 mm oil volume: 290 ltr. voltage: 400 Volt weight: 16500 kg range L-W-H: 4550 x 2450 x 3200 mm --------------------------------------------------------- CNC C SERIES electro-hydraulic press brake featuring: Increased daylight (open height) Extended cylinder stroke Increased throat depth Long-type full machine cover --------------------------------------------------------- Equipment: - DELEM CNC control, model DA-69T, with touchscreen/graphics 2D and 3D graphical programming via touchscreen Three-dimensional visualization, including a representation of the machine . during simulation and production 24-inch high-resolution TFT color display Compatibility with th ...

pressure: 220 t chamfer lenght: 4100 mm distance between columns: 3600 mm column arm: 410 mm ram stroke speed: 150 mm/sec work speed: 10.0 mm/sec return speed: 140 mm/sec work stroke: 265 mm dayligth: 480 mm table height: 900 mm table width: 110 mm oil volume: 300 ltr. voltage: 400 Volt total power requirement: 18.5 kW weight: 15000 kg range L-W-H: 5000 x 2400 x 2850 mm ALPMAC Manufacturer Video: https://www.youtube.com/watch?v=_FxXyPAcxlE https://www.youtube.com/watch?v=YfkX9RwWv_0 ALPMAC Product Video Model B: https://www.youtube.com/watch?v=lmT1tfy43WE --------------------------------------------------------- MODEL SERIES B175-3100 - CNC electro-hydraulic press brake with: increased installation height increased cylinder stroke increased throat depth -------------------------------------------------------- ! MADE FROM CERTIFIED QUALITY STEEL (ST 37-42-52) ! HIGH-PERFORMANCE HYDRAUL ...

pressure: 220 t chamfer lenght: 4100 mm distance between columns: 3600 mm column arm: 510 mm ram stroke speed: 150 mm/sec work speed: 9.0 mm/sec return speed: 140 mm/sec work stroke: 310 mm dayligth: 525 mm table height: 900 mm oil volume: 290 ltr. voltage: 400 Volt weight: 16300 kg range L-W-H: 4550 x 2450 x 2950 mm --------------------------------------------------------- CNC C SERIES electro-hydraulic press brake featuring: Increased daylight opening (installation height) Extended cylinder stroke Increased throat depth Long-type full machine cover --------------------------------------------------------- Equipment: - DELEM CNC control, model DA-66T, with touchscreen/graphics 2D graphical touchscreen programming 3D visualization for simulation and production 17 high-resolution TFT color screen Bending sequence calculation Product programming with true-to-scale visualization U ...

sheet width: 3050 mm plate thickness: 13.0 mm thickness at Niro-steel: 8.0 mm down holder: 16 Stück no. of strokes: 9 - 17 Hub/min cutting angle: 0.5 - 2.5 ° throat: 150 mm table height: 830 mm oil volume: 250 ltr. weight of the machine ca.: 11.000 kg range L-W-H: 4150 x 2100 x 2450 mm ----------------------------------------------------------- Robust electro-hydraulic CNC guillotine shear with swing-beam Includes CYBELEC CNC touch-screen control system Includes CNC electro-hydraulic blade-gap adjustment Includes CNC electro-hydraulic cutting-angle adjustment ----------------------------------------------------------- Equipment: - CNC electro-hydraulic guillotine shear with swing-beam - Includes CYBELEC CNC touch-screen controller, model CybTouch 8 - Selected CNC control functions: Backgauge positioning (X-axis) Blade-gap adjustment Piece counting Cutting-length limitation Mate ...

sheet width: 3050 mm plate thickness: 6.0 mm thickness at Niro-steel: 4.0 mm down holder: 16 Stück no. of strokes: 10 - 19 Hub/min cutting angle: 0.5 - 2.0 ° throat: 150 mm table height: 830 mm oil volume: 140 ltr. weight of the machine ca.: 8.000 kg range L-W-H: 4150 x 2100 x 1900 mm ----------------------------------------------------------- Robust electro-hydraulic CNC guillotine shear with swing-beam Includes CYBELEC CNC touch-screen control system Includes CNC electro-hydraulic blade-gap adjustment Includes CNC electro-hydraulic cutting-angle adjustment ----------------------------------------------------------- Equipment: - CNC electro-hydraulic guillotine shear with swing-beam - Includes CYBELEC CNC touch-screen controller, model CybTouch 8 - Selected CNC control functions: Backgauge positioning (X-axis) Blade-gap adjustment Piece counting Cutting-length limitation Mater ...

sheet width: 3050 mm plate thickness: 6.0 mm thickness at Niro-steel: 4.0 mm down holder: 16 Stück no. of strokes: 10 - 19 Hub/min cutting angle: 0.5 - 2.0 ° throat: 150 mm table height: 830 mm oil volume: 140 ltr. weight of the machine ca.: 7.800 kg range L-W-H: 4150 x 2100 x 1900 mm ----------------------------------------------------------- Robust electro-hydraulic CNC guillotine shear with swing-beam Includes CYBELEC CNC touch-screen control system Includes CNC electro-hydraulic blade-gap adjustment Includes CNC electro-hydraulic cutting-angle adjustment ----------------------------------------------------------- Equipment: - CNC electro-hydraulic guillotine shear with swing-beam - Includes CYBELEC CNC touch-screen controller, model CybTouch 8 - Selected CNC control functions: Backgauge positioning (X-axis) Blade-gap adjustment Piece counting Cutting-length limitation Mater ...

sheet width: 2050 mm plate thickness: 6.0 mm thickness at Niro-steel: 4.0 mm down holder: 10 Stück no. of strokes: 14 - 24 Hub/min cutting angle: 0.5 - 2.0 ° throat: 150 mm table height: 850 mm oil volume: 200 ltr. weight of the machine ca.: 6.500 kg range L-W-H: 2500 x 2250 x 1950 mm ----------------------------------------------------------- Robust electro-hydraulic CNC guillotine shear with swing-beam Includes CYBELEC CNC touch-screen control system Includes CNC electro-hydraulic blade-gap adjustment Includes CNC electro-hydraulic cutting-angle adjustment ----------------------------------------------------------- Equipment: - CNC electro-hydraulic guillotine shear with swing-beam (guided-blade) design - Includes CYBELEC CNC touch-screen controller, model CybTouch 8 - Selected CNC control functions: Backgauge positioning (X-axis) Blade-gap adjustment Piece counting Cutting-le ...

sheet width: 4050 mm plate thickness: 6.0 mm thickness at Niro-steel: 4.0 mm down holder: 20 Stück no. of strokes: 10 - 19 Hub/min cutting angle: 0.5 - 2.0 ° throat: 150 mm table height: 830 mm oil volume: 140 ltr. weight of the machine ca.: 12.000 kg range L-W-H: 5150 x 2250 x 2200 mm ----------------------------------------------------------- Robust electro-hydraulic CNC guillotine shear with swing-beam Includes CYBELEC CNC touch-screen control system Includes CNC electro-hydraulic blade-gap adjustment Includes CNC electro-hydraulic cutting-angle adjustment ----------------------------------------------------------- Equipment: - CNC electro-hydraulic guillotine shear with swing-beam (guided-blade) design - Includes CYBELEC CNC touch-screen controller, model CybTouch 8 - Selected CNC control functions: Backgauge positioning (X-axis) Blade-gap adjustment Piece counting Cutting-l ...

drill diameter:5,,,,40 mm drilling length:600 mm lip angle:90-150 ° total power requirement:4,5 kW weight of the machine ca.:0,8 t dimensions of the machine ca.:2-2-2 m CNC programmable according to ISO Point angle 90-140 degrees, disc stroke x 80mm y 80mm grinding wheel 6mm to 150mm ceramic or CBN speed 2500 to 6000 rpm Grinding options - 3 facets 6 surface grinding (Renault patent) - conical surface grinding with cross-section correction / point thinning / cross point. / Type 2/1 Avyac grind / 4 faces gr. Cross for deep drill

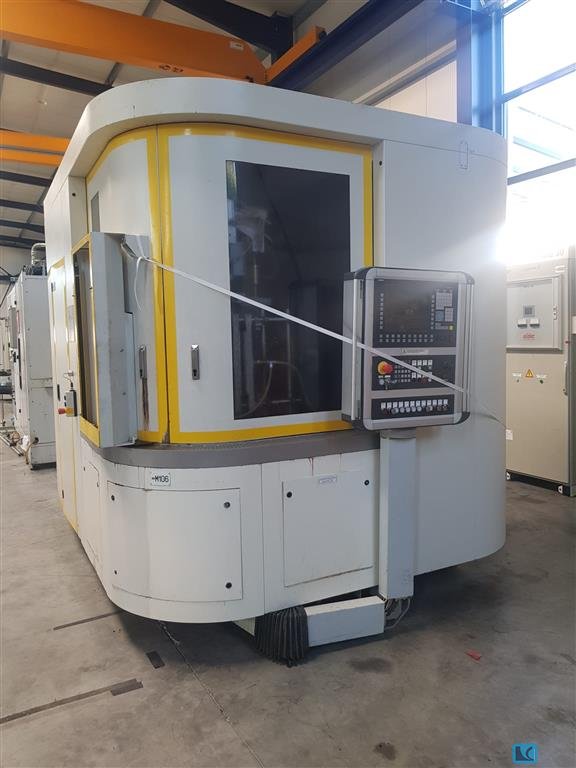

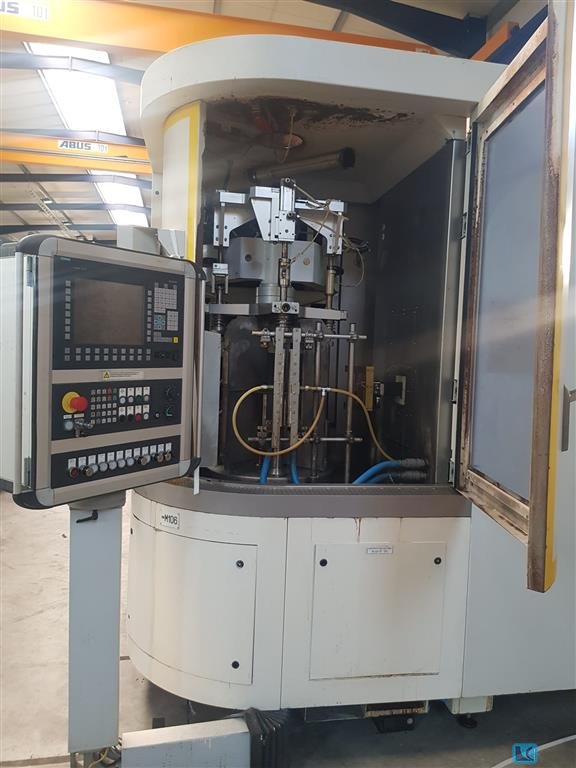

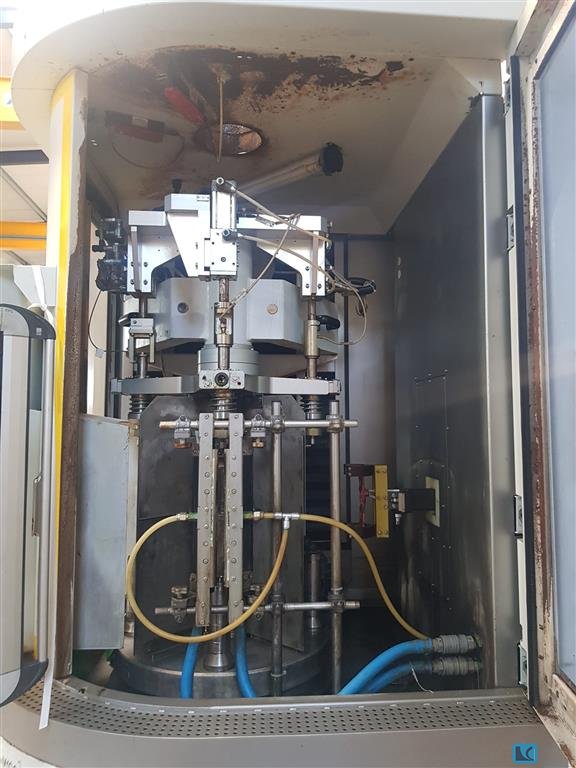

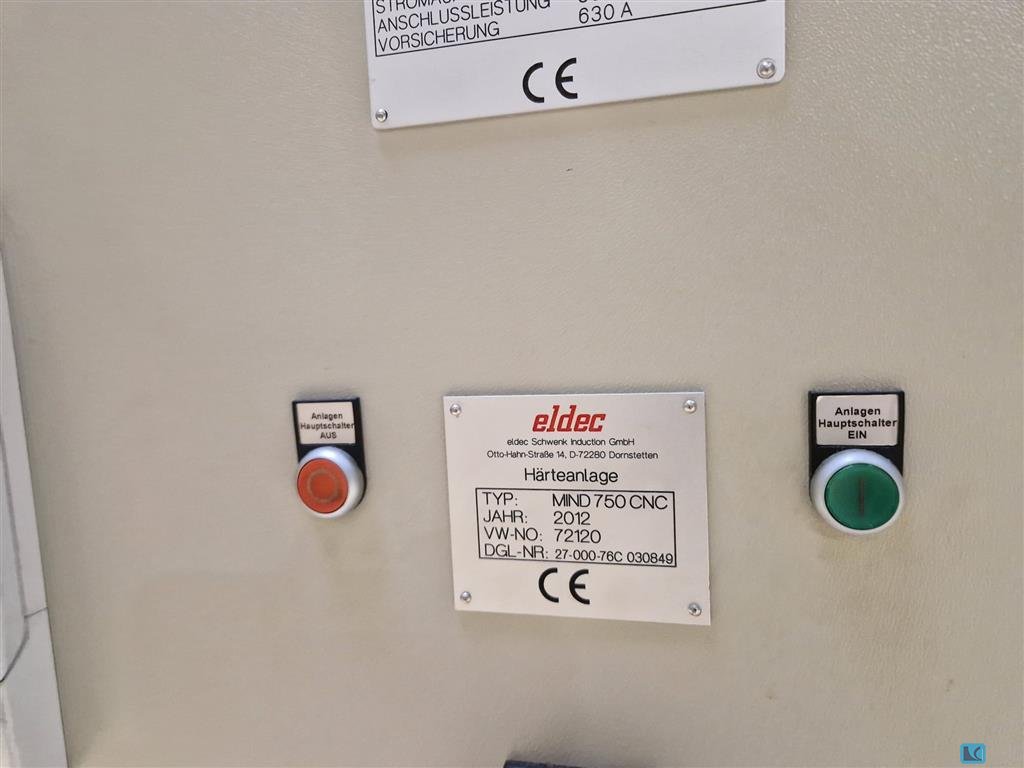

total power requirement:413 kW Induction hardening machine Rotary table Eldec: Z (servo drive 750 mm Y (electromechanical) 300 mm X (electromechanical) 200 mm Maximum part diameter 600 mm Maximum workpiece weight 500 kg High frequency generator type HFG 200 Medium frequency generator type MFG 30

max. wheel diameter:210 mm total power requirement:60 kW weight of the machine ca.:8 t dimensions of the machine ca.:2,85 x 2,60 x 1,80 m grinding slide feed:700 mm grinding slide feeds:1-15.000 m/min max. workpiece weight:150 kg centre height:260 mm grinding wheel diameter:240 mm

max. wheel diameter:130 mm max. module:3 total power requirement:15 kW weight of the machine ca.:6 t dimensions of the machine ca.:2,3 x 2,5 x 2,17 m A well-preserved CNC hobbing machine Vertical for shafts and wheels With tailstock Also suitable for hard milling (good for steering pinion) Rapid traverse radial, axial: 10.000 mm/min Rapid traverse tangential: 7.500 mm/min Max. wheel diameter 130 mm Max. module 3 mm Tangential slide travel 200 mm Radial slide travel 10 / 100 mm Axial slide travel 300 / 200 mm Milling head speed 250-3500 U/min Milling head -swivable +/- 40 ° Tool diameter 80 mm Tool length - max. 240 mm Table turning speeds 5 - 1000 U/min Milling spindle drive 15 kW Feed range 0,1 - 2000 mm/min Table diameter 132 mm Control Sinumerik 840 C Connected load 40 kVA Motor output 15 kW Weight : 6 T Dimensions 2300 mm 2500 mm 2170mm Accessories : Hydraulical workpiece clamping ...

distance spindle /table:min /max 190 / 570 mm distance spindle /table:190 - 570 mm surface area:650 x 300 mm Boring power:in GG 20 40 mm bore capacity in steel:ST 60 32 mm turning speed range::50 - 5000 UpM total power requirement:2,2 kW threading:GG 20 M30 threading::ST 60 M 24 weight of the machine ca.:1400 kg table load:max. 150 kg table height:770 mm traversing speed:max X-, Y- u. W-Achse 5 m/min max. traversing speed:Z-Achse 3 m/min w-axis:380 mm workpiece height max.:495 mm tool changing time:ca. 3 sec x-travel:450 mm y-travel:300 mm z-travel:180 mm workpiece weight:1,5 kg

grinding length:600 mm grinding width:250 mm workpiece height:380 mm :Sinumerik max. dia. of grinding wheel:300 mm weight:4000 kg total power requirement:12,5 kW grinding wheels:Ø 400 mm max. width of grinding wheel:100 mm grinding wheel hole diameter:127 mm turning speeds:470 - 12030 1/min x-axis:600 mm y-axis:300 mm z-axis:250 mm grinding range:450 x 200 mm distance spindle nose and table:500 mm table load:250 kg dimensions of the machine ca.:2600 x 2100 x 2400 mm switchgear cabinet:1300 x 800 x 2000 mm hydraulical unit::450 x 350 x 500 mm Documents:vorhanden

faceplate diameter:1600 mm swing diameter:1800 mm turning height:1500 mm max. ram stroke:1200 mm faceplate turning speed range -stepless-:2,5 - 250 U/min workpiece weight max.:10.000 kg ram head dimension:240 x 240 mm feed range:1 - 3000 mm/min power capacity:45 kW weight of the machine ca.:20 t modernized and overhauled in 2010 with CNC SIEMENS 840 D 12 positions automatic toolchanger telescopic covers splash guarding chip conveyor coolant attachment diverse toolholders

grinding length:1250 mm grinding width:600 mm workpiece height:730 mm table surface area:1720 x 500 mm headstock: dist. table - spindle center:900 mm max. longitudinal movement:X-1450 feed range:10 - 20.000 mm/min vertical movement:Y-730 mm feed range:0,2 - 3.000 mm/min cross travel:Z-550 mm feed range:5 - 5.000 mm/min power capacity:1500 U/min.- 44 kW / 8000 U/min. - 38 kW kW grinding wheel turining speeds:50-6.000 U/min cutting speed:max. 80 m/sec. weight of the machine ca.:11 t with CNC SIEMENS 840 C auto. dynamic balncing system integrated in the grinding conus profile grinding unit ( on table mounted ) Diamant profile rollers ( dia. max 140 mm , width max. 200 mm, hole 52 H3 ) speed 3000 rpm two magnetic plates ( 1000 x 400 mm, 1200 x 350 mm ) divers Flanges ect.

7 axes: Y1 / Y2 / X1 / X2 / R / Z1 / Z2 Capacity: 400 ton x 4100 mm Backgauge: CNC Control: AMNC Passage between uprights: 3230 mm Max stroke: 350 mm Max distance between table -- ram: 620 mm Depth of throat: 420 mm Table width: 250 mm Locking speed: 75 mm/sec Working speed: 10 mm/sec Returning speed: 100 mm/sec Electric motor (power): 38,5 kW Length: 5490 mm Depth: 2150 mm Height: 3415 mm Weight: 24,5 ton Capacity: 400 ton Bending length: 4100 mm

Complete system with all accessories required for installation and operation, see below! Travels x = 7000 y = 1600 z = 800 / quill stroke w = 600mm General overhaul in 2007, year of production 1991: New control system Siemens Sinumerik 840D, new drive motors, guideways refurbished, new control cabinets. ECOCUT 1 was only operated for a few months thereafter Feed rate 12000 mm / min // w axis 6000 mm / min Xua2eg8fx Rotary table TDV 2 max. Workpiece weight 6t / clamping surface 1000x1000 Rotary table TDV 3 max. Workpiece weight 12t / clamping surface 1250x1600 Accessories: 2 like new angular crankset / chain tool change system / plate field / complete housing / Knoll funnel feeder / extraction / coolant system with belt filter All BWF fixators for installation of machine bed and panel

End Milling Machine Drill Milling Machine working width mm: 3200 Left - right swivelling saws from 0° - 45°. Complete with drilling unit Suitable for machining doors and door posts.

Univ. Tool Milling Machine DECKEL Type FP 1Masch. No. 33064 Year of construction approx. 1960 Overhauled in 2012Travel distances X: 300 mm Y: 150 mm Z: 330 mmTable size 600 x 210 mmSpindle holder MK 4 - S20 x 2Spindle speed vertical 95-1900 rpm. 12 stepsSpindle speed horizontal 60-1200 rpm. 12 stepsMotor power 1.1 and 1.4 kWNerg connection 380 volts, 50 Hz- Feed in the X and Y axis- Pinol displacement on the vertical milling head- Fixed angle table- Coolant device with mechanical pump in the machine foot-

Univ. Tool Milling Machine DECKEL Type FP 1Masch. No. 52185/08 Year of construction 1968Travel distances X: 300 mm Y: 150 mm Z: 340 mmTable size 600 x 250 mmSpindle holder SK 40 - S20 x 2Spindle speed 40-2000 rpm. 16 stagesMotor power 1.0 and 1.4 kW pole-switchableMains connection 380 volts, 50 Hz- Feed in the X and Z axis- Two motor speeds and 8 gear stages- Pinol shift on the vertical milling head 60 mm- Fixed angle table- Coolant device in the machine foot- Adjacent control cabinet- Counter holder

Univ. Tool Milling Machine DECKEL Type FP 1Masch. No. 51265/08 Year of construction approx. 1967Travel distances X: 300 mm Y: 150 mm Z: 340 mmTable size 600 x 2100 mmSpindle holder SK 40 - S20 x 2Spindle speed 40-2000 rpm. 16 stagesMotor power 1.0 and 1.6 kW pole-switchableMains connection 380 volts, 50 Hz- Feed in the X and Z axis- Spindle speed over 2 motor speeds and 8 gear stages- Pinol shift on the vertical milling head 60 mm- Fixed angle table- adjacent control cabinetSpace requirement L x W x H 1100 x

Univ. Tool Milling Machine DECKEL Type FP 1Masch. No. 28317 Year of construction approx. 1960Travel distances X: 245 mm Y: 150 mm Z: 340 mmTable size 600 x 210 mmSpindle holder horizontal MK 4 - S20 x 2Spindle speed vertical 95-1900 rpm. 12 stepsSpindle speed horizontal 60-1200 rpm. 12 stepsMotor power 0.8 and 1.1 kW pole-switchableMains connection 380 volts, 50 Hz spindle speed over 2 motor speeds and 6 gear stages- Feed in the X and Z axis coolant device with mechanical pump in the machine base

End mill, end mill, cutter, shell cutter, milling head, angle cutter, shell angle cutter, angle end mill, prism cutter -Angle milling cutters: Attachment angle milling cutters, prism milling cutters -Type: Ø85 x 35 mm -Hole: Ø 27 mm -Quantity: 1x milling cutter available -Dimensions: Ø 85 x 35 mm -Weight: 0.8 kg

General Description Universal vertical tool milling machine manufactured by the Kirov Machine Tool Plant, Odessa (USSR) . Designed for precision milling, drilling, slotting and general toolroom machining. The machine is equipped with a geared vertical spindle, T-slot work table and heavy-duty machine vise. Technical Details Manufacturer: Kirov Machine Tool Plant, Odessa (USSR) Machine type: Universal vertical tool milling machine Year: Not confirmed Spindle speeds: 145 / 290 / 580 / 725 / 1,450 / 2,900 rpm Vertical spindle head T-slot machine table Heavy-duty machine vise included Longitudinal power feed Separate electrical cabinet Machine work light Condition Fair to good used condition. The machine appears mechanically complete with spindle gearbox, T-slot table, heavy-duty vise and electrical cabinet installed. Cosmetic paint wear, industrial staining and light surf ...

MILLING MACHINE IMES-ICORE CORITEC 350i loader with its suction THE BEST MILLING ON THE MARKET Material, good working condition and cosmetics Please inspect. The sale includes only what appears in the photos. The buyer, by purchasing the equipment, agrees that the device must be used according to the standards and legislation in force in his country. The seller will not be held responsible in any way for misuse that does not comply with the safety conditions and the standards and legislation in force. Lots may be added to the list later. An exhibition beforehand is set up, please inspect. The equipment is made available on pallet or pallet box or cardboard with all the appropriate protections, the price of the packing is integrated into the sale price. For shipping, you can have your transport pass or go through the carrier JMA express, or ask us for a shipping quote by Fedex. See  ...

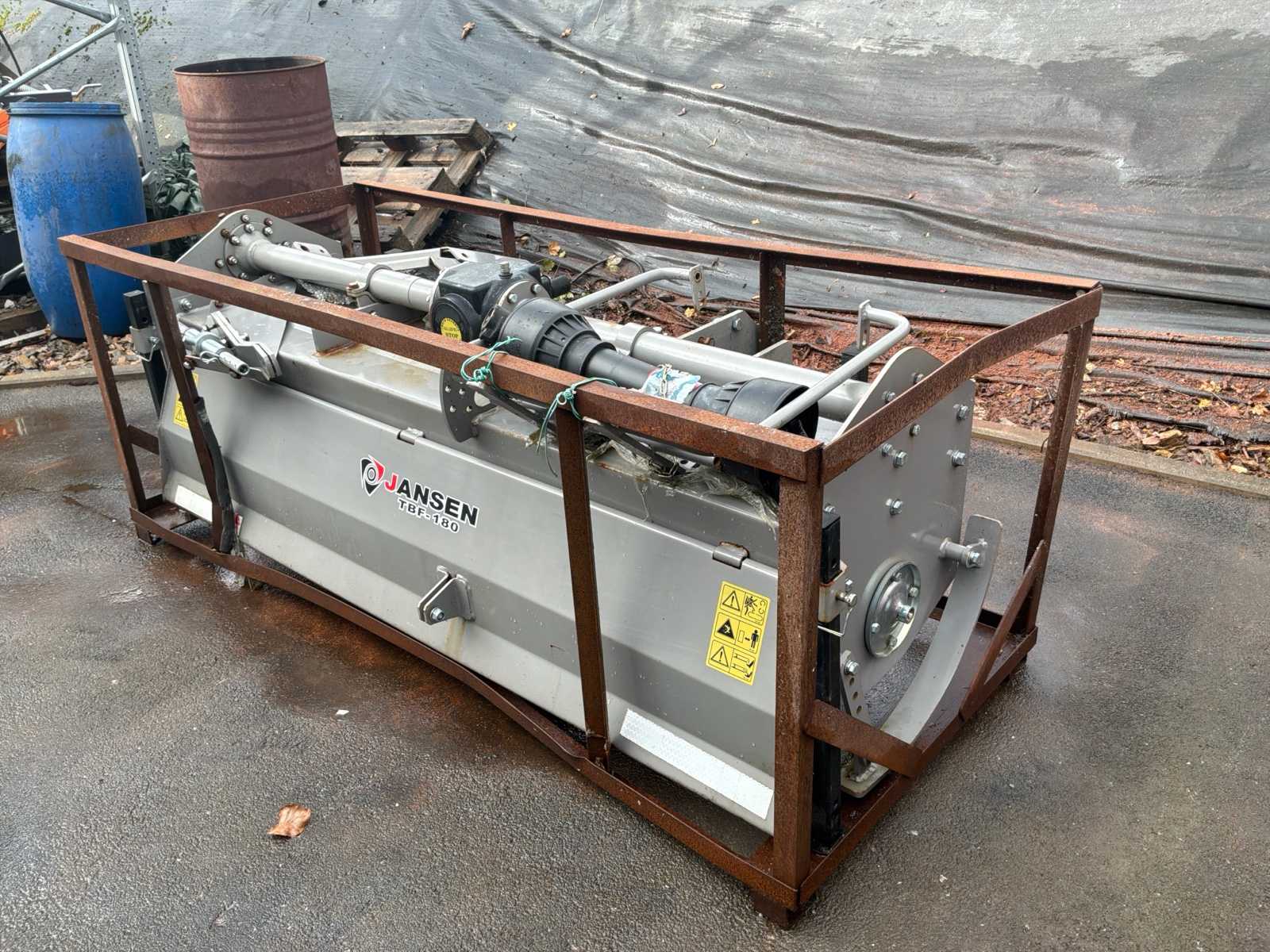

Brand: Jansen Model: TBF-180 Year: 2021 Dimensions indicated: 203 × 95 × 100 cm Indicated weight: 380 kg Three-point hitch PTO drive Supplied with gimbal Auction-ID: A3-46114-35363

Equipment: - Heidenhain TNC 360 - Coolant system - Hydraulic tool clamping - Milling head with quill - Machine light - Chip pan - Documentation x-travel 760 mm y-travel 381 mm z-travel 450 mm Quill stroke 152 mm Table size 1300 x 305 mm Control Heidenhain TNC 360 Mounting SK40 Speed range 100- 4,000 rpm Rapid traverse speed 5000 / 7000 m/min Feed speed 2.5 to 3000 mm/min Drive power 2.2 kW Quill diameter 101 mm Total power requirement 15.0 kW Machine weight approx. 2.4 t Dimensions L x W x H 2.4 x 2.3 x 2.2 m Auction-ID: A7-51438-587

DROOP & REIN FS 130 G – CNC Vertical Milling Machine Manufacturer: Droop & Rein (Germany) Model: FS 130 G Year: 1978 Machine Type: Heavy-Duty CNC Vertical Milling Machine CNC Control: Fagor Manufacturer Droop & Rein Model FS 130 G Year of Manufacture 1978 Machine Type CNC Vertical Milling Machine CNC Control Fagor Number of Controlled Axes 3 (X, Y, Z) Spindle Orientation Vertical Table Type T-Slotted Milling Table Spindle Head Vertical Milling Head Electrical Supply 380 V / 50 Hz Control Voltage 42–60 V Rated Current 120 A Order Number 04790 Country of Manufacture Germany Equipment and Features - Fagor CNC control panel - Fagor servo drive modules - Heavy-duty vertical milling head - Large T-slotted worktable - Automatic axis feed system - Centralised lubrication system - Electrical cabinet with technical documentation - Industrial steel and cast-iron construction Specification Refe ...

Manufacturer Heckler & Koch Model AM 444 A Power consumption: 5.5 KW Voltage: 380/400 Volts Spindle holders for vertical and horizontal spindles: 40 Slide movement x = 410nn y = 350mm z = 400mm Vertical clamping table 850 x 255 mm Feed range 0-1500 mm/min Sliding gearbox 12-stage Speed: 63-2800 rpm Step jump 1.4 CNC control CNC 783/m Dimensions (HxWxD) 1.800x2.400x1.700mm Weight 1,500 kg Ref.Nr PLW18 Mistakes reserved!

Table clamping surface: 600 x 1100 mm traverse path x: 800 mm traverse path y: 450 mm traverse path z: 500 mm Quill stroke: by hand approximately 50 mm of spindle speeds: 63-3150 rpm stufenl feeds. adjustable: 0,1-1500 mm / min rapid traverse: x/y/z 4.5/2,6/3 m / min. Supply: 380 V, 5.5 kW space: 3000 x 2500 x 2030 mm weight: 4000 kg

Table clamping surface: 500 x 1000 mm stroke x: 630 mm traverse path y: 500 mm traverse path z: 460 mm Quill stroke: hand 45 mm spindle retainer: ISA 40 spindle speeds: 31.5-3150 rpm stufenl feeds. adjustable: 1-3000 mm / min rapid traverse: x/y 6 / z 4 m/min. Supply: 380 V, 6/8 kW space: 1800 x 2120/2600 x 2020 mm weight: 3100 kg

Table clamping surface: 630 ø mm traverse path x: 600 mm traverse path y: 450 mm traverse path z: 500 mm Quill stroke: hand 80 mm spindle retainer: ISO 40 spindle speeds: 20-3150 rpm stufenl feeds. adjustable: 1-3000 mm / min rapid traverse rate: 4 m / min. Connection: 380V kW space: 2000 + 850 x 2000 x 2000 mm weight: 3300 kg

5 axis machininng center (milling/turning from bar) multitasking Under power in our warehouse MAKE CHIRON MODEL MILL 800 5 axis CNC Fanuc 18iMBS (5 simoultaneous axis 1) X, Y, Z (mm) 800 ? 500 - 550 Rapids (Highspeed) 60 m/min Swivelling head CNC controlled (B axis) +/- 100° Turning spindle Peiseler Milling spindle 12.000 giri / 140 Nm (v nota 2) Tools 65 Tool type HSK-A 63 DIN 69893 Tool-change time 1,5 sec (v nota 3) Table 1400x500 Max table load 1200 kgs Coolant through spindle 70 bar (see note 4) CNC controlled clamping/rotating unit for 6th face machining (v. nota 5) Pressurised linear encoders Swarf conveyor Renishaw-ready Y.O.M. 2006 Weight 7500 kgs Turning package Max dia 65mm RPM: 15 / 4500 Max 42,5 KW / 90 Nm. Hydraulic clamping 800 Nm. Bar loader ILS-RBK- 10012 65 Diameters min ...

Stroke x: 600 mm traverse path y: 400 mm traverse path z: 400 mm spindle retainer: ISO 40 spindle speeds: 80-4000 rpm stufenl feeds. adjustable: 0,1-1500 mm / min rapid traverse: x & y/z 4/2.5 m / min. Supply: 380 V, 16 kVA kW space: 2450 x 2200 x 1900 mm weight: 2250 kg
