cnc mill used for sale

FAGOR 8055 Control Auction-ID: A1-46647-404

Stored in working condition, with 2 new band saws. Auction-ID: A3-43535-17107

Fanuc OT-C numerical control Spindle speed: 5000 rpm Capacity: 520 x 340 mm on slide Main Engine: 15 HP Servo motor: 3.7 HP Hydraulic motor: 2 HP Coolant motor: 1/4 HP Total power: 33 kVA Power supply: 220 V three-phase Frequency: 50/60 Hz No tooling included Sold as is Auction-ID: A1-46647-408

Spindle taper: BT40 / CAT40 Spindle diameter: 65 mm Spindle nose to table: 100–710 mm Rapid traverse X-Y-Z: 30-30-20 m/min Cutting feed: 1–12000 mm/min Tool changer: Arm type Number of tools: 24 Max tool diameter: 75 mm Max tool length: 300 mm Max tool weight: 10 kg Ball screw dia.: Ø40 / Ø40 / Ø40 Auction-ID: A7-46053-15

Serial Number: 37372 Power: 10.5 kW Strokes: 585 x 406 x 554 mm Weight: 3,500 kg Pin Type: BT 40 Equipment: Tool changer Order: Heidenhain No tooling included; sold as is Auction-ID: A1-46647-405

FOR SALE – SW BAS03-X2 2XRDT TMB 5-Axis Table for Machining Center Brand: SW (Schwäbische Werkzeugmaschinen) Model: BAS03-X2 2XRDT TMB Type: 5-axis rotary/tilting table Application: SW Horizontal Machining Center Description Original SW 5-axis table disassembled from a machining center. Complete equipment with electrical harnesses, connectors, hoses and pipes visible in the photo. Designed for machining complex parts requiring simultaneous multi-axis operations (rotation + tilt). Rugged industrial equipment, ideal for: Replacement Retrofit Reconditioning Spare parts ⚙️ Technical characteristics Configuration: 2XRDT TMB Function: Rotation + tilting axis Integrated drive Hydraulic/pneumatic connections Complete industrial connectors High rigidity cast iron construction (Nameplate and detailed specifications on request) Status Dismantled in an industrial environ ...

High-end Japanese VMC, G-Tech 30i control AC 415V ±10% 50Hz ±1Hz 3 Phase Installed power: 52 kVA Current: 72 A Manufactured by Matsuura Machinery Corp., Fukui Japan Machine type: V.PLUS-800 Machine No.: 16913 Date: 2006-12 Auction-ID: A7-46053-16

Tool changer swaf conveyor nikken Auction-ID: A1-46647-399

Serial Number: B3M92108096AC Voltage: 380 V Frequency: 50 Hz Power: 14 kVA Engine power: 7.5 kVA Strokes: 760 x 430 x 500 mm Pin Type: BT 40 – 8000 rpm Tool changer: 24 positions Equipment: 4th axis Order: Ultimax 3 Status: Sold without tools and in the condition Auction-ID: A1-46647-406

Serial Number: 81967-U Order: Mazatrol T2 Spindle speed: 4500 rpm Weight: 5,000 kg Status: Sold without tools and in the condition Auction-ID: A1-46647-407

max. stroke 140 mm; \"ESA\" touchscreen control; type CNC S 650 Touch 15\" Auction-ID: A1-46386-1

Ø grinding wheel dimensions (od x id x width): Ø 650 x Ø 304,8 x 500mm, Ø min / max to grinding: 3/200 mm, Peripheral grinding wheel speed (m / s): Variable with regulator, Regulating wheel width: 500 mm, Regulating wheel speed nº: Infinite, Dressing (auto / manual): Automatic CNC the 2 grinding wheels, Min / max regulating wheel speed (r.p.m.): 10/255 r.p.m., Lubrication (auto / manual): Automatic, Control type ((cnc / manual): CNC, Cnc axes nº: 8, Infeed (auto / manual): Automatic, Diamond dressing speed: 255 r.p.m., Regulating wheel dimensions (od x id x width): Ø 350 x Ø 203,2 x 500mm, Grinding wheel width: 500 mm, Maximum infeed grinding length: 500 mm, Motor power grinding wheelhead: 75 Kw, Power hydraulic motor: 3 Kw, Accessories included: Fairing, rule holder and plongeé, MARPOSS E50 meter, speed regulator. grinding wheel work, Total power: 90 Kw, Voltage: 220 / 380V, Lo ...

CNC vertical machining center Type: DMC 1035 V ECOLINE Manufacturer: DMG MORI Year: 2012 Control: Siemens Sinumerick 840D Total hours: 12,058 Spindle hours: 5,039 X: 1035 mm Y: 560 mm Z: 510 mm Working table: 1200 x 560 mm Tool magazine: 20 positions Max spindle speed: 8,000 rpm Chip conveyor Machine in good condition, fully functional, under power Find more here - / Contact us at -

CNC vertical machining center Type: DMC 1035 eco Manufacturer: DMG Year: 2010 Control: Siemens Sinumerik 810D Total hours: 25,503 Spindle hours:13,362 X: 1035 mm Y: 560 mm Z: 510 mm Max spindle speed: 8,000 rpm Tool magazine: 20 positions Rapid traverse X/Y/Z: 30 m/min Rated power: 17 kVA Torque:83 Nm Table:560 x 1200 mm Table load: 1000 kg Chip conveyor Dimensions: 3137 x 3355 x 2758 mm Machine weight: 4250 kg In good condition, fully functional, under power Find more here - / Contact us at -

CNC portal machining center Type: DV 1432 Manufacturer: Pinnacle Year: 2015 Control: Fanuc α 30/3000i 7.0 X: 3200 mm Y: 1400 mm Z: 900 mm X-axis rapid traverse: 16 m/min Y-axis rapid traverse: 20 m/min Z-axis rapid traverse: 20 m/min X/Y/Z feed: 10 m/min Rated power: 50 kVA Workpiece length (max.): 4000 mm Workpiece width (max.): 1350 mm Workpiece weight (max.): 8000 kg Max spindle speed: 8,000 rpm Spindle motor power: 18,5 kW Tool length: 350 mm Tool diameter: 127 mm Tool weight: 20 g Table: 1200 x 3200 mm Table load: 8000 kg Dimensions: 8130 x 4150 x 4500 mm Machine weight: 17000 kg Chip conveyor Machine in good condition, fully functional, under power Find more here - / Contact us at -

CNC vertical machining center Type: DNM 400 Manufacturer: Doosan Year: 2010 Control: Fanuc i Series X: 635 mm Y: 435 mm Z: 510 mm Table size: 790 × 435 mm Max. table load: 400 kg Tool magazine: 20 positions Max. spindle speed: 8000 rpm Spindle power: 15 kW Spindle taper: ISO 40 Machine weight: 5000 kg Dimensions: 1962 × 2093 × 2509 mm Chip conveyor Machine in good condition, fully functional, under power Find more here - / Contact us at -

A vertical glass mitre grinding machine is offered. Working range (glass thickness): 3mm-40mm, minimum glass size: 80mm × 80mm, number of spindles: 10, angle adjustment (mitre): 0°-45°, feed speed: 0.4m/min-6.0m/min, working height: 830mm, control: CNC control with digital display. Equipped with automatic chain conveyor, water recirculation system, motorized thickness adjustment, polishing automation for the glass edge. Weight: approx. 3800kg, overall dimensions X/Y/Z: approx. 7800mm/1600mm/2600mm. Inspection possible by arrangement.

A flatbed glass cutting system is offered. Working range X/Y: 3700mm/2600mm, glass thickness: 2mm-19mm, cutting speed: 120m/min, positioning accuracy: +/-0.15mm, table surface: felt covering with air cushion function, bridge design for linear and shape cutting, breakout bars: pneumatically controlled, control: CNC control. Weight: approx. 3200kg, overall dimensions X/Y/Z: approx. 4650mm/3400mm/1350mm. Inspection possible by arrangement.

strong>Serial Number: VMC-6680 CNC Control: GE Fanuc Series 0-M Power: 16 kW Voltage: 380 V Frequency: 50 Hz Additional information: Integrated rotary tool changer Status: Used machine Auction-ID: A1-46951-3

CNC Control: Mazatrol 640M Equipment: Tool magazine with tool holder Accessories: Numerous tool holders and tools included Status: Used machine Additional information: Vise and clamping equipment present and the batch only includes the machine Auction-ID: A1-46951-12

Key data: 250 t, 4000 mm

Inv. Num. : 9155 Type: HOL-250/4000 Producer: TOMÁŠEK Created: 2015 Parameters: Compressive force: 250 t Maximum bending length: 4000 mm Distance between frame walls: 3420 mm Maximum stroke: 250 mm Machine height: 2950 mm Machine length: 4040 mm Machine width: 1850 mm Machine weight: 18650 kg Equipment: 1 upper and 2 lower tools The machine has been completely overhauled: New hydraulics New Mitsubishi control unit Controlled bending

CNC dividing head and tailstock brand Walter with jaw chuck Röhm and jaws See pictures Viewing desired by appointment Auction-ID: A7-46993-6

OKUMA LB15 – CNC Lathe Highlights • Model OKUMA LB15 • Tool turret with 12 tool positions Technical data • Turning length max.: approx. 500 mm • Turning diameter max.: approx. 250 mm • Tool positions: 12 • Machine dimensions: approx. 2600 x 3600 x 1800 mm • Machine weight: approx. 5000 kg • Nominal voltage: 380 V • Phases: 3 • Frequency: 50 Hz • Power consumption max.: 21 kVA Equipment • Tool turret • CNC control • Protective cladding • Chip conveyor Note • Loading must be carried out by the buyer Auction-ID: A7-46968-2

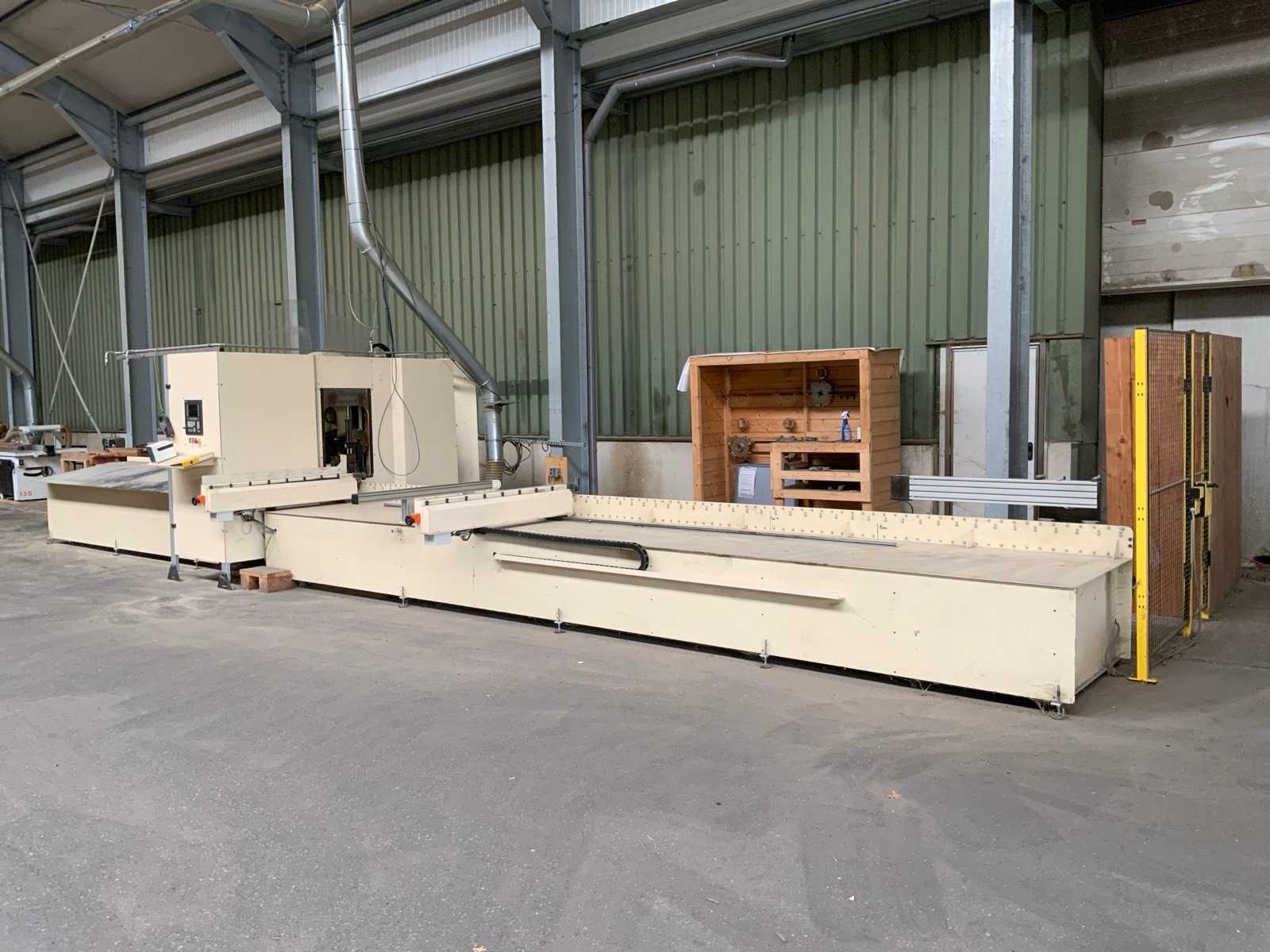

8-axis, capacity: thickness: 15-140mm, width: 80-160mm, length: 1000-6040mm (minimum and maximum finished (sawing only) 200 - 6000mm, equipped with 2 vertical notch milling units, ø 280 x D= 27mm, motor power: 4 KW, 4000 (2880) /min, 2 side drilling milling unit and (1 top and bottom), motor power: 7.8 KW, 18000/min, 1 head milling unit, motor power: 4 KW, 12000 /min, 1 saw unit, blade ø 450m, motor power: 4 KW, 2880 /min, equipped charging station with stop, 1 Siemens Sinumerik HT 2 handheld teminal, SKF central lubricator, 1 Brother label printer and safety fencing. including tools Auction-ID: A1-46623-1

Mitutoyo, EURO-C 5400 CNC Measuring Machine Auction-ID: A7-47048-40

Forte BA 321 Automatic Band Saw - With hydraulic clamping and feeding device - Cutting range around 320 mm - Square 300 x 300 mm - Large section length for single stroke up to 400 mm - Multiple feed up to 10 x 400 mm - Saw blade dimensions 3660 x 25 x 0.9 mm - Cutting speed infinitely variable 20 - 100 rpm - Feed speed hydraulically infinitely variable - Coolant device - Material support height 720 mm - Saw blade - Drive 400 V / 2.5 kW - Space requirement approx. W 1950 x H 1250 x D 1500 mm - Weight approx. 1000 kg Auction-ID: A7-47048-20

Forte SBA 241 Automatic Band Saw Cutting diameter 10 - 250 mm Saw blade length 4,100 mm Cutting width 1.1 mm Max. section length 3 - 9,999 mm Cutting speed 11 - 110 m/min Saw blade dimensions 4,100 x 34 x 1.1 mm Total power requirement 1.4 kW Machine weight approx. 1.0 t Space requirements approx. 2.0 x 2.0 x 1.5 m Auction-ID: A7-47048-21

Mori Seiki SL 250 BSMC CNC Lathe Maximum turning diameter: 389 mm Maximum turning length: 495 mm Maximum bar diameter: 73 mm Turning diameter over cross slide: 510 mm Turning diameter over bed: 680 mm Distance between spindle heads: 752 mm Auction-ID: A7-47048-18

Accessories for Leadwell LTC-50CL CNC Lathe Shelf content, without shelf Auction-ID: A7-47048-6

Mori Seiki SL 300 BMC/700 CNC Lathe Max. turning diameter 715 mm X-axis 250 mm Z-axis 800 mm Spindle bore 77 mm Speed 3500 rpm Power spindle 18.5 kW Tool Changer 12 Speed driven tools 4500 rpm Length 3500 mm Width 2200 mm Height 2400 mm Weight 9000 kg Incl. jaw chuck and tool holder in the turret. No other accessories Auction-ID: A7-47048-11

Type: C1050 3 Axis Machining Center Year of construction: 2010 Machine type: Machining center Condition: energized, ready for immediate use. Operating hours: approx. 29800h Spindle hours: approx. 9000h Control: iTNC 530. Spindle Rotation Number: 10,000rpm Tool magazine: 30 x-axis (mm) 1,050 Y-axis (mm) 530 z-axis (mm) 630. Spindle/Table Distance (mm) 85-715 Accessories: Documentation Chip conveyor Coolant Setup Tool changer 30 pos. incl. tool holder Linear scales in all axes X / Y / Z 3D Buttons electr. Handwheel . Note: without vice! Auction-ID: A7-47048-24

Wagner WMC 1800 CNC Machining Center (2013) Manufacturer: Wagner Type: WMC 1800 Year of Make: 2013 Siemens 828 controller Condition: good, used, under production X-travel 1800mm Y-travel 900mm Z-Travel 700mm Tool holder SK40 IKZ 25 bar with belt filter system Tool Measurement Handwheel Documentation Without tools! Auction-ID: A7-47048-7

Description of the machine: This machine is suitable for turning chuck and shaft workpieces. The commercial steel grades, cast iron, copper, aluminum, brass, gunmetal and cuttable plastic can be rotated on this machine. --> Concept of the N.E.F. plus The machine comes standard with the equipment described below delivered - Cycle control - AC main drive - Combination carriage with AC drive and control panel - Tailstock movable with tailstock tensioner, manually clamped, with downstream centering tip - Coolant supply - Chip protection hoods, manually operated - Protective cover for chucks - Quick-change tool holder Hahn & Kolb Multifix C - Reducing ring for turning spindle Accessories according to pictures: - 2 pcs bezels - Various clamping jaws - Hahn & Kolb Multifix Type C - Various turning steel holders Technical data: Working Range: - Circumfere ...

Mori Seiki SL 203 MC, CNC Lathe Year of Make: 2000 Incl. chip conveyor, tailstock Incl. jaw chuck and tool holder in the turret. Auction-ID: A7-47048-9

Röders RFM 600 high-speed milling machine Manufacturer: Röders Type: RFM 600 Year of Make: 2000 Condition: Use, Energized, Control on Windows 7 NEW x-travel 600 mm y-travel 500 mm z-path 300 mm Control RÖDERS RMS 6 3.60 Spindle holder HSK E 40 Spindle speeds 42,000 rpm Tool changing device 18-fold Table size 700×500 mm Workpiece weight 800 kg Drive 14 kW Total power requirement kW Machine weight approx. 5.2 t Space requirement approx. 3.2×2.25×2.65 m Röder's Job Manager (for processing several workpieces one after the other) Probing programs for almost all common geometries Extor Extraction System for Dusty Machining Minimal lubrication Bedtrack blower Blum measuring laser (for tool measurement length + diameter + contour and fracture control) Tool cleaning (air) Cooling unit for spindle and control cabinets Documentation Without accessories such as tools or vises Auction-ID: A7-4 ...

Maximum workpiece width: 450 mm Maximum workpiece thickness (height): 300 mm Maximum workpiece length: 13,500 mm (13.5 m) Equipment: Cylindrical cutter 350 mm x 120 mm End mill 160 mm x 40 mm - 2 pieces Circular saw blade diameter 700 mm 2 pieces Dovetail cutter mounted on the cylindrical cutter Dovetail cutter for end mill 100 mm x 30 mm end mill mounted on horizontal unit Loctc U E Heymz Uhezoaa Chain Grooving Unit Drilling units: 1 vertical, 1 horizontal Vertical ink marker at the machine outlet Auction-ID: A7-47020-1

Mikron VCE600 Pro CNC Machining Center Manufacturer: Mikron Type: VCE600 Pro Condition: used, energized and in production Control: Heidenhain iTNC 530 Incl. tools in the turret Auction-ID: A7-47048-27

Mori Seiki CL 153 CNC Lathe Turning diameter over bed: 515 mm Maximum turning diameter: 400 mm Maximum turning length: 303 mm Rapid traverse X-axis: 2010 m/min Rapid traverse Z-axis: 2400 m/min Spindle holder: A2-5 Spindle bore: 67 mm Through-hole spindle: 43 mm Maximum rod diameter: 33 mm Spindle speeds: 60–6000 rpm X-axis travel: 235 mm Travel Z-axis: 310 mm Spindle drive motor: 10 hp 12-speed revolver Electrical connections: 220 V, 60 Hz Auction-ID: A7-47048-23

ZINSER 2425-I/3600 CNC Plasma Cutting Machine Year of construction 2017 With Hypertherm XPR300 plasma system incl. bevel head incl. Hypertherm ProNest software The facility is in a very well-maintained and functional condition and is ready for immediate use. Equipped with the modern Hypertherm XPR300 high-performance plasma system for high-precision cutting work with excellent cutting quality. Particularly noteworthy is the integrated bevel head, which enables automatic weld seam preparation and bevel cuts. The cutting head can be swivelled in automatically. Technical equipment: • ZINSER CNC plasma cutting machine type 2425-I / 3600 • Hypertherm XPR300 plasma source • Hypertherm XPR VWI Interface • CNC control with touch operation • Automatic Bevel Head • Cable towing system • Extractable cutting table • ProNest nesting software included Maximum cu ...

Mori Seiki ZL 250-600 CNC Lathe Power of the main spindle 18.5 Kw Passage of the main spindle rod 73 mm Diameter of rotation 250 mm Length of rotation 650 mm Number of revolutions of the main spindle 3500 Number of Tool Turrets 2 Number of first turret tool locations 12 Number of motorized first turrets 12 Travel X-axis first turret 238 mm Travel Z-axis first turret 650 mm Number of second turret tool locations 10 Number of fixed tool positions second turret 10 Travel X-axis second turret 173 mm Z-axis travel second turret 650 mm Tailstock Quill stroke 150 mm Chip conveyor Auction-ID: A7-47048-19

max. turning diameter 356 mm Turning length 510 mm Control M 720 BM MAPPS II Circumferential diameter over bed 923 mm Circumferential diameter over carriage 755 mm Standard turning diameter 275 mm Rod diameter max. 65 mm Main spindle: Spindle nose A2-6 Speed range - spindle max. 5,000 min/-1 Drive power - spindle motor 15 / 11 kW Spindle bearing diameter 120 mm Spindle bore 73 mm max. usable rod diameter 65 mm C-axis 0.001 ° Sub-spindle: Spindle nose A2-5 Speed range - spindle max. 6,000 min/-1 Drive power - spindle motor 11 / 7.5 kW Spindle bearing diameter 85 mm Spindle bore 43 mm max. usable rod diameter ( - ) mm C-axis 0.001 ° Travels: Travel of counter spindle B: 624 mm Travel - x 260 mm Travel - z 590 mm Travel - y 100 (+/-50) mm Tool turret: Turret head (x-fold) 12 powered stations 12 pos Shaft diameter 25 mm Shaft diameter for drill rod max. 50 mm Speed range of the ...

Turning diameter max. 390 mm Turning length max. 572 mm Control MSD 501 Circumferential diameter over bed 700 mm Circumferential diameter over face slide 560 mm Distance between tips 725 mm Standard turning diameter 248 mm max. turning diameter 1: 390 / 2: 260 mm Main spindle: Speed range - main spindle 35 - 3,500 min/-1 Drive power - main spindle 18.5 / 15 kW Spindle nose JIS A2-8 Spindle bearing diameter 130 mm Spindle bore 86 mm Usable rod diameter 62 mm Travels: x-axis 1: 238 / 2: 173 mm z-axis 1: 650 / 2: 650 mm Tool turret: Number of turrets 2 Number of tool positions 10 + 8 pos. Number of driven tool stations - pos. Switching time 0.3 sec Shaft diameter 25 mm Shank diameter of the drills max. 50 mm Tailstock: Tailstock travel 500 mm Quill diameter 110 mm Tailstock mount MK 5 Quill stroke 150 mm Feeds: Rapid traverse X1/2: 18 m/min Rapid traverse Z1/2: 24 m/min Feed  ...

Mori Seiki DuraVertikal 5080 3Axis Machining Center (11/2006) Manufacturer: Mori Seiki Type: auto_awesome Source language: English 587 Table length 1350 mm Table width 600 mm Number of T-profiles 6 T-profile width 18 mm Max. table load 1000 kg Longitudinal travel (x-axis) 1050 mm Transverse travel (y-axis) 530 mm Travel (z-axis) 510 mm Max. tool diameter 125 mm tool weight 8 kg Spindle nose bt 40 Distance spindle nose table 150 - 660 mm By 0 rpm Until 10,000 rpm Voltage 50 Hz 3x 400 volts Spindle performance 22 kW Total power requirement 58 kVA Machine weight approx. 8,030 kg Length 2,500 mm Width 2,350 mm Height 2,700 mm Give feedback Translation results available Year of manufacture: 11/2006 Condition: used, good, in production I Auction-ID: A7-47048-26

Mori Seiki NL 2500 Y/700 High Performance Lathe Turning diameter 275 mm Turning length 705 mm Control MAPPS II MSX 850 Circumferential diameter over bed 923.8 mm Circumferential diameter over face slide 755 mm max. turning diameter 356 mm max. rod diameter 80 mm Main spindle Speed range - main spindle 4,000 rpm Drive power - main spindle 26 / 22 kW Spindle nose JIS A2-8 Spindle bore 91 mm Spindle bearing diameter 140 mm C-axis 0.001 ° Travel x-axis 260 mm z-axis 795 mm y-axis 100 (+/- 50) mm Revolver Tool Positions 12 Pos. Shank height for square tool 25 mm Shaft diameter for drill rod max. 50 mm Turret switching time 0.25 sec. Speed range of the indicated Tools 6,000 min -1 Drive power - applied Tools 5.5 / 3.7 kW Feed Rapid traverse X-axis 30 m/min Rapid traverse Z-axis 30 m/min Rapid traverse Y-axis 10 m/min Tailstock Tailstock Shift 564 mm Quill diameter 80 mm Pick-up ...

Mori Seiki CV 500 Machining Center X-axis: 510 mm Y-axis: 510 mm Z-axis: 510 mm Pallet length: 750 mm Pallet width: 550 mm Spindle Type: BT-40 Max. workpiece weight: 200 kg Spindle motor power: 7.5 kW Number of tools: 24 Spindle speed: 8000 rpm Dimensions: L 2000 x W 3600 x H 2750 mm Machine weight: 4400 kg Auction-ID: A7-47048-28

turning diameter:1600 mm turning length:12000 mm control:FAGOR 8050 Used CNC Lathe with FAGOR 8050 and extensive accessories. For further technical data and accessories, pls browse the Appendix. Parallellathe WMW mod. 4 GUIDE-WAYS ¦ CNC: FAGOR 8050 ¦ bed: monolithic ¦ centres height: 800 mm ¦ centres distance: 12000 mm ¦ swing over cross-slide: 1250 mm ¦ turret: automatic 4 positions ¦ tailstock: motorized ¦ tailstock connection: hydraulic ¦ platform: diam. 1000 mm ¦ steady rests: nr.02 ¦ chip conveyor Warranty: none Take advantage of the favorable leasing and hire-purchase terms from IKB Leasing. Ask us about it.

turning diameter:270 -300 mm turning length:710 mm total power requirement:43 kW weight of the machine ca.:8,5 t dimensions of the machine ca.:3,16 x 2,15 x 2,15 m The machine does not include a chuck or tools ? the machine was originally purchased without these accessories. The G300 has X, Z, Y, C, SP, and driven tools. A bar feeder can be used, but the machine does not have one.

turning diameter:220 mm turning length:310 mm total power requirement:17 kW weight of the machine ca.:3,3 t dimensions of the machine ca.:2,25 x 1,63 x 1940 m greates pass round over bed:430 mm bore diameter:45 mm centre distance:687 mm slide travel radial ( X-axis ):160 mm slide travel axial ( Z-axis ):310 mm spindle turning speed range:0-6.300 U/min

turning diameter:220 mm turning length:700 / 665 mm total power requirement:17 kW weight of the machine ca.:2,6 t dimensions of the machine ca.:2,63 x 1,98 x 1,94 m greates pass round over bed:430 mm Part length max.:510 slide travel radial ( X-axis ):160 mm bore diameter:45 mm Texte, Bilder, Grafiken, Layout, Strukturen und Algorithmen etc. unterliegen weltweitem Urheberrecht. Unerlaubte Verwendung der Daten, werden sowohl strafrechtlich als auch zivilrechtlich verfolgt. Das ausschließliche Urheber- / Nutzungsrecht dieser Daten wurde nachfolgender Person eingeräumt. Copyright © 2005-2026, Josef Weber. All rights reserved.

turning diameter:145 mm turning length:210 mm total power requirement:40 kW swing diameter:145 mm Spindle bore sp. 1:56 mm Spindle bore sp. 2:56 mm swing diameter over face slide:145 mm greates pass round over bed:145 mm RPM Main Spindle:7.000 1/min number of workpiece supports:12 Shank diameter:25 mm C-axis RPM:2.000 1/min Chuck diameter spindle 1:140 mm Chuck diameter Spindle 2:140 mm Number of tools:12 fach St. Tool bore:VDI 25 Shank diameter:25 mm weight of the machine ca.:5.300 kg dimensions of the machine ca.:5.000 x 4.100 x 2.050 mm Slide path flat: X1, X2, X3: 220mm, 120mm ( 145mm ) Longitudinal slide travel: Z1, Z2, Z3: 320mm, 345mm, 380mm Vertical slide travel Y1: +/- 30mm Longitudinal spindle travel Z3: 380mm Clamping tube inner draw tube 46mm diameter Speed range main drive 1+2 up to 7,000 rpm Speed of driven tools up to 6,000 rpm Main and counter spindle collet chuck 1 axial ...
