cnc machining centre used for sale

Window machining center Dimensions of workpieces: Workpiece length: 270 x 3000 mm Workpiece thickness: 30 - 85 mm Workpiece width: 180 mm Equipment: Electric length stop Crosscut saw, diameter 400 mm, motor 3 kW Tenoning spindle, diameter 50 mm, useful shaft length 600 mm, motor 7.5 kW 3 x profile shaft, diameter 50 mm, length 600 mm, motor 7.5 kW Glazing bead saw, diameter 200 mm, effective shaft length 20 mm, motor 2.2 kW Feed device 1.5 kW, roller diameter 120 mm Oertli tools included profile 68, 78, 82

CONTROLS   CNC controls HELLER UNI-PRO CNC 90 WORKING RANGE -CUBIC-   number of processing axes (excl parallel axes): 4   X-axis travel: 1250 mm   Y-axis travel: 1000 mm   Z-axis travel: 1250 mm TABLE   table surface (left-right): 1000 mm   table surface (front-back): 800 mm SPINDLE / HEAD   tool fixture: ISO SK 50 AUTOMATIC WORKLOAD EQUIPMENT   store type: pallet changer   number of store positions: 2 DIMENSIONS / WEIGHTS   total weight approx.: 26500 kg ATTACHMENTS   European CE standards: yes Machine in very good condition. Dismantled Still available for sale: HELLER MCP-H 250 HS 1997 DECKEL MAHO FP5-80 1994 HELLER MCP-H 200 1998

CONTROLS   CNC controls WORKING RANGE -CUBIC-   number of processing axes (excl parallel axes): 3   X-axis travel: 1040 mm   Y-axis travel: 510 mm   Z-axis travel: 640 mm TABLE   table surface (left-right): 1460 mm SPINDLE / HEAD   spindle revolutions (max): 7000 /min TOOL MAGAZINE   number of positions: 24 ELECTRICAL SPECIFICATIONS   mains voltage: 400 V   mains frequency: 50 Hz

vertical machining center, year 2007, CNC 8055 iMC. Used machine. More info & price on IndustrialBuyer.

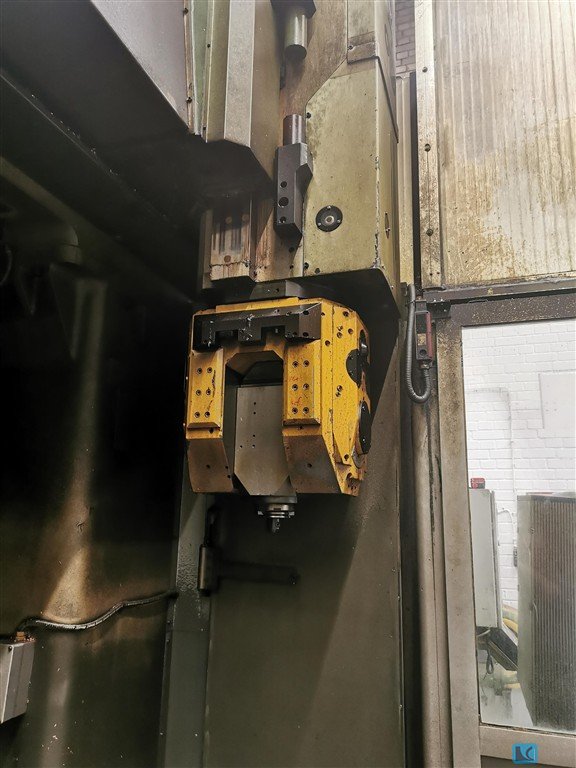

Auxiliary high-speed spindle / machining head with taper shank and cable/hose connection. Used accessory for machine tools; exact taper, speed and electrical specifications to be confirmed. Auction-ID: A1-51153-82

X-axis: 300mm, y-axis: 620mm, z-axis: 400mm, positioning accuracy: ±0.005 inch, repetition accuracy: 0.005 inch, rapid traverse: 25m/min, feed rate: 10m/min, air pressure: 6kg/cm², air consumption: 400l, pump motor: 30W, delivery rate: 2.2cm³/s, pump pressure: 8kg/cm², tank capacity: 2l, pump electrics: 220V/ 3PH/ 1.2A, max. delivery rate: 130l/min, control: Heidenhain TNC 620, connected load: 15kVA, length: 3000mm, width: 2050mm, height: 3020mm, weight: 3020kg. max. flow rate: 130l/min, control: Heidenhain TNC 620, connected load: 15kVA, length: 2984mm, width: 2050mm, height: 2420mm, weight: 3020kg. Operating hours control: 22,261h, machine: 22,414h, programme: 10,507h, spindle: 7695h. Fully functional, spindle was recently replaced, the built-in oil skimmer in the cooling water tank is not functional. With documentation. On-site inspection is possible.

vertical machining center, year 2002, CNC Fusion 640M. Used machine. More info & price on IndustrialBuyer.

vertical machining center, year 2008, CNC MAX Control. Used machine. More info & price on IndustrialBuyer.

vertical machining center, year 2003, CNC 840 D. Used machine. More info & price on IndustrialBuyer.

travelling column machining center, year 1998, CNC M plus. Used machine. More info & price on IndustrialBuyer.

vertical machining center, year 2004, CNC 426. Used machine. More info & price on IndustrialBuyer.

vertical machining center, year 1999, CNC TNC 430. Used machine. More info & price on IndustrialBuyer.

vertical machining center, year 2001, CNC OSP 700 M. Used machine. More info & price on IndustrialBuyer.

horizontal machining center, year 2001, CNC 16i - M. Used machine. More info & price on IndustrialBuyer.

vertical machining center, year 2000, CNC 18-M. Used machine. More info & price on IndustrialBuyer.

vertical machining center, year 1997, CNC 0 - M. Used machine. More info & price on IndustrialBuyer.

gantry machining center, year 1998, CNC cxr20. Used machine. More info & price on IndustrialBuyer.

vertical machining center, year 2000, CNC SISTEMA PRO 3. Used machine. More info & price on IndustrialBuyer.

x-travel:800 mm y-travel:410 mm z-travel:510 mm control:Fanuc 10 MA rapid travel x/y/z:20/20/15 mm/min table surface area:1100 x 450 mm tool taper:BT 40 tool magazin::30 BT 40 max. tool length:250 mm max. tool weight:8 kg power requirement:7,5/5,5 kW turning speed range:6000 1/min weight of the machine ca.:6,3 t Under offer is a complete CNC tool shop, which will be given up due to old age of owner. The Mori Seiki is still highly accurate. All existing tool holders, tools, drills, vices etc. come with the machine. All measuring devices also come with the machine. Upon request orders for parts to be made can be passed on to new owner. This is a low cost all inclusive opportunity for a "Startup"

x-travel:1100 mm y-travel:600 mm z-travel:510 mm control:Heidenhain iTNC 530 table-size:1050 x 600 mm table load:500 kg spindle taper:SK 40 turning speeds:10000 1/min power capacity at 100 % load:9 kW rapid travel x/y/z:24 m/min feed:24 m/min Tool changer:40 SK 40 dimensions of the machine ca.:4,3 x 2,6 x 2,25 m weight of the machine ca.:8,8 t POS mill 1100 vertical machining center in very good condition from 2009 Options: - parts measuring M&H receiver without probe - external hand wheel Heidenhain HR 410 - Air supply through spindle - air gun - paperfilter system with coolant through spindle 40 bar -

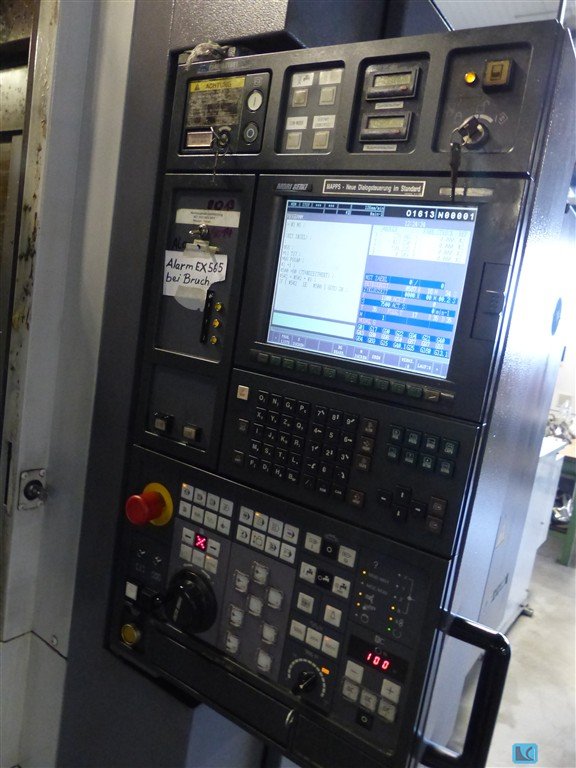

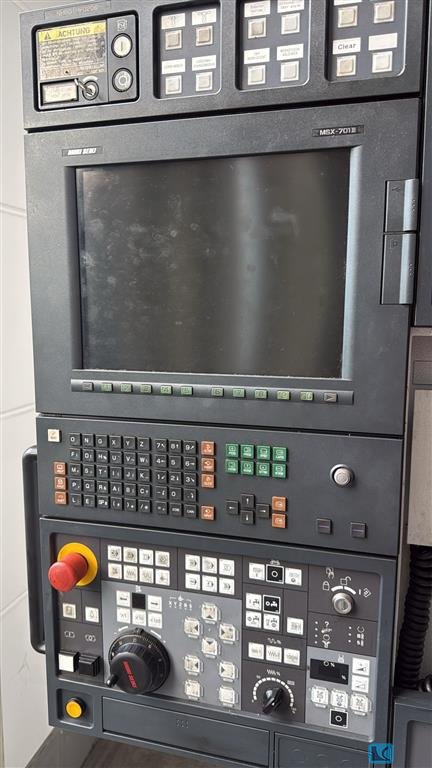

x-travel:1400 mm y-travel:1200 mm z-travel:1350 mm control:MSX- 701 Mapps III table surface area:800 x 800 mm rapid traverse:50 m/min table rotating:360.000 x 0,001 B-Achse ° table load:2,0 t numbers of pallets:2 turning speed range:8000 1/min power capacity - milling spindle:37 kW no. of tools in the magazine:60 Stück tool taper:HSK-A 100 weight:31 t dimensions:5,9 x 3,48 x 3,68 m Equipment: - Thru-the-spindel coolant system Mayfran Consep 2000 70 bar with chipconveyor - Helical cutting + Synchronized tapping - Parts program memory 1 MB - Knoll 70 bar high pressure and filter system - Electrostatic oil dust collector LTA - elect. hand wheel - renishaw probe - abso- scale i X/Y/Z- axis - 5 free m- funktions - 48 extra off sets - dual ballscrews on X/Y/Z- axis

x-travel:630 mm y-travel:600 mm z-travel:650 mm control:MSC 502 (Fanuc 16) Spindle RPM:12000 1/min spindle drive:22 / 18,5 kW rapid travel x/y/z:32 m/min Pallet dimension:500x500 mm numbers of pallets:2 table load:0,5 t working diameter:max. 610 mm Number of tool station:60 BT40 max. tool length:360 mm max. tool weight:12 kg tool changing time:1,3 sec B-axis positioning (non continuous):1 total power requirement:50 kVA weight of the machine ca.:14 t dimensions of the machine ca.:3,3 x 5,8 x 3,2 m spindle load monitor:Typ C This horizontal machining center comes with a pallet changer with 2 pallets, and has the following options: ATC 60 tool stations, High pressure coolant trough spindle interface,

x-travel:560 mm y-travel:510 mm z-travel:510 mm control:Fanuc 18i GOP 3 spindle speeds:12000 1/min spindle drive:22 kW rapid travel x/y/z:42 mm/min Number of tool station:40 BT 40 Pallet dimension:2x 400x400 mm table load:0,5 t working diameter:max. 580 mm total power requirement:56 kVA weight of the machine ca.:8,7 t dimensions of the machine ca.:2,9x4,1 m Memory:125 Memory:320 m No. of tool offset pairs:64 offsets for parts:6 Macro B:82 var. Control Fanuc 18i M, 40 tool stations, trough spindle coolant Knoll 50 bar, 4th axis, Chipconveyor, twin pallet-changer tool magazine 40 BT 40

x-travel:560 mm y-travel:510 mm z-travel:510 mm control:Fanuc 18i M power capacity - milling spindle:22 / 18,5 kW spindle turning speed - stepless:12.000 1/min numbers of tools in magazin:60 BT 40 size of pallet:2x 400 x 400 mm max. workpiece diameter on pallets:580 mm workpiece height max.:650 mm feeds x/y/z -stepless:16.000 mm/min rapid travel x/y/z:32.000 mm/min total power requirement:54 kVA weight of the machine ca.:8,7 t dimensions of the machine ca.:2,9 x 3,9 x 2,6 m Horizontal twin - pallet machining center with full 4th axis, 60-tool magazine BT 40 and 50 bar coolant through spindle.

x-travel:600 mm y-travel:580 mm z-travel:530 mm distance spindle center to column:630 mm distance spindle center to table:100-600 mm milling feed range:1-10.000 mm/min max. table load:200/100 kg max. tool weight:8 kg positioning accuracy:+/- 0,01 mm :8000/15000 1/min spindle drive:7,5/11,5 /5,5 kW repeating accuracy:+/- 0,008 mm weight of the machine ca.:7,4 / 7,65 t Brand-new CNC vertical machining center with CNC control FANUC or HEIDENHAIN Warranty: 12 months More information can be found in the Appendix.

x-travel:1000 mm y-travel:1150 mm z-travel:700 mm table-size:900 mm table load:1500 kg spindle speeds:10.000 1/min spindle drive:Motorspindel von Cytec CS34-180-A 34&42KW/160&200 Nm spindle taper:A100 HSK T-slots:18mm/7/100 mm milling feed range:20.000 mm/min rapid traverse feeds:X/Y/Z: 24 m/min diameter of tools max.:150 mm workpiece length:300 mm weight of tools max.:20 kg weight of the machine ca.:15 t dimensions of the machine ca.:s. Katalog m CNC controller:Heidenhain iTNC-640 HSCI-Steuerung cnc rotary table:von Cytec; mit Ø900mm; 800 1/min Drehmomenttisch (AS3347) + HSK-T63/100 Spindel & ATC + TNC-640 Fräsdrehzahlregelung B-axis:Fräskopf, 0-180° c-axis:0,001° automatic tool changer:HSK-A/T100; 60 fach Scales:in X/Y/Z von Heidenhain mit Druckluft inner coolant:20

x-travel:630 mm y-travel:560 mm z-travel:560 mm weight of the machine ca.:6,5 t Number of axles:5 St. spindle turning speed range:18.000 U/min numbers of tools in magazin:24 tool taper:SK 40 Round Table B-Axis

x-travel:800 mm y-travel:400 mm z-travel:350 mm total power requirement:44 kW weight of the machine ca.:8,8 t dimensions of the machine ca.:6,1 x 4,1 x 3,3 m tool taper:HSK63 number of spindle speeds:36-12.000 Number of tools:2 x 21 St. rotary table diameter:1340 mm

x-travel:600 mm y-travel:770 mm z-travel:675 mm A-Axis travel:-180 ... +45 ° b-axis:360,000 ° spindle drive:40 / 52 (100% / 40% ED) kW spindle turning speed range:10000 U/min Tool bore:HSK-A63 numbers of tools in magazin:40 total power requirement:47 kW weight of the machine ca.:13 t including additional tool magazine ZM 182 1 spindle , 5 axes

x-travel:630 mm y-travel:630 mm z-travel:500 mm number of spindle speeds:0 - 15000 spindle motor:32 kW size of pallet:500 x 500 mm b-axis:36000 x 0,001 ° no. of workpieces in the magazine:61 Stück tool taper:HSK 63 weight of the machine ca.:15 t Single-Spindle Mechanical processing cylinder head VR6

x-travel:1000 mm y-travel:800 mm z-travel:1100 mm weight of the machine ca.:20 t dimensions of the machine ca.:6,80 x 3,0 x 3,20 m Tool bore:SK50 Tool taper:HSK-A 100 turning speed range:45-6.000 U/min size of pallet:630x800 mm change time of pallets:21 sec Mechanical processing of cylinder heads and cylinder crankcases Machines have been in single-shift operation since 2013 Service and maintenance intervals were adhered to

x-travel:1000 mm y-travel:800 mm z-travel:1100 mm weight of the machine ca.:15,2 t Tool bore:SK50 Tool taper:HSK-A 100 turning speed range:45-6.000 U/min size of pallet:630x800 mm change time of pallets:21 sec Mechanical processing of cylinder heads and cylinder crankcases Machines have been in single-shift operation since 2013 Service and maintenance intervals were adhered to

spindle speed::max. 12000 tool taper:HSK 80 . b-axis:360 x 0,001 ° worktool support (A-axis):+40 / -95 ° weight of the machine ca.:25 500 Kgs. x-travel:800 mm y-travel:700 mm z-travel:630 mm dimensions of the machine ca.:6200 x 3000 x 3200 mm pallet size::500 x 500 mm no. of tools in the magazine:61 Nos. Weight approx.:23,5 t Horizontal Machining Center with CNC Control System SIEMENS 840 C in well maintained condition. Single spindle

x-travel:800 mm y-travel:950 mm z-travel:1020 mm weight of the machine ca.:17 t dimensions of the machine ca.:6 x 3 x 3,2 m Diameter of the table:770 mm max. table load:800 kg tool taper:HSK-A63 max. tool length:465 mm no. of tools in magazin:60 spindle turning speed range:12.000 U/min feed power:8 kN kp power capacity:25/35 kW 5 axis G550-1024 HSK A-63 Grob (Bezeichnung G550-1024) 1 spindle

x-travel:780 mm y-travel:560 mm z-travel:560 mm weight of the machine ca.:10 t Number of axles:5 St. spindle turning speed range:20-12.000 U/min numbers of tools in magazin:30 tool taper:SK 40 surface area:500 x 630 mm Round Table B-Axis Texte, Bilder, Grafiken, Layout, Strukturen und Algorithmen etc. unterliegen weltweitem Urheberrecht. Unerlaubte Verwendung der Daten, werden sowohl strafrechtlich als auch zivilrechtlich verfolgt. Das ausschließliche Urheber- / Nutzungsrecht dieser Daten wurde nachfolgender Person eingeräumt. Copyright © 2005-2026, Josef Weber. All rights reserved.

x-travel:700 mm y-travel:630 mm z-travel:700 mm weight of the machine ca.:15 t dimensions of the machine ca.:4,20 x 2,90 x 2,90 m pallet size::500 x 500 mm tool taper:SK 40 Tool taper:HSK-A 63 turning speed range:10.000 U/min

x-travel:2000 mm y-travel:1600 mm z-travel:1140 mm b-axis:0.0001° x 360° ° number of pallets:4 table surface area:1000 x 1450 mm max. table load:6.000 kg turning speed range:4 - 10000 U/min power capacity at 100 % load:40 kW kW tool taper:HSK100 DIN69893A machine weight ab.:63.000 kg space required L x W X H:12320 x 11000 x 4700 mm incl. 50 x HSK100 tool tapers

x-travel:760 mm y-travel:760 mm z-travel:760 mm b-axis:360.000 x 0.001 ° spindle drive:26 / 18,5 (40% / 100%) kW spindle turning speed range:50 - 15000 U/min Tool bore:KSK-A63 max. table loading capacity:500 kg total power requirement:43 kW weight of the machine ca.:11,5 t dimensions of the machine ca.:2,7 x 4,73 x 2,87 m

x-travel:450 mm y-travel:450 mm z-travel:450 mm b-axis:360.000 x 0.001 ° main spindle speeds::45-10000 1/min weight of the machine ca.:14 t dimensions of the machine ca.:7 x 2.45 x 3.4 m size of pallet:320 x 320 mm number of spindles:2 tool taper:HSK63 tool numbers:2 x 40 spindle drive motor:25/36 (100% / 40% ED) kW Double spindle 4-axis machining center Horizontal 4 machine plates Renishaw probe Control Siemens Sinumerik 840D Working space (X / Y / Z): 450x450x450 mm Load pallet / table max .: 300 kg Acceleration: 10 m / s² Rapid traverse: 60 m / min Pallet size: 320 x 320 mm Chip-to-chip time: 2.6 s Workpiece height max .: 700 mm Tool holder: HSK 63 Tool places: 2x 60 Tool spindle: 10,000 rpm, 95 Nm Speed increase to 18,000 rpm Infrared receiver for probe, Make Renishaw Vaf72a0p Tool magazine with 60 places Control panel on the workstation Control panel on the tool installation site  ...

x-travel:800/945 mm y-travel:800 mm z-travel:600 mm spindle motor:27 kW spindle turning speed range:10 - 8000 U/min spindle taper ISO:40 c-axis:360.000 x 0,001 table load capacity:600 kg table clamping surface::800 630 mm total power requirement:55 kW weight of the machine ca.:16 t Machine with Heidenhain iTNC 530 CNC control for 5 axis - pendulum operation with turn- swivil table left and fixed table right - tool changer for 30 tools - coolant device, chip conveyor - complete splash housing

x-travel:1660 mm y-travel:760 mm z-travel:660 mm weight of the machine ca.:8700 t dimensions of the machine ca.:4.320 x 3.380 mm distance spindlenose - table min./max.:808 mm distance work spindle /surface of the table:155 - 815 mm Machine height:2850 mm floor space required (w/o switchgear cabinet):4.320 x 3.380 mm spindle motor:11 (10 Minuten) /7,5 (30 Minuten)/ 5,5 (Dauerbetrieb) kW tool taper:SK 40 Spindle RPM:40 - 7.000 (Standard ) / 40 - 10.000 ( Option ) 1/min surface area:2.000 x 760 mm max. table load:1.000 kg feeds X-axis:1 - 5.000 mm/min rapid traverse X-axis:24.000 m/min rapid traverse Y-axis:24.000 feeds Y-axis:1 - 5.000 mm/min feeds Z-axis:1 - 5.000 mm/min rapid traverse Z-axis:20.000 m/min

x-travel:635 mm y-travel:510 mm z-travel:460 mm turning speed range:20 - 10.000 U/min tool taper:SK 40 table clamping surface LxW:790 x 560 mm Machine with glass scales Full safety cabin with sliding doors + interior lighting Height-adjustable machine shoes 3 pcs.

x-travel:1.250 mm y-travel:880 mm z-travel:800 mm spindle turning speed range:1 - 10.000 U/min high speed spindle taper ISO:50 table-size:1.250 x 1.000 mm max. workpiece weight: 2.000 kg feed speeds infinitely variable:1 - 30.000 mm/min rapid traverse speed:40 m/min weight of the machine ca.:16 t dimensions of the machine ca.:7,2 x 4,4 x 2,9 m

x-travel:1020 mm y-travel:510 mm z-travel:510 mm Table 1,200 x 530 mm Max. table load 800 kg Spindle mount ISO 40 Spindle speeds 10,000 rpm Drive power 14.5 kW Tool changer 20-position Coolant system External cooling Chip conveyor Yes The Y-cover is leaking (see photos)

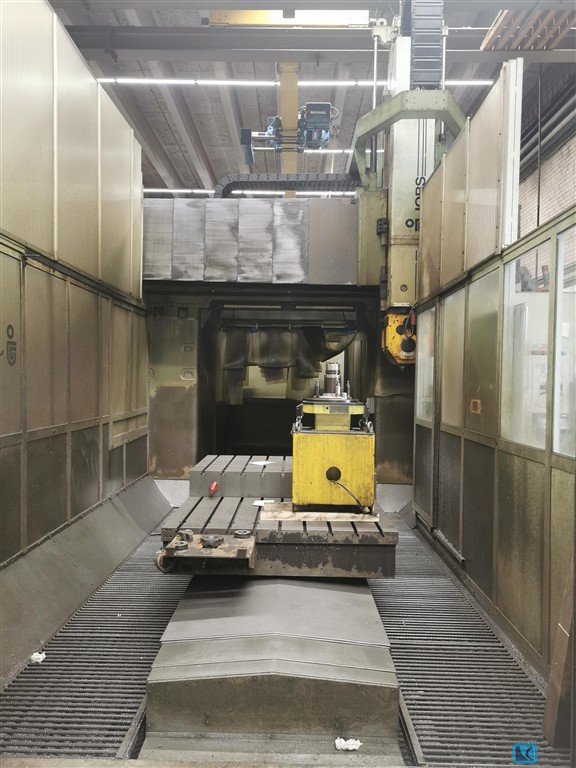

x-travel:3500 mm y-travel:2500 mm z-travel:1250 mm weight of the machine ca.:50 t JOBS JO?MACH 241 ? CNC gantry machining centre The JOBS JO?MACH 241 is a high-performance CNC gantry machining centre designed for the precise machining of large, heavy and complex workpieces. The robust design, featuring a fixed gantry and a movable worktable, ensures high rigidity and stable machining conditions. With travel ranges of 3,500 mm on the X-axis, 2,500 mm on the Y-axis and 1,250 mm on the Z-axis, the machine offers a generous working area. The clearance between the columns is approximately 2,200 mm. The worktable, measuring approximately 3,000 × 1,500 mm, is designed to accommodate workpieces weighing up to 12,000 kg. The two-axis, swivelling milling head enables the machining of complex contours and hard-to-reach surfaces in multiple spatial directions. This makes the JO?MACH 241 particularl ...

x-travel:800 mm y-travel:690 mm z-travel:630 mm total power requirement:76 kW weight of the machine ca.:25,5 t b-axis:630 Rundeinheit control:Siemens 840 D workpiece weight:max . 1.100 kg spindle turning speed range:15000 U/min Boring power:30 mm plate size:630 x 630 mm Dimension:6000 x 2900 x 2400 mm spindle taper::HSK 63 Documents:vorhanden

x-travel:550 mm y-travel:300 mm z-travel:425 mm CNC-control:Sinumerik table-size:950 x 350 mm max. table load:500 kg spindle taper ISO:30 spindle turning speed range:20 - 10500 U/min spindle drive motor:5,5 kW tool change unit:12 Pos. coolant:inkl. voltage:380 V tool adaptor:Steilkegel 40 groove width:32/28 mm no. of flutes:3 rapid speed:40.000 mm/min total power requirement:15 kVA weight of the machine ca.:3,3 t chip conveyor:inkl. dimensions of the machine ca.:2000x 3000 x2500 mm Documents:vorhanden - Serial Number: 186 - 78 - Control: FANUC O-M - with various tool holders - coolant equipment

x-travel:2500 mm y-travel:1000 mm z-travel:750 mm table surface area:3220 x 1000 mm Workpiece weight approx.:3000 kg spindle taper ISO:50 milling spindle turning speeds:20 - 5000 U/min feed speeds:1- 30000 mm/min rapid traverse:30 m/min total power requirement:40 kW dimensions of the machine ca.:6,9 x 4,1 x 3,7 m weight of the machine ca.:21 t with CNC HEIDENHAIN TNC 426 30-pockets autom. toolchanger RENISHAW measuring probe coolant attachment with TSC and chip conveyor diverse toolholders

x-travel:600 mm y-travel:580 mm z-travel:580 mm numbers of pallets:2 pallet size::400 x 400 mm max. workpiece weight:400 kg spindle taper ISO:40 spindle speeds::35 - 12000 feed speeds:1 - 50000 mm/min rapid speed:50 m/min total power requirement:25 kW weight of the machine ca.:12 t dimensions of the machine ca.:3,6 x 3,6 x 2,9 m with CNC SEICOS 16 M ( FANUC base ) autom. toolchanger 61-pockets pallet indexing 1° chip conveyor and coolant attachment exhauster clamping cube and diverse toolholders

x-travel:1250 mm y-travel:880 mm z-travel:800 mm spindle turning speed range:1 - 10.000 U/min spindle taper ISO:50 table-size:1250 x 1000 mm max. workpiece weight:2000 kg feed speeds infinitely variable:1 - 30.000 mm/min rapid speed:40 m/min weight of the machine ca.:16 t dimensions of the machine ca.:7,2 4,4 x 2,9 m 5-axes Machining Center with CNC SIEMENS 840 D A-axis 0,001°, C-axis 0,001° autom. toolchanger30-pockets NC table through spindle coolant 40 Bar , chip conveyor
