cnc lathe used for sale

turning diameter:270 mm turning length:710 mm weight of the machine ca.:6,5 t max. swing diameter:590 mm with automatic loading and unloading system G300 with "spindle bore clamping capacity 90mm" in tailstock version Chip conveyor, belt filter press, hydraulic unit, as well as infeed and outfeed chain conveyor EWAP, with 33 pallets. The machine has no driven tools. The information in the circuit diagram refers to the rotary drive for indexing the turret, not to driven tools.

turning diameter:270 mm turning length:710 mm weight of the machine ca.:6,5 t max. swing diameter:590 mm with automatic loading and unloading system, chip conveyor G300 with "spindle bore clamping capacity 90mm" in tailstock version The machine has no driven tools. The information in the circuit diagram refers to the rotary drive for indexing the turret, not to driven tools.

turning diameter:120 mm turning length:650 mm weight of the machine ca.:11 t dimensions of the machine ca.:5,032 x 3,048 x 2,445 m Gildemeister MF Twin 65-II lathe with loading automation. This machine is suitable as a counter spindle machine for 4-axis machining on the main and counter spindles, complete machining (turning, drilling, milling, Y-axis, B-axis) of bar and shaft parts.

turning diameter:120 mm turning length:650 mm weight of the machine ca.:11 t dimensions of the machine ca.:5,032 x 3,048 x 2,445 m Gildemeister MF Twin 65-II lathe with loading automation. This machine is suitable as a counter spindle machine for 4-axis machining on the main and counter spindles, complete machining (turning, drilling, milling, Y-axis, B-axis) of bar and shaft parts.

turning diameter:33 mm turning length:330 mm control: 840 total power requirement:20 kW weight of the machine ca.:6 t dimensions of the machine ca.:3850,2000,2100 m 17 axes 3 revolvers with the powered tools 1 gantry with the driven tools Main and counter spindle with C axes Barfeeder Machine On-time 58,133 hours

turning diameter:220 mm turning length:- mm control:- distance between milling spindels:800 mm spindle speed max.:12.000 U/min daylight:66 mm machine weight ab.:11 t total power requirement:90 kVA Fanuc control Two turrets Two spindles Spindle bore 66 mm on both spindles Two Y-axes Parts gripper Hainbuch chuck on both spindles Tailstock function Chip conveyor Tool eye Short bar loader Tool holder package

travel -x axis:800/1825 mm travel -y axis:800/460 mm travel -z axis:600 mm Feeding X,Y,Z up to:0 - 40/40/40 mm/min. swival range +/-:+10 bis -90 x 360 Grad Rotary-table:800 x 630 mm number of T-slots:5 T-slot - distance:125 mm T-Slots:18 mm center hole:30H7X15 mm swival range +/-:90 Grad turning speed:20 m/min. Number of axles:3-7 St. Spindle RPM:12.000 1/min max. tool weight:10 kg max. tool length:330 mm diameter of tools max.:80 mm tool changing time:4 sec CNC control with 15.1" color flat-screen 19" machine control panel PCU 50 with Intel Pentium II Windows XP 10.0 GB hard drive

turning diameter:760 mm turning length:1.524 mm spindle speeds::3.300/12.000 MILL/3.300 spindle diameter:78/78 mm no. of tools in magazin:80 tool taper:Capto max. tool length:400 mm max. tool diameter:125/90 mm weight of the machine ca.:13,4 t Machine with Mazak Matrix CNC control Main and counter spindles Milling unit (milling spindle) Kitagawa QJ-312 dual-action chuck Pallet pool with robot IKZ Exhaust system not included

turning diameter:275 mm turning length:900 mm spindle passage:65 mm power capacity at 100 % load:25/20 kW spindle turning speed range:1 - 5000 U/min spindle diameter in front bearing:110 mm c-axis:1 - 500 U/min. number of workpiece supports:4 tool turret:1 x-axis:290 mm y-axis:165 mm z-axis:360 mm b-axis:360 ° rapid speed:18/30 m/min number of tools:2x2 + 2x2 number of driven tools:2x2 + 2x2 mm toolpiece turning speed range:8000 / 2000 U/min power capacity:25% ED 5,8 kW tool taper:TRAUB 60 tool turret:2/3/4 x-axis:170 mm z-axis:600/950 mm y-axis:+/- 60 mm rapid speed:18/15/30 m/min number of driven tools:10 mm toolpiece turning speed range:1 - 6000 U/min power capacity:25% ED 5,8 kW tool taper:DIN 69880 40 x 63 total power requirement:95 kW weight of the machine ca.:16 t dimensions of the machine ca.:10,0 x 3,5 x 3,0 m with CNC TRAUB TX 8i, Barloader TRAUB Stamag DNH61 / 3000, Main and  ...

turning diameter:445 mm turning length:2000 mm turning diameter over bed slide:660 spindle bore:65 mm spindle speeds::16 - 3150 U/min. rapid motion - x-axis:10 mm/min rapid traverse Z-axis:15 m/min total power requirement:34 kW weight of the machine ca.:7,5 t dimensions of the machine ca.:6 x 2,5 x 2,2 m with CNC Control TX 8 D C-axis driven tooling 14 station turret head 3 jaw chuck dia. 315 mm tailstock, steady as NC-axis diverse driven toolholders diverse turning toolholders chip conveyor and coolant attachment

CNC Control: BROTHER CNC-A00 X/ Y/Z Axis Travels: 480 × 360 × 410 mm Table Dimensions: 600 × 300 mm Number of Tools: 14 Spindle Taper: BT30 Max. Spindle Speed: 16,000 RPM Spindle Motor Power: 7 kVA Drilling Capacities: Steel Ø 32 mm, Aluminum Ø 25 mm, Cast Iron Ø 25 mm Tapping Capacities: steel up to M16 Included equipment: 4 BT30 tool holders, lubrication tank with pump Weight (kg): 1800 Year & Manufacturer: 2007 – BROTHER

Serial number: 1537001259A Operating voltage: 400 V Frequency: 50 Hz Connection: 17 kVA Rated current: 35 A Control: HEIDENHAIN TNC 620 Spindle speed: up to 12,000 rpm Max. spindle torque: 83 Nm Feed speed in X/YZ: up to 20,000 mm/min Rapid traverse in X/Y/Z: 30 m/min Setup operation in X/Y/Z: 20 - 2000 mm/min Travel X-axis: 635 mm Travel Y-axis: 510 mm travel distance Z-axis: 460 mm Displacement measuring system X/Y/Z: 1 μ Positioning uncertainty X/Y/Z: 6 μ Tool holder: SK 40 Table dimensions: 790 x 560 mm Spindle hours read with 5 grooves: approx. 5000 incl. 20-fold tool changer Attention: all tool holders located in the tool changer are included in the scope of delivery! Reference: Schönichen - Lot 47

Strokes: X = 635 mm, Y = 510 mm, Z = 460 mm Spindle speed: 20 – 12,000 rpm Spindle power: AC 13/9 kW Fast feeds: 30 m/min Taper: SK40 DIN69871 Tool changer: 20 positions (disc magazine) + 30 position option Table dimensions: 560 x 790 mm RENISHAW probe: OMP40-2, OTS, OMI-2T module Machine hours: 21,788 h Spindle hours: 8,654 h Lots sold as is, unchecked, without tools or tool holders.

Manufacturer: TOS OLOMOUC Year: 1985 Type: CNC universal milling machine Numerical control: Heidenhain TNC 155 Strokes: X 850 mm / Y 500 mm / Z 450 mm Table: 1250 × 500 mm Spindle: ISO 50 – 1,800 rpm – 16 kW Feeds: 1 to 800 mm/min – fast X/Y/Z 2 m/min Installed power: approx. 22 kW Dimensions (mm): 2400 × 2300 × 2400 Weight (kg): approx. 5000 Notes: Robust CNC tooling universal milling machine from TOS manufacture. Lots sold as is, unchecked, without tools or tool holders.

Connection: 13 kW Control: HEIDENHAIN TNC 425 Table dimensions: 700 x 360 mm T-slots Number x width x distance: 3 x 18 x 110 mm Distance table to floor: 840 mm Max. table load capacity: 300 k Travel X-axis: 960 mm Travel Y-axis: 380 mm Ball screw X and Y-axis: 32 x 10 mm Pitch Diameter Distance table center to stand: min. 190 mm, max. 570 mm Spindle mounting taper: ISO 40 Travel Z-axis: 380 mm Spindle speed: 100 to 6000 rpm Rapid traverse: 15 m/min Positioning accuracy: +-0.01 mm Repeatability: +-0.005 mm Resolution: 0.001 mm incl. 16-fold tool changer Max. diameter for adjacent tools: 85 mm Max. diameter for free secondary positions: 135 mm Max. tool length: 250 mm Permissible weight per tool: 6 kg max. total weight of the tools: 60 kg Attention: without the machine vise shown in the photos! Inkl. 3D Probe Reference: Schönichen - Lot 25

Manufacturer: FAMUP Year: 1994 Type: CNC vertical machining center Numerical control: FANUC Series O-M Strokes: X 600 mm / Y 400 mm / Z 400 mm Table: 400 × 400 mm – max. load 300 kg Spindle: ISO / SK 40 – 6,000 rpm – 11 kW Tool magazine: 18 positions – Max. tool Ø 75 mm – changeover time 2 s Chip conveyor: Yes Dimensions (mm): 3200 × 2900 × 2600 Weight (kg): approx. 3500 Notes: Italian-made CNC vertical machining center, suitable for general milling. Lots sold as is, unchecked, without tools or tool holders.

Manufacturer: DMG (Deckel Maho Gildemeister) Year: 2006 Type: CNC Vertical Machining Center Numerical Control: Heidenhain TNC 530 Strokes: X 635 mm / Y 510 mm / Z 460 mm Spindle: 12,000 rpm Tool magazine: 32 positions Spindle center coolant: 20 bar Filtration: Cartridge filtration Tooling: No tooling supplied with the machine Weight (kg): approx. 6000 Notes: Multi-purpose CNC vertical machining center. Serial number included in the description.

CNC control: Heidenhain TNC 530 Machine 5 simultaneous axes Strokes: X = 730 mm, Y = 560 mm, Z = 560 mm Spindle speed: up to 12,000 rpm Cone: SK40 Feeds: 20 – 20,000 mm/min Fast feeds: 30 m/min Table: 1000 x 600 mm Max load table: 800 kg Tool changer: 24 / 30 positions Machine hours≈ 31,481 h Spindle hours≈ 25,087 h Lots sold as is, unchecked, without tools or tool holders.

Machine number: 71401453 Operating voltage: 400 V Frequency: 50 Hz Rated current: 80 A Connection: 44 kVA Spindle hours read: 26350 Control: MILLPLUS Spindle speed: up to 12000 rpm Feed X/Y/Z axis: 20 - 15000 mm/min Rapid traverse X/Y/Z axis: 40 m/min Displacement measuring system Resolution X/Y/Z axis: 0.001 mm Input gauge X/Y/Z axis: 0.001 mm Position tolerance in X/Y/Z axis: 0.010 mm Travel X-axis: 600 mm Travel Y-axis: 700 mm Travel Z-axis: 600 mm Tool holder: SK 40 incl. 60-fold tool changer Max. tool diameter: 100 mm Max. tool length from spindle nose without tool breakage monitoring: 350 mm NC rotary table Clamping surface: 630 mm Diameter Distance between T-slots: 63 mm Number: 9 Centering bore: 50 mm Diameter Max. rotation of table top: 10.7 rpm Feed: 3600°/min Resolution of the measuring system: 0.001° incl. chip conveyor and cooling system Attention: the machine can be trans ...

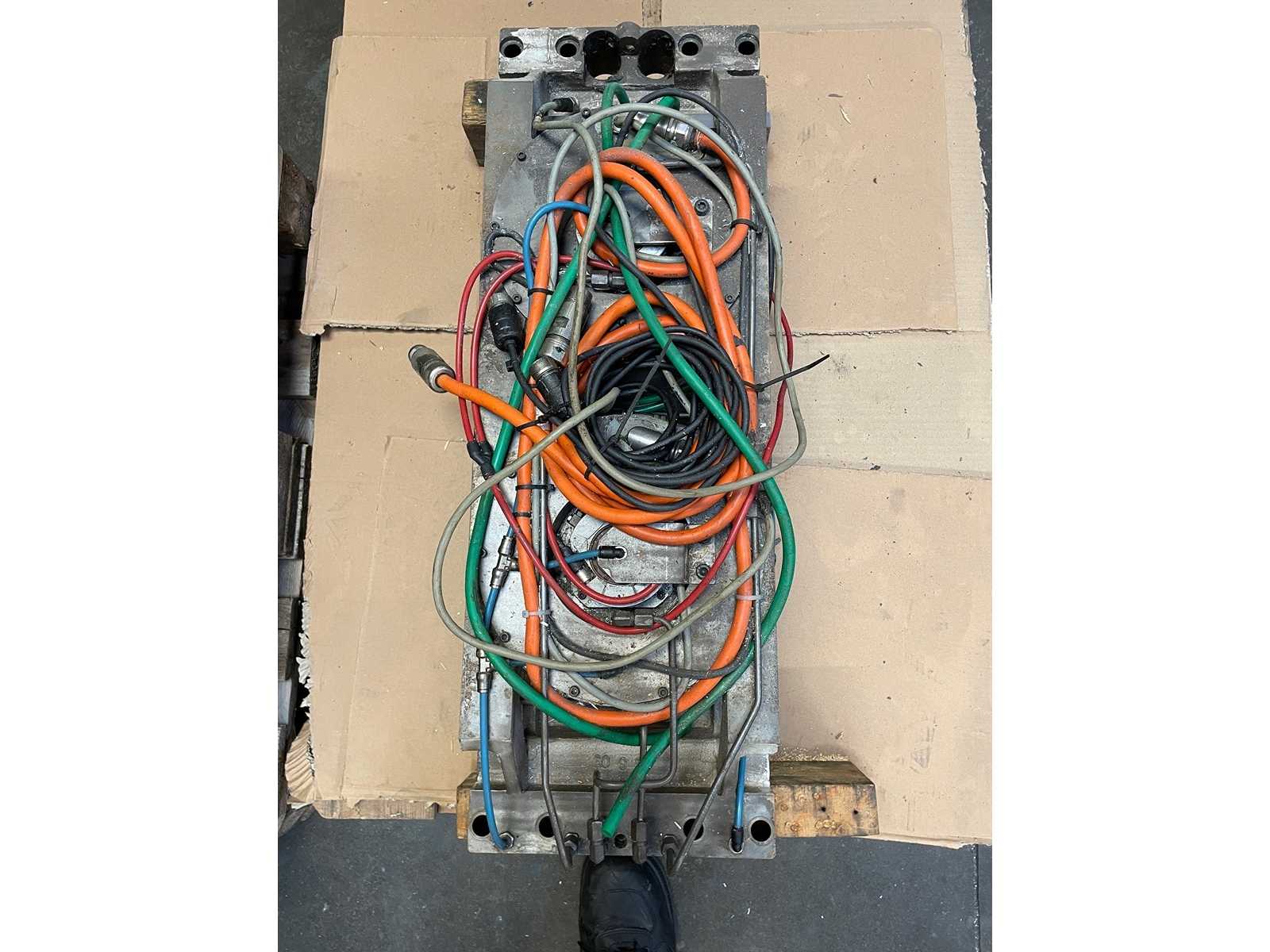

FOR SALE – SW BAS03-X2 2XRDT TMB 5-Axis Table for Machining Center Brand: SW (Schwäbische Werkzeugmaschinen) Model: BAS03-X2 2XRDT TMB Type: 5-axis rotary/tilting table Application: SW Horizontal Machining Center Description Original SW 5-axis table disassembled from a machining center. Complete equipment with electrical harnesses, connectors, hoses and pipes visible in the photo. Designed for machining complex parts requiring simultaneous multi-axis operations (rotation + tilt). Rugged industrial equipment, ideal for: Replacement Retrofit Reconditioning Spare parts ⚙️ Technical characteristics Configuration: 2XRDT TMB Function: Rotation + tilting axis Integrated drive Hydraulic/pneumatic connections Complete industrial connectors High rigidity cast iron construction (Nameplate and detailed specifications on request) Status Dismantled in an industrial environ ...

CNC Control: MAZAK & FANUC L-64 Cutting table: spiked Cutting head: CO₂ laser Suction system: KEMPER with external unit Indicated voltage: 40000 V X-Y-Z axis strokes: 3335 x 1545 x 420 mm A-axis: ±360° B-axis: ±135° Maximum part dimensions: 3050 x 1525 x 22 mm Load capacity: 7.9 kN / 810 kgf Laser power: 4000 W Laser Model: YB-L400A8M Weight: 14600 kg Status: Complete machine with suction unit and accessories Additional information: Sold with an additional laser unit and many spare parts Additional information: Disassembly and loading at the expense of the buyer

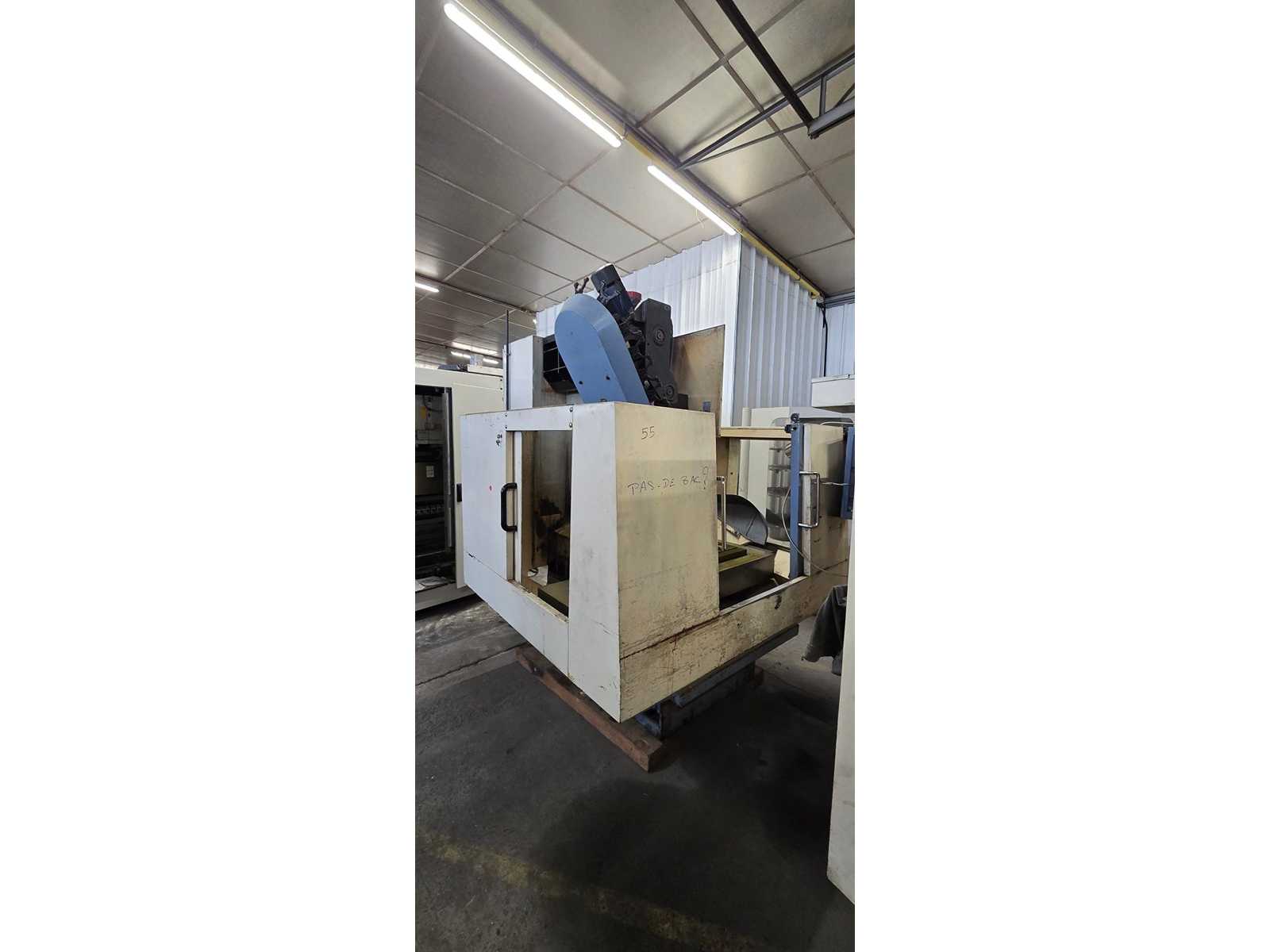

Manufacturer: FAMUP Year: 1998 Type: CNC vertical machining center Numerical control: Heidenhain 410 AC.Strokes : X 1000 mm / Y 470 to 600 mm / Z 470 to 600 mm (according to documentation) Table: 1300 x 520 mm – T-slots 5 x 18 mm (pitch 100 mm) – max. load 800 kg Spindle: ISO 40 DIN 69871 – AC Brushless – 50 to 8000 rpm – 11 kW (30 min) / 7.5 kW S1 Feeds: X/Y/Z 10000 mm/min – X/Y/Z 30000 mm/min fast tool magazine: 24 positions – max. tool diameter 94 mm – max. length 280 mm – max. weight 6 kg – changeover time 3 s Equipment: without spindle center coolant, without chip conveyor, sold without tools Dimensions: 4247 x 3105 x 3310 mm Weight: 6000 kg Lots sold as is, unchecked, without tools or tool holders.
