cnc lathe sinumerik used for sale

KOVOSVIT MAS VCI-D 1270 CNC vertical machining center was built in 2002 in the Czech Republic by KOVOSVIT MAS a.s. In 2022, the machine underwent a complete overhaul. The KOVOSVIT MAS VCI-D 1270 is designed for the precision machining of metal workpieces in industrial plants and toolrooms. It enables milling, drilling and threading using a spindle with a maximum rotational speed of 12000 rpm. The cooling system maintains stable spindle temperature during operation under heavy loads and at high speeds, reducing the risk of thermal deformation. The feed range in the X, Y and Z axes is 1270 mm, 610 mm and 720 mm respectively. The axis drives, based on high-performance HEIDENHAIN motors, ensure high motion dynamics and positioning accuracy. All this is complemented by the intuitive HEIDENHAIN TNC 620 CNC controller, which facilitates the preparation of machining programmes and the oper ...

: neu : ca. 10 Wochen ab Auftrags : Türkei : 84200 € : 1591.38 € : 220 to : 3050 mm : 4 (Y1, Y2, X, R) : 265 mm : 2600 mm : 450 mm : 530 mm : hydraulisch : 140 mm/s : 10 mm/s : 140 mm/s : 650 mm : 500 mm/s : 350 mm/s : 250 mm : 900 mm : 104 mm : 250 l : 22 kW : 4250 mm : 1770 mm : 3000 mm : 12600 kg Standard equipment: 4 axes (Y1, Y2, X, and R) SVP (Servo Variable Pump) Technology SKY 22 CNC control - 21.5” Full HD graphic display with 2D and 3D visualization of the programmed workpiece - Intuitive touch-screen operation (easy drawing of the bending contour using your finger) - User-friendly, interactive programming in either 2D or 3D mode - 2D and 3D simulation of the bending process - Automatic tool selection in 3D mode - Automatic calculation of the developed length for sheet metal blanking - Automatic bending sequence calculation - Graphical product and tool library - Correcti ...

KOVOSVIT MAS MCV 1000 SPEED 5AX CNC vertical machining center was built in 2011 in the Czech Republic by KOVOSVIT MAS a.s. The machine is used for the precision, five-axis machining of metal workpieces with complex geometries. It enables milling, threading and hole drilling. This makes it ideal for the production of moulds and tools, as well as precision components used in the machinery, automotive and aerospace industries. The working area has been designed with convenient operation of the machine in mind. Wide sliding doors provide easy access to the workpieces and facilitate their clamping, whilst the watertight enclosure guards prevent coolant and chips from escaping the machining area. The machining process is performed using a spindle with a maximum rotational speed of 12000 rpm and cutting tools taken from a 30-position magazine. The rotary table, with a diameter of 520 mm, al ...

: neu : ca. 10 Wochen ab Auftrags : Türkei : 106400 € : 2010.96 € : 320 to : 3050 mm : 4 (Y1, Y2, X, R) : 365 mm : 2600 mm : 450 mm : 630 mm : hydraulisch : 160 mm/s : 10 mm/s : 140 mm/s : 650 mm : 500 mm/s : 350 mm/s : 250 mm : 900 mm : 154 mm : 250 l : 37 kW : 4300 mm : 1820 mm : 3330 mm : 17100 kg Standard equipment: 4 axes (Y1, Y2, X, and R) SVP (Servo Variable Pump) Technology SKY 22 CNC control - 21.5” Full HD graphic display with 2D and 3D visualization of the programmed workpiece - Intuitive touch-screen operation (easy drawing of the bending contour using your finger) - User-friendly, interactive programming in either 2D or 3D mode - 2D and 3D simulation of the bending process - Automatic tool selection in 3D mode - Automatic calculation of the developed length for sheet metal blanking - Automatic bending sequence calculation - Graphical product and tool library - Correct ...

Automatic tool grinding machine

: neu : ca. 10 Wochen ab Auftrags : Türkei : 56300 € : 1064.07 € : 60 to : 2050 mm : 4 (Y1, Y2, X, R) : 265 mm : 1700 mm : 450 mm : 530 mm : hydraulisch : 200 mm/s : 10 mm/s : 110 mm/s : 650 mm : 500 mm/s : 350 mm/s : 250 mm : 900 mm : 104 mm : 100 l : 7.5 kW : 3200 mm : 1550 mm : 2850 mm : 5600 kg Standard equipment: 4 axes (Y1, Y2, X, and R) SVP (Servo Variable Pump) Technology SKY 22 CNC control - 21.5” Full HD graphic display with 2D and 3D visualization of the programmed workpiece - Intuitive touch-screen operation (easy drawing of the bending contour using your finger) - User-friendly, interactive programming in either 2D or 3D mode - 2D and 3D simulation of the bending process - Automatic tool selection in 3D mode - Automatic calculation of the developed length for sheet metal blanking - Automatic bending sequence calculation - Graphical product and tool library - Correctio ...

: neu : ca. 10 Wochen ab Auftrags : Türkei : 67200 € : 1270.08 € : 100 to : 3050 mm : 4 (Y1, Y2, X, R) : 265 mm : 2600 mm : 450 mm : 530 mm : hydraulisch : 180 mm/s : 10 mm/s : 120 mm/s : 650 mm : 500 mm/s : 350 mm/s : 250 mm : 900 mm : 104 mm : 100 l : 11 kW : 4200 mm : 1670 mm : 2850 mm : 8500 kg Standard equipment: 4 axes (Y1, Y2, X, and R) SVP (Servo Variable Pump) Technology SKY 22 CNC control - 21.5” Full HD graphic display with 2D and 3D visualization of the programmed workpiece - Intuitive touch-screen operation (easy drawing of the bending contour using your finger) - User-friendly, interactive programming in either 2D or 3D mode - 2D and 3D simulation of the bending process - Automatic tool selection in 3D mode - Automatic calculation of the developed length for sheet metal blanking - Automatic bending sequence calculation - Graphical product and tool library - Correctio ...

The machine must be dismantled and loaded by the buyer himself. The transport and loading equipment that may be required for this purpose must be organized and provided by the buyer himself. The collection must take place by 11.12.2026 at the latest. If the machine has not been picked up by this date, it will be relocated or, if necessary, disposed of at the buyer's expense. machine Manufacturer: MAHO Type: MH 700 C Machine Type: CNC Milling Machine data Travel X/Y/Z: 700 / 450 / 500 mm Tool holder: ISO 40 Quill stroke: 100 mm Speed range: 20–3150 rpm Feed X/Y/Z: 1–3000 mm/min Rapid traverse X/Y/Z: 6 m/min Feed force X/Z: 8000 N, Y: 24000 N Dimensions Weight: approx. 3900 kg Length: 3400 mm Width: 3430 mm Height: 2200 mm Electrical details Voltage: 220/380 V Total connected load: 40 kVA Auction-ID: A7-51502-120

1500 x 2500mm plus reposition 45 Station 4 Index Air Blow system Vacuum slug removal Full brush table Under power and can be inspected. Available via our online auction, closing on 19th January 2027 at 15:00 UK Time.

The machine must be dismantled and loaded by the buyer himself. The transport device and loading are to be organized independently by the buyer. The collection must take place by 11.12.2026 at the latest. If the machine has not been picked up by this date, it will be relocated or, if necessary, disposed of at the buyer's expense. - Maximum workpiece size 5860 x 1300 - AP table - 2 vacuum pumps - Power Edge gluing unit - Power Control PC 85 - Chip conveyor belt with incline conveyor - Barcode reader Page 1 - Main spindle 18.5 KW with C-axis - Drill Head Vertical 17 Drill Bit (7in X / 11 in Y) / Horizontal 4 Drill Bit with Saw 0/90° - Plate changer 18 - Sawing and cross-cutting unit - Drilling and milling unit - Corner notching unit - Blow-off nozzle Page 2 - Main spindle 18.5 KW with C-axis - Drill Head Vertical 17 Drill Bit (7in X / 11 in Y) / Horizontal 4 Drill  ...

Bridgeport Interact 1 CNC Milling Machine Type: CNC milling machine Manufacturer: Bridgeport Model: Interact 1 X-axis travel: 457 mm Y-axis travel: 305 mm Z-axis travel: 365 mm T-slot table size: 410 x 1065 mm Speed range: up to 4000 rpm Machine weight: 1600 kg Dimensions (L x W x H): approx 1700 x 1300 x 2300 mm Functionality not tested This item is delivered loaded on truck. Dismantling and loading costs are specified as additional costs. Auction-ID: A1-51153-19

1 control MS1000. Auction-ID: A1-51529-142

Control: Mazatrol M-32. 2 changing tables (automatic), 1 machine vice, 1 chip conveyor. With accessories, including clamping material, approx. 24 tools (SK50) and 1x 3D stylus. Device does not start after about a year of idleness, probably buffer batteries! Test run not possible. Auction-ID: A1-51529-50

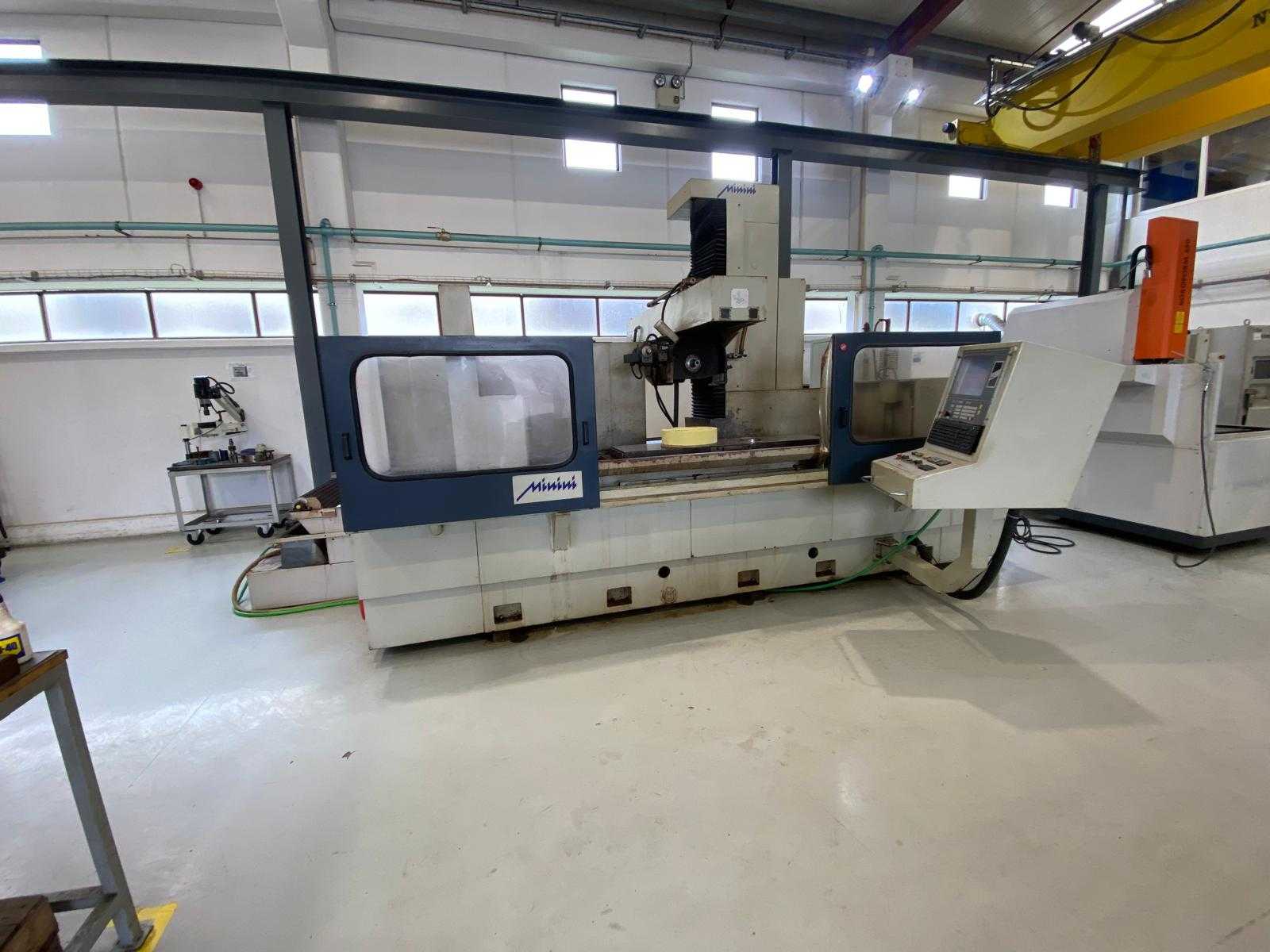

MININI large surface grinding machine with guarding and control panel. Magnetic chuck. Travels 1800 mm x 800 mm Exact model, grinding capacity, coolant system approx. 4500 x 2500 x 2600 Auction-ID: A1-51153-8

Bridgeport INT 412X CNC Vertical Machining Centre Type: CNC vertical machining centre Manufacturer: Bridgeport Model: INT 412X Year of manufacture: 1991 Serial number: 76159 Taper: ISO 40 X-axis travel: 450 mm Y-axis travel: 310 mm Z-axis travel: 300 mm Speed range: 4,000 - 6,000 rpm Workpiece weight max.: 250 kg T-slot fixture table size: 840 x 320 mm Motor power: 5.5 kW Approx. machine dimensions (L x W x H): 1,900 x 2,100 x 2,300 mm Approx. machine weight: 2,200 kg Automatic Tool Changer (ATC), typically 12 tools. Max. tool diameter approx. 75 mm. Functionality not tested This item is delivered loaded on truck. Dismantling and loading costs are specified as additional costs. Auction-ID: A1-51153-18

Novar KBA-1400 Machining Center Manufacturer: Novar Model: KBA-1400 Equipment type: Machining Center Serial number: 369 Control: NCT Heavy-duty machining center designed for precision milling, drilling, boring and general machining of medium-to-large metal workpieces. Technical specifications: X-axis travel: 1,200 mm Y-axis travel: 700 mm Z-axis travel: 800 mm Spindle / tool interface: SK40 Equipment / features: NCT control unit CNC-controlled axes SK40 spindle Heavy-duty machine structure Worktable Operator control panel Approx. dimensions (L × W × H): 3,500 × 2,800 × 2,800 mm Approx. weight: 6,000 kg Condition: Used. Main machine structure, worktable and NCT control appear present. Spindle, axis movements, feeds, lubrication/coolant systems, control functions and machining accuracy should be verified before operation. Auction-ID: A7-51510-8

Okamoto ACC818NC Grind-X Precision Surface Grinding Machine Type: CNC surface grinding machine Manufacturer: Okamoto Model: ACC818NC – Grind-X Year of build: 2019 Serial number: Not visible Control: CNC Application: Precision surface grinding Power supply: 3 phase, 200 V, 50 Hz Control circuit: AC100 / DC24 V Total power: Approx. 9 kVA / 6.5 kW Main motor power: Approx. 2.2 kW Maximum load current: 30 A Short circuit interrupting capacity: 5 kA Installation dimensions: approx. 2105 x 1611 x 2233 mm Machine weight: approx. 1800 kg Grinding capacity: Maximum workpiece length: approx. 450 mm Maximum workpiece width: approx. 200 mm Maximum grinding height: approx. 350 mm Functionality not tested This item is delivered loaded on truck. Dismantling and loading costs are specified as additional costs. Auction-ID: A1-51153-33

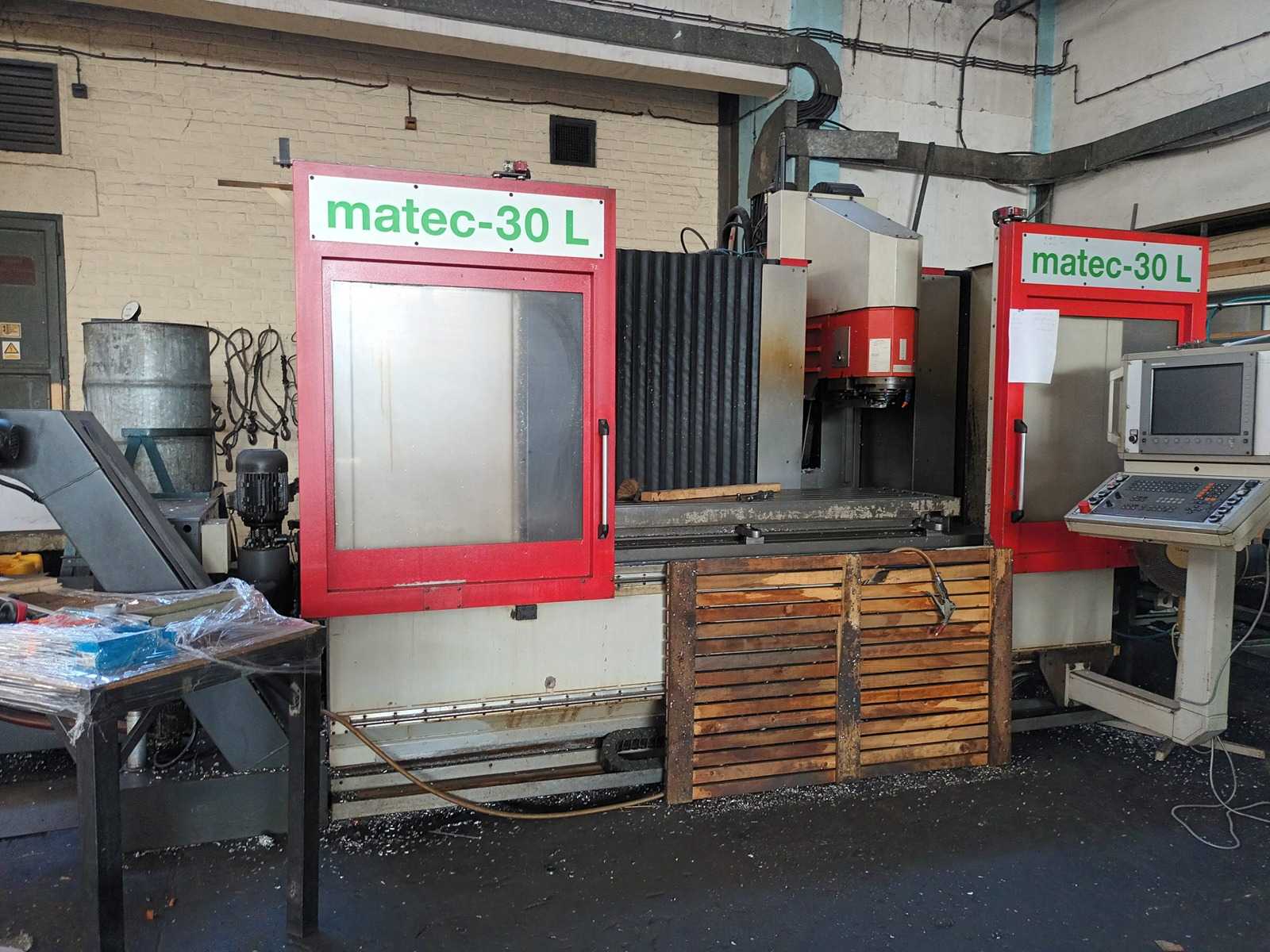

Matec 30 L CNC Vertical Machining Center Manufacturer: Matec Model: 30 L Equipment type: CNC Vertical Machining Center Serial number: 314 Heavy-duty CNC vertical machining center designed for milling, drilling, boring, tapping and precision machining of medium-to-large metal workpieces. Technical specifications: X-axis travel: 2,000 mm Y-axis travel: 650 mm Z-axis travel: 650 mm Tool interface: SK40 Equipment / features: Heidenhain TNC 426/430CB CNC control visible CNC-controlled X/Y/Z axes Automatic multi-position tool changer / magazine Large T-slotted worktable Enclosed machining area Coolant system Operator control panel Approx. dimensions (L × W × H): 4,200 × 3,000 × 3,000 mm Approx. weight: 7,000 kg Condition: Used. Main machine structure, worktable, tool magazine and CNC control appear present. Spindle, axis movements, automatic tool chang ...

Manufacturer Nicolás Correa SA, Spain Door Design A-10 Year of manufacture 1989 Registration/machine identification 9562807 Machine type CNC bed-type milling machine X-axis travel 1,300 mm Transverse travel 630 mm Vertical travel 630 mm Table size 1,700 × 630 mm Spindle taper ISO 50 Spindle speed range 80-3,150rpm Spindle motor power 16 kW Table load capacity 3,000 kg machine weight 9,000 kg Auction-ID: A1-51153-77

Mecof CS500 High Rotation CNC Head Type: High-speed CNC milling head Manufacturer: Mecof Model: CS500 Year of build: 2012 Functionality not tested This item is delivered loaded on truck. Dismantling and loading costs are specified as additional costs. Auction-ID: A1-51153-62

Cleancut EDM650 CNC Wire EDM & Eroding Machine Type: Wire EDM and eroding machine Manufacturer: Cleancut Model: EDM650 CNC Year of manufacture: 1999 Serial number: 904669 Electric connection: 380 V / 50-60 Hz Amps: 150 A Functionality not tested This item is delivered loaded on truck. Dismantling and loading costs are specified as additional costs. Auction-ID: A1-51153-17

turning diameter:120 mm turning length:100 mm control:Fanuc Spindle 1 power:7,5 kW Spindle 1 RPM:4500 1/min Spindle 2 power:7,5 kW Spindle 2 RPM:4500 1/min Distance between spindle noses:600 mm Turret No.1 stations / rotary tools:15/15 Power rotary tools turret 1:2,7 kW RPM of rotary tools turret 1:4000 1/min Turret No.2 stations / rotary tools:15/15 Power rotary tools turret 2:2,7 kW RPM of rotary tools turret 2:4000 1/min Travel x/z turret 1:250 / 300 mm Travel x/z turret 2:250 / 920 mm Bar capacity spindle 1:51 mm Bar capacity spindle 2:51 mm power chuck:165 mm Spindle bore sp. 1:62 mm Spindle bore sp. 2:62 mm dimensions of the machine ca.:3700 x 2300 x 3000 mm weight of the machine ca.:5600 kg Used CNC-2-spindle CNC turning and milling center with gantry loader - 2x 15 station turret -automatic gantry loader with turnaround station. 14 station-magazin right side Max. Parts size Ø 12 ...

turning diameter:370 mm turning length:200 mm Spindle 1 RPM:4000 1/min control:Siemens 840 D Spindle 2 RPM:4000 1/min power capacity:L / R 18/24 kW max. torque on the spindle:630 nM C-Axis:0,001° Turret No.1 stations / rotary tools:12/12 VDI 40 Turret No.2 stations / rotary tools:12/12 VDI 40 turning speed range - milling:3000 1/min power capacity - milling spindle:8,8 kW torque rotary tools:28 Nm Bar capacity spindle 1:85 mm total power requirement:65 kVA weight of the machine ca.:13 t dimensions of the machine ca.:5,7x2,4x2,1 m Travel x1:260 mm Travel x2:260 mm Travel Y1:600 mm Travel y2:600 mm Power Chuck:2 x 250 mm manual tool eye:l & r High performance 6-axis subspindle CNC-Lathe with twin turren and rotating tools.

standard turning dia.:200 turning length:max. 810 mm control:MSX-701 MAPPS IV greates pass round over bed:800 mm Max. distance between centres:1130 mm max. turning diameter:320 mm max. workpiecediameter:300 mm bar material dia.:65 mm Traverse X-Axis 1:210 Traverse X-Axis 2:210 mm Traverse X-Axis 3:210 mm Traverse Y-Axis 1:110 (+65/-45) mm Traverse Y-Axis 2:110 (+45,/-65) mm Traverse Z-Axis 1:300 mm Traverse Z-Axis 3:300 mm Traverse Z-Axis 2:810 mm Traverse B-Axis:870 mm turning speed range - spindle:5.000 1/min Number of spindle speed ranges:2 . spindle nose:JIS A2-6 spindle bore:73 mm spindle bearing diameter:120 mm C-Axis:0,001 ° turning speed range - spindle:5.000 1/min spindle nose:JIS A2-6 spindle bore:73 mm bar material dia. max:65/52 mm spindle bearing diameter:120 mm C-Axis:0,001 ° Number of Turrets:3 . Number of tool stations:16 x 3=48 pos Schank height for square tool:20 mm D ...

turning diameter:640 / 400 mm turning length:1500 mm control:Siemens 840 D Powerline Travel turret No.1 (milling spindle) x/y/z:550 / 180 (±90) / 1585 mm Swivle angle milling spindle (B-axis):±120° interpol. ° Rapid traverse feeds turret 1 (milling head) x/y/z:40/24/60 m/min RPM milling spindle:12000 1/min power capacity - milling spindle:12 / 23 kW Torque of milling spindle:100 Nm Tool magazine for milling spindle (turret 1):120 HSK-A 63 Tool change time tool/tool, milling spindle:1,6 s Spindle 1 RPM:4000 1/min Spindle 1 power:36/ 45 kW Spindle 1 Torque:730 Nm Spindle 1 max. bar diameter:90 Spindle 2 RPM:4000 1/min Spindle 2 power:36 / 45 kW Spindle 2 torque:730 Nm Spindle 2 max. bar diameter:90 c-axis:0,001 ° Travel turret 2 x:225 mm Travel Turret 2 z:1595 mm RPM of rotary tools turret 2:4000 1/min no. of tools in turret 2:12 VDI 40 high-pressure pump:20 bar total power requiremen ...

turning diameter:500 mm turning length:1000 mm control:Siemens 840 D spindle:42 / 28 kW spindle turning speed - stepless:31 - 4000 1/min max. torque on the spindle:345 Nm c-axis:360000 x 0,001° feeds -stepless-:0 - 10000 mm/min rapid traverse:10000 mm/min turret stations / rotary tool stations:12/12 VDI 40 RPM of rotary tools:2000 1/min diameter of quill:90 mm quill stroke:80 mm tailstock quill taper ISO:SK 30 Tailstock Travel:600 mm Power rotary tools:3,5 kW :22,5 Nm Rotary tool holders:4 ax./ 4 rad. spindle passage:66 mm total power requirement:30 kW weight of the machine ca.:7,5 t dimensions of the machine ca.:8x 3 x 4 m

standard turning dia.:200 turning length:max. 810 mm control:MSX-701 MAPPS III greates pass round over bed:800 mm Max. distance between centres:1130 mm max. turning diameter:320 mm max. workpiecediameter:300 mm bar material dia.:65 mm Traverse X-Axis 1:210 Traverse X-Axis 2:210 mm Traverse X-Axis 3:210 mm Traverse Y-Axis 1:110 (+65/-45) mm Traverse Y-Axis 2:110 (+45,/-65) mm Traverse Z-Axis 1:300 mm Traverse Z-Axis 3:300 mm Traverse Z-Axis 2:810 mm Traverse B-Axis:870 mm turning speed range - spindle:5.000 1/min Number of spindle speed ranges:2 . spindle nose:JIS A2-6 spindle bore:73 mm spindle bearing diameter:120 mm C-Axis:0,001 ° turning speed range - spindle:5.000 1/min spindle nose:JIS A2-6 spindle bore:73 mm bar material dia. max:65/52 mm spindle bearing diameter:120 mm C-Axis:0,001 ° Number of Turrets:3 . Number of tool stations:16 x 3=48 pos Schank height for square tool:20 mm  ...

turning diameter:410 mm turning length:500 mm control:Fanuc 21i TB standard turning diameter:275 mm travel -x axis:277 mm travel -y axis:82 (±41) mm travel -z axis:500 mm Spindle 1 RPM:4500 1/min Spindle 1 Power:18,5/18,5/15 kW Spindle 1 max. bar diameter:65 mm turret stations / rotary tool stations:12/12 Power rotary tools:5,5 kW RPM of rotary tools:6000 1/min total power requirement:39,2 kVA weight of the machine ca.:6,2 t dimensions of the machine ca.:3,1 x 2,0 x 2,2 m collet chuck:Hainbuch High precision Turning and Milling Centre with Y-axis. Machine was running with oil, not coolant. A fire extinguisher system is installed.

max. turning diameter:350 mm turning length:1040 mm control:OSP E 100 L Fanuc greates pass round over bed:550 mm Max. distance between centres:1200 mm max. workpiecediameter:550 mm Traverse X-Axis 1:270 Traverse X-Axis 2:230 mm Traverse Y-Axis 1:120 (±60) mm Traverse Z-Axis 1:930 mm Traverse Z-Axis 2:920 mm Spindle 1 Power:22 / 15 kW Spindle 1 RPM:5000 1/min spindle nose:JIS A2-8 bar material dia.:65 mm C-Axis:0,001° Number of Turrets:2 Turret No.1 stations / rotary tools:12/12 VDI 40 Turret 1 tool RPM:4500 1/min Turret 1 power rotary tools:7.0 / 3,3 kW Turret No.2 stations / rotary tools:12/12 VDI 40 Turret 2 tool RPM:4500 1/min Turret 2 power rotary tools:7.0 / 3,3 kW rapid traverse X-axis:30 m/min rapid traverse Y-axis:26 m/min rapid traverse Z-axis:40 m/min total power requirement:33 kVA weight of the machine ca.:10 t dimensions of the machine ca.:7,0 x 2,3 x 2,3 m spindle load m ...

max. turning diameter:320 mm turning length:1040 mm control: OSP E 100 L Dialog Fanuc greates pass round over bed:530 mm standard turning dia.:350 Max. distance between centres:1200 mm max. workpiecediameter:525 mm Traverse X-Axis 1:500 Traverse X-Axis 2:350 mm Traverse Y-Axis 1:160 (+80/-80) mm Traverse Z-Axis 1:1200 mm Traverse Z-Axis 2:1200 mm Spindle 1 Power:22 kW Spindle 1 RPM:3800 1/min spindle nose:JIS A2-8 spindle bore:80 mm bar material dia.:65 mm C-Axis:0,001° Number of Turrets:2 Turret No.1 stations / rotary tools:12/12 Turret 1 tool RPM:4500 1/min Turret No.2 stations / rotary tools:12/12 rapid traverse X-axis:20 m/min rapid traverse Z-axis:25 m/min total power requirement:33 kVA weight of the machine ca.:10 t dimensions of the machine ca.:6,0 x 2,5x 2,3 m High pressure coolant system:INterlit 8/20 bar spindle load monitor:B Spindle 1 Chuck:SMW 300 mm CNC Turning-and Milli ...

turning diameter:270 mm turning length:710 mm weight of the machine ca.:6,5 t max. swing diameter:590 mm with automatic loading and unloading system G300 with "spindle bore clamping capacity 90mm" in tailstock version The machine has no driven tools. The information in the circuit diagram refers to the rotary drive for indexing the turret, not to driven tools.

turning diameter:270 mm turning length:710 mm weight of the machine ca.:6,5 t max. swing diameter:590 mm with live tools:VDI40 Live tooling VDI40 with automatic loading and unloading system G300 with "spindle bore clamping capacity 90mm" in tailstock version Chip conveyor, belt filter press, hydraulic unit, as well as infeed and outfeed chain conveyor EWAP, with 33 pallets. The machine has no driven tools. The information in the circuit diagram refers to the rotary drive for indexing the turret, not to driven tools.

turning diameter:270 mm turning length:710 mm weight of the machine ca.:6,5 t max. swing diameter:590 mm with automatic loading and unloading system, chip conveyor G300 with "spindle bore clamping capacity 90mm" in tailstock version The machine has no driven tools. The information in the circuit diagram refers to the rotary drive for indexing the turret, not to driven tools.

turning diameter:120 mm turning length:650 mm weight of the machine ca.:11 t dimensions of the machine ca.:5,032 x 3,048 x 2,445 m Gildemeister MF Twin 65-II lathe with loading automation. This machine is suitable as a counter spindle machine for 4-axis machining on the main and counter spindles, complete machining (turning, drilling, milling, Y-axis, B-axis) of bar and shaft parts.

turning diameter:120 mm turning length:650 mm weight of the machine ca.:11 t dimensions of the machine ca.:5,032 x 3,048 x 2,445 m max. swing diameter:250 mm Gildemeister MF Twin 65-II lathe with loading automation. This machine is suitable as a counter spindle machine for 4-axis machining on the main and counter spindles, complete machining (turning, drilling, milling, Y-axis, B-axis) of bar and shaft parts.

turning diameter:200 mm turning length:600 mm capacity X-axis:190 mm capacity Z-axis:555 mm double spindle units: spindle distance:800 mm spindle drive:Links (40/100%ED): 18/14 kW spindle turning speed range:31-6300 U/min spindle drive:Rechts (40/100%ED): 18/14 kW spindle turning speed range:31-6300 U/min speeds of tool:2x12 Werkzeuge: 7/5 KW, 40-4200 U/min dimensions of the machine ca.:5,032 x 3,048 x 2,445 m weight of the machine ca.:6500 Kg Gildemeister MF Twin 65-II lathe with loading automation. This machine is suitable as a counter spindle machine for 4-axis machining on the main and counter spindles, complete machining (turning, drilling, milling, Y-axis, B-axis) of bar and shaft parts.

turning diameter:33 mm turning length:330 mm control: 840 total power requirement:20 kW weight of the machine ca.:6 t dimensions of the machine ca.:3850,2000,2100 m 17 axes 3 revolvers with the powered tools 1 gantry with the driven tools Main and counter spindle with C axes Barfeeder Machine On-time 58,133 hours

turning diameter:220 mm turning length:- mm control:- distance between milling spindels:800 mm spindle speed max.:12.000 U/min daylight:66 mm machine weight ab.:11 t total power requirement:90 kVA Fanuc control Two turrets Two spindles Spindle bore 66 mm on both spindles Two Y-axes Parts gripper Hainbuch chuck on both spindles Tailstock function Chip conveyor Tool eye Short bar loader Tool holder package

travel -x axis:800/1825 mm travel -y axis:800/460 mm travel -z axis:600 mm Feeding X,Y,Z up to:0 - 40/40/40 mm/min. swival range +/-:+10 bis -90 x 360 Grad Rotary-table:800 x 630 mm number of T-slots:5 T-slot - distance:125 mm T-Slots:18 mm center hole:30H7X15 mm swival range +/-:90 Grad turning speed:20 m/min. Number of axles:3-7 St. Spindle RPM:12.000 1/min max. tool weight:10 kg max. tool length:330 mm diameter of tools max.:80 mm tool changing time:4 sec CNC control with 15.1" color flat-screen 19" machine control panel PCU 50 with Intel Pentium II Windows XP 10.0 GB hard drive

turning diameter:275 mm turning length:900 mm spindle passage:65 mm power capacity at 100 % load:25/20 kW spindle turning speed range:1 - 5000 U/min spindle diameter in front bearing:110 mm c-axis:1 - 500 U/min. number of workpiece supports:4 tool turret:1 x-axis:290 mm y-axis:165 mm z-axis:360 mm b-axis:360 ° rapid speed:18/30 m/min number of tools:2x2 + 2x2 number of driven tools:2x2 + 2x2 mm toolpiece turning speed range:8000 / 2000 U/min power capacity:25% ED 5,8 kW tool taper:TRAUB 60 tool turret:2/3/4 x-axis:170 mm z-axis:600/950 mm y-axis:+/- 60 mm rapid speed:18/15/30 m/min number of driven tools:10 mm toolpiece turning speed range:1 - 6000 U/min power capacity:25% ED 5,8 kW tool taper:DIN 69880 40 x 63 total power requirement:95 kW weight of the machine ca.:16 t dimensions of the machine ca.:10,0 x 3,5 x 3,0 m with CNC TRAUB TX 8i, Barloader TRAUB Stamag DNH61 / 3000, Main and  ...

: neu : ca. 12 - 14 Wochen ab Auf : Türkei : 244500 € : 600 to : 6050 mm : 4 (Y1, Y2, X, R) : 365 mm : 5100 mm : 510 mm : 700 mm : hydraulisch : 80 mm/s : 6,5 mm/s : 80 mm/s : 1000 mm : 350 mm/s : 300 mm/s : 250 mm : 990 mm : 154 mm : 280 l : 2 x 11 kW kW : 7600 mm : 2650 mm : 3950 mm : 52500 kg Standard equipment: 4 axes (Y1, Y2, X, and R) SVP (Servo Variable Pump) Technology SKY 22 CNC control - 21.5” Full HD graphic display with 2D and 3D visualization of the programmed workpiece - Intuitive touch-screen operation (easy drawing of the bending contour using your finger) - User-friendly, interactive programming in either 2D or 3D mode - 2D and 3D simulation of the bending process - Automatic tool selection in 3D mode - Automatic calculation of the developed length for sheet metal blanking - Automatic bending sequence calculation - Graphical product and tool library - Correction/adj ...

: neu : ca. 10 Wochen ab Auftrags : Türkei : 95900 € : 1812.51 € : 220 to : 4050 mm : 4 (Y1, Y2, X, R) : 265 mm : 3600 mm : 450 mm : 530 mm : hydraulisch : 160 mm/s : 10 mm/s : 140 mm/s : 650 mm : 500 mm/s : 350 mm/s : 250 mm : 900 mm : 104 mm : 250 l : 22 kW : 5250 mm : 1770 mm : 3000 mm : 14750 kg Standard equipment: 4 axes (Y1, Y2, X, and R) SVP (Servo Variable Pump) Technology SKY 22 CNC control - 21.5” Full HD graphic display with 2D and 3D visualization of the programmed workpiece - Intuitive touch-screen operation (easy drawing of the bending contour using your finger) - User-friendly, interactive programming in either 2D or 3D mode - 2D and 3D simulation of the bending process - Automatic tool selection in 3D mode - Automatic calculation of the developed length for sheet metal blanking - Automatic bending sequence calculation - Graphical product and tool library - Correcti ...

: neu : ca. 10 Wochen ab Auftrags : Türkei : 116800 € : 2207.52 € : 320 to : 4050 mm : 4 (Y1, Y2, X, R) : 365 mm : 3600 mm : 450 mm : 630 mm : hydraulisch : 160 mm/s : 10 mm/s : 140 mm/s : 650 mm : 500 mm/s : 350 mm/s : 250 mm : 900 mm : 154 mm : 250 l : 37 kW : 5300 mm : 1910 mm : 3330 mm : 20000 kg Standard equipment: 4 axes (Y1, Y2, X, and R) SVP (Servo Variable Pump) Technology SKY 22 CNC control - 21.5” Full HD graphic display with 2D and 3D visualization of the programmed workpiece - Intuitive touch-screen operation (easy drawing of the bending contour using your finger) - User-friendly, interactive programming in either 2D or 3D mode - 2D and 3D simulation of the bending process - Automatic tool selection in 3D mode - Automatic calculation of the developed length for sheet metal blanking - Automatic bending sequence calculation - Graphical product and tool library - Correct ...

: neu : ca. 14 - 16 Wochen ab Auf : Türkei : 164300 € : 3105.27 € : 400 to : 4050 mm : 4 (Y1, Y2, X, R) : 365 mm : 3400 mm : 510 mm : 630 mm : hydraulisch : 140 mm/s : 8 mm/s : 120 mm/s : 1000 mm : 350 mm/s : 300 mm/s : 250 mm : 1050 mm : 154 mm : 500 l : 37 kW : 5750 mm : 2110 mm : 3640 mm : 27760 kg Standard equipment: 4 axes (Y1, Y2, X, and R) SVP (Servo Variable Pump) Technology SKY 22 CNC control - 21.5” Full HD graphic display with 2D and 3D visualization of the programmed workpiece - Intuitive touch-screen operation (easy drawing of the bending contour using your finger) - User-friendly, interactive programming in either 2D or 3D mode - 2D and 3D simulation of the bending process - Automatic tool selection in 3D mode - Automatic calculation of the developed length for sheet metal blanking - Automatic bending sequence calculation - Graphical product and tool library - Correc ...

: neu : ca. 14 - 16 Wochen ab Auf : Türkei : 164300 € : 3105.27 € : 400 to : 6050 mm : 4 (Y1, Y2, X, R) : 365 mm : 5100 mm : 510 mm : 630 mm : hydraulisch : 120 mm/s : 8 mm/s : 100 mm/s : 1000 mm : 350 mm/s : 300 mm/s : 250 mm : 1220 mm : 154 mm : 250 l : 37 kW : 7500 mm : 2110 mm : 3810 mm : 34660 kg Standard equipment: 4 axes (Y1, Y2, X, and R) SVP (Servo Variable Pump) Technology SKY 22 CNC control - 21.5” Full HD graphic display with 2D and 3D visualization of the programmed workpiece - Intuitive touch-screen operation (easy drawing of the bending contour using your finger) - User-friendly, interactive programming in either 2D or 3D mode - 2D and 3D simulation of the bending process - Automatic tool selection in 3D mode - Automatic calculation of the developed length for sheet metal blanking - Automatic bending sequence calculation - Graphical product and tool library - Correc ...

L + Z lathe HOLZMANN type ED 914GNMasch. No. 20265 Year of construction 2006Center width 800 mmTurning diameter over bed 300 mmCenter height over bed 150 mmTurning diameter over support 190 mmCenter height over support 95 mmSpindle bore 38 mmSpindle speed 70 - 1400 rpm. 9 stepsFeed longitudinal and flatChuck flange Short taper DIN 55029 D1-4 Camlock 63 mmTailstock inner taper MK 3Drive power 1.5 kWNet connection 400 volts, 50 Hz- Spindle speed over 9 gear stages - 4-jaws

Technical data: Completely overhauled in 2001 Circulation diameter over bed: 1000 mm Diameter in recess: 1120 mm Circulation diameter over bed slide: 690 mm max. height above floor: 1110 mm max. height above bed: 460 mm Bed width: 800 mm Width of recess in front of the plan disc: 550 mm

Tip height: 330 mm centre distance: 1500 mm circular diameter: bed 690 mm spindle bore: 82 mm spindle retainer: short taper size 8 taper tailstock: 6 MK spindle speed: 7.1-1400 rpm feeds: longitudinal/plan 0.05 112/0.025 56 mm / U thread pitches: 0.25-560 mm electrical connection: 380 V, 15 kW space: 3350 x 1800 x 1400 mm weight: 4800 kg

Tip height: about quilt 300 mm centre distance: 1500 mm circular diameter: upper bed 640 mm spindle bore: 67 mm spindle retainer: Gr. 8 taper tailstock: 5 MK spindle speed: 18 - 900 rpm feeds: longitudinal/plan 0.063 0.032 2.1 mm / U thread pitches: 0.5-14 mm electrical connection: 380 V, approx. 7.5 kW space: 1550 x 3100 x 1250 mm weight: approx. 3500 kg hardly used and therefore well-preserved bed lathe

Made in Italy machine according to DIN 8606 Tip height: 260 mm Turning diameter over bed: 520 mm Swing over carriage: 300 mm Centre distance: 1500 mm Bed width: 400 mm Spindle bore: 82 mm Spindle nose: Camlock 8 " Spindle speeds: (24) 9-1600 rpm (option 11-2000 U/min) Engine output: 5.5 kW (option: 7.5 kW) feed Z-axis: (93) 0.028 6.43 mm / Rev Feed x axis: (93) 0.012 2.73 mm / Rev Thread, metric: (54) 0.5-224 mm Thread, Witworth: (55) 72 - 1/8 TPI Thread, module: (54) 0.5-112 mm Thread, Diametral Pitch: (54) 64 - 1/4 D.P.. Cross slide Lxw: 650 x 230 mm Transversal carriage stroke: 340 mm Upper carriage Lxw: 350 x 150 mm Upper carriage stroke: 150 mm Tailstock Quill diameter: 85 mm Tailstock Quill stroke: 200 mm Tailstock taper: MK 5 Weight: 3,100 kg Facilities: -Movement of the tailstock pneumatically supported -Acceptance Protocol according to DIN 8605, ...
