cnc lathe sinumerik used for sale

HAAS ST-20 DATA SHEET (MOTORIZED) Control: Haas CNC (Fanuc/ISO compatible) Max rotation diameter: 533 mm Max turning diameter: 381 mm Max turning length: 533 mm Bar Passage: 51 mm (or 64 mm Big Bore) Main Spindle: 4000 RPM / A2-6 Turret: 12 BMT65 stations (all motorized) Driven tool speed: 6000 RPM C-axis: Integrated radial positioning Rapid (X, Z): 24 m/min Overall dimensions: 3300 x 1800 x 1900 mm Machine weight: 4100 kg Scope of delivery: 15\" monitor, 1 GB memory, cooling system Complete with books and motorized aggregates Auction-ID: A7-44885-13

FANUC control, complete with chip conveyor, manuals present Auction-ID: A7-44885-23

Working Capacity: Maximum Rotating Diameter: Approx. 650 - 700 mm Maximum turning diameter: Approx. 550 mm Maximum turning height: Approx. 400 mm Autocratic Capacity: Usually mounted with 12\" (305 mm) or 15\" chuck Spindle speed: Typically up to 2,000 - 2,500 rpm Spindle attachment: A2-11 Engine: High torque for heavy duty machining (typically around 18.5 - 22 kW) FANUC Series 18-T Control Tool stations: 10 or 12 position automatic turret \"R\" configuration: version with live tools (BMT) and C-axis, allowing off-axis drilling and milling operations Guides: Integral prismatic guides for maximum rigidity and vibration damping during interrupted cuts Auction-ID: A7-44885-3

FANUC control, with chip conveyor Auction-ID: A7-44885-27

Maximum Turning Diameter: 390 mm Maximum Turning Length (L Version): 680 mm Self-centering diameter: 250 mm (10\") Bar Passage (Version C): 76 mm Spindle Speed: Up to 3,500 rpm (high torque) Spindle nose mount: A2-8 Total Machine Weight: Approx. 5,200 kg Floor Dimensions (W x D): Approx. 3,350 x 1,700 mm Maximum Height: 1,900 mm Auction-ID: A7-44885-5

Technical characteristics: Control type: FANUC Number of pins: 2 Chuck diameter: 2 x 165 mm Number of tools per turret: 2 x 10 Maximum speed: 3,500 rpm X/Z Fast Forward: 24 m/min X/Z axis travel: 190 / 170 mm Auction-ID: A1-44765-645

Manufacturer: HARDINGE Year: 2005 Type: CNC Motorized Tool Lathe with C-Axis Numerical Control: FANUC 21i-TB Bar Capacity: Ø 51 mm Max. Turning Circle: Ø 310 mm Max. Turning Length: 470 mm Chuck: Ø 200 mm (8\") Bed Inclination: 45° Spindle: 50–5,000 rpm – 18.5 kW (max) / 11 kW (continuous) Turret: 12 stations, all motorable positions Motorized implements: 4,000–5,000 rpm – 3.7 kW Fast feeds: X/Z 19 / 24 m/min Accuracy: ±0.005 mm Included equipment: Programmable C-axis (0.001°), IEMCA Boss 545 bar feeder Weight (kg): approx. 4200 Auction-ID: A1-44765-272

CNC lathe for turning and machining metal parts. CNC control: Fanuc 16 T AA Max. turning diameter: 165 mm Turning length: 100 – 340 mm Diameter above bed: 220 mm Main spindle speed: 50 – 5,000 rpm Main spindle power: 5.5 / 7.5 kW Main spindle bar passing: 65 mm Sub-spindle speed: 50 – 5,000 rpm Sub-spindle power: 3.7 / 5.5 kW Sub-spindle bar passage: 42 mm C-axis: 0.001° Turrets: 2 Tool positions: 2 × 16 Motorized tools: 2 × 16 positions Strokes: X 175 mm / Z 240 – 680 mm Total power: 41 kVA Dimensions (mm): 3,500 × 2,800 × 2,000 Weight (kg): 5,500 Auction-ID: A1-44765-236

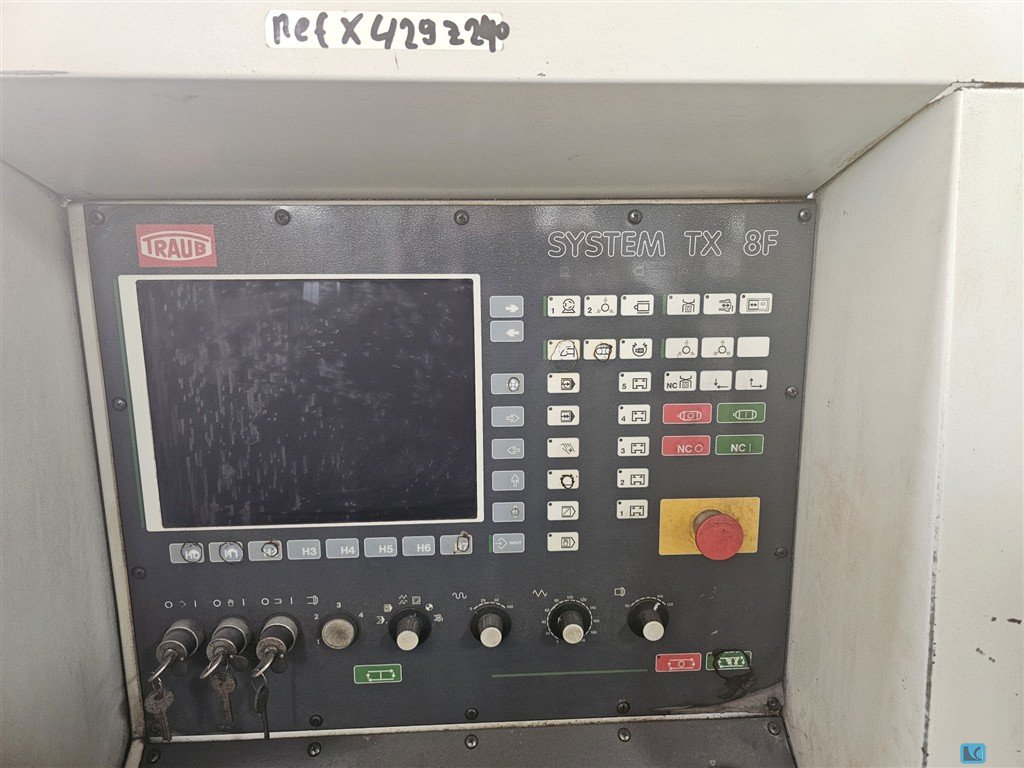

CNC lathe for turning and machining metal parts. CNC control: Traub TX 8 Max. turning circle: 275 mm Max. turning length: 450 mm Bar pass: 65 mm Chuck diameter: 210 / 250 mm Bench inclination: 40° Spindle speed: 0 – 4,000 rpm Spindle nose: A2-6 Spindle motor power: 11 / 18.5 kW C-axis: 0.001° with hydraulic brake Turret: 12 positions VDI 30 Motorized tools: 4,000 rpm – 4.4 kW Fast feeds: X 15 m/min / Z 20 m/min Auction-ID: A1-44765-241

2-axis CNC lathe with HAAS CNC Manufacturer: HAAS Model: HL-2 Year: 1997 Serial Number: 61212 Max turning diameter: 508 mm Max turning length: 610 mm Spindle Bore: 76.2 mm Max spindle speed: 3750 rpm Turret: 10 positions CNC Control: HAAS CNC Power supply: 360 / 480 V – 3 phases – 50/60 Hz Dimensions approx. (L x W x H): 3200 x 1778 x 1778 mm Weight approx.: 4082 kg Auction-ID: A1-44765-263

FAGOR 8055 Control Auction-ID: A1-44765-404

CNC lathe for metal part turning operations. CNC Control: Heidenhain Turn Plus Axes: 2 Axes Auction-ID: A1-44765-246

CNC Control: GE FANUC Series 16i-T Number of axes: 2 (with sub-spindle) Main spindle: ASA 5 nose, max. bar passage 42 mm, power 11 kW, max. speed 6,000 rpm Max. rotation diameter: 519.2 mm Max. turning diameter: 308 mm X/Z axis strokes: 189.2 / 406 mm Turret: VDI 30 bidirectional, 16 positions (16 motorized) Sub-spindle: ASA 5 nose, max. bar passage 42 mm, power 7.5 kW, max. speed 6,000 rpm Included equipment: parts catcher, motorized tools and stationary tools (depending on seller) Weight (kg): 5071 Year & Manufacturer: 2001 – HARDINGE Auction-ID: A1-44765-257

Auction-ID: A1-44765-402

CNC Control: Fanuc 0T-F (with C Axis) Diameter Above Bed: 500 mm Max Turning Diameter: ~280 mm Max Turning Length: ~500 mm Bar Capacity (Main Spindle): 65 mm Bench Design: 30° or 45° Inclined Spindle Nose: ASA 6\" Main Spindle Speed: Up to 4,000 RPM Sub-Spindle Speed: Up to 4,000 RPM C-Axis: 0.001°Turret : 12 stations Tooling type: VDI 40 Speed motorized tools: ~3,000 - 4,000 rpm Lots sold as is, unchecked, with tool and tool holder. Auction-ID: A1-44765-201

CNC Control: SIEMENS 840 D Number of axes: 2 Max. turning diameter: 420 mm Max. turning length: 1000 mm X/Z axis strokes: 200 / 1000 mm Spindle bore: 82 mm Spindle speed: 0 – 3,000 rpm Spindle motor power: 14.5 kW Turret: VDI 40, 12 stations Chuck: Autoblok Ø 250 mm Tailstock: Chip Conveyor: Present Remarks: Machine in good working order. Weight (kg): approx. 5500 Year & Manufacturer: 2001 – MENTI Auction-ID: A1-44765-254

CNC lathe for metal part turning operations. Numerical control: Fanuc 18T Axes: 3-axis Turret: 12 fixed positions + 6 rotating positions Chuck: Ø 200 mm (possibility of mounting clamps in the spindle) Distance between tips: 350 mm Spindle speed: 4,000 rpm Spindle passage: 51 mm Auction-ID: A1-44765-249

CNC lathe for turning and machining metal parts. CNC control: Fanuc 16 T AA Max. turning diameter: 165 mm Turning length: 100 – 340 mm Diameter above bed: 220 mm Main spindle speed: 50 – 5,000 rpm Main spindle power: 5.5 / 7.5 kW Main spindle bar passing: 65 mm Sub-spindle speed: 50 – 5,000 rpm Counter-spindle power: 3.7 / 5.5 kW Counter-spindle bar passage: 42 mm C-axis: 0.001° Turrets: 2 Tool positions: 2 × 16 Motorized tools: 2 × 16 positions Strokes: X 175 mm / Z 240 – 680 mm Total power: 41 kVA Dimensions (mm): 3,500 × 2,800 × 2,000 Weight (kg): 5,500 Serial No.: 1105-02957 Auction-ID: A1-44765-238

Capabilities: Maximum turning diameter: 420 mm (standard 290 mm) Maximum turning length (Z-axis): 635 mm Bar passage: 65 mm Spindle Bore: 79 mm Spindle: Rotational speed: 25 to 5,000 rpm Power: 21 kW (100%) / 28 kW (40%) 3-jaw hydraulic chuck (Ø approx. 200–250 mm) Turret & tooling: Sauter Turret VDI 30 (DIN 69880) Capacity: 12 stations Motorized substations C-axis (pin indexing) CNC Control: Heidenhain Turn Plus Electrical data: Power supply: 400 V / 3~ / 50 Hz Installed effective power: 44 kVA Current rating: 64 A Protection: 80 A Auxiliary voltage: 230 V Control voltage: 24 V DC Auction-ID: A1-44765-262

Three similar Tsugami Swiss-type CNC lathes are available. Years of manufacture: 2014/2016/2016, max. bar capacity: 32mm, max. machining length: 320mm, max. drilling diameter main spindle/counter spindle: 12mm/10mm, speed: 8000rpm, tool stations: 31, max. slot milling cutter diameter: 45mm, rapid traverse Z: 32m/min, rapid traverse X/Y: 24m/min, resolution: 0.1mm. Machine dimensions X/Y/Z: approx. 2150mm/1300mm/2050mm, weight: approx. 3500kg, control: Fanuc, operating hours 1/2/3: approx. 12265h/39970h/39470h. Documentation available. An on-site inspection is possible. Individual sale possible, however a package sale is preferred.

Manufacturer: INDEX Year: 2005 Type: Moving spindle CNC lathe with motorized tools and C-axis Numerical control: Siemens Sinumerik 840D Powerline Chuck: Ø 160 mm Max. rotation diameter: Ø 180 mm Strokes: X-axis 520 mm / Z-axis 200 mm Fast feeds: X/Z 40 / 30 m/min Moving spindle: 5,000 rpm – 13 kW (100%) / 20 kW (40% ED) – max. torque 105 Nm C-axis: 0.001° resolution Turret: 12 positions – all motorable stations – VDI 30 Motorized tools: up to 6,000 rpm – 8.5 kW Power supply: 400 V / 50 Hz / 3 phases – installed power approx. 25 kW Weight (kg): approx. 4500 Auction-ID: A1-44765-273

Manufacturer: YAMAZAKI MAZAK Year: 1994 Type: CNC lathe Numerical control: Mazatrol T32-2 Axes: 2 axes (X, Z) Max. diameter above the bed: Ø 560 mm Max. turning diameter: Ø 410 mm Max. turning length: 1500 mm Spindle: 35–3500 rpm – main motor 22 kW – spindle nose A2-8 – bore 76 mm Turret: 12 positions Equipment: Programmable tailstock, complete enclosure Weight: approx. 6900 kg Origin: Japan Condition: used Auction-ID: A1-44765-230

CNC lathe for turning and machining metal parts. CNC control: Fanuc 16 T AA Max. turning diameter: 165 mm Turning length: 100 – 340 mm Diameter above bed: 220 mm Main spindle speed: 50 – 5,000 rpm Main spindle power: 5.5 / 7.5 kW Main spindle bar passing: 65 mm Sub-spindle speed: 50 – 5,000 rpm Sub-spindle power: 3.7 / 5.5 kW Sub-spindle bar passage: 42 mm C-axis: 0.001° Turrets: 2 Tool positions: 2 × 16 Motorized tools: 2 × 16 positions Strokes: X 175 mm / Z 240 – 680 mm Total power: 41 kVA Dimensions (mm): 3,500 × 2,800 × 2,000 Weight (kg): 5,500 Auction-ID: A1-44765-237

Manufacturer: DMG GILDEMEISTER Year: 2008 Type: CNC lathe with motorized tools with C and Y axes Numerical control: Heidenhain iT Plus Max. turning diameter: 400 mm Max. turning length: 600 mm Distance between tips: 615 mm Main spindle: 20–6,000 rpm – 16 kW – max. torque 155 Nm Bar capacity: Ø 52 mm – spindle bore 61 mm C-axis: 0.001° resolution Turret: 12 positions – 12 motorized tools (5,000 rpm, 3.7 kW) Strokes: X 160 mm / Z 450 mm / Y ±32 mm Fast feeds: X 60 m/min – Z 45 m/min Attachments: Chip conveyor, 12 bar HP coolant, workpiece catcher, fixed tool holders (5), motorized tool holders (3), hydraulic system Dimensions (mm): 8000 × 3000 × 2700 Weight (kg): approx. 4500 Remarks: Machine in good condition, powered on. Serial number included in the description. Auction-ID: A1-44765-212

Manufacturer: GILDEMEISTER Year: 1996 Type: CNC lathe Numerical control: Heidenhain ELECTRO PILOT turn plus Axes: 2 axes (X, Z) Turning diameter above the bench: Ø 500 mm Turning diameter above the carriage: Ø 290 mm Max. turning length: 640 mm Spindle: 20–5,000 rpm – 22 kW – max. torque 150 Nm – bore 72 mm – passage 65 mm Strokes: Z 650 mm / X 212 mm Fast feeds X/Z: 10 m/min Tailstock: sleeve Ø 80 mm – CM4 – stroke 100 mm Equipment: 3-jaw chuck Ø 250 mm, SAUTER turret 12 positions VDI 30, tailstock, full documentation Dimensions: approx. 3300 × 1800 × 1900 mm Weight: approx. 5000 kg Remarks: Robust German-made CNC lathe. Auction-ID: A1-44765-225

Manufacturer: YAMAZAKI MAZAK Model: Quick Turn 20 Year: 1998 Numerical Control: Mazatrol T Plus Axes: 2 Axes (X, Z) Capacities: Max. diameter above bed: Ø 300 mm Distance between points: 446 mm X-axis stroke: 180 mm Spindle: Bore: 61 mm Max. speed: 4500 rpm Engine power: 15 kW Turret: 8 positions Dimensions per machine: 2660 x 1520 x 1879 mm Unit weight: approx. 4170 kg (total batch weight approx. 8340 kg) Condition: used Lot sold as a single set (2 machines) Auction-ID: A1-44765-231

Manufacturer: HYUNDAI Year: 1999 Type: CNC lathe CNC numerically controlled: Siemens Sinumerik 840C Max. turning circle: Ø 254 mm Diameter above bed: Ø 440 mm Max. turning length: 500 mm Bar capacity: Ø 51 mm Spindle: 36–4,000 rpm – nose A2-6 – 11 kW (continuous) / 15 kW (30 min) Chuck: Ø 210 mm, Hydraulic clamping Turret: 8 stations – 25 × 25 mm tools / Ø 40 mm bars Tailstock: programmable hydraulic – CM4 taper Chip conveyor: hinged, side outlet Dimensions (mm): 2600 × 1700 × 1750 Weight (kg): approx. 4200 Remarks: Machine used, sold with tailstock and conveyor. Auction-ID: A1-44765-214

24-position tool changer HAAS HRT310 Rotary Table - 4 Axis Table diameter: 310 mm Bore diameter: 82 mm RENISHAW 40-2 Probe With accessories Assorted quantities and types, as shown in the photo. The total availability of individual visible elements is not guaranteed. Auction-ID: A7-45181-30

CNC Control: FANUC Series 18-T Number of axes: 3 (including C-axis) Maximum machining diameter: 200 mm Distance between tips: 300 mm Max. spindle speed: 3,000 rpm Spindle power: approx. 17.5 kW Turret: 12 fixed positions + 6 rotating positions Chuck: Ø 200 mm Spindle: direct collet mounting possible Weight (kg): approx. 4200 Year & Manufacturer: 1993 – HARDINGE Auction-ID: A1-44765-255

X-axis travel: 150 mm Z-axis travel: 520 mm Tailstock stroke: 340 mm Self-centering head diameter: 210 mm X-axis repeatability +/- 0.003 mm Z-axis repeatability +/- 0.005 mm NOT Working - Faulty Board Auction-ID: A7-45181-33

CNC Control: SIEMENS 810 D Number of axes: 3 Max. turning diameter: 325 mm Max. turning length: 400 mm Max. passage over the bed: 500 mm X/ Z axis strokes: 215 / 420 mm Spindle speed: 30 – 4,500 rpm Spindle bore: 52 mm Spindle power: 15 kW Turret: 12 VDI 40 positions with motorized tools Chuck: 3-jaw hydraulic Ø 204 mm Tailstock: present, CM4 taper Tailstock sleeve stroke: 130 mm, Ø 80 mm Included equipment: coolant, bar feeder Weight (kg): approx. 4500 Year & Manufacturer: 2000 – HYUNDAI Auction-ID: A1-44765-253

Spindle diameter: 580 mm Tailstock stroke: 570 mm Turret stroke: 150 mm Machine not working, FANUC power unit NEEDS REPLACEMENT Auction-ID: A7-45181-32

Manufacturer: YAMAZAKI MAZAK Model: Quick Turn 20 Year: 1997 CNC Machine: Mazatrol T Plus Axes: 2 Axes (X, Z) Capacities: Max. diameter above bed: Ø 300 mm Distance between points: 446 mm X-axis stroke: 180 mm Spindle: Bore: 61 mm Max. speed: 4500 rpm Motor power: 15 kW Turret: 8 positions Dimensions per machine: 2660 x 1520 x 1879 mm Unit weight: approx. 4170 kg (total batch weight approx. 8340 kg) Condition: used Auction-ID: A1-44765-261

Manufacturer: GILDEMEISTER Model: CTX 400 Series 2 Year: 1998 German-made 2-axis CNC lathe, robust and precise, suitable for turning single parts and small to medium series. CNC : HEIDENHAIN TURN PLUS Axes: 2 axes (X, Z) Turning capacities: Diameter above bed: Ø 570 mm Diameter above carriage: Ø 420 mm X-axis stroke: 220 mm Z-axis stroke: 635 mm Spindle: Bore: 79 mm Chuck diameter: Ø 250 mm Spindle speed: 25 – 5000 rpm Motor power: 21 kW Fast feeds: X-axis: 20 m/min Z-axis: 24 m/min Turret: 12 positions VDI 30 Equipment: automatic tailstock (Ø 80 mm), chip conveyor, parts collector Country of origin: Germany Condition: used Auction-ID: A1-44765-232

CNC control: MSX-850 III Number of axes: 2 Strokes: X = 260 mm, Z = 590 mm Spindle speed: 50 – 5000 rpm Power: 15 kW Bar capacity: Ø 65 mm Spindle bore: 73 mm Turret : 12 stations (BMT) Max turning diameter: 356 mm Max turning length: 510 mm Chip conveyor: yes 235L high-pressure pump: yes Lots sold as is, unchecked, without tools or tool holders. Auction-ID: A1-44765-204

Auction-ID: A1-45188-7

Collection by Appointment Only. This item is sold ex-foundation and consequently, all the logistical arrangements, including dismantling, packing loading the goods, transport, customs, and delivery to the final destination, are the responsibility of the Buyer. Auction-ID: A7-45162-5

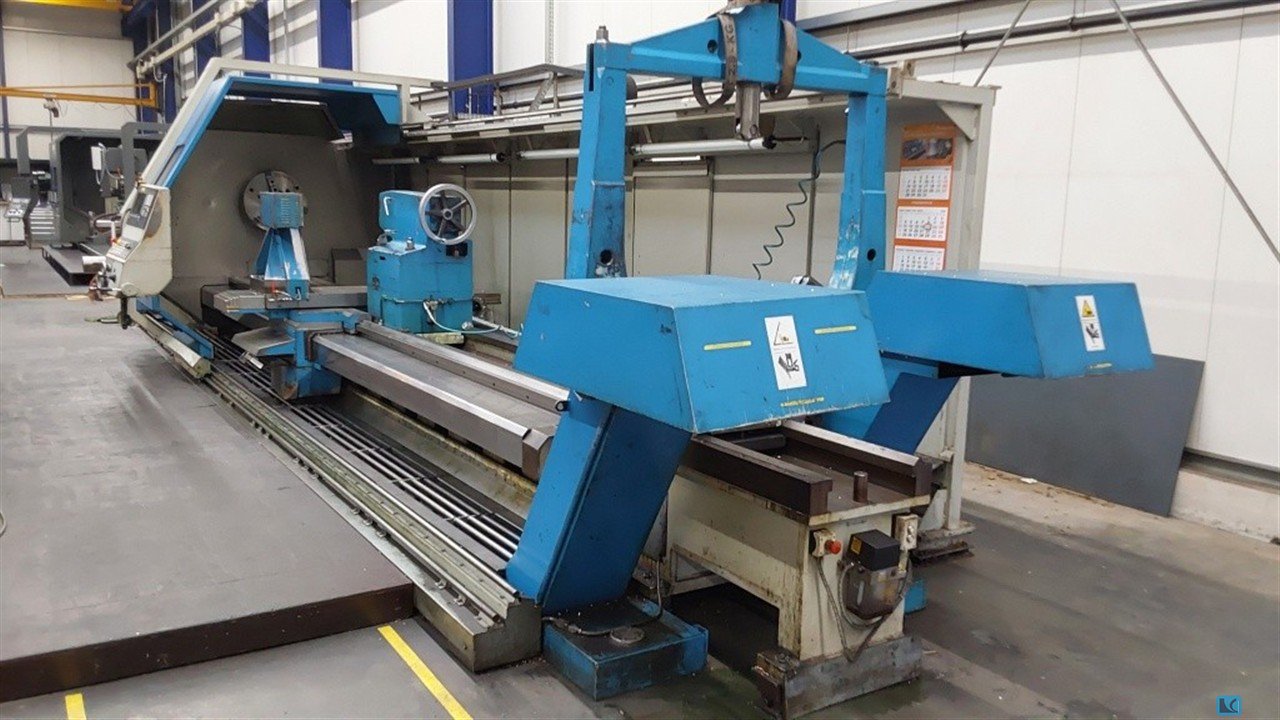

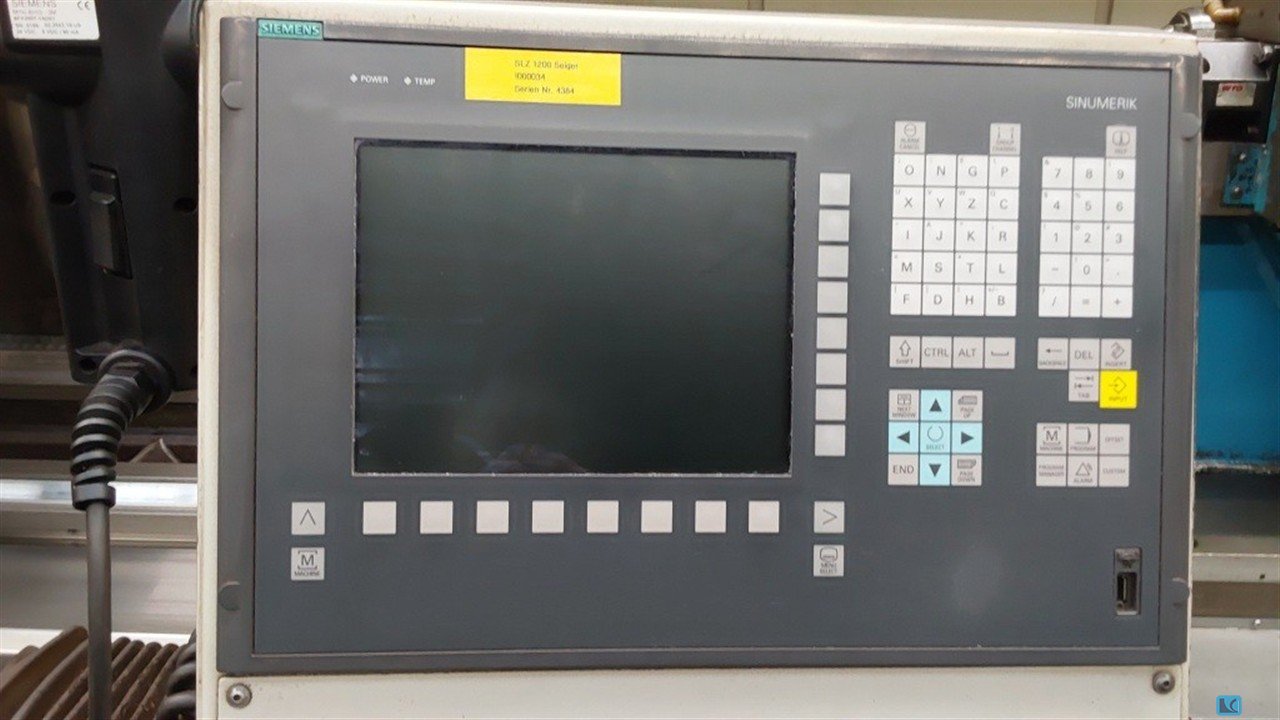

Manufacturer: SOTOS VOJUS (VOJUS a.s.) Year: 2001 Type: CNC lathe with automatic cycle Numerical control: Siemens Sinumerik 840D ShopTurn Max. turning diameter: Ø 630 mm Diameter above dragger: Ø 420 mm Max. turning length: 3,000 mm Spindle: up to 2,500 rpm – passage Ø 110 mm Fast feeds: longitudinal 10 m/min – transverse 5 m/min Installed power: approx. 26 kW Equipment: Multifix tool holder, 1 bezel, coolant Dimensions (mm): 3000 × 1800 × 1790 Weight (kg): approx. 4500 Remarks: High-capacity CNC lathe for long workpieces. Serial number included in the description. Auction-ID: A1-44765-220

X-axis travel 420 mm Z-axis travel 1100 mm VDI 50 tool holder 2x ASA 8 spindles LH Head Working Hours: 16624 Working hours head RH: 16272 With loading table diameter: 1700 mm Equipment: 2x automatic arms for loading and unloading workpieces Unloading roller conveyor dimensions: 3000x530 mm Tools and spare parts included Assorted quantities and types, as shown in the photo. The total availability of individual visible elements is not guaranteed. Auction-ID: A7-45181-40

FANUC control, complete with Cartesian gantry, chip conveyor, manuals present Auction-ID: A7-44885-41

X1 axis travel = 230 mm Z1 axis travel = 680 mm X2 axis travel = 205 mm Z2 axis travel = 498 mm Y-axis travel = +40/0/-40 mm Maximum turning diameter with upper turret 295 mm Maximum turning diameter with lower turret 390 mm Maximum permissible cylindrical workpiece size Ø250 x 800 mm 3-jaw chuck Ø210 mm, bar capacity 65 mm 3-jaw self-centering counter-spindle Ø210 mm, bar capacity 52 mm Upper and lower turret VDI40 - 12+12 seats Auction-ID: A7-44984-10

Motorized turret, self-centering collet holder, tailstock, manuals present Auction-ID: A7-44885-32

Spindle diameter 255 mm SMW autoblok 250 BB  12-place motorized turret tailstock and bezel Auction-ID: A7-44885-38

maximum spindle rotation speed 3500 RPM  control Takisawa TURN-i FANUC Kitagawa B212 chuck, diameter 300 mm  10-place  tool turret tailstock Auction-ID: A7-44885-39

With chip conveyor, manuals present Auction-ID: A7-44885-43

Complete with counter spindle, motorized turret, Y axis, chip conveyor, manuals present Auction-ID: A7-44885-31

Working space: Max. swing diameter: 300 mm Max. turning diameter: 160 mm Max. turning length: 250 mm Main spindle: Speed range: 60 – 6,000 rpm Main drive power: 5.5 KW Spindle nose: A2 – 5 inches Spindle bore: 50 mm Bar work up to a diameter of max. 40 mm Tool turret: Special version: 12-speed Travels: Turret travel: x – axis: 100 mm z – axis: 290 mm Travel speed: Rapid traverse: x/z – axis: 30 m/min Feed range: 0 – 5,000 mm/min Tailstock: Tailstock travel: 364 mm Quill tip: MK 4 Quill stroke: 75 mm Auction-ID: A7-45768-10

Working space: Max. swing diameter: 300 mm Max. turning diameter: 160 mm Max. turning length: 250 mm Main spindle: Speed range: 60 – 6,000 rpm Main drive power: 5.5 KW Spindle nose: A2 – 5 inches Spindle bore: 50 mm Bar work up to a diameter of max. 40 mm Tool turret: Special version: 12-speed Travels: Turret travel: x – axis: 100 mm z – axis: 290 mm Travel speed: Rapid traverse: x/z – axis: 30 m/min Feed range: 0 – 5,000 mm/min Tailstock: Tailstock travel: 364 mm Quill tip: MK 4 Quill stroke: 75 mm Auction-ID: A7-45768-100

CONTROLS   CNC controls MAZATROL 640 T NEXUS WORKING RANGE TURNING   turning diameter (max): 380 mm   bar diameter (max): 65 mm   worpiece length max.: 575 mm MAIN SPINDLE   spindle revolutions (max): 5000 /min   drive power: 26 kW COUNTER SPINDLE   spindle revolutions (max): 6000 /min   drive power: 11 kW X/Z SLIDE   Z-axis travel: 575 mm   X-axis travel: 230 mm   Y-axis travel: 585 mm   number of tool positions (total): 12   - rotation speeds (max): 4500 /min   - drive power: 5.5 kW Additional options• Kitagawa BB-08 3-jaw chuck• Kitagawa B-206 3-jaw chuck• Parts catcher• Interface for bar feeder• Tool holder package, including driven holders• Coolant pump• Chip conveyor

S/N:500576 Year of manufacture: 2005 Control system: Siemens Sinumerik 840 Maximum turning length: 710 mm Swing diameter: up to Ø 590 mm Bar capacity (main/counter spindle): Ø 90 mm Number of spindles: 2 (main and counter spindle) Spindle power: 28kW C-axis resolution: 0.001° Axis & Turret Configuration Number of turrets: 2 Stations per turret: 12 Axis travel (approximate): X-axis: 140 mm Y-axis: 180mm Z-axis: 710 mm Rapid traverse rates: 20 m/min Driven Tools (Live Tooling): Available on both turrets Maximum speed: 6,000 rpm Power per driven tool: approx. 6–9.4 kW Rated voltage: 400 V AC Rated current: 123 A Nominal power: 72 kW Phases: 3 Frequency: 50 Hz Dimensions & Weight Footprint (L × W): approx. 5,300–5,900 mm × 2,150 mm Height: approx..2,300 mm Machine weight: approx. 7,800–9,000 kg Chip conveyor   Auction-ID: A7-45794-3
