cnc horizontal table used for sale

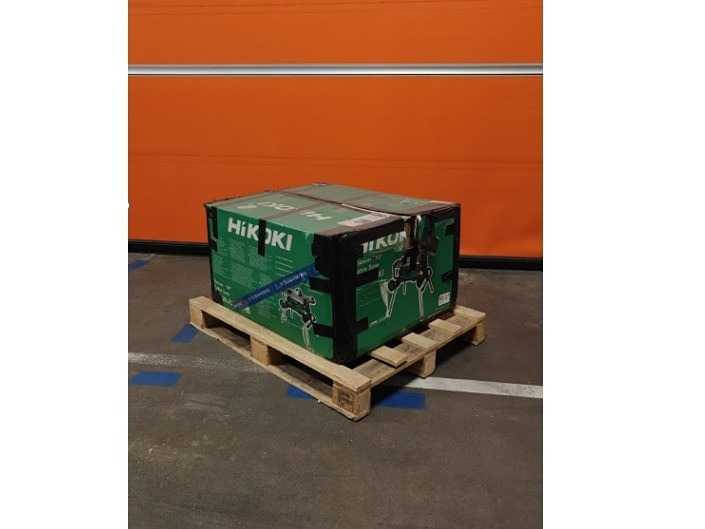

Return goods; Technical data HiKOKI C10RJWAZ Table Saw 230V In Box; Power consumption 1,500 Watt; Weight 44 kg; Length 920 mm; Saw blade diameter 254 mm; Cutting depth 90° 79 mm; Mitre cutting depth 45° 57 mm; No-load speed 4,500 min; Motor brake Y; Starting current limitation Y; Height 600 mm Auction-ID: A1-40330-72

Used mobile work table with 2x power connections Dimensions: 115 x 80 x 112 cm Auction-ID: A1-50936-148

Main engine power [kW] 5.5 Saw blade bore diameter [mm] 30 Min. saw blade diameter [mm] 400 Max. saw blade diameter [mm] 450 Table length [mm] 1125 Table width [mm] 965 Tiltable Manual Voltage [V] 400 Fuse [A] 16 Power [kW] 5.5 Transport dimensions 1600mm x 1500mm x 1150mm (l x w x h) Transport weight [kg] 500kg Auction-ID: A1-40983-96

Industrial and artisanal high table + 4 metal stools. 200x85 cm / H: 98 cm. Tempered glass on the table. Auction-ID: A1-51213-3

Type: table saw / old sliding table saw Use: wood cutting and cutting Construction: heavy cast iron/metal casting Table: metal Circular blade: present Parallel Guide: Present Drive: Separate electric motor with belts Adjustment: Mechanical flywheel visible, probably for blade height Blade protection: orange cover present but disassembled on the photo Condition: old workshop equipment, significant traces of use and oxidation Auction-ID: A3-46142-35910

New price: 16,99 euros Auction-ID: A1-51213-19

spindle diameter:130 mm spindle diameter:130 mm x-travel:2190 mm y-travel:1520 mm z-travel:1000 mm w-axis:1075 mm table surface area:2000 x 1800 mm workpiece weight max.:8000 kg spindle turning speed range:4,5 x 900 U/min spindle taper: ISO:50 faceplate turning speed range:4,5 x 180 U/min faceplate diameter:785 mm rapid traverse::5000 mm/min total power requirement:40 kW weight of the machine ca.:35 t dimensions of the machine ca.:5,5 x 6,9 x 5,2 m Machine retrofit and overhould with TNC 360 Heidenhain in 2023 and stepless spindle speeds - table indexing 4 x 90° - facing head 785 mm - exhauster - various arbors and tooling

bore capacity in steel (diameter):- mm throat:- mm bore stroke:- mm x-axis:1.800 mm y-axis:1.600 mm z-axis:1.250 mm w-axis:630 mm max. table load:5.000 kg table length:1.400 mm table width:1.600 mm spindle diameter:105 mm spindle turning speed range:3.300 U/min numbers of positions in the tool changer:40 internal coolant system feed:40 bar Splash guard around rotary table Chip Conveyor Oil cooling unit (chiller) Touch probe Renishaw RMP60 Upgrades in 2024 and 2025 Retrofit of X and Z axis ball screws at producer ? KSK Kurim CZ New linear scales Heidenhain in X and Z axis including cabling retrofit of Z axis - new Biplast V lining on guideways, hand scraped Biplast lining on Z axis new TOS Varnsdorf parts for tool clamping and automatic tool changer arm Overhaul of X, Z and Y axis feed motors at authorized Siemens service (new bearings and sensor) New Siemens hand wheel

spindle diameter:100 mm x-travel:1250 mm y-travel:1100 mm z-travel:950 mm spindle turning speed range:2500 U/min Rotary-table:1100 x 1000 mm table surface area:1000 x 1100 mm tool clamping:69871 DIN spindle stroke:630 mm spindle taper:SK50 total power requirement:22/34 kW max. workpiece weight:3000 kg weight of the machine ca.:13000 kg

x-travel:3500 mm y-travel:2500 mm z-travel:1250 mm w-axis:800 mm bore spindle speeds:2500 U/min table load:12 t dia. of rotary table:1800 x 2200 mm numbers of positions in the tool changer:60 ? Overhauled in 2025 and 2026 ? The spindle was relubricated and new spindle bearings fitted in 2025 by technicians from TOS Varnsdorf ? 12-month warranty and guarantee on geometric accuracy Scope of repairs to the X, Z and B axes 1. Complete dismantling and cleaning of the machine bed for the X and Z axes as well as the B axis 2. Regrinding of X and Z axis guide ways at Czech manufacturer of CNC horizontal boring machines 3. Removal of the old lining from the X- and Z-axis slides and the B-axis 4. Anchoring of re-grinded X and Z axis machine bed 5. New, hand-scraped lining made from Biplast-V on the X- and Z-axis slides, and from new Biplast-V on the B-axis 6. Installation of ball screws, lin ...

spindle diameter:150 mm x-travel:3.000 mm y-travel:2.000 mm spindle stroke:700 mm dimension of the ram:340 x 340 mm ram stroke:700 mm column travel:1.500 mm high speed spindle taper ISO:50 bore spindle turning speed range:3,2 - 1.600 U/min table surface area:2.000 x 2.500 mm max. table load:25.000 kg rapid traverse speed:5/10 m/min feed speeds:1 - 1.500 mm/min faceplate speeds from - to:3,2 - 140 U/min dimensions of the machine ca.:8,4 x 6,8 x 5,9 m weight of the machine ca.:57 t total power requirement:100 kW Full B-axis Aerostatic guides Coolant system with IKZ

spindle diameter:130 mm x-travel:5000 mm y-travel:3000 mm z-travel:2000 mm The TOS Varnsdorf WHQ 13 CNC is a high-performance CNC-controlled horizontal table drill press fitted with a Siemens Sinumerik 840D CNC control system, designed for the precise machining of large and heavy workpieces. The machine is suitable for drilling, boring and milling complex components and is typically used in heavy machinery manufacturing, plant engineering, toolmaking, and in the energy and heavy industries. With generous travel ranges of 5,000 mm on the X-axis, 3,000 mm on the Y-axis and 2,000 mm on the Z-axis, the machine offers an extensive working area. The worktable, measuring 2,500 × 1,800 mm, can accommodate workpieces weighing up to 20 tonnes. The horizontal spindle achieves a speed of up to 3,000 rpm. In combination with the supplied milling head, even demanding milling operations and various ma ...

table length:2200 mm table width:2500 mm table load:16 t total power requirement:6,5 kW feed speeds:1,25 - 160 mm/min rapid traverse speed:2000 mm/min longitudinal adjustment:1500 mm weight of the machine ca.:12 t dimensions of the machine ca.:4,1 x 2,65 x 0,95 m Texte, Bilder, Grafiken, Layout, Strukturen und Algorithmen etc. unterliegen weltweitem Urheberrecht. Unerlaubte Verwendung der Daten, werden sowohl strafrechtlich als auch zivilrechtlich verfolgt. Das ausschließliche Urheber- / Nutzungsrecht dieser Daten wurde nachfolgender Person eingeräumt. Copyright © 2005-2024, Josef Weber. All rights reserved.

spindle diameter:150 mm x-travel:3000 mm y-travel:2000 mm spindle stroke:700 mm dimension of the ram:340 x 340 mm ram stroke:700 column travel:1500 mm spindle taper ISO:50 bore spindle turning speed range:3,2 - 1600 U/min table surface area:2000 x 2500 mm max. table load:25000 kg rapid speed:5 / 10 m/min feed speeds:1 - 5000 mm/min total power requirement:100 kW weight of the machine ca.:57 t dimensions of the machine ca.:8,4 x 6,8 x 5,9 m with CNC SIEMENS 840 D full B-axis aerostatic guideways facing head ( 3,2 - 140 rpm ) angular milling head 1000 Nm coolant attahcmnet with internal cooling supply

spindle diameter:130 mm x-travel:2190 mm y-travel:1520 mm z-axis:1520 mm w-axis:1000 mm table surface area:2000 x 1800 mm workpiece weight:8 t spindle motor:18 kW spindle taper ISO:50 spindle turning speed range:4,5 - 900 U/min faceplate diameter:785 mm rapid traverse:5 m/min total power requirement:40 kW dimensions of the machine ca.:5,5 x 6,9 x 5,2 m weight of the machine ca.:35 t Machine was retrofitted in 2023 with HEIDENHAIN TNC 360 CNC control - inf. variable spindle spped - 4 x 90° table positioning - diverse toolholders - dDust exhauster

spindle diameter:120 mm x-travel:1250 mm y-travel:1250 mm z-travel:800 mm W-axis (spindle longitudinal):600 mm Speed of boring spindles:1- 2000 U/min. spindle taper ISO:50 table surface area:1000 x 1000 mm total power requirement:55 kW weight of the machine ca.:18 t with CNC HEIDENHAIN TNC 426 autom. toolchnager 40-pockets coolant attachment

Control: SIEMENS 840D Max.turning length: 450 mm Max swing diametr over bed/Slide: 500 mm/375mm Workpiece diametr: 246 mm Material passage through the spindle: 0 mm Rotation speed(max.) 6000 rpm Quick Change Toolposts:12 Taper ? VDI30 Coolant tank:175l M

Control: Heidenhain Max.turning length: 450 mm Max swing diameter over bed/slide: 500 mm/375mm Workpiece diametr: 246 mm Material passage through the spindle: 0 mm Rotation speed(max.) 6000 rpm Quick Change Toolposts:12 Taper ? VDI30 Coolant tank:175l Ma

Includes all live tools/tools Infinitely adjustable Auction-ID: A3-46142-20701

OPTIMUM - OPTImill F 105 CNC Stock number 1039-8705 Machining Center - Vertical Manufacturer: OPTIMUM Type OPTImill F 105 CNC Year of construction 2019 Control Sinumerik 808D adv. Siemens Additional information: - DEMONSTRATION MACHINE Technical details: x-travel 550 mm y-travel 305 mm z-travel 460 mm Control Sinumerik 808D adv. Siemens Main spindle: Speed range - main spindle 10 - 10,000 rpm Drive power - main spindle 11 / 7.5 kW Max. torque 70 / 48 Nm Tool holder BT 40 Work table: Table clamping area 800 x 320 mm max. table load 300 kg T-slots 3x 14 x 100 mm Distance spindle / table 100 - 600 mm Tool Changer: Number of tool positions 12 pos. Tool holder BT 40 max. tool diameter 70 mm max. tool weight 6.0 kg Tool-tool changeover time 7.0 sec Feeds: Rapid traverse ( X / Y / Z ) 10 m/min Feed speed max. 10,000 mm/min Repeatability +/- 0.008 ...

General Description CNC automatic production lathe designed for high-volume turning of small to medium-sized rotational components. The machine features a fixed-headstock configuration with enclosed machining area and automatic workholding for efficient production machining. Technical Details Machine type: CNC automatic production lathe Fixed-headstock configuration Early-generation electronic NC/CNC control Production tool slide assembly Automatic hydraulic/pneumatic workholding system Enclosed machining chamber Coolant system Chip collection area Original operator control panel Emergency stop Condition Used industrial condition. The machine appears largely complete with production spindle, tool slide, control panel, enclosure and workholding system installed. Heavy oil contamination, cosmetic wear and missing side access panels are visible, consistent with long-term  ...

Technical details Type: CNC turning center Control system: ZIT Sistema 500T Configuration: - Horizontal CNC lathe - Semi-enclosed machining area - Hydraulic power chuck - 6-station hydraulic indexing turret - CNC-controlled longitudinal and cross axes - Electrical control cabinet - Hydraulic unit - Coolant enclosure Application: - CNC turning - Facing - Boring - Thread cutting - Precision machining of rotational components Construction: - Heavy-duty cast-iron machine bed - Early-generation CNC control system - Automatic turret indexing Dimensions: - Length: Approx. 3200 mm - Width: Approx. 1800 mm - Height: Approx. 2000 mm Weight: Approx. 3800 kg Condition: Used Observed condition: - Machine appears mechanically complete - Hydraulic chuck and 6-station turret installed - CNC electronics and electrical cabinet present - Hydraulic unit installed - Heavy du ...

General Description CNC profile and tool & cutter grinding machine manufactured by KELCH , model PFS 30-CNC . Designed for precision grinding of cutting tools, profiles and special tooling. The machine is equipped with CNC-controlled axes, a precision grinding spindle and a tilting workhead for versatile grinding applications. Technical Details Manufacturer: KELCH Model: PFS 30-CNC Machine type: CNC profile and tool & cutter grinding machine CNC-controlled axes Control: Bosch CNC Alpha with Bosch Alpha CRT Digital readouts: Heidenhain Control panel manufactured by Präzisionstechnik GmbH Tilting workhead Precision grinding spindle Precision workholding fixture Coolant enclosure Dust/coolant extraction system Condition Used industrial condition. The machine appears complete with Bosch CNC control, Heidenhain digital readouts, tilting workhead, precision grindi ...

Doosan Lynx 220A CNC Lathe – 2 X/Z Axis – Year 2007 DOOSAN Infracore Co., Ltd. CNC lathe LYNX 220A , manufactured in South Korea in July 2007. This used machine is configured in 2 X and Z axes and equipped with a tool turret. It is suitable for CNC turning operations, general mechanics, and CNC machine tool part production. Sales category: CNC lathe/CNC lathe. Technical data checked: X-axis stroke: 175 mm; Z-axis stroke: 330 mm; maximum spindle speed: 6,000 rpm; power supply: AC 200/220 V, three-phase 3Ø, PE, 50/60 Hz; rated capacity: 23.68 kVA; maximum load indicated on the manufacturer's plate: 11.0 kW; full load current: 62.15 A; breaking current: 17000 A. Machine identification: manufacturer DOOSAN Infracore Co., Ltd.; model LYNX 220A; serial number L2202101; year 2007; manufacturer marking \"MADE IN KOREA\". Connection diagram reference: L22H01CA01. The machine has a ful ...

CNC Control: FANUC 21i-TB Number of axes: 3 (including C-axis) Max. rotation diameter: 120 to 150 mm (depending on tooling) Max. turning length: 120 mm X/Z axis strokes: 340 / 240 mm Max. spindle speed: up to 8,000 rpm Spindle nose: designed for precision grippers or chuck C-axis: 0.001° resolution (positioning and milling) Turret: high-precision, 12 positions (VDI 16 or VDI 20) Motorized tools: radial and axial drilling/milling, speed 4,000 to 6,000 rpm Documentation: complete Weight (kg): 2200 Year & Manufacturer: 2007 – SPINNER Auction-ID: A1-50714-4019

4 position automatic toolchanger - charging options available Auction-ID: A1-50718-14

CNC LATHE Inv. No. 12.710C1 Make MONDIALE Model GALLIC 420 CNC Control FANUC 10TF Serial number CNCG16AC Centre distance 870 mm Max. swing over Bed Ø 420 mm Max. swing over Cross Slide Ø 214 mm Spindle bore Ø 69 mm R.P.M. 45 – 2500 (inf. var.) kW 11 Volts 400 Cycles 50 Including: 6 Pos. turret Coolant Auction-ID: A1-50718-28

CNC MILLING MACHINE Inv. No. 12.565J Make TOS Model FGS 40/50 CNC Mach. No. 43400083 Control Heidenhain TNC 355 Table 400 x 1,250 mm Longitudinal Travel (X) 850 mm Cross Travel (Y) 500 mm Vertical Travel (Z) 500 mm Taper ISO 50 R.P.M. 35 – 1.800 kW 7,5 Volts 380 Cycles 50 Auction-ID: A1-50718-62

CNC LATHE Inv. No. 12.711C1 Make MONDIALE Model GALLIC 420 CNC Control FANUC 10TF Serial number CNCG1685B17GE Centre distance 870 mm Max. swing over Bed Ø 420 mm Max. swing over Cross Slide Ø 214 mm Spindle bore Ø 69 mm R.P.M. 45 – 2500 (inf. var.) kW 11 Volts 400 Cycles 50 Including: 6 Pos. turret Coolant Auction-ID: A1-50718-32

32 fold tool changer. Main spindle 50- 9200 rpm X shaft 700 mm Y shaft 315 mm Z shaft pinole controlled 172 mm Includes tool drawer Z axis (hand 180 mm) W shaft (Machine head) 495 mm Rapid traverse 9 mtr/min Auction-ID: A1-47366-147

X shaft 700 mm Y shaft 315 mm Z shaft pinole controlled 172 mm Z shaft manual pinole 180 mm W shaft ( Machine head ) 495 mm 4th axle 360 x 0,001 gr with against center. Table size 1230 x 410 Spindle holder SK 30 / DIN 69871A Includes tool drawer Auction-ID: A1-47366-148

W-axis 630 mm Table dimensions (lxw) 1,250 x 1,400 mm Number of tables 1 Auction-ID: A1-50373-15

DROOP & REIN FS 130 G – CNC Vertical Milling Machine Manufacturer: Droop & Rein (Germany) Model: FS 130 G Year: 1978 Machine Type: Heavy-Duty CNC Vertical Milling Machine CNC Control: Fagor Manufacturer Droop & Rein Model FS 130 G Year of Manufacture 1978 Machine Type CNC Vertical Milling Machine CNC Control Fagor Number of Controlled Axes 3 (X, Y, Z) Spindle Orientation Vertical Table Type T-Slotted Milling Table Spindle Head Vertical Milling Head Electrical Supply 380 V / 50 Hz Control Voltage 42–60 V Rated Current 120 A Order Number 04790 Country of Manufacture Germany Equipment and Features - Fagor CNC control panel - Fagor servo drive modules - Heavy-duty vertical milling head - Large T-slotted worktable - Automatic axis feed system - Centralised lubrication system - Electrical cabinet with technical documentation - Industrial steel and cast-iron construction Specification Refe ...

CNC lathe HEYLIGENSTAEDT HEYNUMAT 21U x 2000 Robust horizontal CNC lathe, manufactured by Heyligenstaedt & Comp. GmbH in Giessen, Germany. A 2-axis machine equipped with a FANUC 0T series control , suitable for medium and large-scale turning operations. Technical data Manufacturer Heyligenstaedt & Comp. GmbH Córdoba Heynumat 21U x 2000 Year of manufacture 1981 Machine type Horizontal CNC lathe, 2 axes Nominal working length 2.000 mm Turnable/swing diameter Approx. 719mm Maximum spindle speed 2.240 rpm Spindle power Approx. 55,9 kW / 75 hp Bar capacity Approx. 76mm tool tower 12 positions CNC control FANUC 0T series Source Giessen, Germany Availability In stock The photographs show auxiliary equipment and tooling associated with the machine, including the KNOLL Filtron 300S-2 filtration system . Auction-ID: A1-51153-4

Technical data: Turning diameter over bed: 1260 mm Turning diameter at opening: 2700 mm Turning diameter at the pit: 3800 mm Turning diameter via slide: 900 mm Turning length: 4000/5000 mm

The machine is equipped with controlled B-axis smallest delivery 0.001, swivel range 340, controlled workpiece spindle stick (C-axis)smallest delivery 0.05, max. 42 rpm, equipped with an external grinding spindle (left and right spindle end), 1 internal grinding spindle. For an additional charge, a second internal grinding spindle can be delivered. Z-way 680 mm, X-way 255 mm, smallest delivery of the axles 0.001 mm. Tip height 175 mm, W.-stock MK 5, step. adjustable 1 - 1200 rpm, external grinding spindle 1000 - 3000 rpm, max. grinding wheel perm. 300 mm. The machine is suitable for ideal for the processing of carbide and technical ceramics (SIC and Al 2). Intermediate sale:reservations Delivery time:4-6 months

Manufacturer Heckler & Koch Model AM 444 A Power consumption: 5.5 KW Voltage: 380/400 Volts Spindle holders for vertical and horizontal spindles: 40 Slide movement x = 410nn y = 350mm z = 400mm Vertical clamping table 850 x 255 mm Feed range 0-1500 mm/min Sliding gearbox 12-stage Speed: 63-2800 rpm Step jump 1.4 CNC control CNC 783/m Dimensions (HxWxD) 1.800x2.400x1.700mm Weight 1,500 kg Ref.Nr PLW18 Mistakes reserved!

Technical data: Diameter over bed: 625 mm Turning length: 1500 mm Diameter via slide: 325 mm Spindle head shape: Cam-Lock Spindle drilling diameter: 105 mm

Technical data: The machine is completely overhauled in 2011 with new electrics, new wiring, including new control SIEMENS Sinumerik 840D max. circulating and turning diameter: 2,000 mm max. turning height: 1,500 mm Sheet disc diameter: 1,600 mm max. table load: 11.20 to. Cross-beam adjustment: 1,170 mm

Machine number: 3728-87 Grinding length 2000 mm (Roll grinding machine)

Force of pressure: 400 tons of working width: 4100 mm clear stand width: 3150 mm stand projection: 330 mm Electr. Supply: 400 V, 37 kW weight: 25 tons of space: 4100 x 2300 x 3910/530 mm

Force of pressure: 150 t working width: 4500 mm clear stand width: 3050 mm stand projection: 300 mm rear gauge: 1000 mm Electr. Supply: 380 V, 18.5 kW weight: 14.8 t space: 4200 x 2000 x 3000/3150 mm

Force of pressure: 250 t working width: 3550 mm clear stand width: 3050 mm stand projection: 300 mm rear gauge: Yes Electr. Supply: 400 V, approx. 26 kW weight: 20 t space: 2100 x 3800 x 3100 mm

5 axis machininng center (milling/turning from bar) multitasking Under power in our warehouse MAKE CHIRON MODEL MILL 800 5 axis CNC Fanuc 18iMBS (5 simoultaneous axis 1) X, Y, Z (mm) 800 ? 500 - 550 Rapids (Highspeed) 60 m/min Swivelling head CNC controlled (B axis) +/- 100° Turning spindle Peiseler Milling spindle 12.000 giri / 140 Nm (v nota 2) Tools 65 Tool type HSK-A 63 DIN 69893 Tool-change time 1,5 sec (v nota 3) Table 1400x500 Max table load 1200 kgs Coolant through spindle 70 bar (see note 4) CNC controlled clamping/rotating unit for 6th face machining (v. nota 5) Pressurised linear encoders Swarf conveyor Renishaw-ready Y.O.M. 2006 Weight 7500 kgs Turning package Max dia 65mm RPM: 15 / 4500 Max 42,5 KW / 90 Nm. Hydraulic clamping 800 Nm. Bar loader ILS-RBK- 10012 65 Diameters min ...

Table clamping surface: 600 x 1100 mm traverse path x: 800 mm traverse path y: 450 mm traverse path z: 500 mm Quill stroke: by hand approximately 50 mm of spindle speeds: 63-3150 rpm stufenl feeds. adjustable: 0,1-1500 mm / min rapid traverse: x/y/z 4.5/2,6/3 m / min. Supply: 380 V, 5.5 kW space: 3000 x 2500 x 2030 mm weight: 4000 kg

Table clamping surface: 500 x 1000 mm stroke x: 630 mm traverse path y: 500 mm traverse path z: 460 mm Quill stroke: hand 45 mm spindle retainer: ISA 40 spindle speeds: 31.5-3150 rpm stufenl feeds. adjustable: 1-3000 mm / min rapid traverse: x/y 6 / z 4 m/min. Supply: 380 V, 6/8 kW space: 1800 x 2120/2600 x 2020 mm weight: 3100 kg

Table clamping surface: 630 ø mm traverse path x: 600 mm traverse path y: 450 mm traverse path z: 500 mm Quill stroke: hand 80 mm spindle retainer: ISO 40 spindle speeds: 20-3150 rpm stufenl feeds. adjustable: 1-3000 mm / min rapid traverse rate: 4 m / min. Connection: 380V kW space: 2000 + 850 x 2000 x 2000 mm weight: 3300 kg

Stroke x: 600 mm traverse path y: 400 mm traverse path z: 400 mm spindle retainer: ISO 40 spindle speeds: 80-4000 rpm stufenl feeds. adjustable: 0,1-1500 mm / min rapid traverse: x & y/z 4/2.5 m / min. Supply: 380 V, 16 kVA kW space: 2450 x 2200 x 1900 mm weight: 2250 kg

Force of pressure: 150 t working width: 4300 mm clear stand width: 3600 mm stand projection: 300 mm maximum height: approx. 500/700 mm operating speed: up / down 41 - 65/10 mm / sec back gauge: 1000 mm Electr. Supply: 400 V, approx. 15 kVA kW weight: 14 t space: 4600 x 1950 x 3100 mm

Working width: 3050 mm sheet thickness: 6 mm throat depth: 200 mm rear gauge: 1000 mm power: 15 kW space: 4100 x 2300 x 2100 mm weight: 8500 kg well-preserved CNC hydraulic shear, with pivoting Panel, serial control. CYBELEC, CNC 1000, Hours of operation according to the operating hour counter: 2700 h
