cnc horizontal table used for sale

Make: Big-Plus (Taiwan) Type: CNC Vertical Machining Center Model: 850 VMC Serial number: BM110CE01 Control: FANUC Series 0i-MD Technical data: - X / Y / Z travel: approx. 850 mm / 500 mm / 500 mm - Table size: approx. 1000 x 500 mm - Spindle speed: 10,000 rpm - Main voltage: 415 V AC - Power requirement: 20 kVA - Air required: approx. 6–8 kg/cm² Equipment: - Vertical spindle (Big-Plus spindle system) - Tool changer (carousel type) - Coolant system - Enclosed working area with sliding door - Manual pulse generator (handwheel) Control panel: - FANUC interface with display and full keyboard - Feed / rapid / spindle override controls - Emergency stop and cycle controls Condition: Used Auction-ID: A7-45993-49

Type: CNC surface grinding machine Model: ABA Z&B EL 806 Year: 2003 Control: CNC control panel (integrated aba control) Working area: Magnetic clamping table Machine layout: Horizontal grinding spindle with enclosed working area Technical data: Voltage: 400 V Total power: 29 kW Machine weight: approx. 5,700 kg Equipment: - Magnetic clamping table - Enclosed grinding cabin with sliding door - Coolant system - Air filtration unit (AIRTECH) - Control panel with joystick and keypad Condition: Used, not tested Remarks: Signs of wear and corrosion visible; complete system with extraction unit Own mass: approx. 5,700 kg Dimensions (LxWxH): approx. 4000 x 2200 x 2200 mm Auction-ID: A7-45993-17

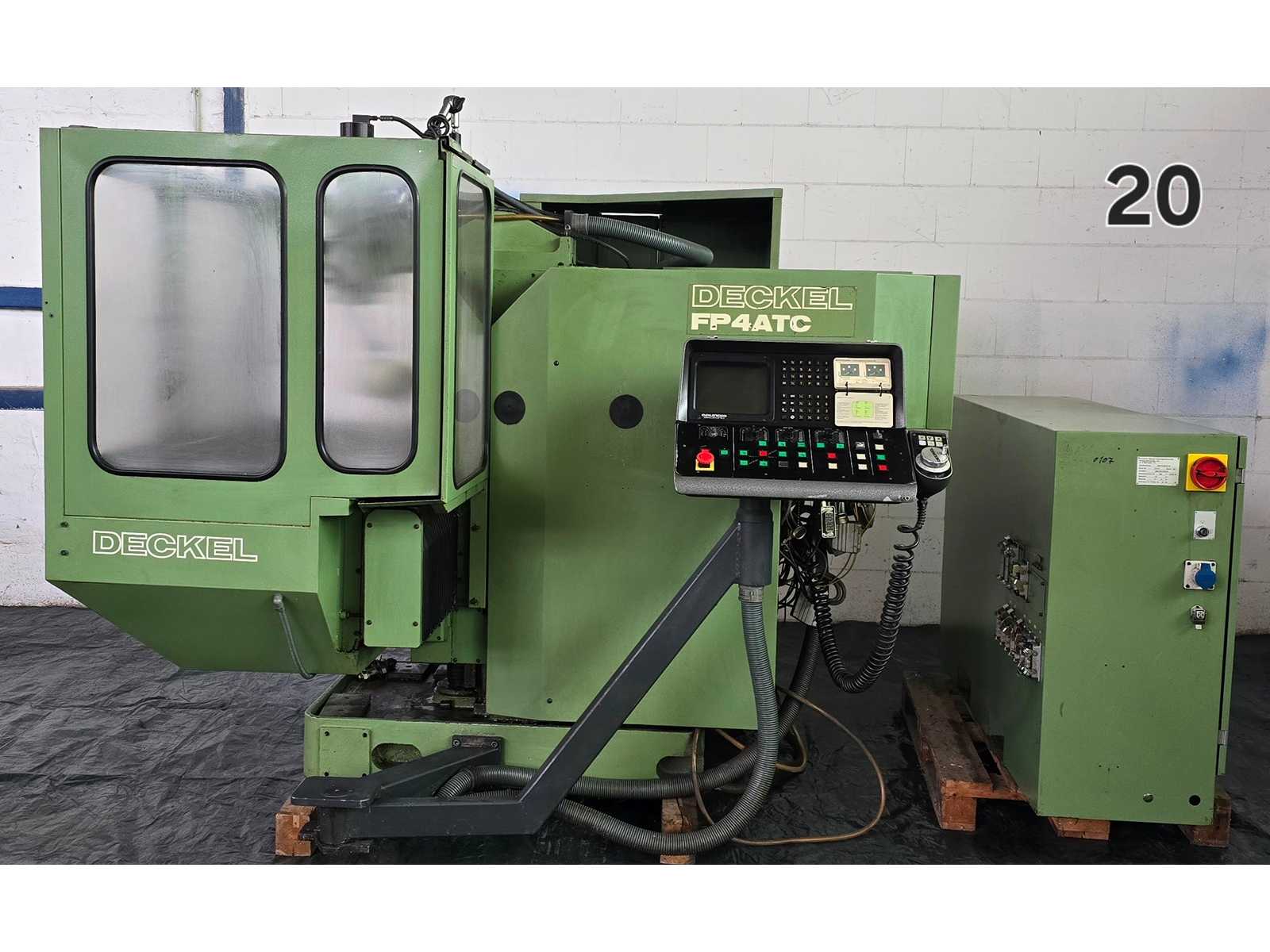

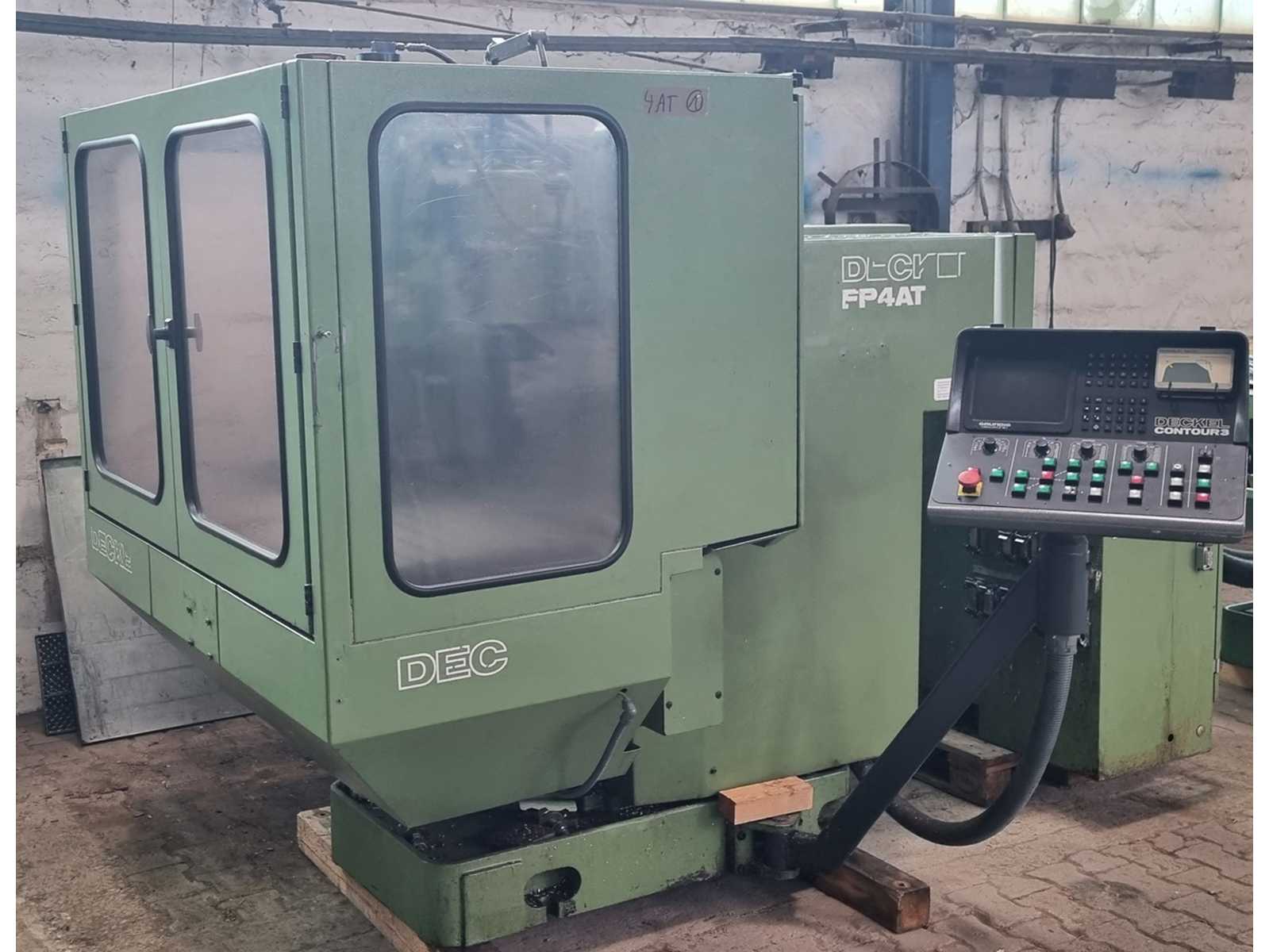

Milling machine DECKEL FP 4 AT Technical data Travel X / Y / Z: 560 / 500 / 390 mm Table size X / Y: 900 / 530 mm Spindle speed: up to 4,000 rpm Control: Contur-3 Recording: SK-40 Weight: approx. 3.4 t Auction-ID: A1-46872-27

Make: Dugard Type: CNC Vertical Machining Center Model: Eagle 1000 VMC Serial number: MC97BF06 Control: FANUC Series 0i-MC Technical data: - X / Y / Z travel: approx. 1000 mm / 500 mm / 500 mm (typical for model class) - Spindle speed: 8000 rpm - Main voltage: 415 V AC - Power requirement: 20 kVA - Air required: 5–6 kg/cm² Equipment: - Vertical spindle - Tool holders included (side mounted rack) - Coolant system - Manual pulse generator (handwheel) - Enclosed working area with sliding door Control panel: - Full FANUC keyboard and display - Feed / rapid / spindle override controls - Emergency stop and cycle controls Condition: Used Auction-ID: A7-45993-48

Vertical lathe Gildemeister CTV 250 Technical details Chuck diameter: 250 mm X-axis: 800 mm Z-axis: 300 mm Spindle Spindle head: 170 h5 Spindle diameter in front bearing: 120 mm Spindle bore: 79 mm C-axis Number of workstations: 12 Auction-ID: A1-46872-36

Type: CNC Vertical Machining Center Brand: EMSIL Techtrans Model: DMC2100H Control: FANUC Series 18i-MB Machine Type: Super Vertical Machining Center Axes: 3-axis (X / Y / Z) Equipment: - Enclosed working area with sliding doors - Large T-slot worktable - Automatic tool interface (tool holder included) - CNC control panel with screen and full keypad - Emergency stop - Coolant system with adjustable nozzles - Electrical cabinet integrated - Status signal tower (stack light) Displayed Data (at time of inspection): Run time: approx. 19,568 h Part count: 84,933 Condition: Used Remarks: Alarm displayed (pressure low); machine not tested; sold as seen Auction-ID: A7-45993-78

CNC lathe GILDEMEISTER CTX 420 Linear Year of Make: 2007 Control: Siemens 840 D Technical data Turning length: 600 mm Turning diameter: 680 mm Spindle passage: 79 mm Speed: 5,000 rpm Variable rotation speed: 5,000 rpm Spindle power: 25 kW Chip conveyor: Yes Main spindle with rod passage: Ø 65 mm Self-centering autoblock: Ø 250 mm Auction-ID: A1-46872-8

CNC control Traub System TX8 D, with 1 turret with 14 tool positions and 1 turret with 9 tool positions, driven tools, max. turning length approx. 1000 mm, bar passage 80 mm, power 73 KW, with fleece filter system and chip conveyor

DOOSAN VCF 850 LSR II is a multi-purpose, vertical machining centers suitable for a wide range of applications. 1993 working hours (like new)

CNC control Traub System TX8 I, bar passage 42 mm, max. turning length 450 mm, max. speed 8000 rpm, 2 turrets with 10 tool positions each, driven tools, chip conveyor KNOLL 240 S-1/50, filtration system/compact belt filter RESY KBF 452/500

Oxy-fuel cnc cutting machine. Prestine condition.

CNC control MORI SEIKI MSX-501, 2 turrets with 16 tool positions each, driven tools, 2 spindles, bar passage 52 mm, max. speed 6000 rpm, max. turning diameter 190 mm, max. turning length 450 mm, Y-axis +/- 40 mm, machine weight 5,100 kg, chip conveyor

turning diameter:120 mm turning length:100 mm control:Fanuc Spindle 1 power:7,5 kW Spindle 1 RPM:4500 1/min Spindle 2 power:7,5 kW Spindle 2 RPM:4500 1/min Distance between spindle noses:600 mm Turret No.1 stations / rotary tools:15/15 Power rotary tools turret 1:2,7 kW RPM of rotary tools turret 1:4000 1/min Turret No.2 stations / rotary tools:15/15 Power rotary tools turret 2:2,7 kW RPM of rotary tools turret 2:4000 1/min Travel x/z turret 1:250 / 300 mm Travel x/z turret 2:250 / 920 mm Bar capacity spindle 1:51 mm Bar capacity spindle 2:51 mm power chuck:165 mm Spindle bore sp. 1:62 mm Spindle bore sp. 2:62 mm dimensions of the machine ca.:3700 x 2300 x 3000 mm weight of the machine ca.:5600 kg Used CNC-2-spindle CNC turning and milling center with gantry loader - 2x 15 station turret -automatic gantry loader with turnaround station. 14 station-magazin right side Max. Parts size Ø 12 ...

Key data: 800 mm, 600 mm, 500 1/min

CNC control Traub System TX8 I, bar passage 42 mm, max. turning length 450 mm, max. speed 8000 rpm, 2 turrets with 10 tool positions each, driven tools, coolant device, chip conveyor KNOLL 240 S-1/50, filtration system/compact belt filter RESY

turning diameter:356 mm turning length:705 mm control: CELOS M730 UM MAPPS swing dia.:742 mm standard turning diameter:275 mm travel -x axis:260 mm travel -y axis:100 ( ±50) mm travel -z axis:795 mm rapid travel - longitudinal/face:30 / 30 m/min Rapid travel B-axis (parts transfer subspindle):734 m/min Spindle 1 RPM:4000 1/min Spindle 1 Power:15/18,5/18,5 kW Spindle 1 Torque:409/505 /599 Nm Spindle 1 max. bar diameter:80 mm Spindle 2 RPM:4500 1/min Spindle 2 power:7,5/11 kW turret stations / rotary tool stations:20 / 20 BMT40 speed of driven tools:10000 1/min :3.7/5,5/5,5 kW torque rotary tools:14 / 24 Nm total power requirement:38 kVA weight of the machine ca.:6,3 t dimensions of the machine ca.:4 (9) x 2,1 x 2,2 m Parts catcher:Sp. 1 und Sp. 2 Spindle 1 Chuck:Kitagawa B 210 (250 mm) Spindle 2 Chuck:Kitagawa B 206 (160 mm) Tool presetter:Spindle 1 & 2 High precision Turning and Millin ...

consisting of: CNC lathe EMAG VL3 DSL, BJ. 2012, Ser. No. 103899 and CNC lathe EMAG VLY , BJ. 2012, Ser. No. 10390, each CNC control SIEMENS SINUMERIK, robot loading system with loading robot FANUC M10iA, BJ. 2012, each machine with WW ME-FI 600 filter system, Sermeto HENNIG 30 S chip extraction, EMAG cooling unit, coolant device, workpiece conveyor system and hand control panel

CNC control FANUC Series 31i MODEL B, spindle passage 20 mm, 8-axis incl. Y2 axis, main and counter spindle speed max. 8000 rpm, driven tools, machine weight 3,800 kg, with bar loading magazine FMB Minimag 20, with coolant system, filter system, extinguishing system KRAFT & BAUER and chip conveyor

turning diameter:370 mm turning length:200 mm Spindle 1 RPM:4000 1/min control:Siemens 840 D Spindle 2 RPM:4000 1/min power capacity:L / R 18/24 kW max. torque on the spindle:630 nM C-Axis:0,001° Turret No.1 stations / rotary tools:12/12 VDI 40 Turret No.2 stations / rotary tools:12/12 VDI 40 turning speed range - milling:3000 1/min power capacity - milling spindle:8,8 kW torque rotary tools:28 Nm Bar capacity spindle 1:85 mm total power requirement:65 kVA weight of the machine ca.:13 t dimensions of the machine ca.:5,7x2,4x2,1 m Travel x1:260 mm Travel x2:260 mm Travel Y1:600 mm Travel y2:600 mm Power Chuck:2 x 250 mm manual tool eye:l & r High performance 6-axis subspindle CNC-Lathe with twin turren and rotating tools.

CNC control FANUC Series 31i MODEL B, spindle passage 20 mm, 8-axis incl. Y2 axis, main and counter spindle speed max. 8000 rpm, driven tools, machine weight 3,800 kg, with bar loading magazine FMB Minimag 21, with coolant system, filter system, extinguishing system KRAFT & BAUER and chip conveyor

standard turning dia.:200 turning length:max. 810 mm control:MSX-701 MAPPS IV greates pass round over bed:800 mm Max. distance between centres:1130 mm max. turning diameter:320 mm max. workpiecediameter:300 mm bar material dia.:65 mm Traverse X-Axis 1:210 Traverse X-Axis 2:210 mm Traverse X-Axis 3:210 mm Traverse Y-Axis 1:110 (+65/-45) mm Traverse Y-Axis 2:110 (+45,/-65) mm Traverse Z-Axis 1:300 mm Traverse Z-Axis 3:300 mm Traverse Z-Axis 2:810 mm Traverse B-Axis:870 mm turning speed range - spindle:5.000 1/min Number of spindle speed ranges:2 . spindle nose:JIS A2-6 spindle bore:73 mm spindle bearing diameter:120 mm C-Axis:0,001 ° turning speed range - spindle:5.000 1/min spindle nose:JIS A2-6 spindle bore:73 mm bar material dia. max:65/52 mm spindle bearing diameter:120 mm C-Axis:0,001 ° Number of Turrets:3 . Number of tool stations:16 x 3=48 pos Schank height for square tool:20 mm D ...

Fanuc 18i-T, live tooling, sub-spindle Max turning diameter: 390 mm Recommended turning diameter: 170 mm Max bar capacity: 65 mm X-axis travel: 205 mm Z-axis travel: 580 mm C-axis: 360° Chuck size: 210 mm Spindle nose: ASA A2-6 Spindle bore: 76 mm Spindle motor power: 15/11 kW Rapid traverse X/Z: 20/25 m/min Turret positions: 12 Bar capacity: 65 mm Coolant pump motor: 0.24 kW Electrical requirement: 25 kVA Machine height: 1740 mm Machine weight: 4240 kg Control system: FANUC FS18T-C / FS16T-C Auction-ID: A7-46053-17

turning diameter:65 mm turning length:120 mm control:Index C200-4D SL z-axis main spindle travel:390 mm z-axis subspindle travel:390 mm x-axis subspindle travel:600 mm Travel Y1:± 80 mm Travel y2:± 80 mm x-axis rapids:45 m/min y-axis rapids:15 m/min z-axis rapid travel:45 m/min Spindle 1 RPM:5000 1/min Spindle 1 Power:35,5/27,5 kW Spindle 1 Torque:170 /125 Nm Spindle 2 RPM:5000 1/min Spindle 2 power:35,5/27,5 kW Spindle 2 torque:170/125 Nm c-axis:0,00014 ° bar material dia.:65 mm spindle nose:AD 140 spindle bore:85 mm Milling spindle 1 RPM:18000 1/min Milling spindle 1 power:11 kW Milling Spindle1 torque:19 Nm Milling spindle 2 RPM:18000 1/min Milling Spindle 2 power:11 kW Milling spindle 2 torque:19 Nm B-axes swivel angle:230 ° B-axes torque:440 Nm B-axes angle resolution:0,001 ° Milling spindle 1 & 2 tool magazine:80 HSK A40 Milling spindle 2 tool magazine static tools :6 x VDI 25 ...

Model: Rover 24XL Serial Number: 32495 Working range X: 6170 mm Working range Y: 1380 mm Working range Z: 155 mm Main motor: 7.5 kW Max rotation speed: 24,000 rpm Tool change positions: 7 Vertical drill bits: 14 Horizontal drill bits X: 4 Horizontal drill bits Y: 2 Worktop: 10 bars, 4 trolleys per bar Suction cups: also included, in good condition, spare Plane positioning: automatic Vacuum pump: Busch MM1252 AV Chip conveyor belt Auction-ID: A7-46828-1

turning diameter:640 / 400 mm turning length:1500 mm control:Siemens 840 D Powerline Travel turret No.1 (milling spindle) x/y/z:550 / 180 (±90) / 1585 mm Swivle angle milling spindle (B-axis):±120° interpol. ° Rapid traverse feeds turret 1 (milling head) x/y/z:40/24/60 m/min RPM milling spindle:12000 1/min power capacity - milling spindle:12 / 23 kW Torque of milling spindle:100 Nm Tool magazine for milling spindle (turret 1):120 HSK-A 63 Tool change time tool/tool, milling spindle:1,6 s Spindle 1 RPM:4000 1/min Spindle 1 power:36/ 45 kW Spindle 1 Torque:730 Nm Spindle 1 max. bar diameter:90 Spindle 2 RPM:4000 1/min Spindle 2 power:36 / 45 kW Spindle 2 torque:730 Nm Spindle 2 max. bar diameter:90 c-axis:0,001 ° Travel turret 2 x:225 mm Travel Turret 2 z:1595 mm RPM of rotary tools turret 2:4000 1/min no. of tools in turret 2:12 VDI 40 high-pressure pump:20 bar total power requiremen ...

turning diameter:670 mm turning length:1540 mm control:F31iB5 Celos Fanuc 35iB5 swing diameter max. over bed cover:700 mm Travel turret No.1 (milling spindle) x/y/z:495 / ± 150 / 1562(+164) mm Rotation B-axis:-30° / +210° Rapid traverse feeds turret 1 (milling head) x/y/z:40/40/40 m/min RPM milling spindle:12000 1/min power capacity - milling spindle:20,2/18,8 kW Torque of milling spindle:120 / 44 Nm tool taper milling spindle:Coromant Capto C6 Tool magazine for milling spindle (turret 1):76 Tool change time tool/tool, milling spindle:1,25 s Spindle 1 RPM:3000 1/min Spindle 1 Power:36 / 30 / 25 kW C-axis spindle 1:0,001 ° Bar capacity spindle 1:102 mm Spindle 2 RPM:4000 1/min Spindle 2 power:26 / 22 / 15 kW C-axis spindle 2:0,001 ° Bar capacity spindle 2:80 mm dimensions of the machine ca.:7,8 x 3,6 x 2,9 m Linear scales on axis:X, Y programmable steady:KLU-A530 & SLU-X3.2 Spindle 1 ...

Fanuc 21i-M control, enclosed VMC Spindle taper: BT40 Spindle speed range: 72–10000 rpm Spindle motor power: 5.5/3.7 kW Pull stud bolt type: MAS-P40T-1 Number of tools: 20 Maximum tool weight: 5 kg Maximum tool diameter: 100 mm Maximum tool length: 250 mm Tool change time (T-T): 1.2 sec Tool change time (T-C): 2.8 sec Pallet change method: Turning-table method Pallet change time: 4 sec Drilling capability: Ø22 mm Tapping capability: M18 Milling capability: 20 cc/min Machine weight: 4000 kg NC device: FANUC 21i-MA Auction-ID: A7-46053-21

turning diameter:500 mm turning length:1000 mm control:Siemens 840 D spindle:42 / 28 kW spindle turning speed - stepless:31 - 4000 1/min max. torque on the spindle:345 Nm c-axis:360000 x 0,001° feeds -stepless-:0 - 10000 mm/min rapid traverse:10000 mm/min turret stations / rotary tool stations:12/12 VDI 40 RPM of rotary tools:2000 1/min diameter of quill:90 mm quill stroke:80 mm tailstock quill taper ISO:SK 30 Tailstock Travel:600 mm Power rotary tools:3,5 kW :22,5 Nm Rotary tool holders:4 ax./ 4 rad. spindle passage:66 mm total power requirement:30 kW weight of the machine ca.:7,5 t dimensions of the machine ca.:8x 3 x 4 m

turning diameter:356 mm turning length:705 mm control:MSX 850 MAPPS II swing dia.:755 mm standard turning diameter:275 mm travel -x axis:260 mm travel -y axis:100 (+-50) mm travel -z axis:795 mm rapid travel - longitudinal/face:30 / 30 m/min rapid traverse Y-axis:10 m/min Rapid travel B-axis (parts transfer subspindle):30 m/min Spindle 1 RPM:4000 1/min Spindle 1 Power:18,5/18,5/15 kW Spindle 1 max. bar diameter:80 mm Spindle 2 RPM:6000 1/min Spindle 2 power:11 / 7,5 kW turret stations / rotary tool stations:16 / 16 VDI 30 :5.5/5,5/3,7 kW speed of driven tools:6000 1/min total power requirement:39,2 kVA weight of the machine ca.:6,2 t dimensions of the machine ca.:3,1 x 2,0 x 2,2 m Spindle 1 Chuck:Kitagawa B 210 (250 mm) Spindle 2 Chuck:Kitagawa B 206 (160 mm) High precision Turning and Milling Centre with Y-axis and sub spindle. Easy programming by MAPPS II Control.

able dimensions ( x-y/mm) 6500 x 1800 Stroke ( X/mm) 6210 Stroke ( Y/mm) 3440 Stroke ( Z/mm) 1103 Type of controll heidenhain Number of spindle per minute 35 - 6000 Tool magazine yes Number of inserts in the tool magazine 60

Functions/Processing: Punching & Punching Nibbling Laser cutting (contours, inner contours), forming (e.g. beading, thread forming), countersinking / deburring, combination of several processes in one process This makes it particularly suitable for: thin to medium sheet metal Punching force: 220 kN (22 tons) Laser power: approx. 1.8 – 2.7 kW Working range circa. 3000 × 1500 mm Working range: approx. 3000 × 1600 mm Max. sheet thickness to approx. 6- 8 mm steel maximum. Punching diameter: 76.2 mm travel speed to approx. 108 m/min. - incl. 20 scoffers - incl. air cushion at the front - incl. table extension on the right and left for processing material up to 4.5mtr. Length - without punching tools, these are sold separately as a bundle - Regular maintenance and water change carried out by the service for trump machines - All service documents available A license of the Trumpf Tops  ...

Excellent condition - Fully operational - Loading / Transport possible! • CNC hydraulic press brake • Total installed power 12.50 KW • Maximum bending force 1300 KN (132 T) • Maximum pressure 300 Bar • Maximum working length 3140 mm • Maximum distance between uprights 2700 mm • Throat depth 420 mm • Maximum stroke 200 mm • Table width 90 mm • Approach speed: 1 - 100 mm/sec • Working speed: 1 - 10 mm/sec • Return speed: 1 - 100 mm/sec • AMNC control • Various accessories are included • Transport dimensions 5000 x 2060 x 2850 mm

turning diameter:1600 mm turning length:12000 mm control:FAGOR 8050 Used CNC Lathe with FAGOR 8050 and extensive accessories. For further technical data and accessories, pls browse the Appendix. Parallellathe WMW mod. 4 GUIDE-WAYS ¦ CNC: FAGOR 8050 ¦ bed: monolithic ¦ centres height: 800 mm ¦ centres distance: 12000 mm ¦ swing over cross-slide: 1250 mm ¦ turret: automatic 4 positions ¦ tailstock: motorized ¦ tailstock connection: hydraulic ¦ platform: diam. 1000 mm ¦ steady rests: nr.02 ¦ chip conveyor Warranty: none Take advantage of the favorable leasing and hire-purchase terms from IKB Leasing. Ask us about it.

Table dimensions ( x-y/mm) 3000 x 6000 Stroke ( X/mm) 7000 Stroke ( Y/mm) 3200 Stroke ( Z/mm) 1500 Type of controll heidenhain tnc 640 Number of spindle per minute 18000 Chuck connection hsk a 63 Type of head universal automatic bi-rotary Advances 50.000 mm/min Tools connection iso 50 Height ( x/mm) 5380

Excellent condition - Fully operational - Loading / Transport possible! new drive boards (from 2020), 12-fold tool changer (driven), driven C-axis, VDI30, tailstock programmable, tool measuring arm T18, oil mist extraction, Chip Conveyor, high pressure pump, Turn Plus (graphic programming), control: HEIDENHAIN turning diameter: 570mm, turning diameter over bed slide: 420mm

Excellent condition - Fully operational - Loading / Transport possible! Technical details turning diameter 340 mm Turning length 250 mm serial number 03105116 X-Motion 260 mm Z-Motion 520 mm Read off working hours 33,619 h Read off operating hours 45,618 h C-axis simultaneously controllable No Accessories included Yes Integrated C-axis No control OKUMA OSP-U100L number of controlled axes 2 Spindle Bore 62 mm tool taper VDI 40 Turning Speed Range 45-4500 rpm

Specifications Manufacturer: WAFIOS Model / Type: BMZ 42 Machine Number (SN): 27681075 Year of manufacture: 2015 Plan number: 7681 2 9000 75 Power supply: 3~400V Frequency: 50Hz DC Control Voltage: 24V DC AC Voltage: 230V AC Rated Current: 11A Protection: 25 A Equipment Pipe feeder Buffer Unit Workpiece Reception System Pipe Rotation Unit Bending module Workpiece Placement System Output tape Mesh Fence Light barrier system Separate operator terminal Monitor and remote control Workshop cabinet with sliding door Workshop trolley with 5 drawers Hand tools and additional equipment included Pipe diameter: max. 12.7 × 1.5 mm with a tensile strength of max. 600 N/mm² Rod Length: 150-2000 mm Bending head stroke (Z axis): up max. 25 mm down max. 120 mm

Deep Hole Milling Machine TBFZ 1600 CNC Year of Make: 2003 Technical data Travels X-axis travel: 1600 mm Y-axis travel: 1200 mm Z-axis travel: 500 mm W-axis travel: 1200 mm B-axis travel: 360° (turntable) Table Table size (L x W): 1500 x 1500 mm Slots (T-slot): 5 x DIN 650-22 H12, 150 mm spacing Facilities Tool clamping: hydraulic Electrical connection: 400 V, 50 Hz Compressed air connection: nominal flow rate 7000 rpm, operating pressure: 6 bar Botek Driller optionally available Feed Feed Drive: Brushless AC Servo Motors Feed speed: 0 - 20,000 mm/min Rapid traverse: X-axis: 20,000 mm/min Y- and Z-axis: 20,000 mm/min Operating modes Manual mode: 20,000 mm/min Set-up mode: 0 - 2,000 mm/min Auction-ID: A1-46872-2

CNC Lathe Spinner TC67H-MC Year of Make: 1997 Facilities Tailstock Chip conveyor High Pressure Pump Food Powered tools Technical data Control: Siemens 840 D X-travel: 221 mm Z-travel: 590 mm Turning diameter: 300 mm Turning length: 600 mm Speed: 4,500 1/min Auction-ID: A1-46872-12

turning diameter:270 -300 mm turning length:710 mm total power requirement:43 kW weight of the machine ca.:8,5 t dimensions of the machine ca.:3,16 x 2,15 x 2,15 m The machine does not include a chuck or tools ? the machine was originally purchased without these accessories. The G300 has X, Z, Y, C, SP, and driven tools. A bar feeder can be used, but the machine does not have one.

CNC Control: Siemens 828D Table dimensions: 750 x 400 mm X/Y/Z strokes: 600 / 400 / 450 mm Spindle speed: 10,000 rpm Spindle power: 7.5 / 15 kW Spindle nose: SK40 / SA40 Tool magazine: 24 positions Max. tool diameter: 80 mm Max. tool length: 280 mm Max. tool weight: 8 kg Fast feed: 48 m/min Positioning accuracy: ±0.003/300 mm Repeatability: ±0.003 mm Power supply: 400 V, three-phase, 50/60 Hz Options: Rigid tapping, Ethernet/USB, 20 bar IKZ spindle center coolant, electronic crank, spindle cooler Year: 2018 Manufacturer: Priminer Serial No.: PR8318 Dimensions (mm): 2530 x 1800 x 2350 Weight (kg) : 3500 Auction-ID: A1-46647-274

CNC lathe GILDEMEISTER NEF 400 Year of Make: 2005 Control: Siemens 840 D Technical data Turning length: 650 mm Circumferential diameter over bed: 400 mm Circulation diameter over face slide: 270 mm Spindle bore: 65 mm Flat travel (X): 220 mm Longitudinal travel (Z): 700 mm Max. main spindle speed: 4,000 rpm Tool turret: 8-speed Machine weight: approx. 3,175 kg Auction-ID: A1-46872-25

turning diameter:220 mm turning length:310 mm total power requirement:17 kW weight of the machine ca.:3,3 t dimensions of the machine ca.:2,25 x 1,63 x 1940 m greates pass round over bed:430 mm bore diameter:45 mm centre distance:687 mm slide travel radial ( X-axis ):160 mm slide travel axial ( Z-axis ):310 mm spindle turning speed range:0-6.300 U/min

strong>Feed in longitudinal direction table (X-axis): 560 mm Feed in transverse direction head (Y-axis): 500 mm Head adjustment in height (Z-axis): 450 mm Table dimensions: 530 x 900 mm Max. weight on the table: 300 kg Spindle holder (ISO): SK 40 (M16) Power at the spindle: 2 - 4 kW Tool Changer: 20 Tools Speed range: 21 / 40 - 4,000 rpm Main motor power: 19 kVA Length: 4,400 mm Width: 4,300 mm Height: 2,150 mm Weight: 2,970 kg Auction-ID: A1-46872-31

turning diameter:220 mm turning length:700 / 665 mm total power requirement:17 kW weight of the machine ca.:2,6 t dimensions of the machine ca.:2,63 x 1,98 x 1,94 m greates pass round over bed:430 mm Part length max.:510 slide travel radial ( X-axis ):160 mm bore diameter:45 mm Texte, Bilder, Grafiken, Layout, Strukturen und Algorithmen etc. unterliegen weltweitem Urheberrecht. Unerlaubte Verwendung der Daten, werden sowohl strafrechtlich als auch zivilrechtlich verfolgt. Das ausschließliche Urheber- / Nutzungsrecht dieser Daten wurde nachfolgender Person eingeräumt. Copyright © 2005-2026, Josef Weber. All rights reserved.

turning diameter:270 mm turning length:710 mm weight of the machine ca.:6,5 t max. swing diameter:590 mm with automatic loading and unloading system G300 with "spindle bore clamping capacity 90mm" in tailstock version The machine has no driven tools. The information in the circuit diagram refers to the rotary drive for indexing the turret, not to driven tools.

turning diameter:270 mm turning length:710 mm weight of the machine ca.:6,5 t max. swing diameter:590 mm with automatic loading and unloading system G300 with "spindle bore clamping capacity 90mm" in tailstock version Chip conveyor, belt filter press, hydraulic unit, as well as infeed and outfeed chain conveyor EWAP, with 33 pallets. The machine has no driven tools. The information in the circuit diagram refers to the rotary drive for indexing the turret, not to driven tools.

turning diameter:270 mm turning length:710 mm weight of the machine ca.:6,5 t max. swing diameter:590 mm with automatic loading and unloading system, chip conveyor G300 with "spindle bore clamping capacity 90mm" in tailstock version The machine has no driven tools. The information in the circuit diagram refers to the rotary drive for indexing the turret, not to driven tools.

CNC lathe Angelini Oscar Year of Make: 2003 Control: GE Fanuc Series 21i-T Technical data Permissible diameter on the slide: 320 mm Recommended turning diameter: 220 mm Maximum turning diameter: 320 mm Turning length with chuck: 600 mm X-axis travel: 270 mm Travel Z-axis: 720 mm C-axis: available Tool turret: 12-speed VD30 Rapid traverse X-axis: 24 m/min Rapid traverse Z-axis: 32 m/min Spindle nose: ASA 5\" Spindle bore: 61 mm Bar Passage: 52 mm Power spindle motor: 15 kW Maximum spindle speed: 4,500 rpm Diameter hydraulic chuck: 210 mm Tailstock quill diameter: 70 mm Tailstock quill stroke: 190 mm Collet chuck: available Dimensions (L x W x H): 402 x 130 x 199 cm Weight: 4,500 kg Auction-ID: A1-46872-34

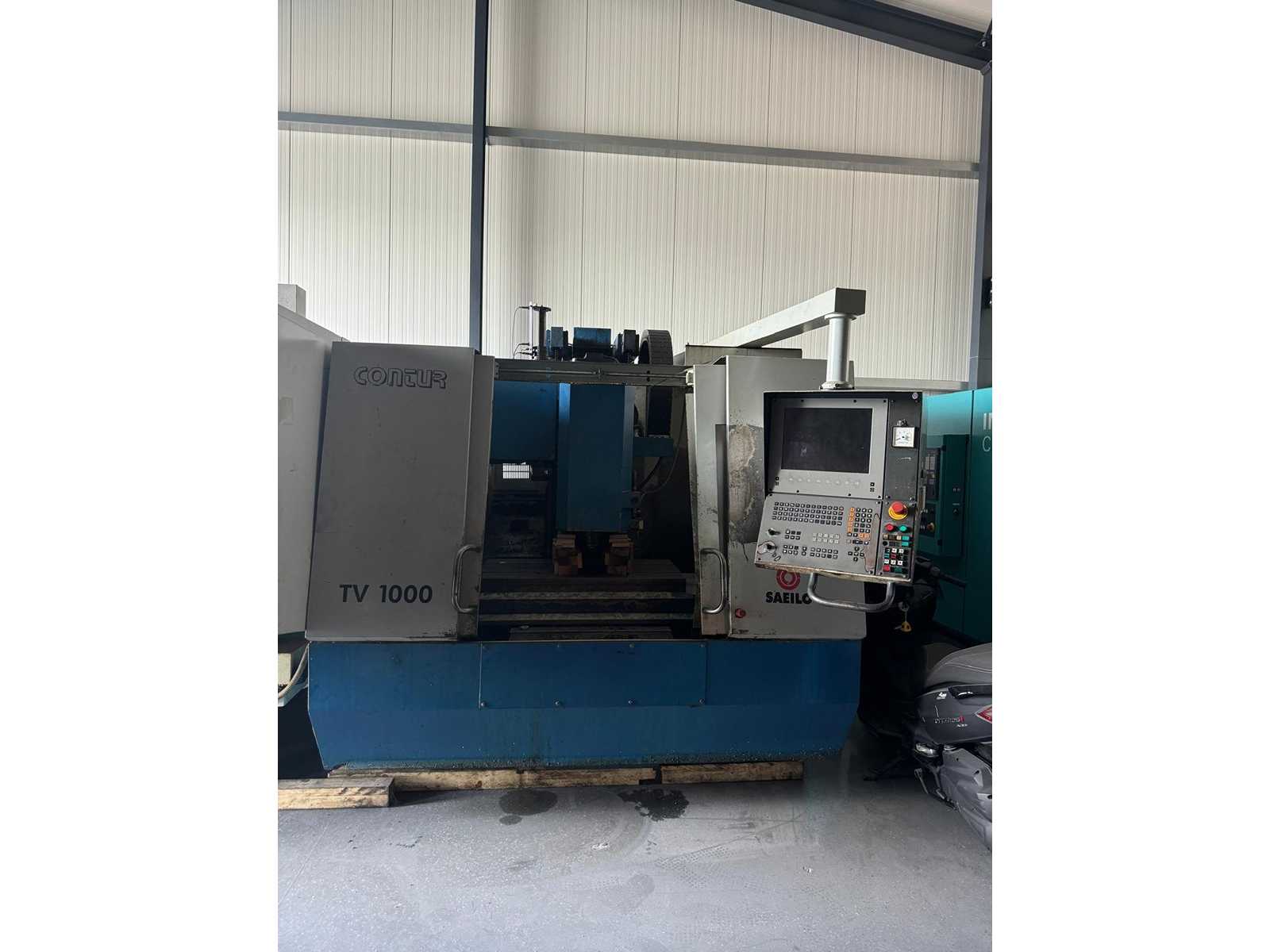

SAEILO CONTUR TV 1000 Manufacturer: SAEILO (Germany) Model: CONTUR TV 1000 Year of Make: 1997 Control: HEIDENHAIN Technical data X/Y/Z axis movement: 1016/610/508mm Table size: 1080 x 580 mm Max. table load: 600 kg Tool change: 40-fold Spindle taper: SK 40 Cutting feed speed X / Y / Z: 0.25 to 5,080 mm/min Rapid traverse X / Y / Z: 20,000 mm/min Rapid traverse Z: 1,500 mm/min Spindle speed: 5 - 8,000 rpm Spindle power: 11 / 16.5 kW Machine weight: 6,000 kg Auction-ID: A1-46872-46

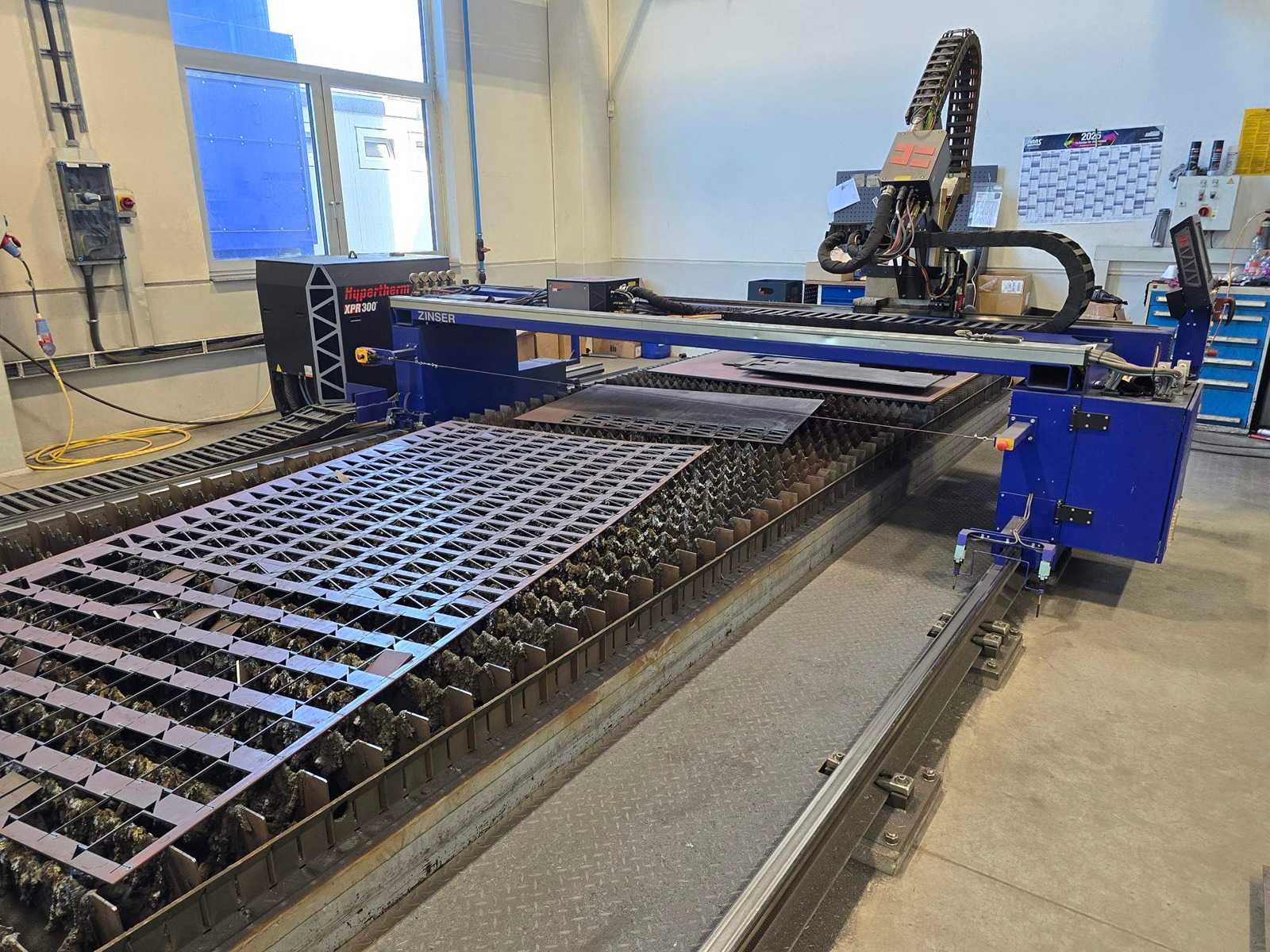

ZINSER 2425-I CNC plasma cutting machine with Hypertherm XPR300 Bevel and vibrating conveyor table Year of construction 2017 For sale is a high-quality CNC-controlled plasma and oxy-fuel flame cutting machine ZINSER 2425-I/3600 with Hypertherm XPR300 Bevel system. The system is ideally suited for precise plasma bevel and contour cuts in steel, machine and plant engineering. Equipment & technical data • Manufacturer: ZINSER • Model: 2425-I / 3600 • Year of construction: 2017 • Hypertherm XPR300 plasma system • Hypertherm XPR VWI automatic throttle console • CNC control ZINSER 5010 with touch screen • Plasma bevel system for automatic bevel cuts up to ±50° • Vibrating conveyor table ZINTRAC-21/81 • Includes DOWNFLO 3DFP9-SP extraction and filter system • Automatic torch height adjustment • Joystick control • Laser diode for sheet metal laye ...
