turning diameter:26 mm Article: High-precision CNC lathe with linear cross slide Manufacturer: Benzinger Type: GOFuture B1 Yob: 2015 Machine was only used for reworking, so only light machining work was carried out! Control: Siemens Sinumerik 840Dsl Main spindle: maintenance-free motor spindle Bar capacity: D26mm Chip processing container with coolant pump: 30l/min at 5bar Loading and unloading device type IB Additional gripper system for placing the workpieces in the correct position on the unloading conveyor Coaxial valve for coolant to the linear tools (3 pieces) Internal clamping device C-axis main spindle for digital control incl. Transmit function Adjusting microscope 16x magnification Coolant supply through the clamping cylinder of the spindle, sealing air, Speed increase of the motor spindle to 8,0000 rpm Nordmann tool monitoring Profibus master interface Hinged belt conveyor Kno ...

turning diameter:26 mm Article: High-precision CNC lathe with linear cross slide Manufacturer: Benzinger Type: GOFuture B1 Yob: 2016 Machine was only used for reworking, i.e. only light machining work was carried out! Control: Siemens Sinumerik 840Dsl Main spindle: maintenance-free motor spindle Bar capacity: D26mm Loading and unloading device type IB Additional gripper system for placing the workpieces in the correct position on the unloading belt Coaxial valve for coolant to the linear tools (3 pieces) Internal clamping device C-axis main spindle for digital control incl. transmit function Adjusting microscope 16x magnification Coolant supply through the spindle clamping cylinder, Sealing air, Speed increase of the motor spindle to 8. 0000 rpm Nordmann tool monitoring Profibus master interface Hinged belt conveyor Knoll Compact coolant device Knoll MBE interface Small fire extinguishin ...

CNC Control: BROTHER CNC-A00 X/ Y/Z Axis Travels: 480 × 360 × 410 mm Table Dimensions: 600 × 300 mm Number of Tools: 14 Spindle Taper: BT30 Max. Spindle Speed: 16,000 RPM Spindle Motor Power: 7 kVA Drilling Capacities: Steel Ø 32 mm, Aluminum Ø 25 mm, Cast Iron Ø 25 mm Tapping Capacities: steel up to M16 Included equipment: 4 BT30 tool holders, lubrication tank with pump Weight (kg): 1800 Year & Manufacturer: 2007 – BROTHER

Serial number: 1537001259A Operating voltage: 400 V Frequency: 50 Hz Connection: 17 kVA Rated current: 35 A Control: HEIDENHAIN TNC 620 Spindle speed: up to 12,000 rpm Max. spindle torque: 83 Nm Feed speed in X/YZ: up to 20,000 mm/min Rapid traverse in X/Y/Z: 30 m/min Setup operation in X/Y/Z: 20 - 2000 mm/min Travel X-axis: 635 mm Travel Y-axis: 510 mm travel distance Z-axis: 460 mm Displacement measuring system X/Y/Z: 1 μ Positioning uncertainty X/Y/Z: 6 μ Tool holder: SK 40 Table dimensions: 790 x 560 mm Spindle hours read with 5 grooves: approx. 5000 incl. 20-fold tool changer Attention: all tool holders located in the tool changer are included in the scope of delivery! Reference: Schönichen - Lot 47

Strokes: X = 635 mm, Y = 510 mm, Z = 460 mm Spindle speed: 20 – 12,000 rpm Spindle power: AC 13/9 kW Fast feeds: 30 m/min Taper: SK40 DIN69871 Tool changer: 20 positions (disc magazine) + 30 position option Table dimensions: 560 x 790 mm RENISHAW probe: OMP40-2, OTS, OMI-2T module Machine hours: 21,788 h Spindle hours: 8,654 h Lots sold as is, unchecked, without tools or tool holders.

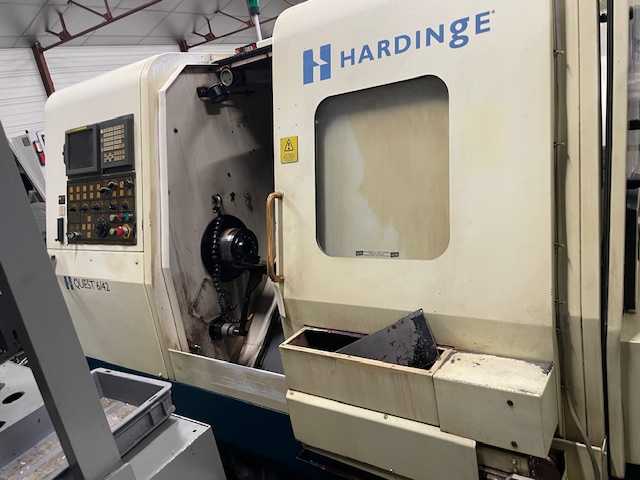

CNC Control: GE FANUC Series 16i-T Number of axes: 2 (with sub-spindle) Main spindle: ASA 5 nose, max. bar passage 42 mm, power 11 kW, max. speed 6,000 rpm Max. rotation diameter: 519.2 mm Max. turning diameter: 308 mm X/Z axis strokes: 189.2 / 406 mm Turret: VDI 30 bidirectional, 16 positions (16 motorized) Sub-spindle: ASA 5 nose, max. bar passage 42 mm, power 7.5 kW, max. speed 6,000 rpm Included equipment: parts catcher, motorized tools and stationary tools (depending on seller) Weight (kg): 5071 Year & Manufacturer: 2001 – HARDINGE

Manufacturer: TOS OLOMOUC Year: 1985 Type: CNC universal milling machine Numerical control: Heidenhain TNC 155 Strokes: X 850 mm / Y 500 mm / Z 450 mm Table: 1250 × 500 mm Spindle: ISO 50 – 1,800 rpm – 16 kW Feeds: 1 to 800 mm/min – fast X/Y/Z 2 m/min Installed power: approx. 22 kW Dimensions (mm): 2400 × 2300 × 2400 Weight (kg): approx. 5000 Notes: Robust CNC tooling universal milling machine from TOS manufacture. Lots sold as is, unchecked, without tools or tool holders.

Connection: 13 kW Control: HEIDENHAIN TNC 425 Table dimensions: 700 x 360 mm T-slots Number x width x distance: 3 x 18 x 110 mm Distance table to floor: 840 mm Max. table load capacity: 300 k Travel X-axis: 960 mm Travel Y-axis: 380 mm Ball screw X and Y-axis: 32 x 10 mm Pitch Diameter Distance table center to stand: min. 190 mm, max. 570 mm Spindle mounting taper: ISO 40 Travel Z-axis: 380 mm Spindle speed: 100 to 6000 rpm Rapid traverse: 15 m/min Positioning accuracy: +-0.01 mm Repeatability: +-0.005 mm Resolution: 0.001 mm incl. 16-fold tool changer Max. diameter for adjacent tools: 85 mm Max. diameter for free secondary positions: 135 mm Max. tool length: 250 mm Permissible weight per tool: 6 kg max. total weight of the tools: 60 kg Attention: without the machine vise shown in the photos! Inkl. 3D Probe Reference: Schönichen - Lot 25

Maximum rotation diameter: 760 mm Maximum turning diameter: 550 mm Maximum turning height: 600 mm Chuck: 15 inches X-axis: 325 mm Z-axis: 625 mm Axis C: Indexation 0.001° Spindle speed: 2,000 RPM Spindle power: 22 kW Spindle nose: A2-11 Type of training: By belt Turret: 12 stations (BMT75) Motorized tool speed: 3,000 rpm Power of motorized tools: 7.5 / 5.5 kW Tool dimensions: 32 x 32 mm Bore bar diameter: Ø 50 mm Fast Forwards: 20 / 18 m/min CNC Control: Fanuc 32i Model B Weight: 8,500 kg Floor dimensions: 2,010 x 3,212 mm

Manufacturer: FAMUP Year: 1994 Type: CNC vertical machining center Numerical control: FANUC Series O-M Strokes: X 600 mm / Y 400 mm / Z 400 mm Table: 400 × 400 mm – max. load 300 kg Spindle: ISO / SK 40 – 6,000 rpm – 11 kW Tool magazine: 18 positions – Max. tool Ø 75 mm – changeover time 2 s Chip conveyor: Yes Dimensions (mm): 3200 × 2900 × 2600 Weight (kg): approx. 3500 Notes: Italian-made CNC vertical machining center, suitable for general milling. Lots sold as is, unchecked, without tools or tool holders.

Manufacturer: DMG (Deckel Maho Gildemeister) Year: 2006 Type: CNC Vertical Machining Center Numerical Control: Heidenhain TNC 530 Strokes: X 635 mm / Y 510 mm / Z 460 mm Spindle: 12,000 rpm Tool magazine: 32 positions Spindle center coolant: 20 bar Filtration: Cartridge filtration Tooling: No tooling supplied with the machine Weight (kg): approx. 6000 Notes: Multi-purpose CNC vertical machining center. Serial number included in the description.

CNC Control: Fanuc 0T-F (with C Axis) Diameter Above Bed: 500 mm Max Turning Diameter: ~280 mm Max Turning Length: ~500 mm Bar Capacity (Main Spindle): 65 mm Bench Design: 30° or 45° Inclined Spindle Nose: ASA 6" Main Spindle Speed: Up to 4,000 RPM Sub-Spindle Speed: Up to 4,000 RPM C-Axis: 0.001°Turret : 12 stations Tooling type: VDI 40 Speed motorized tools: ~3,000 - 4,000 rpm Lots sold as is, unchecked, with tool and tool holder.

CNC control: Heidenhain TNC 530 Machine 5 simultaneous axes Strokes: X = 730 mm, Y = 560 mm, Z = 560 mm Spindle speed: up to 12,000 rpm Cone: SK40 Feeds: 20 – 20,000 mm/min Fast feeds: 30 m/min Table: 1000 x 600 mm Max load table: 800 kg Tool changer: 24 / 30 positions Machine hours≈ 31,481 h Spindle hours≈ 25,087 h Lots sold as is, unchecked, without tools or tool holders.

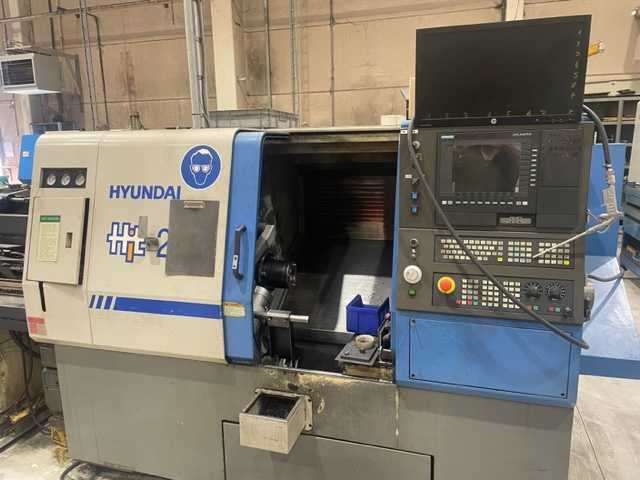

CNC Control: SIEMENS 810 D Number of axes: 3 Max. turning diameter: 325 mm Max. turning length: 400 mm Max. passage over the bed: 500 mm X/ Z axis strokes: 215 / 420 mm Spindle speed: 30 – 4,500 rpm Spindle bore: 52 mm Spindle power: 15 kW Turret: 12 VDI 40 positions with motorized tools Chuck: 3-jaw hydraulic Ø 204 mm Tailstock: present, CM4 taper Tailstock sleeve stroke: 130 mm, Ø 80 mm Included equipment: coolant, bar feeder Weight (kg): approx. 4500 Year & Manufacturer: 2000 – HYUNDAI

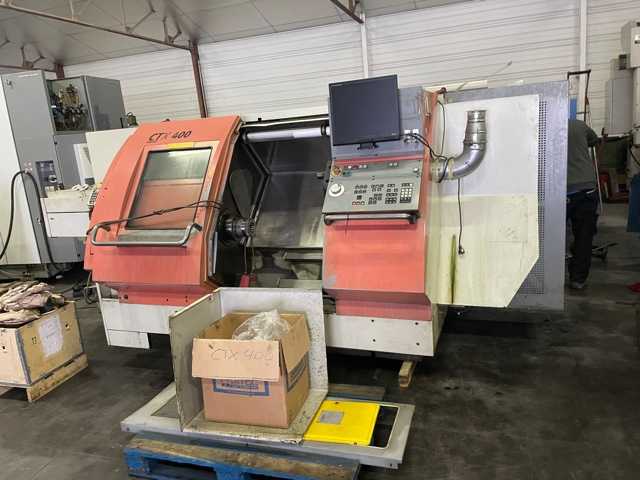

Manufacturer: GILDEMEISTER Year: 1996 Type: CNC lathe Numerical control: Heidenhain ELECTRO PILOT turn plus Axes: 2 axes (X, Z) Turning diameter above the bench: Ø 500 mm Turning diameter above the carriage: Ø 290 mm Max. turning length: 640 mm Spindle: 20–5,000 rpm – 22 kW – max. torque 150 Nm – bore 72 mm – passage 65 mm Strokes: Z 650 mm / X 212 mm Fast feeds X/Z: 10 m/min Tailstock: sleeve Ø 80 mm – CM4 – stroke 100 mm Equipment: 3-jaw chuck Ø 250 mm, SAUTER turret 12 positions VDI 30, tailstock, full documentation Dimensions: approx. 3300 × 1800 × 1900 mm Weight: approx. 5000 kg Remarks: Robust German-made CNC lathe.

Machine number: 71401453 Operating voltage: 400 V Frequency: 50 Hz Rated current: 80 A Connection: 44 kVA Spindle hours read: 26350 Control: MILLPLUS Spindle speed: up to 12000 rpm Feed X/Y/Z axis: 20 - 15000 mm/min Rapid traverse X/Y/Z axis: 40 m/min Displacement measuring system Resolution X/Y/Z axis: 0.001 mm Input gauge X/Y/Z axis: 0.001 mm Position tolerance in X/Y/Z axis: 0.010 mm Travel X-axis: 600 mm Travel Y-axis: 700 mm Travel Z-axis: 600 mm Tool holder: SK 40 incl. 60-fold tool changer Max. tool diameter: 100 mm Max. tool length from spindle nose without tool breakage monitoring: 350 mm NC rotary table Clamping surface: 630 mm Diameter Distance between T-slots: 63 mm Number: 9 Centering bore: 50 mm Diameter Max. rotation of table top: 10.7 rpm Feed: 3600°/min Resolution of the measuring system: 0.001° incl. chip conveyor and cooling system Attention: the machine can be trans ...

FOR SALE – SW BAS03-X2 2XRDT TMB 5-Axis Table for Machining Center Brand: SW (Schwäbische Werkzeugmaschinen) Model: BAS03-X2 2XRDT TMB Type: 5-axis rotary/tilting table Application: SW Horizontal Machining Center Description Original SW 5-axis table disassembled from a machining center. Complete equipment with electrical harnesses, connectors, hoses and pipes visible in the photo. Designed for machining complex parts requiring simultaneous multi-axis operations (rotation + tilt). Rugged industrial equipment, ideal for: Replacement Retrofit Reconditioning Spare parts ⚙️ Technical characteristics Configuration: 2XRDT TMB Function: Rotation + tilting axis Integrated drive Hydraulic/pneumatic connections Complete industrial connectors High rigidity cast iron construction (Nameplate and detailed specifications on request) Status Dismantled in an industrial environ ...

CNC Control: MAZAK & FANUC L-64 Cutting table: spiked Cutting head: CO₂ laser Suction system: KEMPER with external unit Indicated voltage: 40000 V X-Y-Z axis strokes: 3335 x 1545 x 420 mm A-axis: ±360° B-axis: ±135° Maximum part dimensions: 3050 x 1525 x 22 mm Load capacity: 7.9 kN / 810 kgf Laser power: 4000 W Laser Model: YB-L400A8M Weight: 14600 kg Status: Complete machine with suction unit and accessories Additional information: Sold with an additional laser unit and many spare parts Additional information: Disassembly and loading at the expense of the buyer

Manufacturer: FAMUP Year: 1998 Type: CNC vertical machining center Numerical control: Heidenhain 410 AC.Strokes : X 1000 mm / Y 470 to 600 mm / Z 470 to 600 mm (according to documentation) Table: 1300 x 520 mm – T-slots 5 x 18 mm (pitch 100 mm) – max. load 800 kg Spindle: ISO 40 DIN 69871 – AC Brushless – 50 to 8000 rpm – 11 kW (30 min) / 7.5 kW S1 Feeds: X/Y/Z 10000 mm/min – X/Y/Z 30000 mm/min fast tool magazine: 24 positions – max. tool diameter 94 mm – max. length 280 mm – max. weight 6 kg – changeover time 3 s Equipment: without spindle center coolant, without chip conveyor, sold without tools Dimensions: 4247 x 3105 x 3310 mm Weight: 6000 kg Lots sold as is, unchecked, without tools or tool holders.
